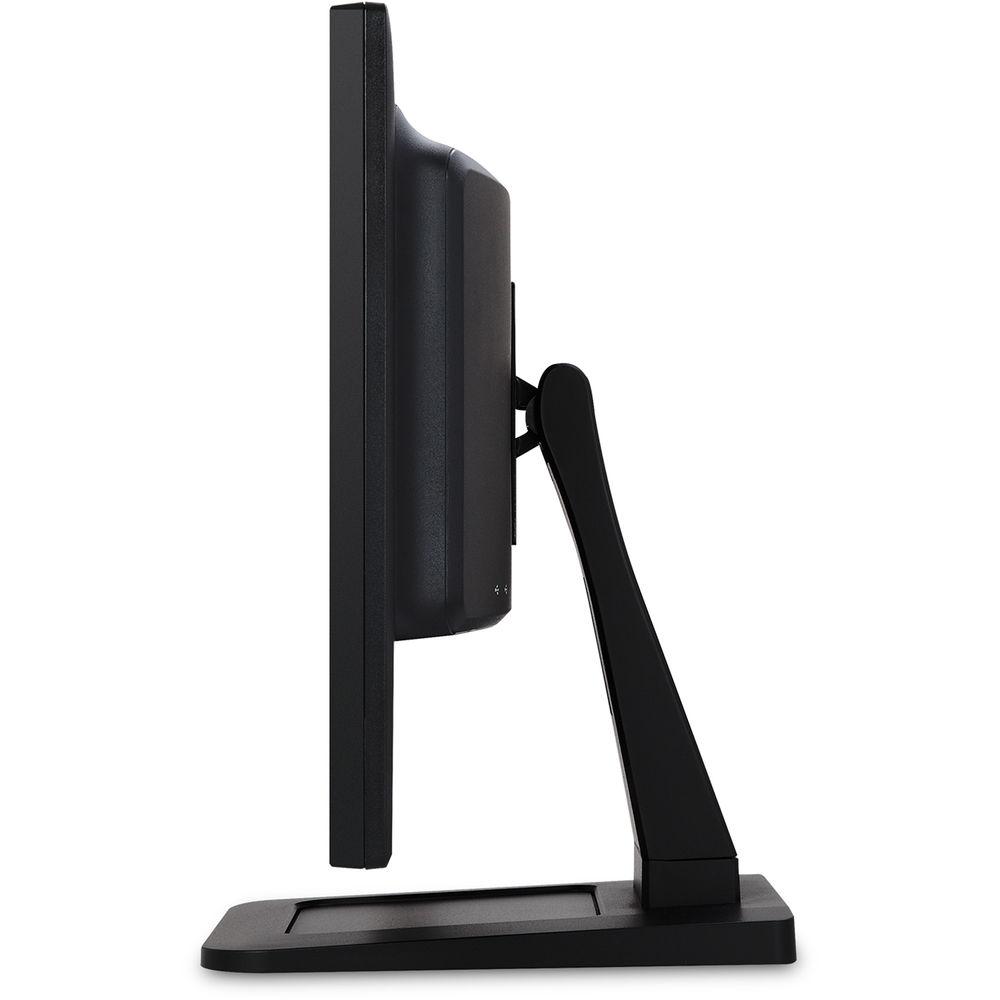

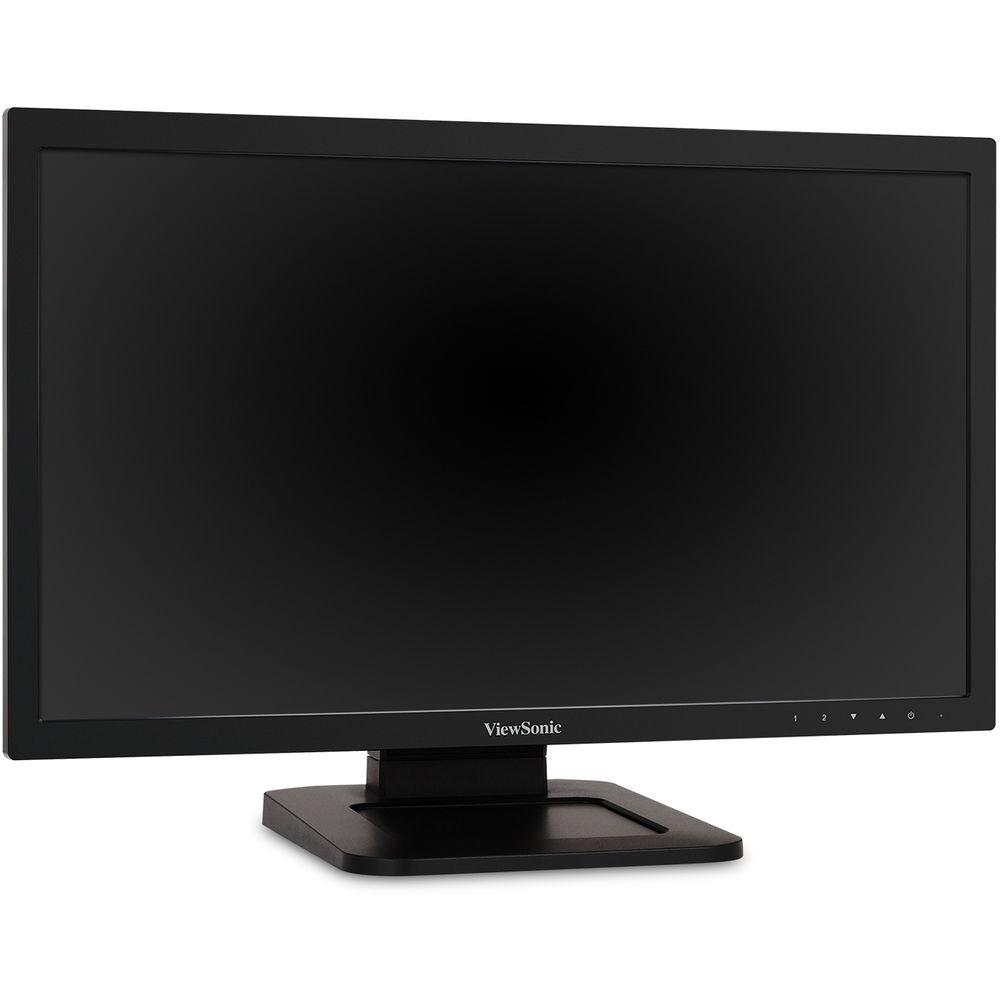

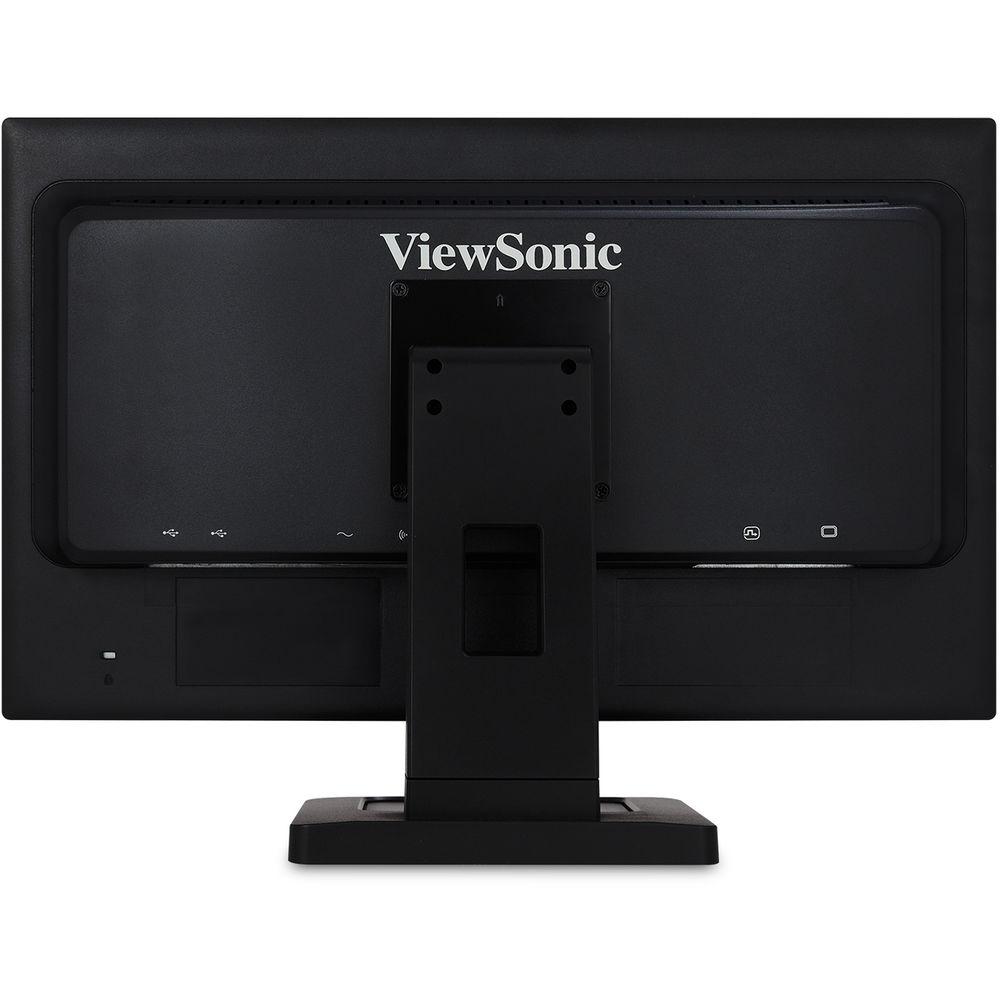

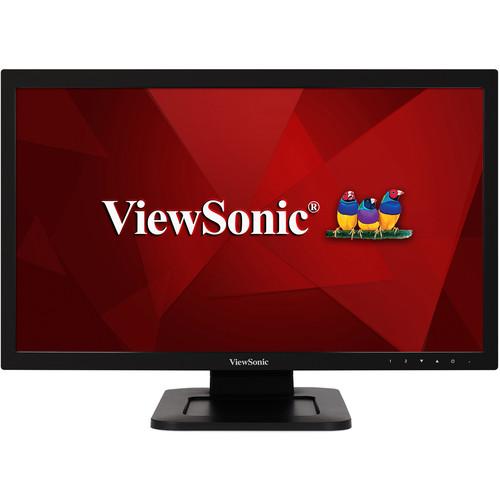

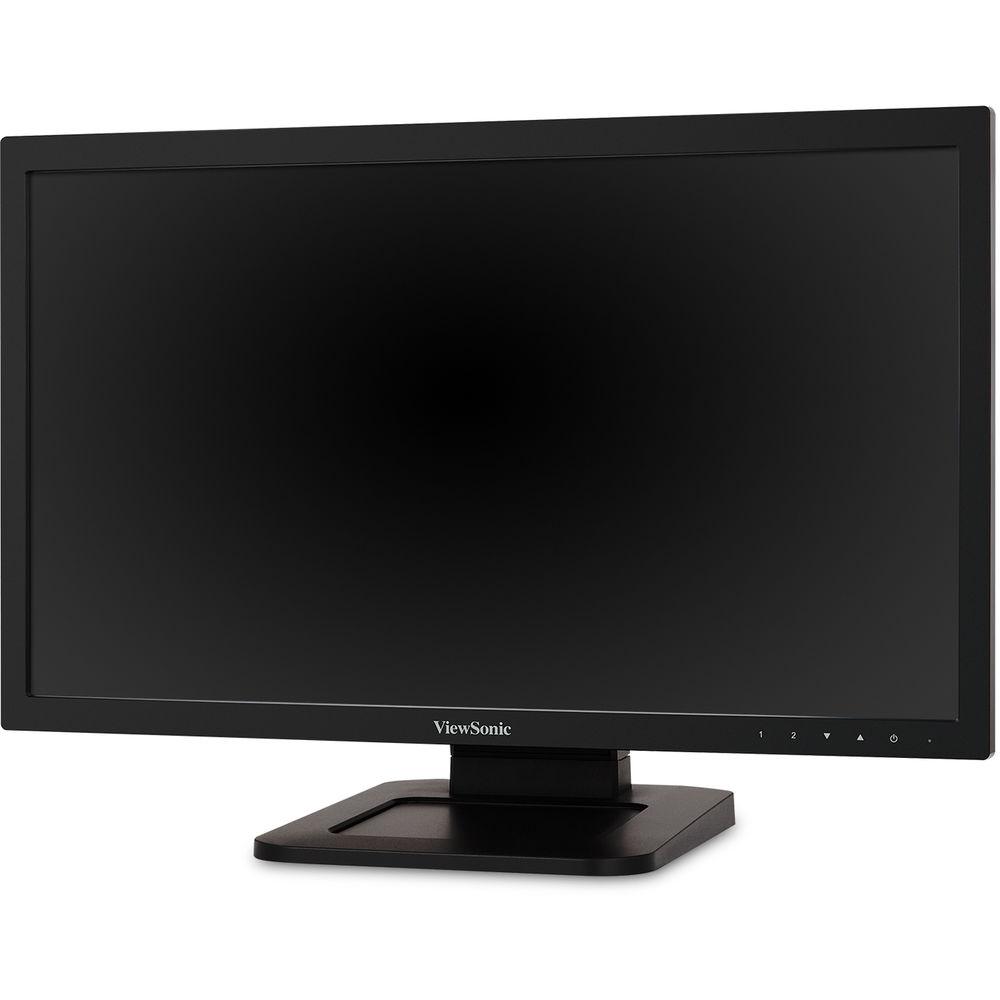

User Manual for ViewSonic TD2210 22" 16:9 Resistive Touch LCD Monitor Click to enlarge the picture
Contents of the user manual for the ViewSonic TD2210 22" 16:9 Resistive Touch
- Product category: Computer Monitors ViewSonic
- Brand: ViewSonic
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for ViewSonic Computer Monitors
 |
User manual for the ViewSonic TD2210 22" 16:9 Resistive Touch contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any ViewSonic product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official ViewSonic user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a ViewSonic product will considerably shorten its lifespan!
|
Product description 10 Factors to Consider When Selecting A Monitor for Video Editing Read More With built-in resistive touch technology, the TD2210 22" 16:9 Resistive Touch LCD Monitor from Viewsonic is an ideal display for retail environments, POS terminals, and more. The display comes resistant to dust and water, making it durable and reliable. Additionally, it can even be used with styluses, making it a suitable monitor for a variety of environments. In addition to the enhanced resistive touch display, the TD2210 also comes equipped with dual 2W stereo speakers providing a complete multimedia experience.

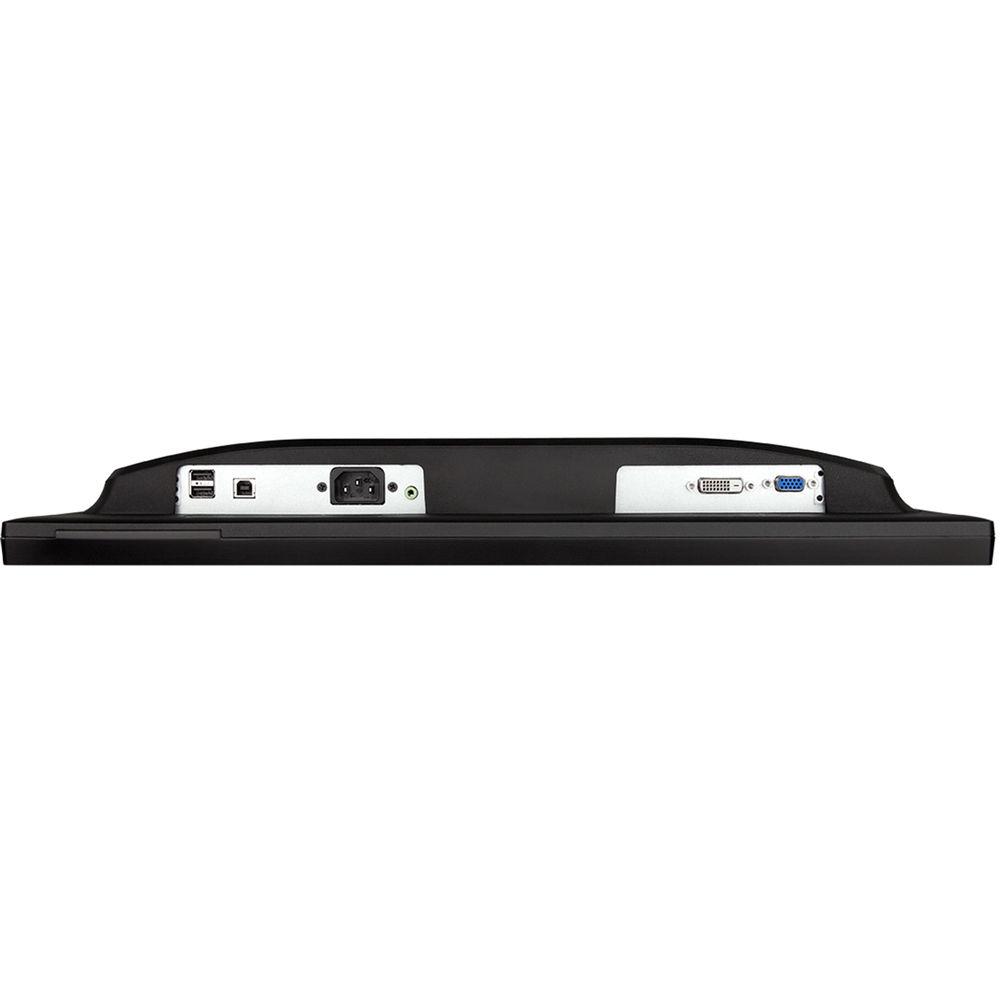

This Viewsonic Resistive Touch TN (Twisted Nematic) Monitor features a Full HD 1920 x 1080 resolution accompanied by a 1,000:1 contrast ratio, 5 ms response time, and 350 cd/m² brightness rating providing a clear picture with improved overall illumination. Setup and configuration of the TD22210 is simple as it comes equipped with both VGA and DVI-I connectors to make it compatible with a wide variety of computers and devices. Users can also take advantage of a single USB 2.0 Type-A port and a single USB 2.0 Type-B port to connect USB enabled peripherals directly to the display. - Resistive Touch Technology
- With resistive touch technology, this monitor features a pressure-sensing touchscreen that is resistant to dust and water, making it ideal for use in retail, POS, and commercial environments. Because non-conductive inputs can be used, this display is also fully functional in gloved environments and compatible with styluses.
- Versatile Connectivity
- DVI and VGA inputs give you the freedom to connect your monitor to a variety of devices.
- MEGA Dynamic Contrast Ratio
- A superior MEGA dynamic contrast ratio better defines the relationship between the dark and bright colors, ensuring that this monitor delivers an immersive experience with accurate, rich, and vibrant images.
- Dual Integrated Speakers
- Designed with dual integrated speakers, this monitor combines enhanced screen performance with stereo sound for an immersive multimedia experience.
UPC: 766907856217 In the Box ViewSonic TD2210 22" 16:9 Resistive Touch LCD Monitor Power Cable VGA Cable DVI Cable USB 2.0 Cable Audio Cable Wizard CD-ROM Limited 3-Year Warranty User Manual PDF 898.2kb More from Manufacturer Table of Contents
|
Upload User Manual
Have you got an user manual for the ViewSonic TD2210 22" 16:9 Resistive Touch LCD Monitor in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersViewSonic TD2210 Specs | | | Size | 21.5" | | Panel Type | TN LCD | | Touchscreen | Yes | | Resolution | 1920 x 1080 | | Aspect Ratio | 16:9 | | Hardness Rating | 3H | | Maximum Brightness | 350 cd/m2 | | Contrast Ratio | 1000:1 | | Dynamic Contrast Ratio | 20,000,000:1 | | Adaptive Sync Technology | None | | Horizontal Frequency | 24 to 83 kHz | | Vertical Frequency | 50 to 76 Hz | | Bit Depth / Color Support | 8-Bit (16.7 Million Colors) | | Response Time | 5 ms (GtG) | | Viewing Angle | Horizontal: 170°
Vertical: 160° | | Backlight Lifespan | 40,000 Hours | | | | Connectivity | 1 x USB Type-B 2.0 Input
1 x USB Type-A 2.0 Output
1 x DVI-I
1 x VGA | | Built-In Speakers | Yes, 2 x 2 W | | | | Power Consumption | 29.5 W (Maximum)
17.5 W (Typical)
0.5 W (Standby)
14 W (Eco) | | AC Input Power | 100 to 240 VAC, 50 / 60 Hz | | | | Operating Temperature | 32 to 104°F / 0 to 40°C | | Operating Humidity | 20 to 90% | | Certifications | ENERGY STAR, EPEAT Silver, as per Manufacturer | | | | Tilt Adjustment | -5 to 20° | | Mounting-Hole Pattern | 100 x 100 mm | | Lock Slot | Yes | | Dimensions (W x H x D) | 20.1 x 14.3 x 9.5" / 51.2 x 36.4 x 24.0 mm (With Stand)
20.1 x 12.2 x 2.5" / 51.2 x 31.1 x 6.4 mm (Without Stand) | | Weight | 10.5 lb / 4.8 kg (With Stand)
8.7 lb / 4 kg (Without Stand) | | | | Package Weight | 15.4 lb | | Box Dimensions (LxWxH) | 22.126 x 16.693 x 8.898" |
Rating80% users recommend this product to others. And what about you?
This product has already been rated by 97 owners. Add your rating and experience with the product.
