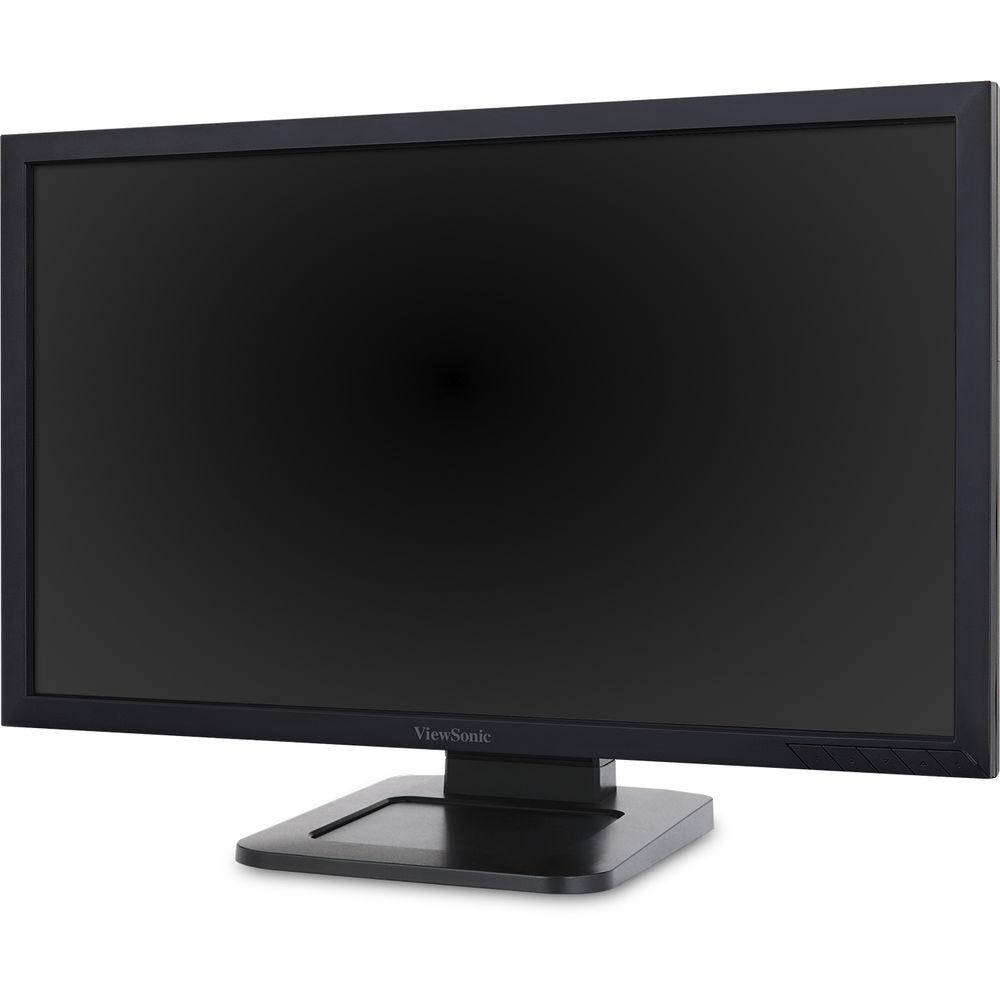

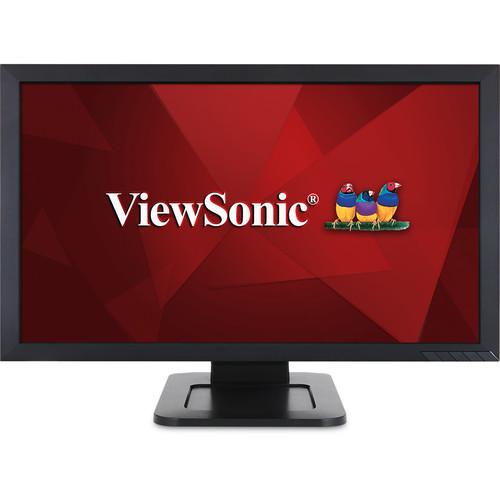

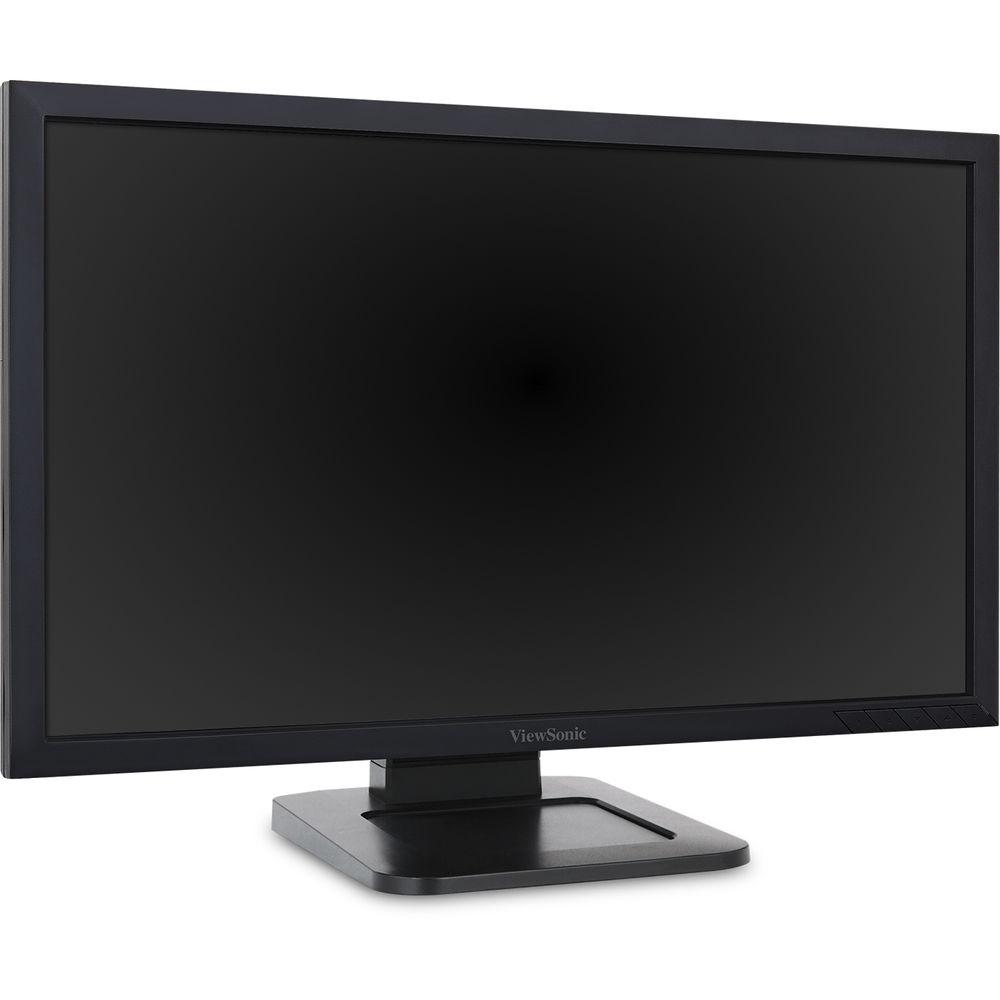

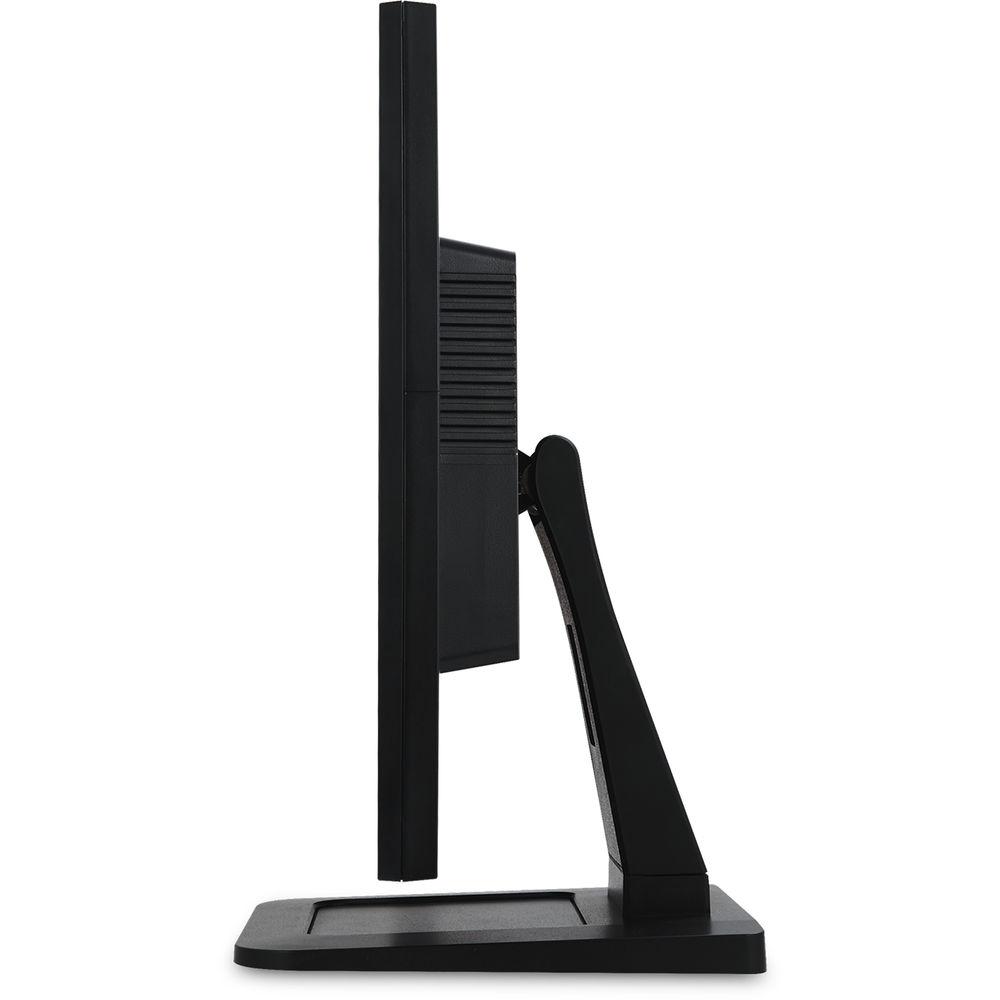

User Manual for ViewSonic TD2421 24" 16:9 Dual-Point Optical Touch LCD Monitor Click to enlarge the picture
Contents of the user manual for the ViewSonic TD2421 24" 16:9 Dual-Point Optical
- Product category: Computer Monitors ViewSonic
- Brand: ViewSonic
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for ViewSonic Computer Monitors
 |
User manual for the ViewSonic TD2421 24" 16:9 Dual-Point Optical contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any ViewSonic product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official ViewSonic user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a ViewSonic product will considerably shorten its lifespan!
|
Product description 10 Factors to Consider When Selecting A Monitor for Video Editing Read More With built-in dual-point optical touch technology, the TD2421 24" 16:9 Dual-Point Optical Touch LCD Monitor from ViewSonic is an ideal display for retail environments, POS terminals, and more. Integrated dual-point touch capabilities allow users to use two-finger pinches to execute a variety of tasks such as zooming in, swiping, and more. In addition to dual-point touch, the TD2421 comes with dual 2W stereo speakers providing a complete multimedia experience.
This ViewSonic Dual-Point Optical Touch monitor features a Full HD 1920 x 1080 resolution accompanied by a 3,000:1 contrast ratio, 5 ms response time, and 250 cd/m² brightness rating providing a clear picture with improved overall illumination. Setup and configuration of the TD2421 is simple as it comes equipped with both DB-15, DVI-I, and HDMI connectors to make it compatible with a wide variety of computers and devices. Users can also take advantage of a single a single upstream USB port and dual downstream USB ports to connect USB enabled peripherals directly to the display. - Dual-Point Optical Touch
- Touch screens with dual-point optical touch can recognize two points of simultaneous contact, allowing two-finger gestures such as zoom in/out, rotations, and two-finger taps. Optical touch does not require a conductive object for touch recognition, so it is extremely useful in gloved environments such as hospitals and dental offices, or for use with interactive styluses.
- MVA Panel Technology
- Enjoy accurate and vivid colors with consistent levels of brightness no matter the vantage point. With SuperClear MVA panel technology, this monitor delivers the same image quality whether you are looking at the screen from above, below, the front, or the side.
- Full HD 1080p Resolution
- This monitor features Full HD 1920 x 1080 resolution for enhanced pixel-by-pixel image performance.

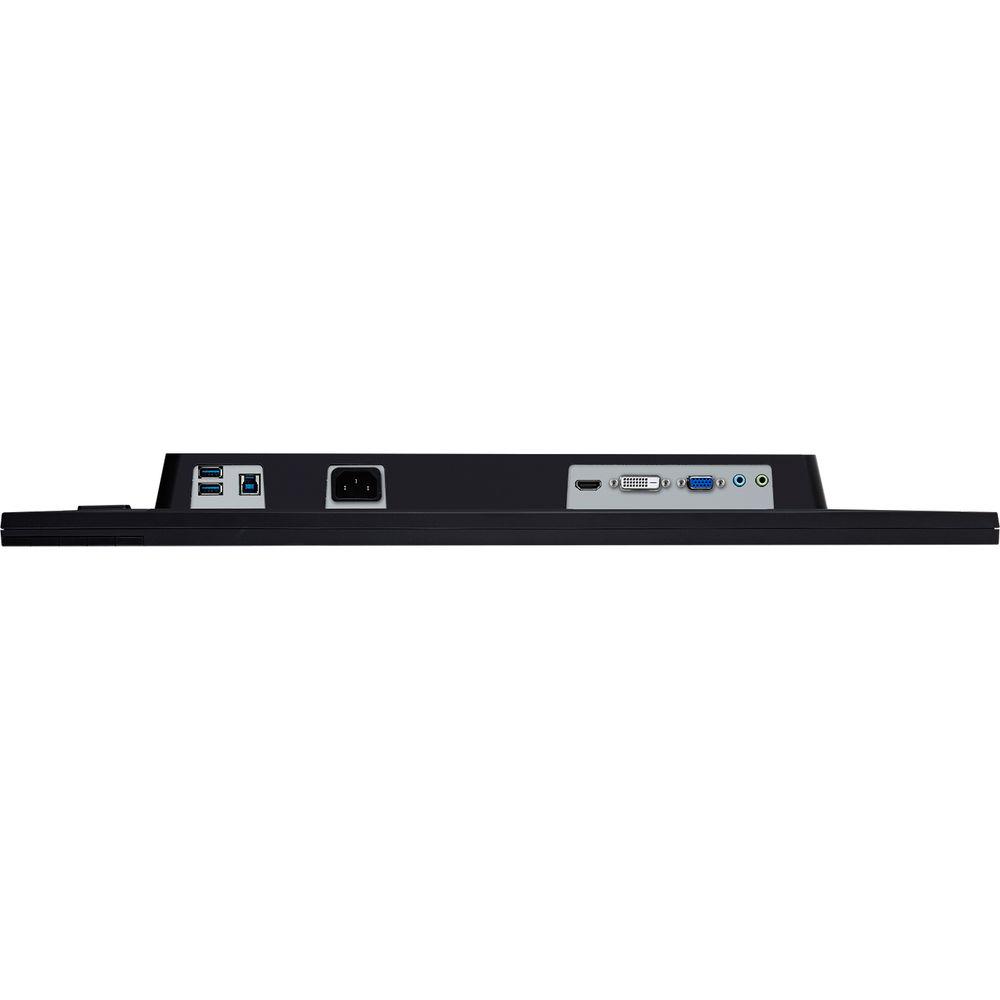

- Versatile Connectivity
- HDMI, USB2.0, DVI, and VGA inputs give you the freedom to connect your monitor to a variety of devices.
- Dual Integrated Stereo Speakers
- Designed with dual integrated speakers, this monitor combines improved screen performance with stereo sound for an immersive multimedia experience.

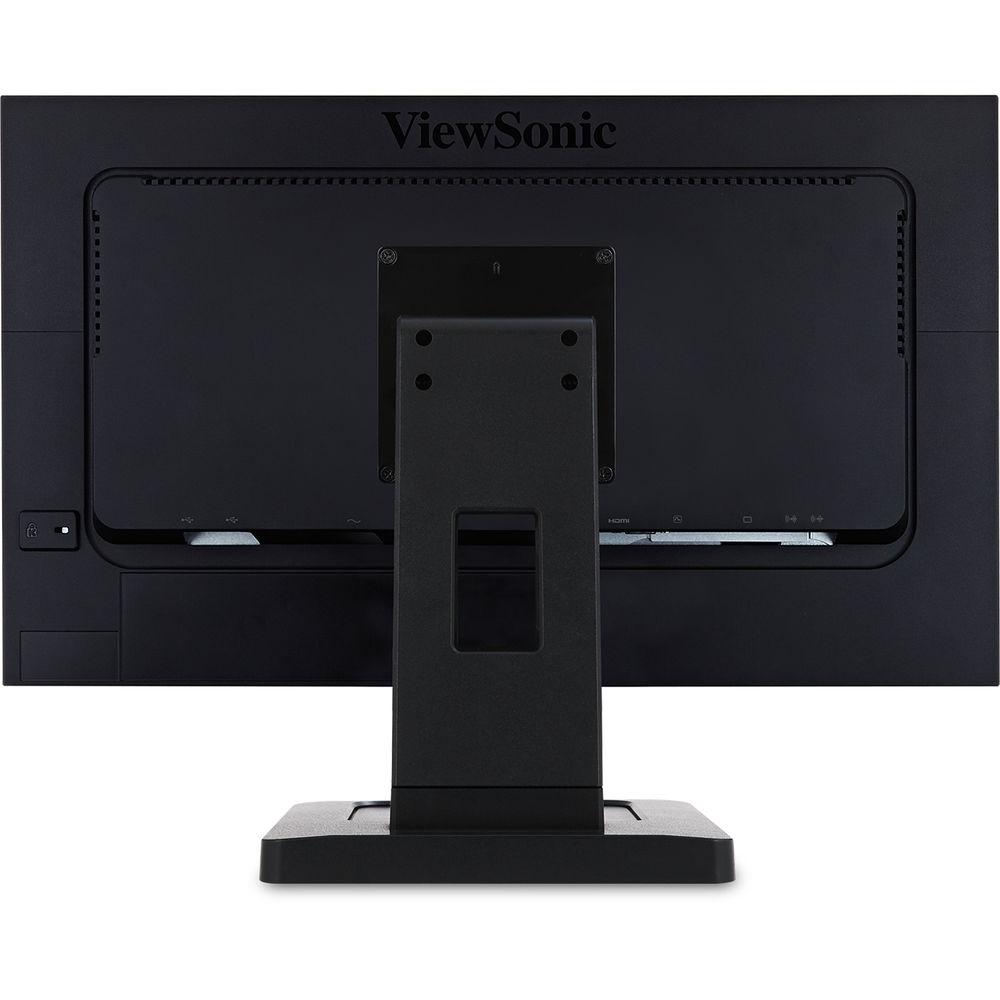

- VESA Compatible Mount
- Mount the monitor as you see fit using its convenient VESA-compatible mount design.
UPC: 766907851915 In the Box ViewSonic TD2421 24" 16:9 Dual-Point Optical Touch LCD Monitor Limited 3-Year Warranty Brochure PDF 2.8mb More from Manufacturer Table of Contents
|
Upload User Manual
Have you got an user manual for the ViewSonic TD2421 24" 16:9 Dual-Point Optical Touch LCD Monitor in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersViewSonic TD2421 Specs | | | Size | 24" | | Screen Area | 20.5 x 11.5" / 52.1 x 29.2 cm | | Panel Type | VA LCD | | Touchscreen | No | | Resolution | 1920 x 1080 | | Maximum Brightness | 250 cd/m2 | | Contrast Ratio | 3000:1 | | Dynamic Contrast Ratio | 50,000,000:1 | | Adaptive Sync Technology | None | | Horizontal Frequency | 24 to 82 kHz | | Vertical Frequency | 50 to 75 Hz | | Bit Depth / Color Support | 6-Bit+FRC (16.7 Million Colors) | | Color Gamut | 72% NTSC | | Response Time | 25 ms
5 ms (Overdrive) | | Viewing Angle | Horizontal: 178°
Vertical: 178° | | Backlight Lifespan | 40,000 Hours | | | | Connectivity | 1 x 3.5 mm Input
1 x USB Type-B Output
1 x DVI
1 x HDMI 1.4
1 x VGA | | Built-In Speakers | Yes, 2 x 2 W | | | | AC Input Power | 100 to 240 VAC, 50 / 60 Hz | | | | Operating Temperature | 32 to 104°F / 0 to 40°C | | Operating Humidity | 20 to 90% | | | | Tilt Adjustment | -6 to 22° | | Mounting-Hole Pattern | 100 x 100 mm | | Dimensions (W x H x D) | 22.5 x 15.4 x 9.5" / 57.1 x 39.2 x 24.0 mm (With Stand)
22.5 x 13.4 x 2.3" / 57.1 x 34.0 x 5.8 mm (Without Stand) | | Weight | 11.4 lb / 5.2 kg (With Stand)
9.5 lb / 4.3 kg (Without Stand) | | | | Package Weight | 16.0 lb | | Box Dimensions (LxWxH) | 25.1 x 7.8 x 7.8" |
