User Manual for ViewSonic TD2430 24" 16:9 10-Point Multi-Touch LCD Monitor Click to enlarge the picture
Contents of the user manual for the ViewSonic TD2430 24" 16:9 10-Point Multi-Touch
- Product category: Computer Monitors ViewSonic
- Brand: ViewSonic
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for ViewSonic Computer Monitors
 |
User manual for the ViewSonic TD2430 24" 16:9 10-Point Multi-Touch contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any ViewSonic product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official ViewSonic user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a ViewSonic product will considerably shorten its lifespan!
|

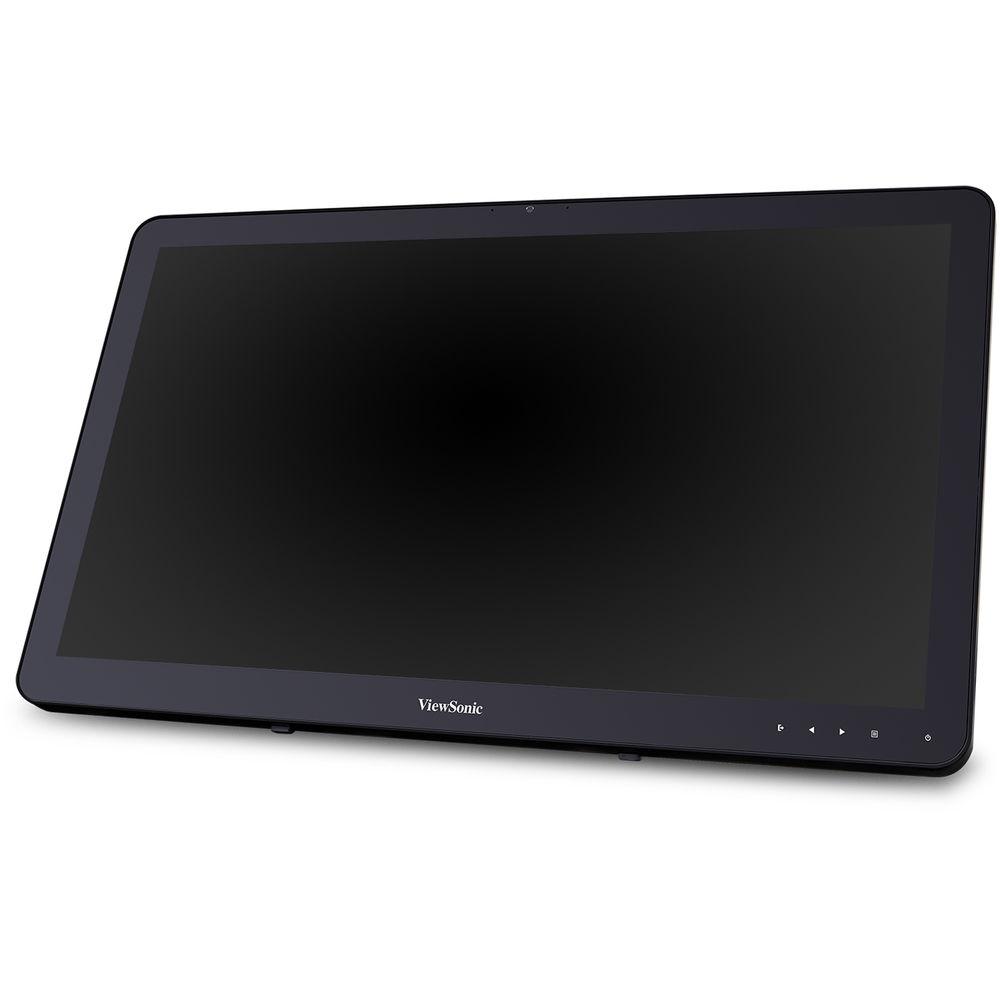

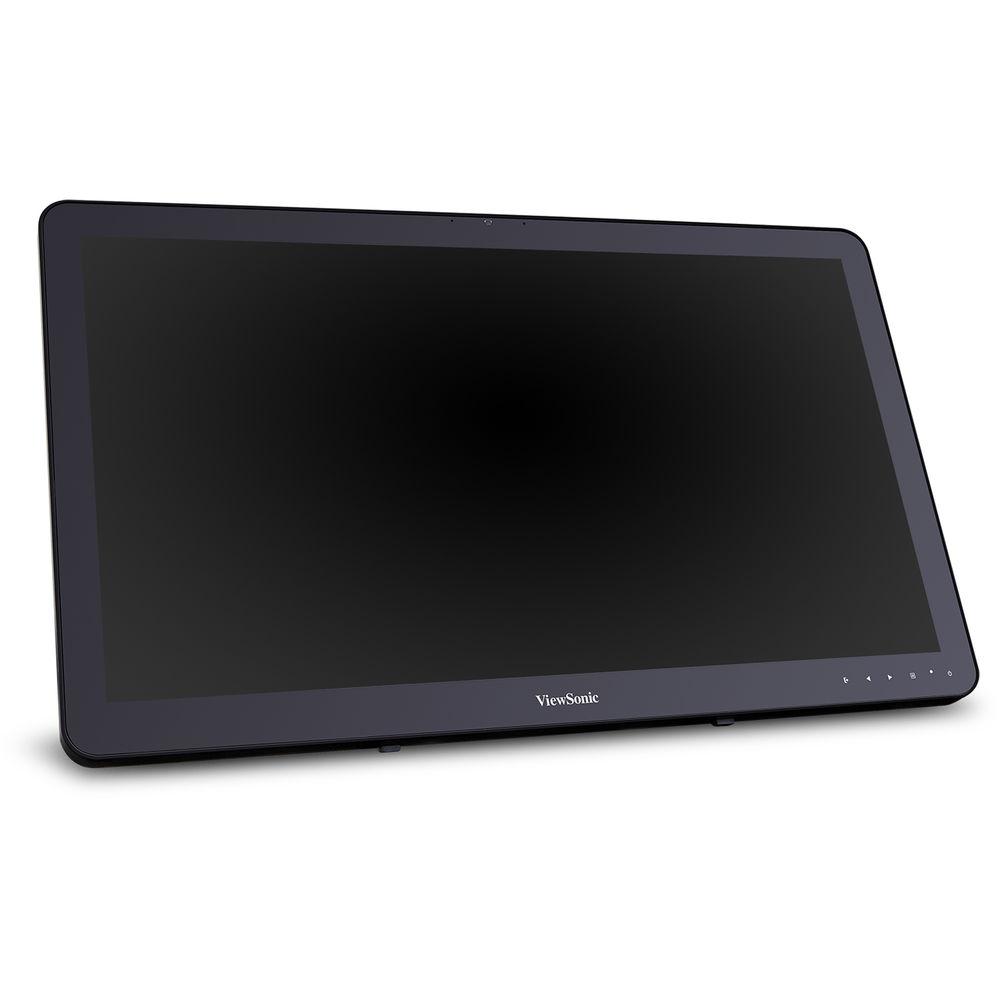

Product description 10 Factors to Consider When Selecting A Monitor for Video Editing Read More With built-in 10-point multi-touch technology, the TD2430 24" 16:9 10-Point Multi-Touch LCD Monitor from ViewSonic is an ideal display for retail environments, the classroom, business applications, and more. Integrated 10-point touch capabilities allow users to use multiple fingers when interacting with multimedia content as well as execute a variety of tasks such as zooming in, swiping, and more. In addition to 10-point touch capabilities, the TD2430 comes with dual 2.5W stereo speakers providing a complete multimedia experience.

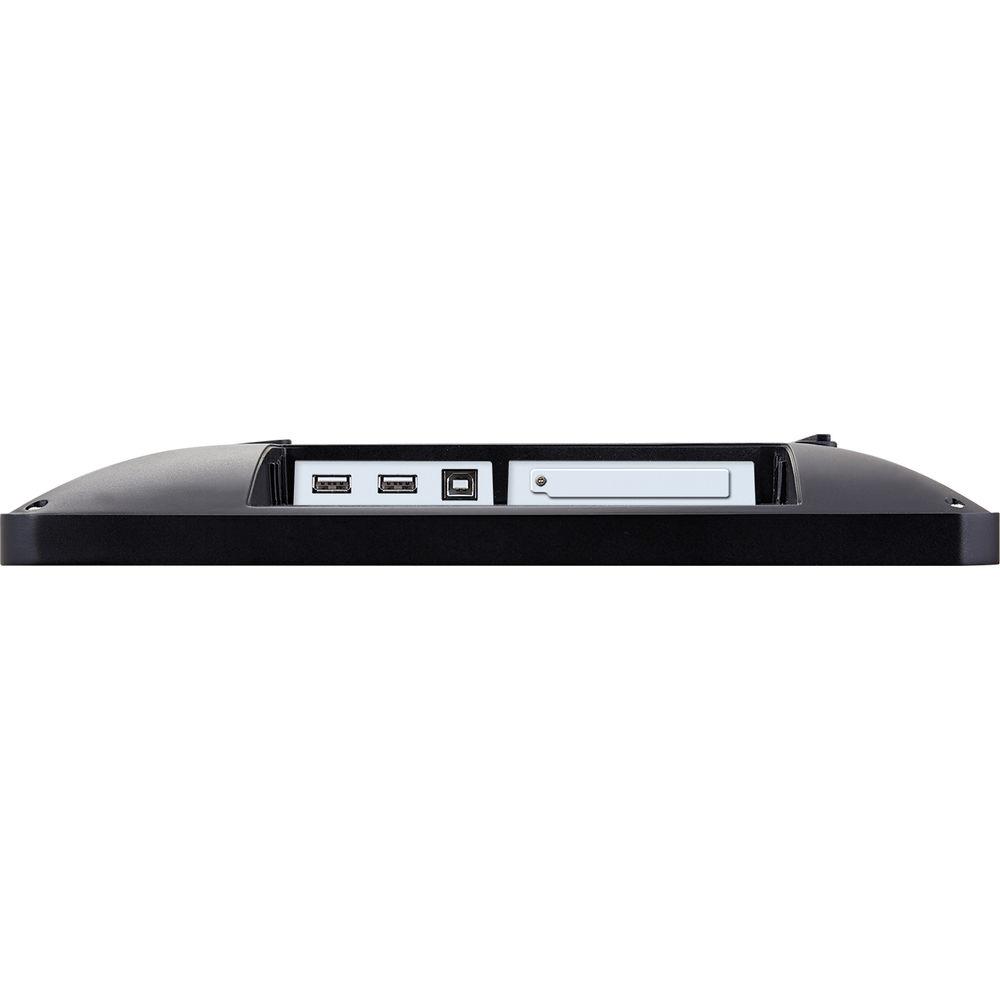

This ViewSonic 10-Point Multi-Touch Monitor features a Full HD 1920 x 1080 resolution accompanied by a 3,000:1 contrast ratio, 25 ms response time, and 250 cd/m² brightness rating providing a clear picture with improved overall illumination. Setup and configuration of the TD2430 is simple as it comes equipped with VGA, DisplayPort, and HDMI 1.4 connectors to make it compatible with a wide variety of computers and devices. Users can also take advantage of a single upstream USB port and dual downstream USB ports to connect USB enabled peripherals directly to the display. - 10-Point Multi-Touch
- This ViewSonic monitor features a projected capacitive touch display that can recognize up to 10 points of simultaneous contact, allowing for a highly accurate and ultra-responsive touch experience. With smooth and responsive touch capabilities, this touch display is ideal for home entertainment, office work, education, and commercial use.
- MVA Panel Technology
- Enjoy accurate and vivid colors with consistent levels of brightness no matter the vantage point. With SuperClear MVA (Multidomain Vertical Alignment) panel technology, this monitor delivers the same image quality whether you are looking at the screen from above, below, the front, or the side.
- Frameless Design
- Say goodbye to the thick, clunky plastic frames set over the edges of traditional monitors. This monitor features a frameless edge-to-edge glass faceplate with an ultra-slim bezel beneath the glass. With its sleek, eye-catching design, this elegant monitor looks as good as it performs.
- Versatile Connectivity
- DisplayPort, HDMI, and VGA inputs give you the freedom to connect your monitor to a variety of devices.
- Durable, Scratch-Resistant Screen
- This touch display is designed with a durable, protective glass faceplate. This provides increased scratch protection to ensure durability, as well as a consistent, high-quality touch experience in high-traffic areas such as educational settings, or other public environments where the touch display can be used as a kiosk.
UPC: 766907846911 In the Box ViewSonic TD2430 24" 16:9 10-Point Multi-Touch LCD Monitor Power Adapter Cable HDMI Cable USB 3.0 Cable Audio Cable Limited 1-Year Warranty User Manual PDF 862.1kb More from Manufacturer Table of Contents
|
Upload User Manual
Have you got an user manual for the ViewSonic TD2430 24" 16:9 10-Point Multi-Touch LCD Monitor in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersViewSonic TD2430 Specs | | | Size | 23.6" | | Panel Type | VA LCD | | Touchscreen | Yes | | Resolution | 1920 x 1080 | | Aspect Ratio | 16:9 | | Hardness Rating | 7H | | Maximum Brightness | 250 cd/m2 | | Contrast Ratio | 3000:1 | | Dynamic Contrast Ratio | 50,000,000:1 | | Adaptive Sync Technology | None | | Horizontal Frequency | 24 to 82 kHz | | Vertical Frequency | 50 to 76 Hz | | Bit Depth / Color Support | 8-Bit (16.7 Million Colors) | | Response Time | 25 ms | | Viewing Angle | Horizontal: 178°
Vertical: 178° | | Backlight Lifespan | 40,000 Hours | | | | Connectivity | 1 x USB Type-B (USB 3.1 Gen 1) Input
2 x USB Type-A (USB 3.1 Gen 1) Output
1 x DisplayPort Input
1 x HDMI 1.4
1 x VGA | | Built-In Speakers | Yes, 2 x 2.5 W | | | | Power Consumption | 19 W (Eco)
28 W (Maximum)
0.5 W (Standby)
25 W (Typical) | | AC Input Power | 100 to 240 VAC, 50 / 60 Hz | | | | Operating Temperature | 32 to 104°F / 0 to 40°C | | Operating Humidity | 20 to 90% | | Certifications | ENERGY STAR, EPEAT Silver, as per Manufacturer | | | | Tilt Adjustment | -20 to 90° | | Mounting-Hole Pattern | 100 x 100 mm | | Lock Slot | Yes | | Dimensions (W x H x D) | 22.6 x 13.9 x 1.9" / 57.3 x 35.3 x 4.7 cm | | Weight | 11.6 lb / 5.3 kg | | | | Package Weight | 17.4 lb | | Box Dimensions (LxWxH) | 25.25 x 16.6 x 5.4" |
