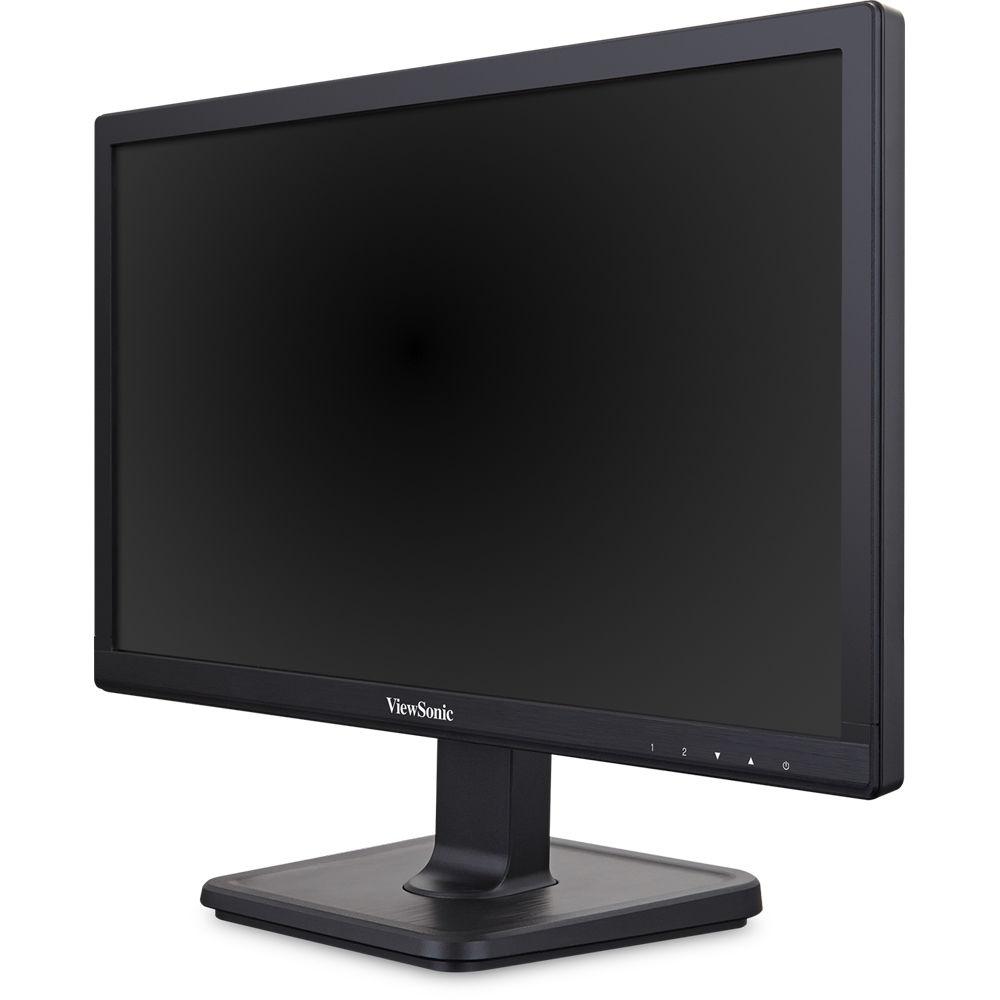

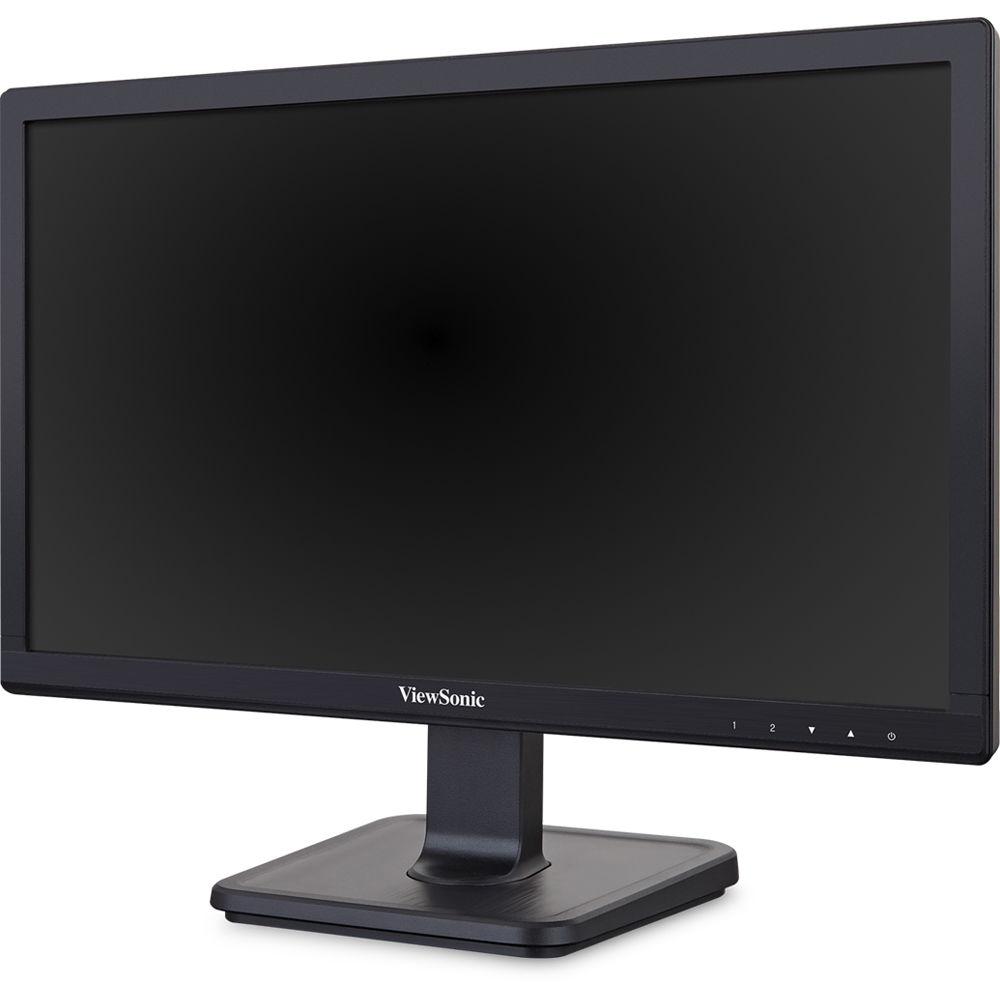

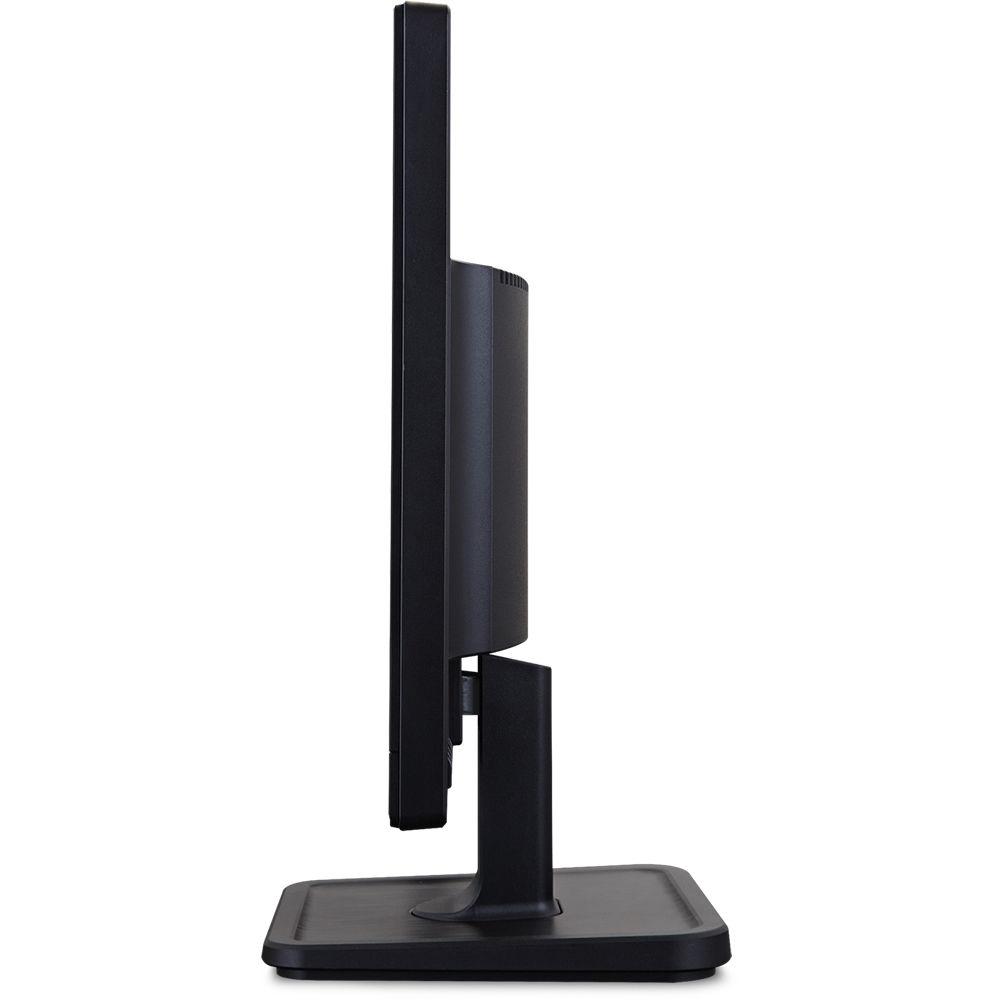

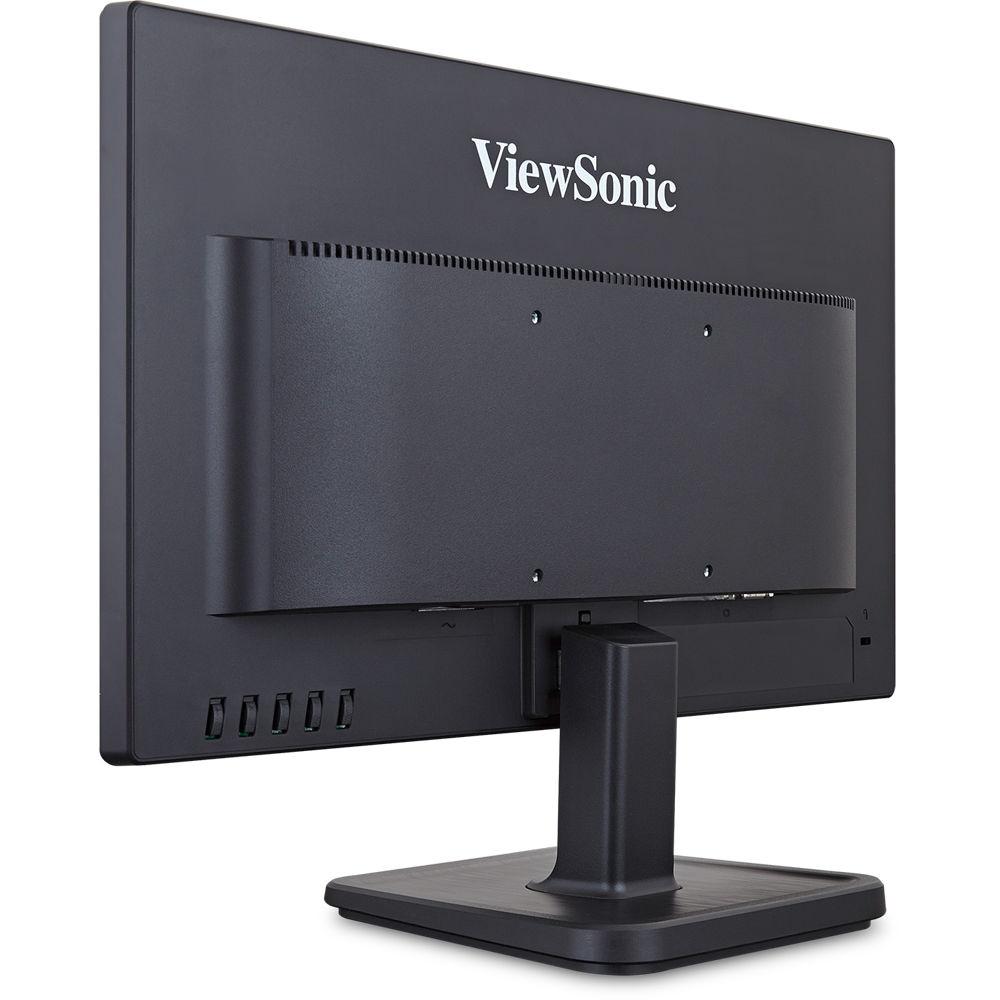

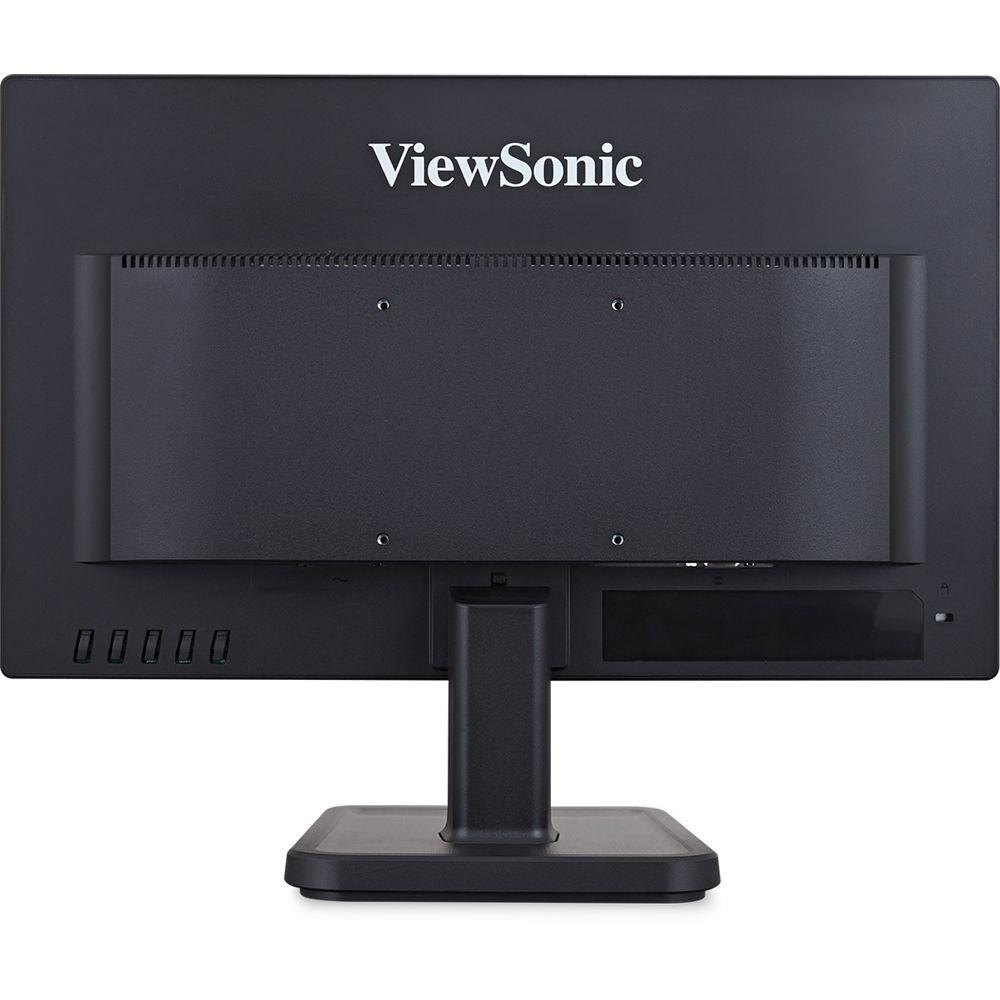

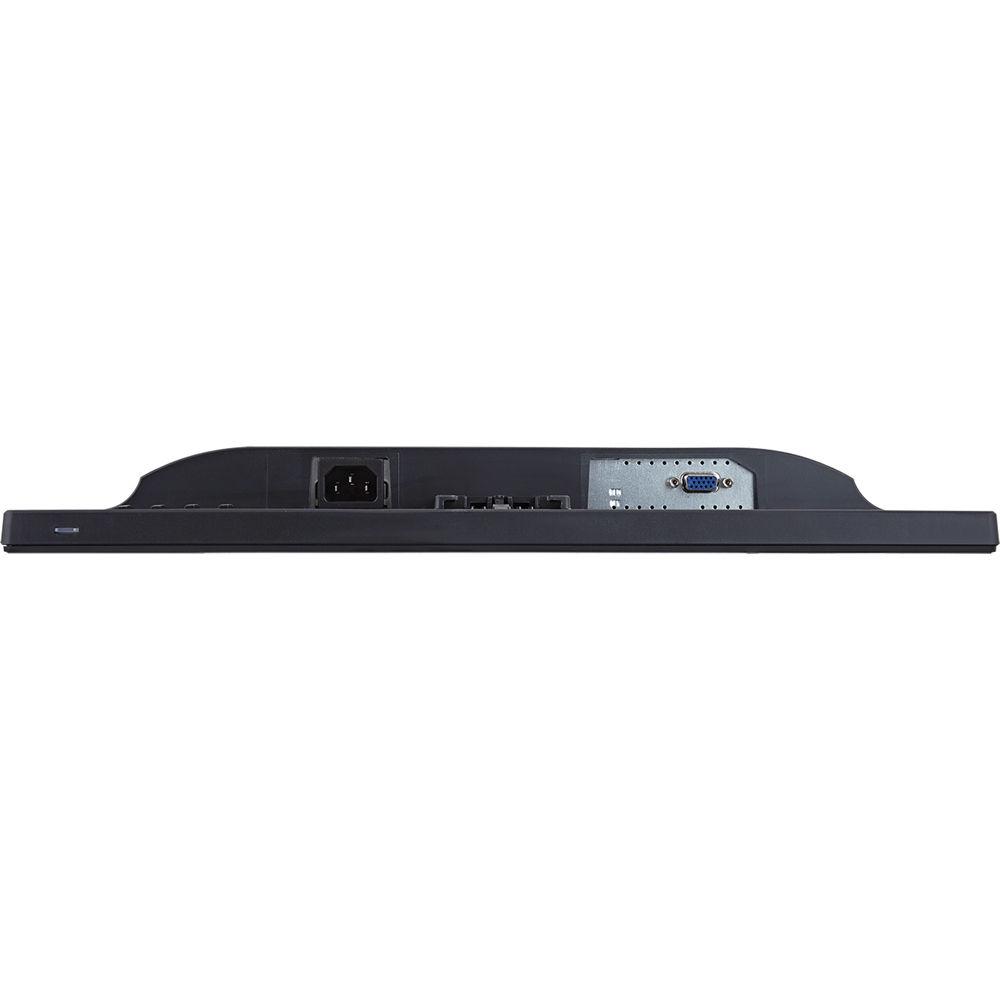

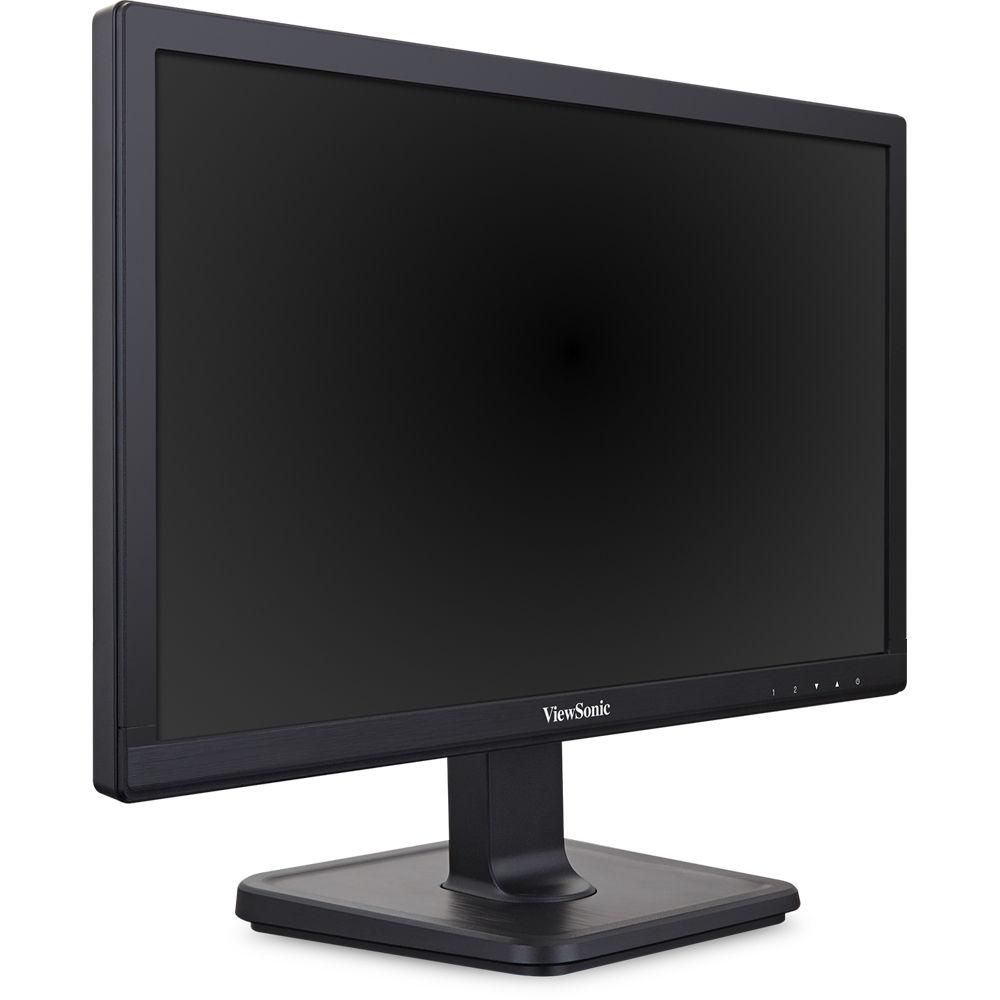

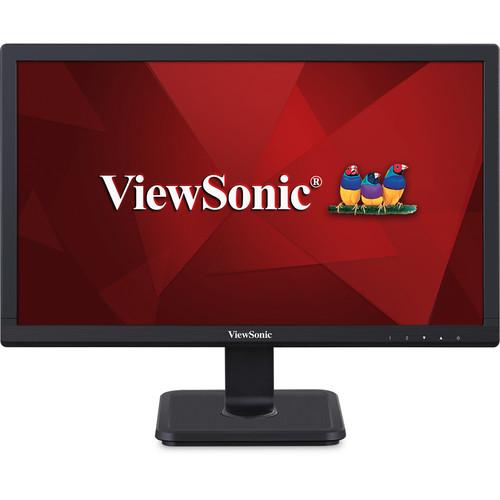

User Manual for ViewSonic VA1901-A 18.5" LCD Monitor Click to enlarge the picture
Contents of the user manual for the ViewSonic VA1901-A 18.5" LCD Monitor
- Product category: Computer Monitors ViewSonic
- Brand: ViewSonic
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for ViewSonic Computer Monitors
 |
User manual for the ViewSonic VA1901-A 18.5" LCD Monitor contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any ViewSonic product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official ViewSonic user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a ViewSonic product will considerably shorten its lifespan!
|

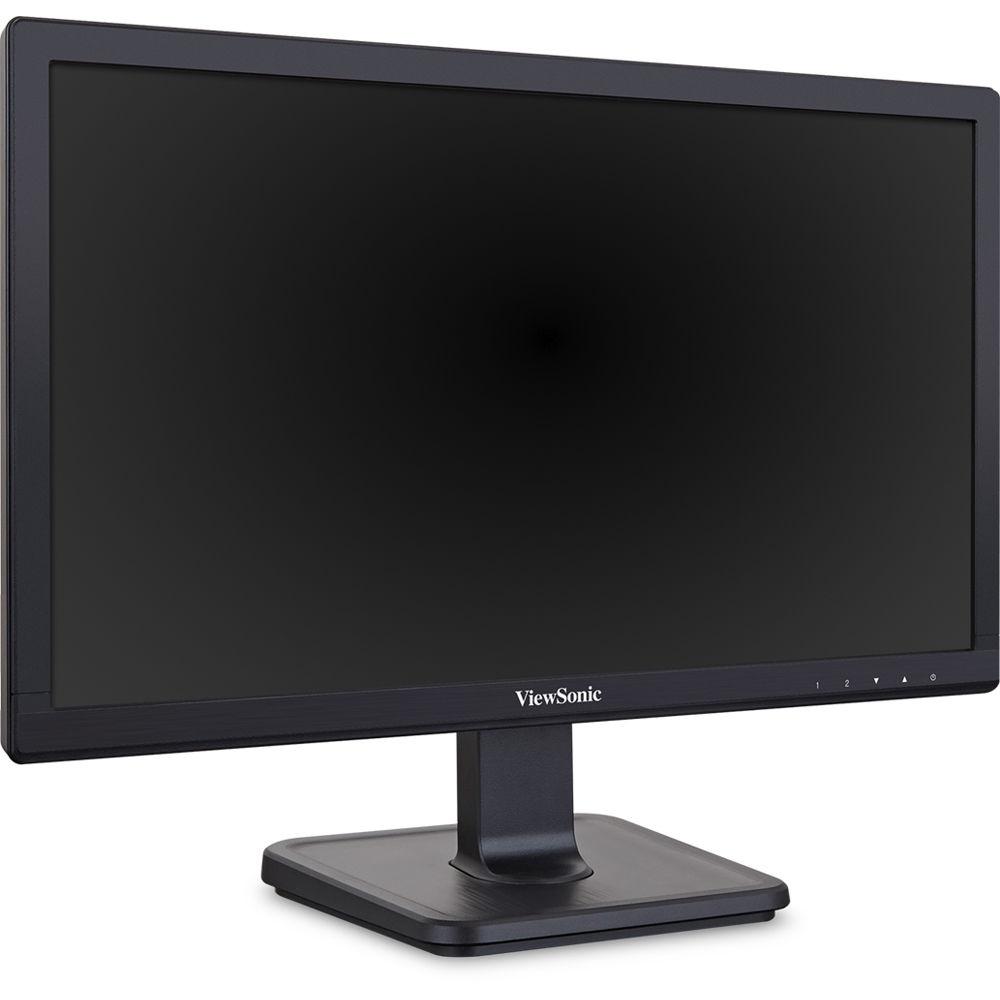

Product description 10 Factors to Consider When Selecting A Monitor for Video Editing Read More The VA1901-A 18.5" LCD Monitor from ViewSonic is designed for both home and office use. Specs-wise, it's built with a Twisted Nematic (TN) panel, offering you a 1366 x 768 WXGA resolution, a 600:1 static contrast ratio, a 200 cd/m² brightness rating, and support for 16.7 million colors. Moreover, it has 100% sRGB coverage with color correction technology, which is helpful for users working with color-sensitive content. Connect this display to your system via VGA and tilt it to your viewing preference. Otherwise, you can install an optional VESA mount, stand, or arm as needed - Enhanced Viewing Comfort
- This display is built with Flicker-Free and Blue Light Filter technology to help reduce eyestrain and fatigue over extended viewing periods.
UPC: 766907846218 In the Box ViewSonic VA1901-A 18.5" LCD Monitor Power Cable VGA Cable Limited 3-Year Warranty User Manual PDF 777.3kb Table of Contents
|
Upload User Manual
Have you got an user manual for the ViewSonic VA1901-A 18.5" LCD Monitor in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersViewSonic VA1901-A Specs | | | Size | 18.5" | | Panel Type | TN LCD | | Touchscreen | No | | Resolution | 1366 x 768 | | Aspect Ratio | 16:9 | | Pixels Per Inch (ppi) | 85 ppi | | Finish | Matte | | Hardness Rating | 3H | | Maximum Brightness | 200 cd/m2 | | Contrast Ratio | 600:1 | | Dynamic Contrast Ratio | 50,000,000:1 | | Adaptive Sync Technology | None | | Horizontal Frequency | 24 to 82 kHz | | Vertical Frequency | 50 to 75 Hz | | Bit Depth / Color Support | 6-Bit+FRC (16.7 Million Colors) | | HDR Compatibility | None | | Color Gamut | 100% sRGB | | Response Time | 5 ms (GtG) | | Viewing Angle | Horizontal: 90°
Vertical: 65° | | | | Connectivity | 1 x VGA | | Built-In Speakers | None | | | | Power Consumption | 7 W (Eco)
11 W (Typical)
13 W (Maximum)
0.5 W (Standby) | | AC Input Power | 100 to 240 VAC, 50 / 60 Hz | | Power Adapter Type | Internal | | | | Operating Temperature | 32 to 104°F / 0 to 40°C | | Operating Humidity | 20 to 90% | | | | Height Adjustment | None | | Rotation Adjustment | None | | Swivel Adjustment | None | | Tilt Adjustment | -5 to 23° | | Mounting-Hole Pattern | 100 x 100 mm | | Lock Slot | Yes, Kensington | | Dimensions (W x H x D) | 17.4 x 13.7 x 7.2" / 442.0 x 348.0 x 182.9 mm (With Stand)
17.4 x 10.6 x 1.9" / 442.0 x 269.2 x 48.3 mm (Without Stand) | | Weight | 4.4 lb / 2.00 kg (With Stand)
3.8 lb / 1.72 kg (Without Stand) | | | | Package Weight | 6.45 lb | | Box Dimensions (LxWxH) | 19.1 x 14.0 x 4.11" |
Rating80% users recommend this product to others. And what about you?
This product has already been rated by 47 owners. Add your rating and experience with the product.
