User manual for the ViewSonic VA2246MH-LED 22" 16:9 LCD Monitor contain basic instructions that need to be followed during installation and operation. Before starting your appliance, the user manual should be read through carefully. Follow all the safety instructions and warnings, and be guided by the given recommendations. User manual is an integral part of any ViewSonic product, and if it is sold or transferred, they should be handed over jointly with the product. Following the instructions for use is an essential prerequisite for protecting health and property during use, as well as recognition of liability on the part of the manufacturer for possible defects should you make a warranty claim. Download an official ViewSonic user manual in which you will find instructions on how to install, use, maintain and service your product.

And do not forget – unsuitable use of a ViewSonic product will considerably shorten its lifespan!



Product description

10 Factors to Consider When Selecting A Monitor for Video Editing Read More The versatile VA2246MH-LED 22" 16:9 LCD Monitor from ViewSonic is designed to be used for a variety of tasks from viewing multimedia content to drafting documents and more. With a Full HD 1920 x 1080 resolution viewers can take advantage of a crisp, clear picture quality while the 1,000:1 static contrast ratio, 250 cd/m² brightness rating, and 5 ms response time provide a more dynamic viewing experience complete with reduced ghosting.

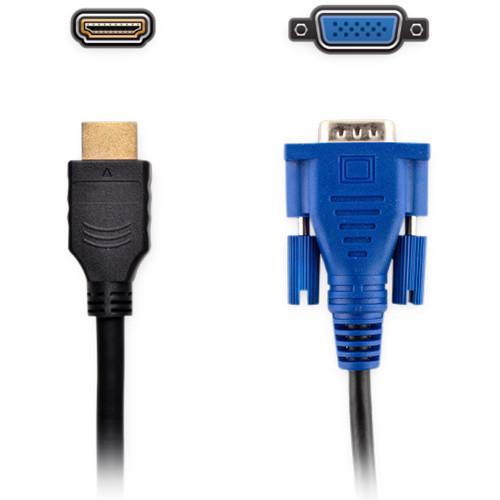

Installation is simple, attach the display to the included stand or mount it using a VESA compatible mount and view the display from nearly any angle with 170° horizontal and 160° vertical viewing angles. This ViewSonic display also comes equipped with both a blue light filter and flicker-free technology to help alleviate the stress placed on your eyes during periods of extended viewing. Setup is simple thanks to the HDMI and VGA inputs, which makes it easy to configure the monitor and begin viewing your content in no time.
    Full HD Resolution
  • This monitor features Full HD 1920 x 1080 resolution for enhanced pixel-by-pixel image performance. You'll experience improved clarity and detail whether it be while working, gaming, or enjoying the latest in multimedia entertainment.
    Enhanced Viewing Comfort
  • Flicker-Free technology and a Blue Light Filter help to eliminate eye strain from extended viewing periods.
    The Power of HDMI
  • HDMI delivers true digital picture and audio clarity. The HDMI interface on this monitor allows you to connect to a variety of HD devices including gaming consoles, Blu-ray players, laptop PCs, digital cameras, and many others for the ultimate true high-definition experience.
    Dual Integrated Speakers
  • Designed with dual integrated speakers, this monitor combines enhanced screen performance with stereo sound for an immersive multimedia experience.

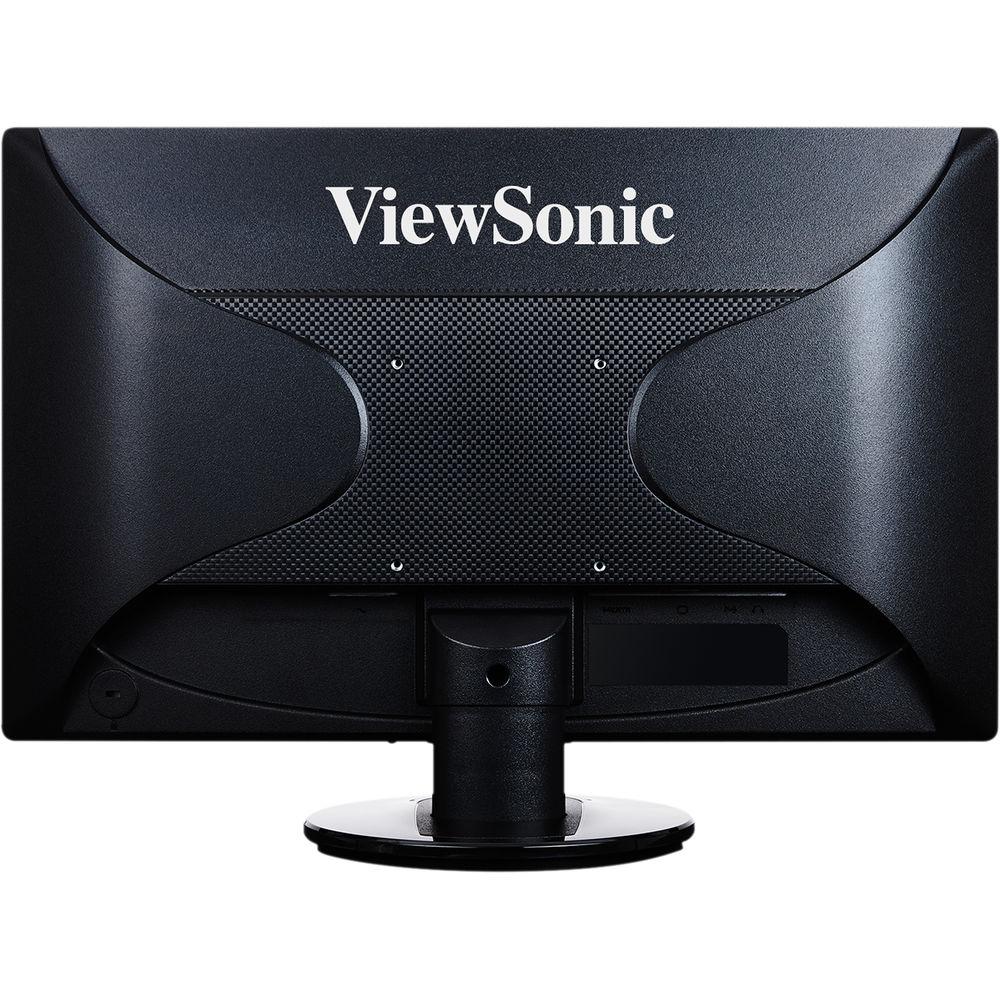

    VESA-Mount Compatible
  • Mount the monitor as you see fit using its convenient VESA-compatible mount design.
UPC: 766907911671 In the Box ViewSonic VA2246MH-LED 22" 16:9 LCD Monitor
  • Power Cable
  • VGA Cable
  • Audio Cable
  • Limited 3-Year Warranty
  • User Manual PDF 799.2kb More from Manufacturer Table of Contents




    Upload User Manual

    Have you got an user manual for the ViewSonic VA2246MH-LED 22" 16:9 LCD Monitor in electronic form? Please send it to us and help us expand our library of instruction manuals. Thank you, too, on behalf of other users.

    To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
    Upload PDF user manual Upload DOC user manual
    Please enter here the link to the user manual of this product:





    OR

    Enter here the file with the user manual of this product from your computer/phone:
    (60MB max; Permitted formats: PDF)

    0%


    Technical parameters

    ViewSonic VA2246MH-LED Specs

    Display Size Display Size
    22" / 55.88 cm
    Viewable Area
    21.5" / 54.61 cm
    Display Type TN
    Resolution 1920 x 1080
    Contrast Ratio Static
    1,000:1
    Dynamic
    50,000,000:1
    Light Source WLED
    Brightness 250 cd/m²
    Colors Supported 16.7 million
    Color Space 6-bit+Hi-FRC
    Aspect Ratio 16:9
    Response Time 5 ms
    Viewing Angles (H/V) 170°/160°
    Backlight Life 40,000 hours
    Panel Surface Anti-glare, hard coating (3H)

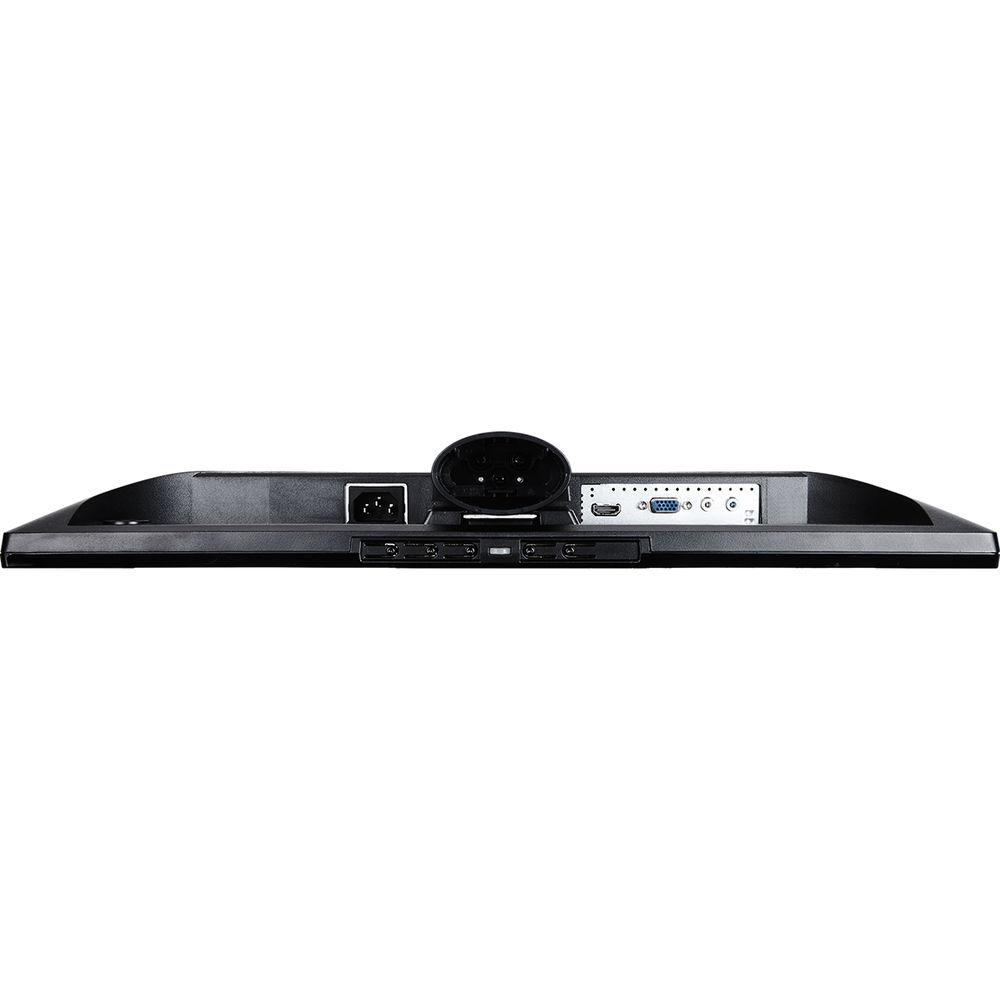

    Connectors 1 x VGA
    1 x HDMI 1.4
    1 x 3.5 mm audio-in
    1 x 3.5 mm audio-out
    Audio 2 x 2.5 W internal speakers
    Power Voltage
    100-240 VAC (universal), 50/60 Hz
    Power Consumption
    Eco Mode (conserve): 12 W
    Eco Mode (optimize): 16 W
    Consumption (typical): 22 W
    Consumption (Max): 26 W
    Stand-by: 0.5 W
    Kensington Lock Support 1
    Controls Physical Controls
    1, 2, 3, 4, Power
    On Screen Display
    Auto Image Adjust, Contrast/Brightness, Input Select, Audio Adjust, Color Adjust, Information, Manual Image Adjust, Advanced Image Adjust, Setup Menu, Memory Recall (see user guide for complete OSD functionality)
    Temperature & Humidity Temperature
    32 to 104°F / 0 to 40°C
    Humidity (non-condensing)
    20 to 90%
    Mount VESA Compatible
    100 x 100 mm
    Video Signal Horizontal Frequency
    24~82 kHz
    Vertical Frequency
    50~75 Hz
    Video Input Analog Sync
    Separate Sync
    Digital Sync
    TMDS
    Ergonomics Tilt (forward/back)
    5 to 23°
    Regulations cULus, FCC-B, ICES003, ENERGY STAR 7.0, Mexico Energy, UL-MX-CoC, MEPS

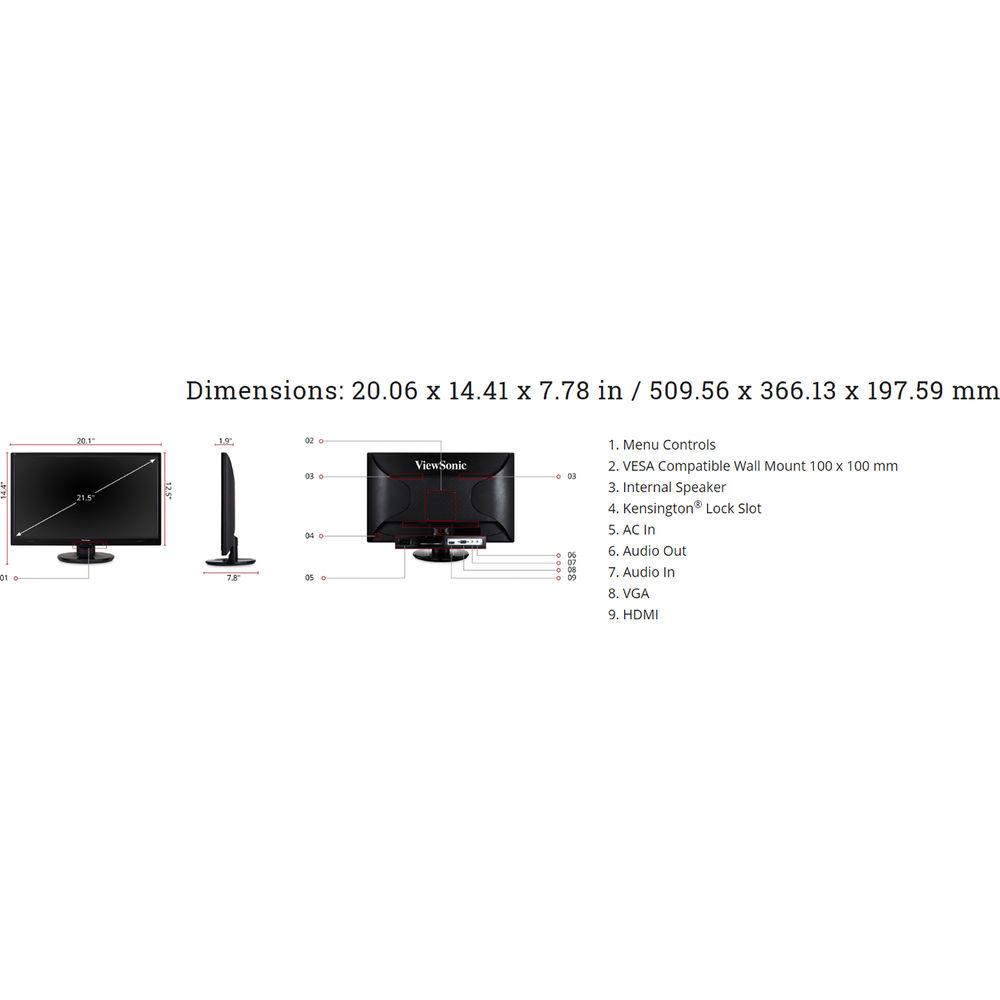

    Dimensions With Stand
    20.06 x 14.41 x 7.78" / 50.95 x 36.6 x 19.76 cm
    Without Stand
    20.06 x 12.46 x 1.9" / 50.95 x 31.65 x 4.83 cm
    Weight With Stand
    7.67 lb / 3.48 kg
    Without Stand
    6.9 lb / 3.13 kg
    Package Weight 9.4 lb
    Box Dimensions (LxWxH) 22.0 x 15.2 x 4.4"
