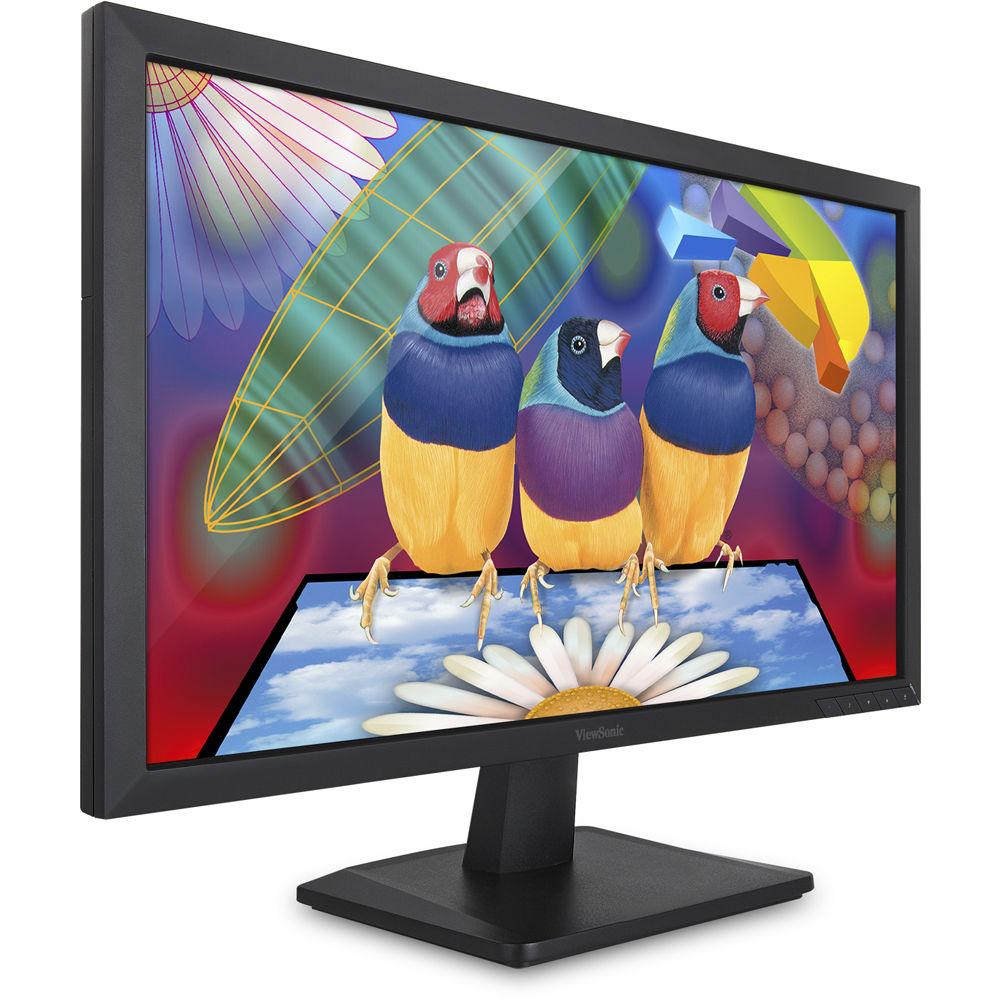

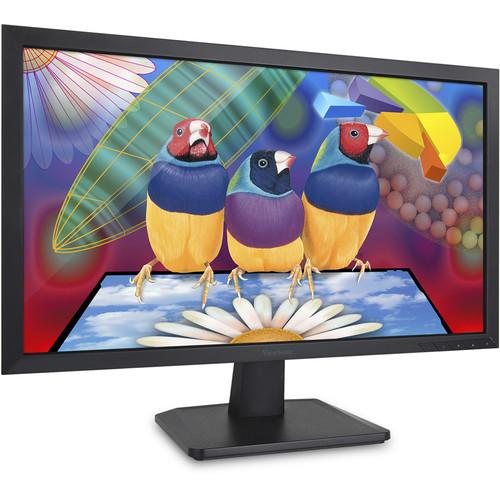

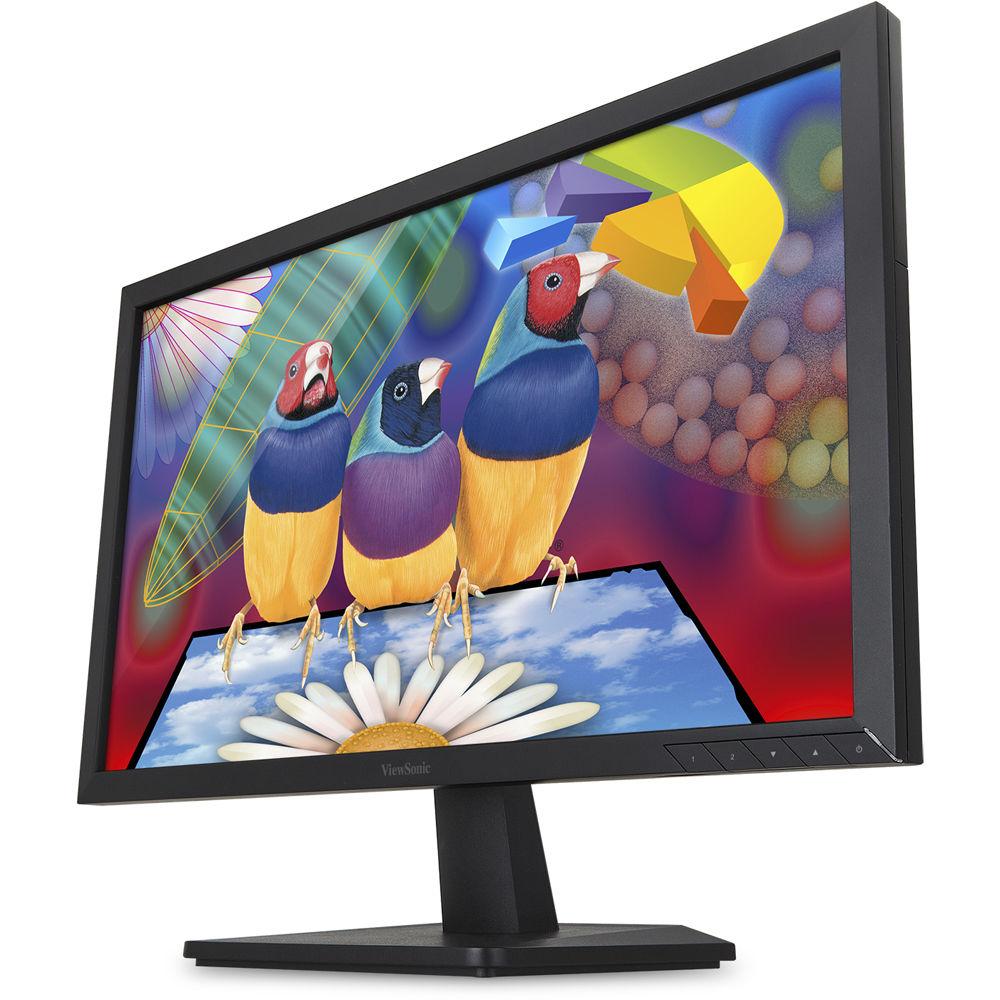

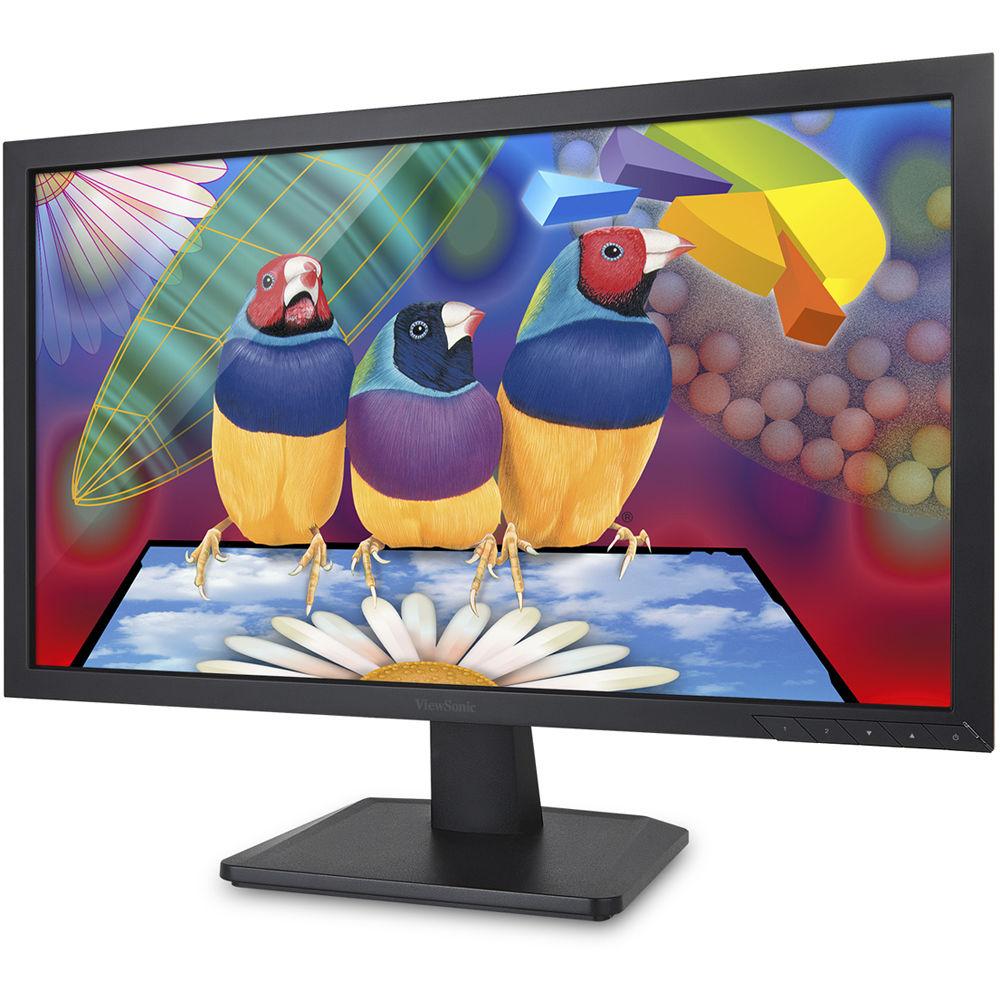

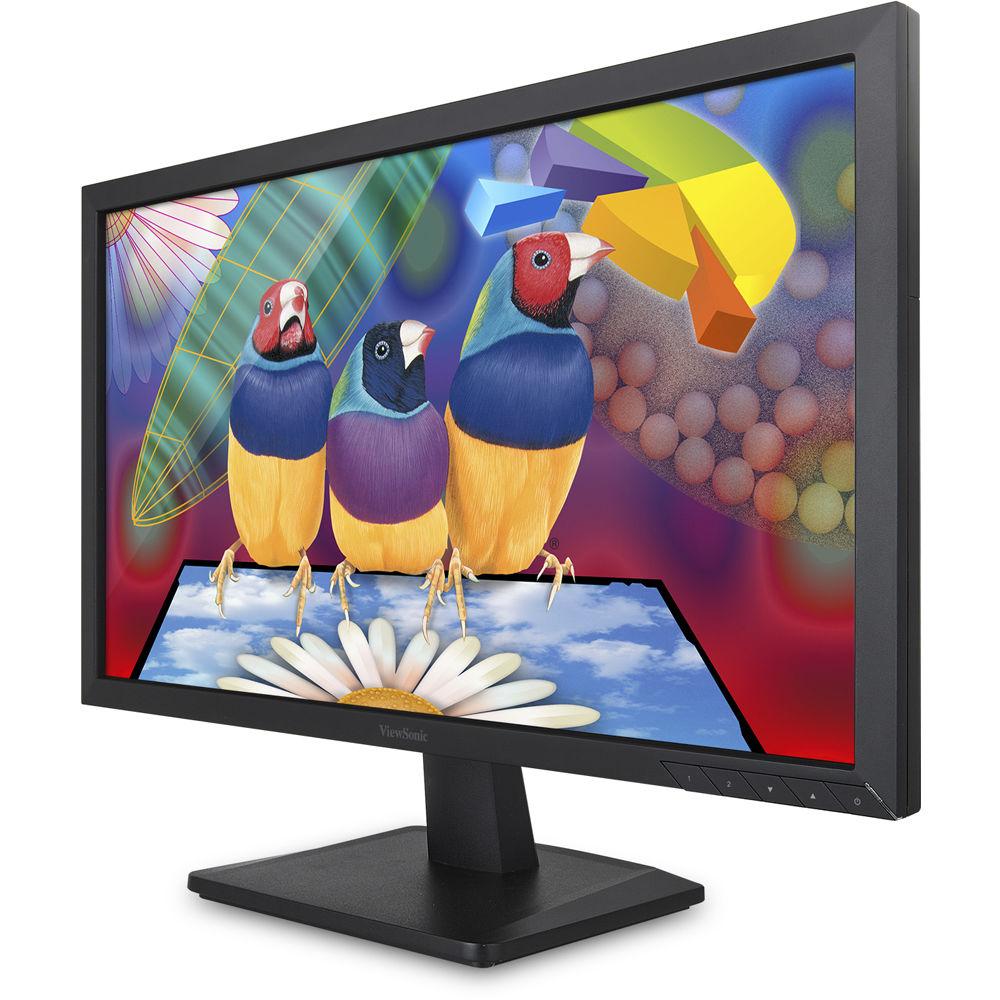

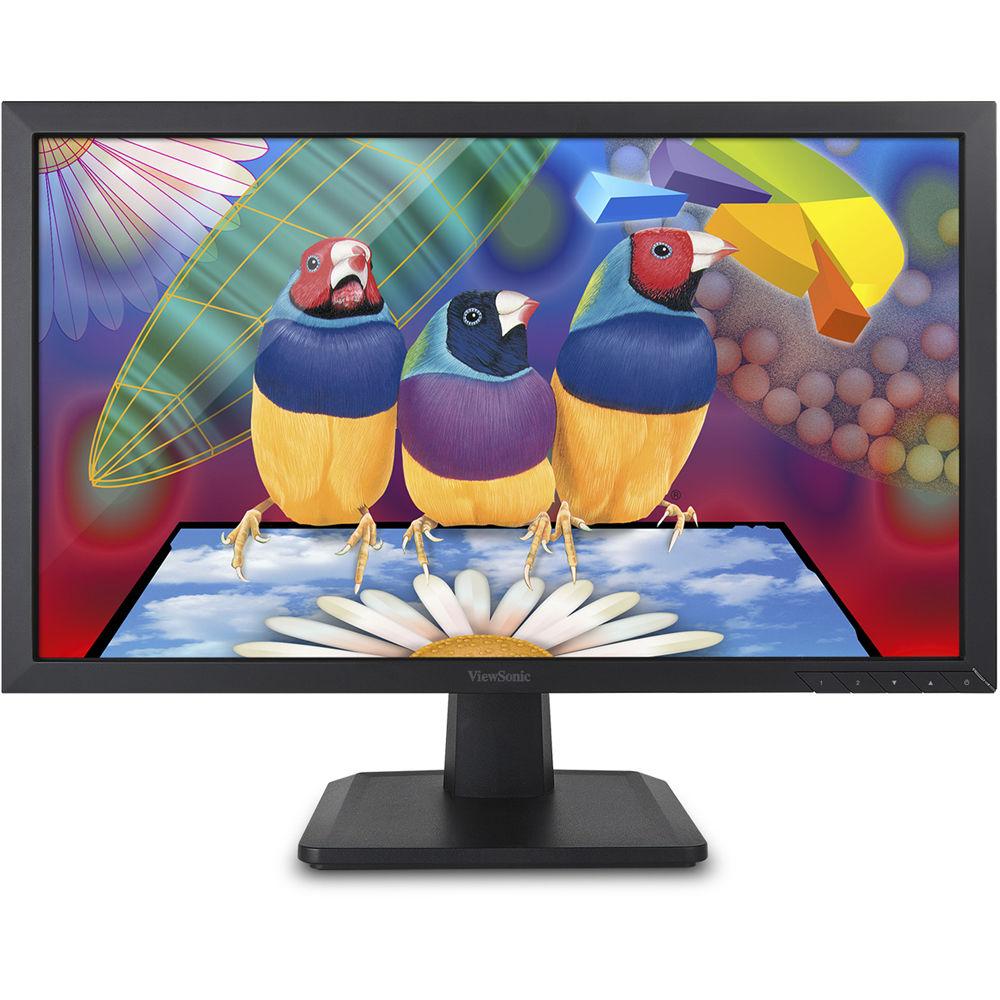

User Manual for ViewSonic VA2252SM 22" Widescreen LED Backlit LCD Monitor Click to enlarge the picture
Contents of the user manual for the ViewSonic VA2252SM 22" Widescreen LED Backlit
- Product category: Computer Monitors ViewSonic
- Brand: ViewSonic
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for ViewSonic Computer Monitors
 |
User manual for the ViewSonic VA2252SM 22" Widescreen LED Backlit contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any ViewSonic product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official ViewSonic user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a ViewSonic product will considerably shorten its lifespan!
|

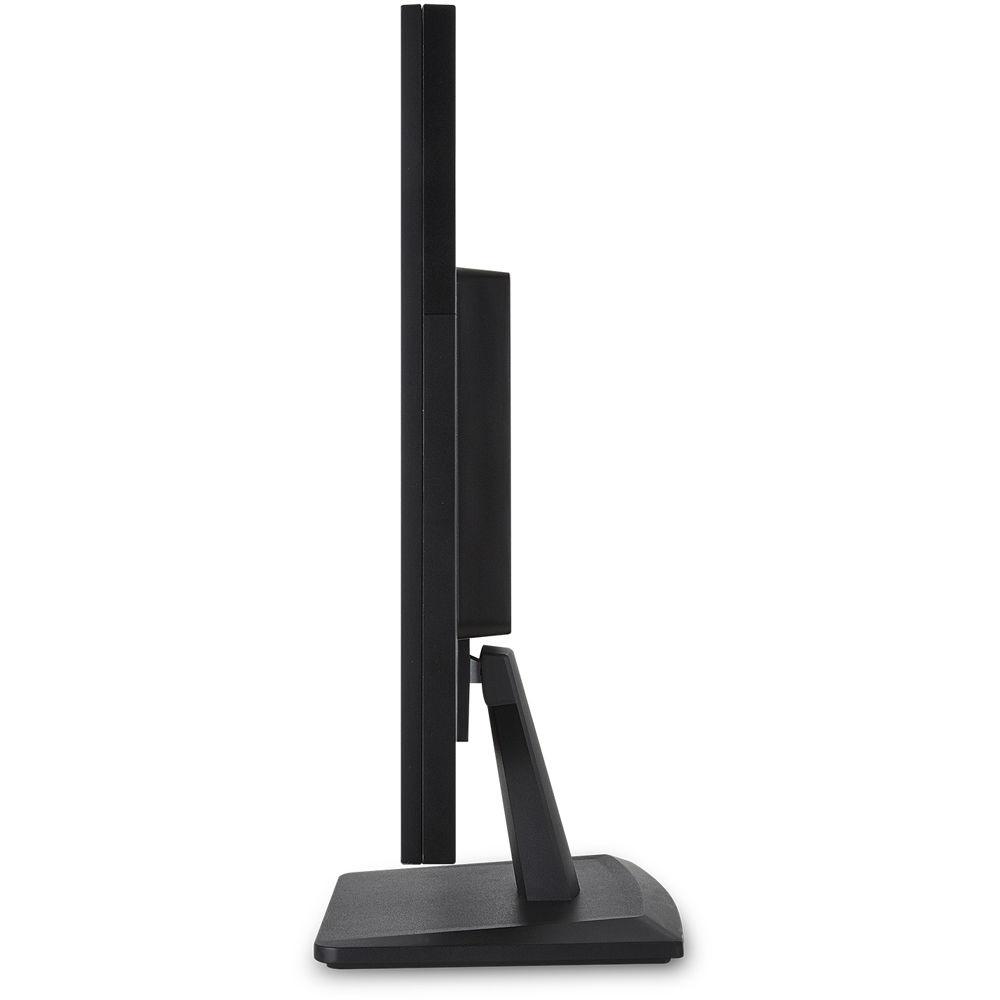

Product description 10 Factors to Consider When Selecting A Monitor for Video Editing Read More With ViewSonic SuperClear MVA panel technology, the VA2252SM 22" Widescreen LED Backlit LCD Monitor from ViewSonic offers enhanced display clarity complete with a 1920 x 1080 Full HD resolution. Along with the enhanced resolution you benefit from a more dynamic picture with deeper darks and brighter light colors with a 3,000:1 contrast ratio as well as reduced ghosting thanks to the 6.5 ms response time. Setup and configuration of this ViewSonic monitor is simple as it comes equipped with VGA, DVI-D, and DisplayPort connectors. Once configured you can view the display from multiple angles with 178° horizontal and vertical viewing angles and tilt the display from 5° forward to 20° back for improved viewing comfort. - Full HD 1080p Resolution
- This monitor features Full HD 1920x1080 resolution for enhanced pixel-by-pixel image performance. You'll experience the most amazing clarity and detail whether it be while working, gaming, or enjoying the latest in multimedia entertainment.
- SuperClear Color Performance
- Enjoy accurate and vivid colors with consistent levels of brightness no matter the vantage point. With SuperClear MVA panel technology, this monitor delivers the same image quality whether you are looking at the screen from above, below, the front, or the side.
- Flexible Connectivity

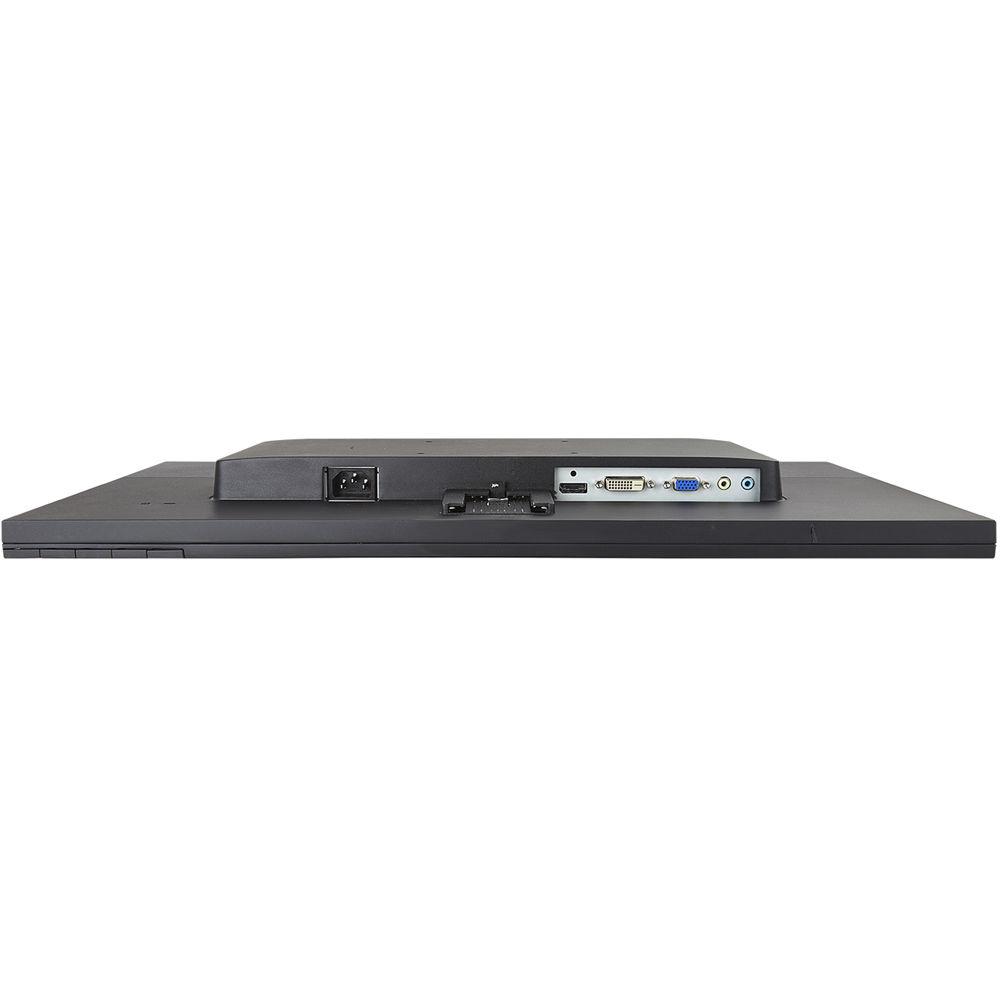

- Future-proof DisplayPort, as well as DVI and VGA inputs, give you the freedom to connect your monitor to a variety of devices.
- ViewMode Enhanced Color Rendering
- ViewSonic's unique ViewMode feature offers Game, Movie, Web, Text, and Mono presets. These presets enhance gamma curve, color temperature, contrast, and brightness to deliver an optimized viewing experience for different screen applications.
- Enhanced Viewing Comfort
- Flicker-Free technology and a Blue Light Filter help to eliminate eye strain from extended viewing periods.
- Uniform Bezel
- A matte-finish, uniform bezel design enables easy configuration of multi-screen setups with a sleek look that stands out in any setting.
- Better Color Depth
- An ultra-high static contrast ratio of 3,000:1 offers a wider range of grayscale to show deeper, richer colors with more visible details in shadows and highlights.
- Dual Integrated Speakers
- Designed with dual integrated speakers, this monitor combines incredible screen performance with stereo sound for an immersive multimedia experience.
- VESA-Compatible Mount

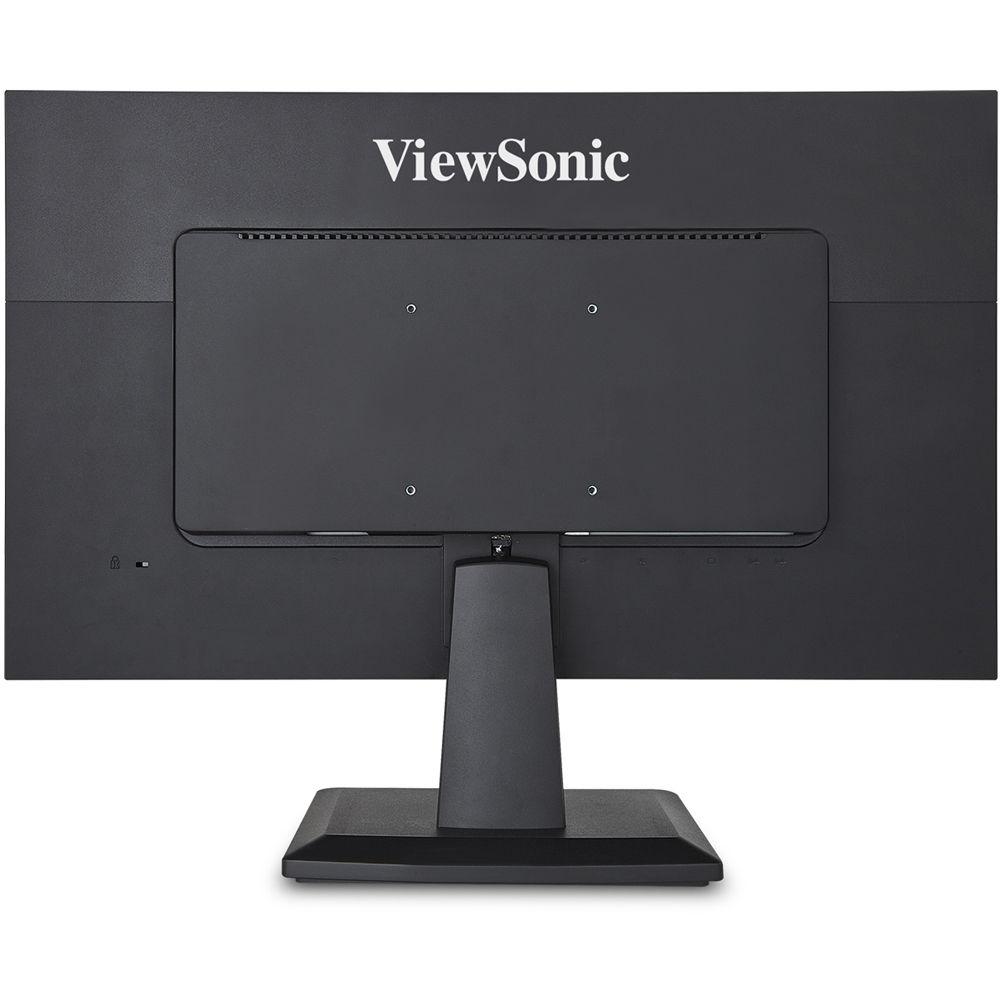

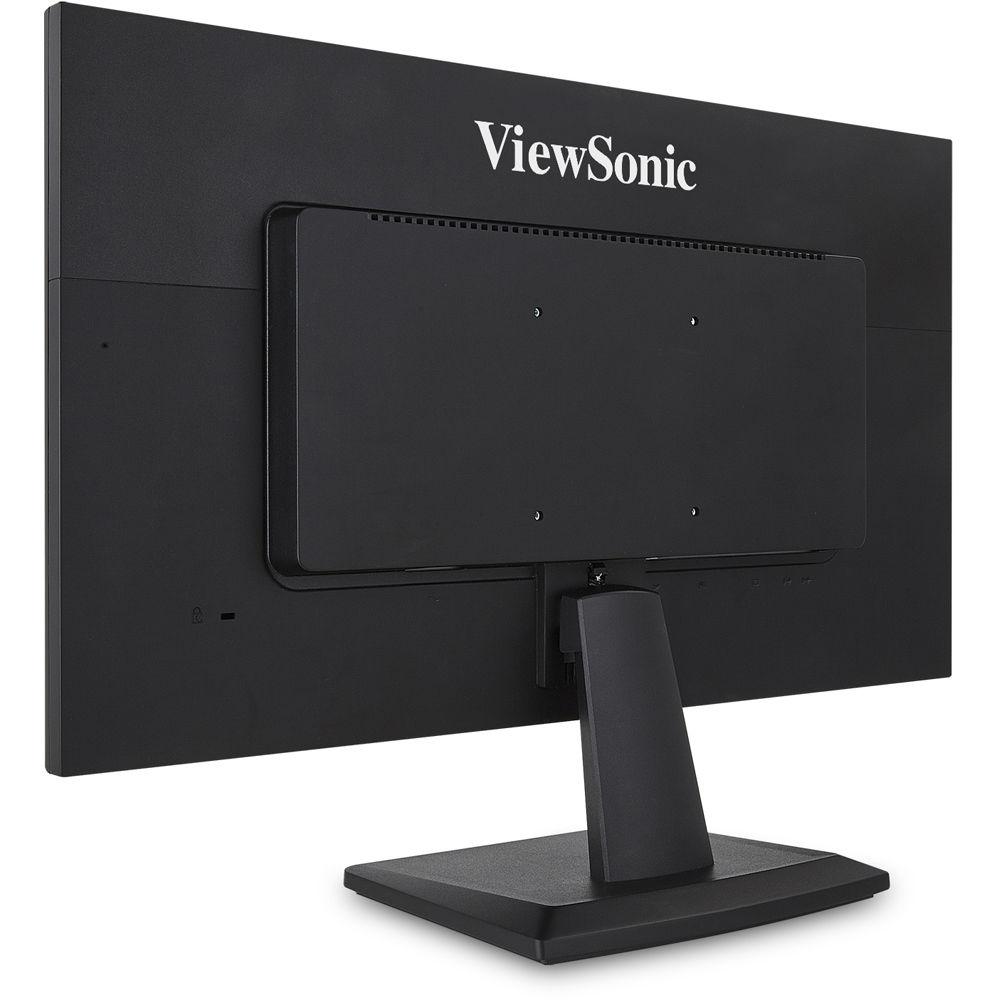

- Mount the monitor as you see fit using its convenient 100 x 100 mm VESA-compatible mount design.
UPC: 766907810325 In the Box ViewSonic VA2252SM 22" Widescreen LED Backlit LCD Monitor Power Cable VGA Cable Limited 3-Year Warranty Specification PDF 1.6mb More from Manufacturer Table of Contents
|
Upload User Manual
Have you got an user manual for the ViewSonic VA2252SM 22" Widescreen LED Backlit LCD Monitor in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersViewSonic VA2252SM Specs | | | Size | 21.5" | | Screen Area | 18.7 x 10.5" / 47.6 x 26.8 cm | | Touchscreen | No | | Resolution | 1920 x 1080 | | Finish | Matte | | Hardness Rating | 3H | | Maximum Brightness | 250 cd/m2 | | Contrast Ratio | 3000:1 | | Adaptive Sync Technology | None | | Horizontal Frequency | 24 to 82 kHz | | Vertical Frequency | 50 to 75 Hz | | Bit Depth / Color Support | 6-Bit+FRC (16.7 Million Colors) | | Response Time | 6.5 ms (GtG) | | Viewing Angle | Horizontal: 178°
Vertical: 178° | | Backlight Lifespan | 40,000 Hours | | | | Connectivity | 1 x 3.5 mm Input/Output
1 x 3.5 mm Output
1 x DVI-D
1 x DisplayPort Input
1 x VGA | | Built-In Speakers | Yes, 2 x 1.5 W | | | | Power Consumption | 28 W (Maximum)
13 W (Eco)
21 W (Typical) | | AC Input Power | 100 to 240 VAC, 50 / 60 Hz | | | | Operating Temperature | 32 to 104°F / 0 to 40°C | | Operating Humidity | 10 to 90% | | Certifications | TCO Certified, ENERGY STAR, RoHS, WEEE, EPEAT Silver, REACH, as per Manufacturer | | | | Tilt Adjustment | -5 to 20° | | Mounting-Hole Pattern | 100 x 100 mm | | Dimensions (W x H x D) | 20.4 x 15.7 x 7.7" / 51.8 x 40.0 x 19.7 mm (With Stand)
20.4 x 12.2 x 1.9" / 51.8 x 31.0 x 4.8 mm (Without Stand) | | Weight | 7.6 lb / 3.4 kg (With Stand)
6.8 lb / 3.1 kg (Without Stand) | | | | Package Weight | 9.8 lb | | Box Dimensions (LxWxH) | 22.0 x 15.0 x 4.5" |
