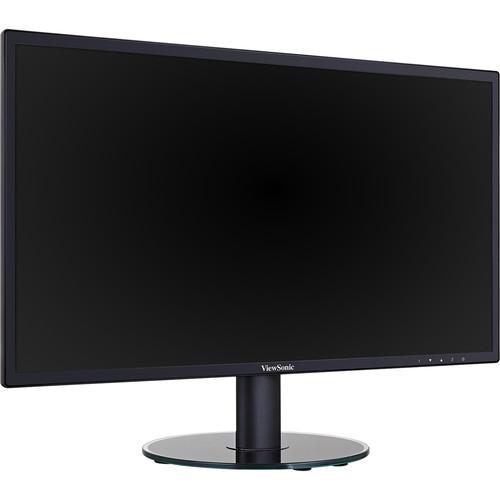

User Manual for ViewSonic VA2419-SMH 24" 16:9 IPS Monitor Click to enlarge the picture
Contents of the user manual for the ViewSonic VA2419-SMH 24" 16:9 IPS Monitor
- Product category: Computer Monitors ViewSonic
- Brand: ViewSonic
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for ViewSonic Computer Monitors
 |
User manual for the ViewSonic VA2419-SMH 24" 16:9 IPS Monitor contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any ViewSonic product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official ViewSonic user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a ViewSonic product will considerably shorten its lifespan!
|

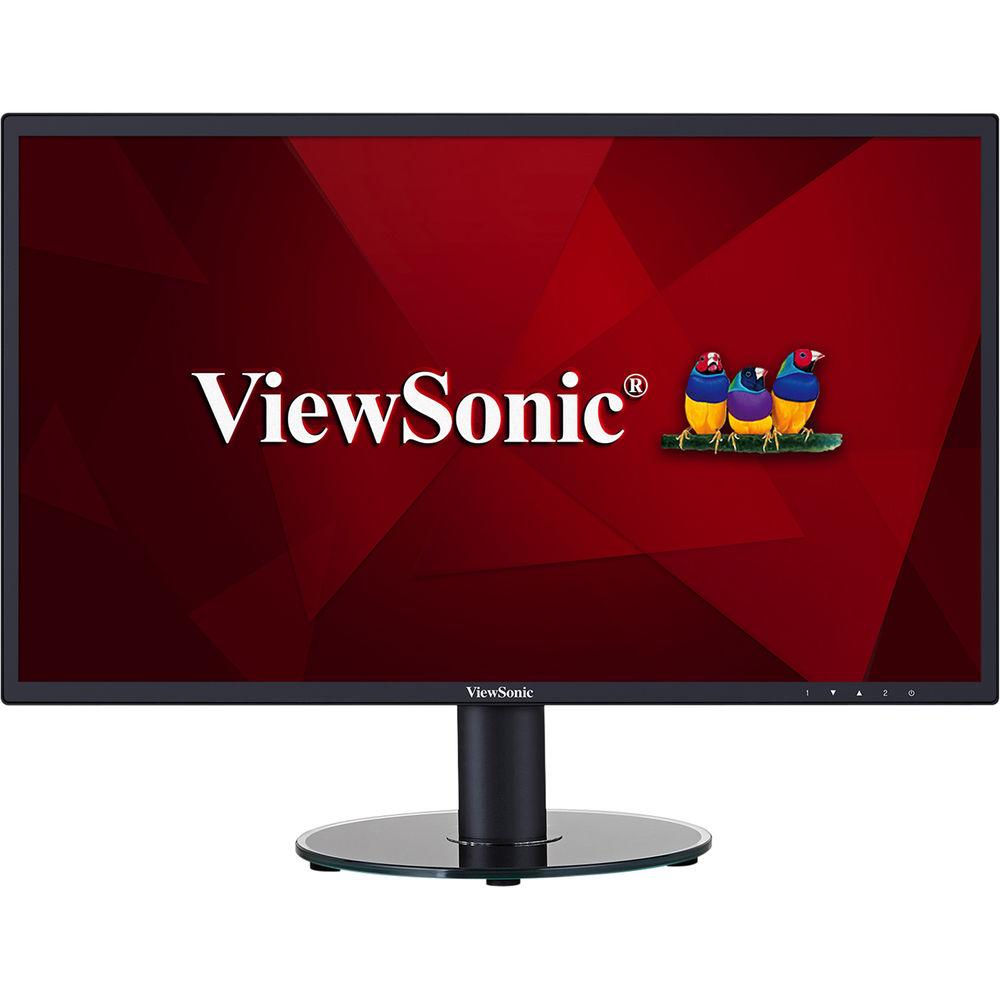

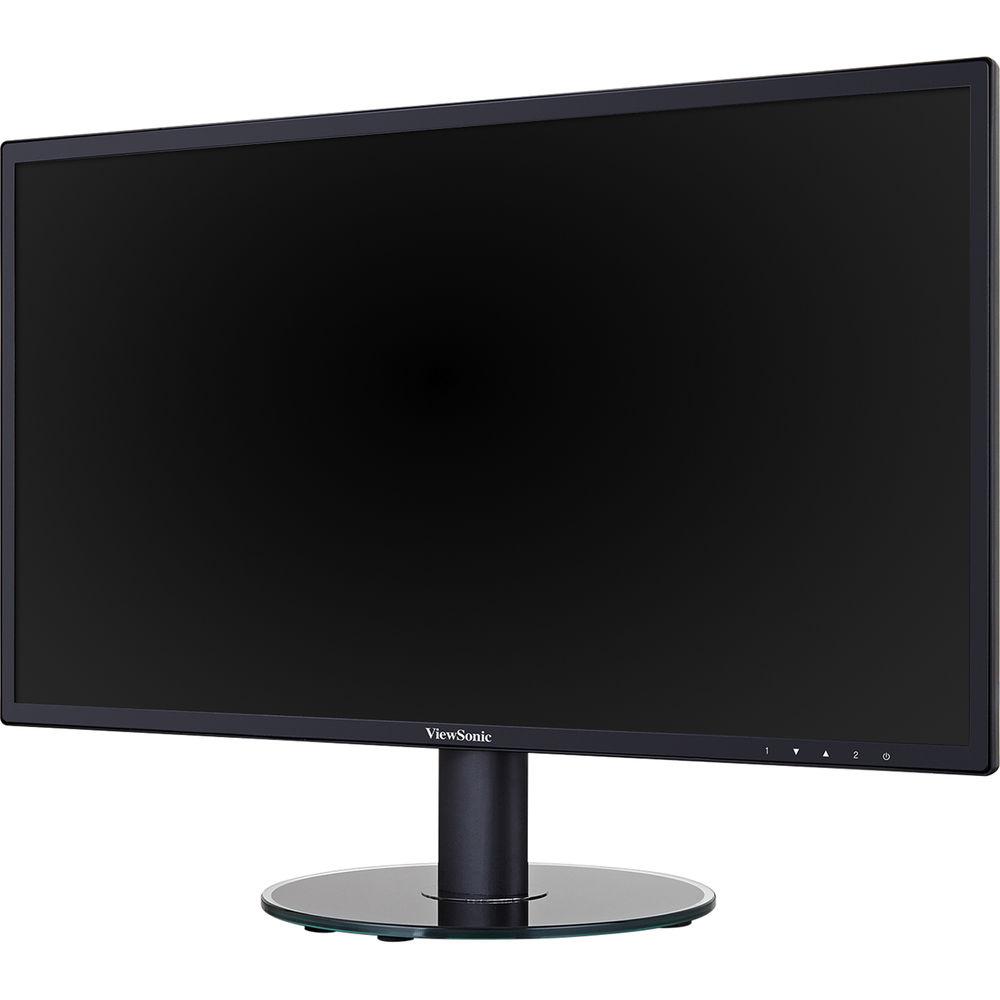

Product description 10 Factors to Consider When Selecting A Monitor for Video Editing Read More With a Full HD 1920 x 1080 resolution and a slim bezel design, the VA2419-SMH 24" 16:9 IPS Monitor from ViewSonic offers an enhanced overall viewing experience. In addition to the Full HD IPS (In-Plane Switching) panel, this monitor also features a 1000:1 contrast ratio, a 250 cd/m² brightness rating, a 14 ms response time, and support for up to 16.7 million colors.

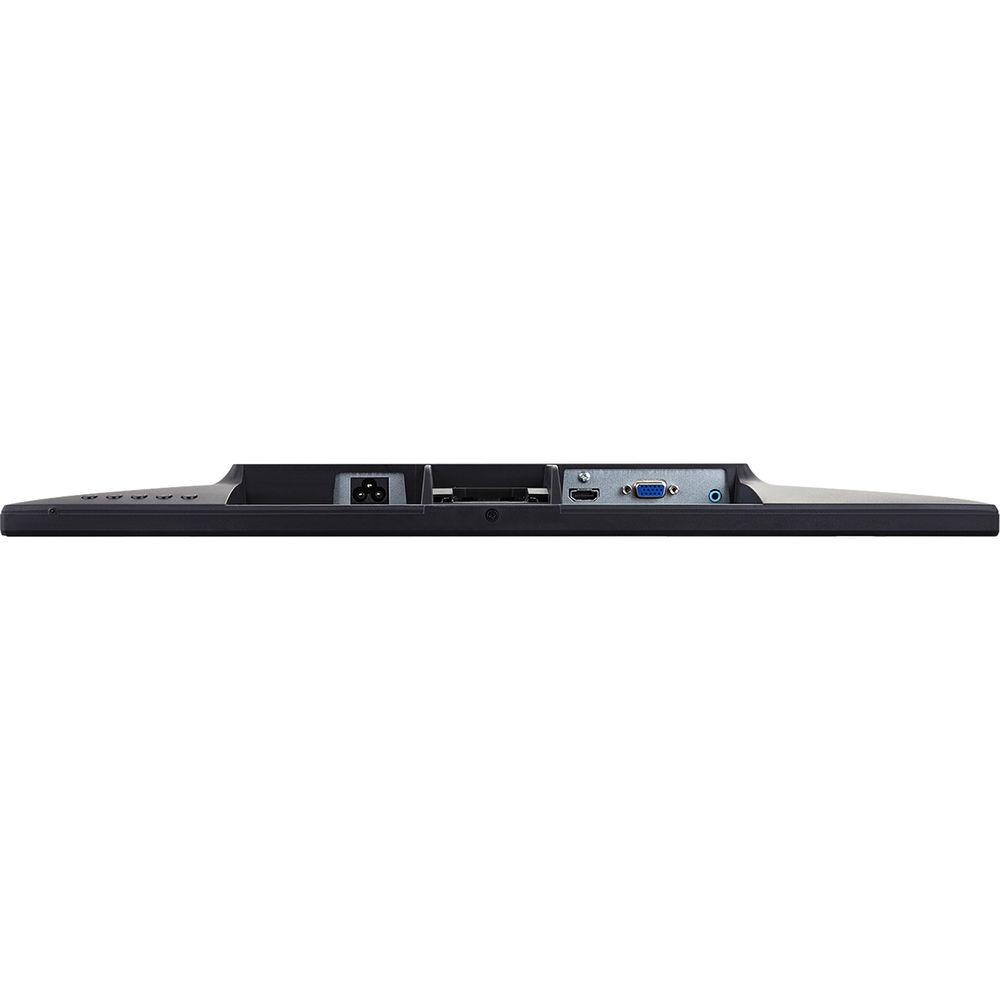

Setup is simple as this monitor comes equipped with both HDMI and VGA inputs as well as dedicated in and out 3.5mm audio jacks. Once configured, 178° horizontal and vertical viewing angles allow viewers to see from nearly any angle. Furthermore, this ViewSonic display supports ViewMode with special settings for gaming, movie watching, and web browsing as well as text and mono viewing options. If that's not enough, viewers can take advantage of the dual built-in speakers for a complete multimedia viewing experience. - Full HD Resolution
- This monitor features Full HD 1920 x 1080 resolution for enhanced pixel-by-pixel image performance. You'll experience improved clarity and detail whether it be while working, gaming, or enjoying the latest in multimedia entertainment.
- SuperClear IPS Panel Technology
- Enjoy accurate and vivid colors with consistent levels of brightness no matter the vantage point. With SuperClear IPS panel technology, this monitor delivers the same image quality from above, below, the front, or the sides.
- The Power of HDMI
- HDMI is a future-proof video standard that delivers true digital picture and audio clarity. The HDMI interface on this monitor allows you to connect to a variety of HD devices including gaming consoles, Blu-ray players, laptop computers, digital cameras, and many others for the ultimate true high-definition experience.
- Slim Bezel Design
- The slim bezel delivers an increased screen surface area that lets you see more without taking up valuable desktop real estate. In addition, the slim bezel enables easy configuration of multi-screen setups with a sleek, fashionable look that stands out in any setting.
- Optimized View Settings
- ViewSonic's unique ViewMode feature offers "Game," "Movie," "Web," "Text," and "Mono" presets. These presets enhance gamma curve, color temperature, contrast, and brightness to deliver an optimized viewing experience for different screen applications.
- Dual Integrated Speakers
- Designed with dual integrated speakers, this monitor combines incredible screen performance with stereo sound for an immersive multimedia experience.
- Enhanced Viewing Comfort
- Flicker-Free technology and a Blue Light Filter help to eliminate eye strain from extended viewing periods.
- VESA-Compatible Mount
- Mount the monitor as you see fit using its convenient VESA-compatible mount design.
UPC: 766907885514 In the Box ViewSonic VA2419-SMH 24" 16:9 IPS Monitor Power Cable VGA Cable Audio Cable Limited 3-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the ViewSonic VA2419-SMH 24" 16:9 IPS Monitor in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersViewSonic VA2419-SMH Specs | | | Size | 23.8" | | Panel Type | IPS-Type LCD | | Touchscreen | No | | Resolution | 1920 x 1080 | | Aspect Ratio | 16:9 | | Pixels Per Inch (ppi) | 93 ppi | | Finish | Matte | | Hardness Rating | 3H | | Maximum Brightness | 250 cd/m2 | | Contrast Ratio | 1000:1 | | Dynamic Contrast Ratio | 50,000,000:1 | | Adaptive Sync Technology | None | | Horizontal Frequency | 24 to 82 kHz | | Vertical Frequency | 50 to 75 Hz | | Bit Depth / Color Support | 6-Bit+FRC (16.7 Million Colors) | | HDR Compatibility | None | | Response Time | 14 ms (GtG) | | Viewing Angle | Horizontal: 178°
Vertical: 178° | | Backlight Lifespan | 30,000 Hours | | | | Connectivity | 1 x HDMI 1.4 Input
1 x VGA Input
1 x 3.5 mm Input
1 x 3.5 mm Output | | Built-In Speakers | Yes, 2 x 1.5 W | | | | Power Consumption | 22 W (Eco)
31 W (Typical)
39 W (Maximum)

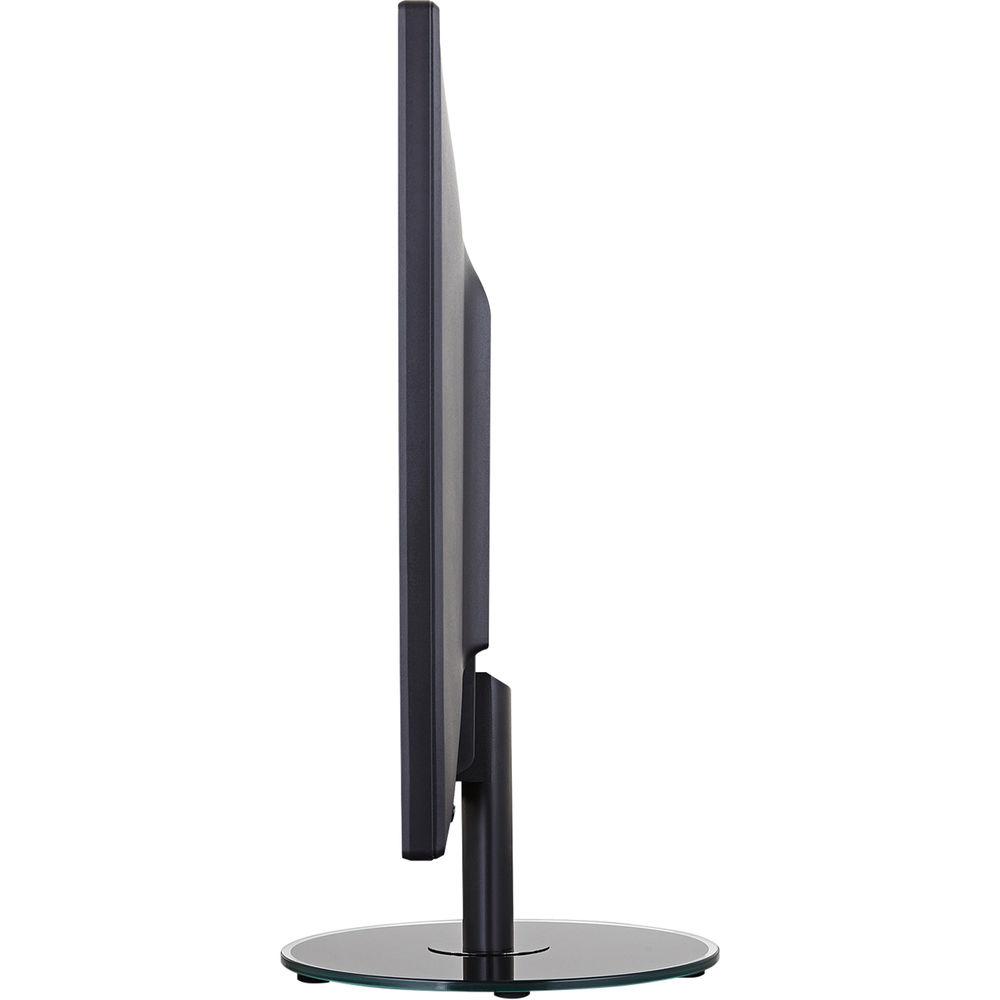

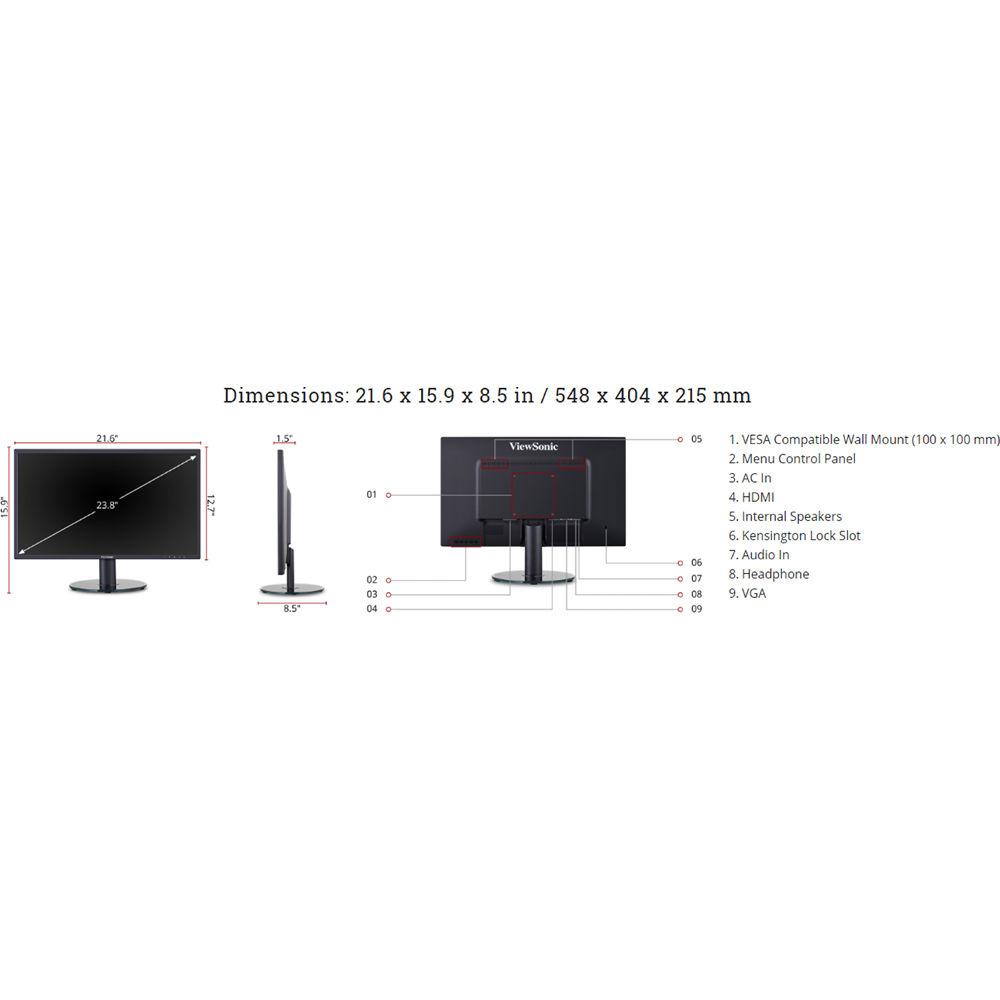

0.3 W (Standby) | | AC Input Power | 100 to 240 VAC, 50 / 60 Hz | | | | Operating Temperature | 32 to 104°F / 0 to 40°C | | Operating Humidity | 20 to 90% | | Certifications | CE, EAC, ENERGY STAR, EPEAT Silver, FCC, UL, cUL, as per Manufacturer | | | | Tilt Adjustment | -7 to 21° | | Mounting-Hole Pattern | 100 x 100 mm | | Lock Slot | Yes, Kensington | | Dimensions (W x H x D) | 21.6 x 15.9 x 8.5" / 54.9 x 40.4 x 21.6 cm (With Stand)
21.6 x 12.7 x 1.5" / 54.9 x 32.3 x 3.8 cm (Without Stand) | | Weight | 8.4 lb / 3.81 kg (With Stand)
6.9 lb / 3.13 kg (Without Stand) | | | | Package Weight | 11.0 lb | | Box Dimensions (LxWxH) | 24.0 x 16.0 x 5.0" |
