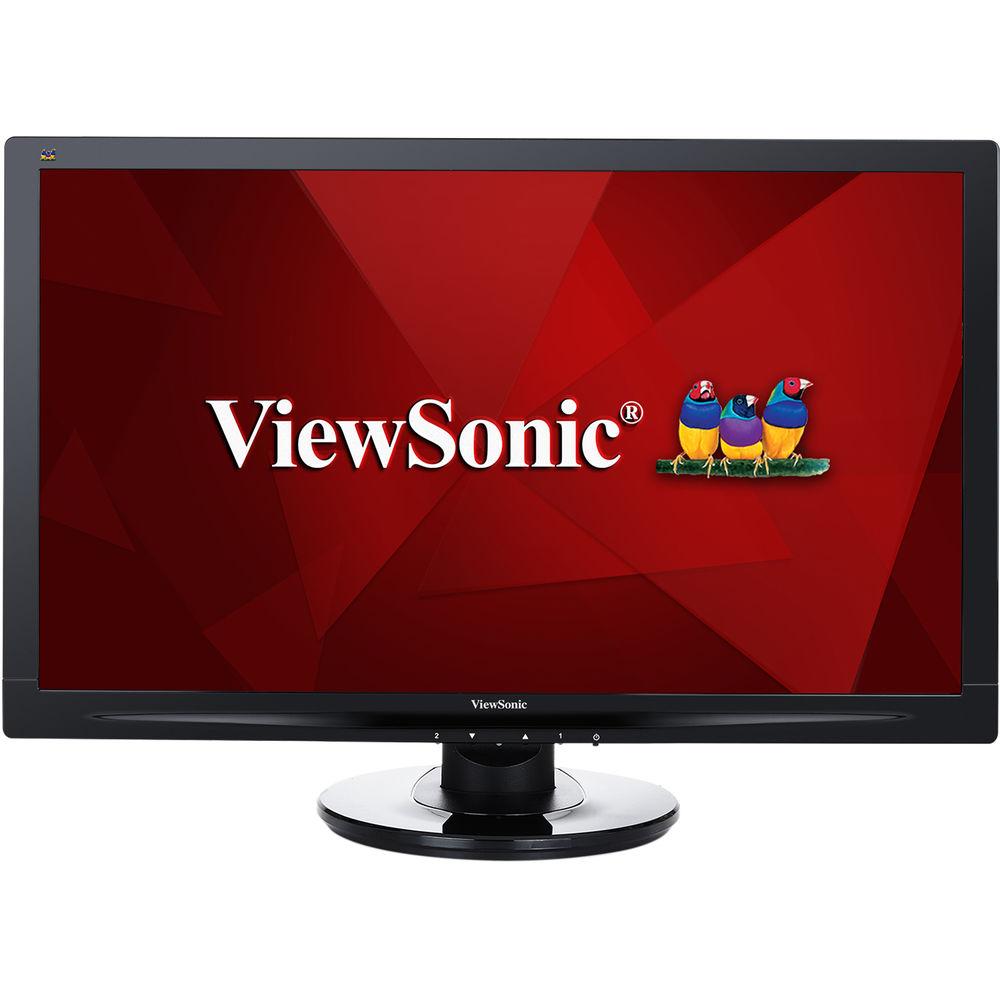

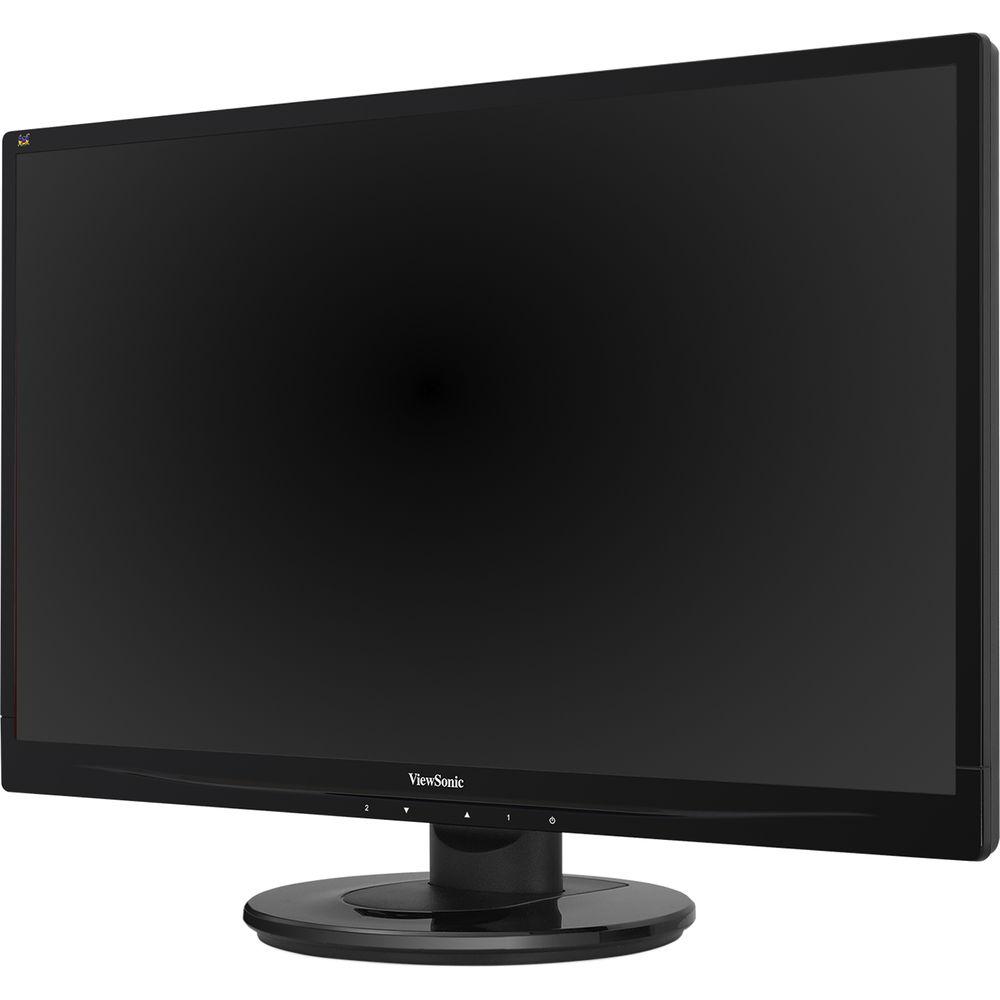

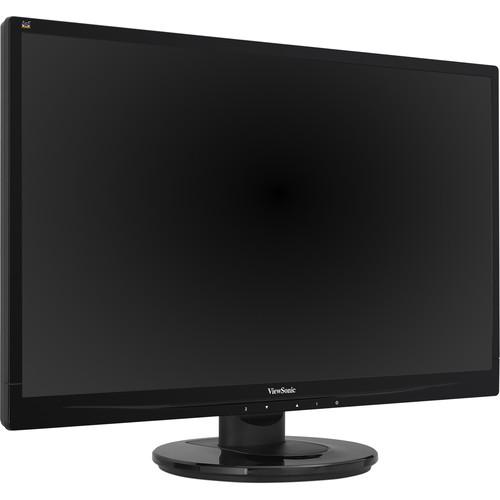

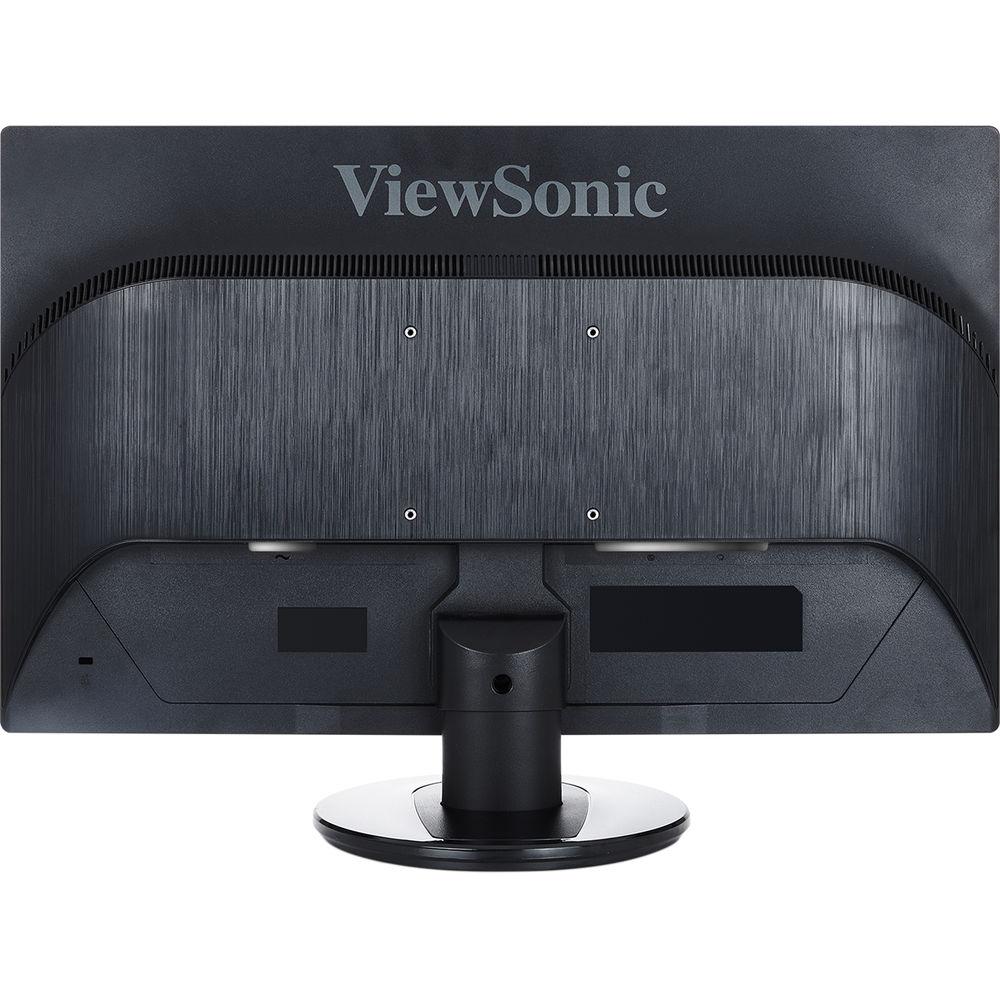

User Manual for ViewSonic VA2446MH-LED 24" 16:9 LCD Monitor Click to enlarge the picture
Contents of the user manual for the ViewSonic VA2446MH-LED 24" 16:9 LCD Monitor
- Product category: Computer Monitors ViewSonic
- Brand: ViewSonic
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for ViewSonic Computer Monitors
 |
User manual for the ViewSonic VA2446MH-LED 24" 16:9 LCD Monitor contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any ViewSonic product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official ViewSonic user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a ViewSonic product will considerably shorten its lifespan!
|
Product description 10 Factors to Consider When Selecting A Monitor for Video Editing Read More With a Full HD 1080p resolution, the VA2446MH-LED 24" 16:9 LCD Monitor from ViewSonic offers an enhanced viewing experience with improved clarity. In addition to the Full HD resolution, this ViewSonic monitor also features a 1000:1 contrast ratio, a 5 ms response time, a 300 cd/m² brightness rating, and support for up to 16.7 million colors. Setup is simple as this display comes equipped with both HDMI and VGA inputs and can be viewed using the included stand or mounted using a VESA compatible wall mount. Once installed, viewers can marvel at the Full HD display from nearly any angle thanks to 170° horizontal and 160° vertical viewing angles, while the dual 2.5W speakers provide a complete multimedia viewing experience. - Full HD 1080p Resolution
- This monitor features Full HD 1920x1080 resolution for unbelievable pixel-by-pixel image performance. You'll experience the most amazing clarity and detail whether it be while working, gaming, or enjoying the latest in multimedia entertainment.
- Enhanced Viewing Comfort
- Flicker-free technology and a Blue Light Filter help to eliminate eye strain from extended viewing periods.
- The Power of HDMI
- HDMI is a future-proof video standard that delivers true digital picture and audio clarity. The HDMI interface on this monitor allows you to connect to a variety of HD devices including gaming consoles, Blu-ray players, laptop computers, digital cameras, and many others for the ultimate true high-definition experience.
- Dual Integrated Speakers
- Designed with dual integrated speakers, this monitor combines incredible screen performance with stereo sound for an immersive multimedia experience.

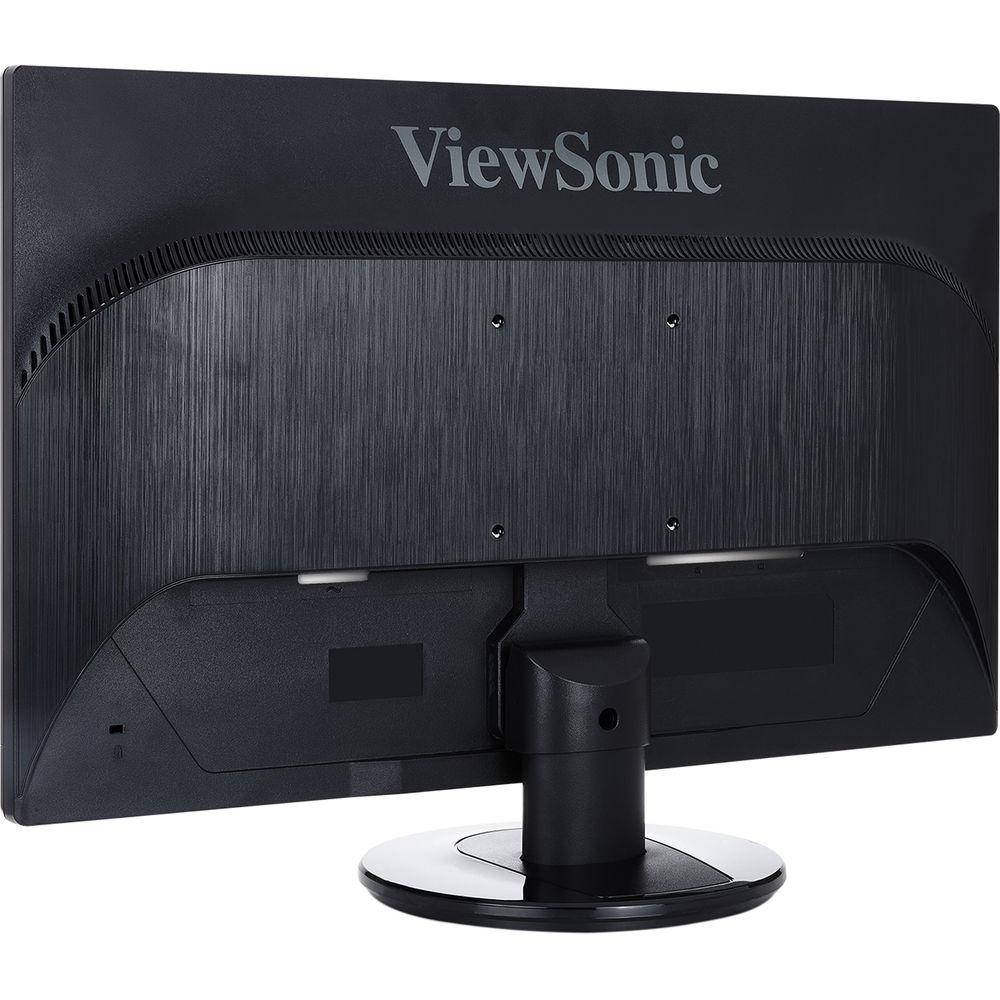

- VESA Mount Compatible
- Mount the monitor as you see fit using its convenient VESA-compatible mount design.
UPC: 766907911763 In the Box ViewSonic VA2446MH-LED 24" 16:9 LCD Monitor Power Cable VGA Cable Audio Cable Limited 3-Year Warranty User Manual PDF 802kb More from Manufacturer Table of Contents
|
Upload User Manual
Have you got an user manual for the ViewSonic VA2446MH-LED 24" 16:9 LCD Monitor in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersViewSonic VA2446MH-LED Specs | Display Size | 24" (61 cm) | | Viewable Area | 23.6" (59.9 cm) | | Panel Type | TN | | Resolution | 1920 x 1080 | | Contrast Ratio | Static
1000:1
Dynamic
50,000,000:1 | | Light Source | WLED | | Brightness | 300 cd/m² | | Colors | Supported Colors
16.7 million
Color Space Support
6-bit + Hi-FRC | | Aspect Ratio | 16:9 | | Response Time | 5 ms | | Viewing Angles (H/V) | 170°/160° | | Backlight Life | 30,000 hours | | Panel Surface | Anti-glare

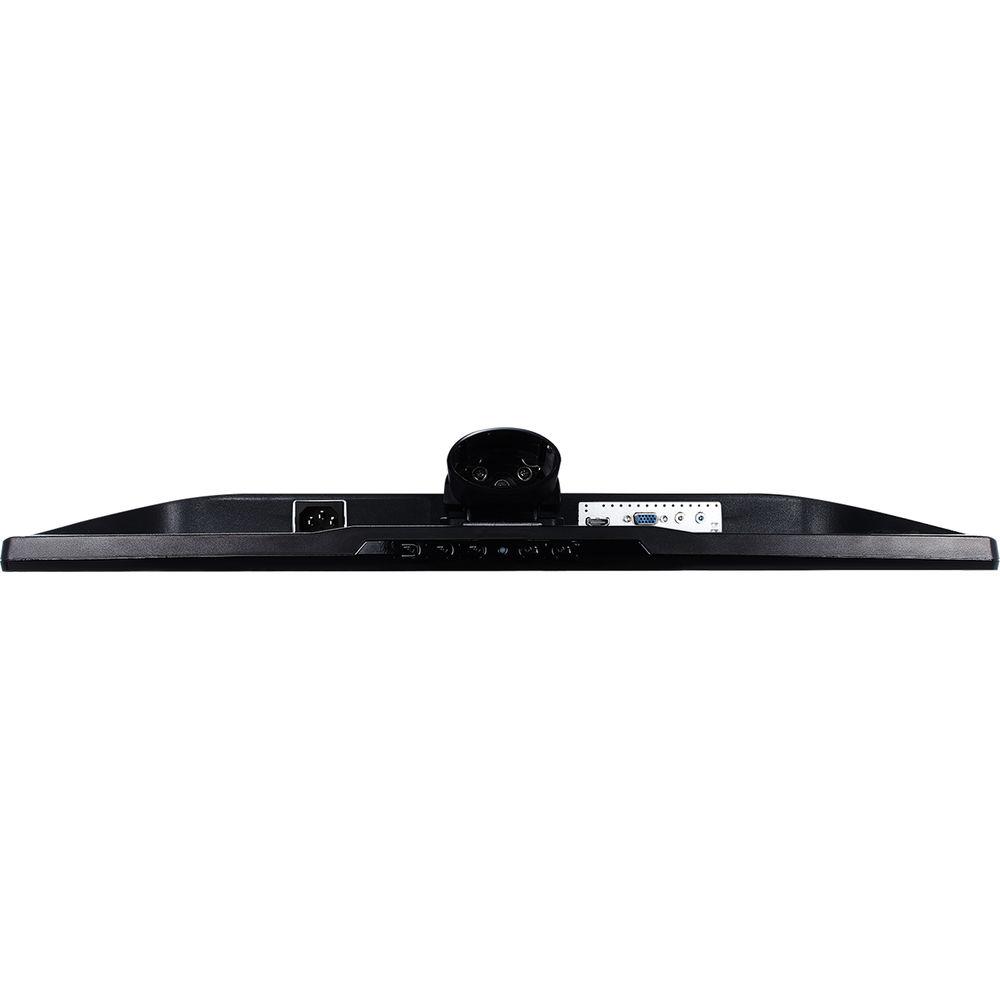

Hard coating (3H) | | Connectors | 1 x 3.5 mm audio-in
1 x 3.5 mm audio-out
1 x VGA
1 x HDMI 1.4 | | Audio | 2 x 2.5 W internal speakers | | Power | Voltage
100-240 VAC; 50/60 Hz
Power Consumption
Eco Mode (Conserve): 17 W
Eco Mode (Optimized): 21 W
Typical: 26 W
Maximum: 28 W
Standby: 0.5 W | | Kensington Lock Support | Yes | | Controls | Physical Controls
1, 2, 3, 4, Power
On Screen Display
Auto Image Adjust, Contrast/Brightness, Input Select, Audio Adjust, Color Adjust, Information, Manual Image Adjust, Advanced Image Adjust, Setup Menu, Memory Recall (See user guide for complete OSD functionality) | | Temperature & Humidity | Temperature
32 to 104°F / 0 to 40°C
Humidity (non-condensing)
20 to 90% | | VESA Mount Standard | 100 x 100 mm | | Video Signal | Horizontal Frequency
24~82 kHz
Vertical Frequency
50~75 Hz | | Video Input | Digital Sync

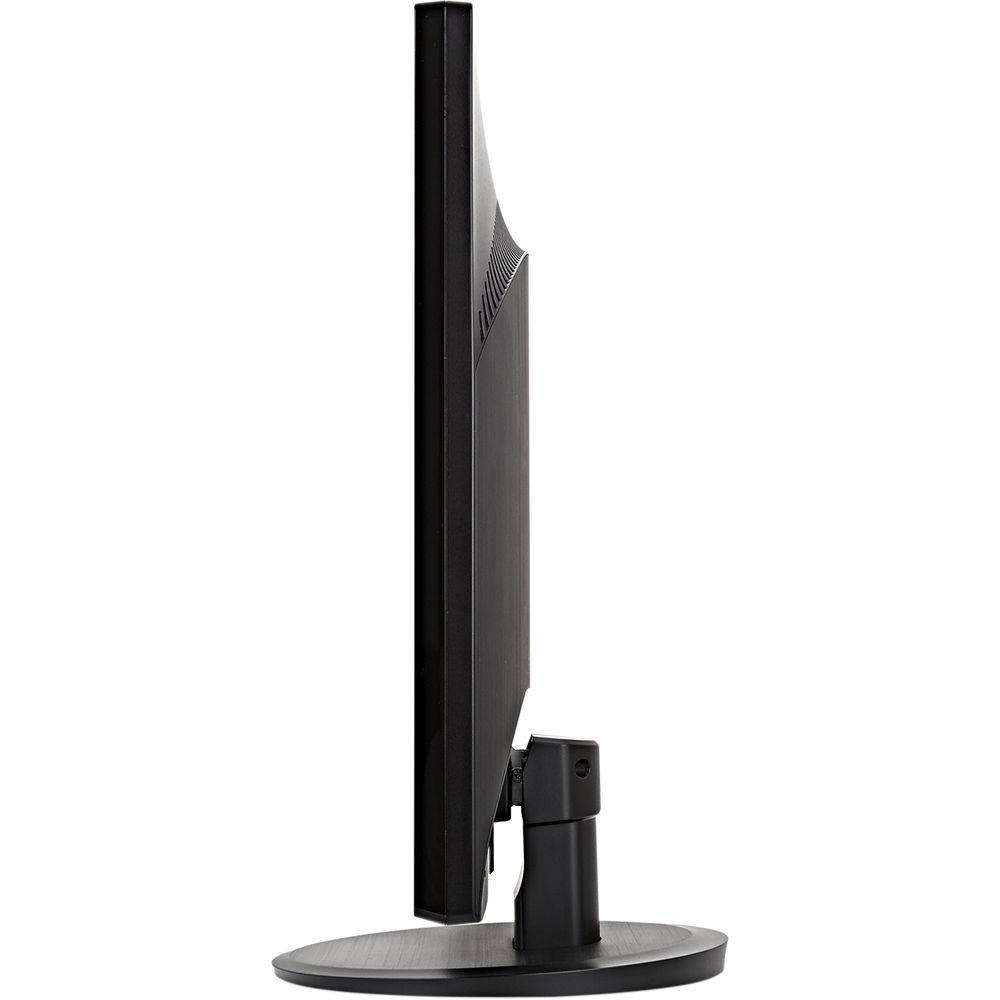

TMDS | | Tilt | 5 to 22° | | Regulations | cULus, FCC-B, ICES003, ENERGY STAR 7.0, EPEAT Silver, Mexico Energy, MX-CoC, BSMI, PSB, RCM, MEPS, SASO | | Dimensions | With Stand
22.49 x 15.78 x 8.32" / 57.14 x 40.09 x 21.12 cm
Without Stand
22.49 x 13.81 x 1.98" / 57.14 x 35.09 x 5.04 cm | | Weight | With Stand
9.02 lb / 4.1 kg
Without Stand
8.14 lb / 3.7 kg | | | | Package Weight | 11.75 lb | | Box Dimensions (LxWxH) | 24.4 x 16.6 x 4.6" |
