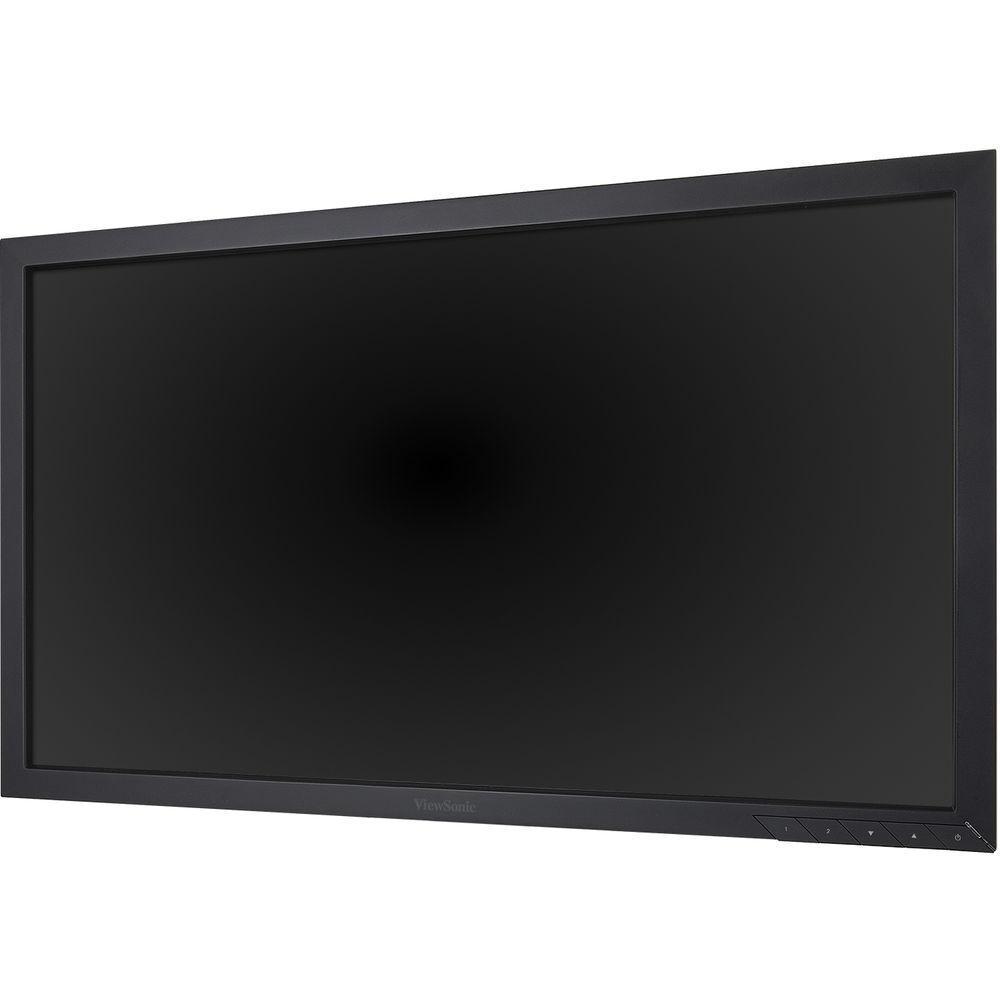

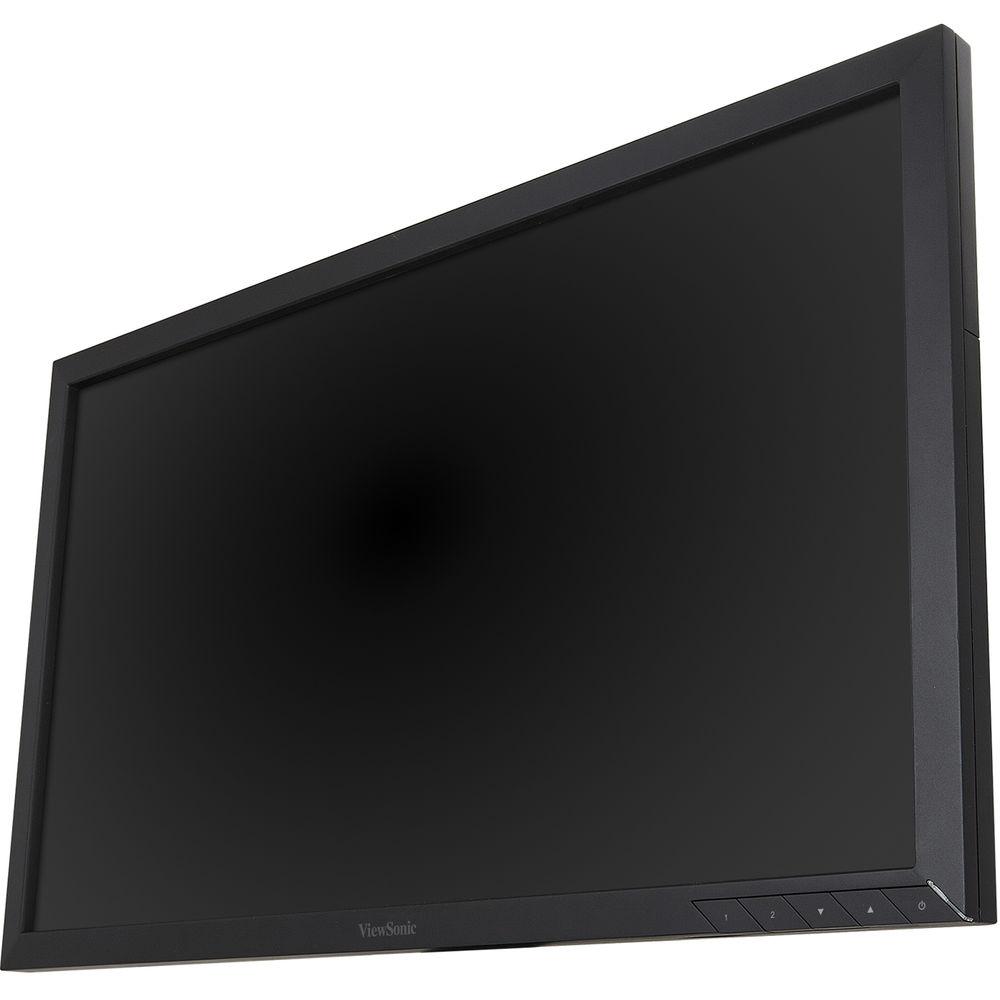

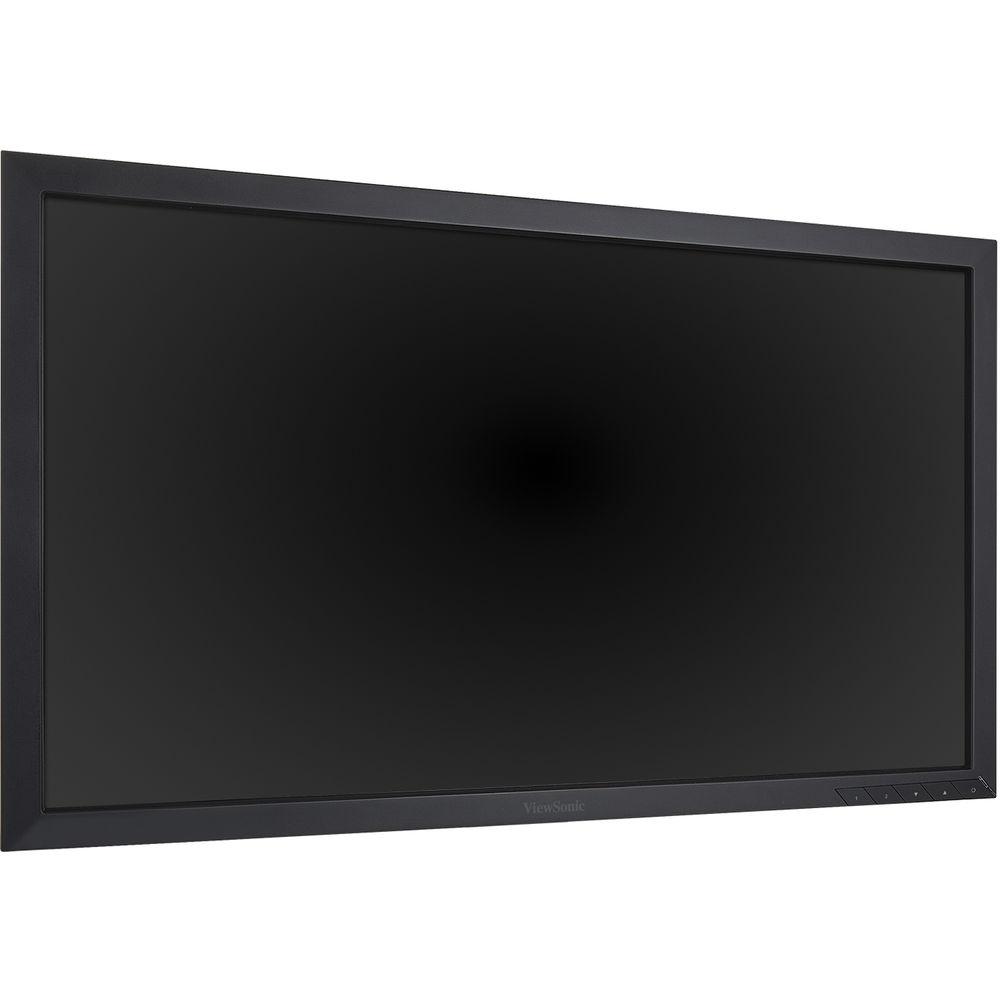

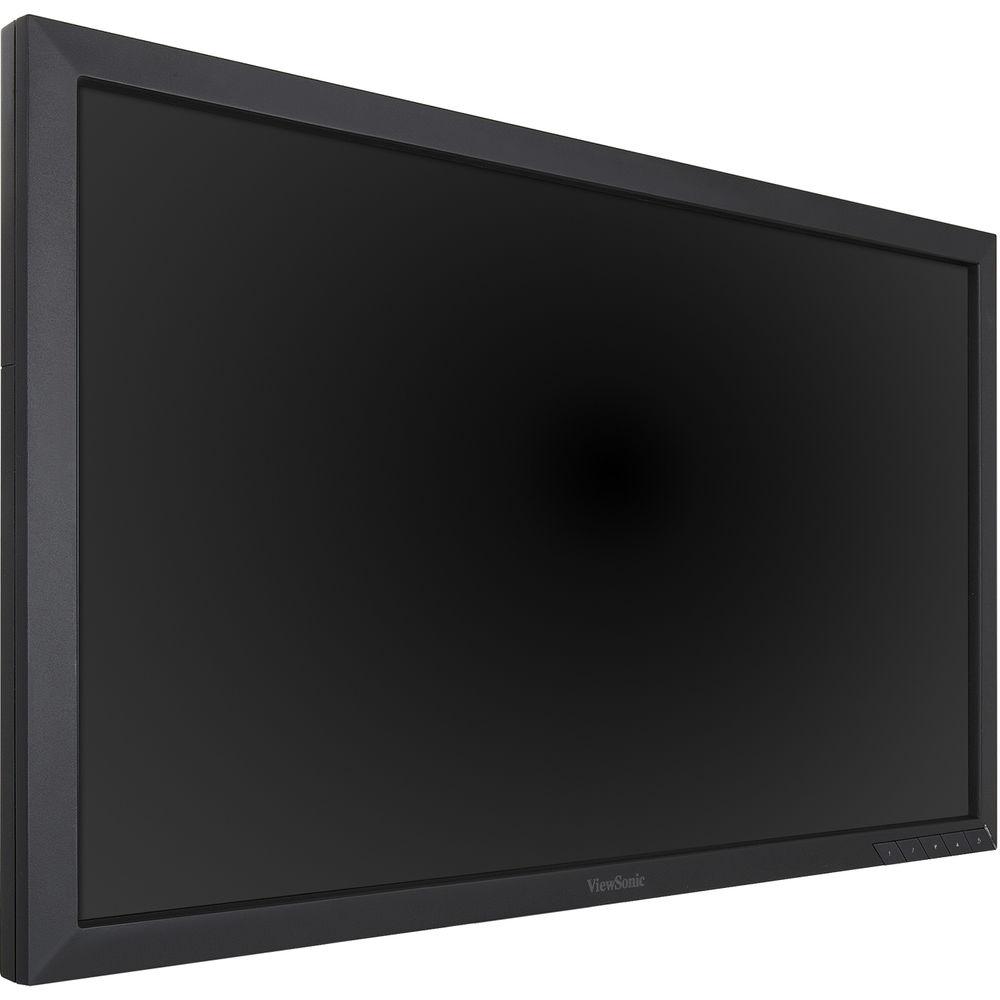

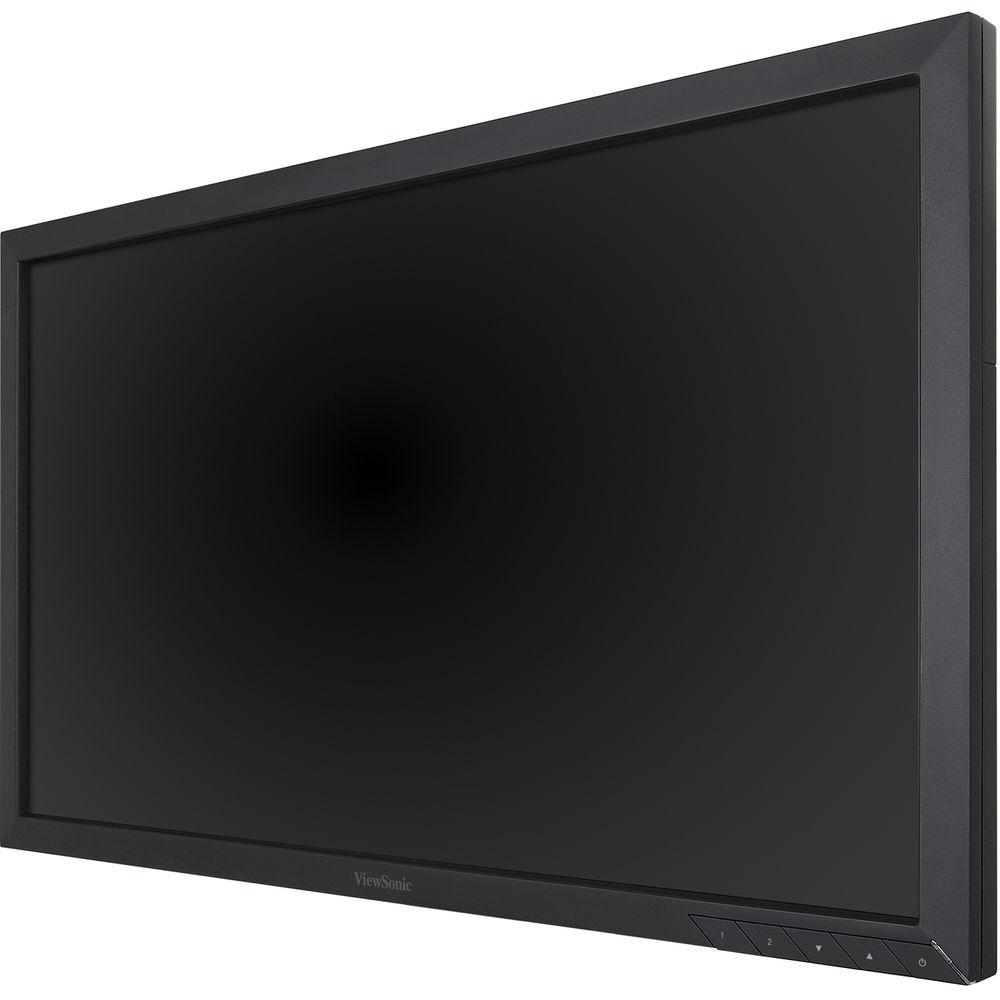

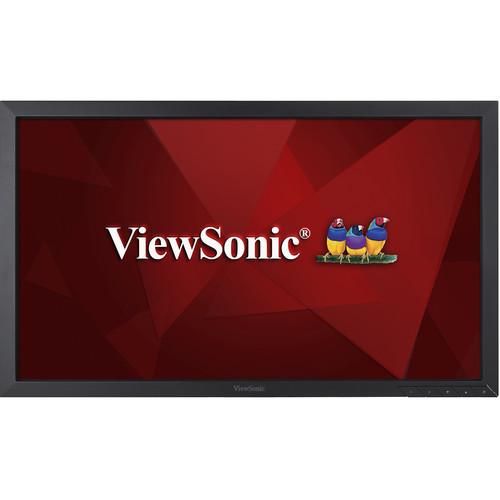

User Manual for ViewSonic VA2452SM_H2 24" 16:9 LCD Monitor Click to enlarge the picture
Contents of the user manual for the ViewSonic VA2452SM_H2 24" 16:9 LCD Monitor
- Product category: Computer Monitors ViewSonic
- Brand: ViewSonic
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for ViewSonic Computer Monitors
 |
User manual for the ViewSonic VA2452SM_H2 24" 16:9 LCD Monitor contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any ViewSonic product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official ViewSonic user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a ViewSonic product will considerably shorten its lifespan!
|

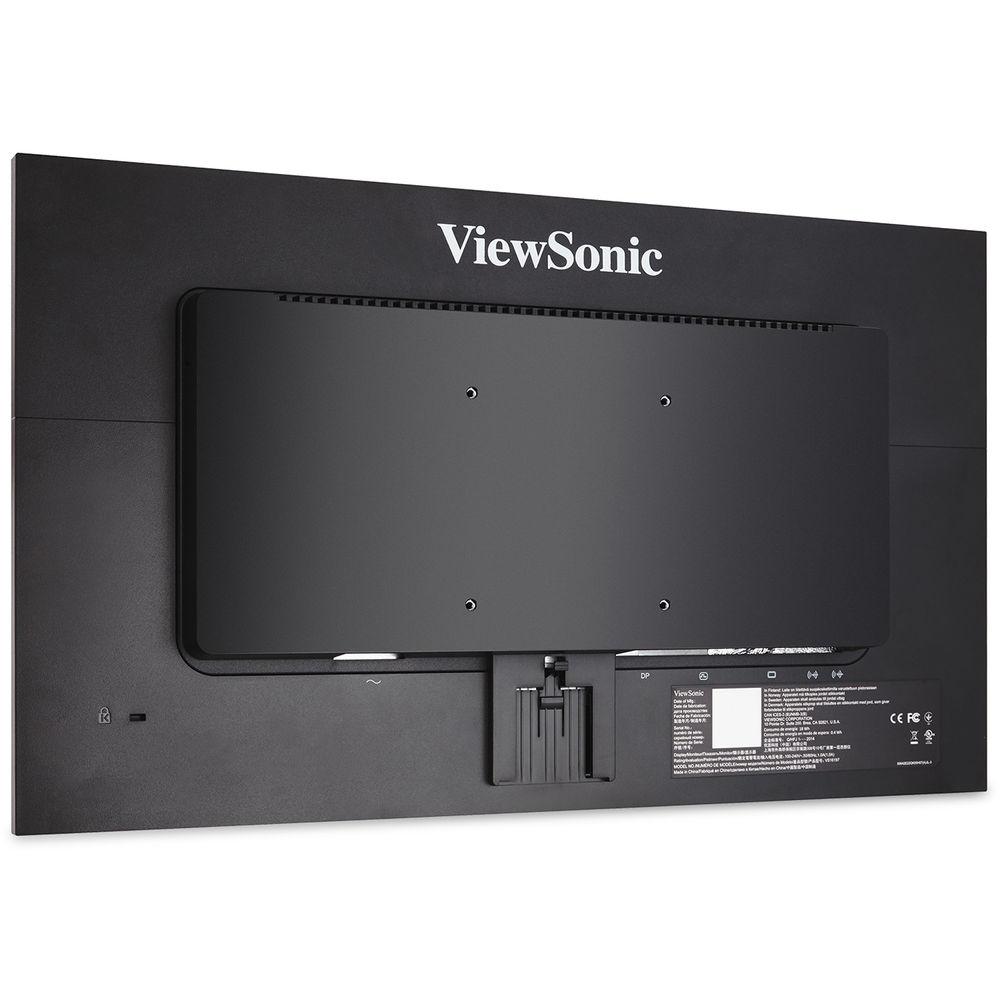

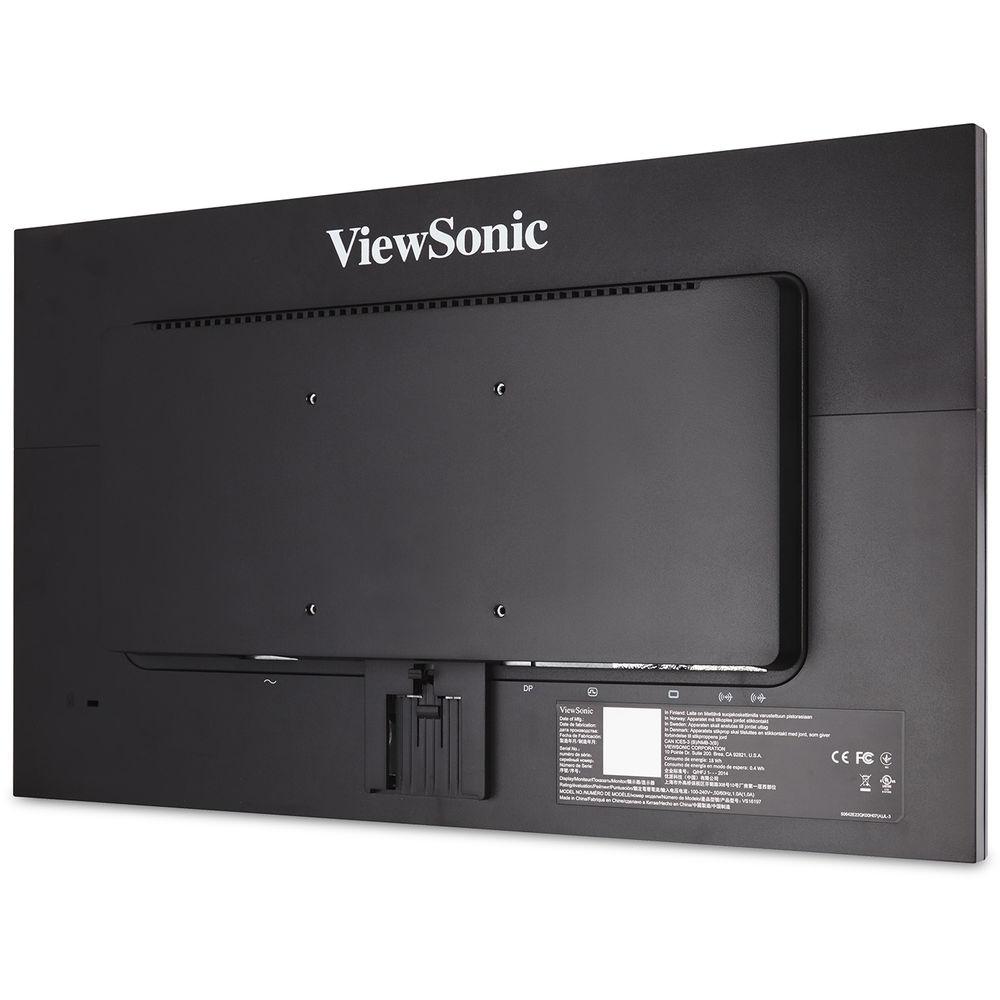

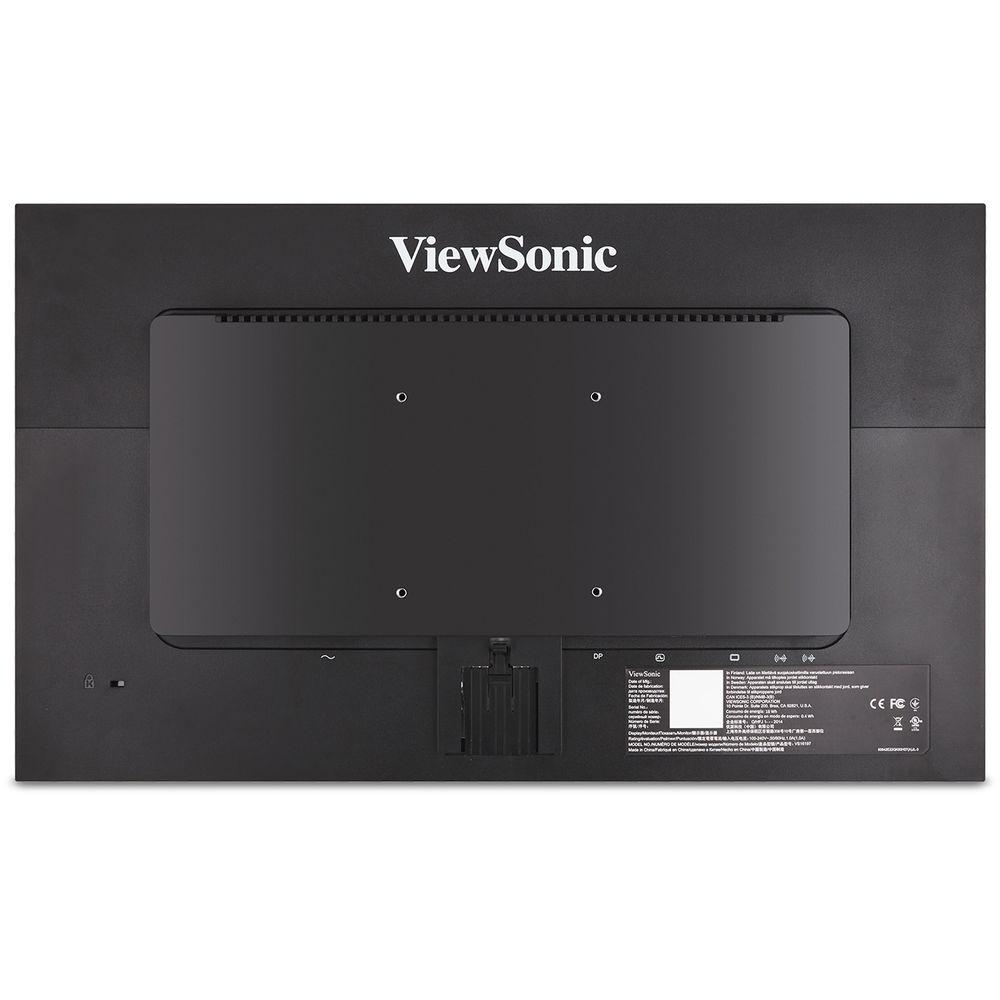

Product description 10 Factors to Consider When Selecting A Monitor for Video Editing Read More This 2-pack of VA2452SM_H2 24" 16:9 LCD Monitors from ViewSonic is designed for corporate users who need multiple displays with broad connectivity and mounting capabilities. Specs-wise, they're built on a MVA panel with a 1920 x 1080 resolution, a 3000:1 static contrast ratio, a 250 cd/m² brightness rating, and support for 16.7 million colors to deliver crisp and clear content reproduction with vivid colors and wide viewing angles. These monitors do not come with a stand; however, they have 100 x 100mm VESA mounting holes on the back. Once you install your own mount, stand, or arm, connect it to your system via VGA, DVI-D, or DisplayPort and you're all set. Moreover, these monitors are equipped with dual stereo speakers. - Optimized View Settings
- There are five preset viewing modes: Game, Movie, Web, Text, and Mono that feature optimized settings to best fit your current application.
- Viewing Comfort
- Flicker-Free technology and Blue Light Filter reduces blue light emissions, which can cause eye fatigue and eyestrain over extended viewing periods.
- Dual Integrated Stereo Speakers
- With two 1.5W stereo speakers, these monitors can deliver audio via its 3.5mm jack whether you're watching movies, listening to music, playing games, or more.
UPC: 766907852226 In the Box ViewSonic VA2452SM_H2 24" 16:9 LCD Monitor (2-Pack, Without Stands) VGA Cable DisplayPort Cable Power Cable Limited 3-Year Warranty Data Sheet PDF 488.5kb More from Manufacturer Table of Contents
|
Upload User Manual
Have you got an user manual for the ViewSonic VA2452SM_H2 24" 16:9 LCD Monitor in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersViewSonic VA2452 Specs | | | Size | 23.6" | | Panel Type | VA LCD | | Touchscreen | No | | Resolution | 1920 x 1080 | | Aspect Ratio | 16:9 | | Pixels Per Inch (ppi) | 93 ppi | | Finish | Matte | | Hardness Rating | 3H | | Maximum Brightness | 250 cd/m2 | | Contrast Ratio | 3000:1 | | Adaptive Sync Technology | None | | Horizontal Frequency | 24 to 82 kHz | | Vertical Frequency | 50 to 75 Hz | | Bit Depth / Color Support | 6-Bit+FRC (16.7 Million Colors) | | HDR Compatibility | None | | Response Time | 6 ms (GtG) | | Viewing Angle | Horizontal: 178°
Vertical: 178° | | Backlight Lifespan | 40,000 Hours | | | | Connectivity | 1 x VGA
1 x DVI-D
1 x DisplayPort
1 x 3.5 mm Input | | Built-In Speakers | Yes, 2 x 1.5 W | | | | Power Consumption | 15 W (Eco)
23 W (Typical)
30 W (Maximum) | | AC Input Power | 100 to 240 VAC, 50 / 60 Hz | | | | Operating Temperature | 32 to 104°F / 0 to 40°C | | Operating Humidity | 20 to 90% | | | | Height Adjustment | None | | Rotation Adjustment | None | | Swivel Adjustment | None | | Tilt Adjustment | None | | Mounting-Hole Pattern | 100 x 100 mm | | Lock Slot | Yes, Kensington | | Dimensions (W x H x D) | 22.2 x 13.2 x 2.0" / 563.9 x 335.3 x 50.8 mm | | Weight | 15.6 lb / 7.08 kg | | | | Package Weight | 18.0 lb | | Box Dimensions (LxWxH) | 24.5 x 15.5 x 9.5" |
Rating60% users recommend this product to others. And what about you?
This product has already been rated by 59 owners. Add your rating and experience with the product.
