User Manual for ViewSonic VA2456-MHD 24" 16:9 Reduced Bezel IPS Monitor Click to enlarge the picture
Contents of the user manual for the ViewSonic VA2456-MHD 24" 16:9 Reduced Bezel
- Product category: Computer Monitors ViewSonic
- Brand: ViewSonic
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for ViewSonic Computer Monitors
 |
User manual for the ViewSonic VA2456-MHD 24" 16:9 Reduced Bezel contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any ViewSonic product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official ViewSonic user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a ViewSonic product will considerably shorten its lifespan!
|
Product description 10 Factors to Consider When Selecting A Monitor for Video Editing Read More With a SuperClear IPS (In-Plane Switching) Panel, the VA2456-MHD 24" 16:9 Reduced Bezel IPS Monitor from ViewSonic offers an enhanced viewing experience with true color representation and 178° horizontal and vertical viewing angles.
The IPS panel found on the VA2456-MHD monitor features a Full HD 1920 x 1080 resolution, a 1000:1 contrast ratio, a 250 cd/m² brightness rating, and supports up to 16.7 million colors. Setup has also been greatly simplified thanks to a variety of available inputs including VGA, HDMI, and DisplayPort connections. In addition to video inputs, this ViewSonic monitor also comes equipped with 3.5mm audio in and out jacks as well as dual built-in speakers for a complete multimedia viewing experience. - SuperClear IPS Panel Technology
- Enjoy accurate and vivid colors with consistent levels of brightness no matter the vantage point. With SuperClear IPS panel technology, this monitor delivers the same image quality whether you are looking at the screen from above, below, the front, or the sides.

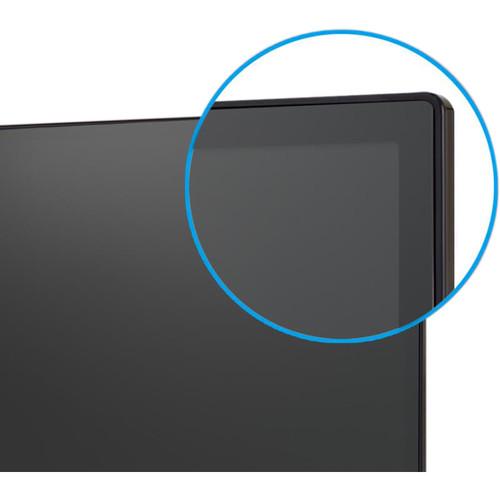

- Frameless Design
- Say goodbye to the thick, clunky plastic frames set over the edges of traditional monitors. This monitor features an edge-to-edge screen and frameless design for an immersive viewing experience.

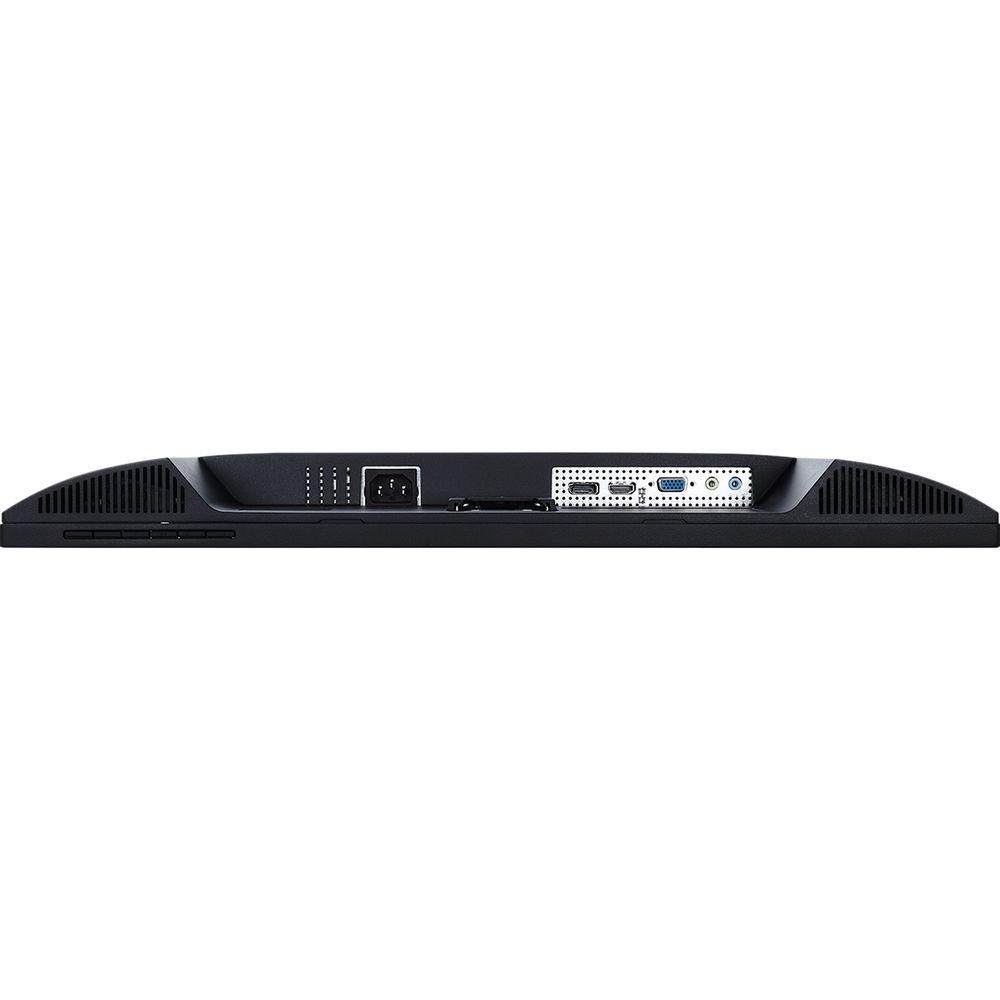

- Versatile Connectivity
- DisplayPort, HDMI, and VGA inputs give you the freedom to connect your display to a variety of devices.
- Full HD 1080p Resolution
- This monitor features Full HD 1920x1080 resolution for unbelievable pixel-by-pixel image performance. You'll experience the enhanced clarity and detail whether it be while working, gaming, or enjoying the latest in multimedia entertainment.
- Optimized View Settings
- ViewSonic's unique ViewMode feature offers "Game," "Movie," "Web," "Text," and "Mono" presets. These presets enhance gamma curve, color temperature, contrast, and brightness to deliver an optimized viewing experience for different screen applications.
- Enhanced Viewing Comfort
- Flicker-Free technology and a Blue Light Filter help to eliminate eye strain from extended viewing periods.
- Dual Integrated Stereo Speakers
- Designed with dual integrated speakers, this monitor combines incredible screen performance with stereo sound for an immersive multimedia experience.
- VESA-Mount Compatible
- Mount the monitor as you see fit using its convenient VESA-compatible mount design.
UPC: 766907961911 In the Box ViewSonic VA2456-MHD 24" 16:9 Reduced Bezel IPS Monitor Power Cable VGA Cable Audio Cable Limited 3-Year Warranty User Manual PDF 2.3mb Table of Contents
|
Upload User Manual
Have you got an user manual for the ViewSonic VA2456-MHD 24" 16:9 Reduced Bezel IPS Monitor in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersViewSonic VA2456-MHD Specs | | | Size | 23.8" | | Panel Type | IPS-Type LCD | | Touchscreen | No | | Resolution | 1920 x 1080 | | Aspect Ratio | 16:9 | | Pixels Per Inch (ppi) | 93 ppi | | Finish | Matte | | Hardness Rating | 3H | | Maximum Brightness | 250 cd/m2 | | Contrast Ratio | 1000:1 | | Dynamic Contrast Ratio | 50,000,000:1 | | Adaptive Sync Technology | None | | Horizontal Frequency | 15 to 83 kHz (HDMI)
24 to 83 kHz (DisplayPort) | | Vertical Frequency | 50 to 75 Hz (HDMI)
50 to 75 Hz (DisplayPort) | | Bit Depth / Color Support | 6-Bit+FRC (16.7 Million Colors) | | HDR Compatibility | None | | Response Time | 14 ms (GtG)
7 ms (Overdrive) | | Viewing Angle | Horizontal: 178°
Vertical: 178° | | Backlight Lifespan | 30,000 Hours | | | | Connectivity | 1 x VGA Input
1 x HDMI 1.4 Input
1 x DisplayPort Input
1 x 3.5 mm Input
1 x 3.5 mm Output | | Built-In Speakers | Yes, 2 x 2 W | | | | Power Consumption | 14 W (Eco)
22 W (Typical)
31 W (Maximum) | | AC Input Power | 100 to 240 VAC, 50 / 60 Hz | | Power Adapter Type | Internal | | | | Operating Temperature | 32 to 104°F / 0 to 40°C | | Operating Humidity | 20 to 90% | | Certifications | ENERGY STAR, EPEAT Silver, FCC, as per Manufacturer | | | | Tilt Adjustment | -4 to 20° | | Mounting-Hole Pattern | 100 x 100 mm | | Lock Slot | Yes | | Dimensions (W x H x D) | 21.3 x 15.3 x 7.8" / 54.1 x 38.9 x 19.8 cm (With Stand)
21.3 x 12.8 x 1.9" / 54.1 x 32.5 x 4.8 cm (Without Stand) | | Weight | 8.6 lb / 3.90 kg (With Stand)
7.7 lb / 3.49 kg (Without Stand) | | | | Package Weight | 12.0 lb | | Box Dimensions (LxWxH) | 23.5 x 16.7 x 5.1" |
