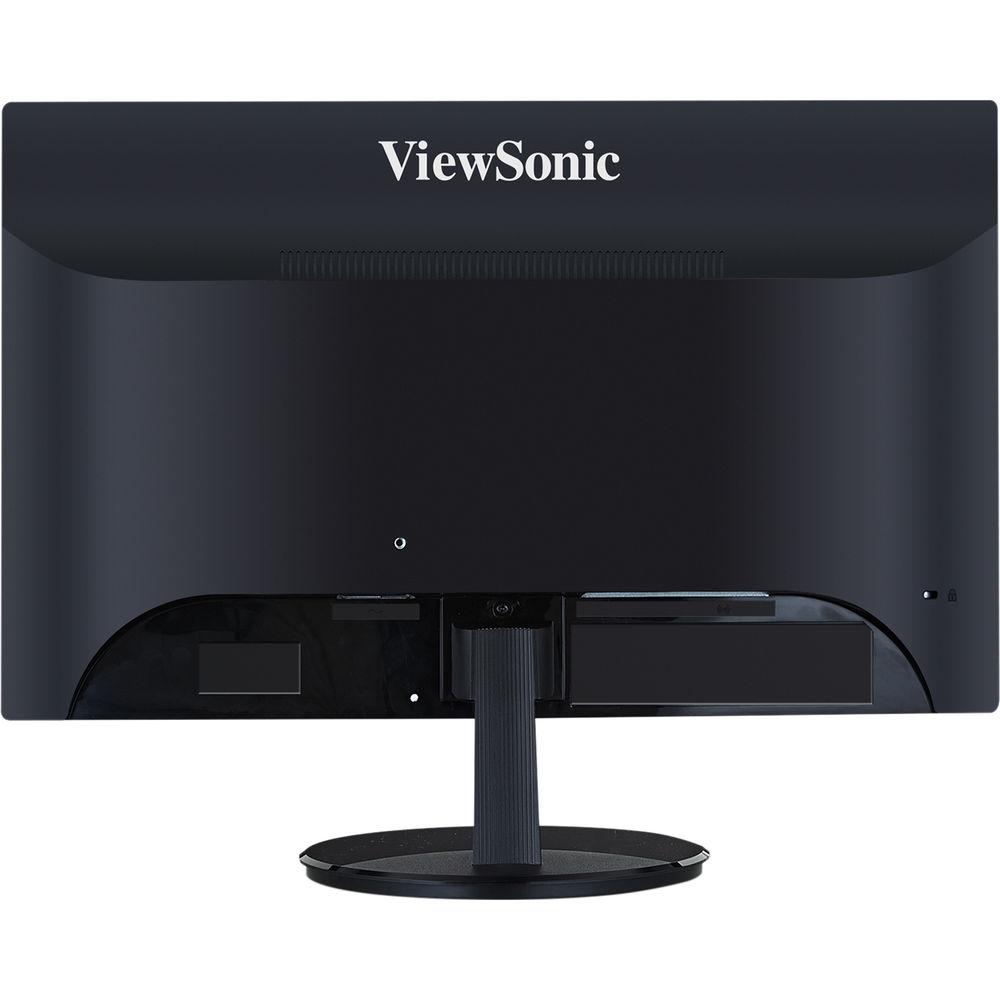

User Manual for ViewSonic VA2459-SMH 24" 16:9 IPS Monitor Click to enlarge the picture
Contents of the user manual for the ViewSonic VA2459-SMH 24" 16:9 IPS Monitor
- Product category: Computer Monitors ViewSonic
- Brand: ViewSonic
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for ViewSonic Computer Monitors
 |
User manual for the ViewSonic VA2459-SMH 24" 16:9 IPS Monitor contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any ViewSonic product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official ViewSonic user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a ViewSonic product will considerably shorten its lifespan!
|

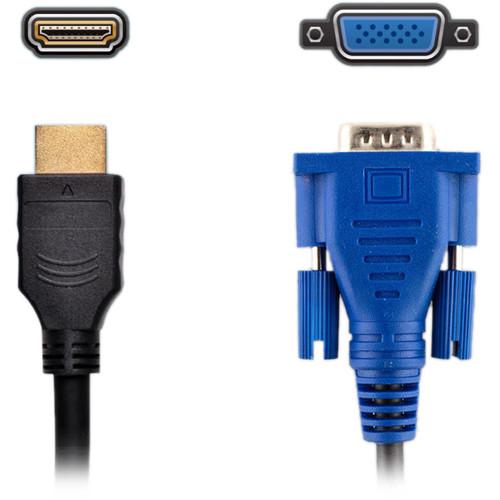

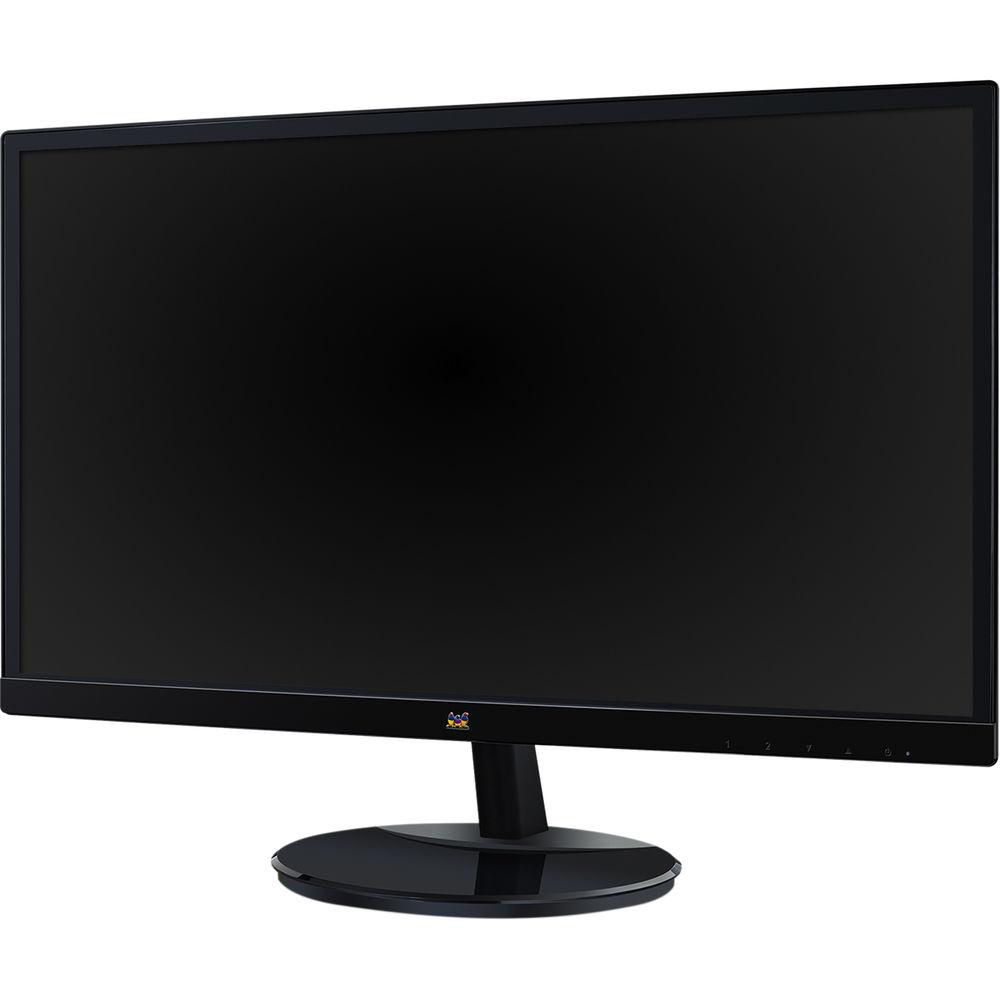

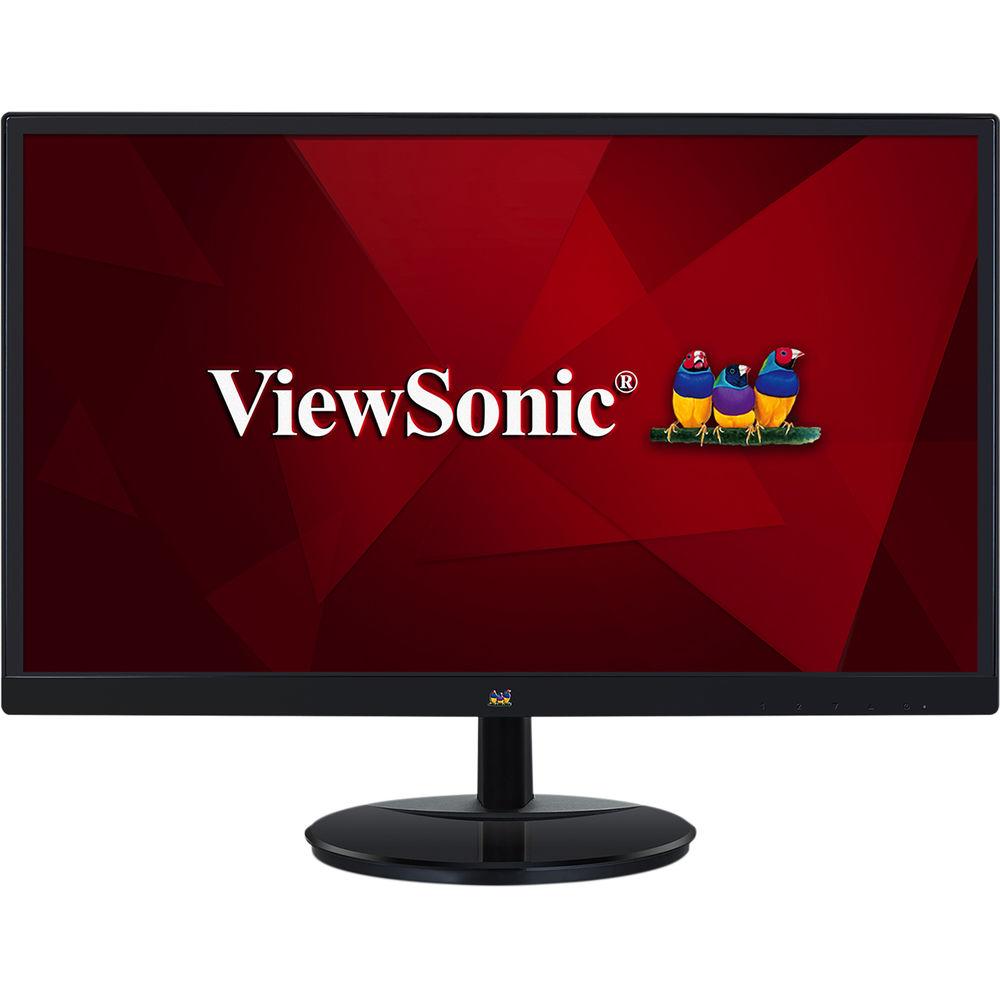

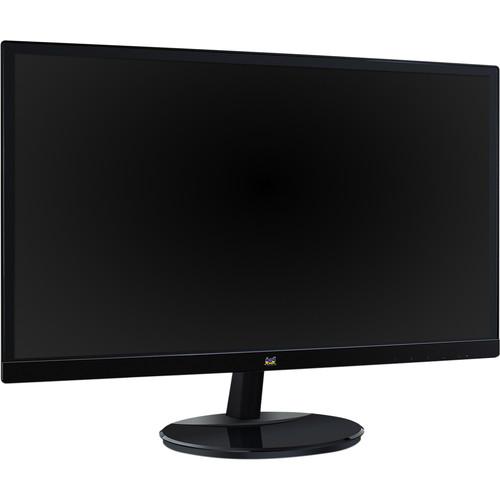

Product description 10 Factors to Consider When Selecting A Monitor for Video Editing Read More The ViewSonic VA2459-SMH 24" 16:9 IPS Monitor is built with an IPS (In-Plane Switching) panel to deliver vivid colors and wide 178° viewing angles. Alongside its ultra-slim bezels, you'll be able to enjoy a more immersive viewing experience. The VA2459-SMH features a 1920 x 1080 Full HD resolution, a 250 cd/m² brightness rating, and a 1000:1 static contrast ratio that provides you with clear and crisp visuals with brighter bright colors and darker blacks. Connect it to your system via VGA or HDMI, and then tilt it to you viewing preference. Should it not fit your viewing preferences, you can replace the included stand with an optional monitor arm using the VESA mounting holes on its back. - IPS (In-Plane Switching) panel provides you with vivid colors and wide 178° viewing angles

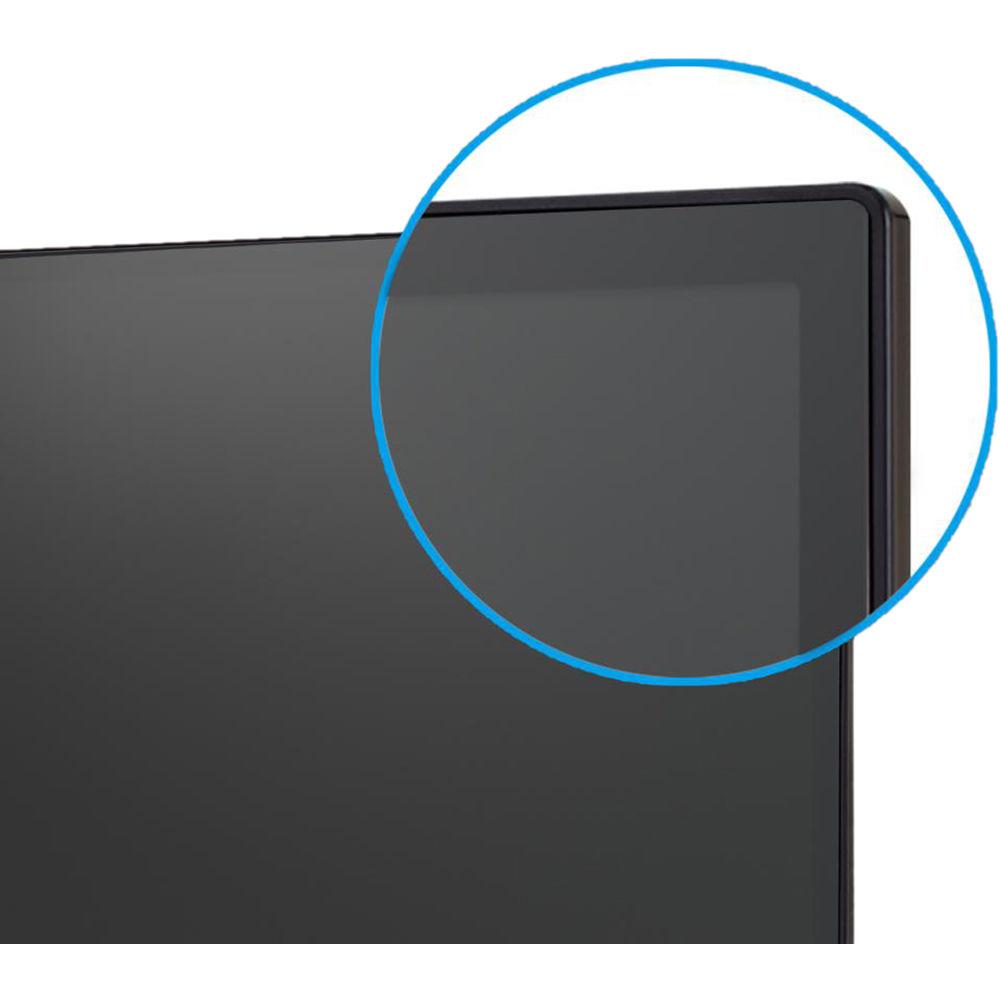

- Ultra-slim bezels deliver a more immersive viewing experience
- Optimized viewing settings for different applications such as playing games, watching movies, browsing the Internet, and more
- Dual built-in speakers complete the multimedia experience for entertainment or work
- Flicker-free technology and Blue Light Filter help to reduce eyestrain from prolonged use
UPC: 766907888935 In the Box ViewSonic VA2459-SMH 24" 16:9 IPS Monitor VGA Cable Audio Cable Power Cable Limited 3-Year Warranty User Manual PDF 1016.6kb More from Manufacturer Table of Contents
|
Upload User Manual
Have you got an user manual for the ViewSonic VA2459-SMH 24" 16:9 IPS Monitor in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.

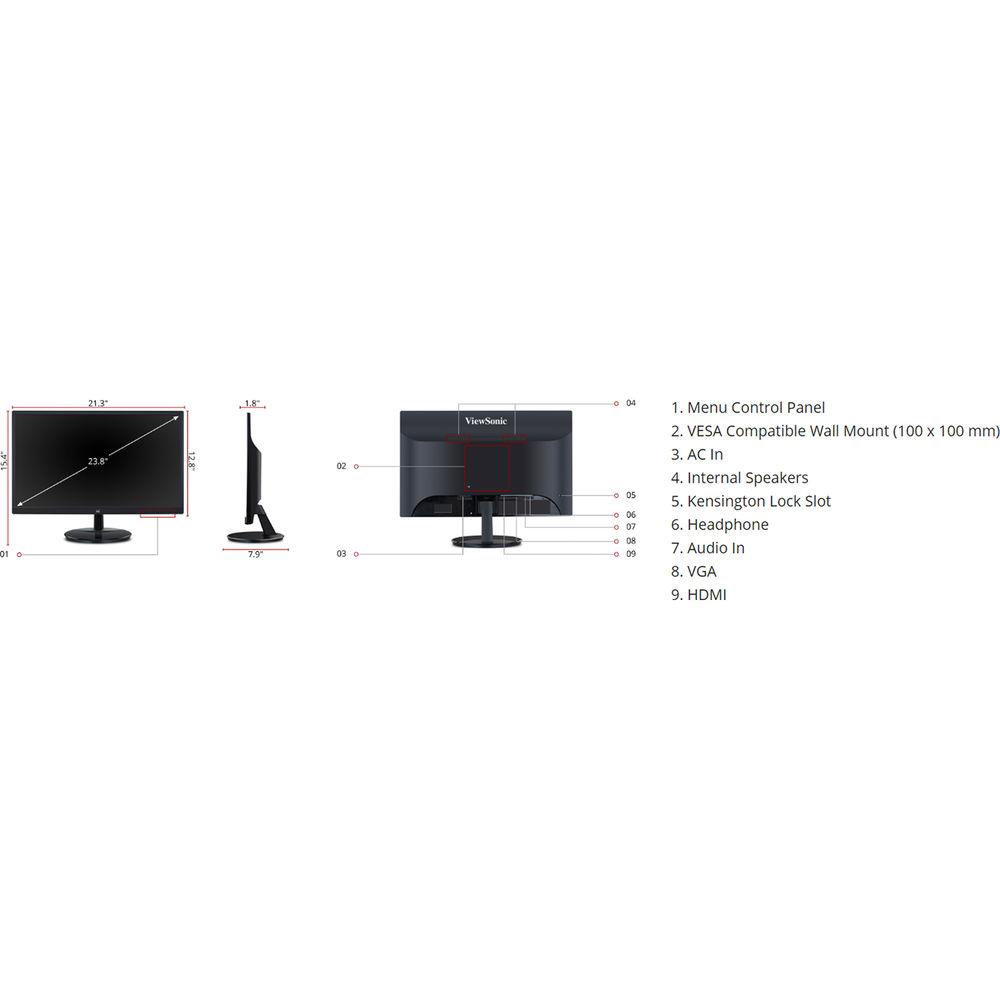

Technical parametersViewSonic VA2459-SMH Specs | Screen Size | 24" (609.6 mm) | | Viewable Area | 23.8" (604.52 mm) | | Screen Type | IPS (In-Plane Switching) | | Resolution | 1920 x 1080 | | Static Contrast Ratio | 1000:1 | | Dynamic Contrast Ratio | 50,000,000:1 | | Brightness | 250 cd/m2 | | Colors | 16.7 Million | | Color Space | 6-bit+ HI-FRC | | Aspect Ratio | 16:9 | | Response Time (GtG) | Typical: 14 ms

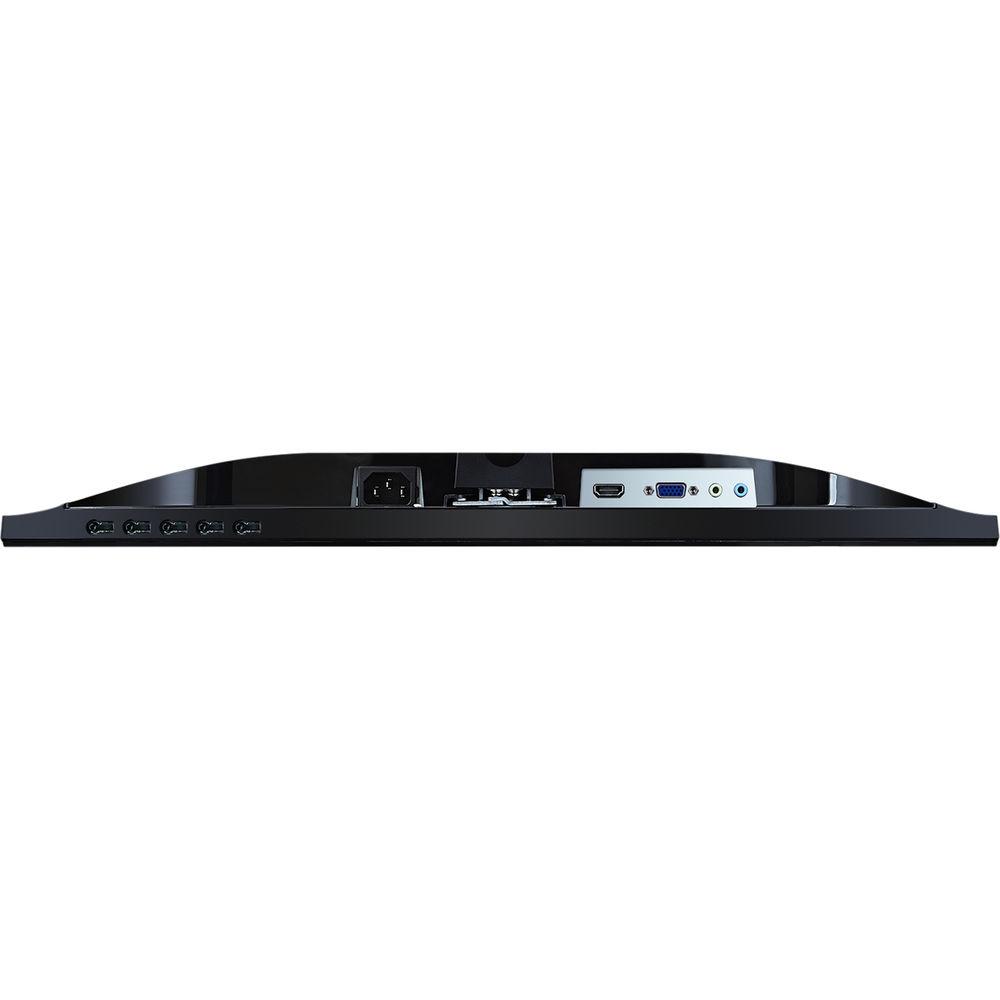

With OD: 5 ms | | Viewing Angles (H/V) | 178°/178° | | Backlight Life | 30,000 hours | | Panel Surface | Anti-glare, Hard coating (3H) | | Horizontal Frequency | 54-85.5 kHz | | Vertical Frequency | 48-76 Hz | | Audio | 2 x 2 W speakers | | Ports and Connectors | 1 x HDMI 1.4
1 x VGA
1 x Audio-in

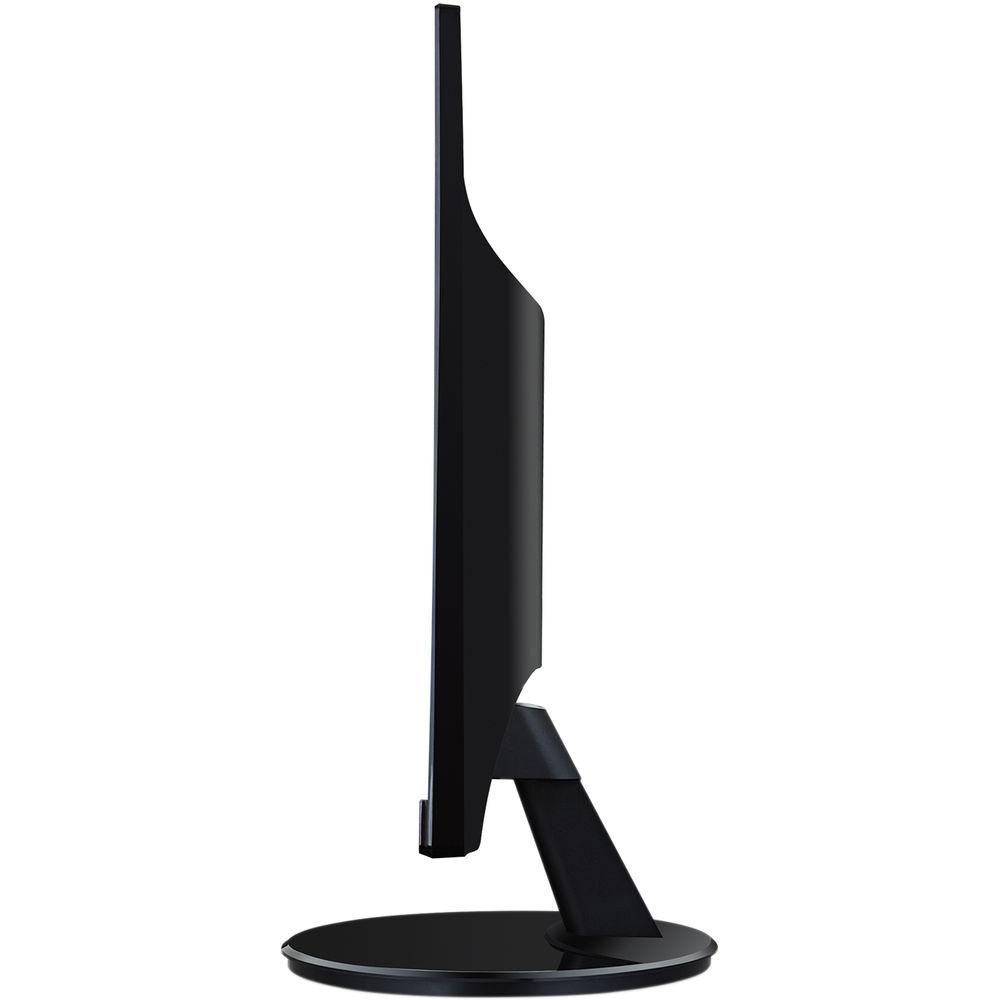

1 x Audio-out | | | | VESA Compatibility | 100 x 100 mm | | Tilt | 5 to 22° | | | | Power Consumption (Active) | 21 W | | Power Consumption (Maximum) | 28 W | | Operating Power Consumption (Eco Mode) | Conserve: 14 W
Optimized: 18 W | | Power Consumption (Standby) | 0.5 W | | Voltage | 100-240 VAC, 50-60 Hz | | | | Operating Temperature | 32-104°F (0-40°C) | | Operating Humidity | 20-90% (non-condensing) | | | | Security | 1 x Kensington Lock slot | | Certification and Compliance | cULus, FCC-B, ICES003, Energy Star 7.0, EPEAT Silver, Mexico-CoC, Mexico Energy | | Dimensions (W x H x D) | With Stand: 21.28 x 15.35 x 7.9" (540.4 x 389.9 x 200 mm)
Without Stand: 21.28 x 12.75 x 1.79" (540.4 x 323.8 x 45.5 mm) | | Weight | With Stand: 7.19 lb (3.26 kg)
Without Stand: 6.24 lb (2.83 kg) | | | | Package Weight | 11.0 lb | | Box Dimensions (LxWxH) | 24.3 x 17.8 x 6.4" |
