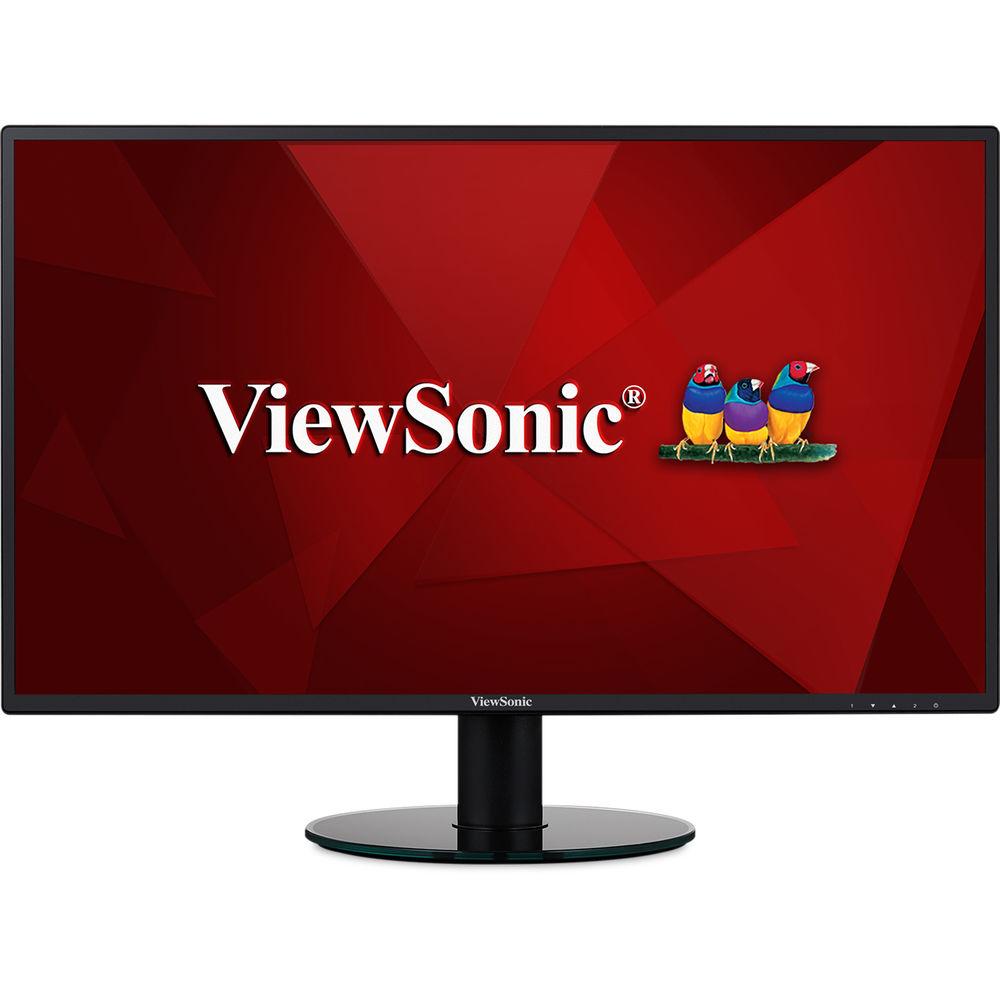

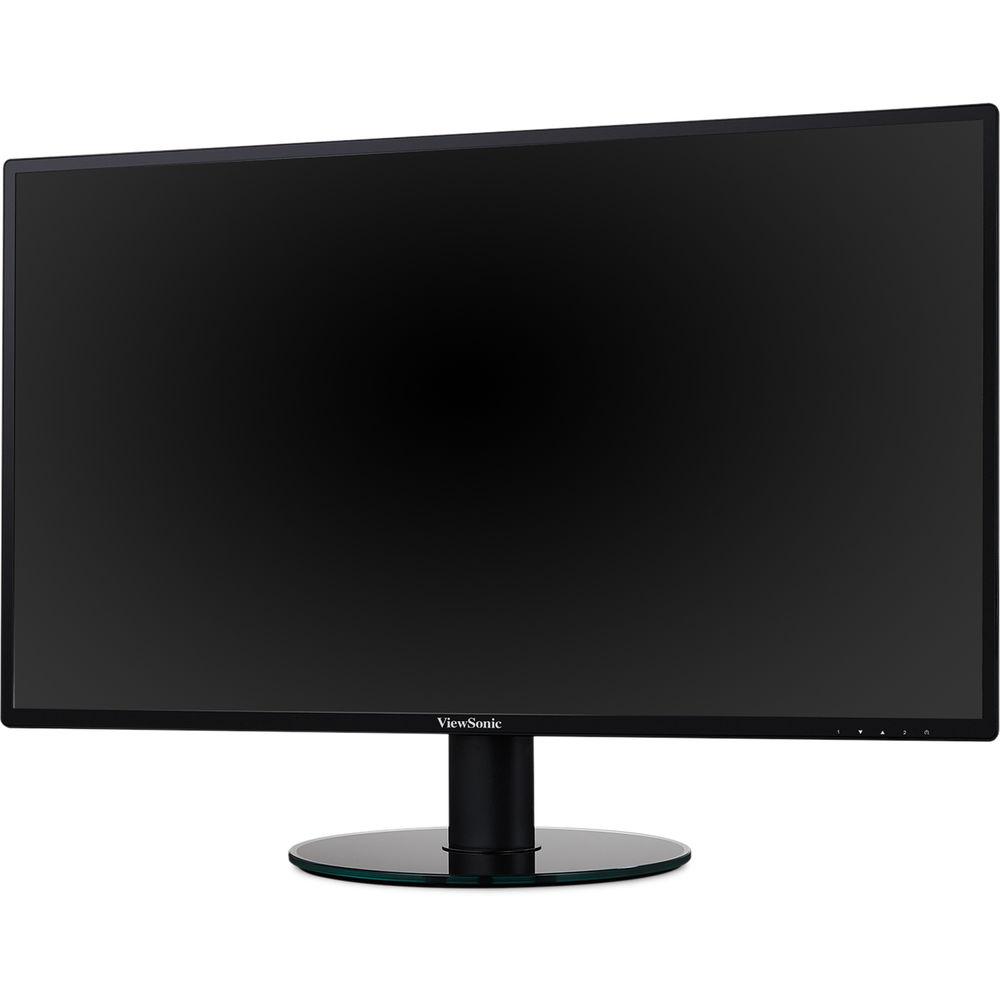

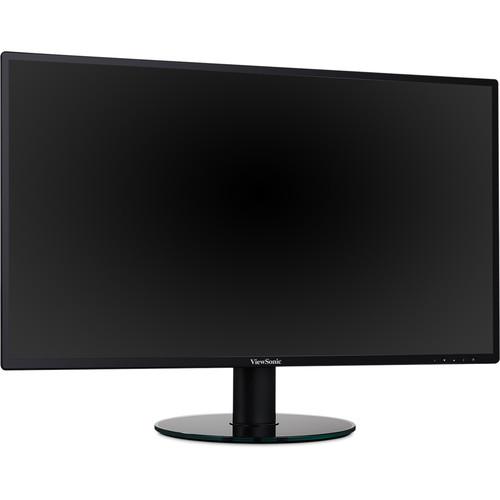

User Manual for ViewSonic VA2719-2K-SMHD 27" 16:9 WQHD IPS Monitor Click to enlarge the picture
Contents of the user manual for the ViewSonic VA2719-2K-SMHD 27" 16:9 WQHD IPS
- Product category: Computer Monitors ViewSonic
- Brand: ViewSonic
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for ViewSonic Computer Monitors
 |
User manual for the ViewSonic VA2719-2K-SMHD 27" 16:9 WQHD IPS contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any ViewSonic product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official ViewSonic user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a ViewSonic product will considerably shorten its lifespan!
|
Product description 10 Factors to Consider When Selecting A Monitor for Video Editing Read More svasvwyzstsffevyfbcy With a 2560 x 1440 WQHD resolution, the VA2719-2K-SMHD 27" 16:9 WQHD IPS Monitor from ViewSonic offers four times the clarity of a standard 720p display. In addition to the enhanced resolution, this monitor also features a 1000:1 contrast ratio, a 300 cd/m² brightness rating, and supports up to 1.07 billion colors on a 10-bit color table for improved color accuracy and a more dynamic picture.
Setup is simple as this ViewSonic display comes equipped with both HDMI and DisplayPort inputs as well as 3.5mm audio in and out ports. The VA2719-2K-SMHD can be viewed on the included stand or mounted using a VESA compatible wall mount to take full advantage of the 178° horizontal and vertical viewing angles. Additionally, this monitor comes equipped with dual 3W speakers for a complete multimedia viewing experience. - Wide Quad HD Resolution
- At four times the resolution of a traditional 720p panel, and almost double that of a traditional 1080p display, WQHD results in a much sharper image, with no distortion or stretching, all while maintaining the same 16:9 aspect ratio.
- SuperClear IPS-Type Panel Technology
- Enjoy accurate and vivid colors with consistent levels of brightness no matter the vantage point. With SuperClear IPS-type panel technology, this monitor delivers the same image quality whether you are looking at the screen from above, below, the front, or the sides.

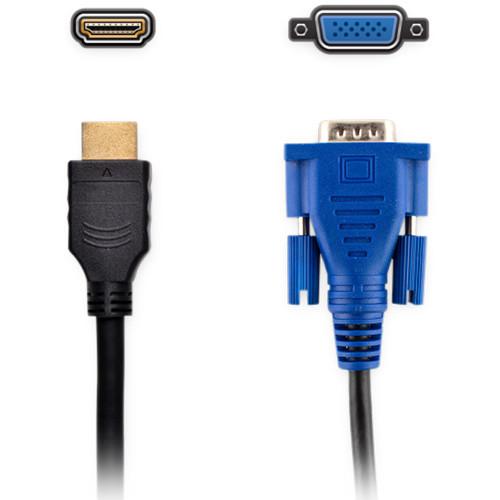

- The Power of HDMI
- HDMI is a future-proof video standard that delivers true digital picture and audio clarity. The HDMI interface on this monitor allows you to connect to a variety of HD devices including gaming consoles, Blu-ray players, laptop computers, digital cameras, and many others for the ultimate true high-definition experience.

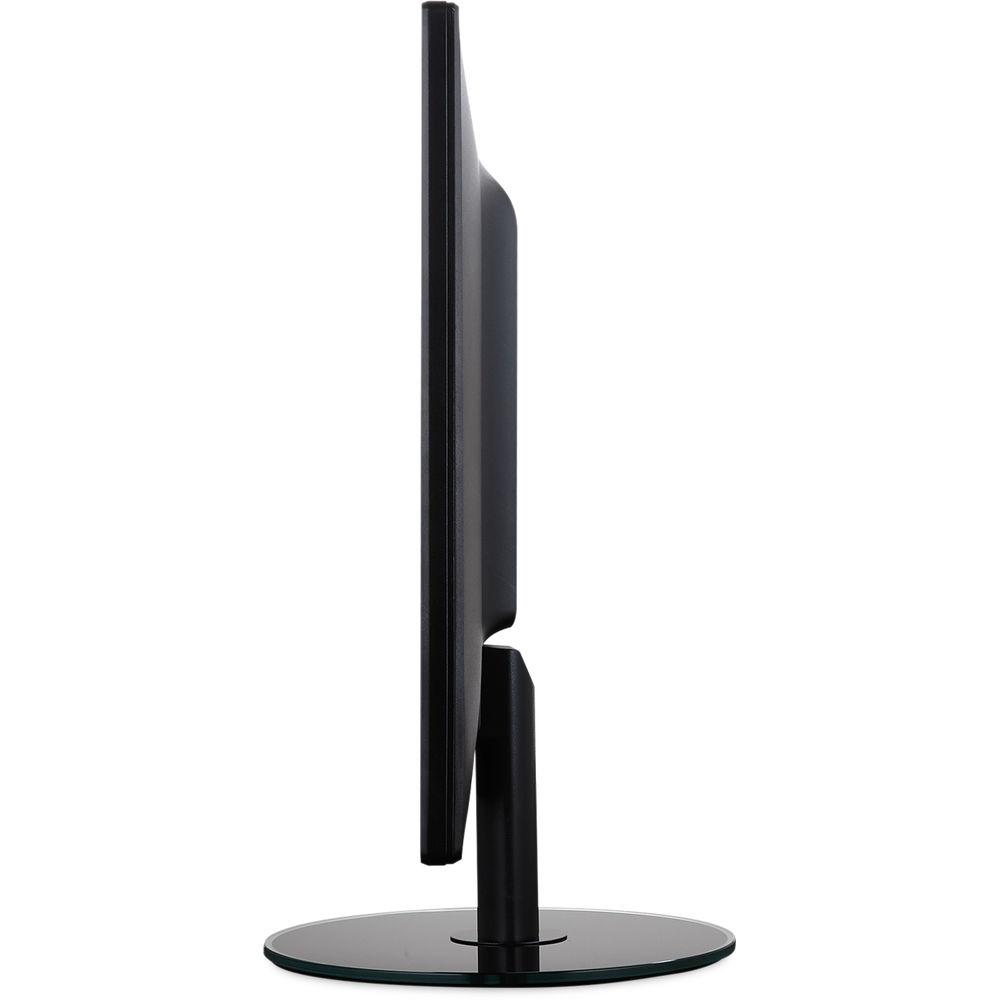

- Slim Bezel Design
- The slim bezel delivers an increased screen surface area that lets you see more without taking up valuable desktop real estate. In addition, the slim bezel enables easy configuration of multi-screen setups with a sleek look that stands out in any setting.
- Optimized View Settings
- ViewSonic's unique ViewMode feature offers "Game," "Movie," "Web," "Text," and "Mono" presets. These presets enhance gamma curve, color temperature, contrast, and brightness to deliver an optimized viewing experience for different screen applications.
- Dual Integrated Speakers
- Designed with dual integrated speakers, this monitor combines incredible screen performance with stereo sound for an immersive multimedia experience.
- Enhanced Viewing Comfort
- Flicker-Free technology and a Blue Light Filter help to eliminate eye strain from extended viewing periods.

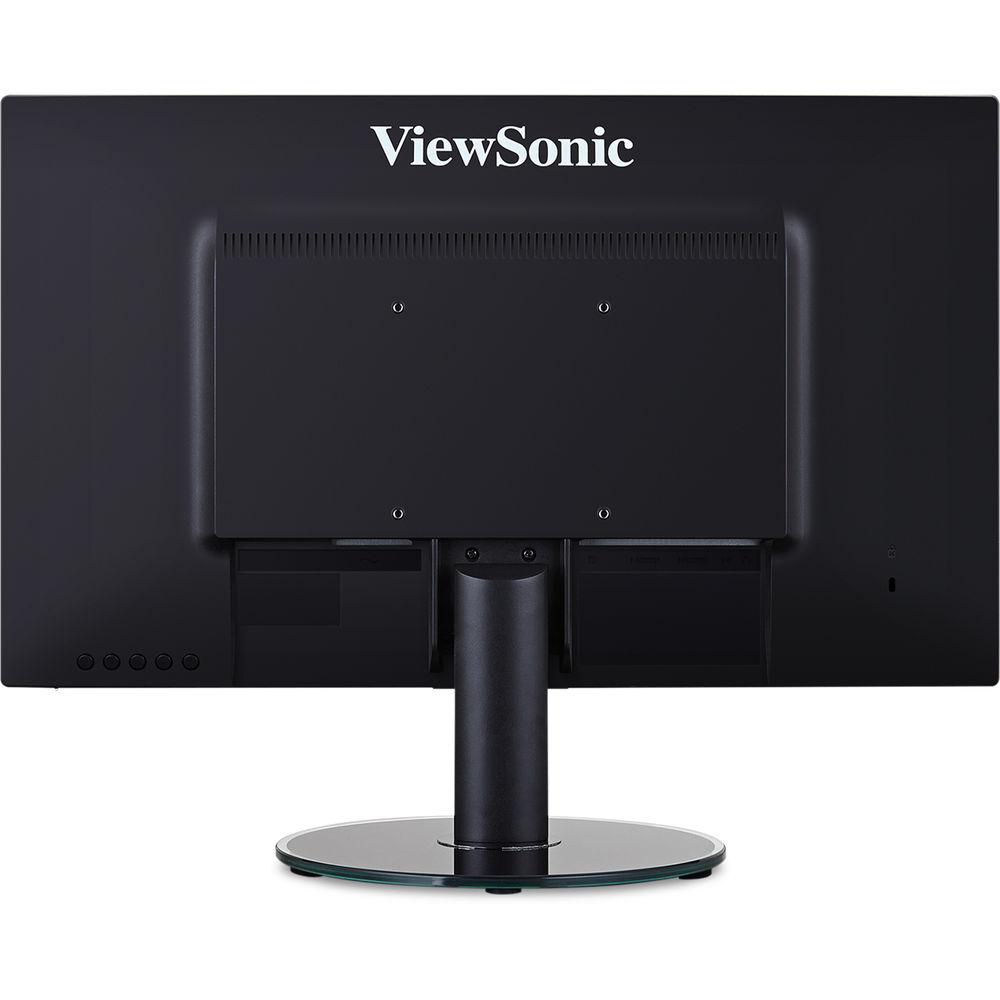

- VESA-Compatible Mount
- Mount the monitor as you see fit using its convenient VESA-compatible mount design.
UPC: 766907899139 In the Box ViewSonic VA2719-2K-SMHD 27" 16:9 WQHD IPS Monitor Power Cable HDMI Cable Audio Cable Limited 3-Year Warranty User Manual PDF 1.9mbsvasvwyzstsffevyfbcy More from Manufacturer Table of Contents
|
Upload User Manual
Have you got an user manual for the ViewSonic VA2719-2K-SMHD 27" 16:9 WQHD IPS Monitor in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersViewSonic VA2719-2K-SMHD Specs | Display Size | 27" (68.6 cm) | | Panel Type | IPS (In-Plane Switching) | | Resolution | 2560 x 1440 | | Contrast Ratio | Static
1000:1
Dynamic
50,000,000:1 | | Light Source | WLED | | Brightness | 300 cd/m² | | Colors | Supported Colors
1.07 billion
Color Space Support
10-bit | | Aspect Ratio | 16:9 | | Response Time | 14 ms | | Viewing Angles (H/V) | 178°/178° | | Backlight Life | 30,000 hours | | Panel Surface | Anti-glare
Hard coating (3H) | | Connectors | 1 x DisplayPort
2 x HDMI 1.4
1 x 3.5 mm audio-in
1 x 3.5 mm audio-out | | Audio | 2 x 3 W internal speakers | | Power | Voltage
100-240 VAC; 50/60 Hz
Power Consumption
Eco Mode (Conserve): 20 W
Eco Mode (Optimized): 25 W
Typical: 31 W
Maximum: 33 W
Standby: 0.3 W | | Controls | Physical Controls
1, 2, Down, Up, Power
On Screen Display
Auto Image Adjust, Contrast/Brightness, Input Select, Audio Adjust, Color Adjust, Information, Manual Image Adjust, Advanced Image Adjust, Setup Menu, Memory Recall (See user guide for complete OSD functionality) | | Temperature & Humidity | Temperature
32 to 104°F / 0 to 40°C
Humidity (non-condensing)
20 to 90% | | VESA Mount Standard | 100 x 100 mm | | Video Signal | Horizontal Frequency
15~120 kHz
Vertical Frequency
24~75 Hz | | Video Input | Digital Sync

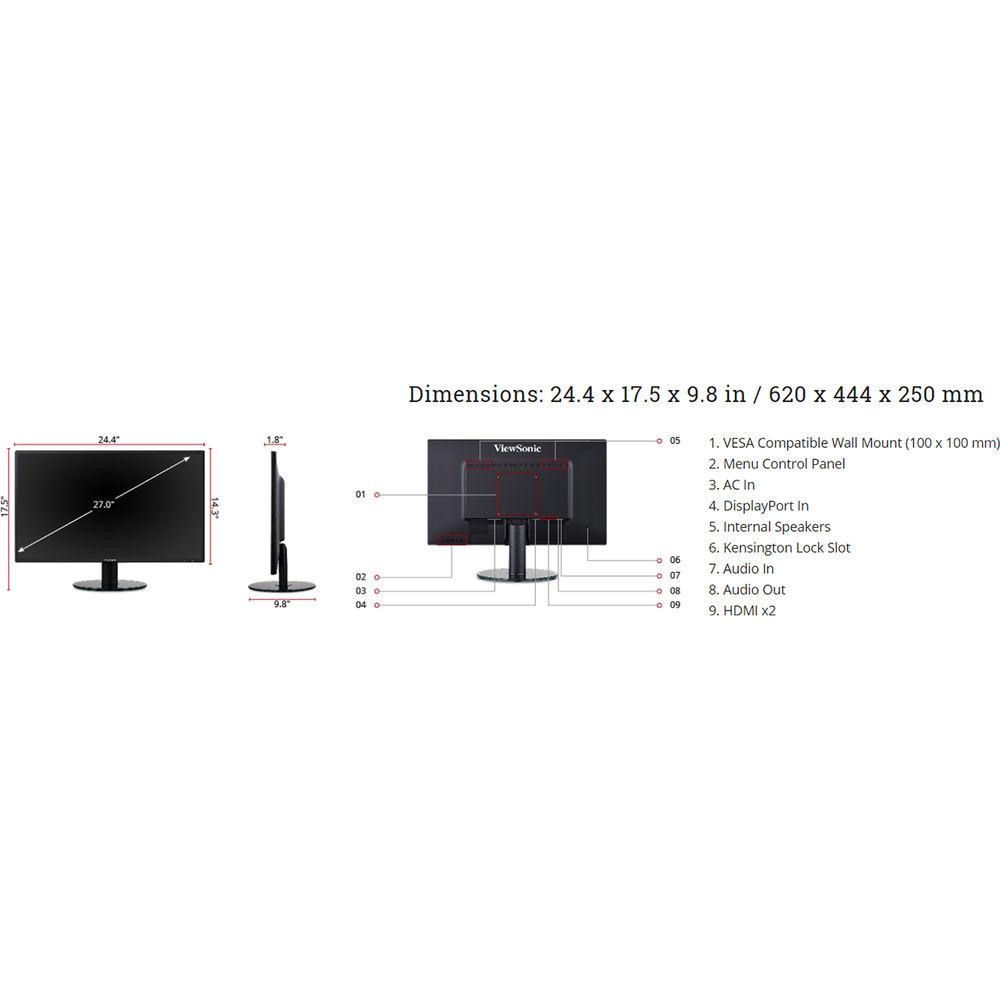

TMDS, PCI-E | | Tilt | 5 to 22° | | Regulations | cTUVus, FCC, ICES003, ENERGY STAR 7.0, EPEAT Silver, MX-CoC, Mexico Energy | | Dimensions | With Stand
24.42 x 17.47 x 9.84" / 60.03 x 44.37 x 24.99 cm
Without Stand
24.42 x 14.26 x 1.78 / 60.03 x 36.22 x 4.52 cm | | Weight | With Stand
12.35 lb / 5.6 kg
Without Stand
9.92 lb / 4.5 kg | | | | Package Weight | 15.3 lb | | Box Dimensions (LxWxH) | 27.0 x 18.3 x 5.75" |
Rating20% users recommend this product to others. And what about you?
This product has already been rated by 95 owners. Add your rating and experience with the product.
