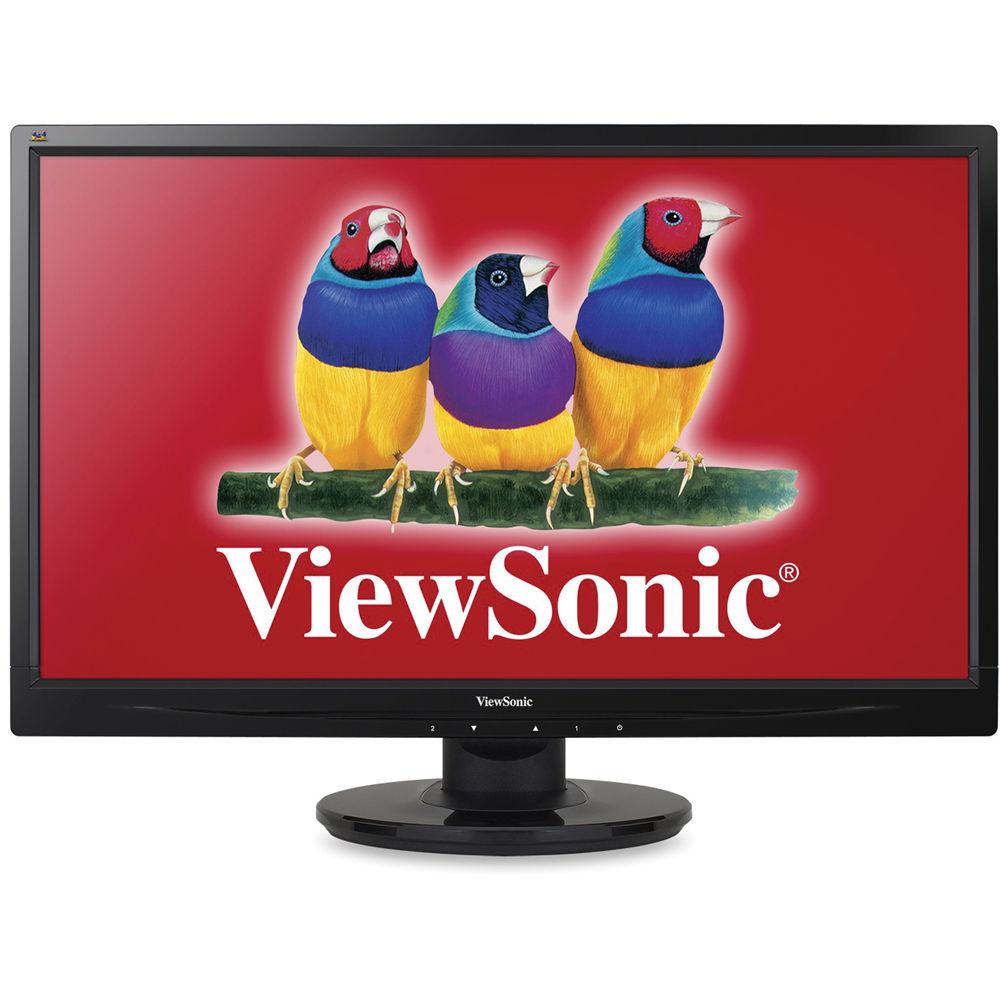

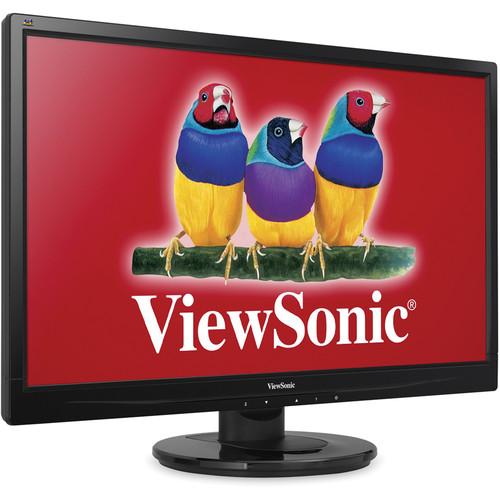

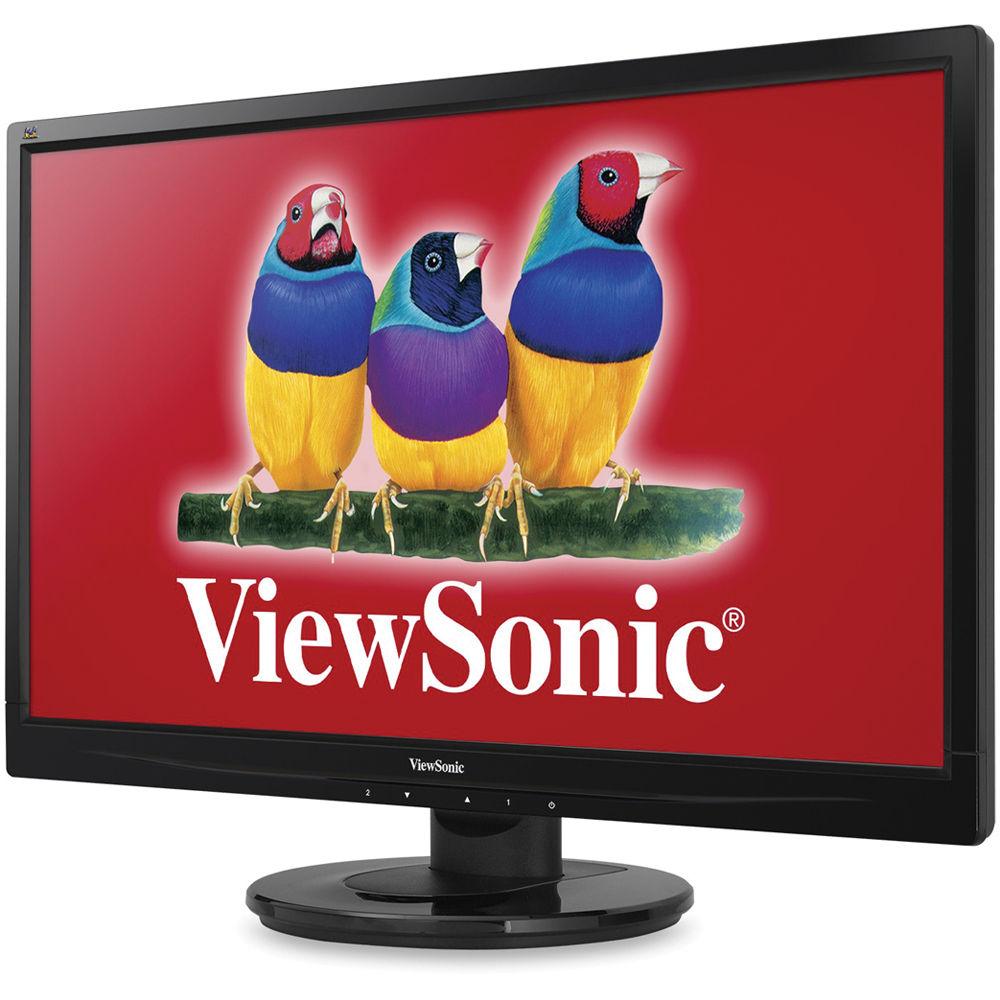

User Manual for ViewSonic VA2746M-LED 27" Widescreen LED Backlit LCD Monitor Click to enlarge the picture
Contents of the user manual for the ViewSonic VA2746M-LED 27" Widescreen LED Backlit
- Product category: Computer Monitors ViewSonic
- Brand: ViewSonic
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for ViewSonic Computer Monitors
 |
User manual for the ViewSonic VA2746M-LED 27" Widescreen LED Backlit contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any ViewSonic product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official ViewSonic user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a ViewSonic product will considerably shorten its lifespan!
|

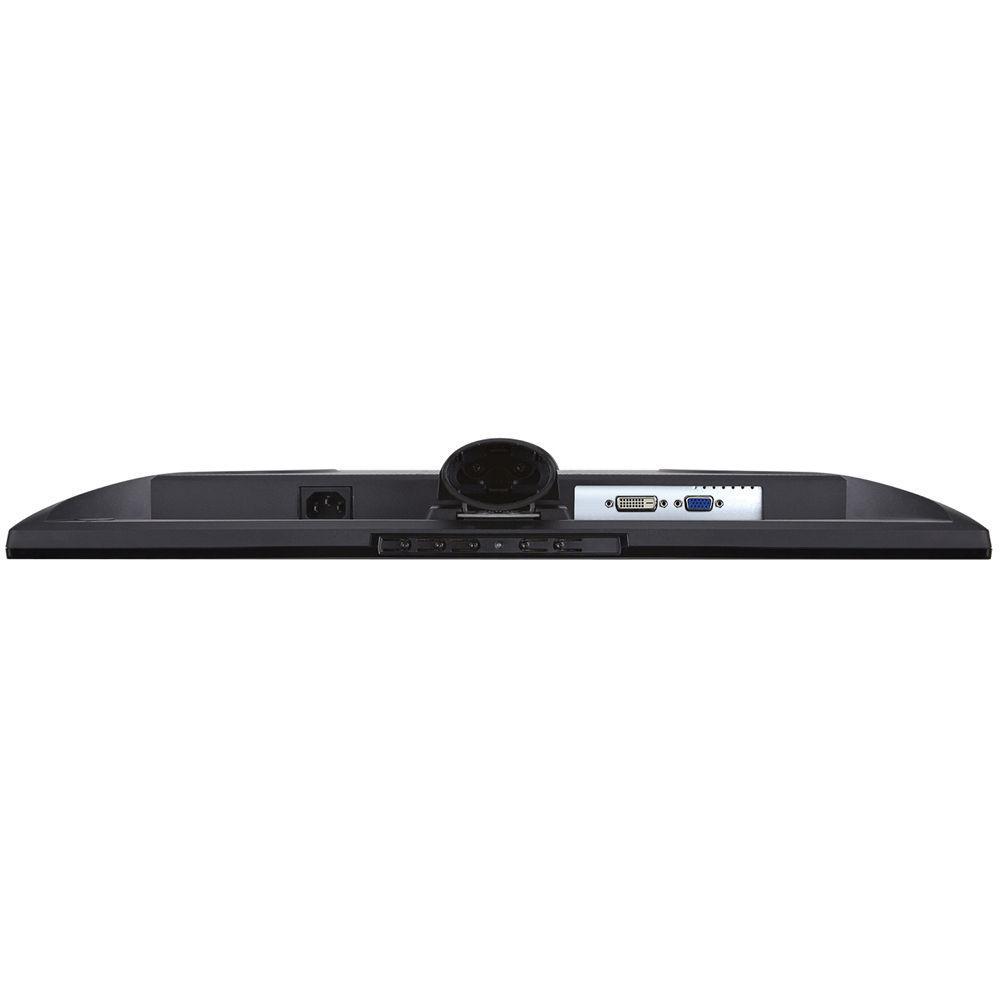

Product description 10 Factors to Consider When Selecting A Monitor for Video Editing Read More The VA2746M-LED 27" Widescreen LCD Monitor from ViewSonic comes complete with a Full HD 1920 x 1080 resolution, a 3.4 ms response time, 1,200:1 contrast ratio, and a brightness rating of 300 cd/m². Utilize either the DVI-D or VGA inputs to connect this display to a variety of PC configurations. Additionally, the monitor is VESA compatible allowing you to mount it to the wall or attach the included stand. Once set up, you can view the display from nearly any perspective as it supports 170° horizontal and 160° vertical viewing angles. - Full 1080p Performance
- The VA2746M-LED features a Full HD 1080p 1920x1080 resolution for enhanced pixel-by-pixel image performance. Additionally, the 16:9 widescreen ratio minimizes eye fatigue even after hours of viewing and is compatible with multi-window viewing without toggling.
- MEGA Dynamic Contrast Ratio
- Dynamic contrast ratio detects the brightness of an image, and automatically adjusts the backlight to maximize the monitor's color range and contrast. Dynamic contrast ratio technology enables the accurate reproduction of images.
- LED Technology
- This monitor uses white LEDs (Light Emitting Diodes) as the light source. LEDs provide a variety of benefits, including about 50% less power consumption compared to a traditional CCFL monitor, as well as an environmentally friendly mercury-free backlight, a low EMI (Electro Magnetic Interference), and all in a slimmer and lighter monitor.
Energy savings may vary based on cost, actual usage, and other factors - ENERGY STAR Certified
- With its mercury-free backlight and low energy consumption, the ENERGY STAR certified VA2746M-LED saves on your electricity bill.
- Eco-Mode Conserves More Energy
- ViewSonic's proprietary Eco-mode function is built into all LED displays, offering options to "optimize (65%)" or "conserve (50%)". Both modes reduce display brightness and conserve up to 25% energy. Especially in low ambient light, Eco-mode adjusts brightness and improves visibility while reducing eye fatigue and prolonging the display's lamp life.
Energy savings may vary based on cost, actual usage, and other factors - Dual Integrated Stereo Speakers
- The ViewSonic VA2746M-LED has two integrated 2 watt stereo speakers for enhanced multimedia performance with crystal-clear stereo sound.
- VESA Mountable

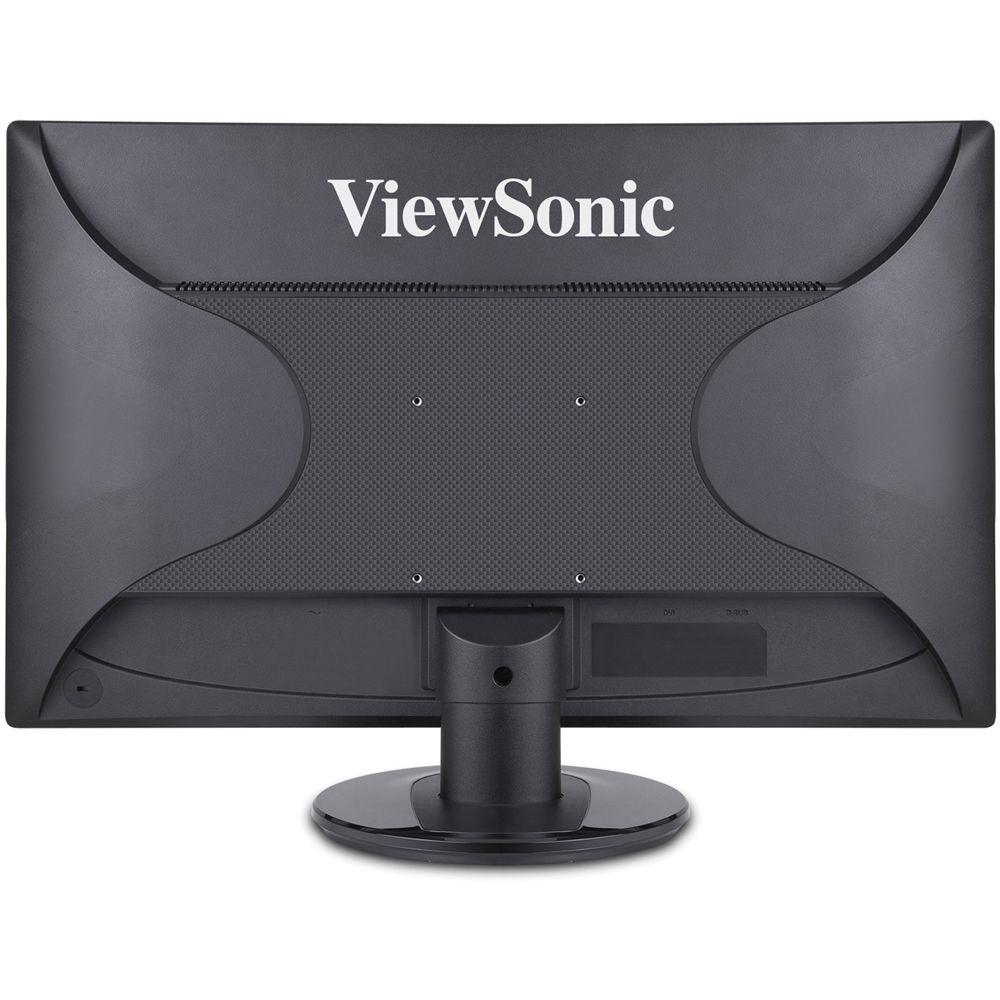

- The VA2746M-LED features a 100 x 100mm VESA-mountable design that allows you to take the monitor off the stand and mount the display on a wall. You can easily detach the base by unscrewing four screws and then mounting the display on its new stand or wall mount.
UPC: 766907762624 In the Box ViewSonic VA2746M-LED 27" Widescreen LED Backlit LCD Monitor Power Cable VGA Cable Audio Cable ViewSonic Wizard CD Stand Limited 3-Year Warranty User Manual PDF 775.7kb More from Manufacturer Table of Contents
|
Upload User Manual
Have you got an user manual for the ViewSonic VA2746M-LED 27" Widescreen LED Backlit LCD Monitor in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersViewSonic VA2746M Specs | | | Type | Color a-Si TFT Active Matrix LCD | | Display Area (HxV) | 23.5 x 13.2" / 59.69 x 33.53 cm vertical
27" / 68.58 cm diagonal | | Resolution | 1920 x 1080 | | Contrast Ratio (Typical) | 1,200:1 | | Dynamic Contrast Ratio | 20,000,000:1 | | Viewing Angles | Horizontal: 170º
Vertical: 160º | | Response Time | 3.4 ms | | Backlight Life | 30,000 hours (min) | | Brightness | 300 cd/m² | | Panel Surface | Anti-glare, hard coating 3H scratch resistant | | | | Analog/Digital | RGB analog (0.7 / 1.0 Vp=p. 75 ohms) / DVI (TMDS, 100 ohms) | | Frequency | Fh: 24~82 kHz
Fv: 50~75 Hz | | Sync | Separate Sync | | | | PC | PC compatibles (VGA up to 1920 x 1080 non-interlaced) | | Mac | Up to 1920 x 1080 | | | | Analog/Digital | 15-pin mini D-sub (VGA) / DVI-D (V 1.3 with HDCP) | | Audio Input | 3.5 mm mini jack | | Power | Internal power board, 3-pin plug (CEE22) | | | | Voltage | 100-240 VAC (universal), 50-60 Hz | | Consumption | 38 watt (typical) / 42 watt (maximum) | | | | Basic Controls | Power, 1, up, down, 2 | | OSD | Auto Image Adjust, Contrast/Brightness, Input Select, Audio Adjust, Color Adjust, Information, Manual Image Adjust, Setup Menu, Memory Recall (See user guide for complete OSD functionality) | | | | Temperature | 32-104°F / 0 to 40°C | | Humidity | 10 to 90% (non-condensing) | | | | Tilt | Forward 5°, back 20° | | VESA Mount | 100 x 100 mm | | Regulations | CE, CB, WEEE, RoHS, REACH SVHC List, TCO5.1, ENERGY STAR 5.0, Windows 8, Window 7, UL, cUL, FCC-B / ICES-003B, TUV-S, Nemko ERGO, GOST-R+Hygienic, UkrSEPRO, ErP, CCC, CEL Level 1, BSMI, PSB, C-tick, KC, e-standby | | Power Management | ENERGY STAR standards | | Dimensions (WxHxD) | With Stand: 25.4 x 17.4 x 9.8" / 645.3 x 442.5 x 247.6 mm
Without Stand: 25.4 x 15.7 x 2.2" / 645.3 x 398.8 x 55.9 mm | | Weight | With Stand: 11.6 lb / 5.3 kg
Without Stand: 10.7 lb / 4.9 kg | | | | Package Weight | 15.1 lb | | Box Dimensions (LxWxH) | 28.0 x 21.0 x 6.0" |
