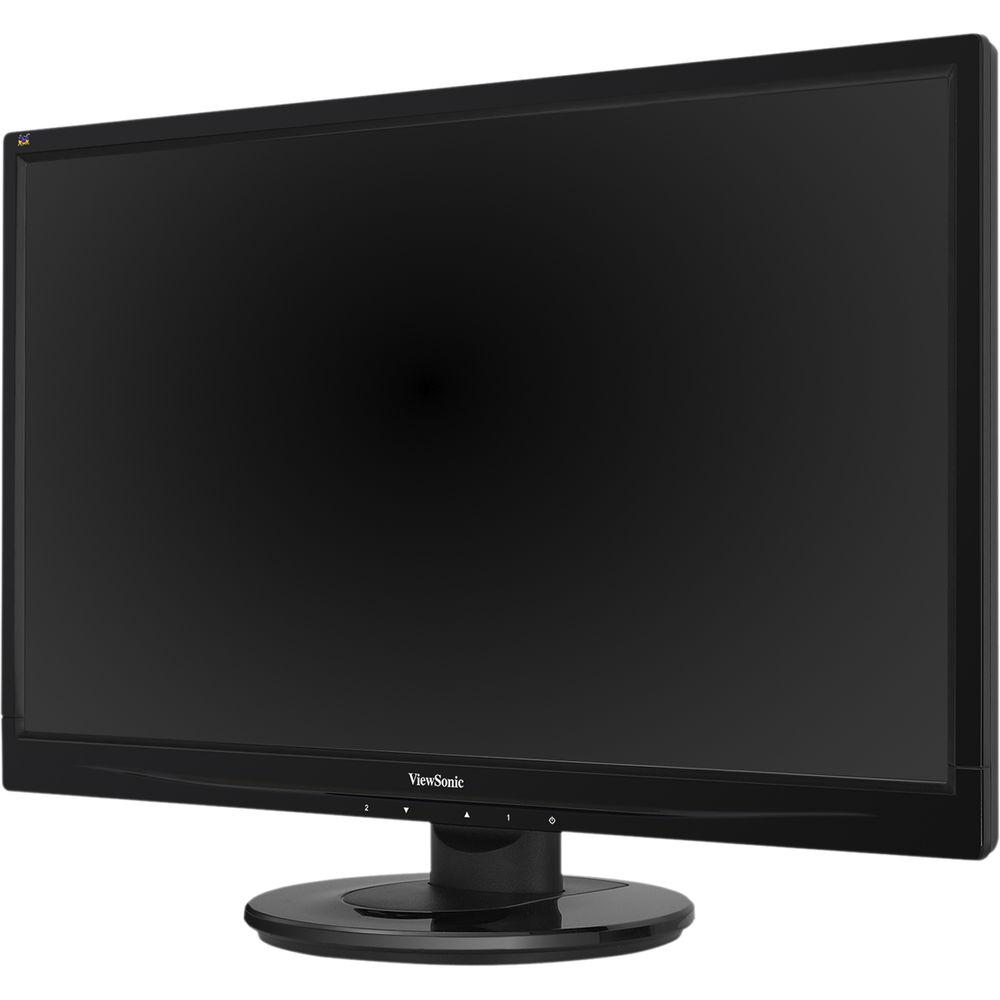

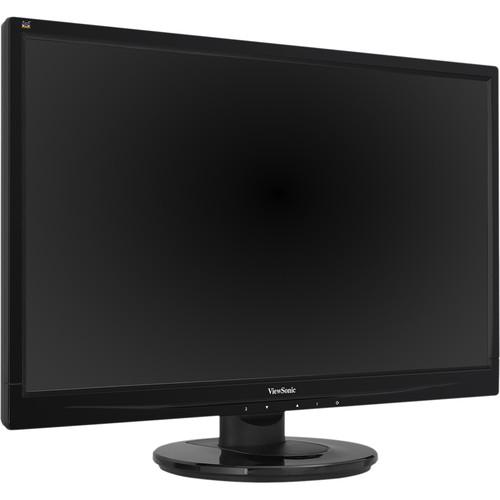

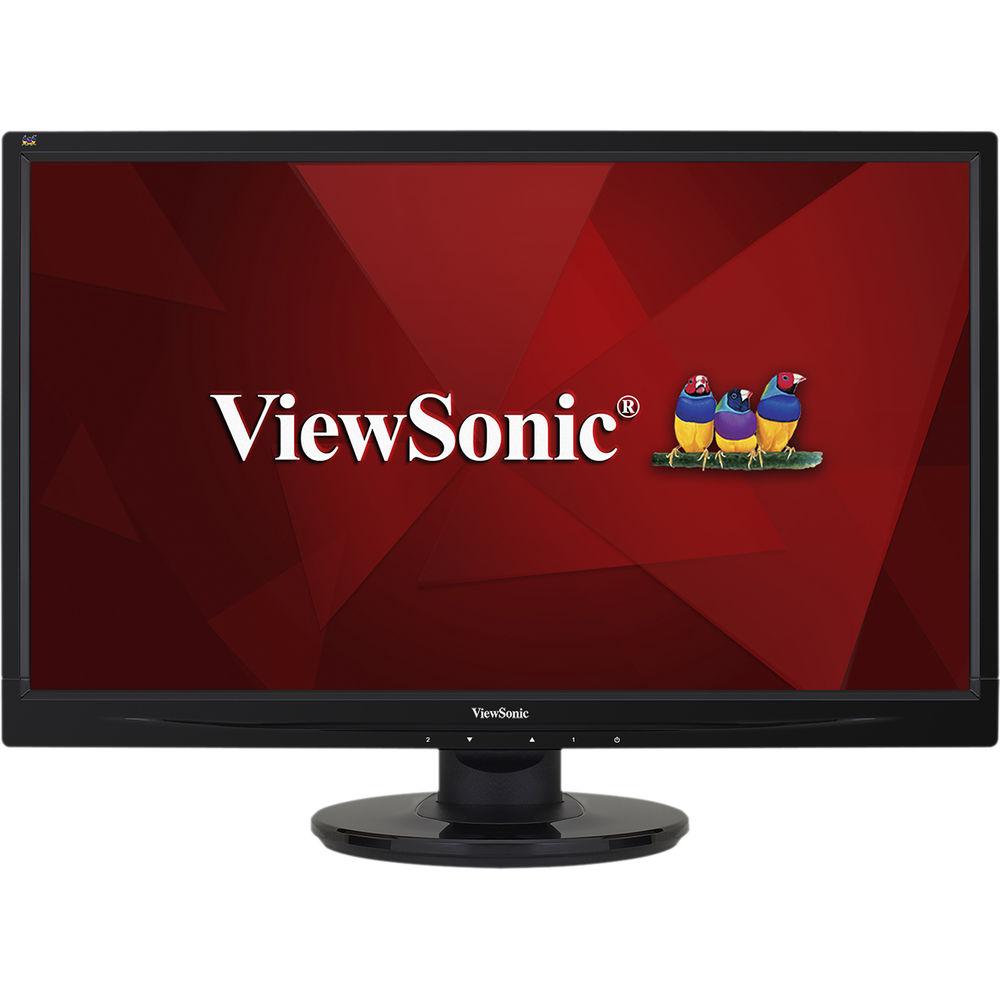

Product description 10 Factors to Consider When Selecting A Monitor for Video Editing Read More The versatile VA2746MH-LED 27" 16:9 LCD Monitor from ViewSonic is designed to be used for a variety of tasks from viewing multimedia content to drafting documents and more. With a Full HD 1920 x 1080 resolution viewers can take advantage of a crisp, clear picture quality while the 1,000:1 static contrast ratio, 300 cd/m² brightness rating, and 5 ms response time provide a more dynamic viewing experience complete with reduced ghosting.
Installation is simple, attach the display to the included stand or mount it using a VESA compatible mount and view the display from nearly any angle with 170° horizontal and 160° vertical viewing angles. This ViewSonic display also comes equipped with both a blue light filter and flicker-free technology to help alleviate the stress placed on your eyes during periods of extended viewing. Setup is simple thanks to the HDMI and VGA inputs, which makes it easy to configure the monitor and begin viewing your content in no time. - Full HD Resolution
- This monitor features Full HD 1920 x 1080 resolution for enhanced pixel-by-pixel image performance. You'll experience improved clarity and detail whether it be while working, gaming, or enjoying the latest in multimedia entertainment.
- Enhanced Viewing Comfort
- Flicker-Free technology and a Blue Light Filter help to eliminate eye strain from extended viewing periods.

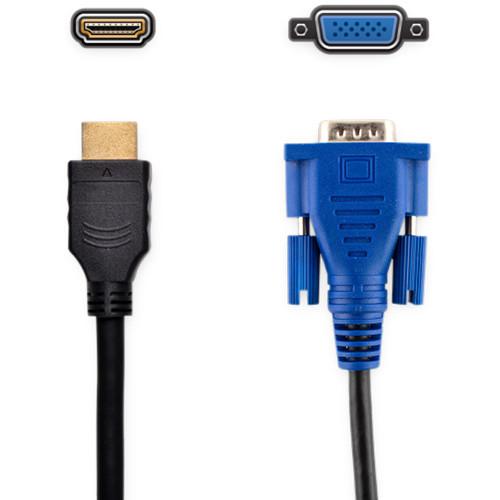

- The Power of HDMI
- HDMI delivers true digital picture and audio clarity. The HDMI interface on this monitor allows you to connect to a variety of HD devices including gaming consoles, Blu-ray players, laptop PCs, digital cameras, and many others for the ultimate true high-definition experience.
- Dual Integrated Speakers
- Designed with dual integrated speakers, this monitor combines enhanced screen performance with stereo sound for an immersive multimedia experience.

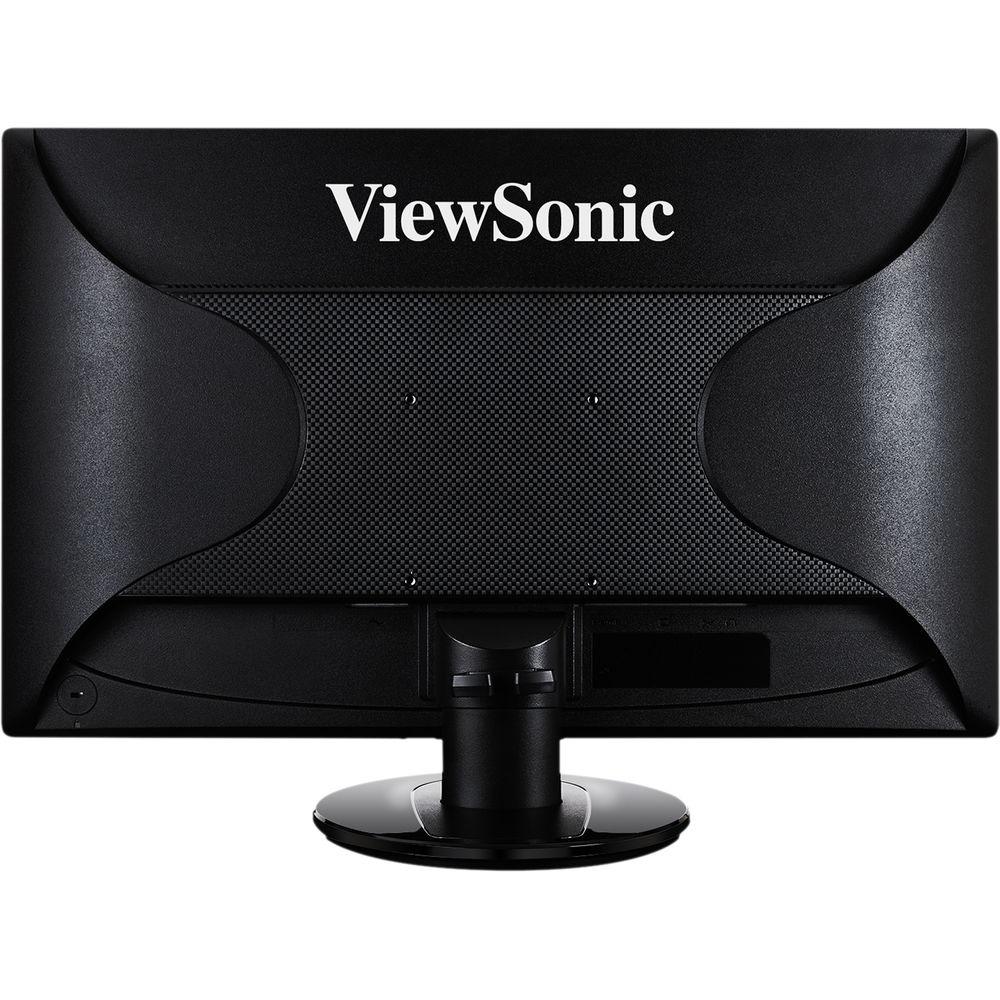

- VESA-Mount Compatible
- Mount the monitor as you see fit using its convenient VESA-compatible mount design.
UPC: 766907911831 In the Box ViewSonic VA2746MH-LED 27" 16:9 LCD Monitor Power Cable VGA Cable Audio Cable Limited 3-Year Warranty User Manual PDF 802.2kb More from Manufacturer Table of Contents
|
Upload User Manual
Have you got an user manual for the ViewSonic VA2746MH-LED 27" 16:9 LCD Monitor in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersViewSonic VA2746MH-LED Specs | Display Size | Display Size
27" / 68.58 cm
Viewable Area
27" / 68.58 cm | | Display Type | TN | | Resolution | 1920 x 1080 | | Contrast Ratio | Static
1,000:1
Dynamic

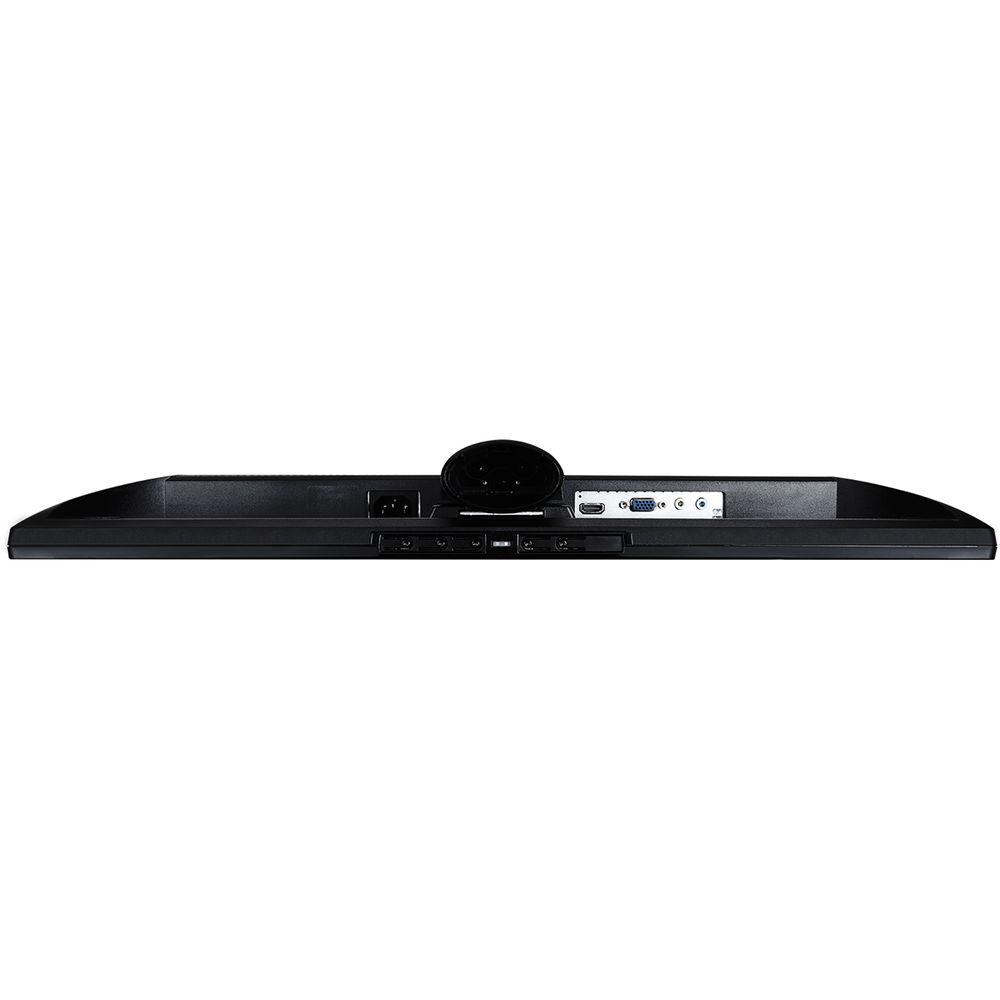

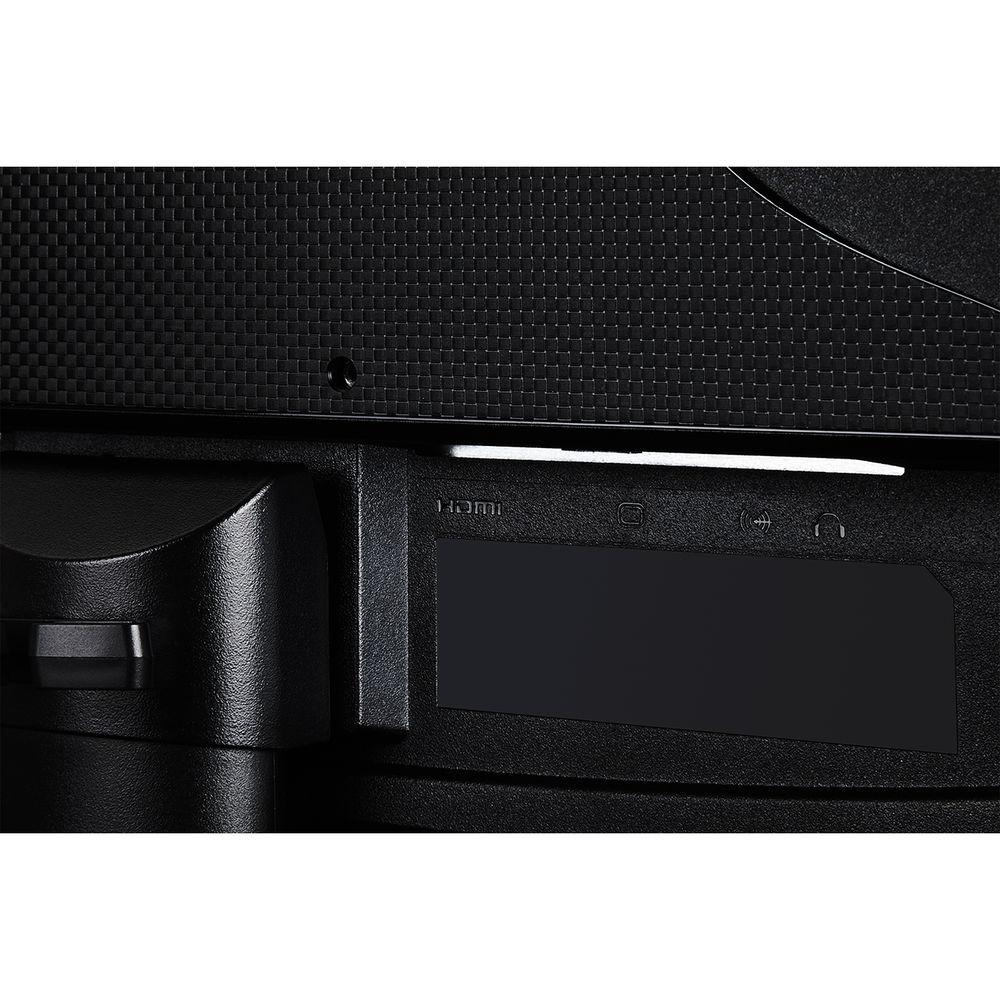

50,000,000:1 | | Light Source | WLED | | Brightness | 300 cd/m² | | Colors Supported | 16.7 million | | Color Space | 6-bit+Hi-FRC | | Aspect Ratio | 16:9 | | Response Time | 5 ms | | Viewing Angles (H/V) | 170°/160° | | Backlight Life | 50,000 hours | | Panel Surface | Anti-glare, hard coating (3H) | | Connectors | 1 x VGA
1 x HDMI 1.4
1 x 3.5 mm audio-in
1 x 3.5 mm audio-out | | Audio | 2 x 2.5 W internal speakers | | Power | Voltage
100-240 VAC (universal), 50/60 Hz
Power Consumption
Eco Mode (conserve): 22 W
Eco Mode (optimize): 28 W
Consumption (typical): 30 W
Consumption (Max): 40 W
Stand-by: 0.5 W | | Kensington Lock Support | 1 | | Controls | Physical Controls
1, 2, 3, 4, Power
On Screen Display
Auto Image Adjust, Contrast/Brightness, Input Select, Audio Adjust, Color Adjust, Information, Manual Image Adjust, Advanced Image Adjust, Setup Menu, Memory Recall (see user guide for complete OSD functionality) | | Temperature & Humidity | Temperature
32 to 104°F / 0 to 40°C
Humidity (non-condensing)
20 to 90% | | Mount | VESA Compatible
100 x 100 mm | | Video Signal | Horizontal Frequency
24~82 kHz
Vertical Frequency
50~75 Hz | | Video Input | Analog Sync
Separate Sync
Digital Sync
TMDS | | Ergonomics | Tilt (forward/back)

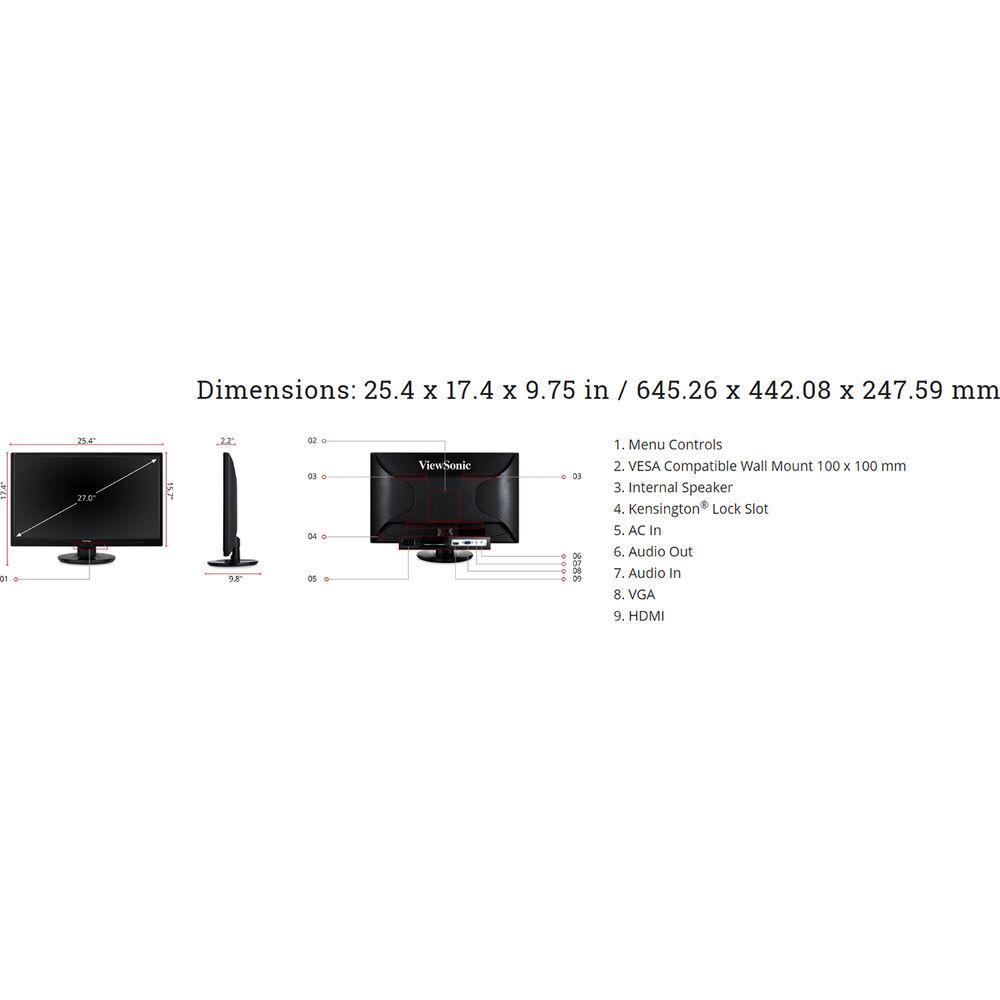

5 to 23° | | Regulations | cULus, FCC-B, ICES003, ENERGY STAR 7.0, Mexico Energy, UL-MX-CoC, MEPS | | Dimensions | With Stand
25.4 x 17.4 x 9.75" / 645.26 x 442.08 x 247.59 mm
Without Stand
25.4 x 15.69 x 2.22" / 645.26 x 398.56 x 56.4 mm | | Weight | With Stand
11.6 lb / 5.26 kg
Without Stand
10.69 lb / 4.85 kg | | | | Package Weight | 15.5 lb | | Box Dimensions (LxWxH) | 28.2 x 20.5 x 5.4" |
