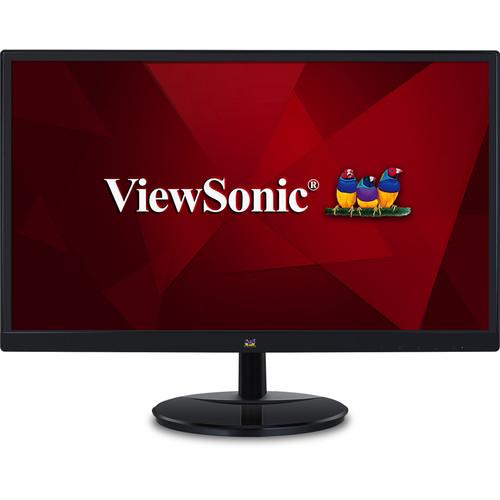

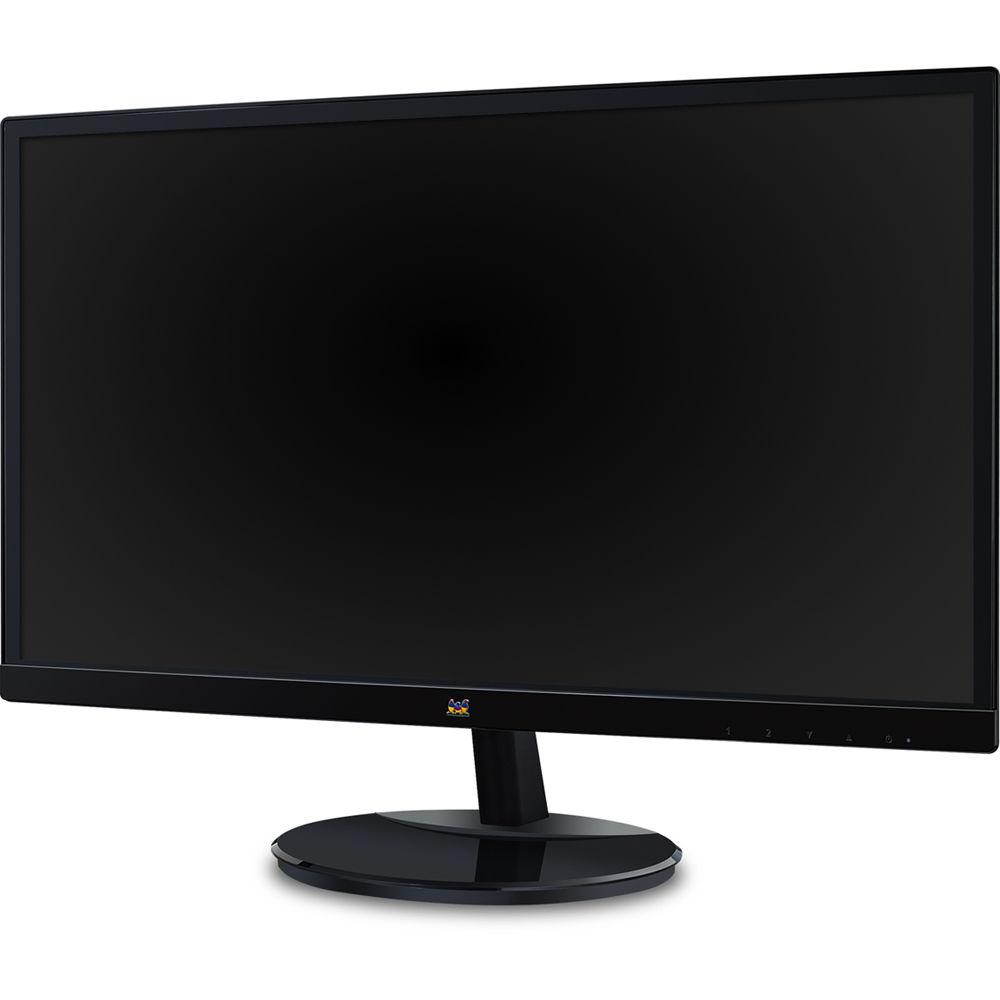

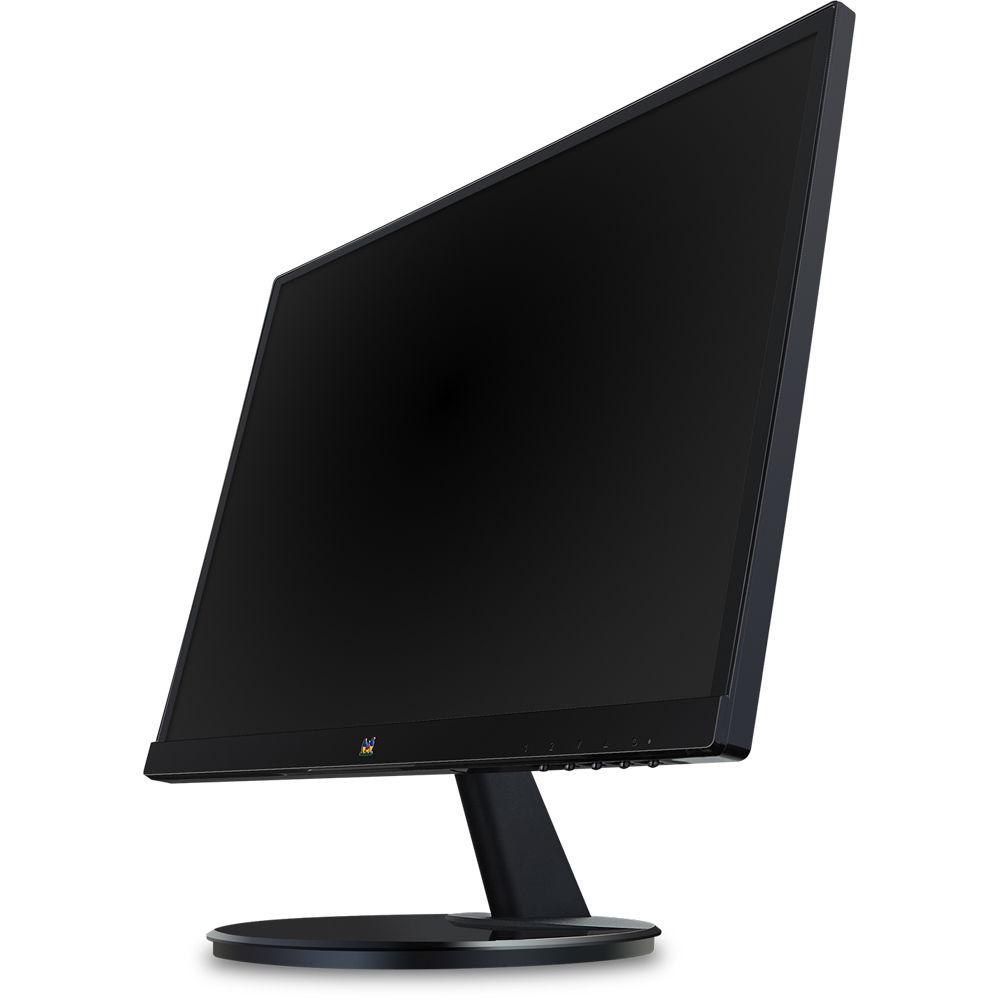

User Manual for ViewSonic VA2759-SMH 27" 16:9 IPS Monitor Click to enlarge the picture
Contents of the user manual for the ViewSonic VA2759-SMH 27" 16:9 IPS Monitor
- Product category: Computer Monitors ViewSonic
- Brand: ViewSonic
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for ViewSonic Computer Monitors
 |
User manual for the ViewSonic VA2759-SMH 27" 16:9 IPS Monitor contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any ViewSonic product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official ViewSonic user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a ViewSonic product will considerably shorten its lifespan!
|
Product description 10 Factors to Consider When Selecting A Monitor for Video Editing Read More With a Full HD 1920 x 1080 resolution, the VA2759-SMH 27" 16:9 IPS Monitor from ViewSonic produces a crisp, clear picture for viewing photos, creating documents, and much more. In addition to the enhanced resolution, this IPS (In-Plane Switching) monitor supports a 5 ms response time, 250 cd/m² brightness rating, and a 1,000:1 static contrast ratio, providing a more dynamic picture along with reduced glare when viewing videos. Setup and configuration of the VA2759-SMH monitor is simple as it comes equipped with both VGA and HDMI inputs. Also found on this display are two 2W speakers for a complete multimedia experience. Whether placed on a desk or mounted to the wall using a VESA compatible mount, the IPS display can be viewed from nearly any angle as it supports 178° horizontal and vertical viewing angles. - Full HD 1080p Resolution
- This monitor features Full HD 1920 x 1080 resolution for enhanced pixel-by-pixel image performance.
- Enhanced Viewing Comfort
- Flicker-Free technology and a Blue Light Filter help to eliminate eye strain from extended viewing periods.
- Improved Color Rendering & Intuitive Settings
- ViewSonic's unique ViewMode feature offers "Game", "Movie", "Web", "Text", and "Mono" presets. These presets enhance gamma curve, color temperature, contrast, and brightness to deliver an optimized viewing experience for different screen applications.

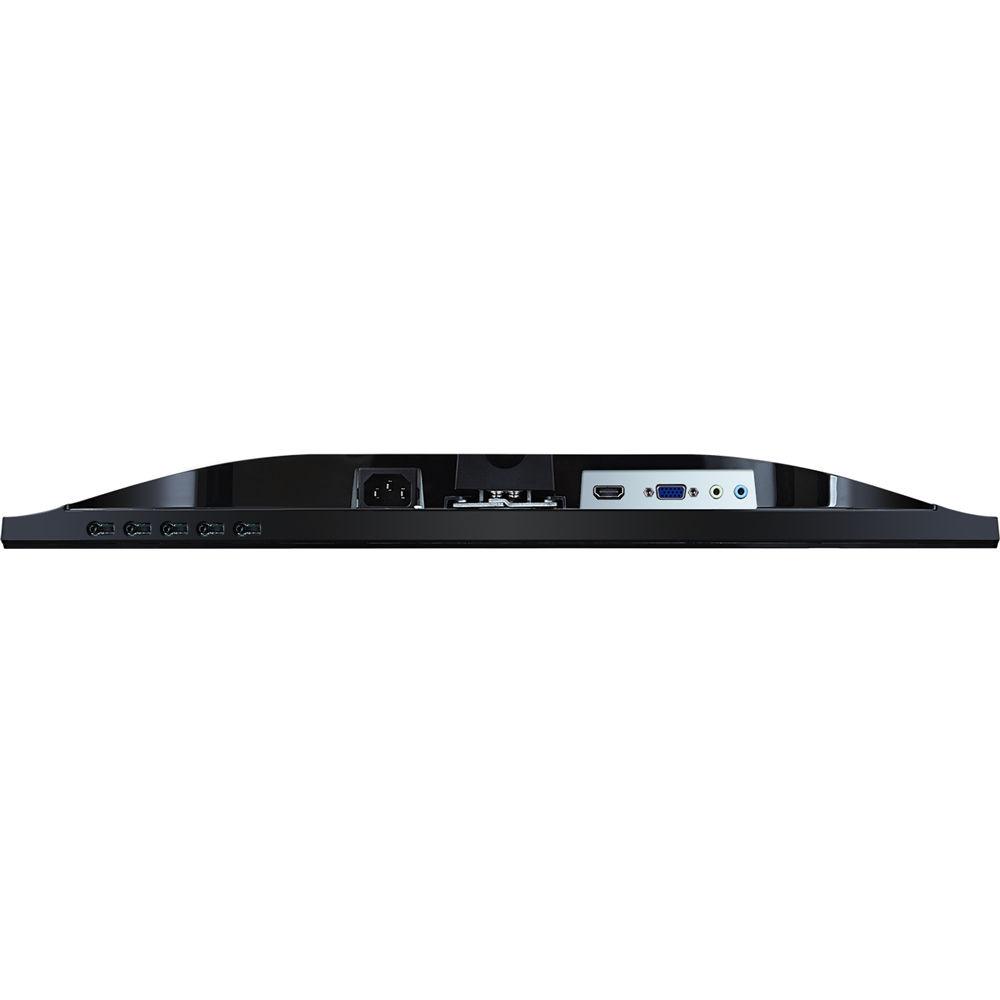

- HDMI and VGA Inputs
- HDMI, and VGA inputs, enable users to connect to game consoles, Blu-ray players, digital cameras, laptops, satellite boxes, and other high-definition devices.
- Dual Integrated Stereo Speakers
- Designed with dual integrated speakers, this monitor combines incredible screen performance with stereo sound for an immersive multimedia experience.

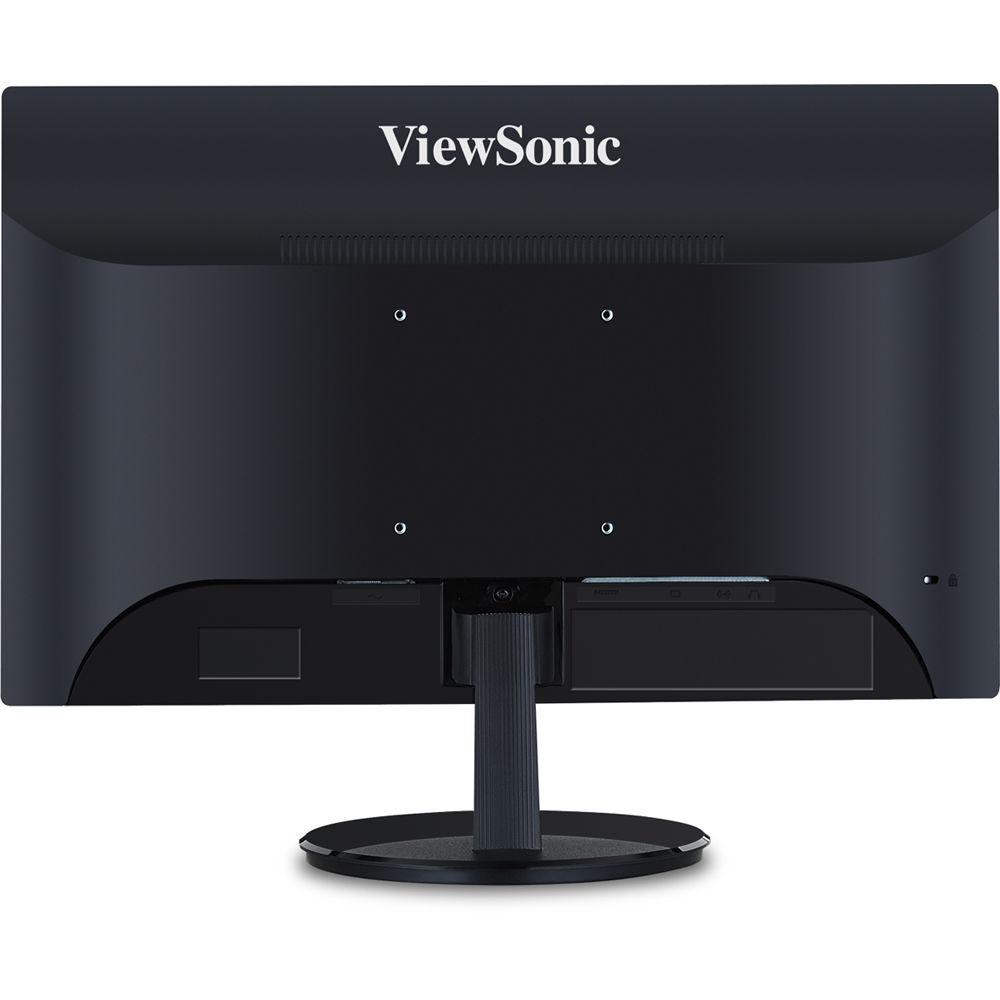

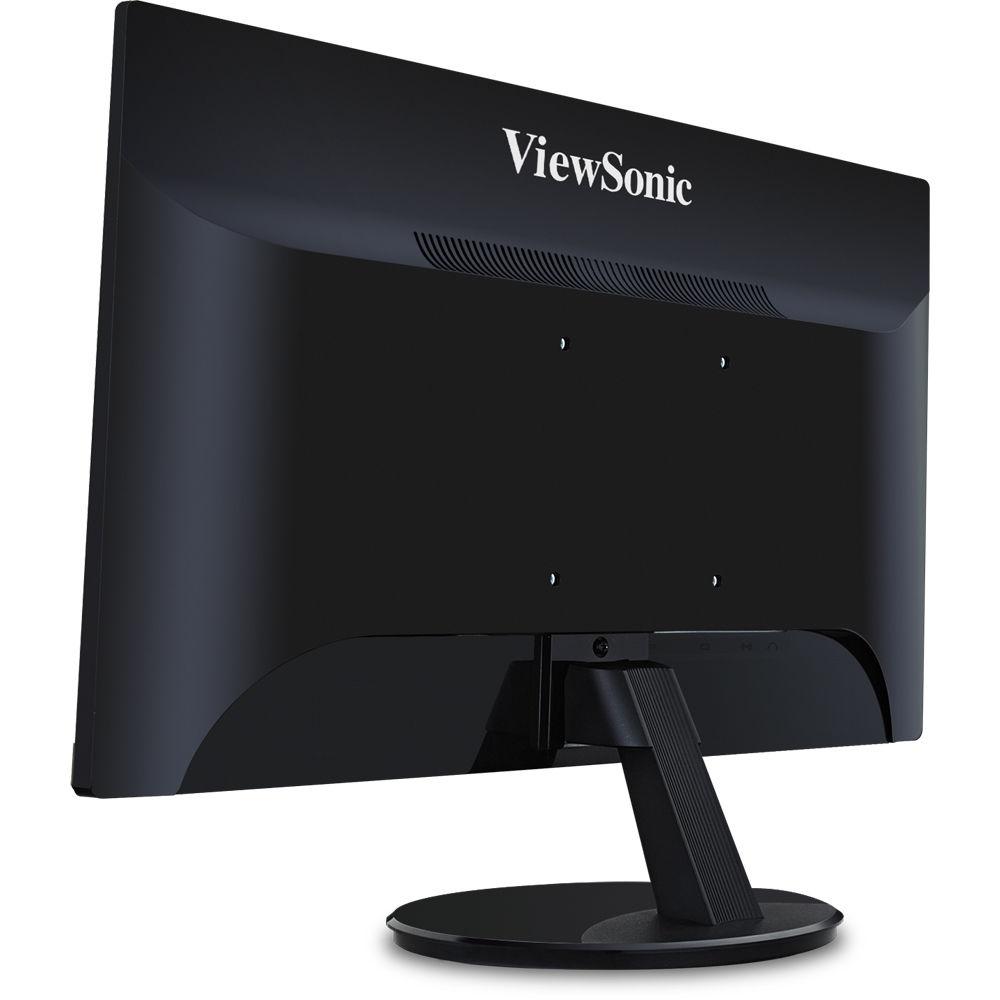

- VESA-Compatible Mount
- Mount the monitor as you see fit using its convenient 100 x 100mm VESA-compatible mount design.
- SuperClear
- With SuperClear IPS panel technology, this monitor delivers the same image quality whether you are looking at the screen from above, below, the front, or the side.
- Eco-Mode
- Eco-mode adjusts brightness and improves visibility, while reducing eye fatigue and prolonging the monitor's lamp life. With Eco-mode, the lifespan of the LED backlighting is also increased.
UPC: 766907837513 In the Box ViewSonic VA2759-SMH 27" 16:9 IPS Monitor Limited 3-Year Warranty Viewsonic VA2759-SMH Data Sheet PDF 449kb More from Manufacturer Table of Contents
|
Upload User Manual
Have you got an user manual for the ViewSonic VA2759-SMH 27" 16:9 IPS Monitor in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersViewSonic VA2759-SMH Specs | | | Size | 27" | | Screen Area | 23.5 x 13.2" / 59.7 x 33.6 cm | | Panel Type | IPS-Type LCD | | Touchscreen | No | | Resolution | 1920 x 1080 | | Finish | Matte | | Hardness Rating | 3H | | Maximum Brightness | 250 cd/m2 | | Contrast Ratio | 1000:1 | | Dynamic Contrast Ratio | 50,000,000:1 | | Adaptive Sync Technology | None | | Horizontal Frequency | 54 to 85.5 kHz | | Vertical Frequency | 48 to 76 Hz | | Bit Depth / Color Support | 6-Bit+FRC (16.7 Million Colors) | | Color Gamut | 72% CIE1931 | | Response Time | 14 ms
7 ms (Overdrive) | | Viewing Angle | Horizontal: 178°
Vertical: 178° | | Backlight Lifespan | 30,000 Hours | | | | Connectivity | 1 x 3.5 mm Input/Output
1 x 3.5 mm Output
1 x HDMI 1.4
1 x VGA | | Built-In Speakers | Yes, 2 x 2 W | | | | Power Consumption | 17 W (Eco)
26 W (Typical) | | AC Input Power | 100 to 240 VAC, 50 / 60 Hz | | | | Operating Temperature | 32 to 104°F / 0 to 40°C | | Operating Humidity | 20 to 90% | | | | Tilt Adjustment | -5 to 22° | | Mounting-Hole Pattern | 100 x 100 mm | | Dimensions (W x H x D) | 24.5 x 14.7 x 1.9" / 62.3 x 37.3 x 4.9 mm (Without Stand)
24.5 x 17.6 x 9.3" / 62.3 x 44.6 x 23.5 mm (With Stand) | | Weight | 8.8 lb / 4 kg (Without Stand)
9.9 lb / 4.5 kg (With Stand) | | | | Package Weight | 14.5 lb | | Box Dimensions (LxWxH) | 27.4 x 20.3 x 6.5" |
