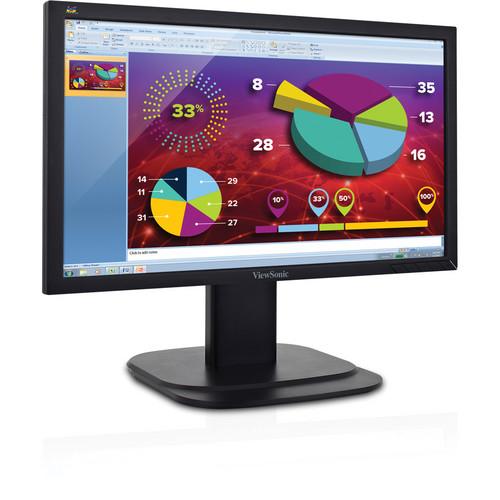

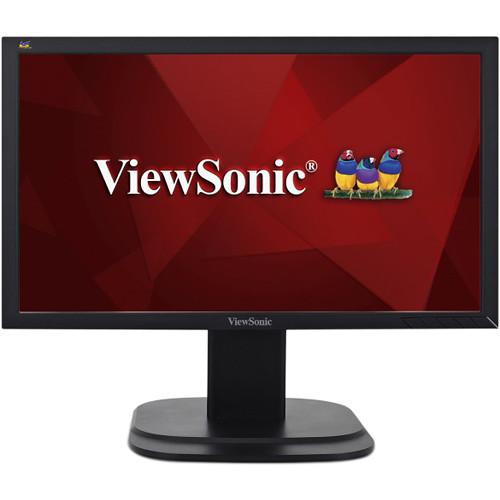

User Manual for ViewSonic VG2039M-LED 20" LED Backlit LCD Monitor Click to enlarge the picture
Contents of the user manual for the ViewSonic VG2039M-LED 20" LED Backlit LCD
- Product category: Computer Monitors ViewSonic
- Brand: ViewSonic
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for ViewSonic Computer Monitors
 |
User manual for the ViewSonic VG2039M-LED 20" LED Backlit LCD contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any ViewSonic product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official ViewSonic user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a ViewSonic product will considerably shorten its lifespan!
|

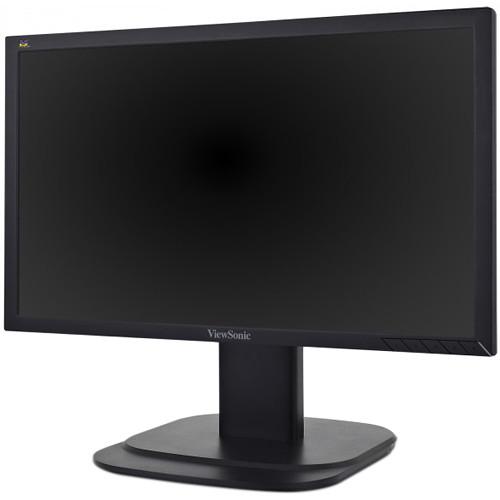

Product description 10 Factors to Consider When Selecting A Monitor for Video Editing Read More The VG2039M-LED 20" LED Backlit LCD Monitor from ViewSonic features both VGA and DisplayPort inputs for versatile connectivity options. Once connected, you can take advantage of the enhanced 1600 x 900 resolution for enhanced picture quality along with a 5ms response time for reduced lag and blur when watching fast moving videos and movies. With a 20,000:1 dynamic contrast ratio you benefit from darker black colors creating a more dynamic image quality.

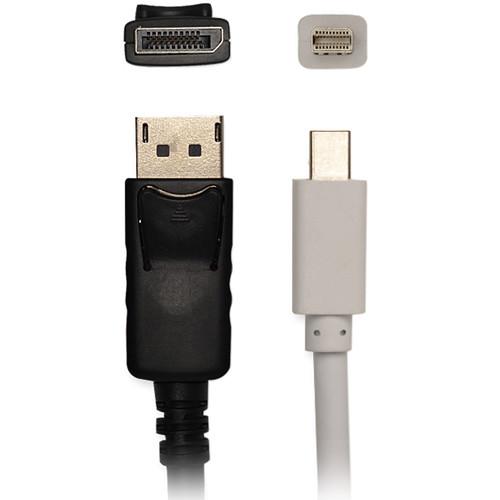

View the VG2039M-LED monitor in comfort with the ability to adjust the height, swivel, and tilt aspects of the monitor. Once the monitor is set, you can view it from multiple angles with 170° horizontal and 160° vertical viewing angles. You can also adjust the image of this monitor with a variety of OSD controls including Auto Image Adjust, Contrast/Brightness, Input Select, Audio adjust, Audio Input, Color Adjust, Information, Manual Image Adjust, Setup Menu, and Memory Recall. - DisplayPort Connectivity
- With DisplayPort connectivity the VG2039m-LED delivers high resolution along with rich colors. The VG2039m-LED also offers VGA and DVI connections to support even more flexibility for both digital and analog media sources. You can also connect additional peripherals or accessories with the integrated 2-port USB hub.
- Enhanced Pixel Performance
- The VG2039m-LED features a native 1600 x 900 resolution for improved pixel-by-pixel image performance. The VG2039m-LED provides 37% more pixels, as well as 10% larger viewing area, when compared to 18.5" displays. With a widescreen 16:9 aspect ratio you benefit from minimized eye fatigue as well as the ability to view multiple windows without the need for toggling.
- Efficiency & Comfort
- Adjust the VG2039m-LED based on your height, chair and desk conditions - you can adjust it up and down for 5.3 inches, swivel it 360°, or tilt it 20°.
- Mercury-Free LED Backlighting
- The LED backlight conserves up to 50% more energy when compared to conventional CCFL displays. LED backlighting also allows for a monitor with a slim panel profile.

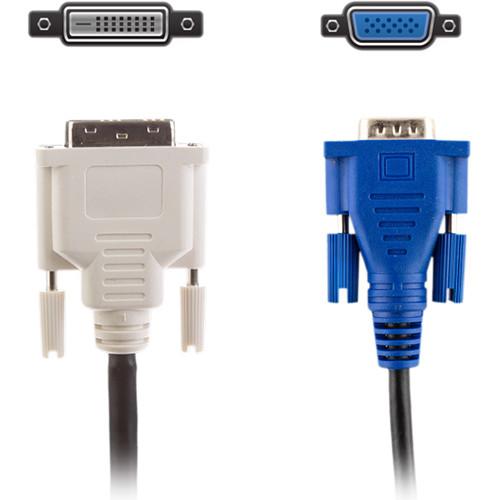

UPC: 766907688313 In the Box ViewSonic VG2039M-LED 20" LED Backlit LCD Monitor Power Cable VGA Video Cable DVI Cable Audio Cable USB Cable Quick Start Guide ViewSonic Wizard CD Limited 3-Year Warranty User Manual PDF 864.3kb More from Manufacturer Table of Contents
|
Upload User Manual
Have you got an user manual for the ViewSonic VG2039M-LED 20" LED Backlit LCD Monitor in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.

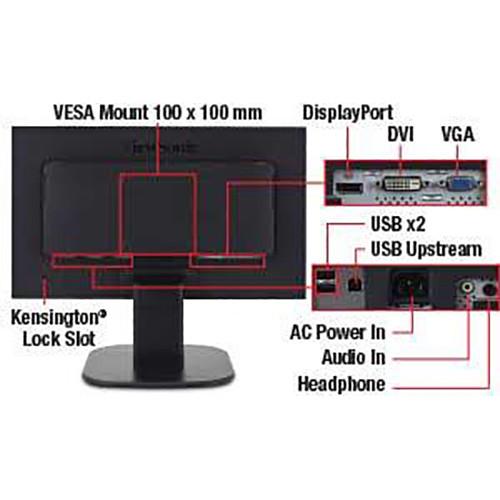

Technical parametersViewSonic VG2039m-LED Specs | | | Size | 19.5" | | Screen Area | 17.1 x 9.4" / 43.4 x 23.9 cm | | Touchscreen | No | | Resolution | 1600 x 900 | | Aspect Ratio | 16:9 | | Finish | Matte | | Hardness Rating | 3H | | Maximum Brightness | 250 cd/m2 | | Contrast Ratio | 1000:1 | | Dynamic Contrast Ratio | 20,000,000:1 | | Refresh Rate | 60 Hz | | Adaptive Sync Technology | None | | Horizontal Frequency | 24 to 82 kHz | | Vertical Frequency | 50 to 75 Hz | | Response Time | 5 ms | | Viewing Angle | Horizontal: 170°
Vertical: 160° | | Backlight Lifespan | 30,000 Hours | | | | Connectivity | 1 x 3.5 mm Input/Output
1 x 3.5 mm Output
1 x USB Type-B Input
2 x USB Type-A Output
1 x DVI-D
1 x DisplayPort Input
1 x VGA | | HDCP Support | Yes | | Built-In Speakers | Yes, 2 x 2 W | | | | Power Consumption | 17 W (Typical)

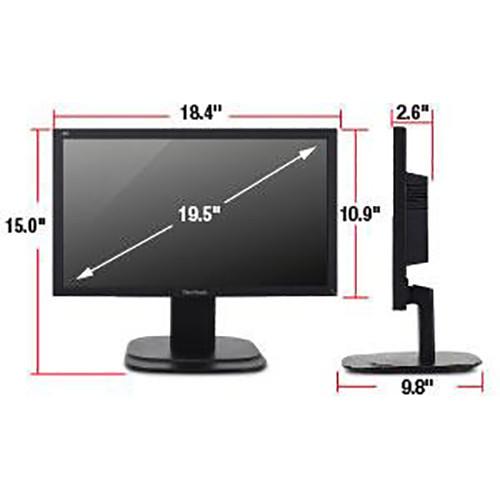

14 W (Eco) | | AC Input Power | 100 to 240 VAC, 50 / 60 Hz | | | | Operating Temperature | 32 to 104°F / 0 to 40°C | | Operating Humidity | 10 to 90% | | Certifications | ENERGY STAR, EPEAT Silver, REACH, RoHS, as per Manufacturer | | | | Height Adjustment | 3.2" / 8.1 cm | | Swivel Adjustment | 360° | | Tilt Adjustment | -5 to 20° | | Mounting-Hole Pattern | 100 x 100 mm | | Dimensions (W x H x D) | 18.4 x 15.0 x 9.8" / 46.6 x 38.2 x 25.0 mm (With Stand)
18.4 x 10.9 x 2.3" / 46.6 x 27.4 x 5.9 mm (Without Stand) | | Weight | 5.8 lb / 2.6 kg (Without Stand)
8.1 lb / 3.7 kg (With Stand) | | | | Package Weight | 11.2 lb | | Box Dimensions (LxWxH) | 20.0 x 17.0 x 5.0" |
