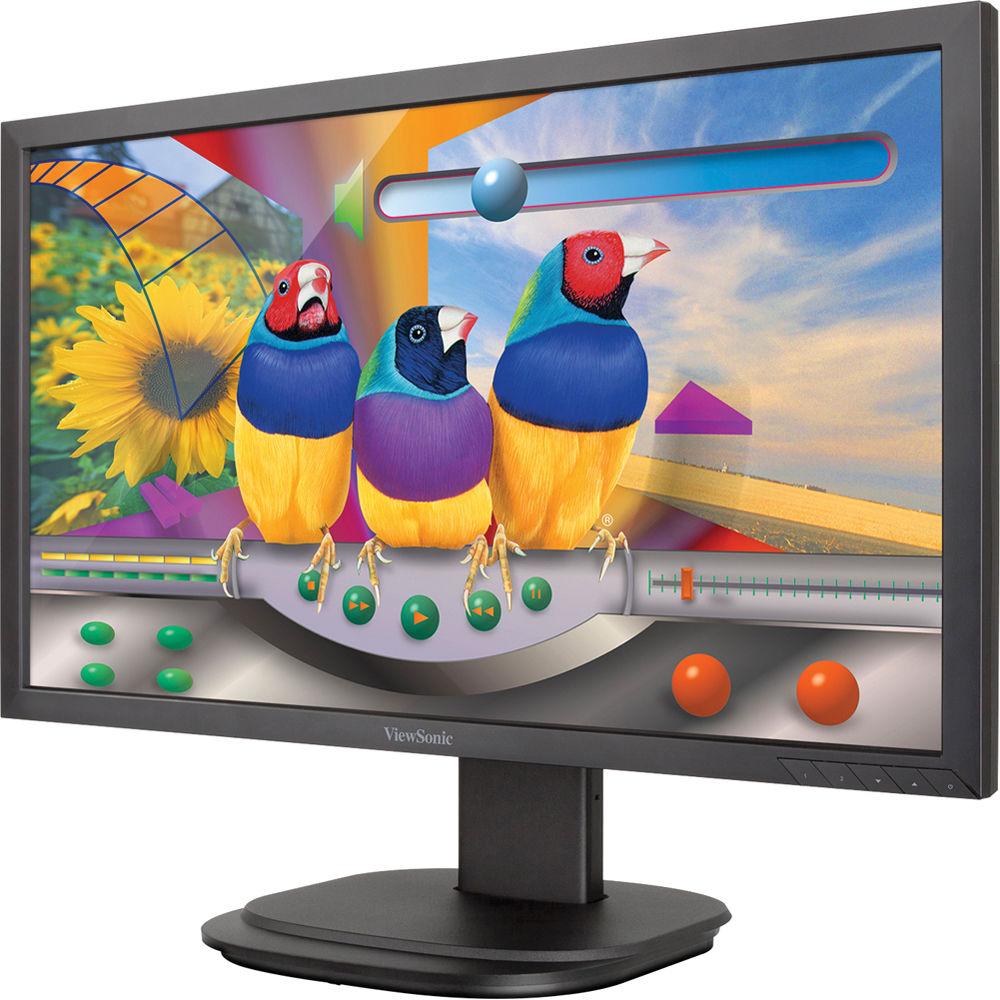

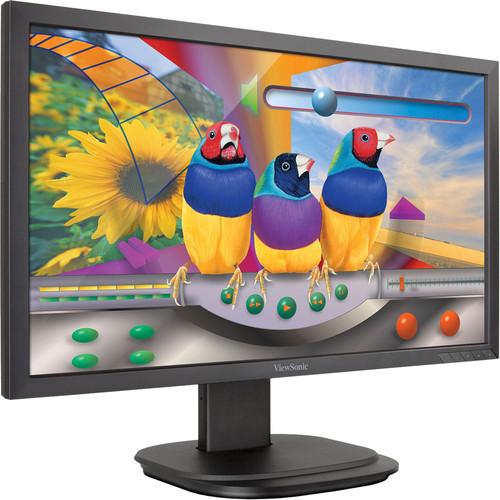

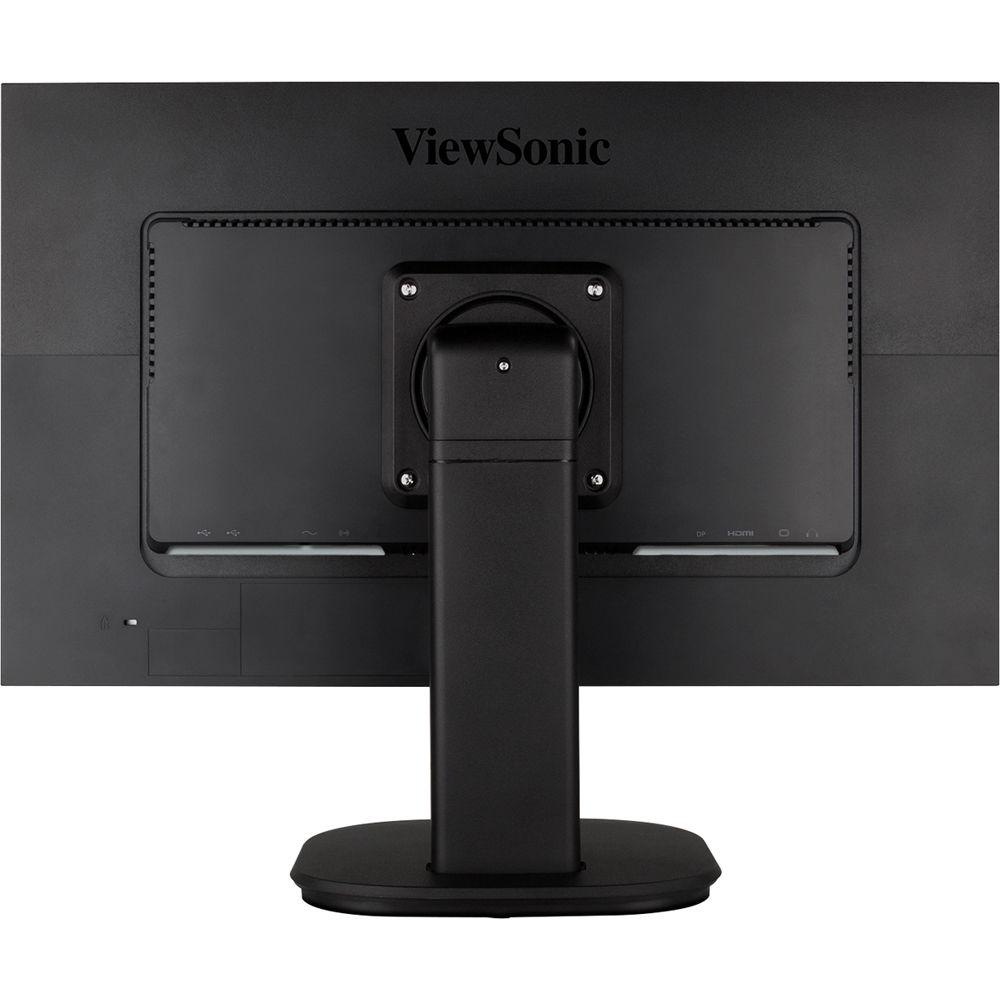

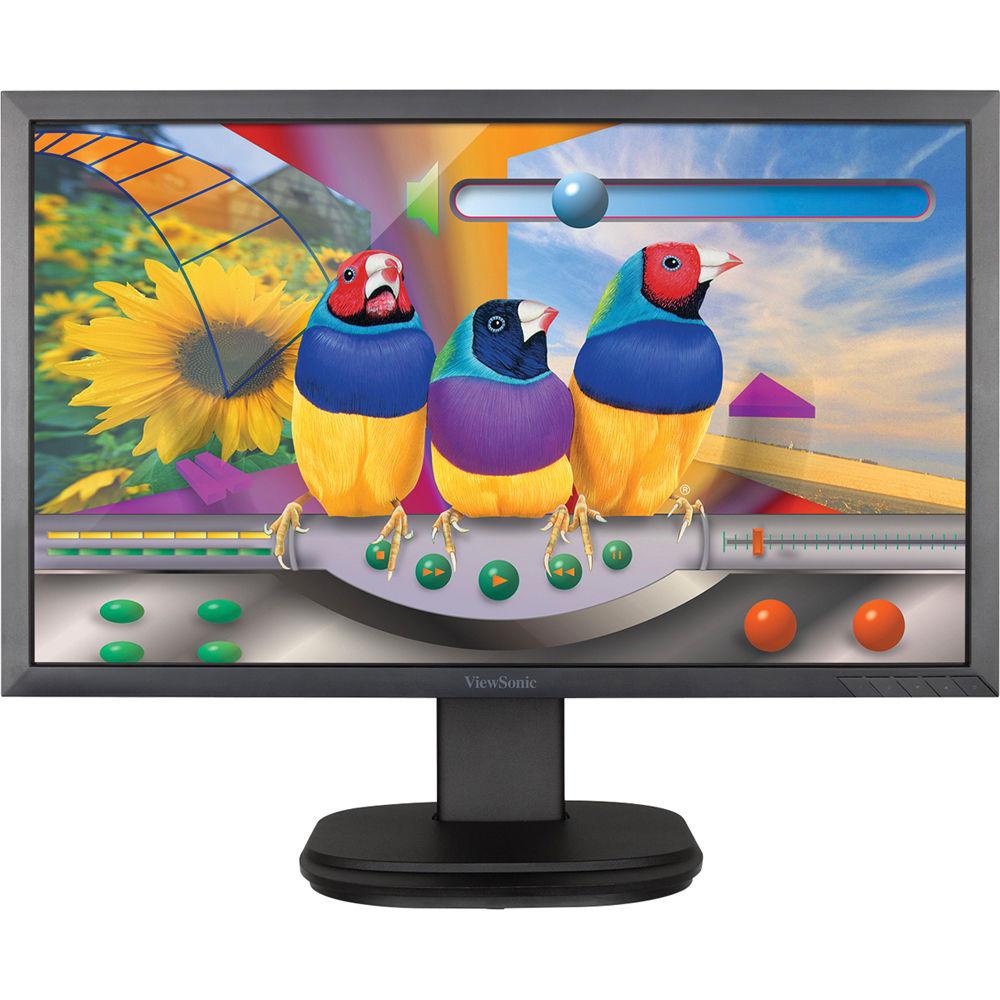

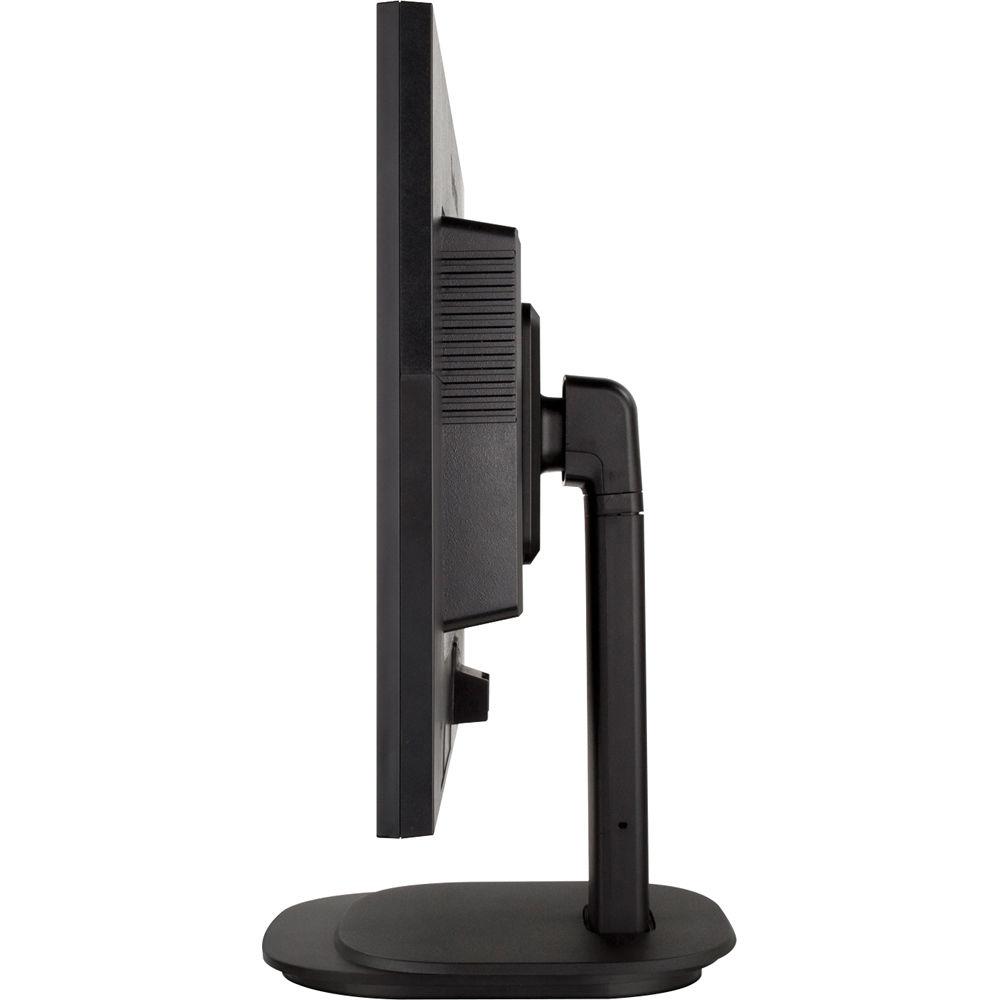

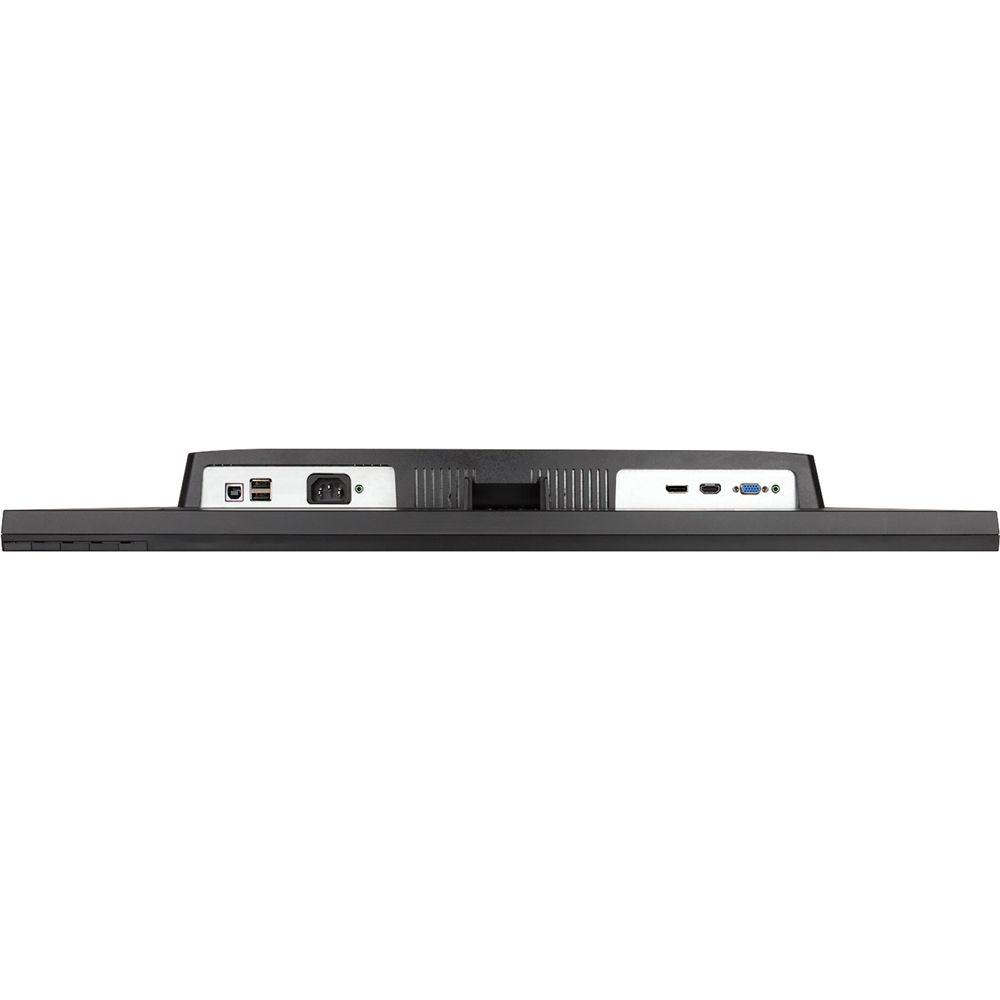

User Manual for ViewSonic VG2239Smh 21.5" 16:9 LCD Monitor Click to enlarge the picture
Contents of the user manual for the ViewSonic VG2239Smh 21.5" 16:9 LCD Monitor
- Product category: Computer Monitors ViewSonic
- Brand: ViewSonic
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for ViewSonic Computer Monitors
 |
User manual for the ViewSonic VG2239Smh 21.5" 16:9 LCD Monitor contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any ViewSonic product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official ViewSonic user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a ViewSonic product will considerably shorten its lifespan!
|
Product description 10 Factors to Consider When Selecting A Monitor for Video Editing Read More With a Full HD 1920 x 1080 resolution the VG2239Smh 21.5" 16:9 LCD Monitor from ViewSonic provides a crisp, clear picture. This Full HD monitor also features SuperClear MVA panel technology to further enhance image quality and offer wide-angle viewing. This 21.5" display also supports a static contrast ratio of 3,000:1 for deeper dark and brighter bright colors as well as a response time of 6.5 ms to reduce ghosting when viewing movies and videos. Setup and configuration is simple thanks to VGA, DisplayPort, and HDMI inputs making it easy to plug this monitor into nearly any computer configuration. Once configured the 178° horizontal and vertical viewing angles offer enhanced viewing from nearly any angle while the dual 2W speakers complete the multimedia viewing experience. - SuperClear MVA panel technology for stunning color performance and wide-angle viewing
- Future-proof HDMI, DisplayPort, and VGA inputs
- Ergonomic tilt, pivot, swivel and height-adjustable design for maximum comfort and productivity
- Exclusive ViewMode technology delivers superior color rendering and intuitive settings
- Flicker-Free and Blue Light Filter technology for more comfortable viewing
UPC: 766907801811 In the Box ViewSonic VG2239Smh 21.5" 16:9 LCD Monitor Power Cable VGA Cable DisplayPort Cable Audio Cable USB Cable ViewSonic Wizard CD (User Guide) Limited 3-Year Warranty Brochure PDF 1.4mb More from Manufacturer Table of Contents
|
Upload User Manual
Have you got an user manual for the ViewSonic VG2239Smh 21.5" 16:9 LCD Monitor in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersViewSonic VG2239SMH Specs | | | Size | 21.5" | | Screen Area | 18.7 x 10.5" / 47.6 x 26.8 cm | | Touchscreen | No | | Resolution | 1920 x 1080 | | Finish | Matte | | Hardness Rating | 3H | | Maximum Brightness | 250 cd/m2 | | Contrast Ratio | 3000:1 | | Dynamic Contrast Ratio | 20,000,000:1 | | Adaptive Sync Technology | None | | Horizontal Frequency | 24 to 82 kHz | | Vertical Frequency | 50 to 75 Hz | | Bit Depth / Color Support | 6-Bit+FRC (16.7 Million Colors) | | Response Time | 6.5 ms (GtG) | | Viewing Angle | Horizontal: 178°
Vertical: 178° | | Backlight Lifespan | 30,000 Hours | | | | Connectivity | 1 x 3.5 mm Input
1 x USB Input
2 x USB Type-A 2.0 Output
1 x DisplayPort Input
1 x HDMI
1 x VGA | | Built-In Speakers | Yes, 2 x 2 W | | | | Power Consumption | 30 W (Maximum)
20.5 W (Typical)
15 W (Standby) | | AC Input Power | 100 to 240 VAC, 50 / 60 Hz | | | | Operating Temperature | 32 to 104°F / 0 to 40°C | | Operating Humidity | 10 to 90% | | Certifications | ENERGY STAR, EPEAT GOLD, RoHS, WEEE, as per Manufacturer | | | | Height Adjustment | 5.3" / 13.5 cm | | Rotation Adjustment | 90° | | Swivel Adjustment | 360° | | Tilt Adjustment | -5 to 20° | | Mounting-Hole Pattern | 100 x 100 mm | | Dimensions (W x H x D) | 20.2 x 16.5 x 9.4" / 51.3 x 41.9 x 23.9 mm (With Stand)
20.2 x 12.0 x 2.2" / 51.3 x 30.5 x 5.6 mm (Without Stand) | | Weight | 10.6 lb / 4.8 kg (With Stand)
7.4 lb / 3.4 kg (Without Stand) | | | | Package Weight | 14.4 lb | | Box Dimensions (LxWxH) | 22.5 x 19.0 x 7.0" |
