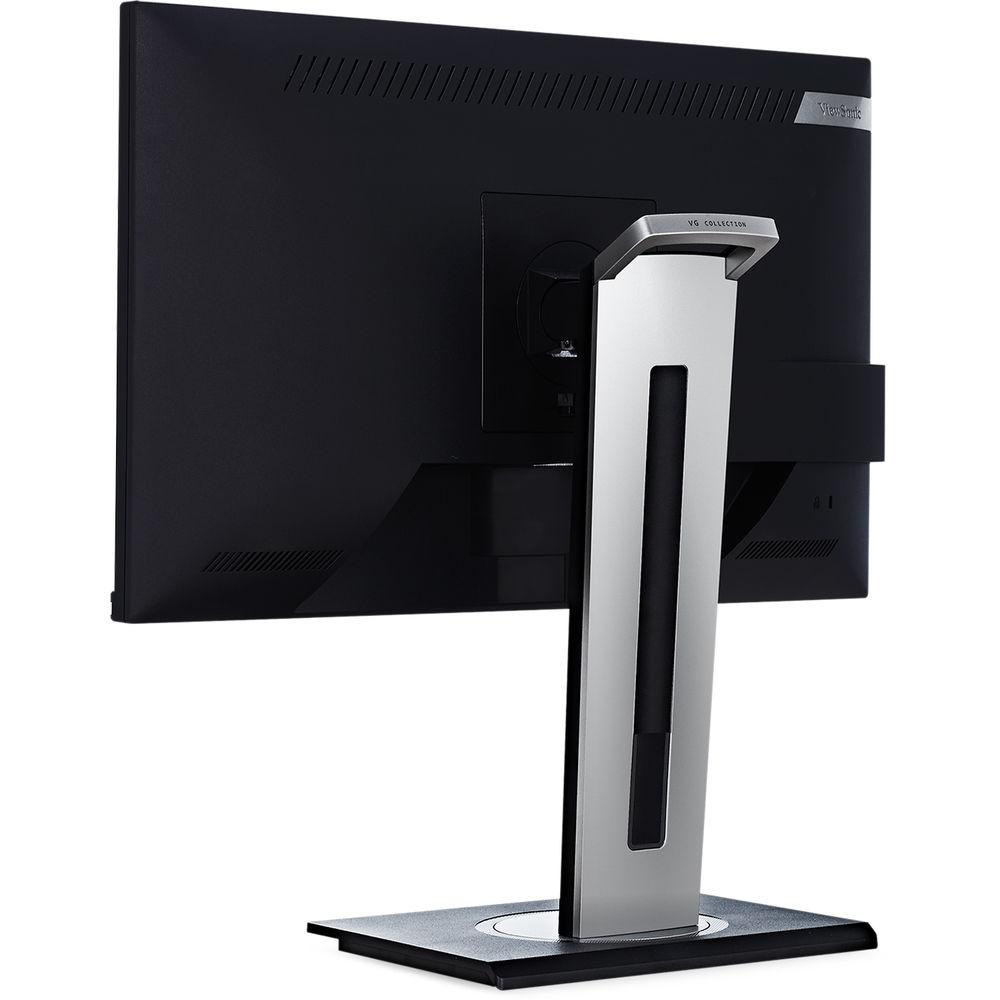

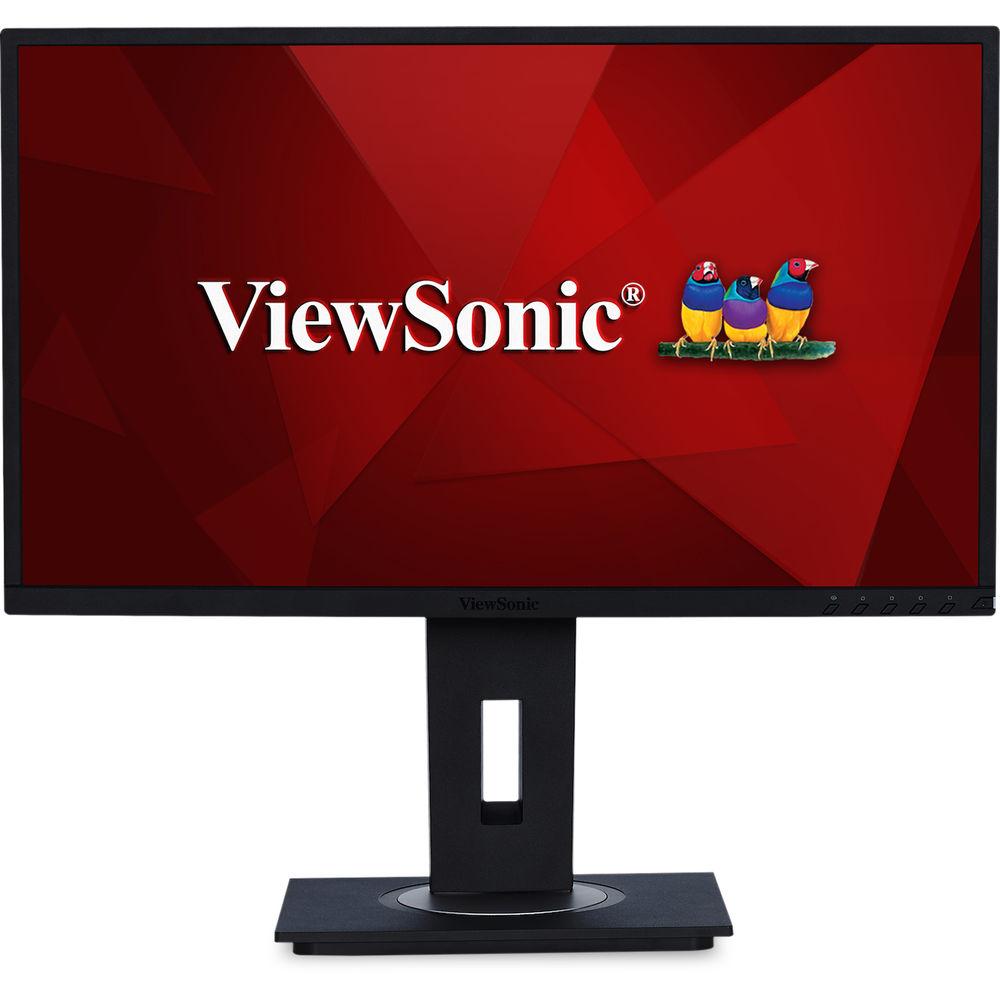

User Manual for ViewSonic VG2248 22" 16:9 LCD Monitor Click to enlarge the picture
Contents of the user manual for the ViewSonic VG2248 22" 16:9 LCD Monitor
- Product category: Computer Monitors ViewSonic
- Brand: ViewSonic
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for ViewSonic Computer Monitors
 |
User manual for the ViewSonic VG2248 22" 16:9 LCD Monitor contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any ViewSonic product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official ViewSonic user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a ViewSonic product will considerably shorten its lifespan!
|

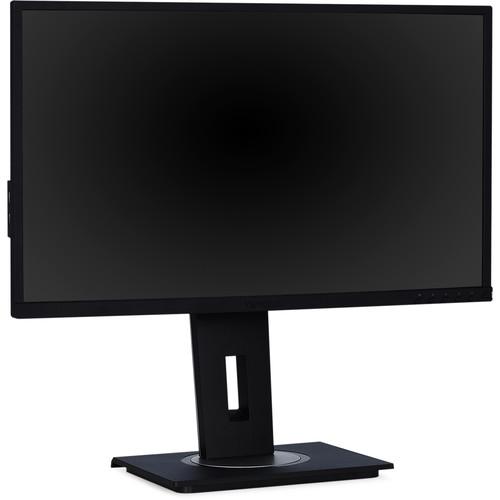

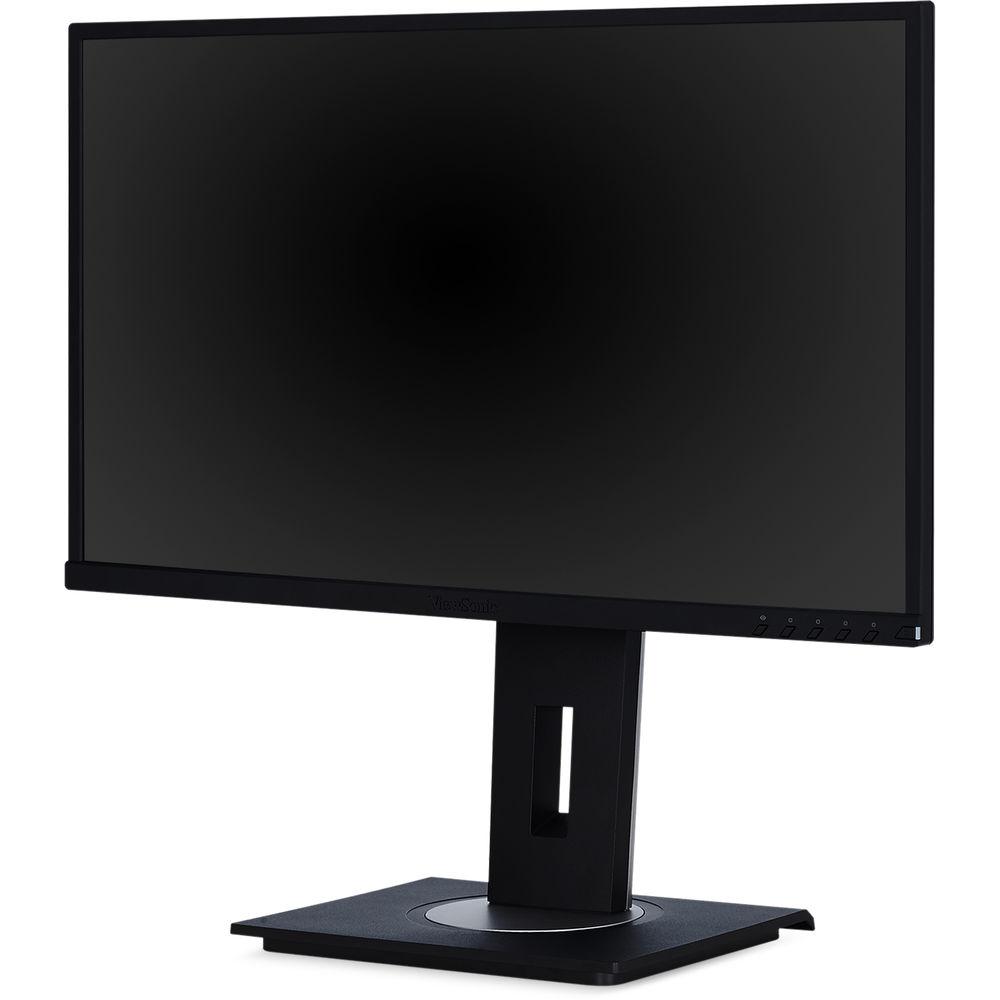

Product description 10 Factors to Consider When Selecting A Monitor for Video Editing Read More With a SuperClear IPS (In-Plane Switching) panel, the VG2248 22" 16:9 LCD Monitor from ViewSonic is designed for a variety of uses including viewing documents, watching videos, and much more. This monitor features a 21.5" Full HD 1920 x 1080 panel, a 1000:1 contrast ratio, a 250 cd/m² brightness rating, and support for up to 16.7 million colors. Installation is simple as the VG2248 comes equipped with HDMI, DisplayPort, and VGA inputs, as well as a USB 3.0 hub so you can connect your USB compatible peripherals directly to the monitor. The monitor also features dual 2W speakers for a complete multimedia viewing experience. You can also tilt, swivel, and pivot the display, and adjust the height of the monitor for maximum viewing comfort - Ultra-Wide Viewing Angles
- Enjoy accurate and vivid colors with consistent levels of brightness no matter the vantage point. With SuperClear IPS panel technology, this monitor delivers the same image quality whether you are looking at the screen from above, below, the front, or the side.
- Frameless Design
- This IPS display delivers accurate colors and vivid images, while a frameless design provides for a nearly seamless viewing experience in multi-monitor setups. And with ultra-wide viewing angles, you'll enjoy detailed images, unbound and without borders, no matter your vantage point.

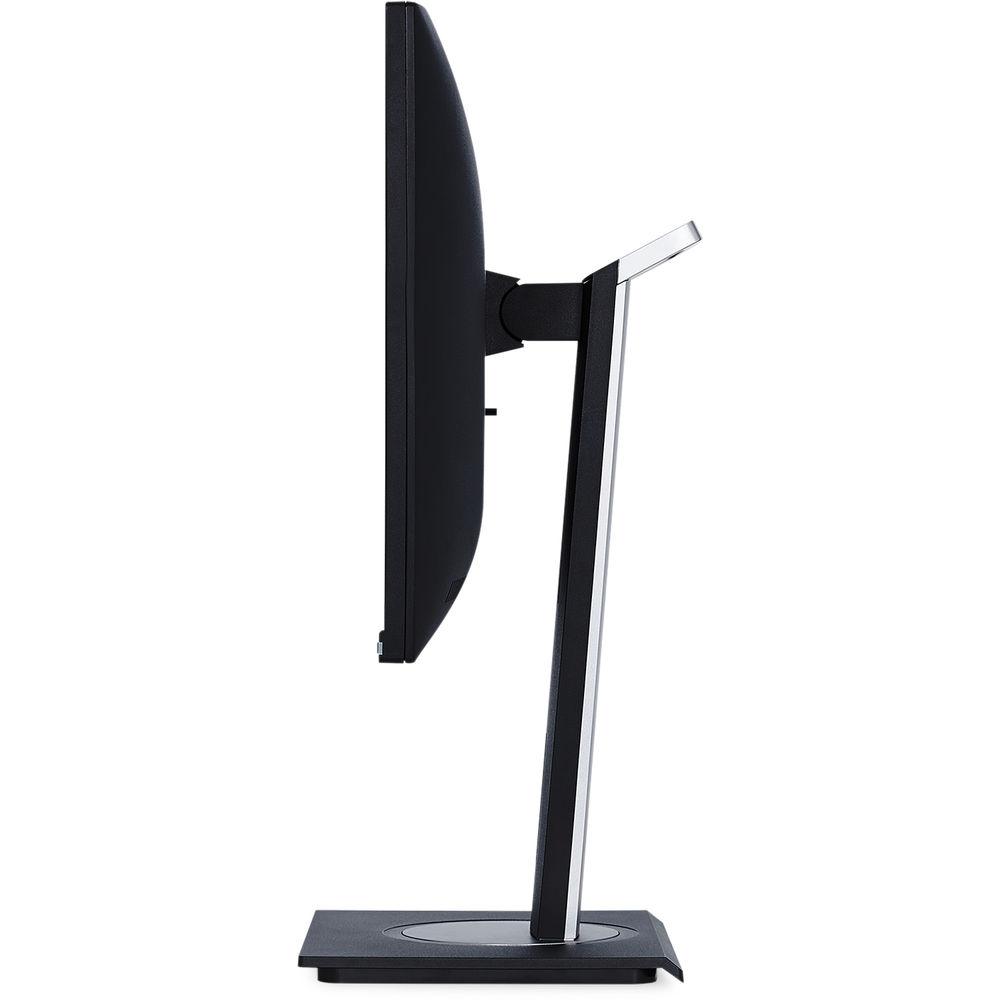

- A More Comfortable Workspace
- With advanced ergonomic features including swivel, pivot, height adjust, and tilt, this monitor is designed to provide a greater range of adjustment for increased productivity and comfort. The monitor can tilt up to 40-degrees, making it ideal for use during group discussions and screen sharing.

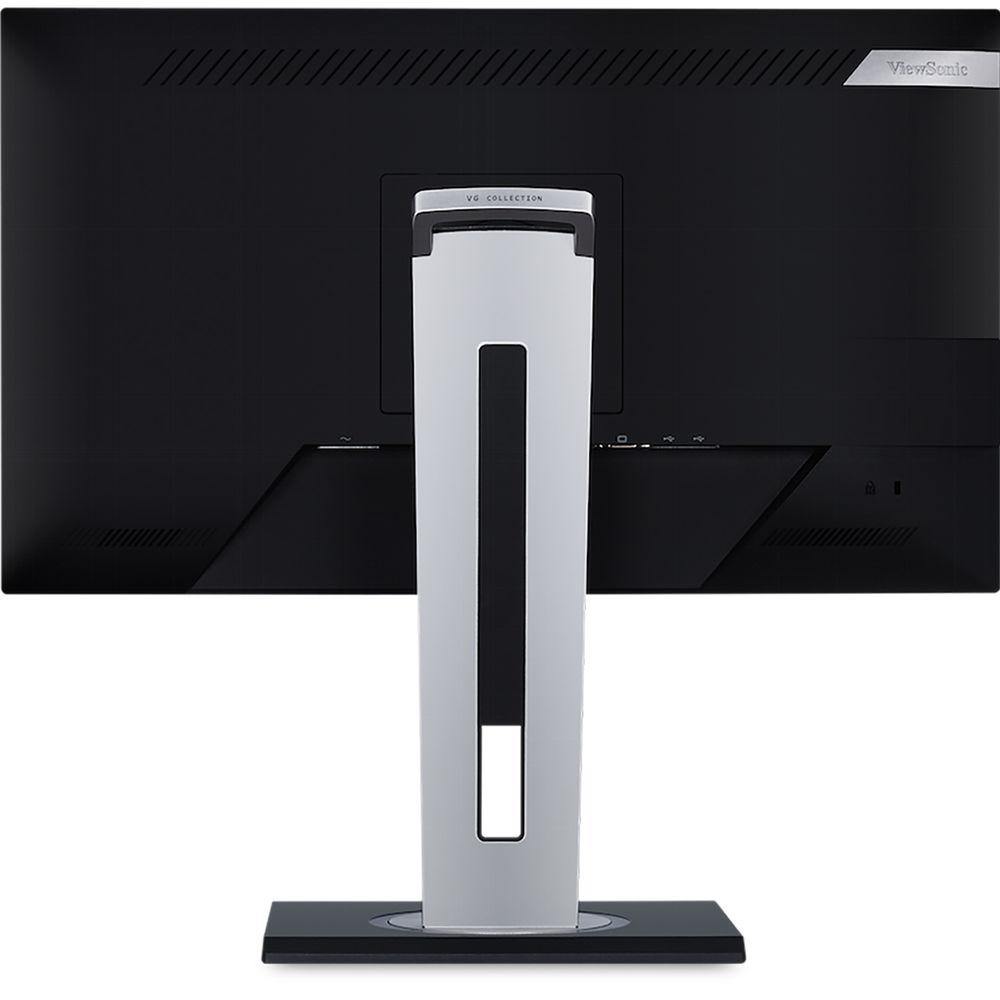

- Convenient & Versatile Stand

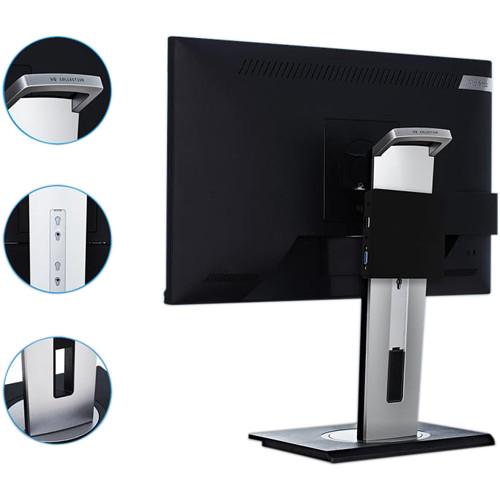

- An easy-to-install quick-release stand with a convenient carrying handle makes for simple monitor setup, while cable management features keep workspaces neat and free of cable clutter. The stand also features a built-in client mount for quick installation of client devices on the back of the monitor. This allows for simple client device deployment and a streamlined desktop without interfering with the ergonomic functionality of the monitor.

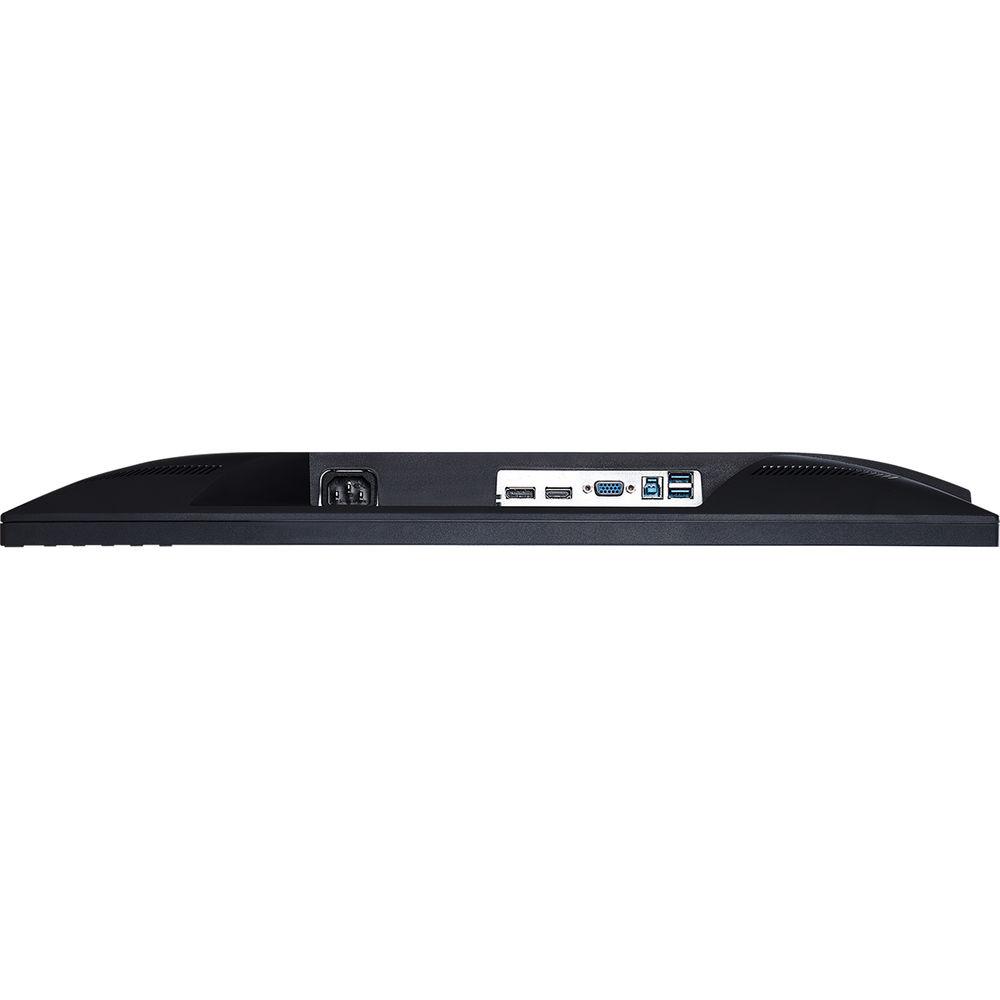

- Versatile Connectivity
- DisplayPort, HDMI, and VGA inputs give you the freedom to connect your display to a variety of devices.
- Enhanced Viewing Comfort
- Flicker-Free technology and a Blue Light Filter help to eliminate eye strain from extended viewing periods.
- Optimized View Settings
- ViewSonic's unique ViewMode feature offers "Game," "Movie," "Web," "Text," and "Mono" presets. These presets enhance gamma curve, color temperature, contrast, and brightness to deliver an optimized viewing experience for different screen applications.
UPC: 766907000740 In the Box ViewSonic VG2248 22" 16:9 LCD Monitor Power Cable DisplayPort to DisplayPort Cable USB 3.0 Upstream Cable Limited 3-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the ViewSonic VG2248 22" 16:9 LCD Monitor in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersViewSonic VG2248 Specs | | | Size | 21.5" | | Panel Type | IPS-Type LCD | | Touchscreen | No | | Resolution | 1920 x 1080 | | Aspect Ratio | 16:9 | | Pixels Per Inch (ppi) | 102 ppi | | Finish | Matte | | Hardness Rating | 3H | | Maximum Brightness | 250 cd/m2 | | Contrast Ratio | 1000:1 | | Dynamic Contrast Ratio | 50,000,000:1 | | Adaptive Sync Technology | None | | Horizontal Frequency | 24 to 82 Hz | | Vertical Frequency | 50 to 75 Hz | | Bit Depth / Color Support | 6-Bit+FRC (16.7 Million Colors) | | HDR Compatibility | None | | Response Time | 7 ms (Overdrive)
14 ms (GtG) | | Viewing Angle | Horizontal: 178°
Vertical: 178° | | Backlight Lifespan | 30,000 Hours | | | | Connectivity | 1 x HDMI 1.4 Input
1 x DisplayPort Input
1 x VGA Input
4 x USB Type-A (USB 3.1 Gen 1)
1 x USB Type-B (USB 3.1 Gen 1) | | Built-In Speakers | Yes, 2 x 2 W | | | | Power Consumption | 14.1 W (Eco)
16.3 W (Eco)
19.6 W (Typical)
55.4 W (Maximum)

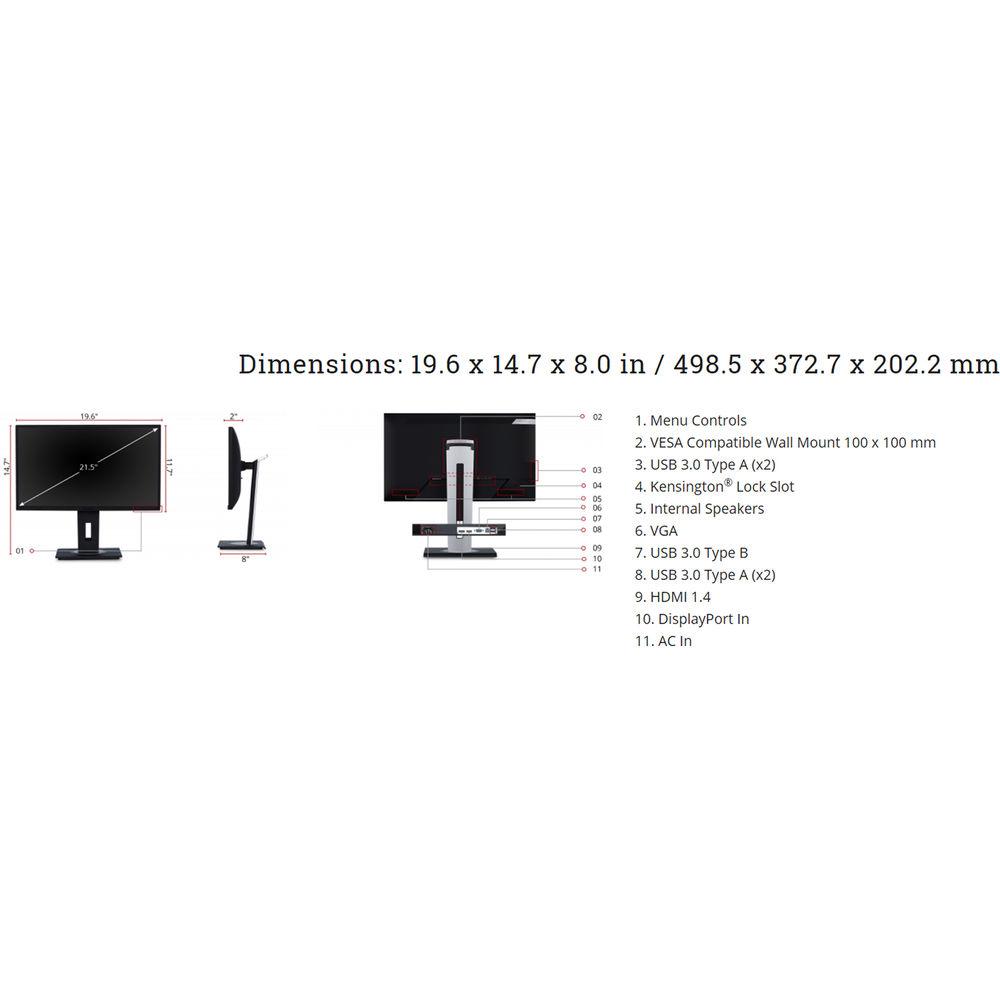

0.5 W (Standby) | | AC Input Power | 100 to 240 VAC, 50 / 60 Hz | | Power Adapter Type | Internal | | | | Operating Temperature | 32 to 104°F / 0 to 40°C | | Operating Humidity | 20 to 90% | | Certifications | ENERGY STAR, EPEAT Silver, FCC, TUV, as per Manufacturer | | | | Height Adjustment | 5.12" / 130 mm | | Rotation Adjustment | 180° (-90 to 90°) | | Swivel Adjustment | 120° | | Tilt Adjustment | -5 to 40° | | Mounting-Hole Pattern | 100 x 100 mm | | Lock Slot | Yes | | Dimensions (W x H x D) | 19.6 x 14.7 x 8.0" / 49.8 x 37.3 x 20.3 cm (With Stand)
19.6 x 11.7 x 2.0" / 497.8 x 297.2 x 50.8 mm (Without Stand) | | Weight | 11.9 lb / 5.40 kg (With Stand)
6.5 lb / 2.95 kg (Without Stand) | | | | Package Weight | 17.6 lb | | Box Dimensions (LxWxH) | 22.8 x 15.3 x 8.5" |
