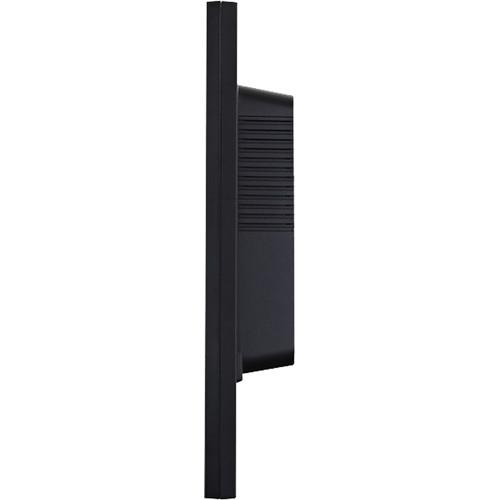

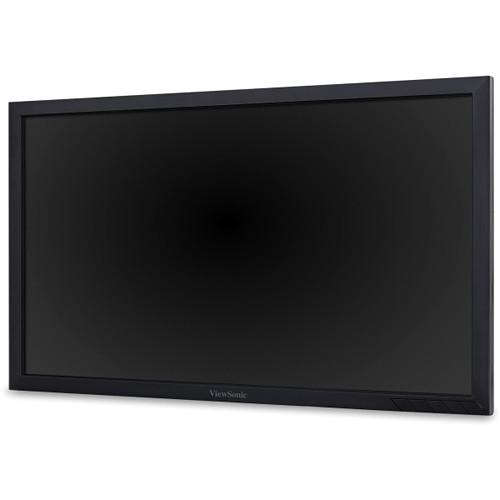

User Manual for ViewSonic VG2249_H2 22" 16:9 SuperClear LCD Monitor Click to enlarge the picture
Contents of the user manual for the ViewSonic VG2249_H2 22" 16:9 SuperClear LCD
- Product category: Computer Monitors ViewSonic
- Brand: ViewSonic
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for ViewSonic Computer Monitors
 |
User manual for the ViewSonic VG2249_H2 22" 16:9 SuperClear LCD contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any ViewSonic product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official ViewSonic user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a ViewSonic product will considerably shorten its lifespan!
|
Product description 10 Factors to Consider When Selecting A Monitor for Video Editing Read More With a SuperClear MVA (Multidomain Vertical Alignment) panel, the VG2249_H2 22" 16:9 SuperClear LCD Monitors from ViewSonic supports 178° horizontal and vertical viewing angles, providing accurate color representation from virtually any angle. In addition to the enhanced display quality, the VG2249_H2 also comes equipped with DisplayPort-out connectivity, making it easy to daisy chain this display to additional compatible monitors. Accompanying the DisplayPort-out connector are DisplayPort-in, HDMI, and VGA connectors to plug this monitor into a wide variety of devices. Once configured, users can manipulate the display by swiveling, pivoting, tilting, and even adjusting the height of the monitor for maximum viewing comfort.
Regardless of how you view the screen, this ViewSonic monitor features a Full HD 1920 x 1080 resolution, 3,000:1 contrast ratio, and 250 cd/m² brightness rating for a crisp, clear picture, along with dual built-in 2W speakers for a complete multimedia experience. ViewSonic has even added flicker-free technology and a blue light filter to help alleviate eye fatigue when viewing the screen for an extended period of time. - SuperClear MVA Panel Technology
- Enjoy accurate and vivid colors with consistent levels of brightness no matter the vantage point. With SuperClear MVA panel technology, this monitor delivers the same image quality whether you are looking at the screen from above, below, the front, or the side.

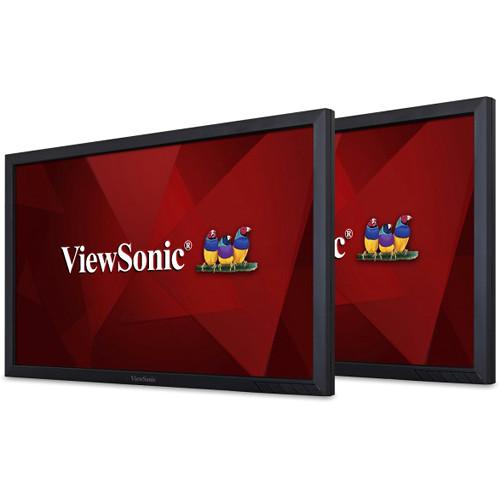

- Two Monitors in a Single Package
- Sold as a dual pack without monitor stands, these monitors require less packaging for a reduced environmental footprint, while still providing VESA compatible mounting for easy installation.
- High-Definition Daisy Chain Capability
- Equipped with one DisplayPort input and one DisplayPort output, this monitor supports daisy-chaining of multiple displays for multi-screen setups, consistent colors across screens, and easy cable management. Full HD is supported on four daisy-chained displays (four screens total).

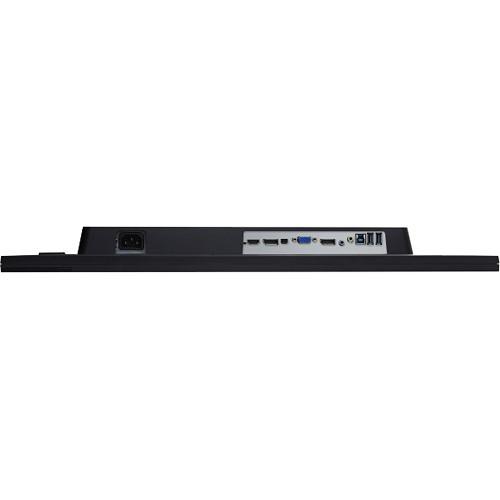

- Versatile Connectivity
- DisplayPort, HDMI, and VGA inputs give you the freedom to connect your monitor to a variety of devices.
- Ergonomic Design
- With advanced ergonomic features, ViewSonic monitors are designed to provide a greater range of adjustment for increased productivity and comfort. Users can reduce eyestrain and physical fatigue by adjusting the monitor via swivel, pivot, tilt, and height adjust options.
- Optimized View Settings
- ViewSonic's unique ViewMode feature offers "Game," "Movie," "Web," "Text," and "Mono" presets. These presets enhance gamma curve, color temperature, contrast, and brightness to deliver an optimized viewing experience for different screen applications.
- Enhanced Viewing Comfort
- Flicker-free technology and a blue light filter help to eliminate eye strain from extended viewing periods.
- Dual Integrated Stereo Speakers
- Designed with dual integrated speakers, this monitor combines incredible screen performance with stereo sound for an immersive multimedia experience.

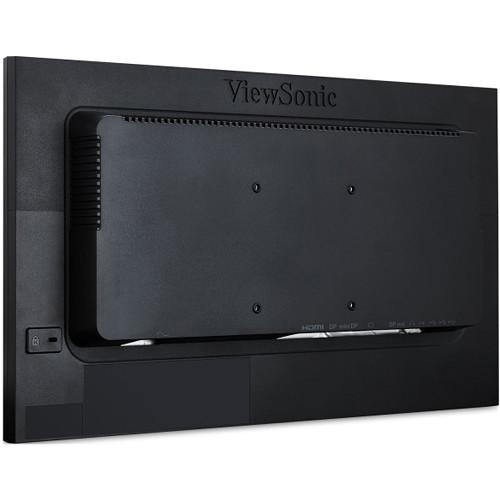

- VESA-Compatible Mount
- Mount the monitor as you see fit using its convenient VESA-compatible mount design.
UPC: 766907889932 In the Box ViewSonic VG2249_H2 22" 16:9 SuperClear LCD Monitor (2-Pack, Without Stands) Power Cable Mini DP to DP Cable USB 3.0 Upstream Cable Limited 3-Year Warranty More from Manufacturer ztfuzdxbxcaqxvutvbxdxvdcxvsxerydducq Table of Contents
|
Upload User Manual
Have you got an user manual for the ViewSonic VG2249_H2 22" 16:9 SuperClear LCD Monitor in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersViewSonic VG2249H2 Specs | | | Size | 21.5" | | Panel Type | VA LCD | | Touchscreen | No | | Resolution | 1920 x 1080 | | Aspect Ratio | 16:9 | | Finish | Matte | | Hardness Rating | 3H | | Maximum Brightness | 250 cd/m2 | | Contrast Ratio | 3000:1 | | Dynamic Contrast Ratio | 20,000,000:1 | | Adaptive Sync Technology | None | | Horizontal Frequency | 15 to 82 kHz | | Vertical Frequency | 50 to 75 Hz | | Bit Depth / Color Support | 6-Bit+FRC (16.7 Million Colors) | | Response Time | 5 ms | | Viewing Angle | Horizontal: 178°
Vertical: 178° | | Backlight Lifespan | 40,000 Hours | | | | Connectivity | 1 x USB Input
2 x USB Output
1 x DisplayPort Input
1 x DisplayPort Output
1 x Mini DisplayPort Input
1 x HDMI 1.4
1 x VGA | | Built-In Speakers | Yes, 2 x 2 W | | | | Power Consumption | 44 W (Maximum)
0.5 W (Standby)
19 W (Typical)
14 W (Eco) | | AC Input Power | 100 to 240 VAC, 50 / 60 Hz | | | | Operating Temperature | 32 to 104°F / 0 to 40°C | | Operating Humidity | 20 to 90% | | Certifications | ENERGY STAR, EPEAT GOLD, as per Manufacturer | | | | Mounting-Hole Pattern | 100 x 100 mm | | Lock Slot | Yes | | Dimensions (W x H x D) | 20.2 x 12.0 x 2.1" / 51.2 x 30.4 x 5.4 mm (Without Stand) | | Weight | 6.7 lb / 3 kg (Without Stand) | | | | Package Weight | 18.0 lb | | Box Dimensions (LxWxH) | 23.7 x 16.8 x 7.8" |
Rating90% users recommend this product to others. And what about you?
This product has already been rated by 26 owners. Add your rating and experience with the product.
