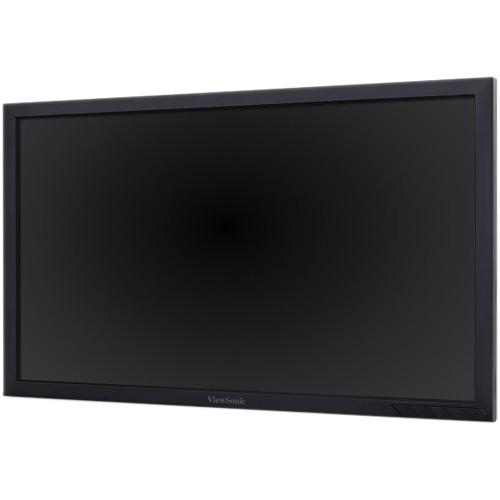

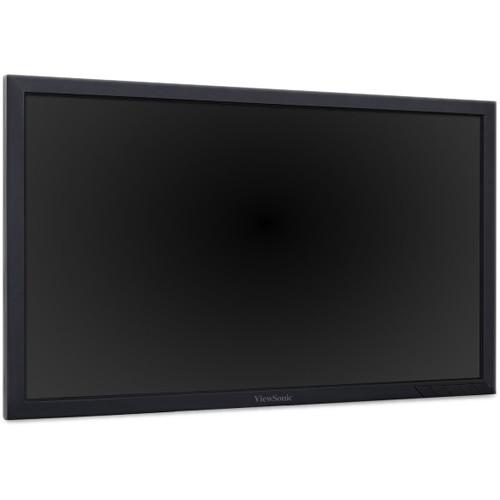

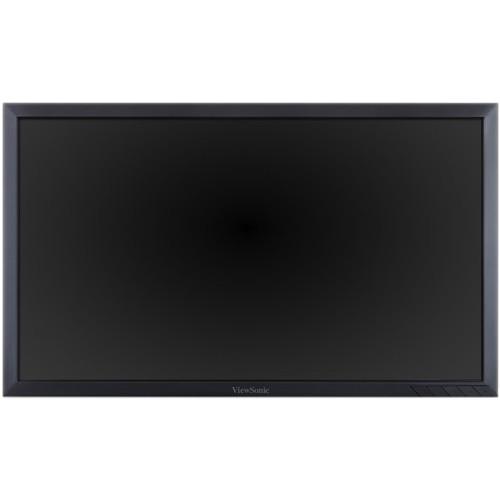

User Manual for ViewSonic VG2449H2 24" 16:9 SuperClear LCD Panel Click to enlarge the picture
Contents of the user manual for the ViewSonic VG2449H2 24" 16:9 SuperClear LCD
- Product category: Computer Monitors ViewSonic
- Brand: ViewSonic
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for ViewSonic Computer Monitors
 |
User manual for the ViewSonic VG2449H2 24" 16:9 SuperClear LCD contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any ViewSonic product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official ViewSonic user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a ViewSonic product will considerably shorten its lifespan!
|

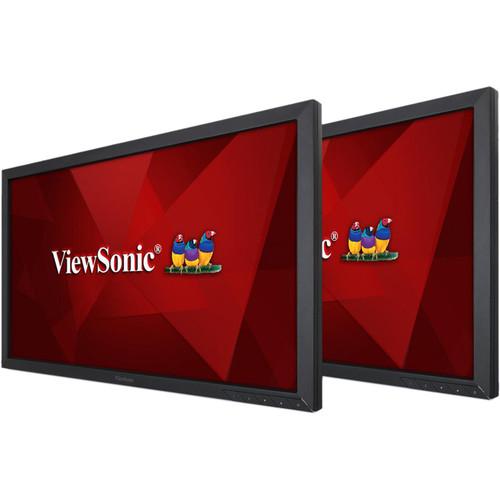

Product description 10 Factors to Consider When Selecting A Monitor for Video Editing Read More This dual-monitor pack of VG2449H2 24" 16:9 SuperClear LCD Panels from ViewSonic comes without stands and is designed to be easily mounted to the wall. The SuperClear MVA panels each feature a Full HD 1920 x 1080 resolution, a 3,000:1 contrast ratio, and a 250 cd/m² brightness rating to offer a crisp, clear picture with deeper dark and brighter light colors.
Setup and configuration of these monitors is simple as they each come equipped with HDMI, DisplayPort, and Mini DisplayPort inputs. Users can also take advantage of USB connectivity to plug in USB compatible peripherals to view saved content on the display. Regardless of what is being viewed, these ViewSonic displays offer enhanced 178° horizontal and vertical viewing angles to see the screen from nearly any angle. UPC: 766907890136 In the Box ViewSonic VG2449H2 24" 16:9 SuperClear LCD Panel (2-Pack) 2 x Power Cables 2 x Mini DisplayPort to DisplayPort Cables 2 x USB 3.0 Upstream Cables Limited 3-Year Warranty More from Manufacturer Table of Contents
|
Upload User Manual
Have you got an user manual for the ViewSonic VG2449H2 24" 16:9 SuperClear LCD Panel in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersViewSonic VG2449H2 Specs | Display Size | 24" / 60.96 cm | | Viewable Area | 23.6" / 59.9 cm | | Resolution | 1920 x 1080 | | Color Depth | 16.7 million (6-bit+FRC) | | Contrast Ratio | Static: 3,000:1
Dynamic: 20,000,000:1 | | Brightness | 250 cd/m² | | Backlight Life | 40,000 hours | | Response Time | 22 ms | | Panel Type | MVA | | Light Source | WLED | | Aspect Ratio | 16:9 | | Panel Surface | Anti-glare type, hard-coating (3H) | | Viewing Angles (H/V) | 178°/178° | | Audio | 2 x 2 watt speakers | | Video Input | Analog:
VGA
Frequency: Fh = 24~82 kHz; Fv = 50~75 Hz
Sync: Separate Sync / Composite Sync / Sync on Green
Digital:
HDMI (v1.4)
Frequency: Fh = 15~82 kHz; Fv = 50~75 Hz
Sync: TMDS
DisplayPort (v1.2) & Mini DP (v1.2)
Frequency: Fh = 15~82 kHz; Fv = 50~75 Hz
Sync: PCI-E | | Connectors | 1 x HDMI 1.4
1 x VGA in
1 x DisplayPort in
1 x DisplayPort out
1 x Mini DisplayPort
2 x USB 3.0 Type-A
1 x USB 3.0 Type-B
1 x 3.5 mm Audio in
1 x 3.5 mm Audio out | | Power | Voltage
100-240 VAC (universal), 50/60 Hz
Power Consumption
Consumption (typical): 20 W
Consumption (max): 46 W
Eco Mode (optimized): 16 W
Eco Mode (conserve): 14 W
Stand-By: 0.5 W | | Temperature & Humidity | Temperature
32 to 104°F / 0 to 40°C
Humidity
20 to 90% non-condensing | | Kensington Lock Support | Yes | | On Screen Display (OSD) User Controls | On Screen Display
Auto Image Adjust, Contrast/Brightness, Input Select, Audio Adjust, Color Adjust, Information, Manual Image Adjust, Advanced Image Adjust, Setup Menu, Memory Recall (see user guide for complete OSD functionality)
Physical Controls

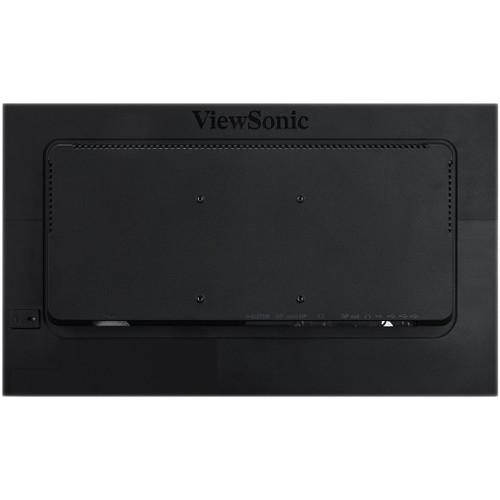

1,2, Up, Down, Power | | VESA Hole Configuration | 100 x 100 mm | | Regulations | cULus, FCC, ICES003, ENERGY STAR 7.0, EPEAT Gold, UL-MX-CoC, Mexico Energy | | Dimensions | 22.06 x 13.10 x 2.33" / 560.28 x 332.72 x 59.18 mm | | Weight | 15.88 lb / 7.22 kg | | | | Package Weight | 21.25 lb | | Box Dimensions (LxWxH) | 25.5 x 16.8 x 10.4" |
