User Manual for ViewSonic VG2453 24" 16:9 IPS Monitor Click to enlarge the picture
Contents of the user manual for the ViewSonic VG2453 24" 16:9 IPS Monitor
- Product category: Computer Monitors ViewSonic
- Brand: ViewSonic
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for ViewSonic Computer Monitors
 |
User manual for the ViewSonic VG2453 24" 16:9 IPS Monitor contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any ViewSonic product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official ViewSonic user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a ViewSonic product will considerably shorten its lifespan!
|
Product description 10 Factors to Consider When Selecting A Monitor for Video Editing Read More With a wealth of connectivity options, the VG2453 24" 16:9 IPS Monitor from ViewSonic can be used with a wide variety of computer configurations and setups. The VG2453 display comes equipped with Mini DisplayPort, DisplayPort, HDMI, and VGA inputs as well as dual USB 3.0 ports. In addition to the versatile connectivity options, this ViewSonic monitor also features a SuperClear IPS (In-Plane Switching) Panel supporting 178° horizontal and vertical viewing angles along with a reduced size bezel, allowing for optimal viewing from nearly any angle.
Once configured viewers benefit from a Full HD 1920 x 1080 resolution along with a 1,000:1 static contrast ratio providing a clear, dynamic picture quality. ViewSonic has also built both Flicker-Free technology and a Blue Light Filter right in to the display to help alleviate the strain placed on your eyes during periods of extended viewing. To further enhance viewing comfort the VG2453 monitor can be pivoted, swiveled, tilted, and moved up or down to ensure maximum comfort. Additionally, this monitor comes equipped with dual 2W speakers built in to the display for a complete multimedia experience. - SuperClear IPS Panel Technology
- Enjoy accurate and vivid colors with consistent levels of brightness no matter the vantage point. With SuperClear IPS panel technology, this monitor delivers the same image quality whether you are looking at the screen from above, below, the front, or the side.
- Seamless Viewing Experience
- An edge-to-edge SuperClear IPS panel delivers accurate colors and vivid images. Additionally, with ultra-wide viewing angles, you'll enjoy detailed images no matter your vantage point.
- Versatile Connectivity
- Mini DisplayPort, DisplayPort, HDMI, and VGA inputs give you the freedom to connect your monitor to a variety of devices.
- Ergonomic Design

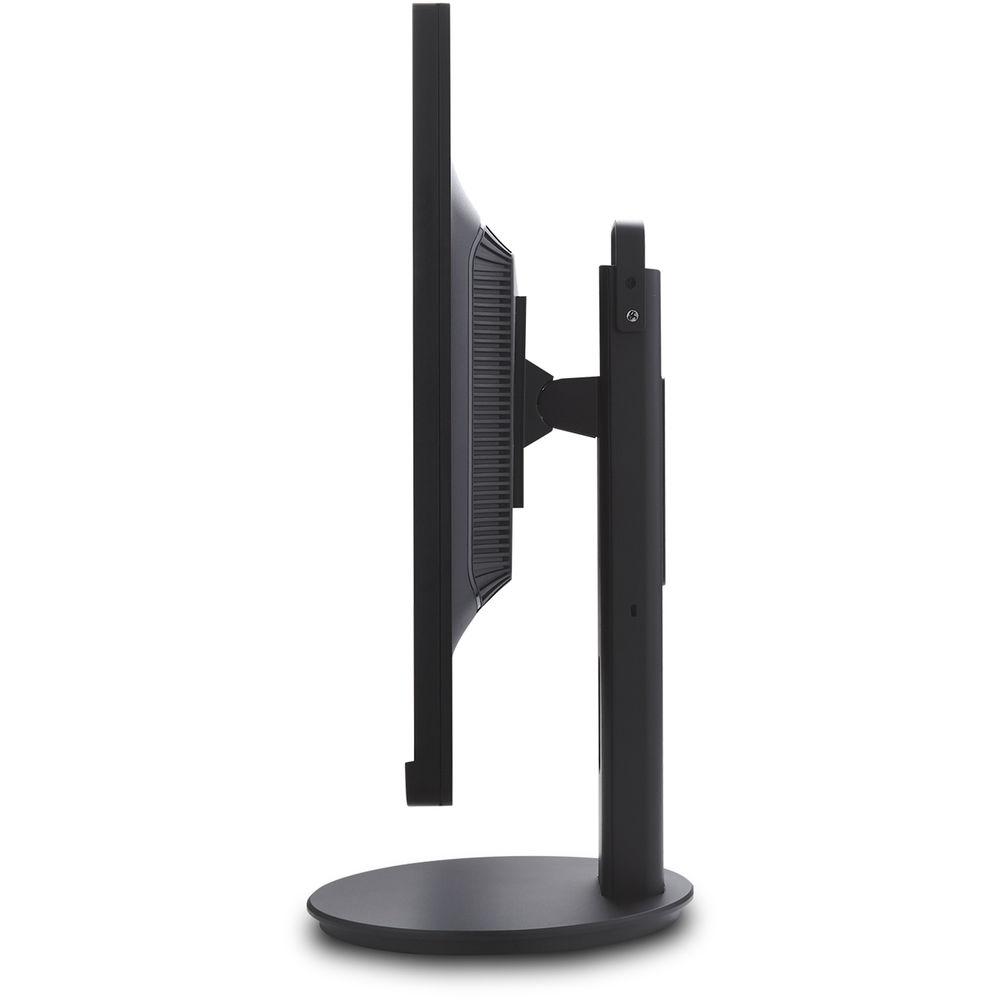

- With advanced ergonomic features, ViewSonic monitors are designed to provide a greater range of adjustment for increased productivity and comfort. Users can reduce eyestrain and physical fatigue by adjusting the monitor via swivel, pivot, tilt, and height adjust options.
- Full HD 1080p Resolution
- This monitor features Full HD 1920x1080 resolution for enhanced pixel-by-pixel image performance. You'll experience the improved clarity and detail whether it be while working, gaming, or enjoying the latest in multimedia entertainment.
- Optimized View Settings
- ViewSonic's unique ViewMode feature offers "Game", "Movie", "Web", "Text", and "Mono" presets. These presets enhance gamma curve, color temperature, contrast, and brightness to deliver an optimized viewing experience for different screen applications.
- Enhanced Viewing Comfort
- Flicker-Free technology and a Blue Light Filter help to eliminate eye strain from extended viewing periods.
- Dual Integrated Speakers
- Designed with dual integrated speakers, this monitor combines enhanced screen performance with stereo sound for an immersive multimedia experience.
UPC: 766907856811 In the Box ViewSonic VG2453 24" 16:9 IPS Monitor Power Cable mDP to DP Cable USB 3.0 Upstream Cable Limited 3-Year Warranty User Manual PDF 1mb More from Manufacturer Table of Contents
|
Upload User Manual
Have you got an user manual for the ViewSonic VG2453 24" 16:9 IPS Monitor in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersViewSonic VG2453 Specs | | | Size | 24" | | Panel Type | IPS-Type LCD | | Touchscreen | No | | Resolution | 1920 x 1080 | | Finish | Matte | | Hardness Rating | 3H | | Maximum Brightness | 250 cd/m2 | | Contrast Ratio | 1000:1 | | Dynamic Contrast Ratio | 20,000,000:1 | | Adaptive Sync Technology | None | | Bit Depth / Color Support | 6-Bit+FRC (16.7 Million Colors) | | Response Time | 5 ms | | Viewing Angle | Horizontal: 178°
Vertical: 178° | | Backlight Lifespan | 30,000 Hours | | | | Connectivity | 1 x USB Type-B (USB 3.1 Gen 1) Input
2 x USB Type-A (USB 3.1 Gen 1) Output
1 x DisplayPort Input
1 x Mini DisplayPort Input
1 x HDMI 1.4
1 x VGA | | Built-In Speakers | Yes, 2 x 2 W | | | | Power Consumption | 19 W (Eco)
45 W (Maximum)
0.5 W (Standby)
21 W (Typical) | | AC Input Power | 100 to 240 VAC, 50 / 60 Hz | | | | Operating Temperature | 32 to 104°F / 0 to 40°C | | Operating Humidity | 20 to 90% | | Certifications | ENERGY STAR, EPEAT GOLD, as per Manufacturer | | | | Height Adjustment | 5.3" / 13.5 cm | | Rotation Adjustment | 90° | | Swivel Adjustment | 360° | | Tilt Adjustment | -6 to 25° | | Mounting-Hole Pattern | 100 x 100 mm | | Lock Slot | Yes | | Dimensions (W x H x D) | 21.3 x 20.4 x 9.2" / 54.0 x 51.8 x 23.3 mm (With Stand)
21.3 x 16.3 x 1.8" / 54.0 x 32.4 x 4.6 mm (Without Stand) | | Weight | 11.4 lb / 5.2 kg (With Stand)
6.9 lb / 3.1 kg (Without Stand) | | | | Package Weight | 15.5 lb | | Box Dimensions (LxWxH) | 27.0 x 16.0 x 7.5" |
