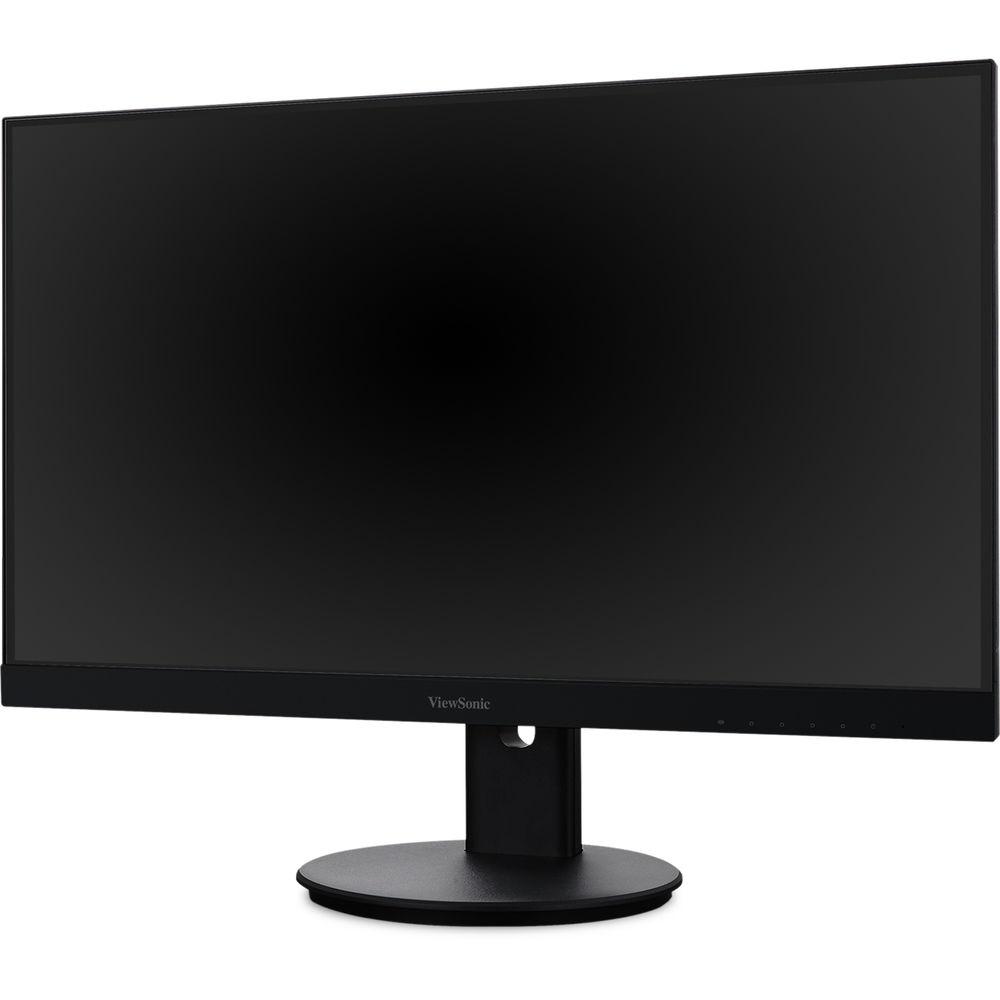

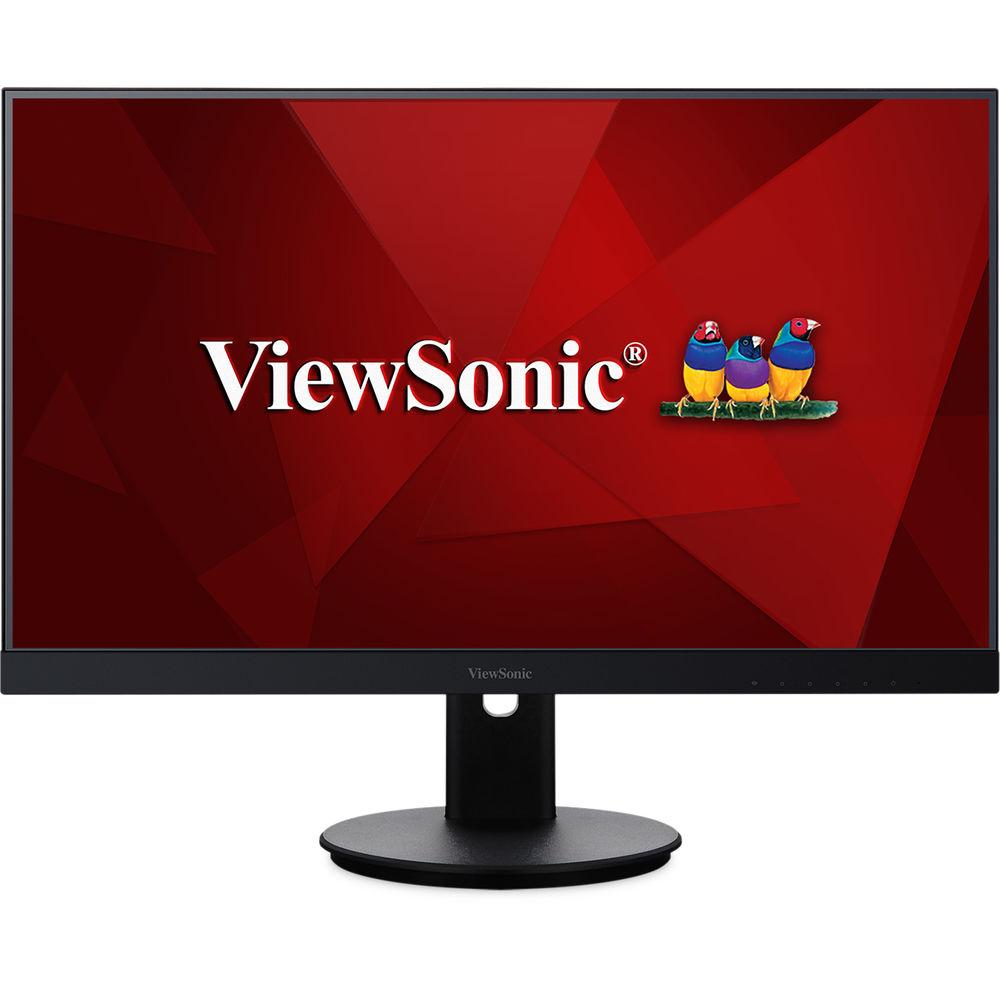

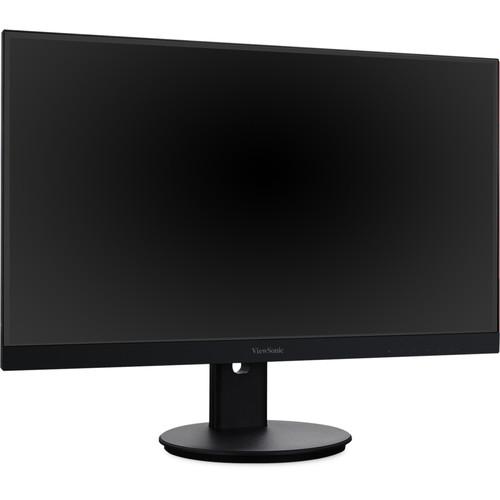

Product description 10 Factors to Consider When Selecting A Monitor for Video Editing Read More With SuperClear MVA panel technology, the VG2739 27" 16:9 SuperClear MVA LCD Monitor from ViewSonic offers consistent levels of brightness and 178° horizontal and vertical viewing angles. In addition to display consistency, the VG2739 offers a reduced size bezel, making it easier to focus on the Full HD 1920 x 1080 resolution screen featuring a 3,000:1 contrast ratio and a 300 cd/m² brightness rating. Setup and configuration of this monitor is simple as it comes equipped with HDMI 1.4, VGA, and DisplayPort connectors along with a built-in USB 3.0 hub and 3.5mm audio in and out ports. To complete the multimedia viewing experience, this ViewSonic monitor also comes equipped with dual built-in 2-watt speakers. - SuperClear MVA Panel Technology
- Enjoy accurate and vivid colors with consistent levels of brightness no matter the vantage point. With SuperClear MVA panel technology, this monitor delivers the same image quality whether you are looking at the screen from above, below, the front, or the side.
- Seamless Viewing Experience
- This panel delivers accurate colors and vivid images - all framed by an ultra-thin bezel perfect for nearly seamless multi-monitor setups. And with ultra-wide viewing angles, you'll enjoy detailed images, no matter your vantage point.

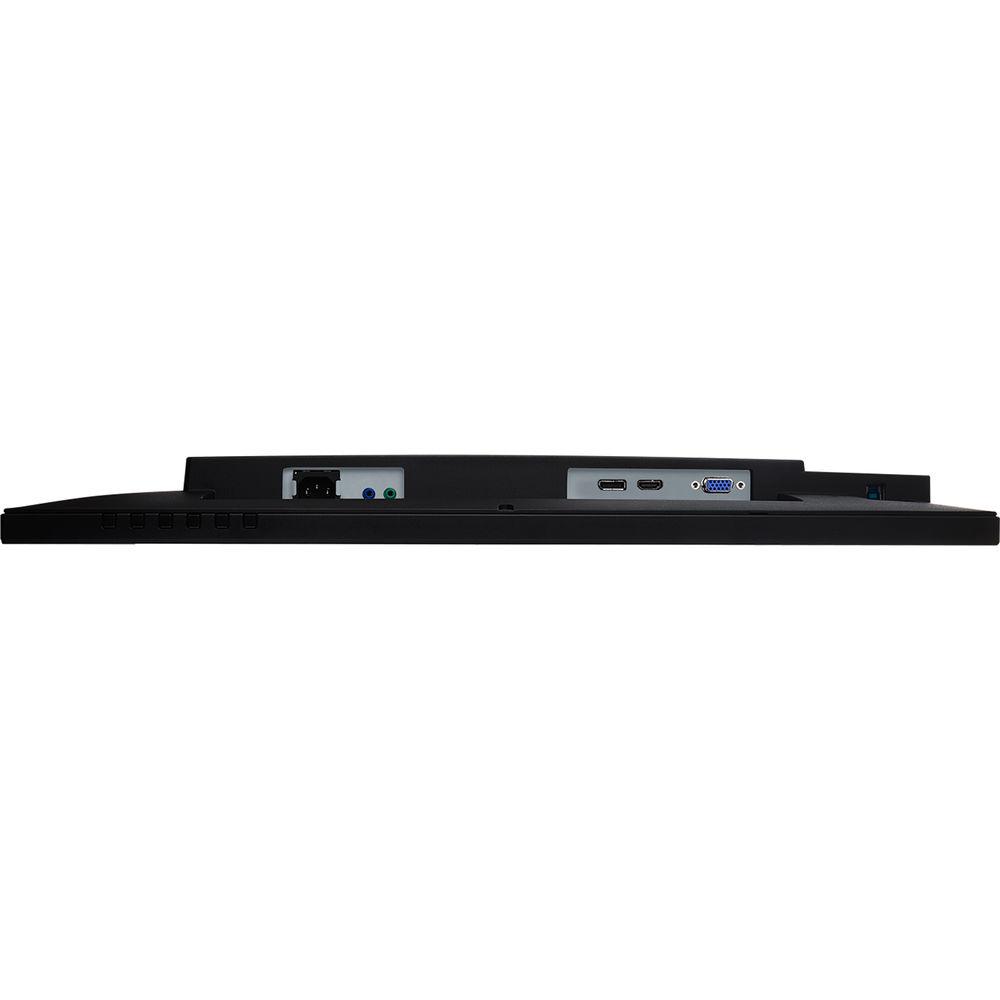

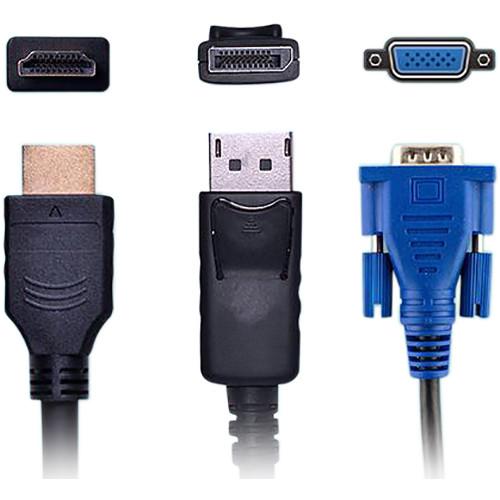

- Versatile Connectivity
- DisplayPort, HDMI, and VGA inputs give you the freedom to connect your display to a variety of devices.

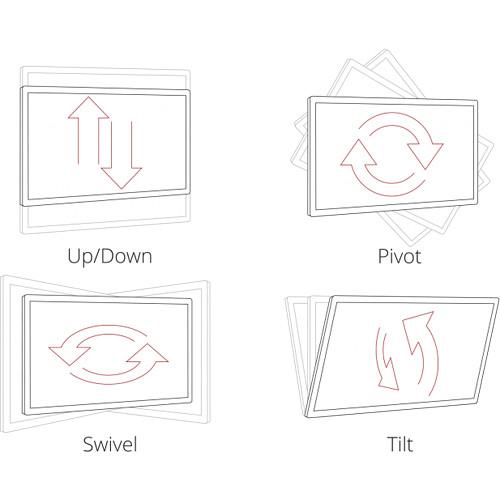

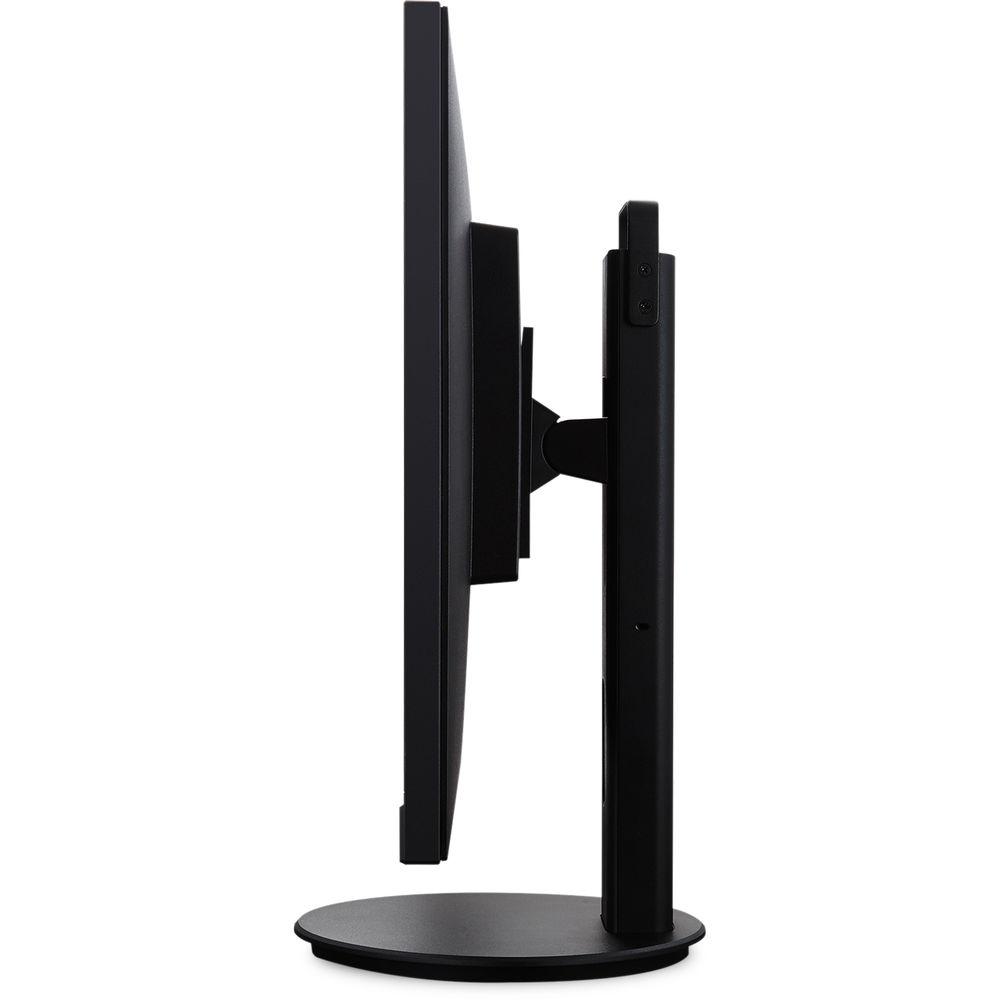

- Ergonomic Design
- With advanced ergonomic features, ViewSonic monitors are designed to provide a greater range of adjustment for increased productivity and comfort. Users can reduce eyestrain and physical fatigue by adjusting the monitor via swivel, pivot, tilt, and height adjust options.
- 1080p Resolution
- This monitor features Full HD 1920 x 1080 resolution for enhanced pixel-by-pixel image performance. You'll experience the most amazing clarity and detail whether it be while working, gaming, or enjoying the latest in multimedia entertainment.
UPC: 766907911411 In the Box ViewSonic VG2739 27" 16:9 SuperClear MVA LCD Monitor Power Cable DisplayPort to DisplayPort Cable USB 3.0 Upstream Cable Limited 3-Year Warranty User Guide PDF 804.1kb More from Manufacturer Table of Contents
|
Upload User Manual
Have you got an user manual for the ViewSonic VG2739 27" 16:9 SuperClear MVA LCD Monitor in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersViewSonic VG2739 Specs | Display | 27" / 68.58 cm MVA Panel | | Resolution | 1920 x 1080 | | Contrast Ratio | Static
3,000:1
Dynamic
80,000,000:1 | | Light Source | WLED | | Brightness | 300 cd/m² | | Colors | 16.7 million | | Color Space | 8-bit+A-FRC | | Aspect Ratio | 16:9 | | Response Time | 5 ms (GtG, W/OD) 12 ms (typical, GtG) | | Viewing Angles (H/V) | 178°/178° | | Backlight Life | 30,000 hours | | Panel Surface | Anti-glare, Hard coating (3H) | | Connectors | 2 x USB 3.0 type-A
1 x USB 3.0 type-B
1 x 3.5 mm audio-in
1 x 3.5 mm audio-out
1 x VGA
1 x HDMI 1.4
1 x DisplayPort | | Audio | 2 x 2 W internal speakers | | Power | Power Consumption
Eco Mode (Conserve): 18 W
Eco Mode (Optimized): 22 W
Typical: 27 W
Maximum: 40 W
Standby: 0.5 W
Voltage
100-240 VAC (universal), 50-60 Hz | | Kensington Lock Support | 1 | | Controls | Physical Controls
1, 2, Up, Down, Power
On Screen Display
Auto Image Adjust, Contrast/Brightness, Input Select, Audio Adjust, Color Adjust, Information, Manual Image Adjust, Advanced Image Adjust, Setup Menu, Memory Recall (See user guide for complete OSD functionality) | | Temperature & Humidity | Operating Temperature
32 to 104°F / 0 to 40°C
Operating Humidity

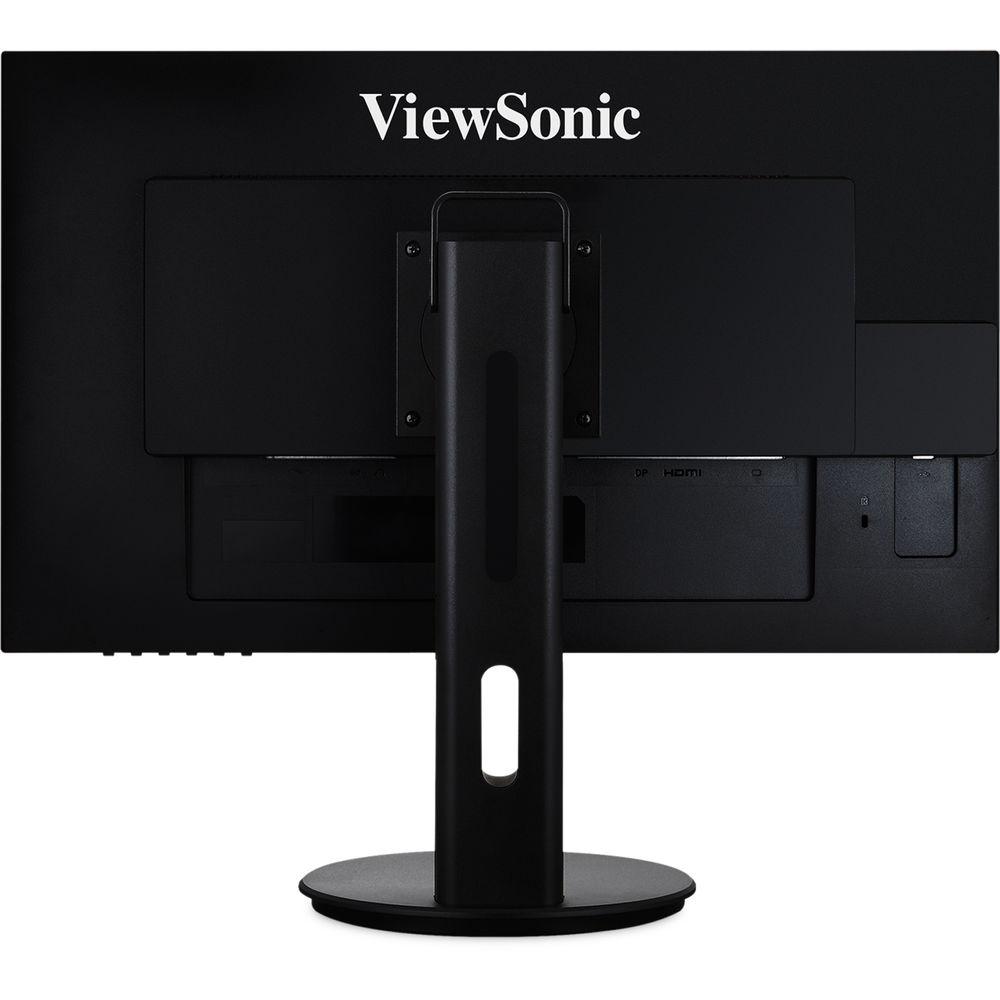

20 to 90% | | Mount | 100 x 100 mm VESA compatible | | Video Signal | Horizontal Frequency
15~82 kHz
Vertical Frequency
50~75 Hz | | Video Input | Digital Sync
TMDS (HDMI), PCI-E (DisplayPort) | | Ergonomics | Height Adjustment
5.1" / 130 mm
Swivel
356°
Pivot
90°
Tilt (Forward / Back)
5~20° | | Regulations | cTUVus, FCC-B w/ ICES003, ENERGY STAR 7.0, EPEAT Gold, UL-MX-CoC, Mexico Energy | | Dimensions | With Stand
24.06 x 21.26 x 9.19" / 61.1 x 54 x 23.3 cm
Without Stand
24.06 x 14.63 x 2.12" / 61.1 x 37.2 x 5.4 cm | | Weight | With Stand
17.64 lb / 8 kg
Without Stand
8.38 lb / 3.86 kg | | | | Package Weight | 18.55 lb | | Box Dimensions (LxWxH) | 28.8 x 17.7 x 8.0" |
