Product description 10 Factors to Consider When Selecting A Monitor for Video Editing Read More yzaqbddraeytscrwacuwyduryddfxdv With a SuperClear IPS (In-Plane Switching) panel, the VG2748 27" 16:9 LCD Monitor from ViewSonic is designed for a variety of uses including viewing documents, watching videos, and much more. This monitor features a Full HD 1920 x 1080 panel, a 1000:1 contrast ratio, a 300 cd/m² brightness rating, and support for up to 16.7 million colors. Installation is simple as the VG2748 comes equipped with HDMI, DisplayPort, and VGA inputs, as well as a USB 3.0 hub so you can connect your USB compatible peripherals directly to the monitor. The monitor also features dual 2W speakers for a complete multimedia viewing experience. You can also tilt, swivel, and pivot the display, and adjust the height of the monitor for maximum viewing comfort. -
- SuperClear IPS
- Seamless viewing experience
- A more comfortable workspace
- Convenient and versatile stand
- Loaded with connectivity
UPC: 766907000764 In the Box ViewSonic VG2748 27" 16:9 LCD Monitor Power Cable DisplayPort to DisplayPort Cable USB 3.0 Upstream Cable Limited 3-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the ViewSonic VG2748 27" 16:9 LCD Monitor in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersViewSonic VG2748 Specs | | | Size | 27" | | Panel Type | IPS-Type LCD | | Touchscreen | No | | Resolution | 1920 x 1080 | | Aspect Ratio | 16:9 | | Pixels Per Inch (ppi) | 82 ppi | | Finish | Matte | | Hardness Rating | 3H | | Maximum Brightness | 300 cd/m2 | | Contrast Ratio | 1000:1 | | Dynamic Contrast Ratio | 50,000,000:1 | | Adaptive Sync Technology | None | | Horizontal Frequency | 24 to 82 Hz | | Vertical Frequency | 50 to 75 Hz | | Bit Depth / Color Support | 6-Bit+FRC (16.7 Million Colors) | | HDR Compatibility | None | | Response Time | 7 ms (Overdrive)
14 ms (GtG) | | Viewing Angle | Horizontal: 178°

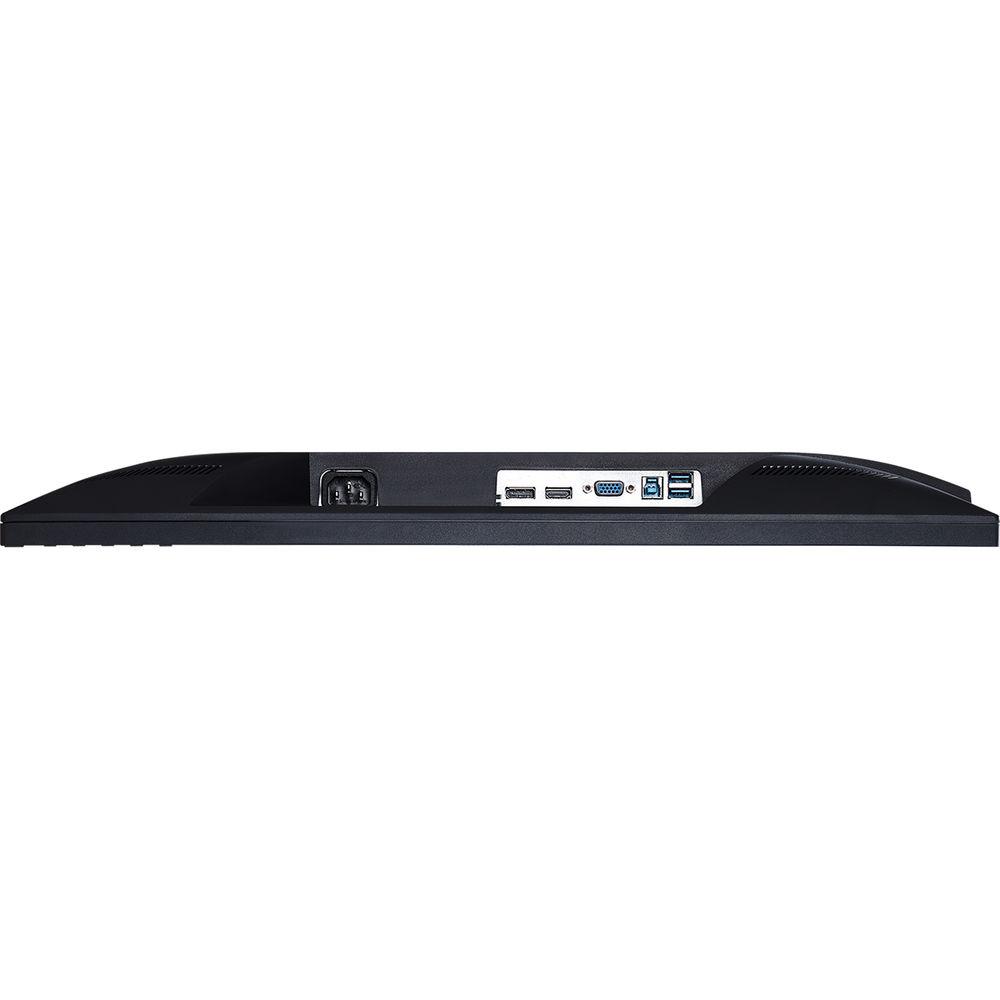

Vertical: 178° | | Backlight Lifespan | 30,000 Hours | | | | Connectivity | 1 x HDMI 1.4 Input
1 x DisplayPort Input
1 x VGA Input
4 x USB Type-A (USB 3.1 Gen 1)
1 x USB Type-B (USB 3.1 Gen 1) | | Built-In Speakers | Yes, 2 x 2 W | | | | Power Consumption | 18.5 W (Eco)
23.1 W (Eco)
29.2 W (Typical)
66.5 W (Maximum)

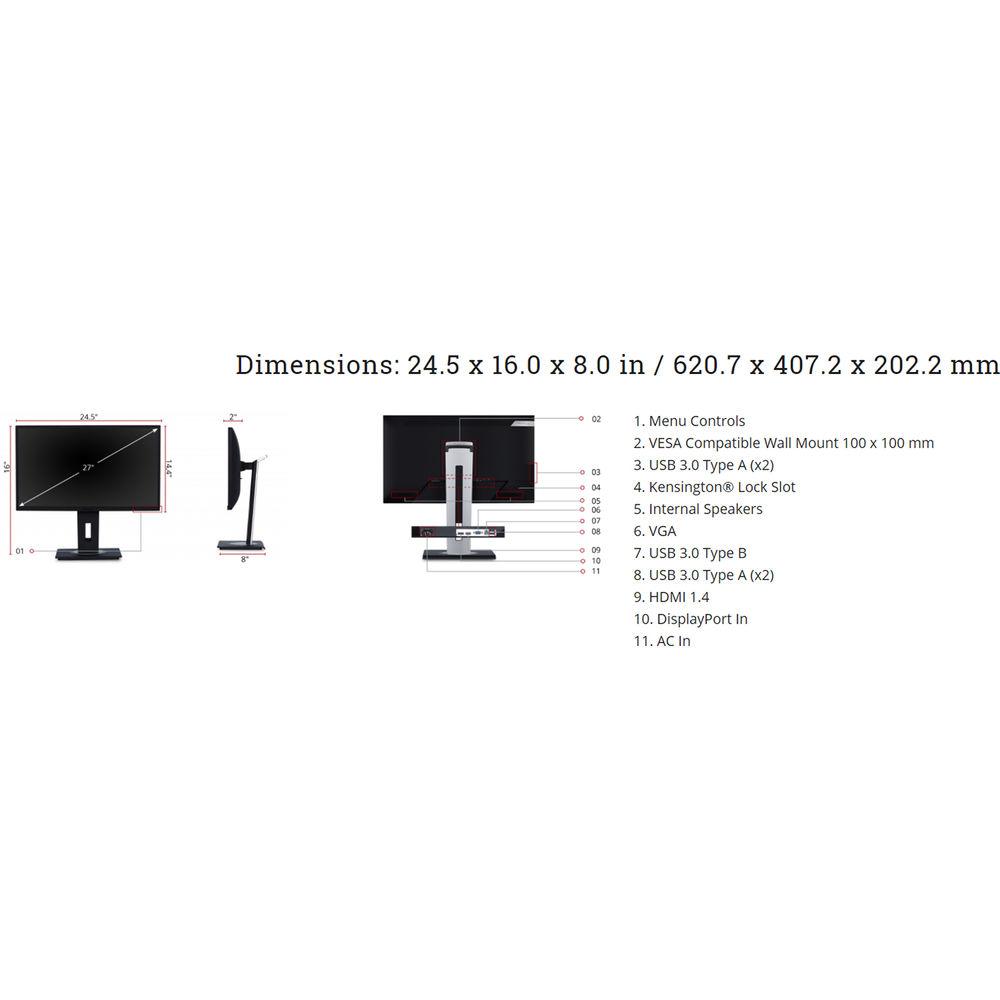

0.5 W (Standby) | | AC Input Power | 100 to 240 VAC, 50 / 60 Hz | | Power Adapter Type | Internal | | | | Operating Temperature | 32 to 104°F / 0 to 40°C | | Operating Humidity | 20 to 90% | | Certifications | ENERGY STAR, EPEAT GOLD, FCC, TUV, as per Manufacturer | | | | Height Adjustment | 5.12" / 130 mm | | Rotation Adjustment | 180° (-90 to 90°) | | Swivel Adjustment | 120° | | Tilt Adjustment | -5 to 40° | | Mounting-Hole Pattern | 100 x 100 mm | | Lock Slot | Yes | | Dimensions (W x H x D) | 24.5 x 16.0 x 8.0" / 62.2 x 40.6 x 20.3 cm (With Stand)
24.5 x 14.4 x 2.0" / 622.3 x 365.8 x 50.8 mm (Without Stand) | | Weight | 16.1 lb / 7.30 kg (With Stand)
10.8 lb / 4.90 kg (Without Stand) | | | | Package Weight | 20.9 lb | | Box Dimensions (LxWxH) | 27.8 x 17.0 x 8.8" |
