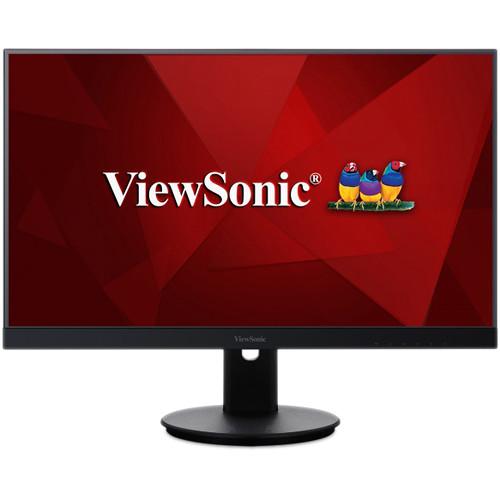

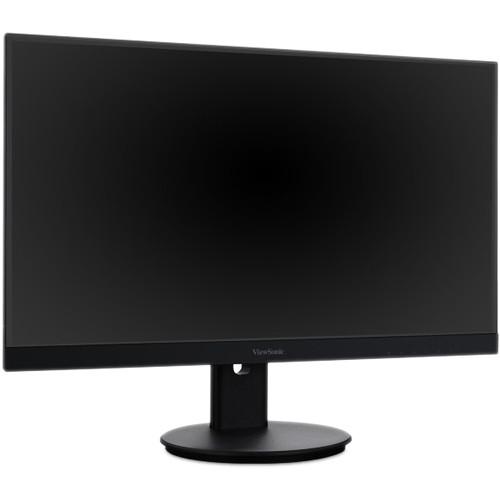

User Manual for ViewSonic VG2765 27" 16:9 SuperClear IPS Monitor Click to enlarge the picture
Contents of the user manual for the ViewSonic VG2765 27" 16:9 SuperClear IPS
- Product category: Computer Monitors ViewSonic
- Brand: ViewSonic
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for ViewSonic Computer Monitors
 |
User manual for the ViewSonic VG2765 27" 16:9 SuperClear IPS contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any ViewSonic product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official ViewSonic user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a ViewSonic product will considerably shorten its lifespan!
|
Product description 10 Factors to Consider When Selecting A Monitor for Video Editing Read More With a SuperClear MVA panel and a reduced size bezel, the VG2765 27" 16:9 SuperClear IPS Monitor from ViewSonic is designed to produce a clear picture complete with enhanced 178° horizontal and vertical viewing angles. The display features a 2560 x 1440 WQHD resolution offering screen clarity up to four times that of a 720p monitor. Additionally, users also benefit from a 1,000:1 contrast ratio, a 350 cd/m² brightness rating, and support for up to 1.07 billion colors.

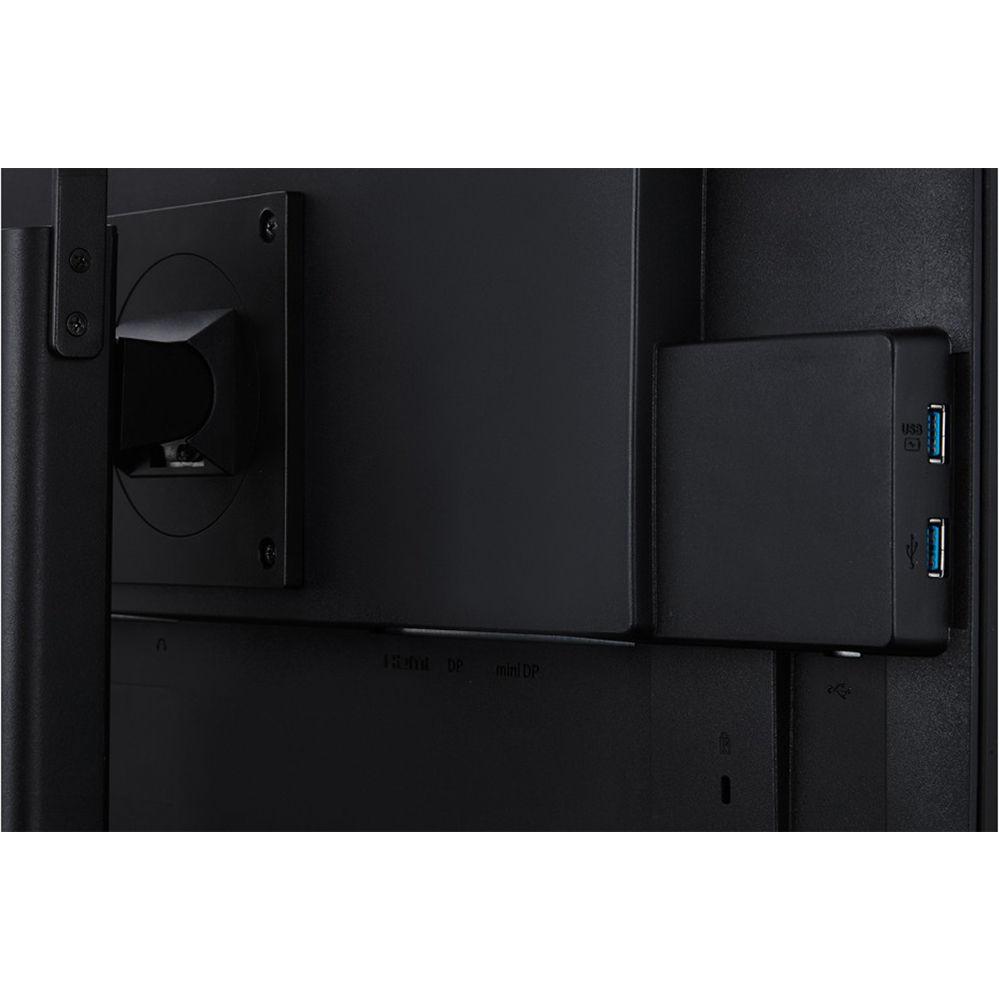

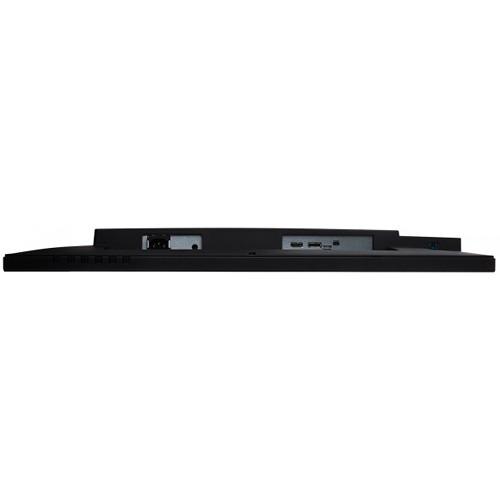

Setup and configuration of the VG2765 monitor is simple as it comes equipped with HDMI, DisplayPort, and mini DisplayPort inputs. In addition to display inputs, users can connect USB compatible peripherals directly to either of the dual USB 3.0 ports. This ViewSonic monitor also features Flicker-Free technology and a Blue Light Filter to help alleviate eye strain when viewing the display for extended periods of time. To further enhance the viewing experience the display can be swiveled, tilted, pivoted, and the height can be adjusted to ensure maximum comfort. - SuperClear MVA Panel Technology
- Enjoy accurate and vivid colors with consistent levels of brightness no matter the vantage point. With SuperClear MVA panel technology, this monitor delivers the same image quality whether you are looking at the screen from above, below, the front, or the side.
- Wide Quad HD Resolution
- At four times the resolution of a traditional 720p panel, and almost double that of a traditional 1080p display, WQHD results in a much sharper image, with no distortion or stretching, all while maintaining the same 16:9 aspect ratio.
- Seamless Viewing Experience
- This panel delivers accurate colors and enhanced image quality, all framed by an ultra-thin bezel for virtually seamless multi-monitor setups. And with ultra-wide viewing angles, you'll enjoy detailed images, unbound and without borders, no matter your vantage point.
- Versatile Connectivity
- DisplayPort, Mini DisplayPort, HDMI inputs, and high-speed USB ports give you the freedom and flexibility to connect to a variety of devices.

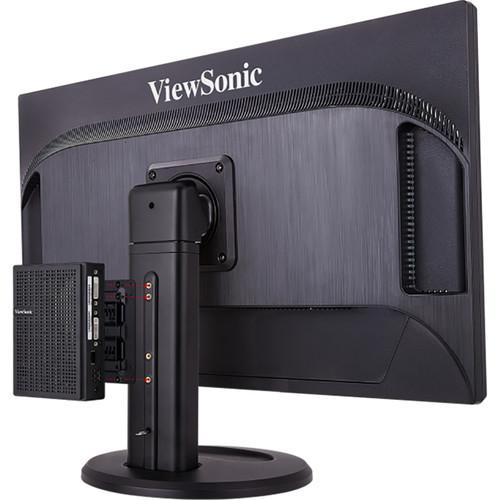

- Integrated Client Endpoint Mount
- The ergonomic stand also features a built-in client mount for quick installation of VDI client endpoints on the back of the monitor. This allows for simple VDI deployment and a streamlined desktop without interfering with the ergonomic functionality of the monitor.
- Enhanced Viewing Comfort
- Flicker-Free technology and a Blue Light Filter help to eliminate eye strain from extended viewing periods.
- Dual Integrated Stereo Speakers
- Designed with dual integrated speakers, this monitor combines enhanced screen performance with stereo sound for an immersive multimedia experience.
UPC: 766907891713 In the Box ViewSonic VG2765 27" 16:9 SuperClear IPS Monitor Power Cable Mini DisplayPort to DisplayPort Cable USB 3.0 Upstream Cable Limited 3-Year Warranty More from Manufacturer eeszqrdv Table of Contents
|
Upload User Manual
Have you got an user manual for the ViewSonic VG2765 27" 16:9 SuperClear IPS Monitor in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.

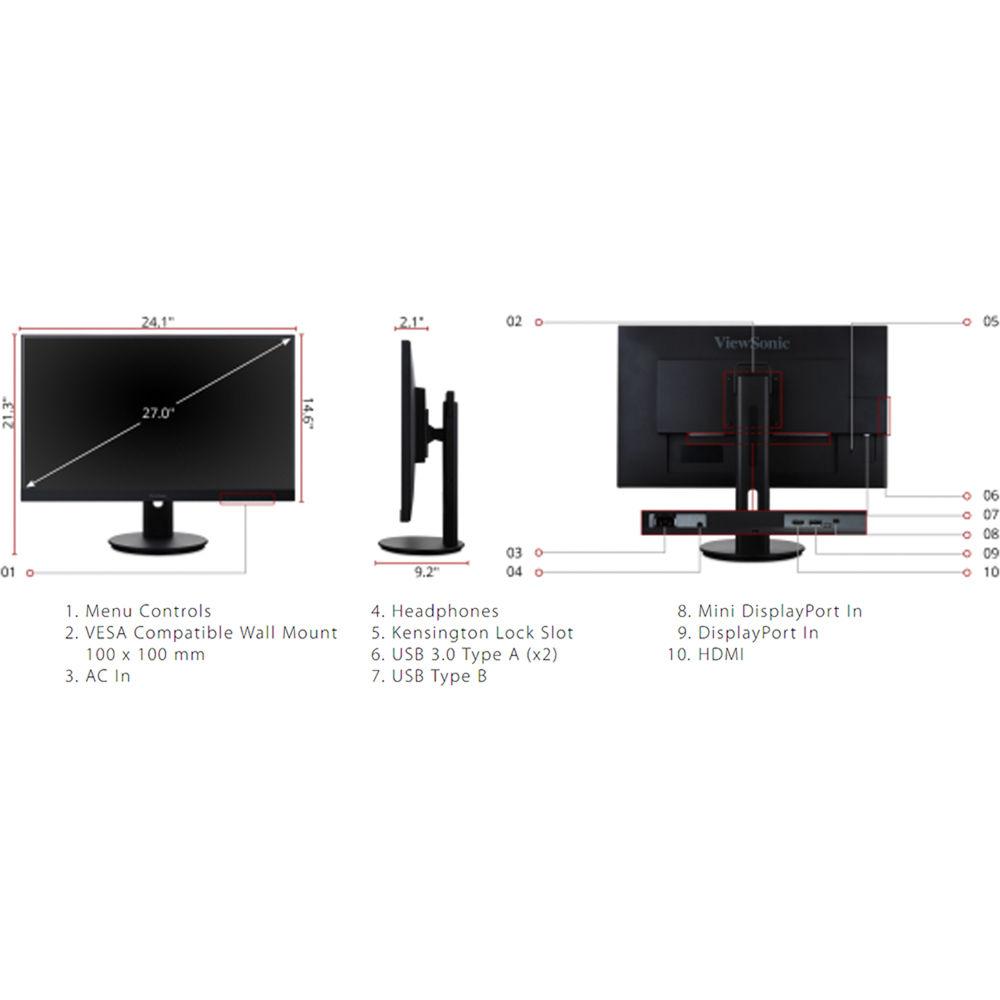

Technical parametersViewSonic VG2765 Specs | Display Size | 27" / 68.58 cm | | Display Type | IPS | | Resolution | 2560 x 1440 | | Contrast Ratio | Static: 1,000:1
Dynamic: 80,000,000:1 | | Light Source | WLED | | Brightness | 350 cd/m² | | Colors | 1.07 billion | | Color Space | 10-bit | | Aspect Ratio | 16:9 | | Response Time | 12 ms | | Viewing Angles (H/V) | 178°/178° | | Backlight Life | 30,000 hours | | Panel Surface | Anti-glare, hard coating 3H | | Connectors | 1 x HDMI 1.4
1 x DisplayPort
1 x Mini DisplayPort
2 x USB 3.0 Type-A
1 x USB 3.0 Type-B
1 x 3.5 mm audio out | | Internal Speakers | 2 x 2 W | | Power | Voltage
100-240 VAC (universal); 50/60 Hz
Power Consumption
Eco Mode (Conserve): 23 W
Eco Mode (Optimized): 28 W
Typical: 30 W
Maximum: 36 W
Standby: 0.5 W | | Kensington Lock Support | Yes | | Controls | Physical Controls
1, 2, Up, Down, Power
On Screen Display
Auto Image Adjust, Contrast/Brightness, Input Select, Audio Adjust, Color Adjust, Information, Manual Image Adjust, Advanced Image Adjust, Setup Menu, Memory Recall (see user guide for complete OSD functionality) | | Temperature & Humidity | Operating Temperature: 32 to 104°F / 0 to 40°C
Operating Humidity: 20 to 90% non-condensing | | VESA Compatibility | 100 x 100 mm | | Video Signal | Frequency Horizontal
15 ~ 82 kHz
Frequency Vertical

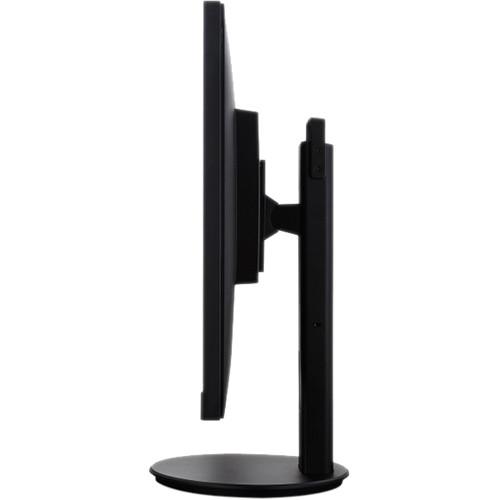

50 ~ 75 Hz | | Video Input | Digital Sync: TMDS, PCI-E | | Ergonomics | Swivel: 356°
Pivot: 90°
Tilt (forward/back): -5 to 20°

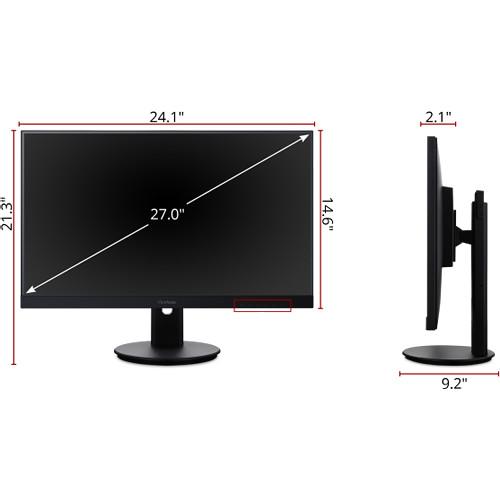

Height Adjust: 5.1" / 130 mm | | Regulations | cULus, FCC-B, ICES003, ENERGY STAR 7.0, EPEAT Gold, UL-MX-CoC, Mexico Energy | | Dimensions | With Stand: 24.06 x 21.26 x 9.19" / 611.24 x 540.03 x 233.25 mm
Without Stand: 24.06 x 14.63 x 2.12" / 611.24 x 371.49 x 53.74 mm | | Weight | With Stand: 15.9 lb / 7.2 kg
Without Stand: 10.89 lb / 4.95 kg | | | | Package Weight | 20.0 lb | | Box Dimensions (LxWxH) | 28.9 x 17.9 x 8.0" |
