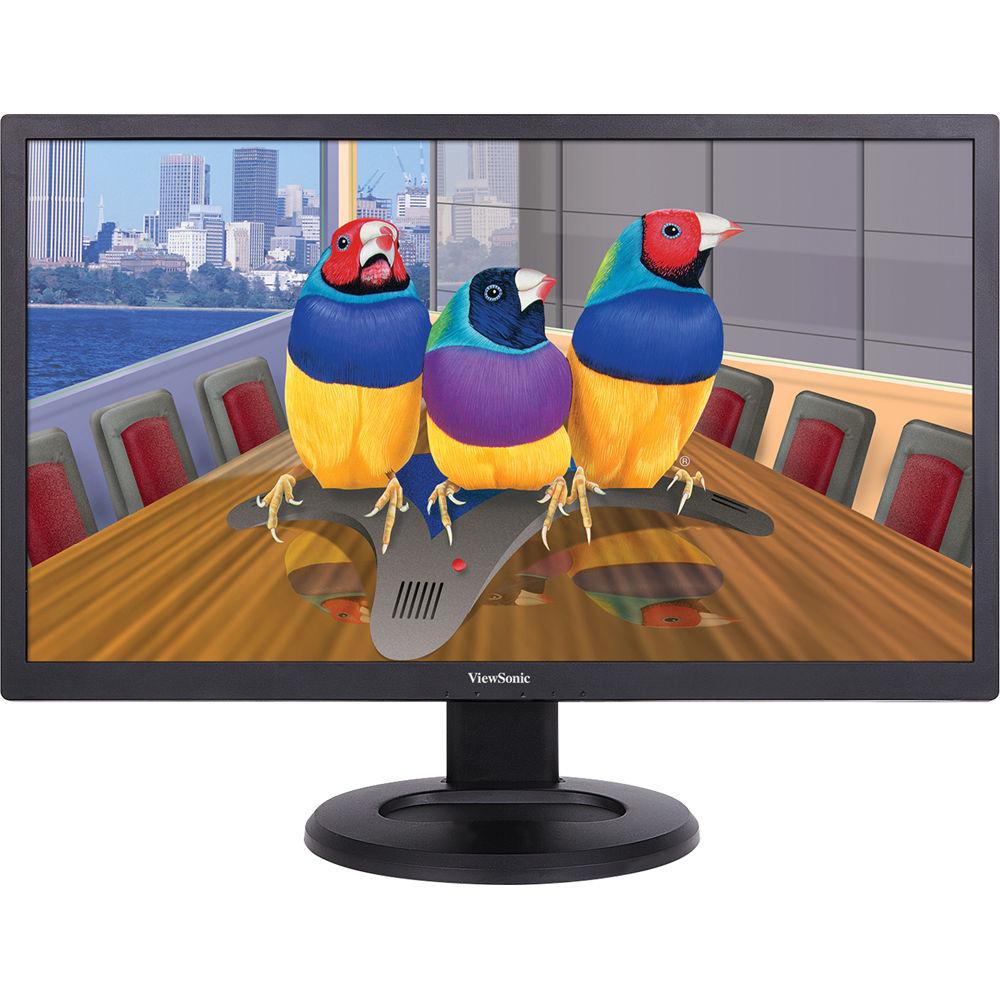

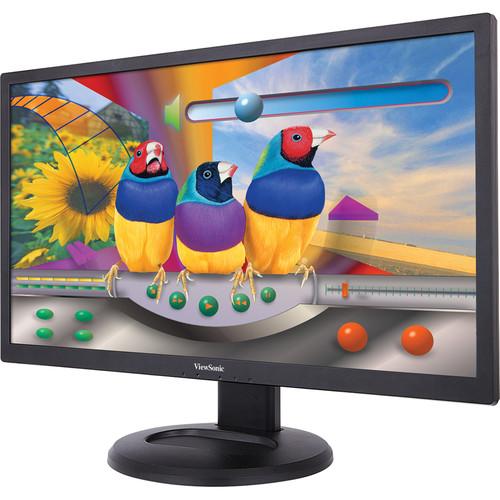

Product description 10 Factors to Consider When Selecting A Monitor for Video Editing Read More With enhanced display technology, the VG2860MHL-4K 28" 16:9 LCD Monitor from ViewSonic provides sharper images along with deeper dark and brighter bright colors. With a 3840 x 2160 resolution, 1,000:1 contrast ratio, 2 ms response time, and support for up to 1.07 billion (true 8-bit + 2-bits FRC) colors you can view all of your multimedia with enhanced clarity and reduced ghosting. ViewSonic also includes their own ViewMode settings allowing you to choose from preset viewing modes including game, movie, web, text, and mono to easily adjust display properties.
This ViewSonic display comes equipped with Flicker-Free technology and a Blue Light filter to help reduce eye fatigue when viewing for extended periods of time. Integrated Flicker-Free technology utilizes DC modulation to ensure a constant stream of direct current power to virtually eliminate flickering. The Blue Light filter gives you the ability to adjust the amount of blue light that is emitted from the screen to make viewing easier on the eyes.

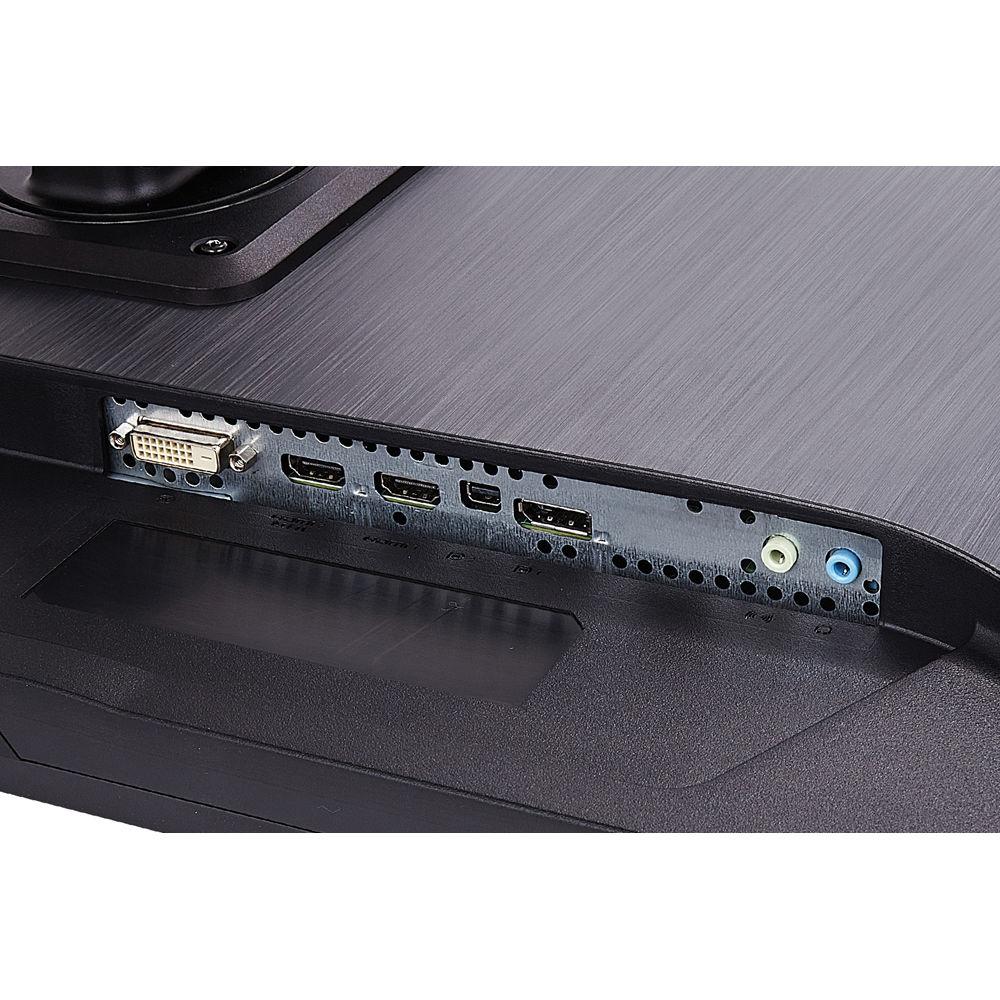

Setup and configuration is simple with DVI, HDMI (MHL), DisplayPort, and DVI-D connectors. In addition to video connectors, you can also take advantage of the USB hub to attach peripherals such as external hard drives, thumb drives, and more. Once configured, you can tilt the display forward 5° and backward up to 37° for enhanced viewing comfort, as well as view the display from nearly any angle with enhanced horizontal and vertical viewing angles. - Images
- Enhanced display technology provides True 8-bit color performance that displays 1.07 billion undistorted colors, a static contrast ratio of 1,000:1 for enhanced clarity and detail in the darkest and brightest of images, and wide-angle color consistency for uncompromising image quality at virtually any angle.
- Ergonomic Design
- With advanced ergonomic features, ViewSonic displays provide a greater range of adjustments including swivel, pivot, tilt, and height-adjust options.
- Versatile Connectivity

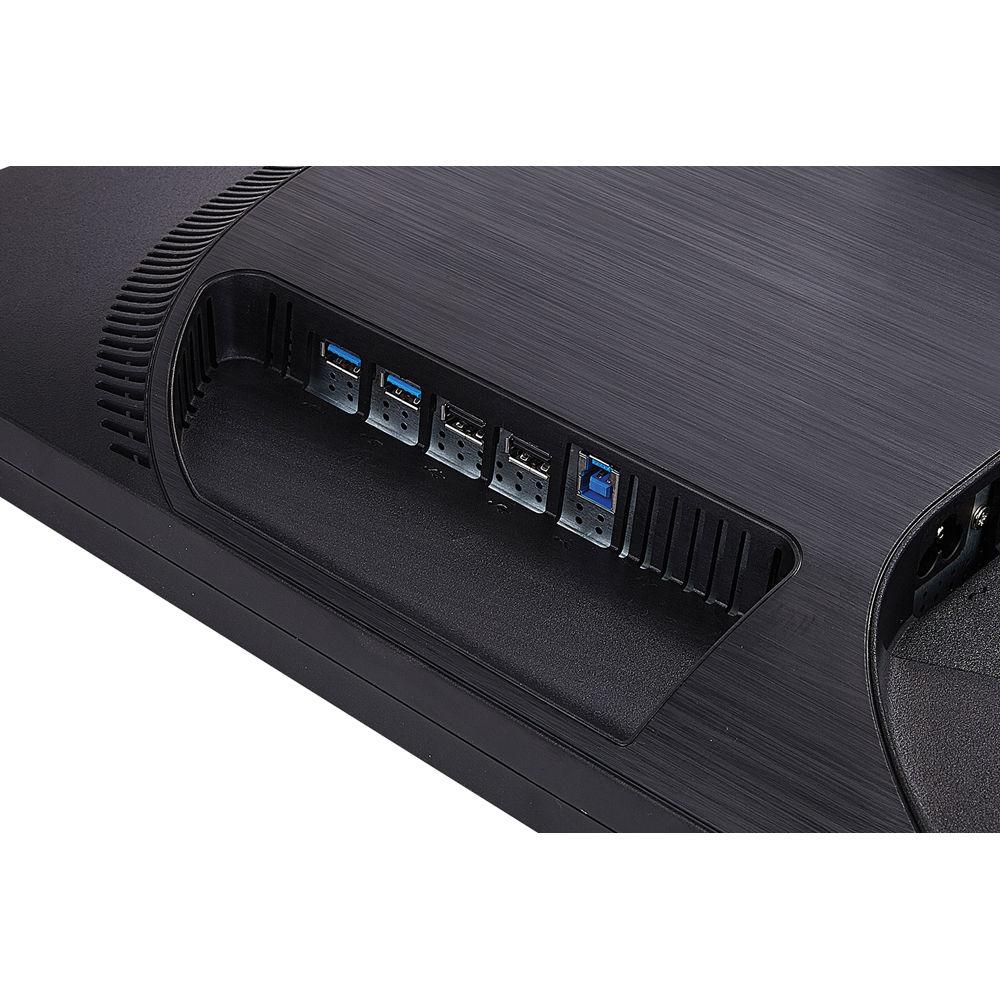

- The DisplayPort connector helps to future-proof this monitor and delivers an improved refresh rate, high resolution, and rich colors. It's easy and convenient to connect additional peripherals or accessories with the integrated USB hub.
- The Power of HDMI
- HDMI delivers true digital picture and audio clarity. The HDMI interface on this monitor allows you to connect to a variety of HD devices including gaming consoles, Blu-ray players, laptop PCs, digital cameras, and many others for a true high-definition experience.
- ViewMode Settings
- With five intuitive scenario presets, ViewSonic's unique ViewMode feature offers enhanced calibration for accurate color rendering and excellent performance. "Game," "Movie," "Web," "Text," and "Mono" presets enhance gamma curve, color temperature, contrast, and brightness to deliver an optimized viewing experience for different screen applications.
- ViewSonic Flicker-Free Technology
- This ViewSonic Flicker-Free monitor delivers a more comfortable viewing experience. Rather than using Pulse Width Modulation that continuously turns the LED backlight on and off, ViewSonic flicker-free monitors use DC modulation backlights that maintain a steady stream of direct current power-nearly eliminating screen flickering at all brightness levels by providing a constant LED light source.
- Blue Light Filter
- ViewSonic monitors feature a Blue Light Filter setting that allows users to adjust the amount of blue light emitted from the screen, enabling longer viewing times and increased eye comfort for work and multimedia applications.
- 3840 x 2160 Resolution
- This monitor features a 3840 x 2160 resolution for enhanced pixel-by-pixel image performance. You'll experience the most improved clarity and detail whether it be while working, gaming, or enjoying the latest in multimedia entertainment.
- Dual Integrated Stereo Speakers
- This monitor is designed with two integrated stereo speakers for enhanced multimedia performance with clear stereo sound.
- Larger Screen for Mobile Devices
- Integrated with MHL, this monitor enables users to connect compatible high definition mobile devices, such as smartphones and tablets, directly to the projector. This allows digital content from mobile devices to be viewed on a larger screen, while also simultaneously charging the batteries of the mobile device.
- Mercury-Free LED Backlighting
- LED backlighting not only enhances monitor performance, delivers an outstanding color range, and adjusts contrast ratios for remarkably detailed images, but it's also eco-friendly, mercury-free, and uses less energy than conventional monitors.

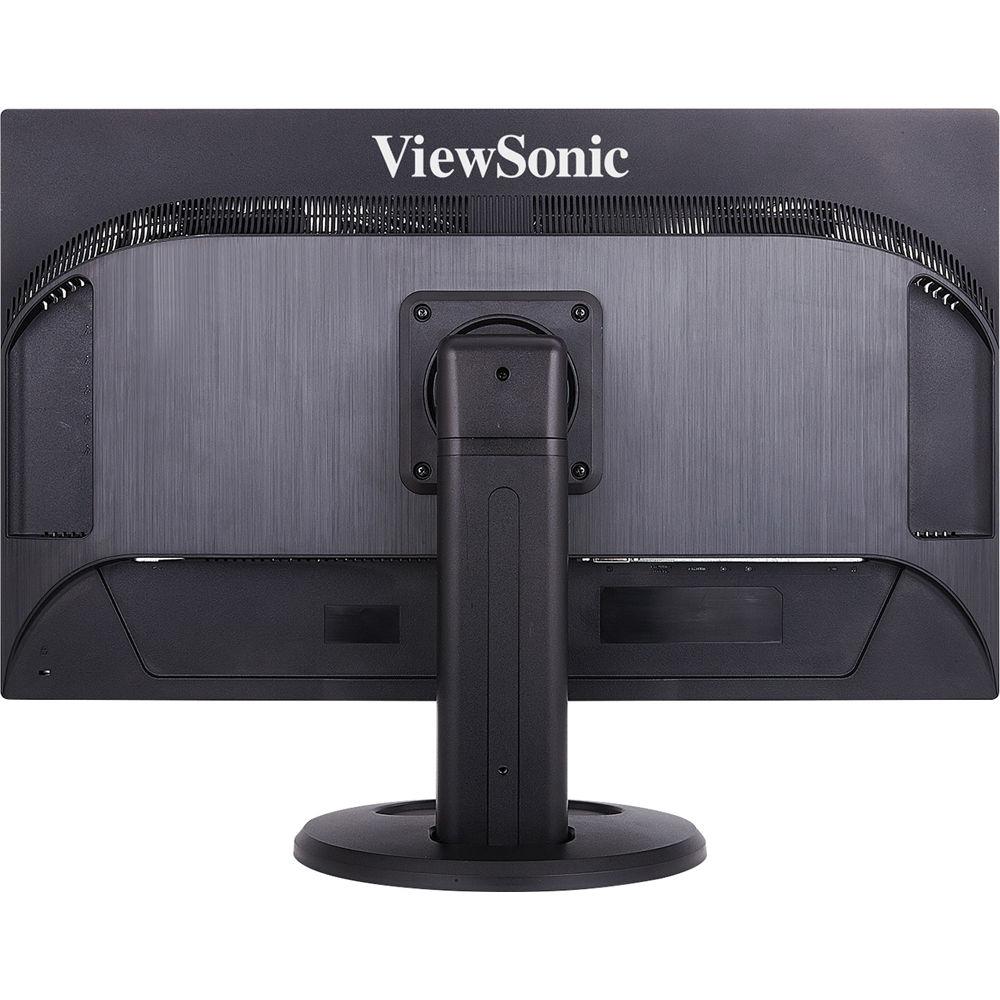

- VESA-Mountable
- This monitor features a 100 x 100mm VESA-mountable design that allows you to mount the monitor depending on your specific needs.
UPC: 766907774115 In the Box ViewSonic VG2860MHL-4K 28" 16:9 LCD Monitor Power Cable DisplayPort Cable MHL Cable Audio Cable USB 3.0 Cable ViewSonic Wizard CD (User Guide) Guides & Manuals More from Manufacturer Table of Contents
|
Upload User Manual
Have you got an user manual for the ViewSonic VG2860MHL-4K 28" 16:9 LCD Monitor in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Download User ManualThe user manual for the ViewSonic VG2860MHL-4K 28" 16:9 LCD Monitor can be downloaded in PDF format at the link stated below.
Technical parametersViewSonic VG2860MHL-4K Specs | | | Size | 28" | | Screen Area | 24.4 x 13.4" / 62 x 34 cm | | Panel Type | TFT LCD | | Touchscreen | No | | Resolution | 3840 x 2160 | | Finish | Matte | | Hardness Rating | 3H | | Maximum Brightness | 300 cd/m2 | | Contrast Ratio | 1000:1 | | Adaptive Sync Technology | None | | Horizontal Frequency | 24 to 160 kHz | | Vertical Frequency | 24 to 75 Hz | | Bit Depth / Color Support | 8-Bit+FRC (1.07 Billion Colors) | | Response Time | 2 ms | | Viewing Angle | Horizontal: 170°
Vertical: 160° | | Backlight Lifespan | 30,000 Hours | | | | Connectivity | 1 x 3.5 mm Input/Output
1 x 3.5 mm Output
1 x USB Input
2 x USB Type-A 2.0 Output
2 x USB Type-A (USB 3.1 Gen 1) Output
1 x DVI-D
2 x DisplayPort Input
1 x HDMI
1 x HDMI (MHL) | | Built-In Speakers | Yes, 2 x 3 W | | | | Power Consumption | 56 W (Maximum)
28 W (Eco)
48 W (Typical) | | AC Input Power | 100 to 240 VAC, 50 / 60 Hz | | | | Operating Temperature | 32 to 104°F / 0 to 40°C | | Operating Humidity | 10 to 90% | | Certifications | TCO Certified, ENERGY STAR, RoHS, WEEE, REACH, EPEAT GOLD, as per Manufacturer | | | | Tilt Adjustment | -5 to 37° | | Mounting-Hole Pattern | 100 x 100 mm | | Dimensions (W x H x D) | 26.0 x 15.4 x 1.9" / 66.0 x 39.1 x 4.9 mm (Without Stand)
26.0 x 19.0 x 10.5" / 66.0 x 48.3 x 26.6 mm (With Stand) | | Weight | 11.7 lb / 5.3 kg (Without Stand)
17.2 lb / 7.8 kg (With Stand) | | | | Package Weight | 22.2 lb | | Box Dimensions (LxWxH) | 29.0 x 19.0 x 7.6" |
