User Manual for ViewSonic VG939SM 19" Ergonomic LED LCD Multimedia Display Click to enlarge the picture
Contents of the user manual for the ViewSonic VG939SM 19" Ergonomic LED LCD
- Product category: Computer Monitors ViewSonic
- Brand: ViewSonic
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for ViewSonic Computer Monitors
 |
User manual for the ViewSonic VG939SM 19" Ergonomic LED LCD contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any ViewSonic product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official ViewSonic user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a ViewSonic product will considerably shorten its lifespan!
|

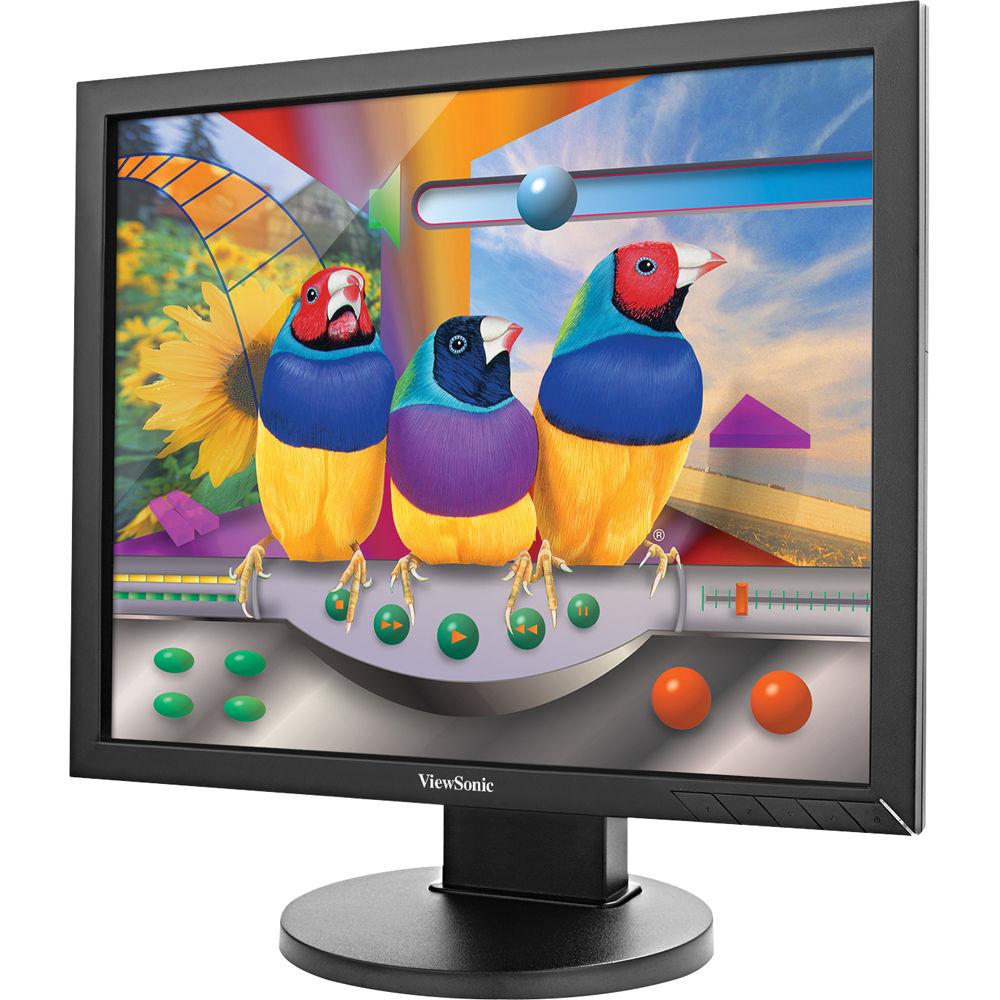

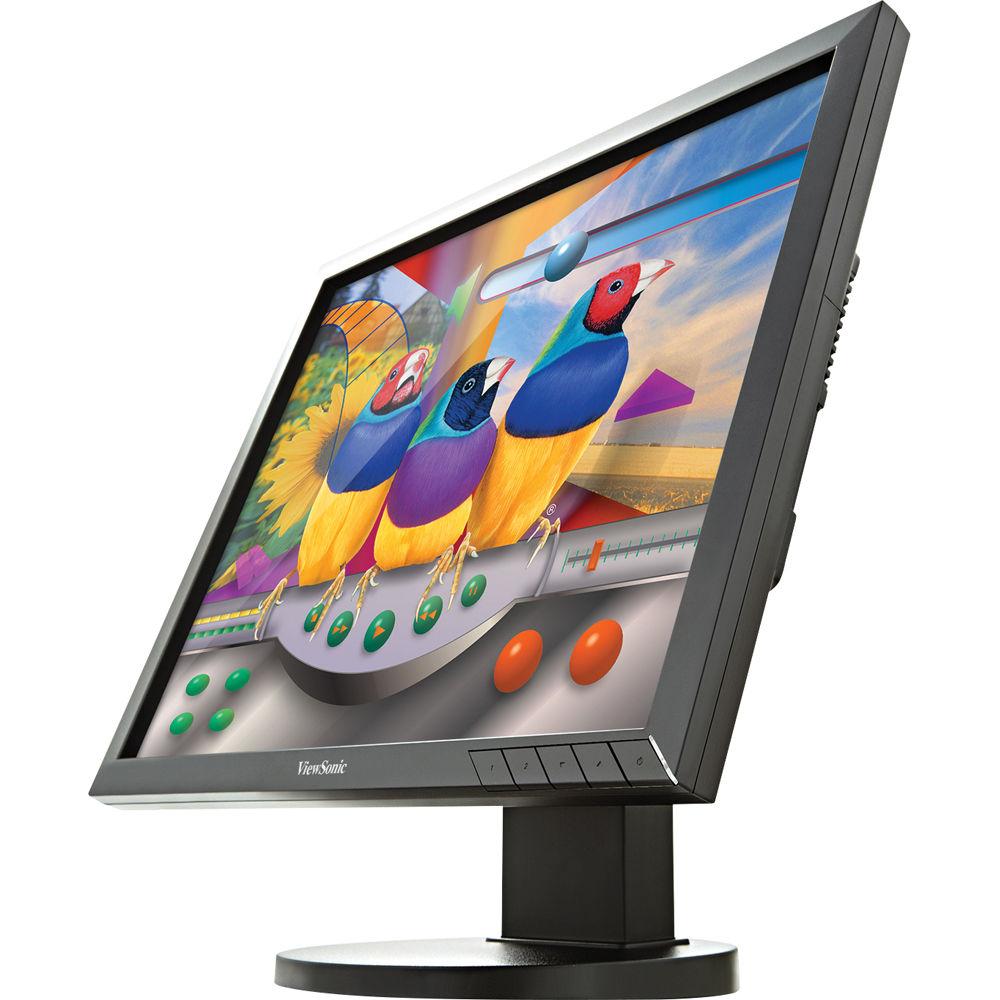

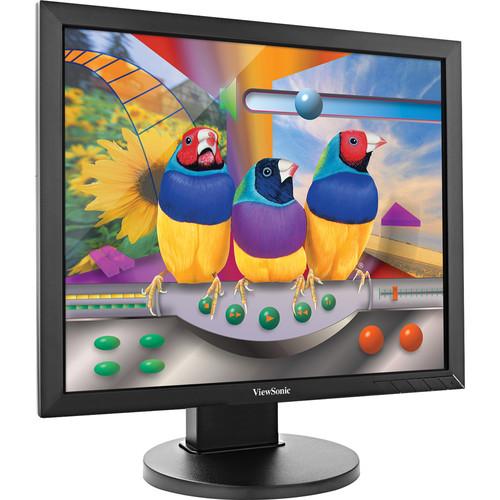

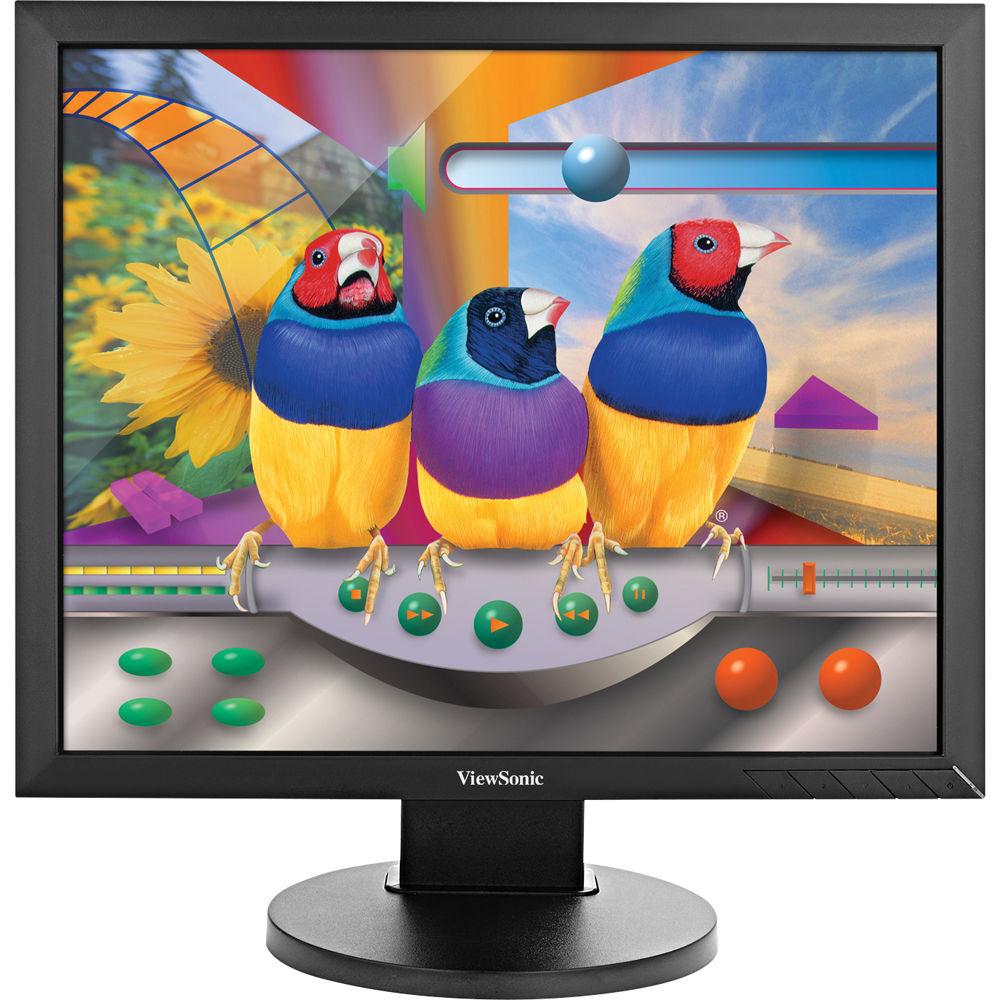

Product description 10 Factors to Consider When Selecting A Monitor for Video Editing Read More The VG939SM 19" Ergonomic LED LCD Multimedia Display from ViewSonic is designed for legacy and customized applications that require a 5:4 aspect ratio, and delivers an optimal screen performance with 1280 x 1024 resolution and SuperClear IPS panel technology. The display includes connectivity options like DVI and VGA inputs, as well as an integrated USB hub. It also features full ergonomic functionality including tilt, swivel, pivot, and height adjustments for maximum comfort and productivity. Equipped with ViewSonic's ViewMode feature, this display provides intuitive presets that deliver optimized screen performance for different applications. In addition, Flicker-Free technology and a Blue Light Filter help to eliminate eye-strain from extended viewing periods. A uniform, matte ID design reduces glare and facilitates easy multiple monitor set up. Additional features include dual integrated speakers and a VESA-mountable design. Featuring ENERGY STAR and EPEAT certification, as well as an energy-saving eco-mode setting, the VG939SM offers performance while delivering low Total Cost of Ownership (TCO) for a wide range of users. - 5:4 Aspect Ratio for Legacy Applications and Retail Environments
- With a standard 5:4 aspect ratio and 1280 x 1024 resolution, this display is suitable for business-specific legacy applications. In addition, with a square compact shape, the VG939SM can also be used as a countertop display in public environments with space constraints.
- Ergonomic Design for Comfort and Productivity

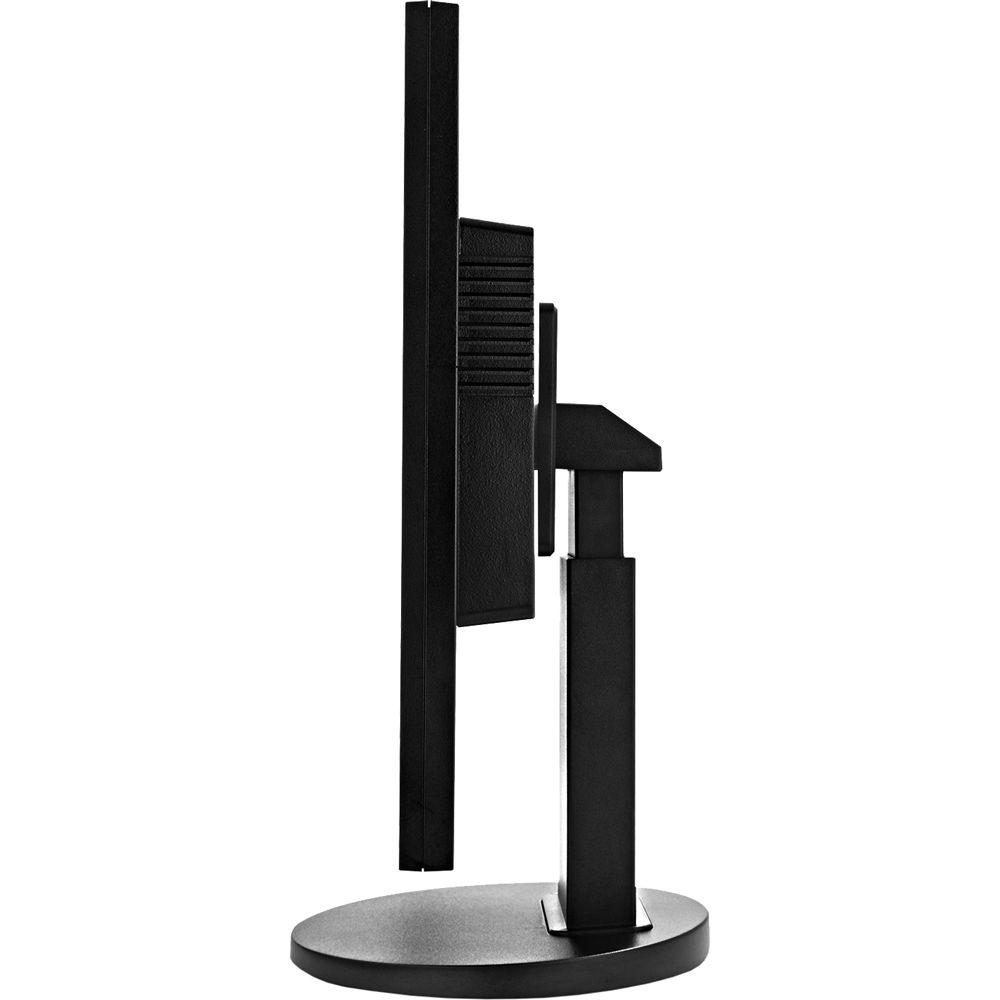

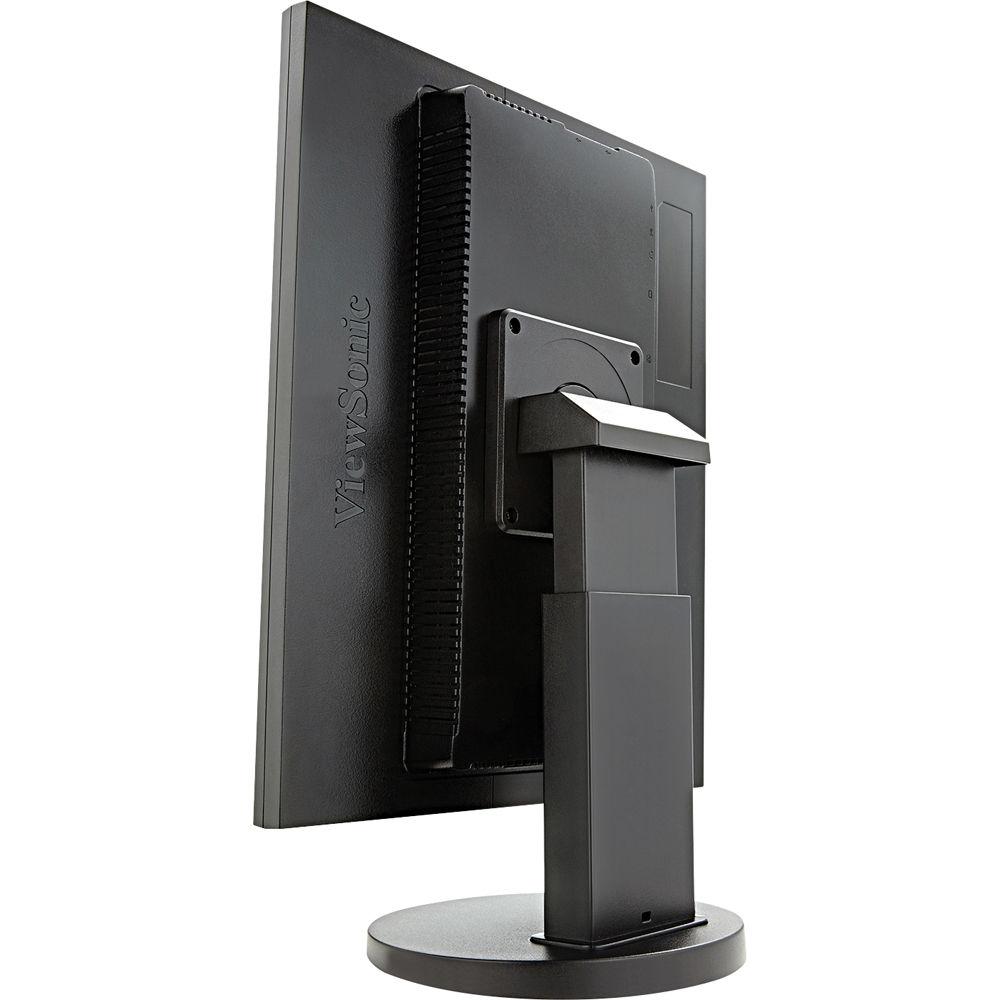

- With advanced ergonomic features, ViewSonic displays are designed to provide an optimal range of adjustment for increased productivity and comfort. Users can reduce eyestrain and physical fatigue by adjusting the monitor via swivel, pivot, tilt, and height-adjust options.
- Versatile Connectivity

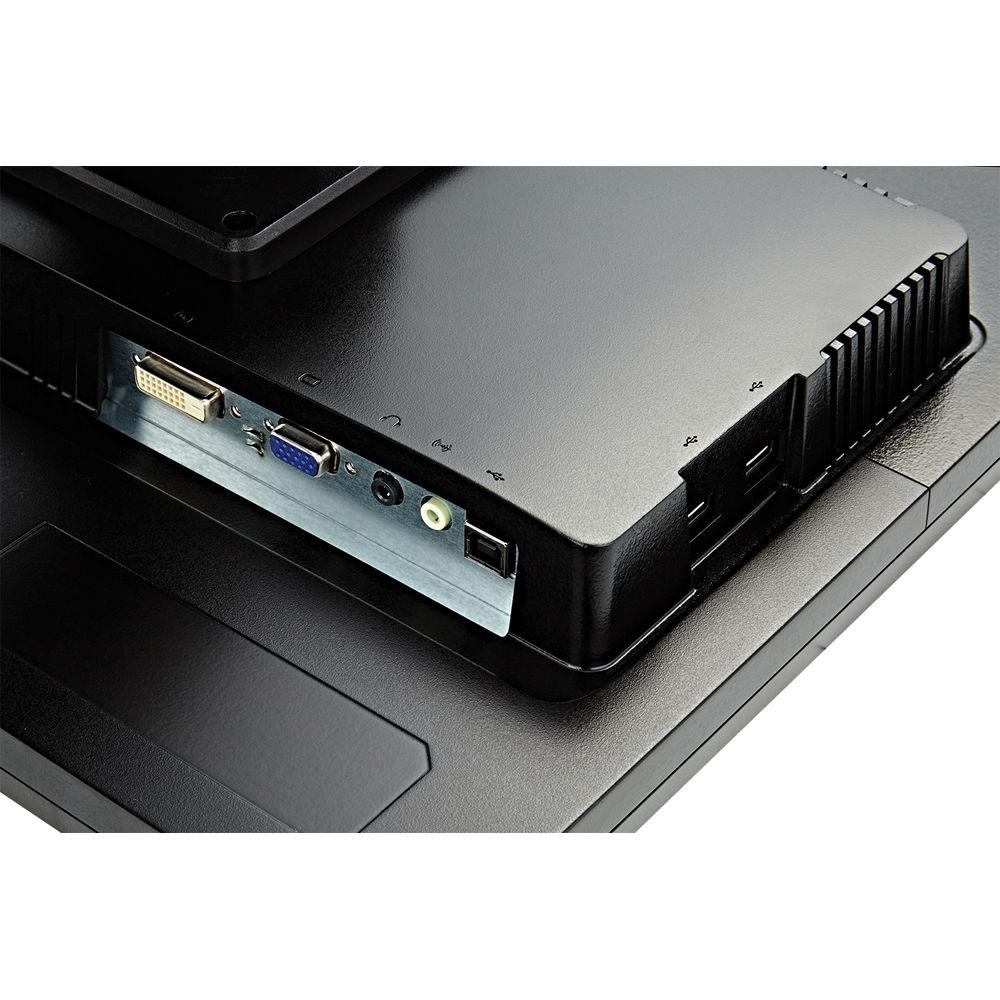

- DVI and VGA connections, as well as a 2-port USB hub, give you the freedom to connect your display to a variety of devices.
- ViewMode Settings for Enhanced On-Screen Content
- With five intuitive scenario presets, ViewSonic's ViewMode feature offers screen calibration for accurate color-rendering and performance. "Game," "Movie," "Web," "Text," and "Mono" presets enhance gamma curve, color temperature, contrast, and brightness to deliver an optimized viewing experience for different screen applications.
- ViewSonic Flicker-Free Viewing for Improved Eye Comfort
- ViewSonic flicker-free displays provide a comfortable viewing. Rather than using Pulse Width Modulation that continuously turns the LED backlight On and Off, ViewSonic flicker-free displays use DC modulation backlights that maintain a steady stream of direct current power, nearly eliminating screen flickering at all brightness levels by providing a constant LED light source. This lets you work at your computer, play games, or watch movies longer without eye fatigue.
- Blue Light Filter for Comfortable Viewing
- Prolonged exposure to certain levels of blue light can cause eye discomfort. ViewSonic displays feature a Blue Light Filter setting that allows users to adjust the amount of blue light emitted from the screen, enabling long viewing times and increased eye comfort for work and multimedia applications.
- SuperClear Image Enhancement Technology with Wide Viewing Angles
- This technology delivers an optimal color performance and extends display viewing angles to 178° both horizontally and vertically. You can experience accurate and vivid colors with consistent levels of brightness whether looking at the screen from above, below, the front, or the side, without color distortion or decay.
- 20,000,000:1 MEGA Dynamic Contrast Ratio
- Dynamic contrast ratio detects the brightness of an image, and automatically adjusts the backlight to maximize the monitor's color range and contrast. Dynamic contrast ratio technology enables the accurate reproduction of images, producing vibrant and rich visual effects.
- Dual Integrated Stereo Speakers
- The ViewSonic VG939SM has two integrated 2W stereo speakers for enhanced multimedia performance with crystal-clear stereo sound.
- VESA-Mountable

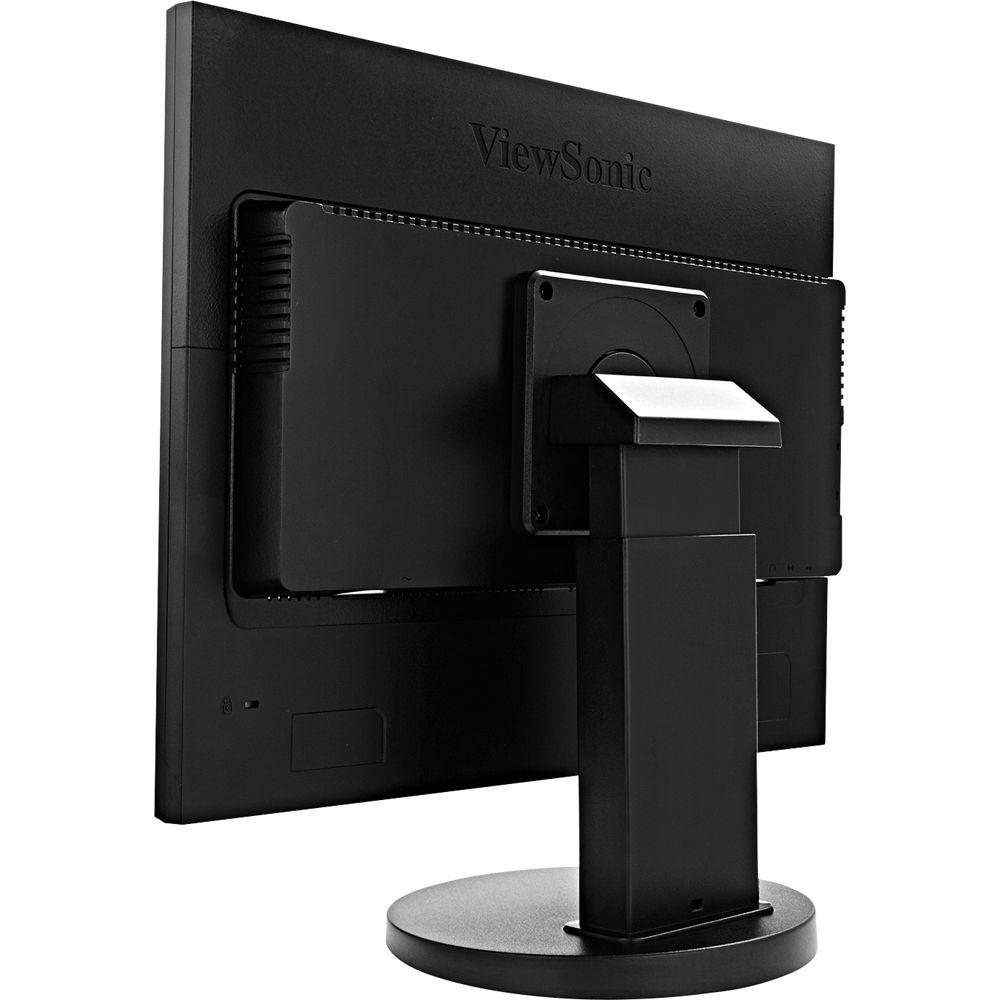

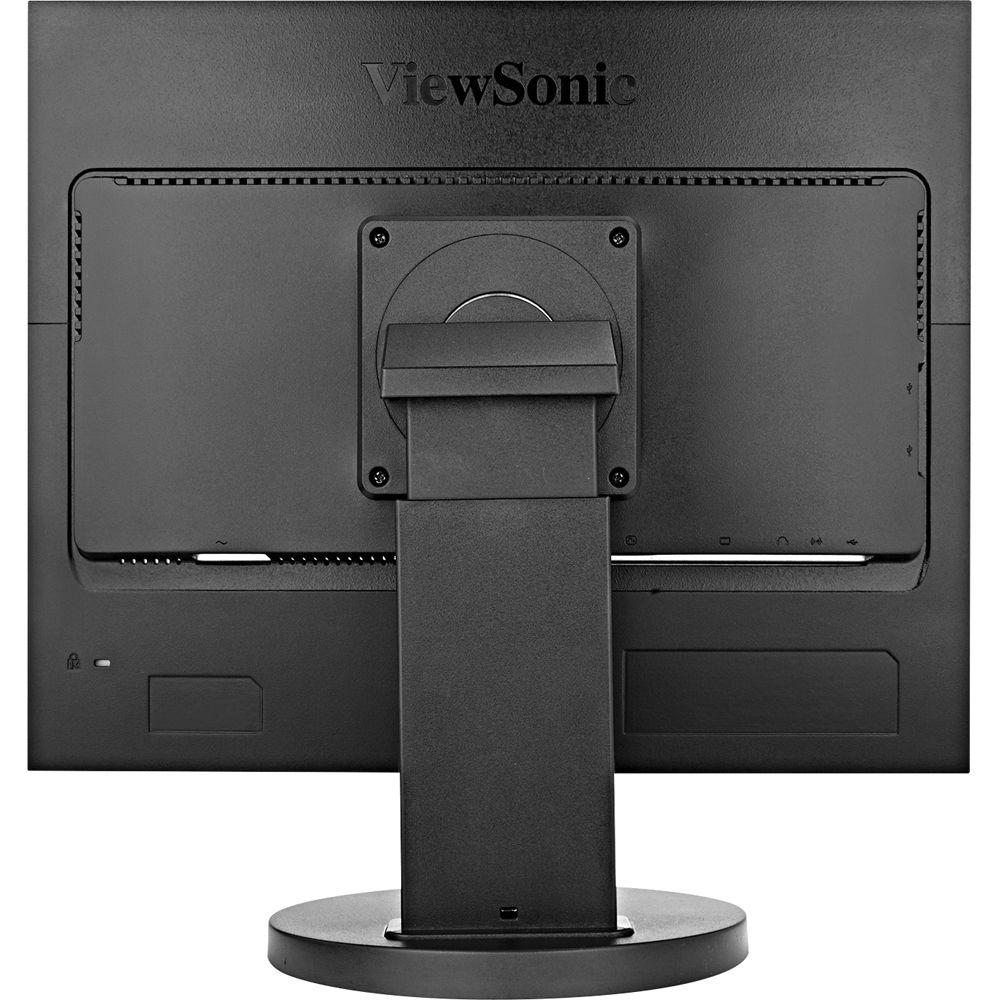

- This ViewSonic display features a 100 x 100mm VESA-mountable design that allows you to mount the display on a monitor stand or on a wall, depending on your specific needs. You can easily unscrew the base, and then mount the display on its new stand or wall mount.
- Planet-Friendly Mercury-Free LED Backlighting
- LED backlighting enhances display performance, delivers an outstanding color range, and adjusts contrast ratios for remarkably detailed images. ViewSonic's eco-friendly, mercury-free LED backlighting further conserves up to 25% more energy when compared to conventional displays. In addition, LED backlighting provides for a slim, lightweight profile that saves desktop space.
- Eco-Mode Conserves Energy
- ViewSonic's proprietary Eco-mode feature is built into all LED displays, offering options to select ʺOptimize (90%)ʺ or ʺConserve (80%)ʺ settings that save up to 20%* power. Especially in low ambient light, Eco-mode adjusts brightness and improves visibility, while reducing eye fatigue and prolonging the display's lamp life. With Eco-mode, both lamp replacement and energy expenditures are reduced. 1
Please Note: *Energy savings may vary based on actual usage and other factors. Specifications and availability are subject to change without notice. close UPC: 766907769012 In the Box ViewSonic VG939SM 19" Ergonomic LED LCD Multimedia Display Power Cord Audio Cable (Stereo Mini Jack) VGA Cable DVI Cable ViewSonic Wizard CD Limited 3-Year Warranty User Manual PDF 787.9kbwvdtseftwffbxtqutcatyfvxy More from Manufacturer Table of Contents
|
Upload User Manual
Have you got an user manual for the ViewSonic VG939SM 19" Ergonomic LED LCD Multimedia Display in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersViewSonic VG939Sm Specs | | | Size | 19" | | Screen Area | 14.8 x 11.8" / 37.6 x 30 cm | | Touchscreen | No | | Resolution | 1280 x 1024 | | Aspect Ratio | 5:4 | | Finish | Matte | | Hardness Rating | 3H | | Maximum Brightness | 250 cd/m2 | | Contrast Ratio | 1000:1 | | Dynamic Contrast Ratio | 20,000,000:1 | | Refresh Rate | 60 Hz | | Adaptive Sync Technology | None | | Horizontal Frequency | 24 to 82 kHz | | Vertical Frequency | 50 to 75 Hz | | Response Time | 14 ms | | Viewing Angle | Horizontal: 178°
Vertical: 178° | | Dot Pitch | 0.2928 x 0.2928 mm | | | | Connectivity | 1 x 3.5 mm Input/Output
1 x 3.5 mm Output
1 x USB Type-B (USB 3.1 Gen 1) Input
2 x USB Type-A (USB 3.1 Gen 1) Output
1 x DVI-D
1 x VGA | | Built-In Speakers | Yes, 2 x 2 W | | | | Power Consumption | 0.5 W (Standby)
30 W (Typical) | | AC Input Power | 100 to 240 VAC, 50 / 60 Hz | | | | Operating Temperature | 32 to 104°F / 0 to 40°C | | Storage Temperature | -4 to 140°F / -20 to 60°C | | Operating Humidity | 20 to 90% | | Storage Humidity | 5 to 90% | | Operating Altitude | 0 to 10,000' / 0 to 3048 m | | Storage Altitude | 0 to 40,000' / 0 to 12,192 m | | Certifications | ENERGY STAR, RoHS, as per Manufacturer | | | | Tilt Adjustment | -5 to 25° | | Mounting-Hole Pattern | 100 x 100 mm | | Dimensions (W x H x D) | 16.4 x 14.4 x 7.5" / 41.7 x 36.6 x 19.1 mm (With Stand)
16.4 x 13.4 x 2.2" / 41.6 x 34.1 x 5.5 mm (Without Stand) | | Weight | 6.1 lb / 2.8 kg (Without Stand)
9.5 lb / 4.3 kg (With Stand) | | | | Package Weight | 12.8 lb | | Box Dimensions (LxWxH) | 19.0 x 16.0 x 7.0" |
