User Manual for ViewSonic VP2458 23.8" 16:9 IPS Monitor Click to enlarge the picture
Contents of the user manual for the ViewSonic VP2458 23.8" 16:9 IPS Monitor
- Product category: Computer Monitors ViewSonic
- Brand: ViewSonic
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for ViewSonic Computer Monitors
 |
User manual for the ViewSonic VP2458 23.8" 16:9 IPS Monitor contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any ViewSonic product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official ViewSonic user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a ViewSonic product will considerably shorten its lifespan!
|

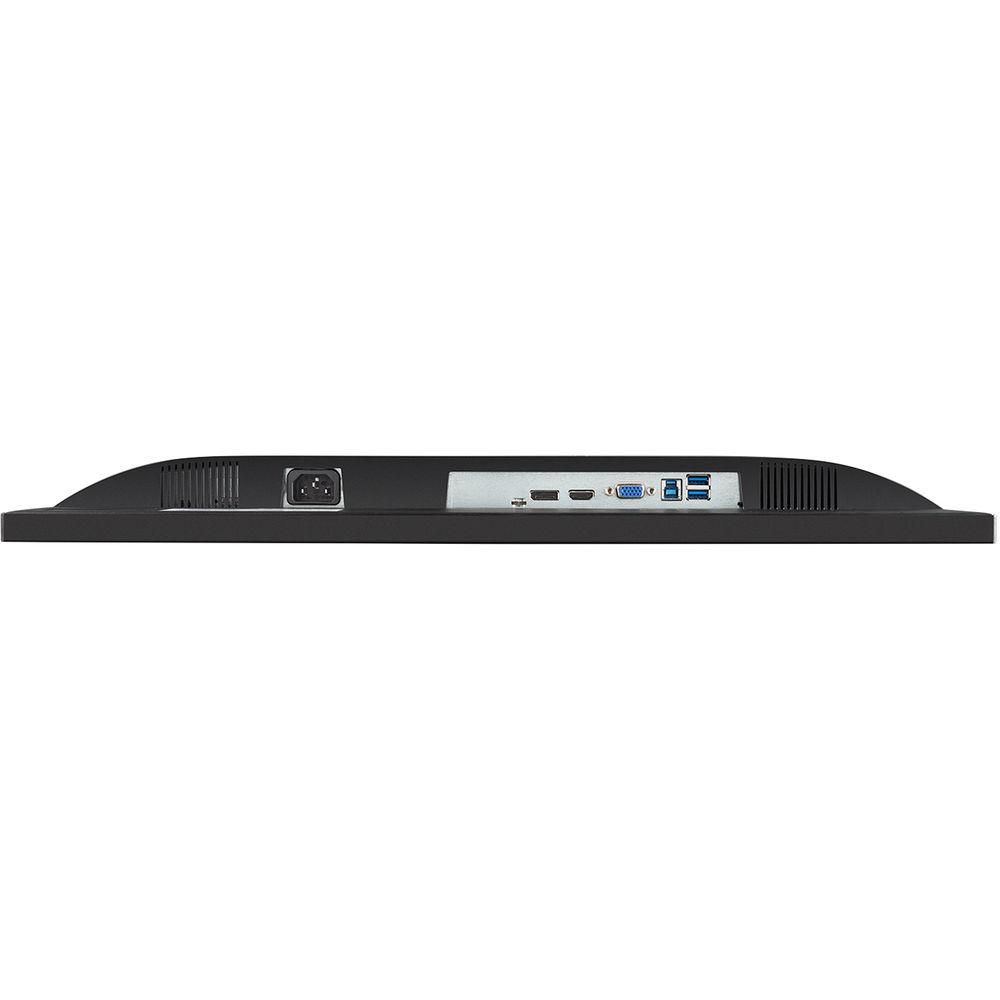

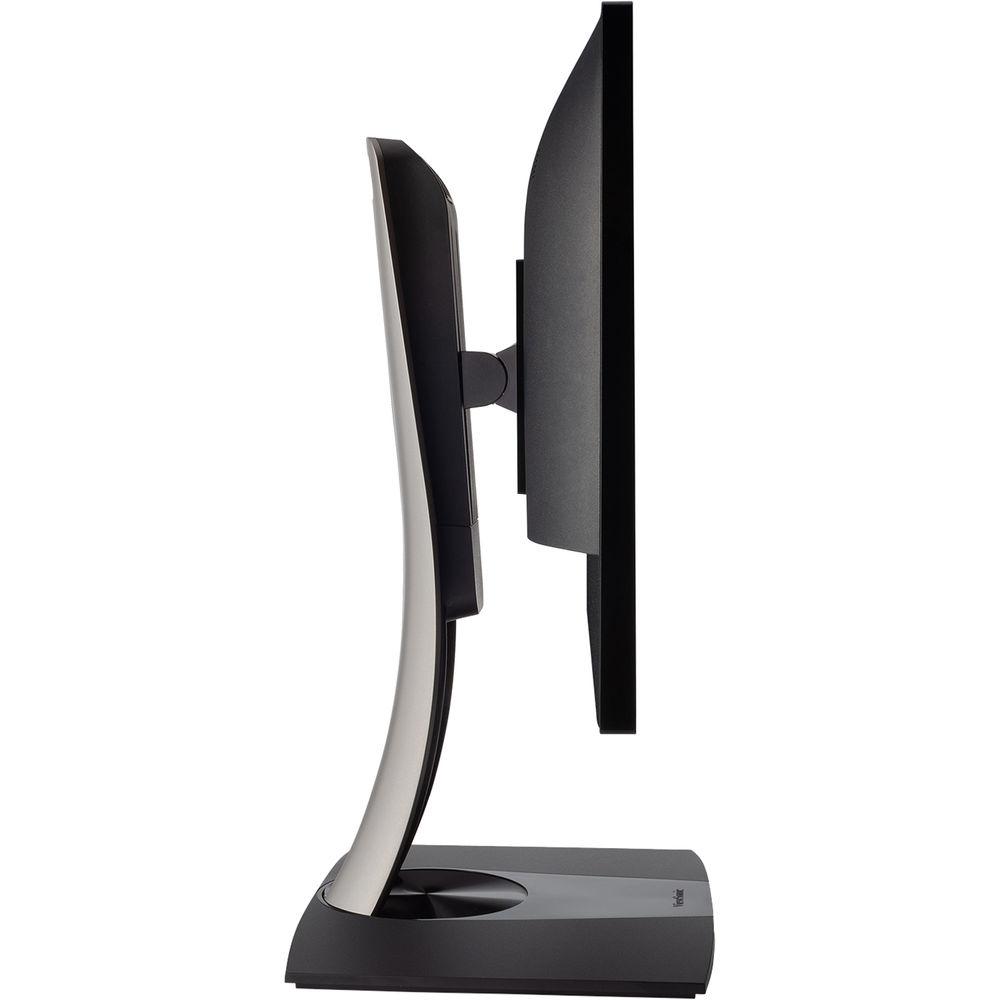

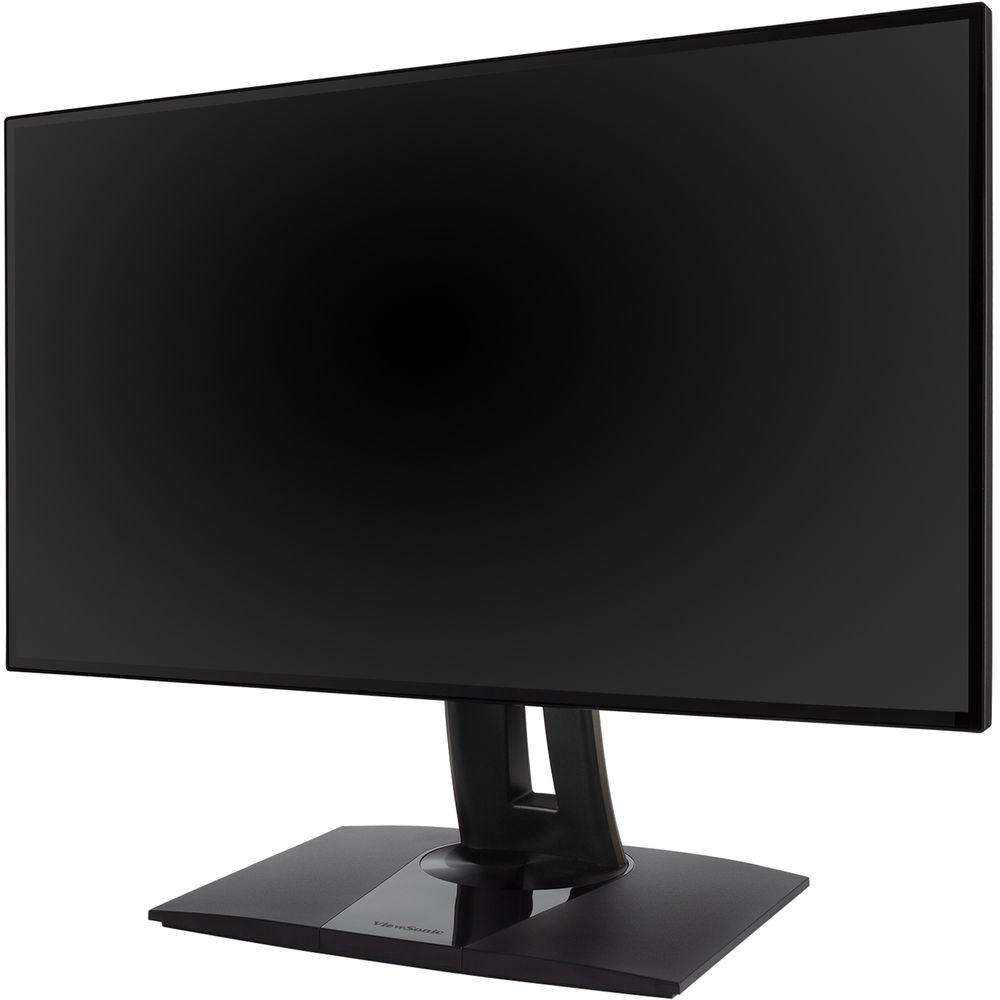

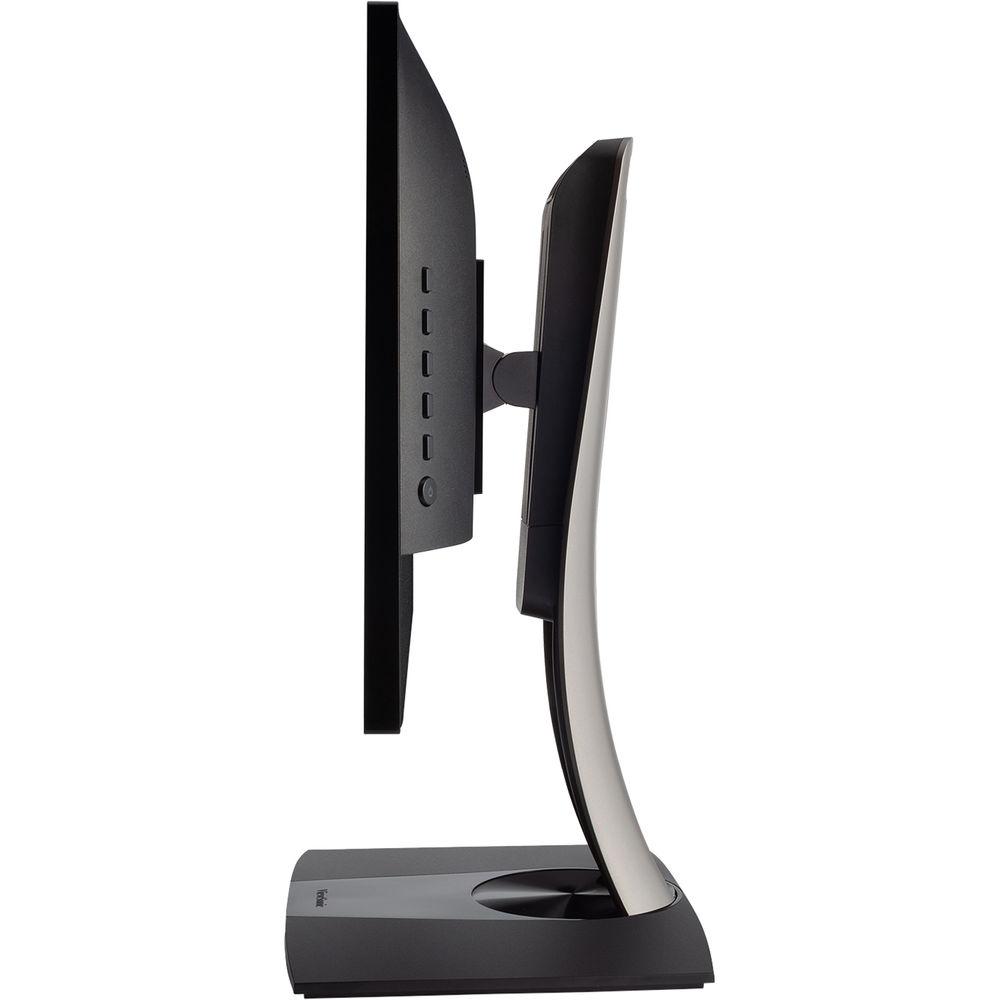

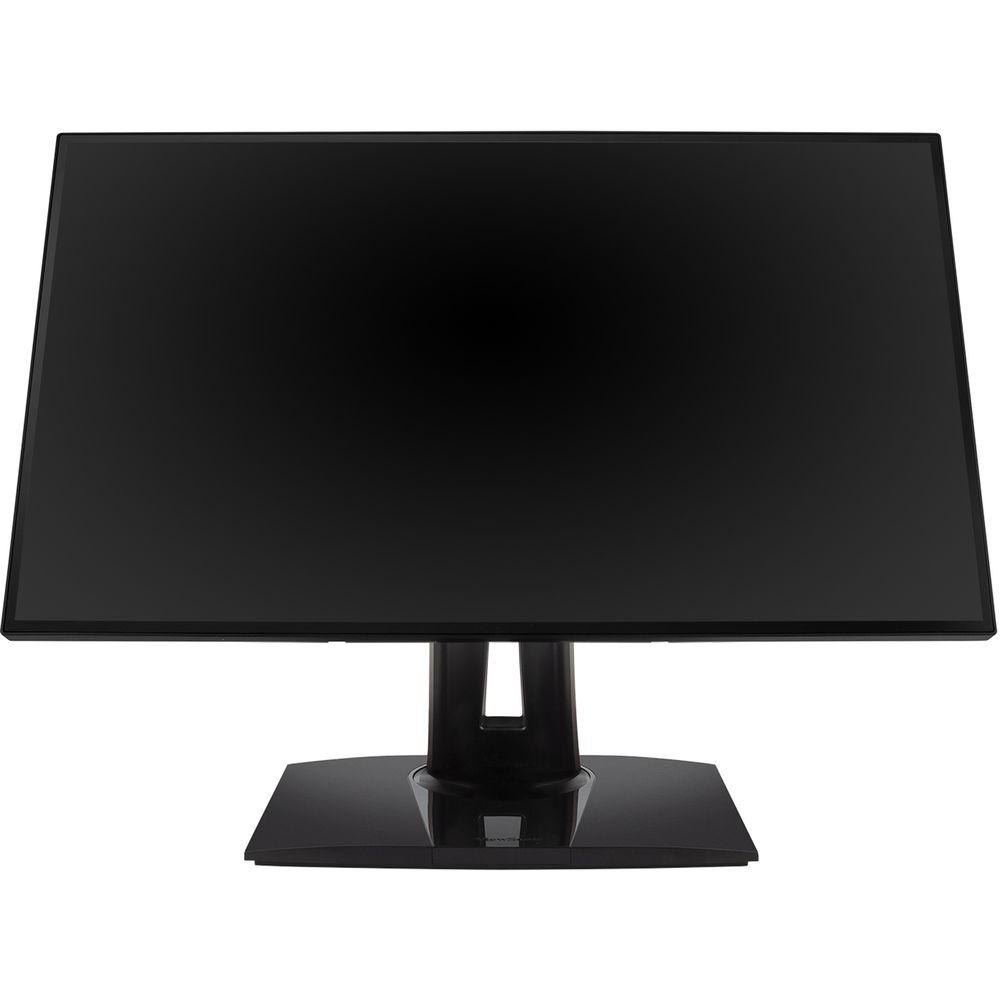

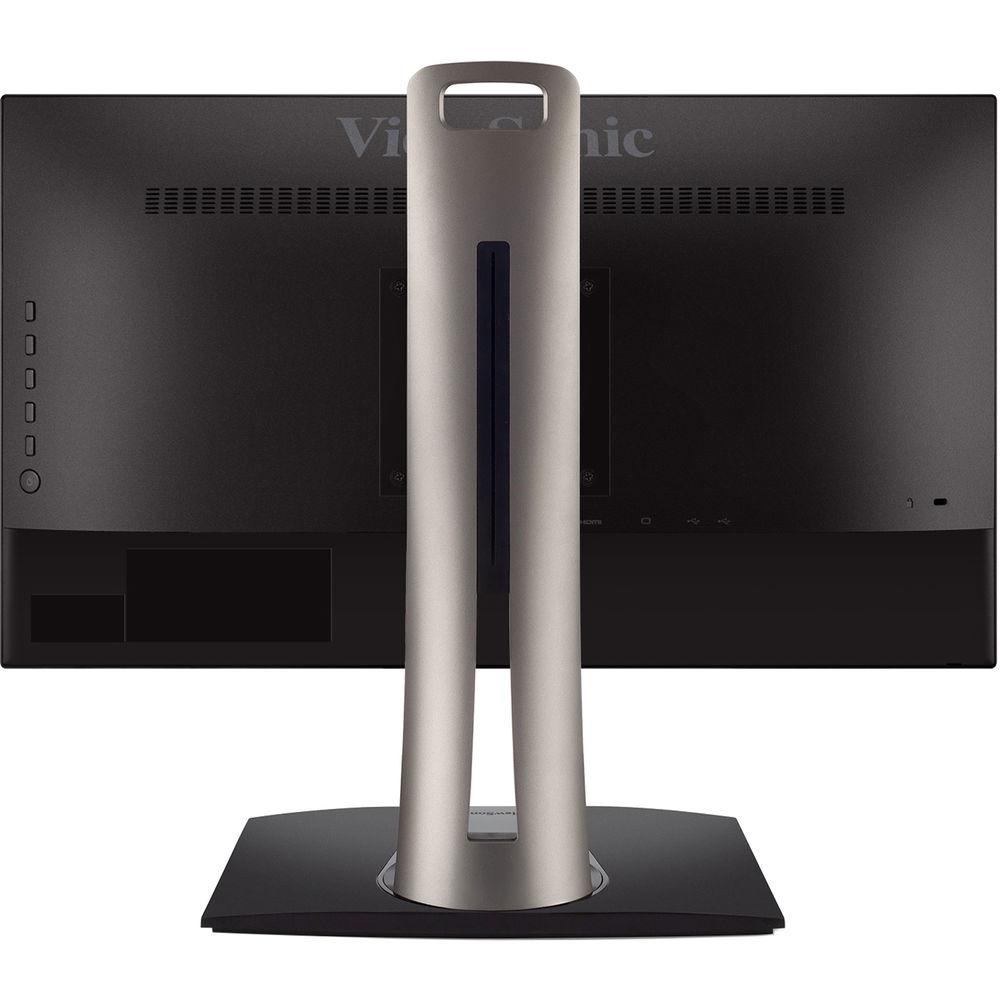

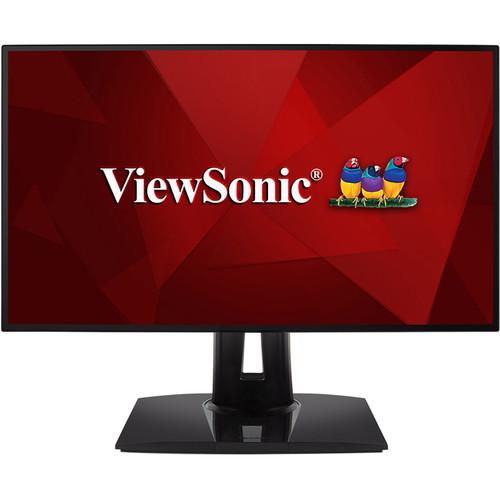

Product description 10 Factors to Consider When Selecting A Monitor for Video Editing Read More The VP2458 23.8" 16:9 IPS Monitor from ViewSonic is an enterprise-grade monitor designed for the modern day office. Built with an In-Plane Switching (IPS) panel, it provides you with vivid colors and wide 178° viewing angles. Specs-wise, it has a 1920 x 1080 Full HD resolution, a 1000:1 static contrast ratio, a 250 cd/m² brightness rating, and support for 16.7 million colors. For compatibility with a wide range of systems, it's equipped with VGA, HDMI, and DisplayPort inputs. Once it's connected to your computer, you can adjust its versatile stand to best fit your viewing preference, or install an optional VESA mount, stand, or arm if needed. - Optimized View Settings
- ViewSonic's ViewMode features application-optimized presets that alters the display's gamma curve, color temperature, contrast, and brightness. These presets include Game, Movie, Web, Text, and Mono.
- Enhanced Viewing Comfort
- This monitor is built with Flicker-Free and Blue Light Filter technologies to help reduce eyestrain and fatigue over extended viewing periods.
- Enhanced Color Reproduction
- Delta E<2 color accuracy reproduces improved colors for consistent imagery.
- A Color Gamut that Meets Industry Standards
- With 100% sRGB panel color coverage capability, the VIVP2458 reproduces richer and more vivid colors.
UPC: 766907992519 In the Box ViewSonic VP2458 23.8" 16:9 IPS Monitor Power Cable DisplayPort Cable USB Cable Limited 3-Year Warranty User Manual PDF 5.2mb Table of Contents
|
Upload User Manual
Have you got an user manual for the ViewSonic VP2458 23.8" 16:9 IPS Monitor in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersViewSonic VP2458 Specs | | | Size | 23.8" | | Panel Type | IPS-Type LCD | | Touchscreen | No | | Resolution | 1920 x 1080 | | Aspect Ratio | 16:9 | | Pixels Per Inch (ppi) | 92 ppi | | Finish | Matte | | Hardness Rating | 3H | | Maximum Brightness | 250 cd/m2 | | Contrast Ratio | 1000:1 | | Dynamic Contrast Ratio | 20,000,000:1 | | Adaptive Sync Technology | None | | Horizontal Frequency | 55 to 90 kHz | | Vertical Frequency | 48 to 75 Hz | | Bit Depth / Color Support | 6-Bit+FRC (16.7 Million Colors) | | HDR Compatibility | None | | Response Time | 14 ms (GtG)
7 ms (Overdrive) | | Viewing Angle | Horizontal: 178°
Vertical: 178° | | Backlight Lifespan | 30,000 Hours | | | | Connectivity | 1 x VGA
1 x HDMI 1.4
1 x DisplayPort
2 x USB Type-A (USB 3.1 Gen 1)
1 x USB Type-B (USB 3.1 Gen 1) | | Built-In Speakers | None | | | | Power Consumption | 17.5 W (Typical)
19.5 W (Maximum)
11.5 W (Eco)
14 W (Eco)

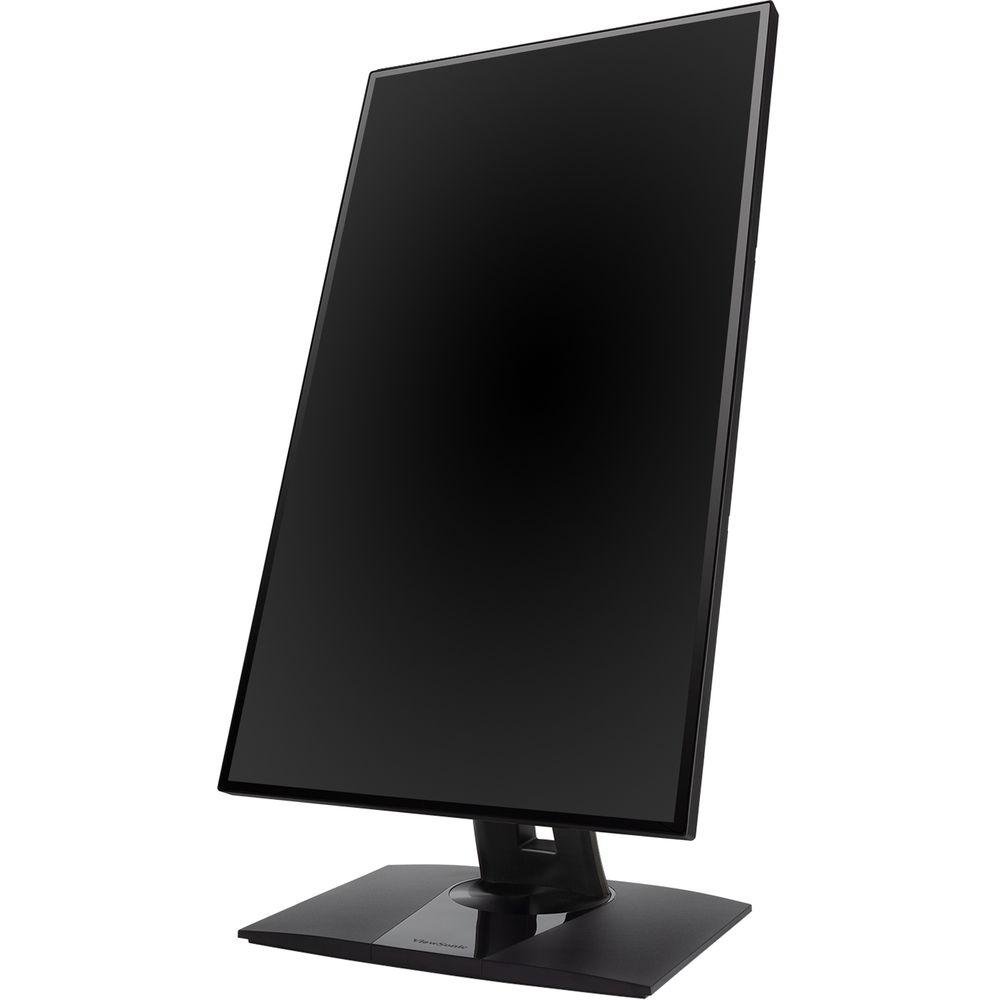

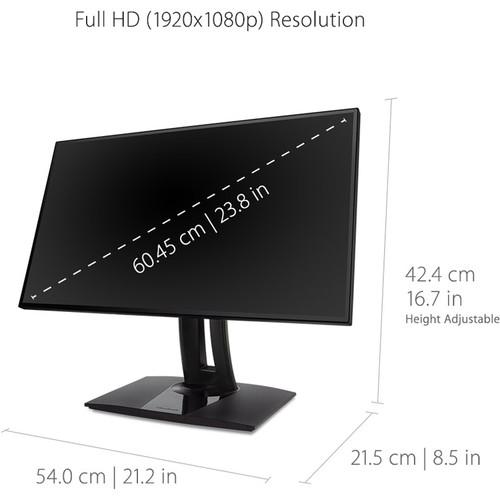

0.5 W (Standby) | | AC Input Power | 100 to 240 VAC, 50 / 60 Hz | | Power Adapter Type | Internal | | | | Operating Temperature | 32 to 104°F / 0 to 40°C | | Operating Humidity | 20 to 90% | | | | Height Adjustment | 5.12" / 130 mm | | Rotation Adjustment | 180° (-90 to 90°) | | Swivel Adjustment | 120° (-60 to 60°) | | Tilt Adjustment | -5 to 21° | | Mounting-Hole Pattern | 100 x 100 mm | | Lock Slot | Yes, Kensington | | Dimensions (W x H x D) | 21.2 x 16.7 x 8.5" / 538.5 x 424.2 x 215.9 mm (With Stand)
21.2 x 12.2 x 1.9" / 538.5 x 309.9 x 48.3 mm (Without Stand) | | Weight | 12.1 lb / 5.49 kg (With Stand)
6.9 lb / 3.13 kg (Without Stand) | | | | Package Weight | 18.05 lb | | Box Dimensions (LxWxH) | 27.0 x 15.0 x 8.0" |
