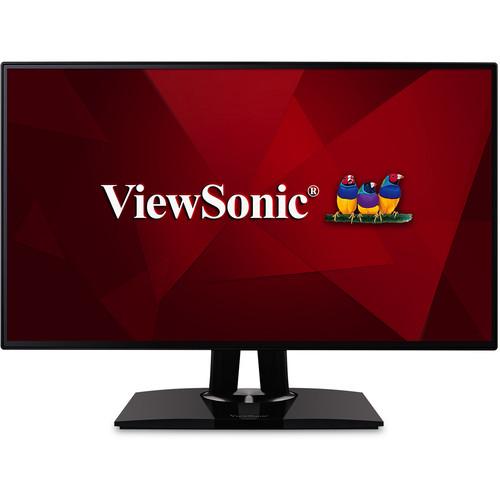

User Manual for ViewSonic VP2468 24" 16:9 SuperClear IPS Monitor Click to enlarge the picture
Contents of the user manual for the ViewSonic VP2468 24" 16:9 SuperClear IPS
- Product category: Computer Monitors ViewSonic
- Brand: ViewSonic
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for ViewSonic Computer Monitors
 |
User manual for the ViewSonic VP2468 24" 16:9 SuperClear IPS contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any ViewSonic product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official ViewSonic user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a ViewSonic product will considerably shorten its lifespan!
|
Product description 10 Factors to Consider When Selecting A Monitor for Video Editing Read More - ViewSonic New VP Series Monitors
- VS 68Series HPV
Covering 100% of the sRGB color space and supporting Delta E<2 color accuracy, the VP2468 24" 16:9 SuperClear IPS Monitor from ViewSonic is designed for professionals who require accurate color representation. This Full HD color accurate monitor offers a 14-bit look-up table with up to 4.39 trillion colors and comes with ViewSonic's own color calibration software designed to work in conjunction with X-rite CS-XRi1, I1 Display pro, and I1 pro2 calibrators. The display can also be optimized using any of the five gamma corrections to further adjust the display to suit the content being viewed. Setup and configuration of this virtually borderless display is simple as it comes equipped with DisplayPort, mini-DisplayPort, and HDMI inputs. Once configured the IPS panel offers 178° horizontal and vertical viewing angles along with the ability to rotate the monitor into portrait mode to view content in a different aspect ratio. - Calibration Function
- Co-developed with color management experts X-rite, ViewSonic's Colorbration software offers hardware calibration functionality that helps align graphics card and monitor scalar to ensure long-term consistency and accuracy of color output.
VP2468 hardware calibration function works with X-rite CS-XRi1, I1 Display pro, I1 pro2 calibrator - Enhanced Color Reproduction
- Delta E<2 color accuracy reproduces improved colors that are nearly indistinguishable from real life for consistent imagery every time.
- Advanced Color Engine Processing
- The included color engine offers 4.3 trillion color palettes, providing accurate image reproduction for reviewing your images.
- A Color Gamut that Meets Industry Standards
- With 100% sRGB panel color coverage capability, the VP2468 reproduces richer and more vivid colors, ensuring that images meet or exceed industry standards.
- Uniformity for an Improved Viewing Experience
- ViewSonic's uniformity correction function precisely balances luminance performance, improving delta luminance variance to <5%.
- 5 Optimized Gamma Corrections
- Five gamma settings—ranging from Gamma 1.8 to Gamma 2.6—optimize the monitor's color performance and contrast ratio for a range of tasks, including graphic design, video editing, photo production, and much more.

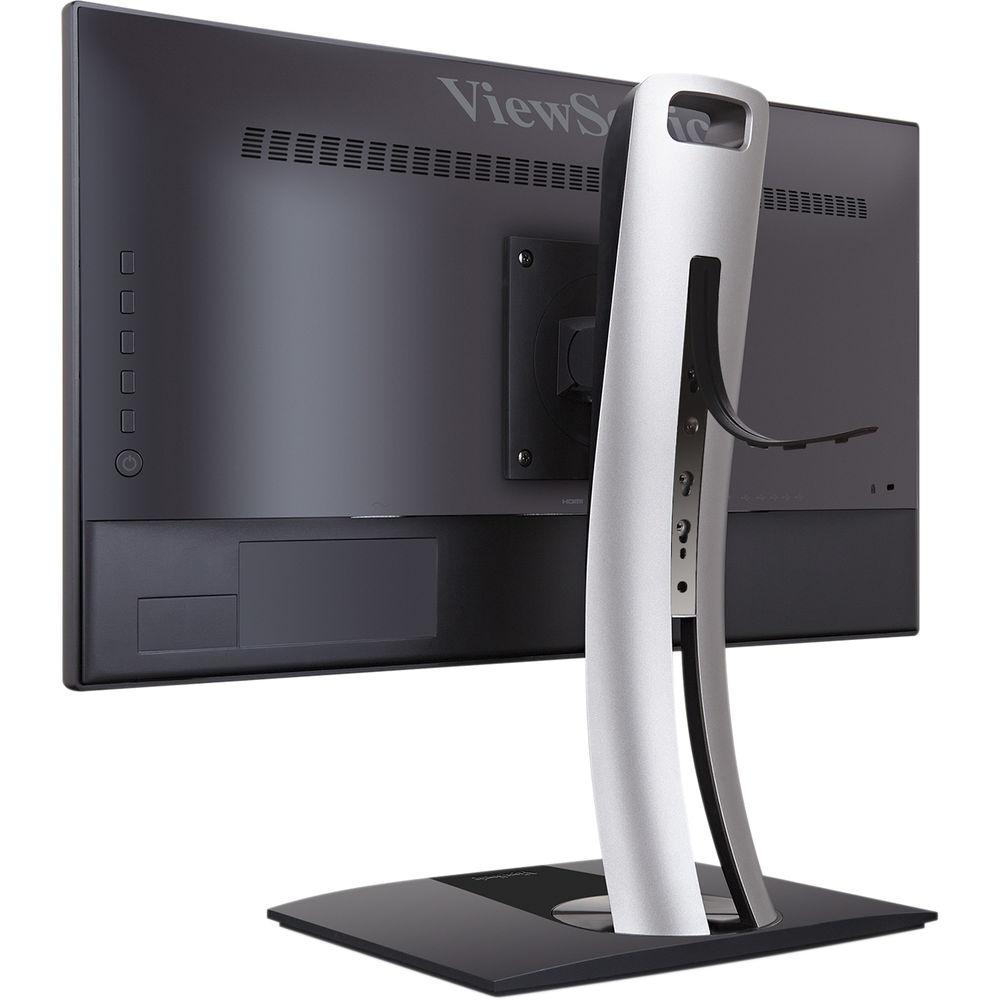

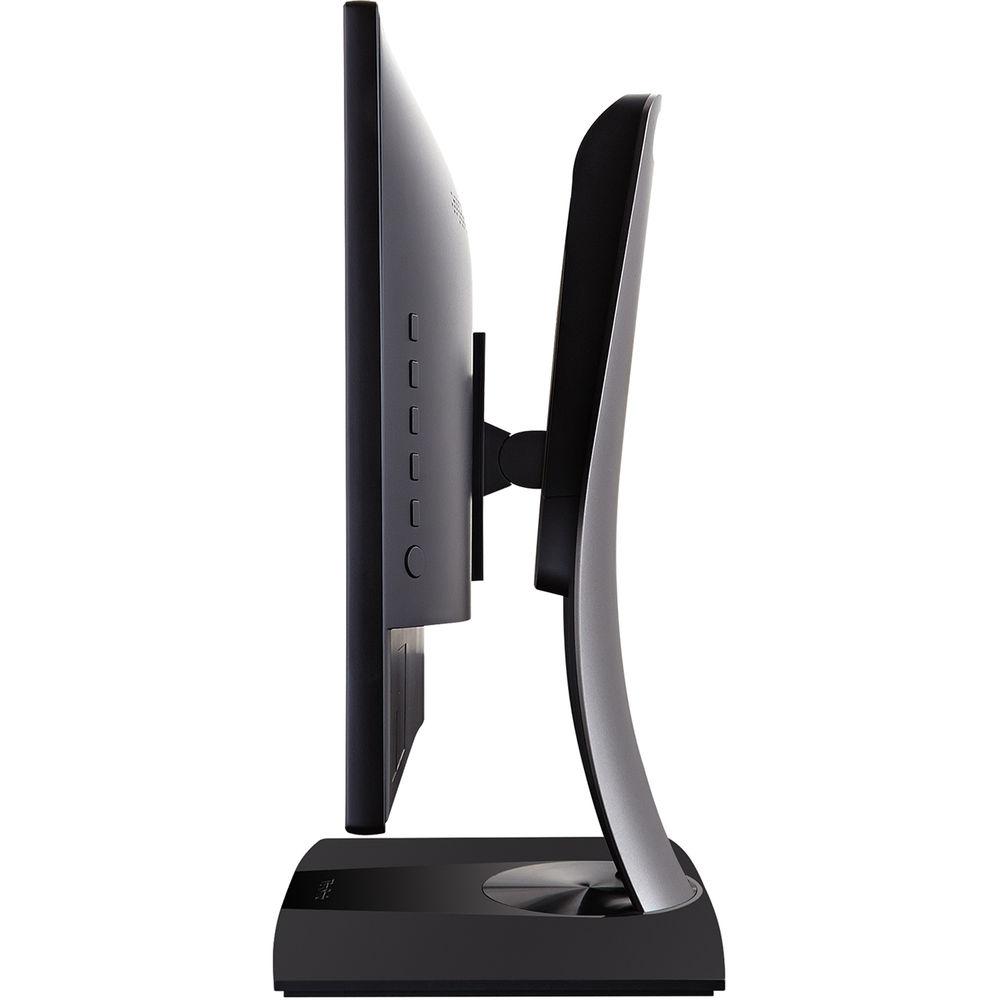

- Ergonomic Design with Auto Pivot
- The VP2468 is designed to provide a full range of adjustments for increased productivity and comfort via swivel, pivot, tilt, and height adjustment options. With built-in G sensor, the screen image can auto pivot when positioned vertically
- See Without Boundaries
- The VP2468 creates a seamless and pure visual experience in multi-monitor setups without the distraction of boundaries. Image editors can finally enjoy visual processing of extended content with more focus and fewer distractions.
- SuperClear IPS Panel Technology
- Enjoy accurate and vivid colors with consistent levels of brightness from any vantage point. SuperClear IPS panel technology delivers best-in-class image quality, whether you are looking at the screen from above, below, front, or the side.
- Independent 6-axis Color Adjustment
- Users can individually customize hue and saturation for each color axis (red, green, blue, cyan, magenta, and yellow) without affecting other color output.
- Preset Color Mode for Adaptive Color Settings
- Take advantage of industry standard visual precision for sRGB, EBU, SMPTE-C and REC709, for a consistent viewing experience with a range of screen applications.

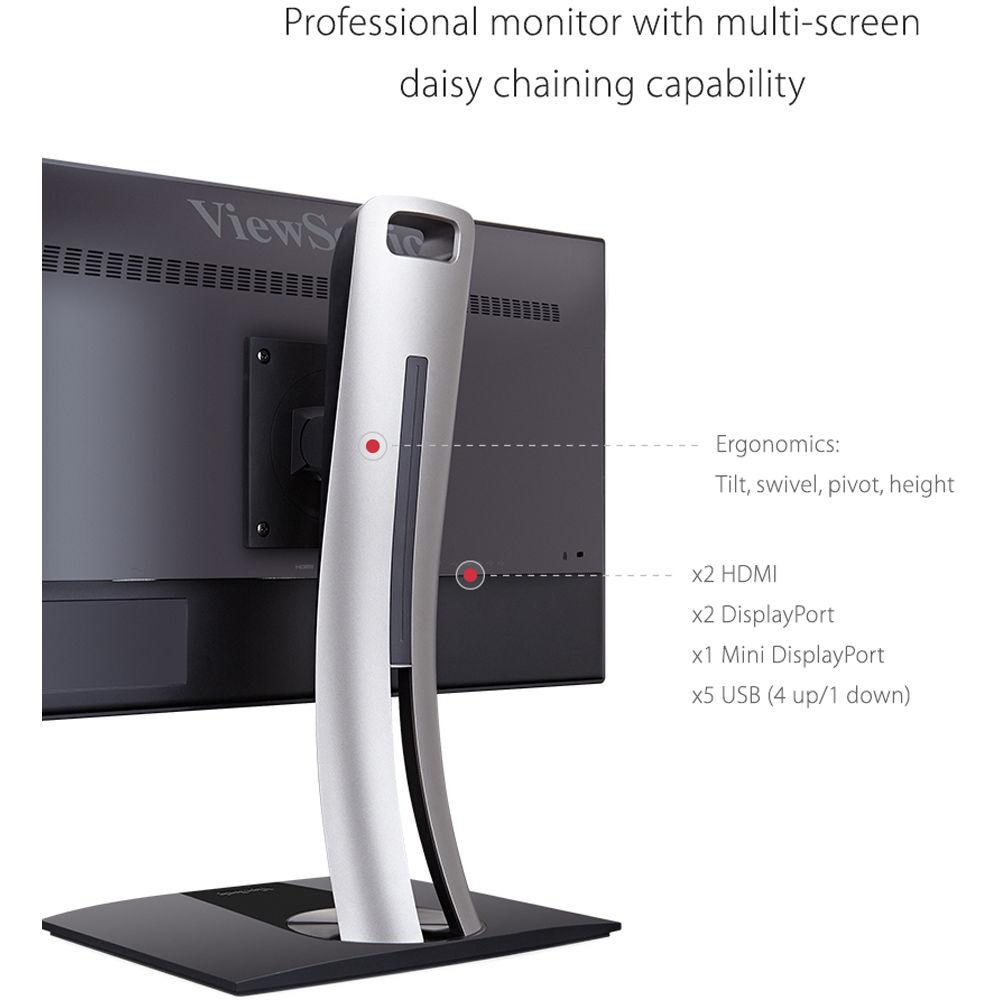

- Versatile Connectivity Supports Daisy Chain
- HDMI, USB 3.0, DisplayPort, and Mini DisplayPort inputs provide more flexible connections with MacBooks, Ultrabooks, and other devices. Utilizing daisy chain connections allows better cable management and helps users maintain a tidy work environment.
- Individual Color Calibration Report
- Every VP2468 is pre-calibrated with an individual color calibration report included from the factory. Each report gives users a readout of the following; sRGB mode, REC709, EBU, SMPTE-C and a uniformity report, giving users 10 more additional items than typical color reports. In addition, the time spent fine-tuning the VP2468 is four times longer than other competing brands, bringing our users the highest quality possible in color calibration.
- Professional Color Capability
- A 14-bit 3D look-up table generates a smooth palette of 4.39 trillion colors for accurate image reproduction crucial in professional applications.
UPC: 766907844818 In the Box ViewSonic VP2468 24" 16:9 SuperClear IPS Monitor Power Cable DisplayPort Cable (mini DP to DP) USB 3.0 Upstream Cable (Type B to A) ViewSonic Wizard CD-ROM Limited 3-Year Warranty User Manual PDF 790.3kb More from Manufacturer Table of Contents
|
Upload User Manual
Have you got an user manual for the ViewSonic VP2468 24" 16:9 SuperClear IPS Monitor in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersViewSonic VP2468 Specs | | | Size | 24" | | Screen Area | 20.8 x 11.7" / 52.7 x 29.6 cm | | Panel Type | IPS-Type LCD | | Touchscreen | No | | Resolution | 1920 x 1080 | | Maximum Brightness | 250 cd/m2 | | Contrast Ratio | 1000:1 | | Dynamic Contrast Ratio | 20,000,000:1 | | Adaptive Sync Technology | None | | Bit Depth / Color Support | 8-Bit (16.7 Million Colors) | | Color Gamut | 72.57% NTSC
100% sRGB
100% Rec. 709
100% SMPTE-C
98.28% EBU | | Response Time | 5 ms (GtG) | | Viewing Angle | Horizontal: 178°

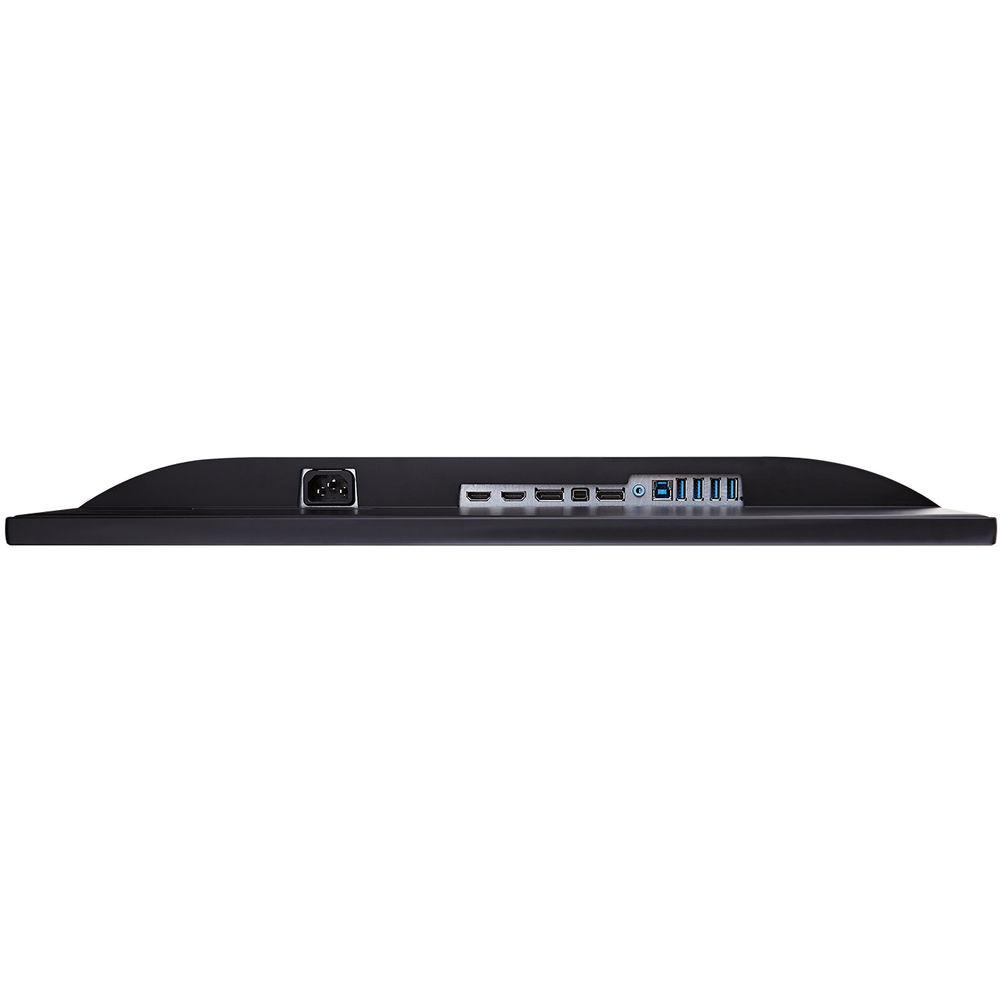

Vertical: 178° | | | | Connectivity | 1 x 3.5 mm Output
1 x USB Type-B (USB 3.1 Gen 1) Input
4 x USB Type-A (USB 3.1 Gen 1) Output
1 x DisplayPort Input
1 x DisplayPort Output
1 x Mini DisplayPort Input
1 x HDMI | | | | Power Consumption | 22 W (Maximum)

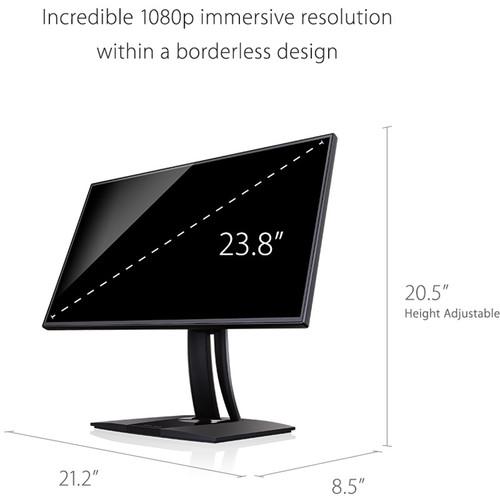

17 W (Eco) | | AC Input Power | 100 to 240 VAC, 50 / 60 Hz | | | | Operating Temperature | 32 to 104°F / 0 to 40°C | | Operating Humidity | 20 to 90% | | Certifications | ENERGY STAR, RoHS, WEEE, REACH, EPEAT GOLD, as per Manufacturer | | | | Height Adjustment | 5.1" / 13 cm | | Rotation Adjustment | 90° | | Swivel Adjustment | 120° (-60 to 60°) | | Tilt Adjustment | -5 to 21° | | Mounting-Hole Pattern | 100 x 100 mm | | Dimensions (W x H x D) | 21.2 x 20.4 x 8.5" / 53.9 x 51.9 x 21.5 mm (With Stand)
21.2 x 12.2 x 1.9" / 53.9 x 31.1 x 4.8 mm (Without Stand) | | Weight | 12.5 lb / 5.7 kg (With Stand)
7 lb / 3.2 kg (Without Stand) | | | | Package Weight | 18.0 lb | | Box Dimensions (LxWxH) | 25.0 x 16.0 x 10.5" |
