Product description 10 Factors to Consider When Selecting A Monitor for Video Editing Read More - ViewSonic New VP Series Monitors
- VS 68Series HPV

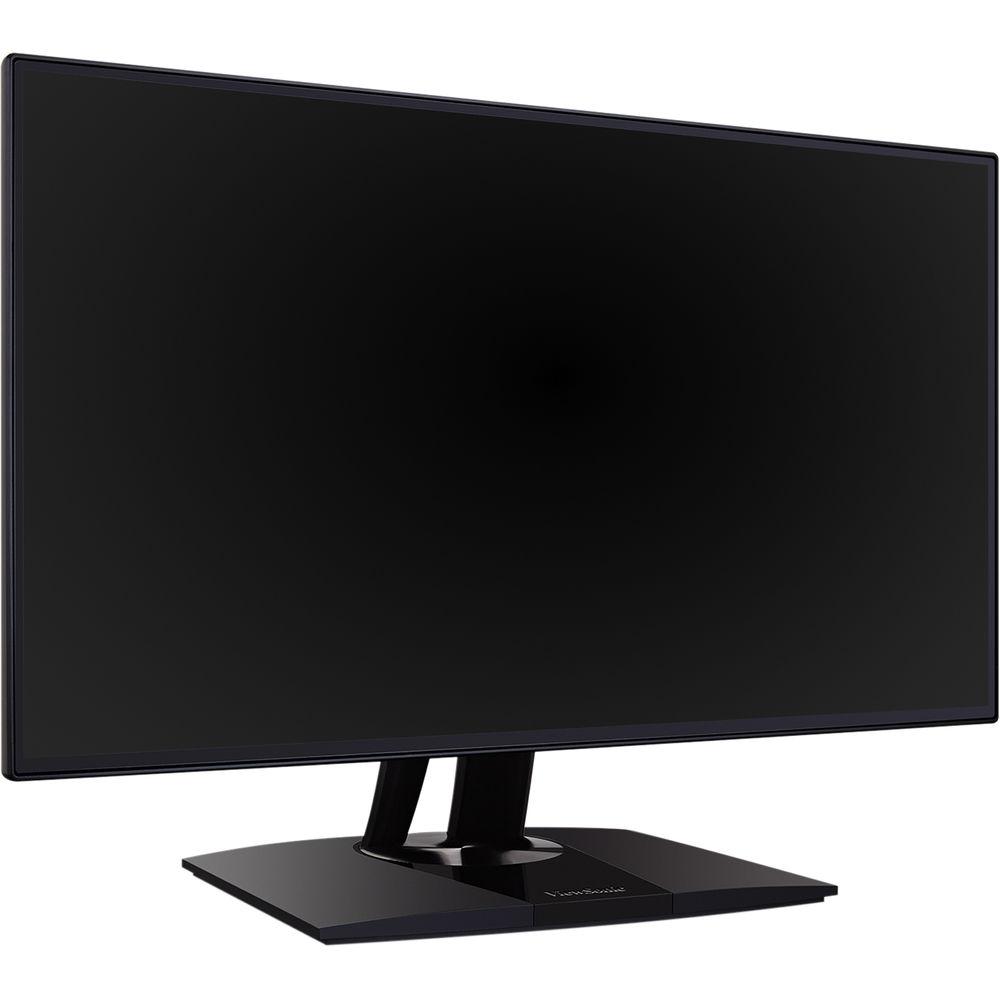

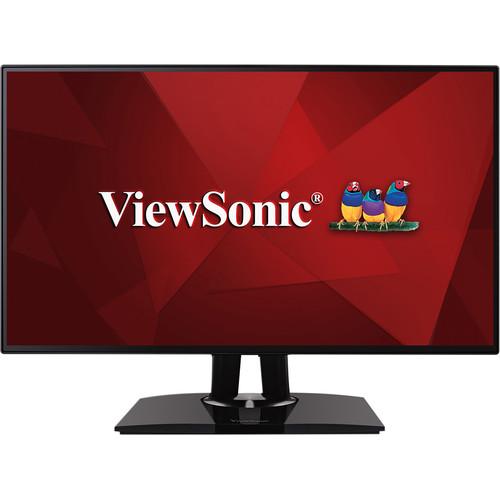

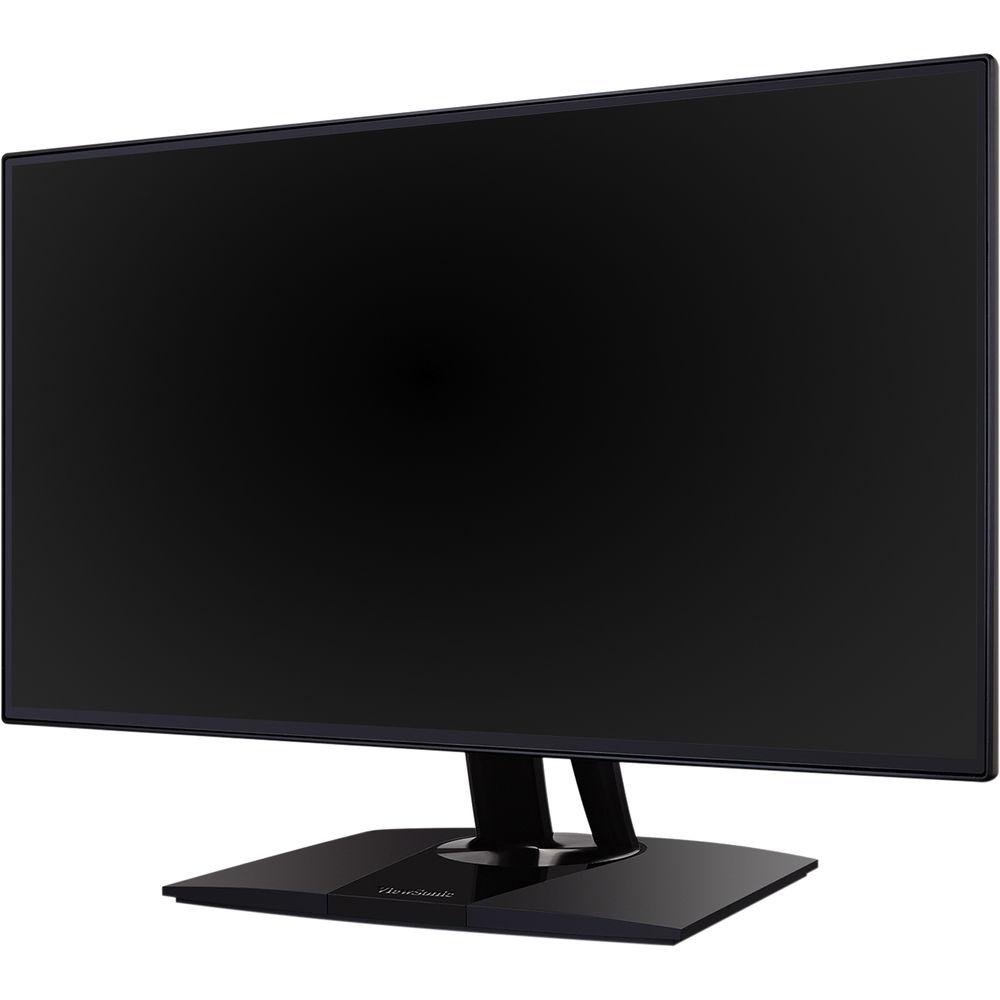

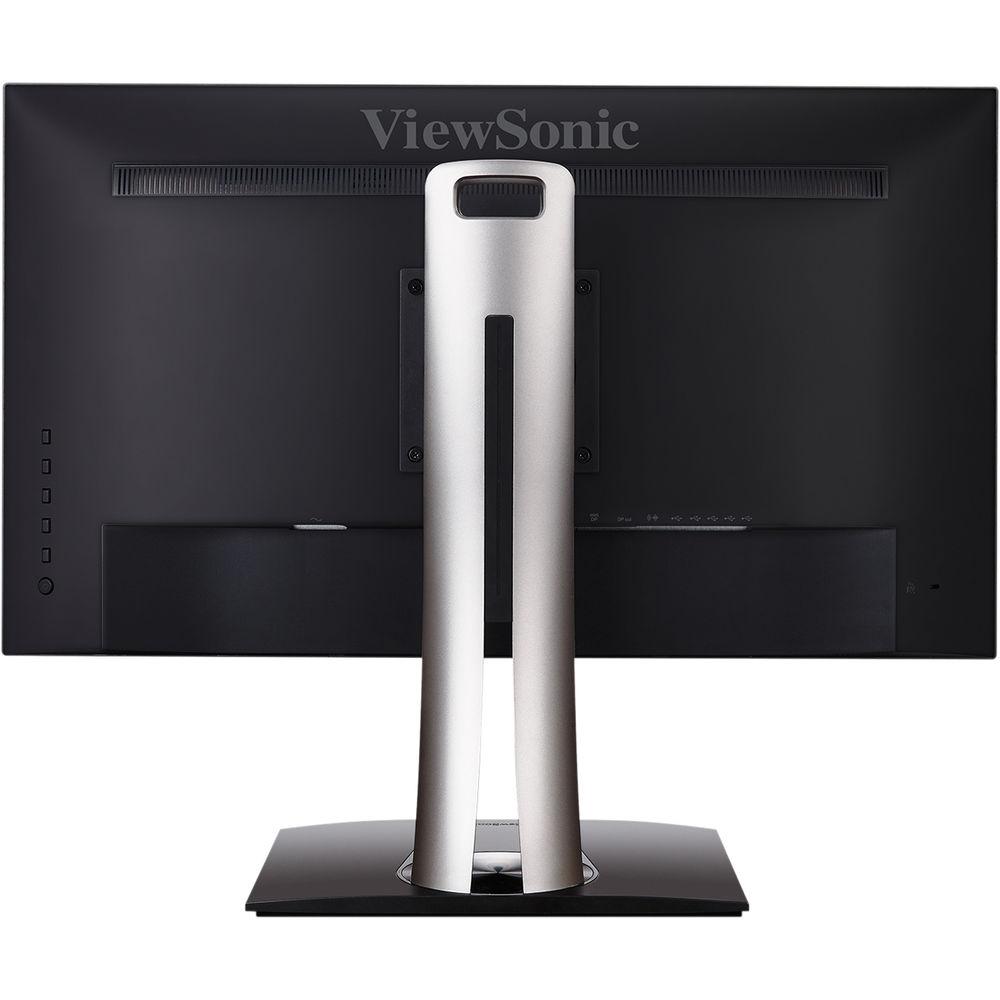

The VP2768 27" 16:9 IPS Monitor from ViewSonic is built with an IPS (In-Plane Switching) panel that offers vivid colors and wide viewing angles. Furthermore, this display has a 350 cd/m² brightness rating, a 1000:1 static contrast ratio, and is factory calibrated to deliver accurate and detailed colors. It has a 2560 x 1440 resolution for crisp and clear details, and ultra-thin bezels for a more immersive viewing experience. Connect it to your system via DisplayPort, HDMI, or Mini DisplayPort and then tilt, swivel, and adjust its height to your viewing preference. On the other hand, you can install an optional mount, stand, or arm using the 100 x 100mm VESA mounting holes on the back. For your convenience, it also features a built-in USB 3.0 hub for easy access to connect peripherals and other USB devices. - Ultra-Thin Bezels

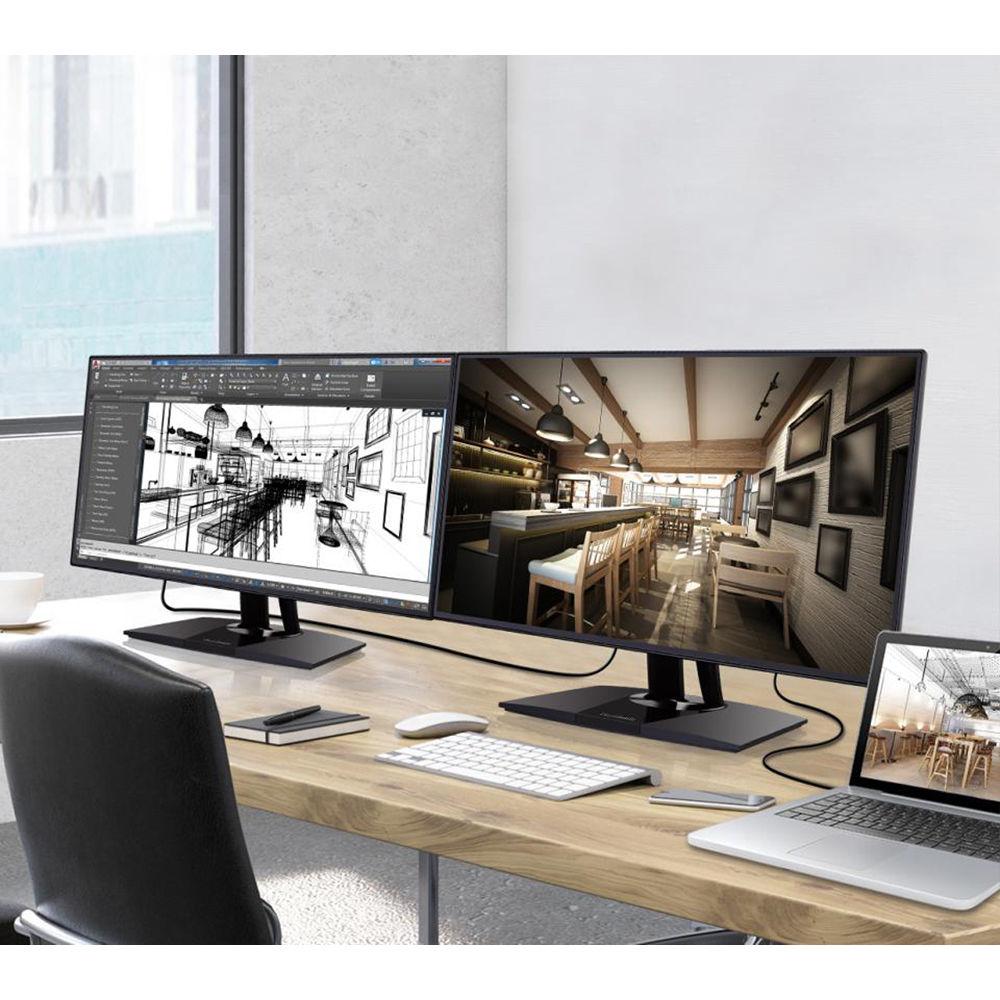

- This display is built with ultra-thin bezels for a more immersive viewing experience. It's also great for multi-monitor setups.
- Connectivity
- Connect this display to your system via DisplayPort, HDMI, or Mini DisplayPort. You can also daisy-chain multiple monitors together with only a single cable with DisplayPort.
- Color-Calibrated
- The VP2768 is factory calibrated with a Delta E<2 color accuracy, and comes with a detailed calibration report so you can enjoy accurate and vivid colors. Moreover, ViewSonic's Colorbration software works with X-rite CS-XRi1, I1 Display pro, and I1 pro2 calibrators to ensure long term color consistency and accuracy.
- Uniformity for an Improved Viewing Experience
- ViewSonic's uniformity correction function balances luminance performance, improving delta luminance variance to <5%.
- Independent 6-axis Color Adjustment
- Users can individually customize hue and saturation for each color axis (red, green, blue, cyan, magenta, and yellow) without affecting other color output.
- Professional Color Processing
- This display features a 14-bit 3D look-up table with 4.39 trillion colors for accurate and detailed image reproduction, ideal for color sensitive work.
- Hardware Calibration Ready
- With the optional ViewSonic Colorbration Kit (sold separately), you can quickly and easily calibrate this monitor to maintain its color accuracy. You'll be able to focus on your work with confidence that the color displayed matches your original image or digital file.
VP2768 hardware calibration function works with X-rite CS-XRi1, I1 Display pro, I1 pro2 calibrator" - Ergonomic Design with Auto Pivot

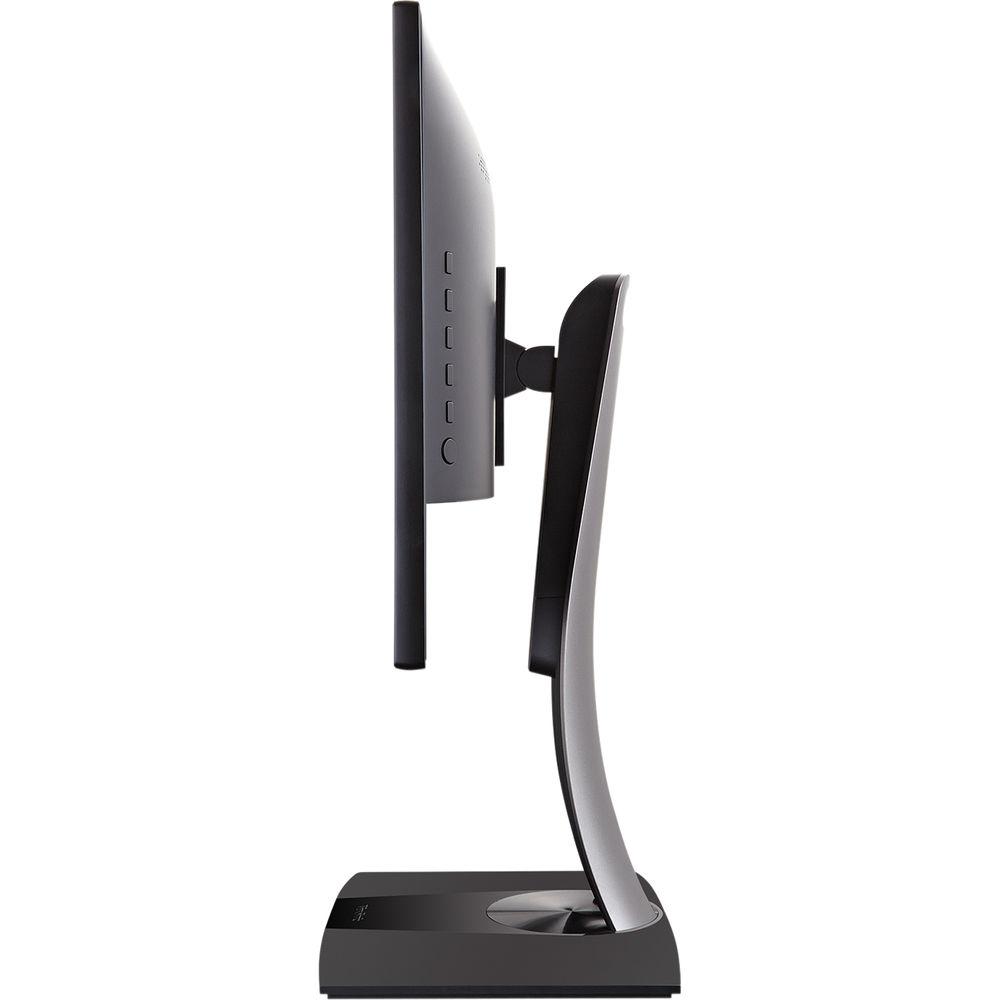

- The VP2768 is designed to provide a full range of adjustments for increased productivity and comfort via swivel, pivot, tilt, and height adjustment options. With built-in G sensor, the screen image can auto pivot when positioned vertically.
UPC: 766907893618 In the Box ViewSonic VP2768 27" 16:9 IPS Monitor DisplayPort to Mini DP Cable USB Upstream Cable Power Cable Limited 3-Year Warranty More from Manufacturer Table of Contents
|
Upload User Manual
Have you got an user manual for the ViewSonic VP2768 27" 16:9 IPS Monitor in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.

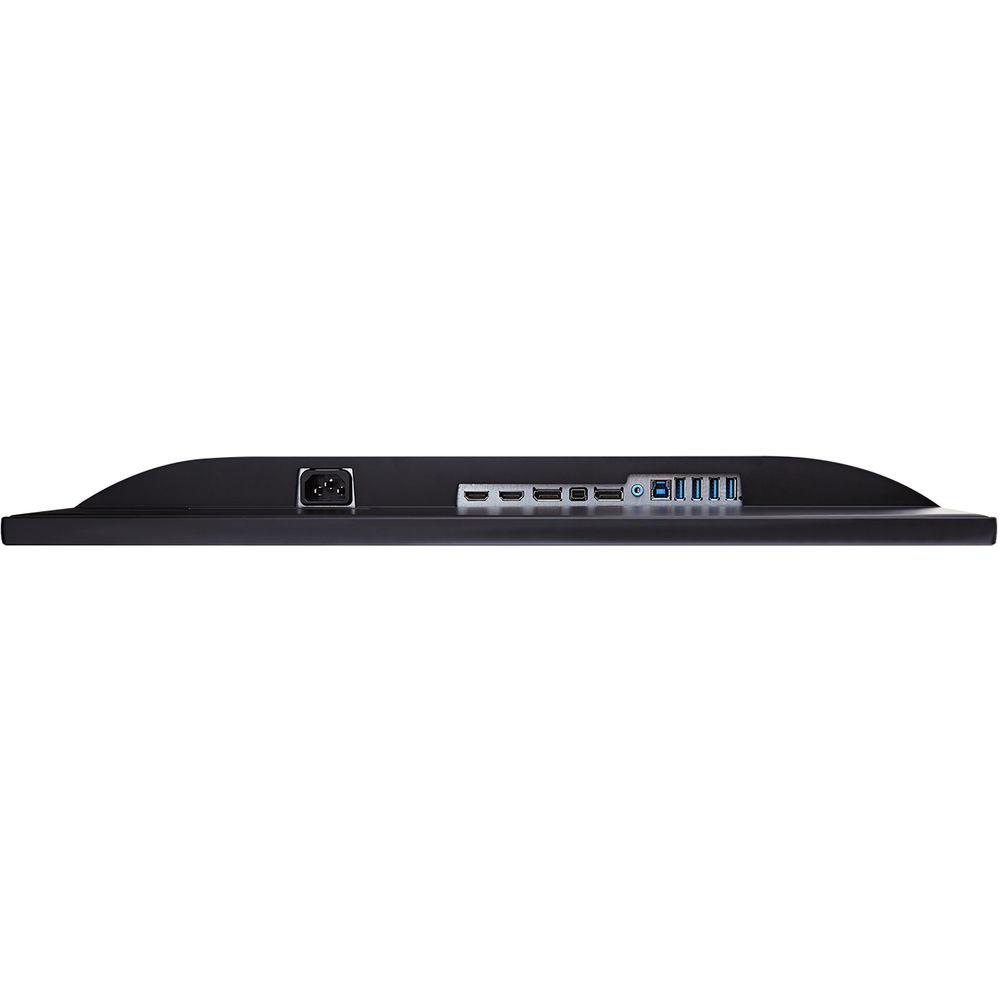

Technical parametersViewSonic VP2768 Specs | Display Size | 27" (685.8 mm) | | Panel Type | IPS (In-Plane Switching) | | Resolution | 2560 x 1440 | | Static Contrast Ratio | 1000:1 | | Dynamic Contrast Ratio | 20,000,000:1 | | Light Source | WLED | | Brightness | 350 cd/m2 | | Colors | 16.7 million | | Color Space | 8-bit | | Aspect Ratio | 16:9 | | Response Time (GtG) | 14 ms | | Viewing Angles (H/V) | 178°/178° | | Backlight Life Expectancy | 30,000 hours | | Panel Surface | Anti-glare, hard coating (3H) | | Ports and Connectors | 4 x USB 3.0 Type-A (downstream)
1 x USB 3.0 Type-B (upstream)
1 x 3.5mm Audio-out
2 x HDMI 1.4
1 x DisplayPort
1 x DisplayPort-Out
1 x Mini DisplayPort | | | | Tilt | -5 to 21° | | Pivot | 90° | | Swivel | 120° | | Height Adjustment | 5.11" (130 mm) | | VESA Compatibility | 100 x 100 mm | | | | Operating Power Consumption (Eco Mode) | Conserve: 22.5 W

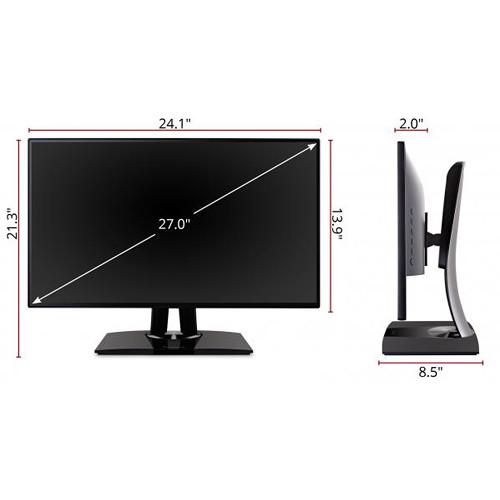

Optimized: 26.5 W | | Power Consumption (Operating) | 32 W | | Power Consumption (Maximum) | 35 W | | Power Consumption (Standby) | 0.3 W | | Voltage | 100 - 240 VAC, 50-60 Hz | | | | Operating Temperature | 32-104°F (0-40°C) | | Operating Humidity | 20-90% (non-condensing) | | | | Security | Kensington Lock Slot | | Regulations | CB ,CE, WEEE, RoHS, ErP, REACH, WHQL, HDMI1.4 compliance, cTUVus, FCC-B, Mexico CoC, EPEAT GOLD, ENERGY STAR, Mexico Energy | | Dimensions | With Stand: 24.1 x 21.3 x 8.5 (613 x 540.4 x 215 mm)
Without Stand: 24.1 x 13.89 x 1.98 (613 x 352.7 x 50.3 mm) | | Weight | With Stand: 15.17 lb (6.88 kg)
Without Stand: 9.68 lb (4.39 kg) | | | | Package Weight | 21.0 lb | | Box Dimensions (LxWxH) | 28.2 x 18.0 x 10.6" |
