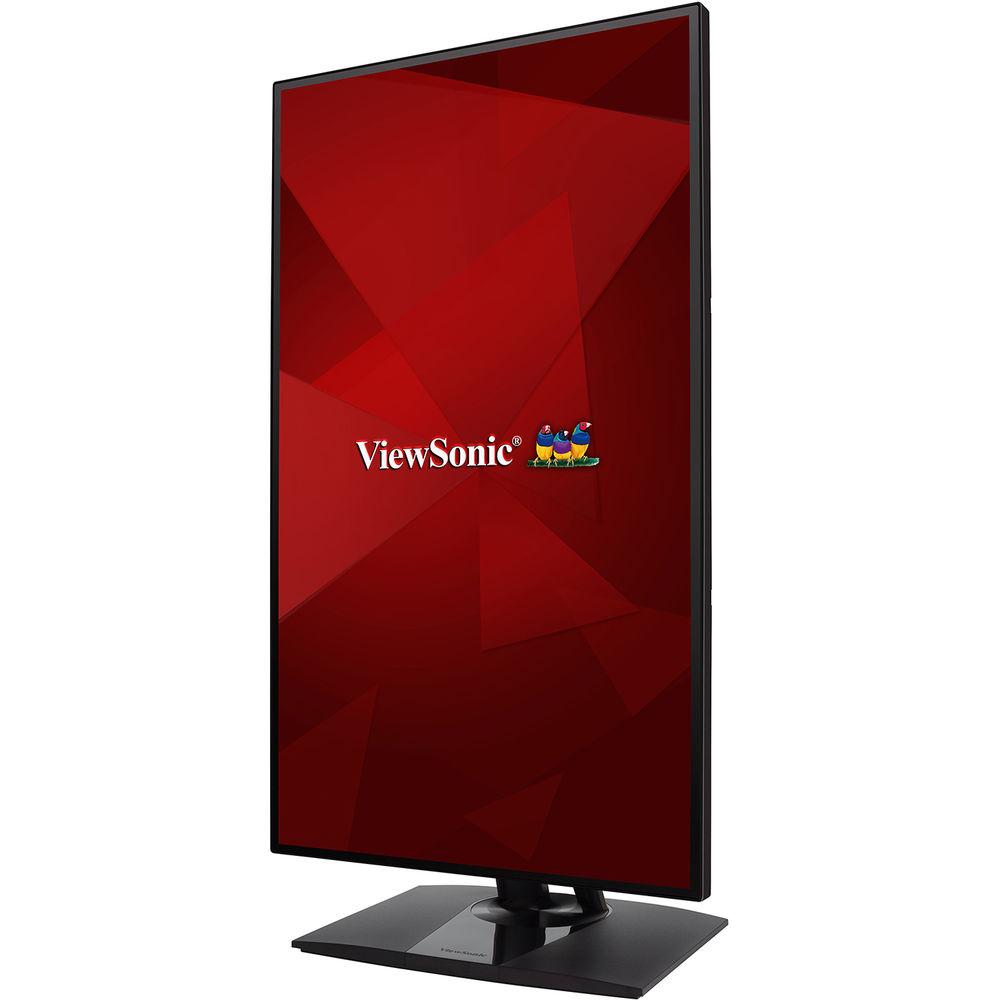

User Manual for ViewSonic VP2768-4K 27" 16:9 4K UHD IPS Monitor Click to enlarge the picture
Contents of the user manual for the ViewSonic VP2768-4K 27" 16:9 4K UHD
- Product category: Computer Monitors ViewSonic
- Brand: ViewSonic
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for ViewSonic Computer Monitors
 |
User manual for the ViewSonic VP2768-4K 27" 16:9 4K UHD contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any ViewSonic product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official ViewSonic user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a ViewSonic product will considerably shorten its lifespan!
|

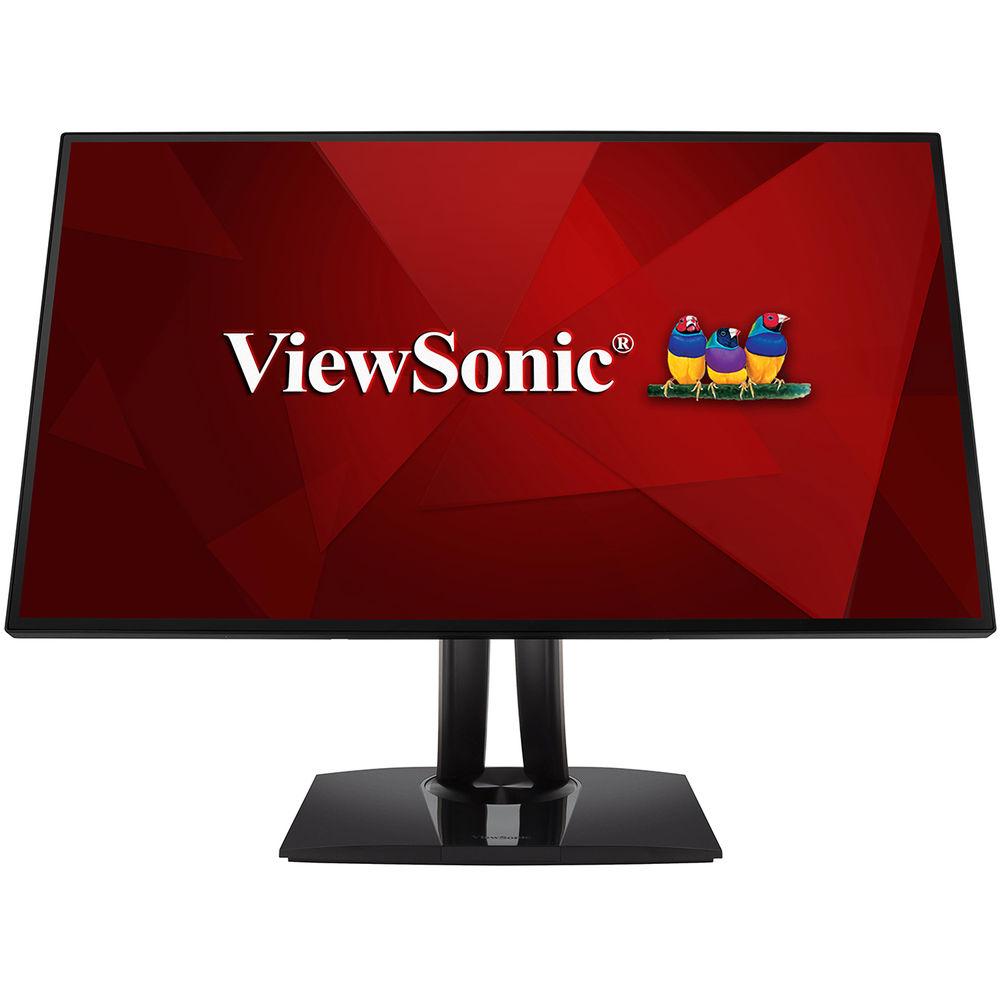

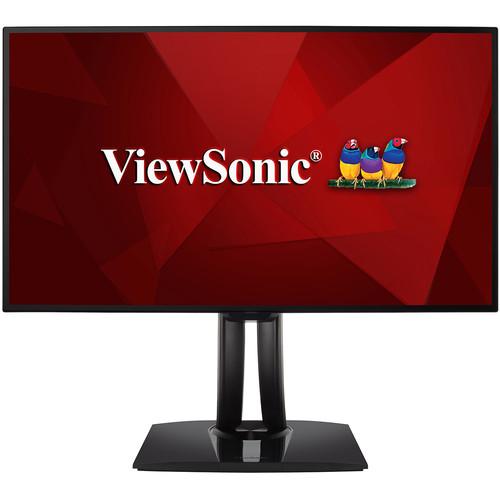

Product description 10 Factors to Consider When Selecting A Monitor for Video Editing Read More If professional color is what you want, then the VP2768-4K 27" 16:9 4K UHD IPS Monitor from ViewSonic delivers as this display comes at you with more than 8 million pixels, a 3840 x 2160 resolution, and coverage of the sRGB, EBU, SMPTE, Rec. 709, and DICOM-SIM color spaces. Furthermore, this 4K UHD monitor comes factory calibrated to the Delta<2 standard to ensure color accuracy right out of the box. if that's not enough, this monitor even supports both 14-bit and 3d look up tables, covering more than 4.39 trillion colors.
Setting up the ViewSonic V2768 monitor is a breeze as it comes equipped with DisplayPort, Mini DisplayPort, and HDMI inputs to connect to nearly any computer configuration. You can also connect your USB peripherals directly to the USB hub found on the side of the monitor. Once configured, viewers will appreciate the nearly frameless design of the display along with support for the HDR10 video standard, which provides brighter colors with a richer contrast so your content truly pops off the screen. - 4K UHD Resolution
- Displaying more than 8 million pixels with a high pixel density, this Ultra HD 3840 x 2160 monitor delivers the ultimate in image detail and clarity for lifelike images. In addition, with 4x more pixels than Full HD resolution, this Ultra HD monitor displays more content to maximize productivity.
- HDR10 Content Support
- With the ability to decode HDR10 video signals, this monitor delivers detailed video playback. Colors are brighter and more vivid, and contrast is richer and more detailed. With such amazing image reproduction, this monitor displays videos as they were intended to be seen - giving you a fuller, more immersive viewing experience.
Please note, the video source must also have HDR10 content support - Frameless Design
- A premium panel delivers accurate colors and vivid images, while a frameless design provides for a nearly seamless viewing experience in multi-monitor setups. And with ultra-wide viewing angles, you'll enjoy stunningly detailed images, unbound and without borders, no matter your vantage point.
- Loaded with Connectivity

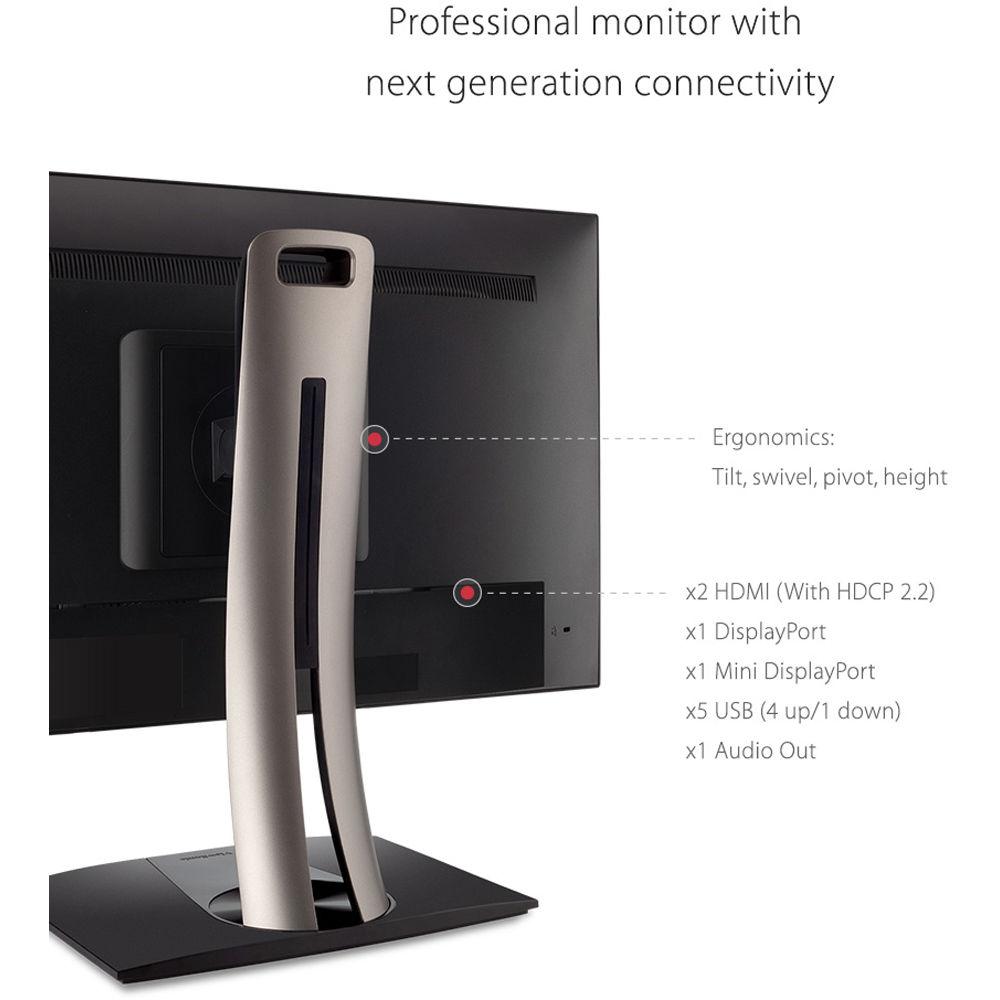

- DisplayPort, Mini DisplayPort, HDMI inputs, and high-speed USB ports give you the freedom and flexibility to connect to a variety of devices. What's more, HDCP 2.2 content protection is standard across all ports to provide secure 4K content playback, streaming, and gaming.
- Enhanced Color Accuracy
- Each monitor is factory calibrated to deliver a Delta E<2 value and includes a detailed calibration report for srgb, ebu, smpte-c, rec. 709, dicom-sim color spaces. whether you're photographer shooting in or video editor need of rec 709>
- Professional Color Processing Capability
- The 14-bit LUT & 3D LUT (Look-Up Tables) generate a smooth palette of 4.39 trillion colors for accurate image reproduction in professional applications.
- Excellent Screen Uniformity
- Uniformity of color across the screen is critical to achieving accurate viewing and editing of images - without it, any work performed on a less-than-accurate monitor will cause incorrect color adjustments. An integrated color uniformity function ensures consistent color and luminance across the screen - meaning you get screen-wide true color from edge to edge, corner to corner, every time.
Please note, color uniformity function works within the following color spaces: sRGB, EBU, SMPTE-C, Rec. 709 - Versatile Color Adjustability
- 6-Axis Color Enhancement lets you individually adjust six primary colors: red, yellow, green, cyan, blue, and magenta. This monitor also features hue and saturation fine-tuning. With a completely customizable color profile, you can be sure your creative work gets the color treatment it deserves.
UPC: 766907000832 In the Box ViewSonic VP2768-4K 27" 16:9 4K UHD IPS Monitor Power Cable Mini DisplayPort to DisplayPort Cable USB 3.1 Upstream Cable Limited 3-Year Warranty User Manual PDF 2.8mb Table of Contents
|
Upload User Manual
Have you got an user manual for the ViewSonic VP2768-4K 27" 16:9 4K UHD IPS Monitor in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersViewSonic VP2768-4K Specs | | | Size | 27" | | Panel Type | IPS-Type LCD | | Touchscreen | No | | Resolution | 3840 x 2160 | | Aspect Ratio | 16:9 | | Pixels Per Inch (ppi) | 163 ppi | | Finish | Matte | | Hardness Rating | 3H | | Maximum Brightness | 350 cd/m2 | | Contrast Ratio | 1300:1 | | Dynamic Contrast Ratio | 20,000,000:1 | | Adaptive Sync Technology | None | | Horizontal Frequency | 15 to 136 kHz | | Vertical Frequency | 24 to 75 Hz | | Bit Depth / Color Support | 10-Bit (1.07 Billion Colors) | | Look-Up Table | 14-Bit | | HDR Compatibility | HDR10 | | Response Time | 7 ms (Overdrive) | | Viewing Angle | Horizontal: 178°

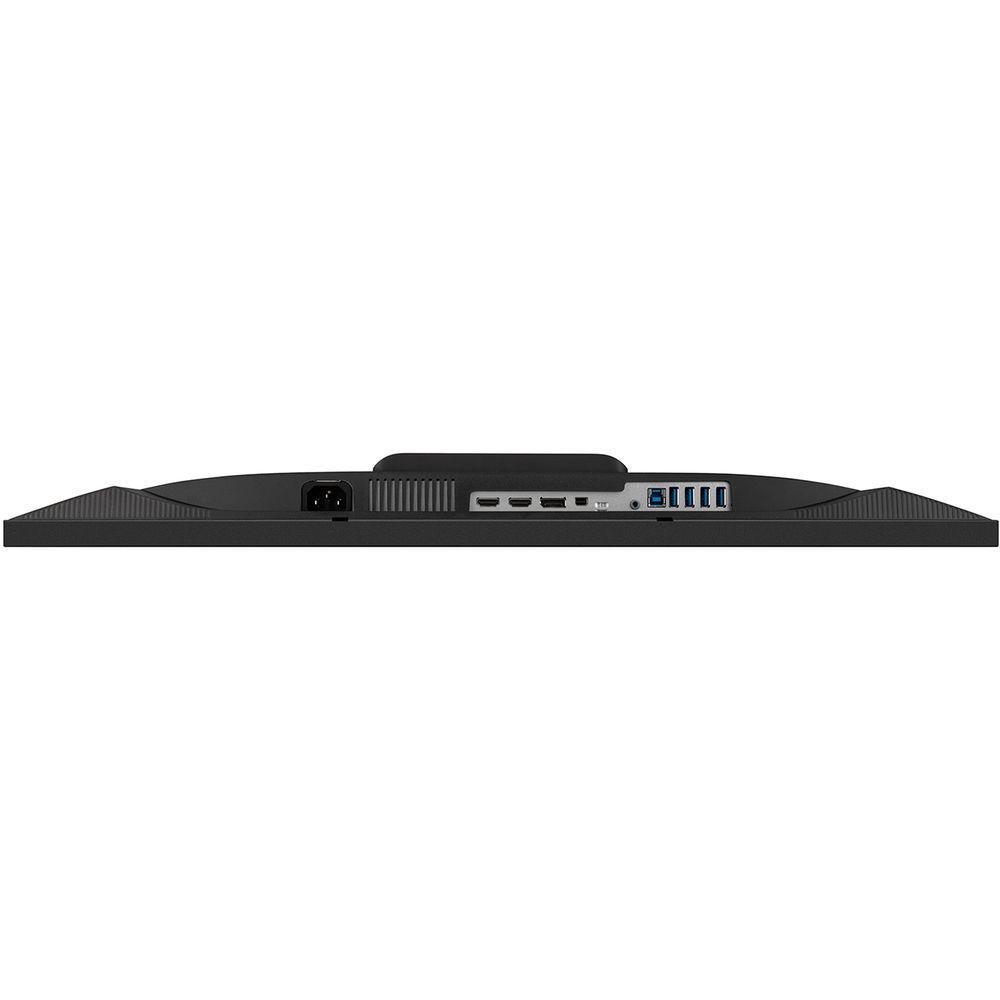

Vertical: 178° | | Backlight Lifespan | 30,000 Hours | | | | Connectivity | 4 x USB Type-A (USB 3.1 Gen 2)
1 x USB Type-B (USB 3.1 Gen 2)
1 x 3.5 mm Output
2 x HDMI 2.0 Input
1 x DisplayPort Input
1 x Mini DisplayPort Input | | HDCP Support | Yes, Version 2.2 | | Built-In Speakers | None | | | | Power Consumption | 38.5 W (Eco)
46 W (Typical)
48 W (Maximum)

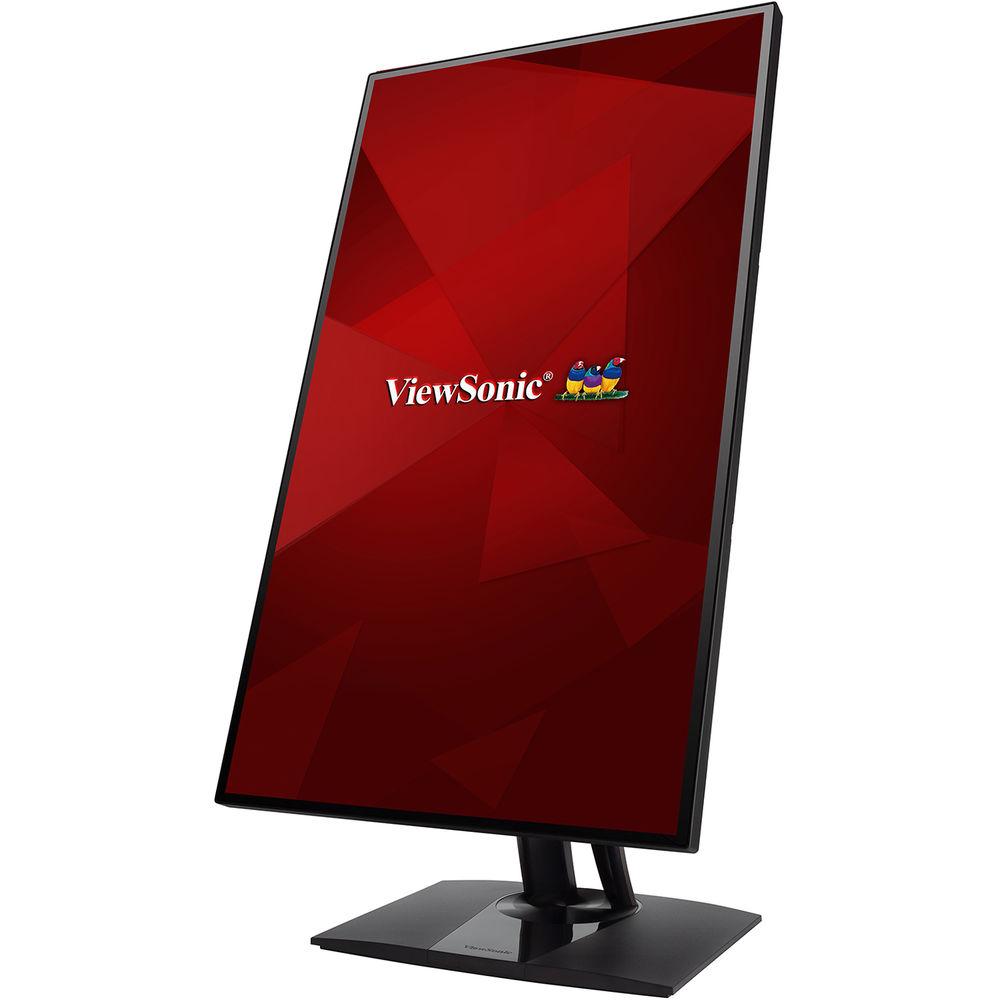

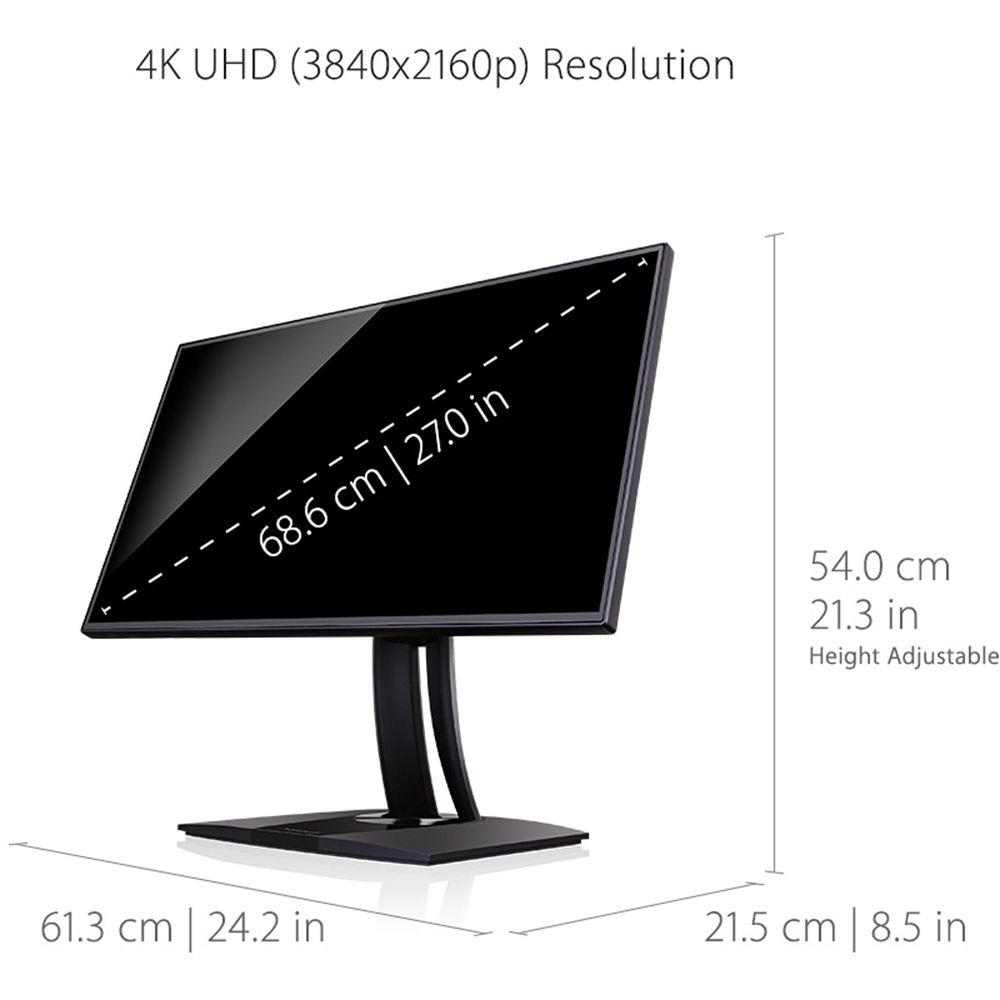

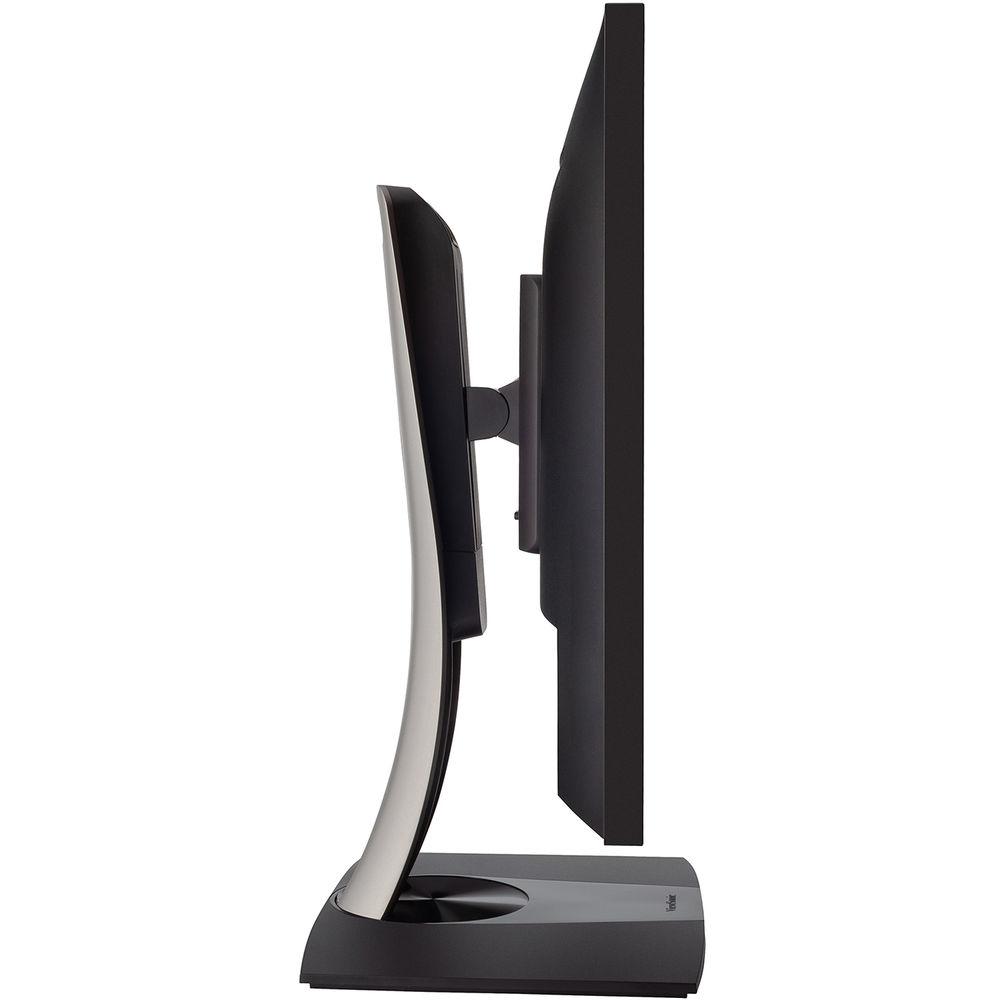

0.5 W (Standby) | | AC Input Power | 100 to 240 VAC, 50 / 60 Hz | | Power Adapter Type | Internal | | | | Operating Temperature | 32 to 104°F / 0 to 40°C | | Operating Humidity | 20 to 90% | | Certifications | ENERGY STAR, EPEAT GOLD, FCC, as per Manufacturer | | | | Height Adjustment | 5.12" / 130 mm | | Rotation Adjustment | 180° (-90 to 90°) | | Swivel Adjustment | 120° (-60 to 60°) | | Tilt Adjustment | -5 to 21° | | Mounting-Hole Pattern | 100 x 100 mm | | Lock Slot | Yes, Kensington | | Dimensions (W x H x D) | 24.2 x 21.3 x 8.5" / 61.5 x 54.1 x 21.6 cm (With Stand)
24.1 x 13.9 x 2.0" / 61.2 x 35.3 x 5.1 cm (Without Stand) | | Weight | 15.2 lb / 6.89 kg (With Stand)
9.3 lb / 4.22 kg (Without Stand) | | | | Package Weight | 20.57 lb | | Box Dimensions (LxWxH) | 28.2 x 18.0 x 10.4" |
