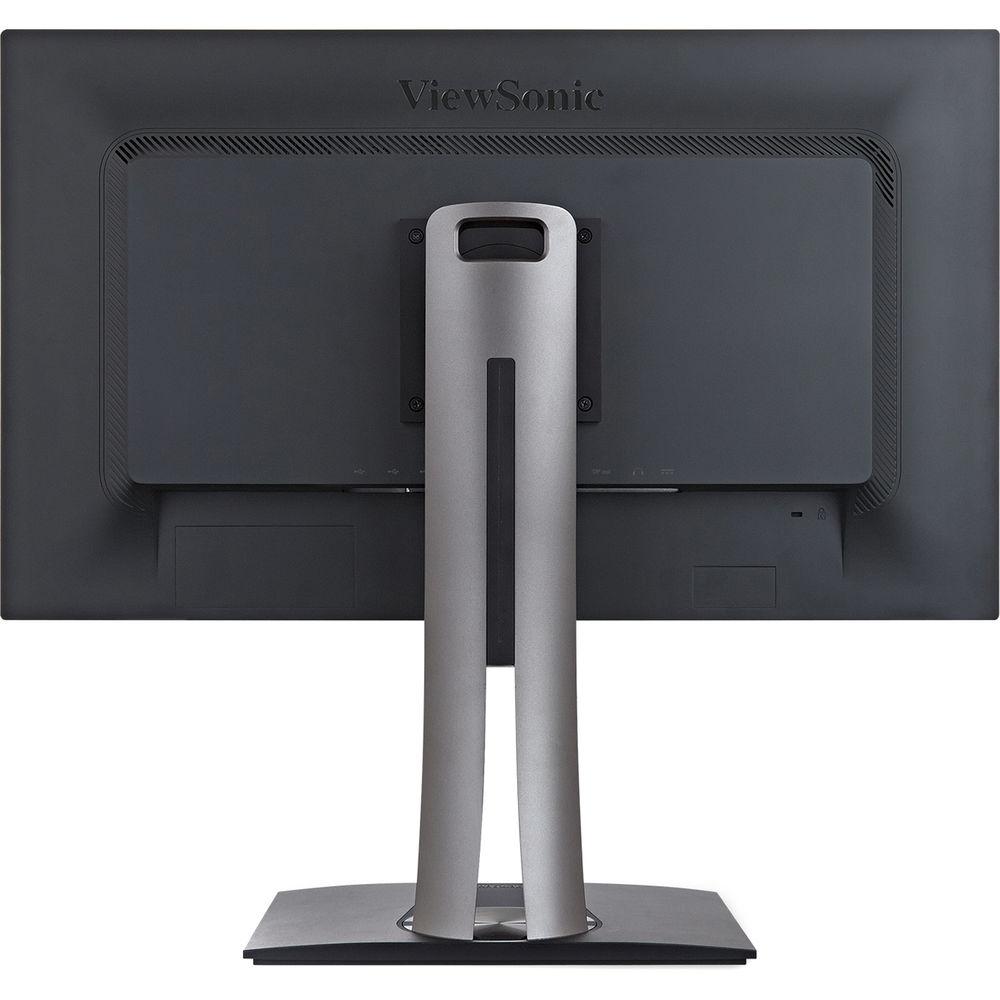

User Manual for ViewSonic VP2771 27" 16:9 SuperClear IPS Monitor Click to enlarge the picture
Contents of the user manual for the ViewSonic VP2771 27" 16:9 SuperClear IPS
- Product category: Computer Monitors ViewSonic
- Brand: ViewSonic
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for ViewSonic Computer Monitors
 |
User manual for the ViewSonic VP2771 27" 16:9 SuperClear IPS contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any ViewSonic product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official ViewSonic user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a ViewSonic product will considerably shorten its lifespan!
|
Product description 10 Factors to Consider When Selecting A Monitor for Video Editing Read More - ViewSonic New VP Series Monitors

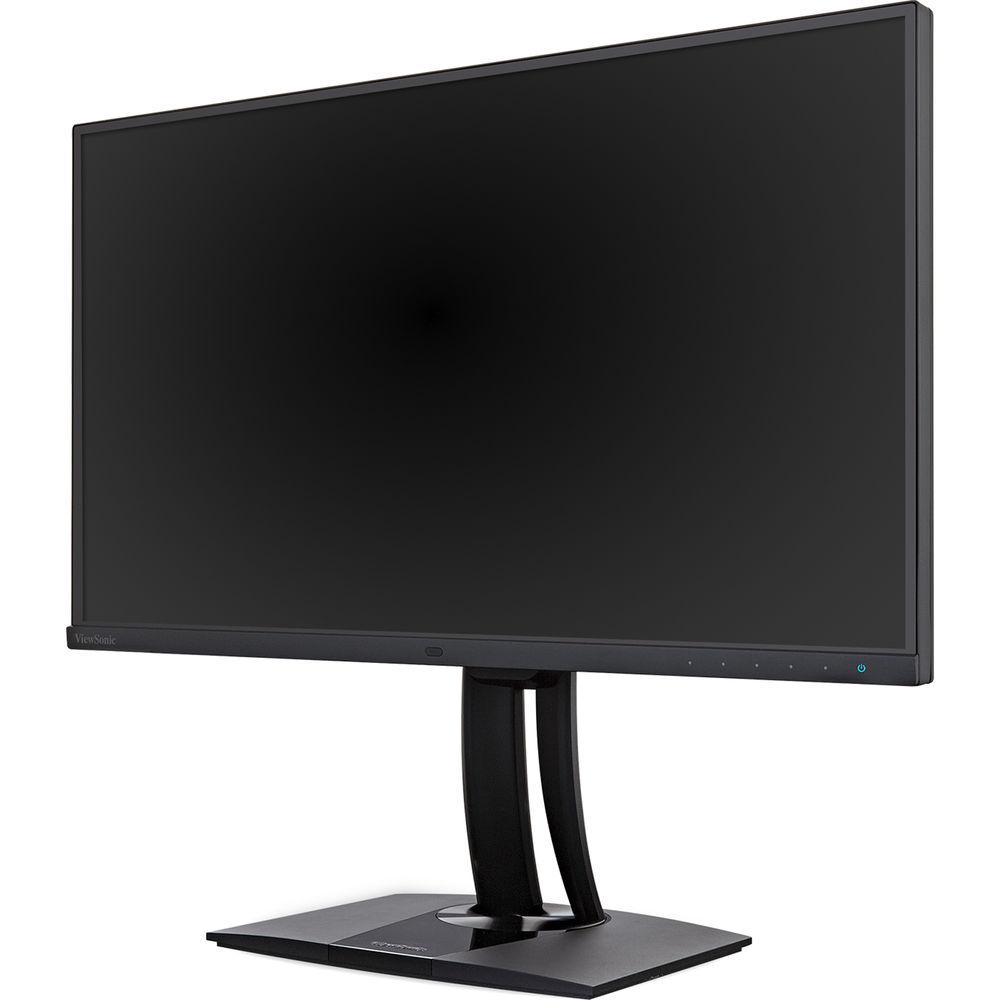

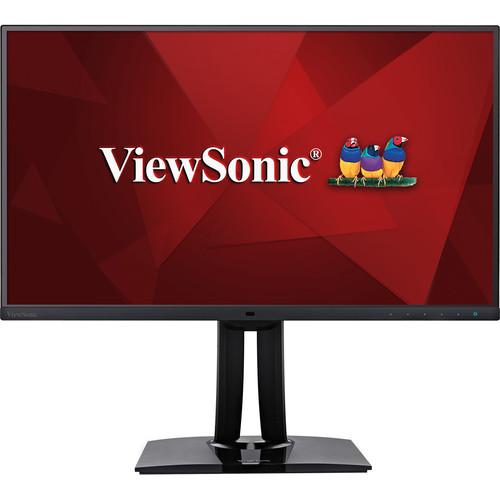

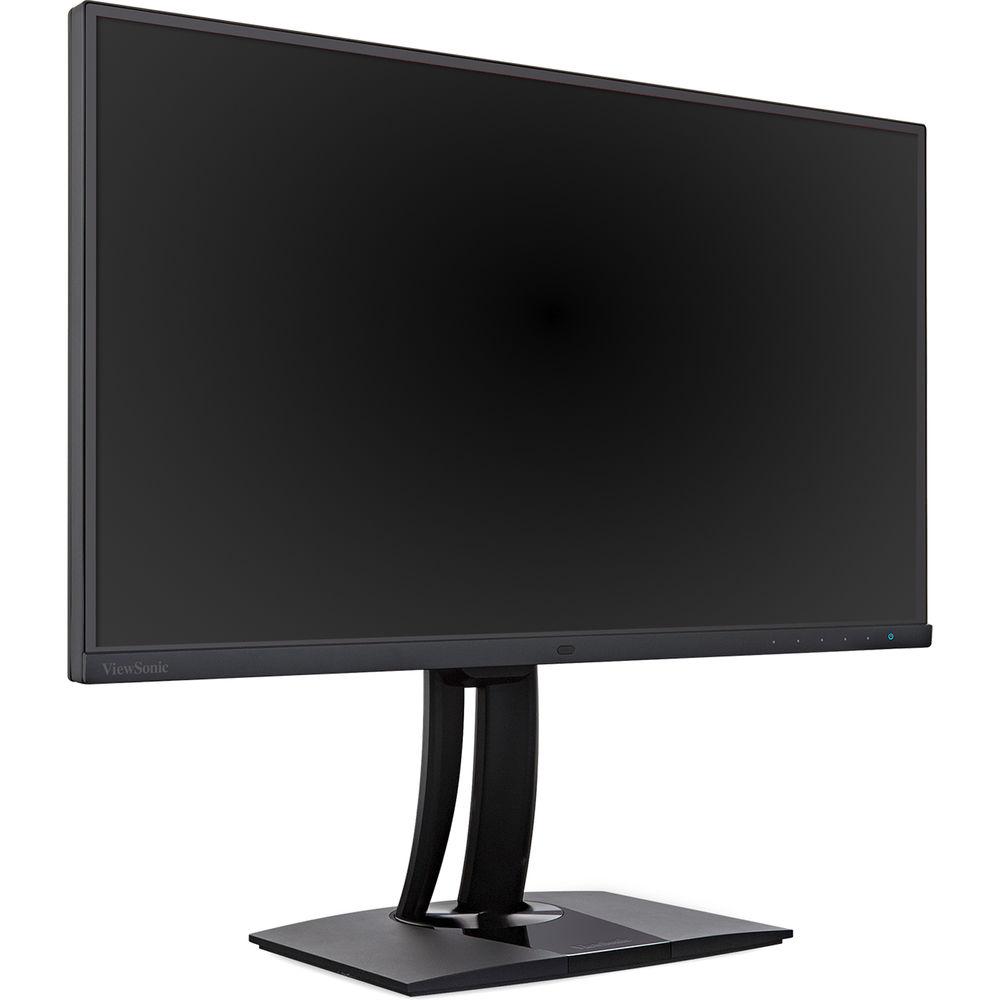

Take advantage of enhanced color accuracy and increased display clarity with the VP2771 27" 16:9 SuperClear IPS Monitor from ViewSonic. The SuperClear IPS (In-Plane Switching) panel boasts 178° horizontal and vertical viewing angles, allowing the screen to be viewed from virtually any angle with no distortion to the image quality. The VP2771 also comes equipped with a 2560 x 1440 resolution, a 1000:1 static contrast ratio, a 350 cd/m² brightness rating, and a 14 ms response time, 7 ms with OD, to provide a more dynamic picture with reduced ghosting.
To ensure colors are rendered properly, this ViewSonic monitor comes factory calibrated to deliver Delta E≤2 value and features integrated color uniformity to ensure chromaticity across the screen. Additionally, the VP2771 comes equipped with a 14-bit 3D look-up table and support for up to 4.39 trillion colors. Setup and configuration of the ViewSonic VP2771 is simple as it comes equipped with HDMI, DisplayPort, and Mini DisplayPort connectors along with a built-in USB hub to connect USB compatible peripherals directly to the monitor. - Versatile Connectivity Supports Daisy Chain

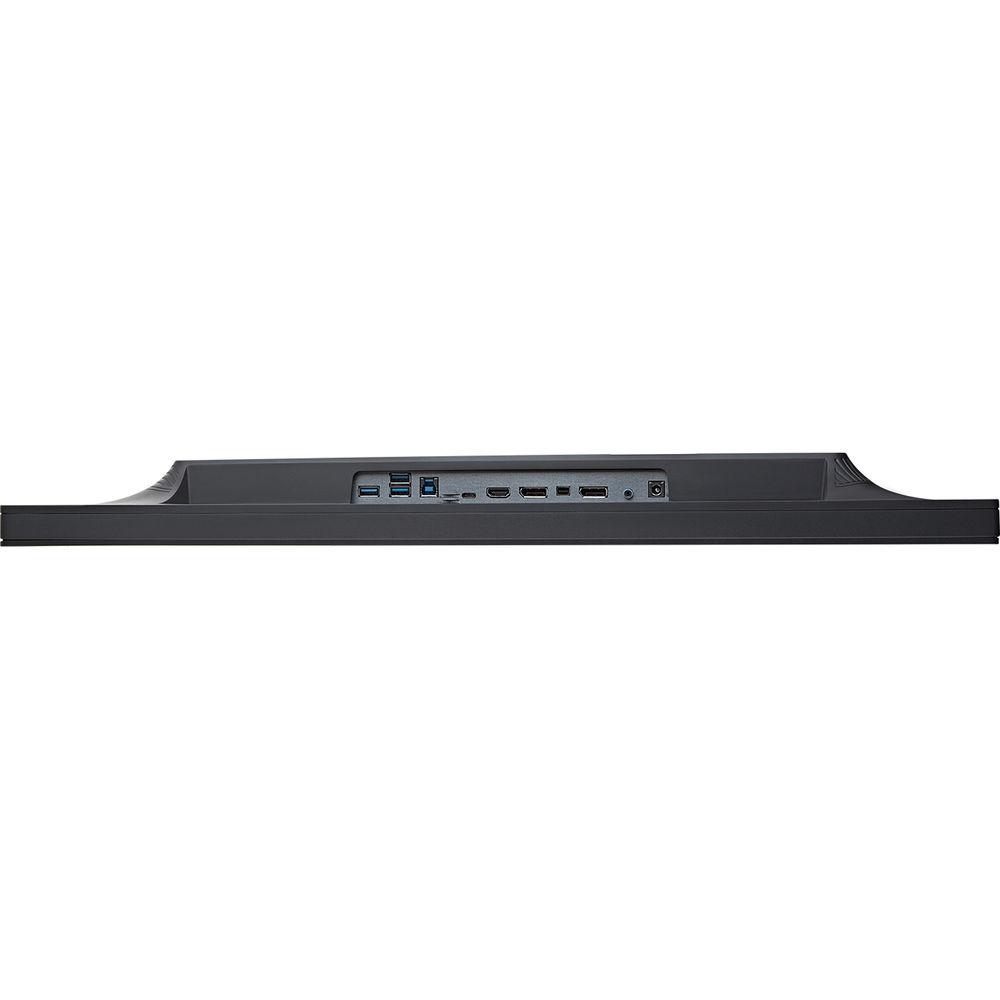

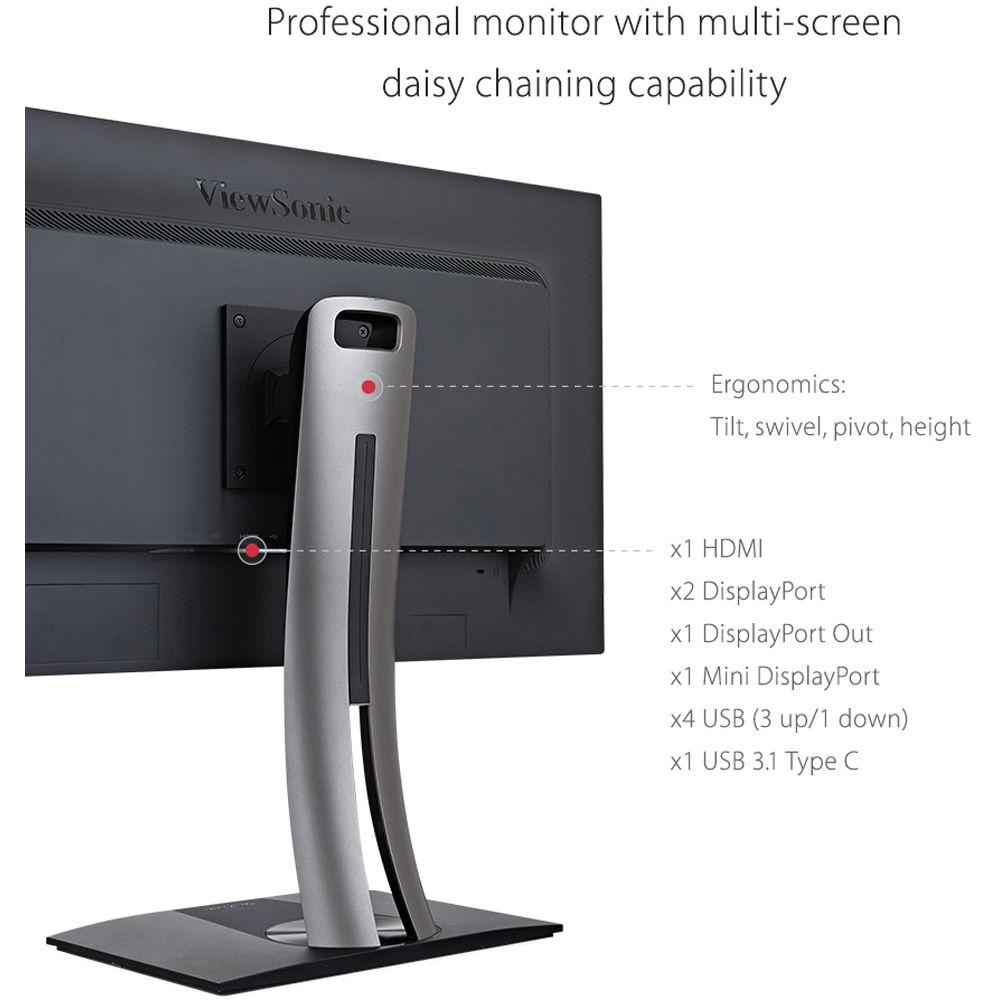

- The ViewSonic VP2771 is equipped with USB 3.1 Type-C, HDMI, USB 3.0, DisplayPort, and Mini DisplayPort inputs for more flexible connections with MacBooks, Ultrabooks, and other devices. It also supports daisy chain connections for better cable management.
- Individual Color Calibration Report
- Every VP2771 is pre-calibrated to deliver Delta E≤2 value and comes with an individual color calibration report from the factory. Each report gives users a readout of the following; sRGB mode, REC709, EBU, SMPTE-C and a uniformity report.
- Color Uniformity
- An integrated color uniformity function ensures consistent chromaticity across the screen, while a 14-bit 3D look-up table generates a smooth palette of 4.39 trillion colors.
- 6-Axis Color Adjustment
- The VP2771 features 6-axis color adjustment functionality, and provides the enhanced color processing capabilities for professional applications. A built-in ambient light sensor and a KVM switch are also included.
- Hardware Calibration Ready
- With the optional ViewSonic Colorbration Kit (sold separately), you can quickly and easily calibrate this monitor to maintain its color accuracy. You'll be able to focus on your work with confidence that the color displayed matches your original image or digital file.
VP2771 hardware calibration function works with X-rite CS-XRi1, I1 Display pro, I1 pro2 calibrator" - Ergonomic Design with Auto Pivot

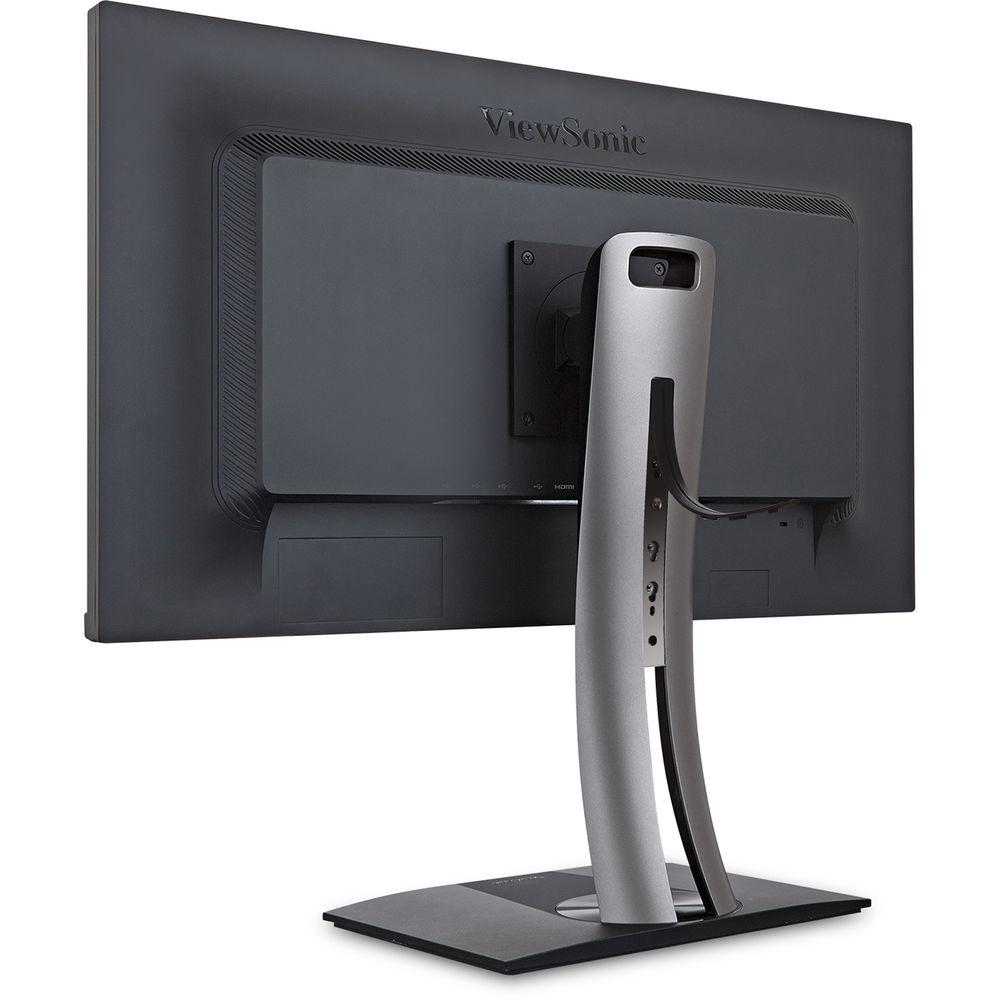

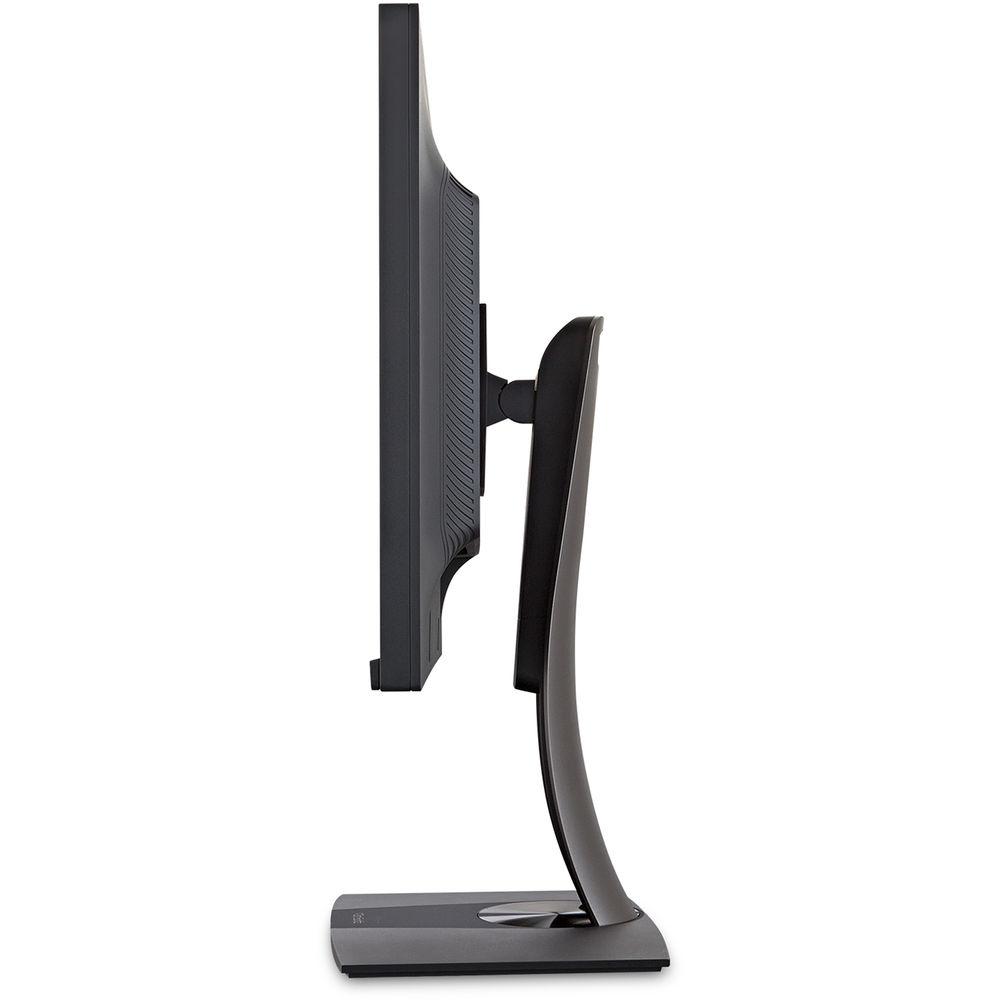

- The VP2771 is designed to provide a full range of adjustments for increased productivity and comfort via swivel, pivot, tilt, and height adjustment options. With built-in G sensor, the screen image can auto pivot when positioned vertically.

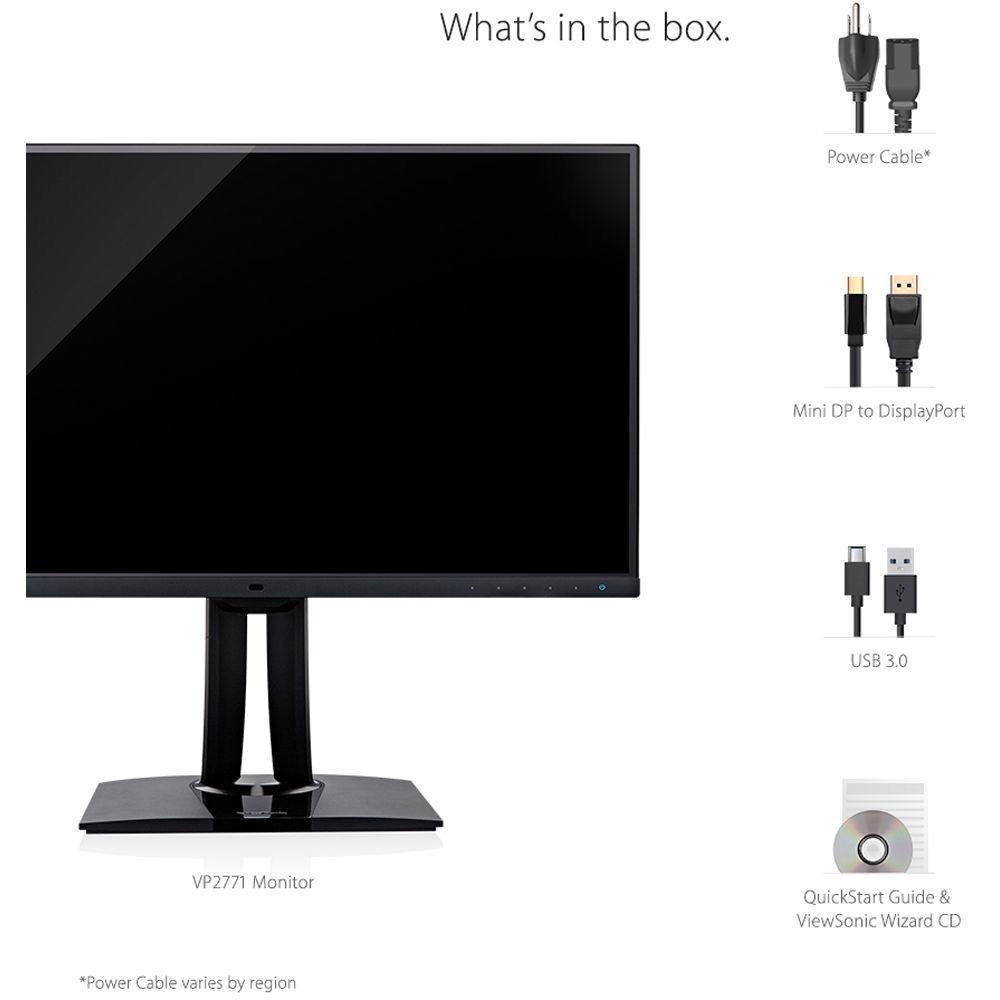

UPC: 766907847710 In the Box ViewSonic VP2771 27" 16:9 SuperClear IPS Monitor Power Adapter Power Cable Mini DisplayPort to DisplayPort Cable USB Upstream Cable Limited 3-Year Warranty More from Manufacturer Table of Contents
|
Upload User Manual
Have you got an user manual for the ViewSonic VP2771 27" 16:9 SuperClear IPS Monitor in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersViewSonic VP2771 Specs | | | Size | 27" | | Panel Type | IPS-Type LCD | | Touchscreen | No | | Resolution | 2560 x 1440 | | Finish | Matte | | Hardness Rating | 3H | | Maximum Brightness | 350 cd/m2 | | Contrast Ratio | 1000:1 | | Dynamic Contrast Ratio | 20,000,000:1 | | Adaptive Sync Technology | None | | Horizontal Frequency | 15 to 90 kHz
15 to 130 kHz | | Vertical Frequency | 24 to 120 Hz | | Response Time | 5 ms | | Viewing Angle | Horizontal: 178°
Vertical: 178° | | Backlight Lifespan | 30,000 Hours | | | | Connectivity | 3 x USB Type-A (USB 3.1 Gen 2)
1 x USB Type-B (USB 3.1 Gen 2)
1 x USB Type-C (USB 3.1 Gen 2)
1 x 3.5 mm Output
1 x HDMI 1.4
1 x DisplayPort
1 x DisplayPort Output

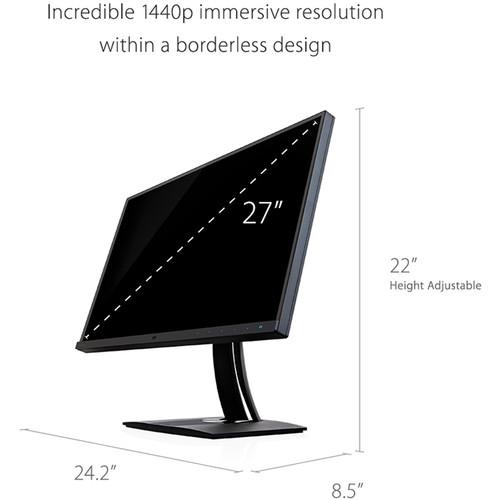

1 x Mini DisplayPort | | Built-In Speakers | None | | | | Power Consumption | 0.3 W (Standby) | | AC Input Power | 100 to 240 VAC, 50 / 60 Hz | | Power Adapter Type | External | | | | Operating Temperature | 32 to 104°F / 0 to 40°C | | Operating Humidity | 20 to 90% | | Certifications | CE, ENERGY STAR, EPEAT GOLD, REACH, RoHS, UL, WEEE, cUL, as per Manufacturer | | | | Height Adjustment | 5.1" / 13 cm | | Rotation Adjustment | 180° (-90 to 90°) | | Swivel Adjustment | 120° (-60 to 60°) | | Tilt Adjustment | -5 to 21° | | Mounting-Hole Pattern | 100 x 100 mm | | Lock Slot | Yes | | Dimensions (W x H x D) | 24.1 x 21.5 x 8.5" / 61.3 x 54.6 x 21.6 cm (With Stand)
24.1 x 14.3 x 2.0" / 61.2 x 36.3 x 5.2 cm (Without Stand) | | Weight | 15 lb / 6.8 kg (With Stand)
9.6 lb / 4.3 kg (Without Stand) | | | | Package Weight | 23.0 lb | | Box Dimensions (LxWxH) | 28.0 x 18.0 x 10.6" |
