User Manual for ViewSonic VP2785-4K 27" 16:9 4K UHD IPS Monitor Click to enlarge the picture
Contents of the user manual for the ViewSonic VP2785-4K 27" 16:9 4K UHD
- Product category: Computer Monitors ViewSonic
- Brand: ViewSonic
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for ViewSonic Computer Monitors
 |
User manual for the ViewSonic VP2785-4K 27" 16:9 4K UHD contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any ViewSonic product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official ViewSonic user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a ViewSonic product will considerably shorten its lifespan!
|

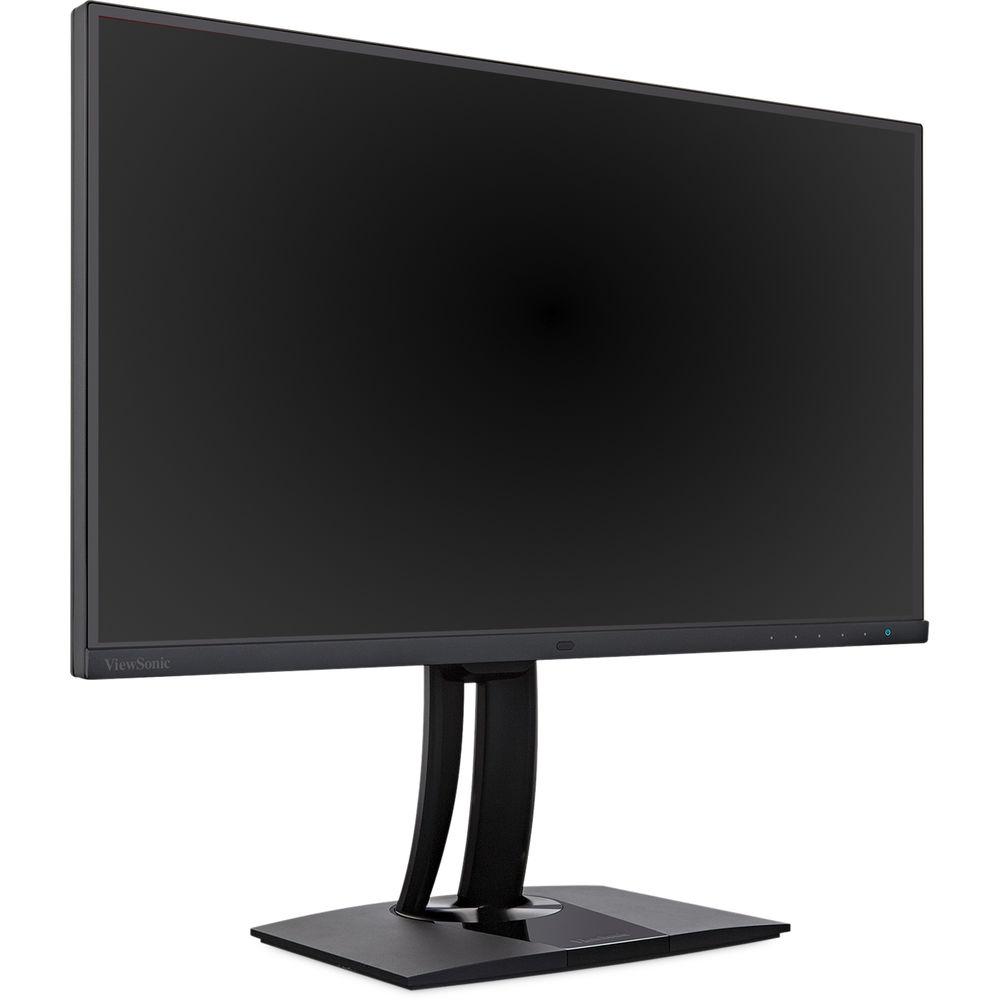

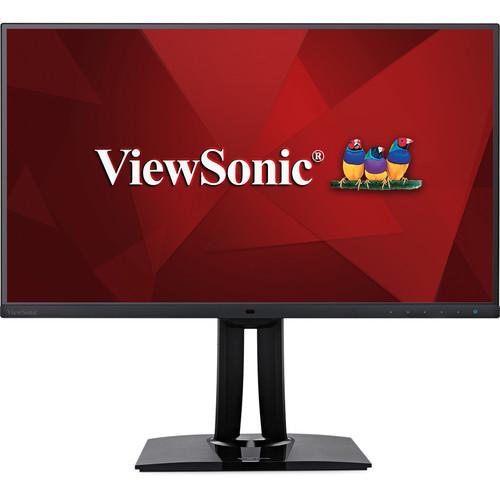

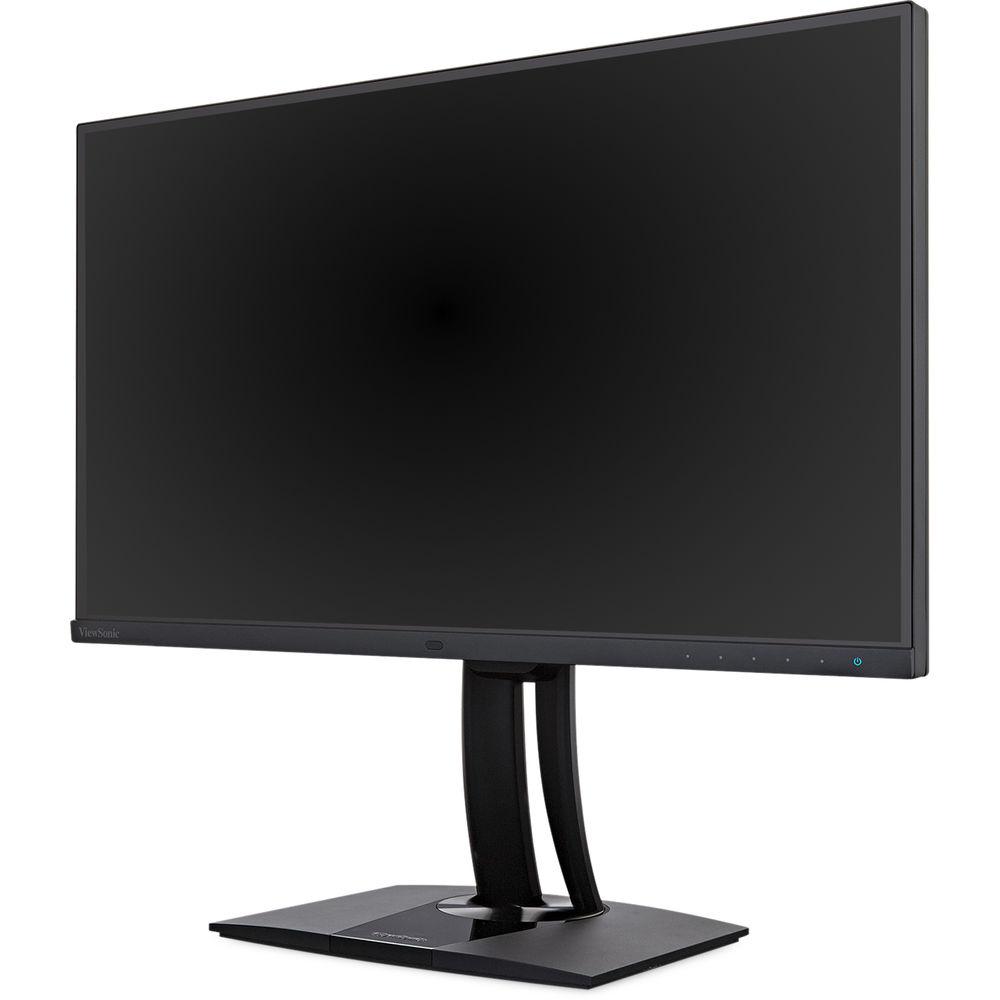

Product description 10 Factors to Consider When Selecting A Monitor for Video Editing Read More Made with the design professional in mind, the VP2785-4K 27" 16:9 4K UHD IPS Monitor from ViewSonic covers 99% of the Adobe RGB color space and 96% of the DCI-P3 color space.
With colors this accurate, the VP2785-4K can be used in for a variety of purposes including photography, graphic design, video editing, and more. In addition to enhanced color accuracy, this ViewSonic monitor also features a 3840 x 2160 UHD 4K resolution, a 1000:1 contrast ratio, a 350 cd/m² brightness rating, and support for up to 1.07 billion colors for a brighter, more dynamic picture quality.

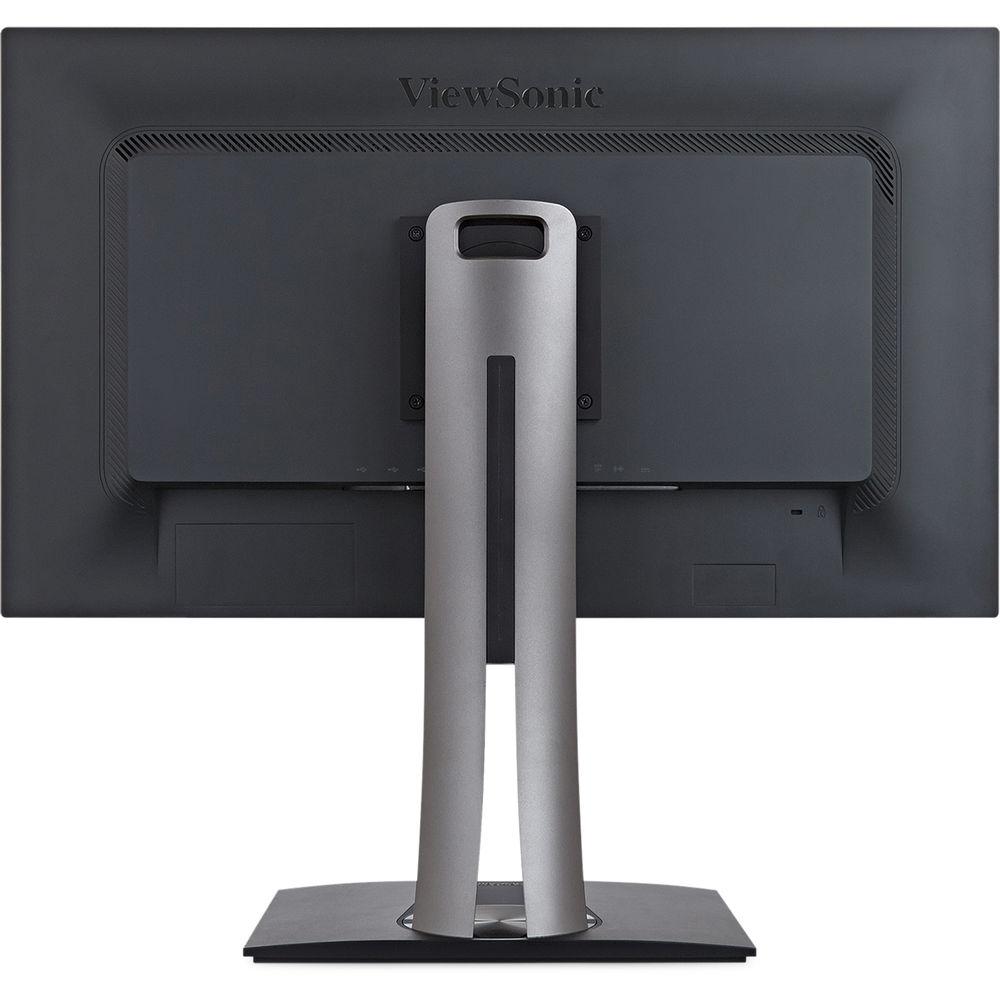

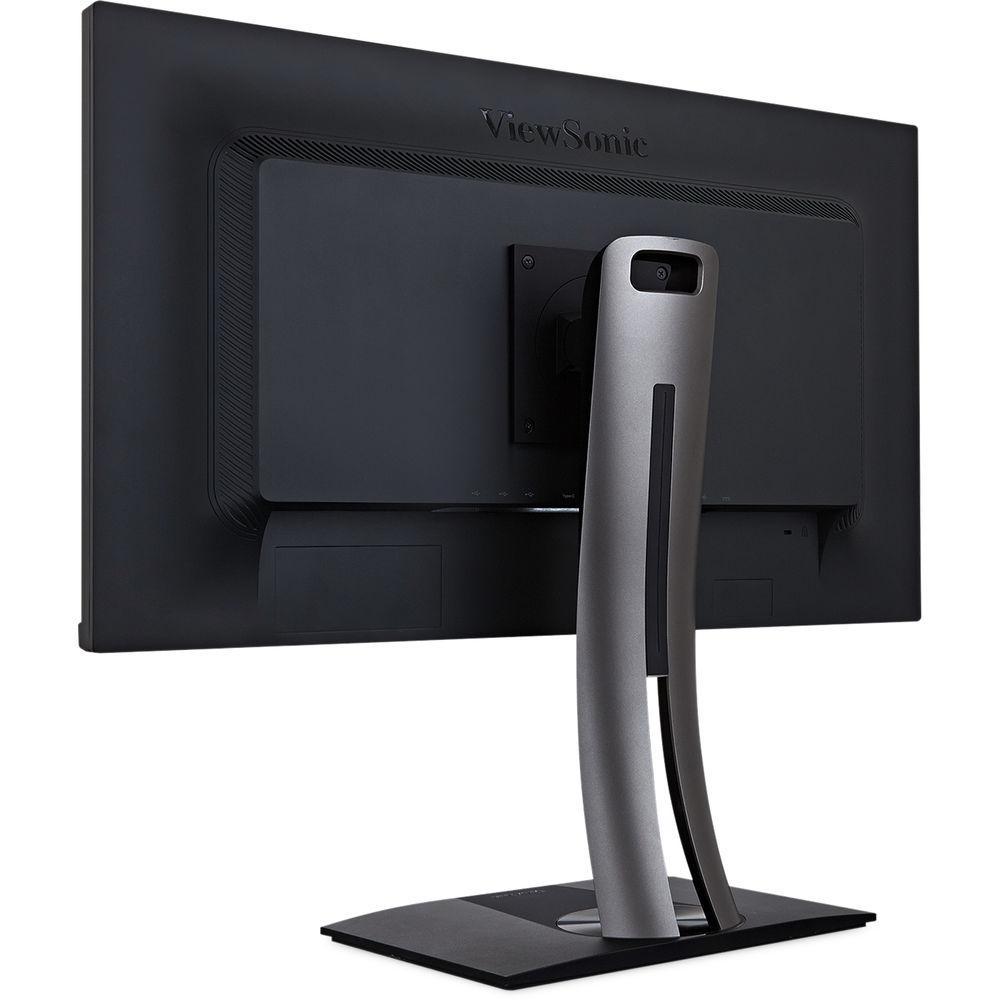

Setup is simple as the VP2785-4K comes equipped with HDMI, DisplayPort, and Mini DisplayPort inputs. Viewers can also connect headphones and other audio devices to the 3.5mm in and out audio jacks. This IPS (In-Plane Switching) monitor can be viewed from the included stand or mounted to the wall using a VESA compatible wall mount to take advantage of the 178° horizontal and vertical viewing angles. - 4K UHD Resolution
- Displaying more than 8 million pixels with a high pixel density, this Ultra HD 3840 x 2160 monitor delivers improved detail and clarity for more lifelike images. In addition, with 4x more pixels than Full HD resolution, this Ultra HD monitor displays more content to maximize productivity.
- HDR10 Content Support
- With the ability to decode HDR10 video signals, this monitor delivers detailed video playback. Colors are brighter and more vivid, and contrast is richer and more detailed. With such image reproduction, this monitor displays videos as they were intended to be seen - giving you a fuller, more immersive viewing experience.
The video source must also have HDR10 content support - Loaded with Connectivity
- In addition to future-proof DisplayPort and HDMI inputs, a powerful USB 3.1 Type-C input delivers charging power, video, and audio over a single connector. What's more, HDCP 2.2 content protection is standard across all ports to provide secure 4K content playback, streaming, and gaming.
- Enhanced Color Accuracy
- Each monitor is factory calibrated to deliver a Delta E<2 value and includes a detailed calibration report for srgb, ebu, smpte-c, rec. 709, dicom-sim color spaces. whether you're photographer shooting in or video editor need of rec 709>
- Improved Screen Uniformity
- Uniformity of color across the screen is critical to achieving the most accurate viewing and editing of images - without it, any work performed on a less-than-accurate monitor will cause incorrect color adjustments. An integrated color uniformity function ensures consistent color and luminance across the screen - meaning you get screen-wide true color from edge to edge, corner to corner, every time.
Color uniformity function works within the following color spaces: sRGB, EBU, SMPTE-C, Rec. 709 - Seamless Viewing Experience
- This panel delivers accurate colors and vivid images - all framed by a barely there, ultra-thin bezel that is suitable for nearly seamless multi-monitor setups.
- Professional Color Processing Capability
- A 14-bit 3D look-up table generates a smooth palette of 4.39 trillion colors for accurate image reproduction crucial in professional applications.
- Versatile Color Adjustability
- The 6-Axis Color Enhancement function lets you individually adjust six primary colors: red, yellow, green, cyan, blue, and magenta. This monitor also features hue and saturation fine tuning. With a completely customizable color profile, you can be sure your creative work gets the color treatment it deserves.
- Built-In Ambient Light & Presence Sensors
- A built-in ambient light sensor helps to adjust screen brightness based on your surroundings. A built-in presence sensor helps to save energy by turning off the backlight when a user is not present in front of the screen.
- Built-In KVM Switch
- If multiple systems or computers are connected to your monitor, a built-in KVM switch allows you to easily switch between a single set of peripheral devices, thus cutting down on clutter and the need for multiple keyboards, mice, etc.
One of the computers must be connected to the monitor via USB 3.1 Type C - Hardware Calibration Ready
- With the optional ViewSonic Colorbration Kit (sold separately), you can quickly and easily calibrate this monitor to maintain its color accuracy. You'll be able to focus on your work with confidence that the color displayed matches your original image or digital file.
VP2785-4K hardware calibration function works with X-rite CS-XRi1, I1 Display pro, I1 pro2 calibrator" - Ergonomic Design with Auto Pivot

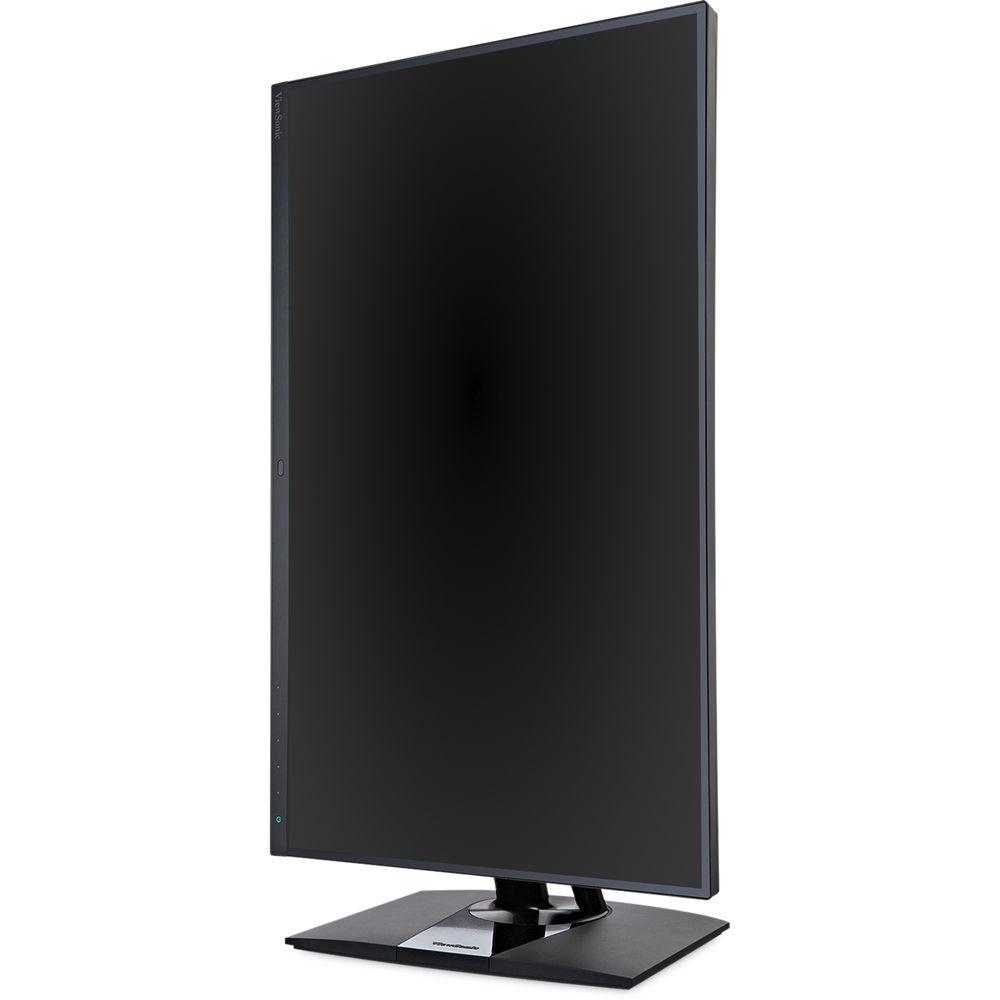

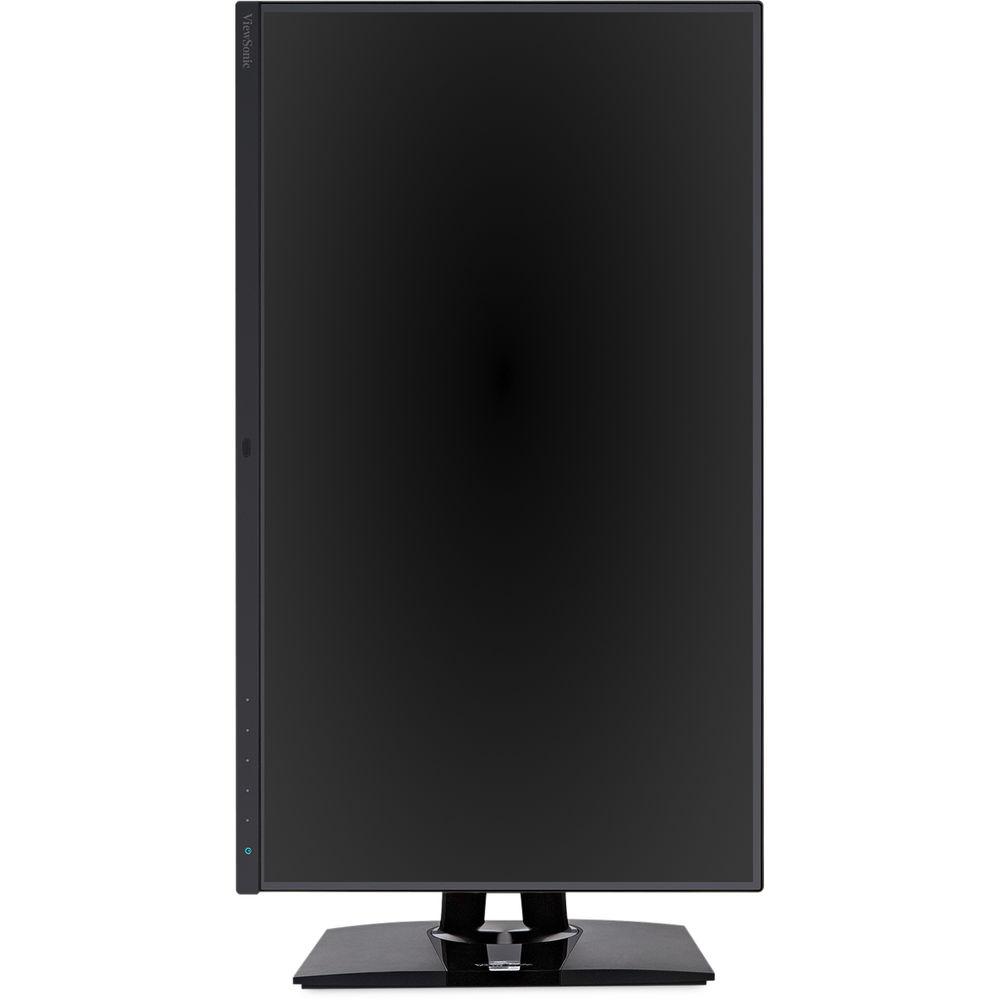

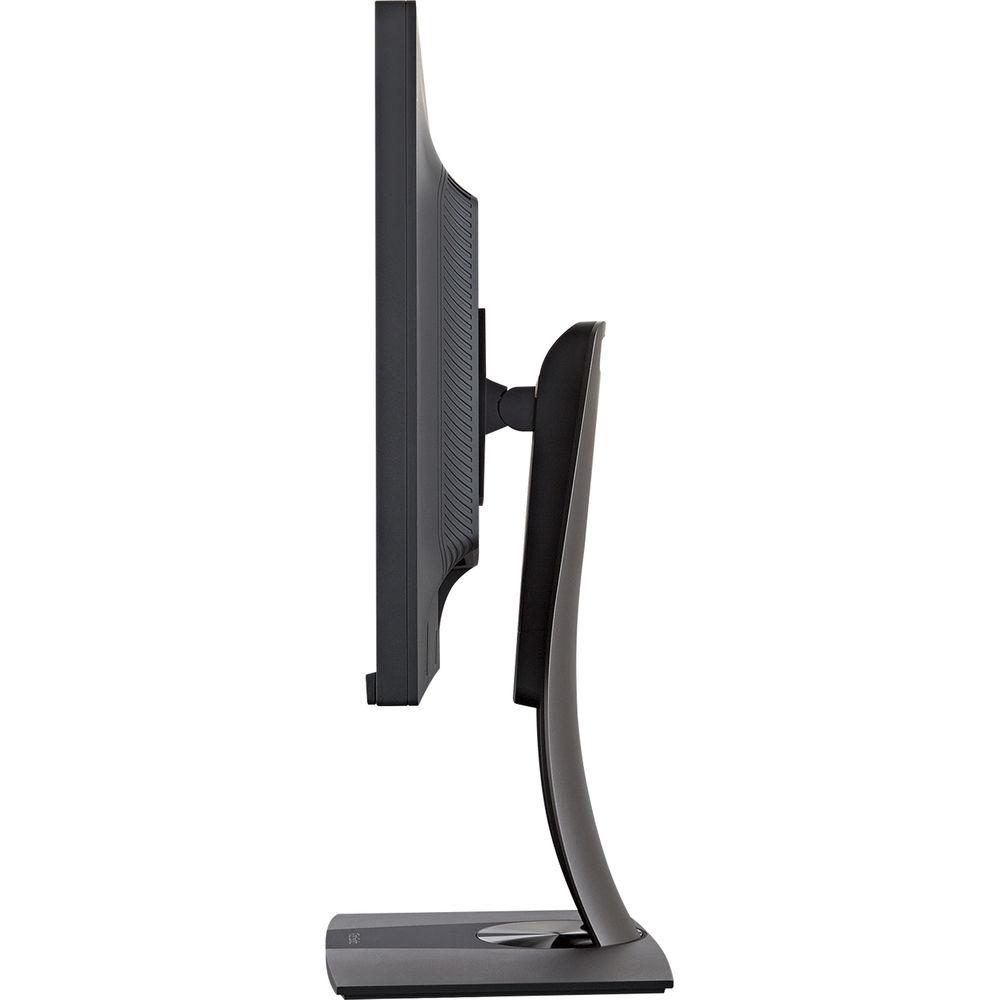

- The VP2785-4K is designed to provide a full range of adjustments for increased productivity and comfort via swivel, pivot, tilt, and height adjustment options. With built-in G sensor, the screen image can auto pivot when positioned vertically.
UPC: 766907902112 In the Box ViewSonic VP2785-4K 27" 16:9 4K UHD IPS Monitor Power Cable Mini DisplayPort to DisplayPort Cable USB 3.0 Upstream Cable Limited 3-Year Warranty User Manual PDF 4.4mbcdxfcruydsdabccsxbfvzybfrx More from Manufacturer Table of Contents
|
Upload User Manual
Have you got an user manual for the ViewSonic VP2785-4K 27" 16:9 4K UHD IPS Monitor in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersViewSonic VP2785-4K Specs | Display Size | 27" (68.6 cm) | | Panel Type | IPS (In-Plane Switching) | | Resolution | 3840 x 2160 | | Contrast Ratio | Static
1000:1
Dynamic
20,000,000:1 | | Light Source | WLED | | Brightness | 350 cd/m² | | Colors | Supported Colors
1.07 billion
Color Space Support
10-bit | | Aspect Ratio | 16:9 | | Response Time | GtG Typical
14 ms
GtG with OD
7 ms | | Viewing Angles (H/V) | 178°/178° | | Backlight Life | 30,000 hours | | Panel Surface | Anti-glare

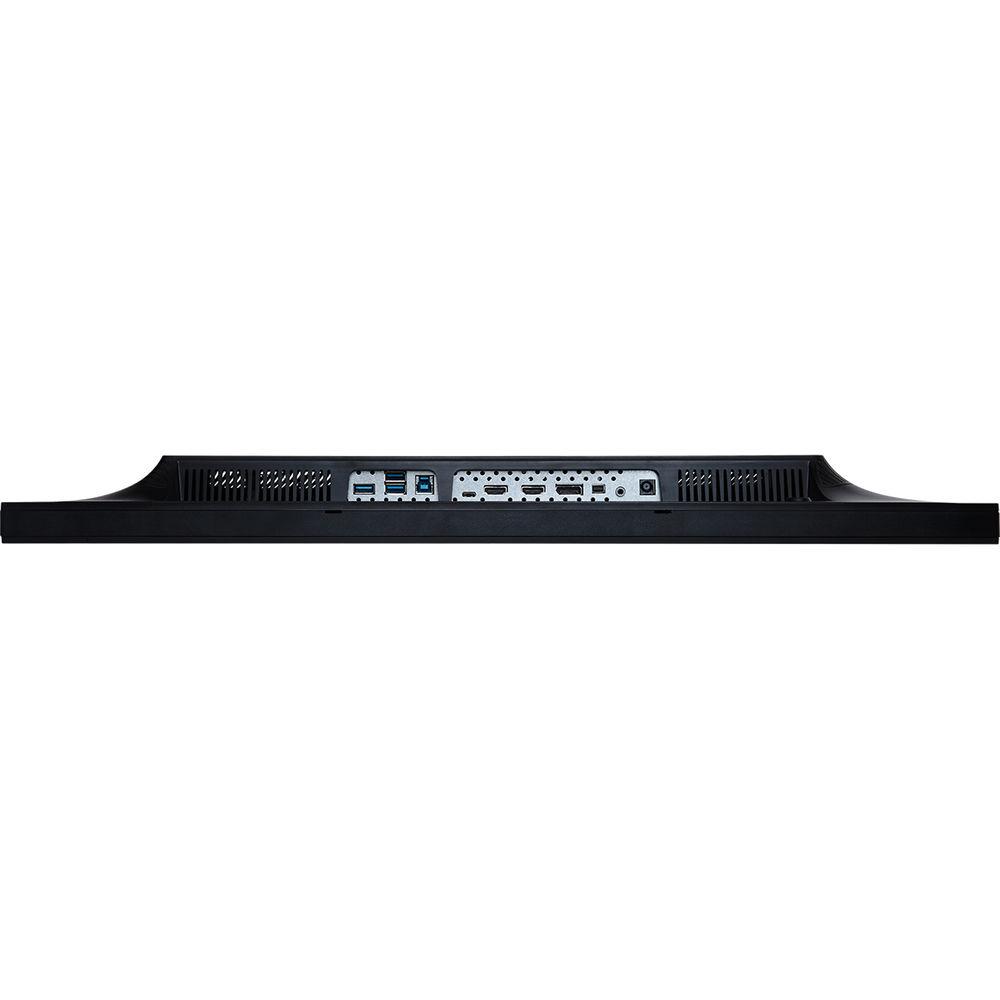

Hard coating (3H) | | Connectors | 3 x USB 3.1 Type-A
1 x USB 3.1 Type-B
1 x USB 3.1 Type-C
1 x 3.5 mm audio out
2 x HDMI 2.0
1 x DisplayPort
1 x Mini DisplayPort | | Power | Voltage
100-240 VAC (universal); 50/60 Hz
Power Consumption
Eco Mode (Conserve): 45 W
Eco Mode (Optimized): 55 W
Typical: 67 W
Maximum: 70 W
Standby: 0.5 W | | Kensington Lock Support | Yes | | Controls | Physical Controls
1, 2, 3, 4, 5, Power
On Screen Display
Auto Image Adjust, Contrast/Brightness, Input Select, Audio Adjust, Color Adjust, Information, Manual Image Adjust, Advanced Image Adjust, Setup Menu, Memory Recall (See user guide for complete OSD functionality) | | Temperature & Humidity | Temperature
32 to 104°F / 0 to 40°C
Humidity (non-condensing)
20 to 90% | | VESA Mount Standard | 100 x 100 mm | | Video Signal | Horizontal Frequency
15~90 kHz
Vertical Frequency
24~120 Hz | | Video Input | Digital Sync
TMDS, PCI-E | | Ergonomics | Height Adjustment
5.12" / 130 mm
Swivel
120°
Pivot
90°
Tilt (Forward/Back)
5 to 21° | | Regulations | UL, cUL, FCC-B, Mexico CoC, EPEAT GOLD, ENERGY STAR, CB, CE, WEEE, RoHS, ErP, REACH | | Dimensions | With Stand
24.11 x 21.48 x 8.46" / 61.24 x 54.55 x 21.50 cm
Without Stand
24.11 x 14.28 x 2.26" / 61.24 x 36.27 x 5.76 cm | | Weight | With Stand
14.12 lb / 6.4 kg
Without Stand
8.65 lb / 3.92 kg | | | | Package Weight | 23.1 lb | | Box Dimensions (LxWxH) | 28.4 x 17.9 x 10.3" |
