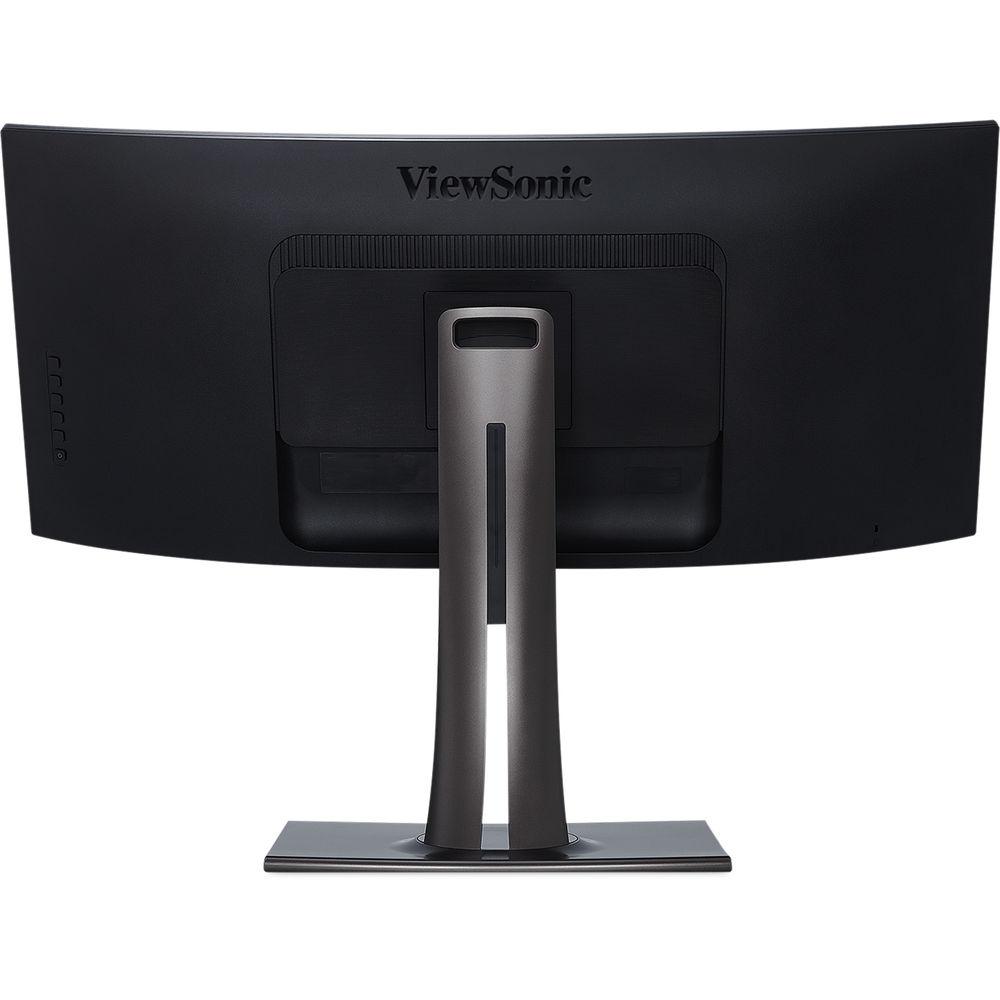

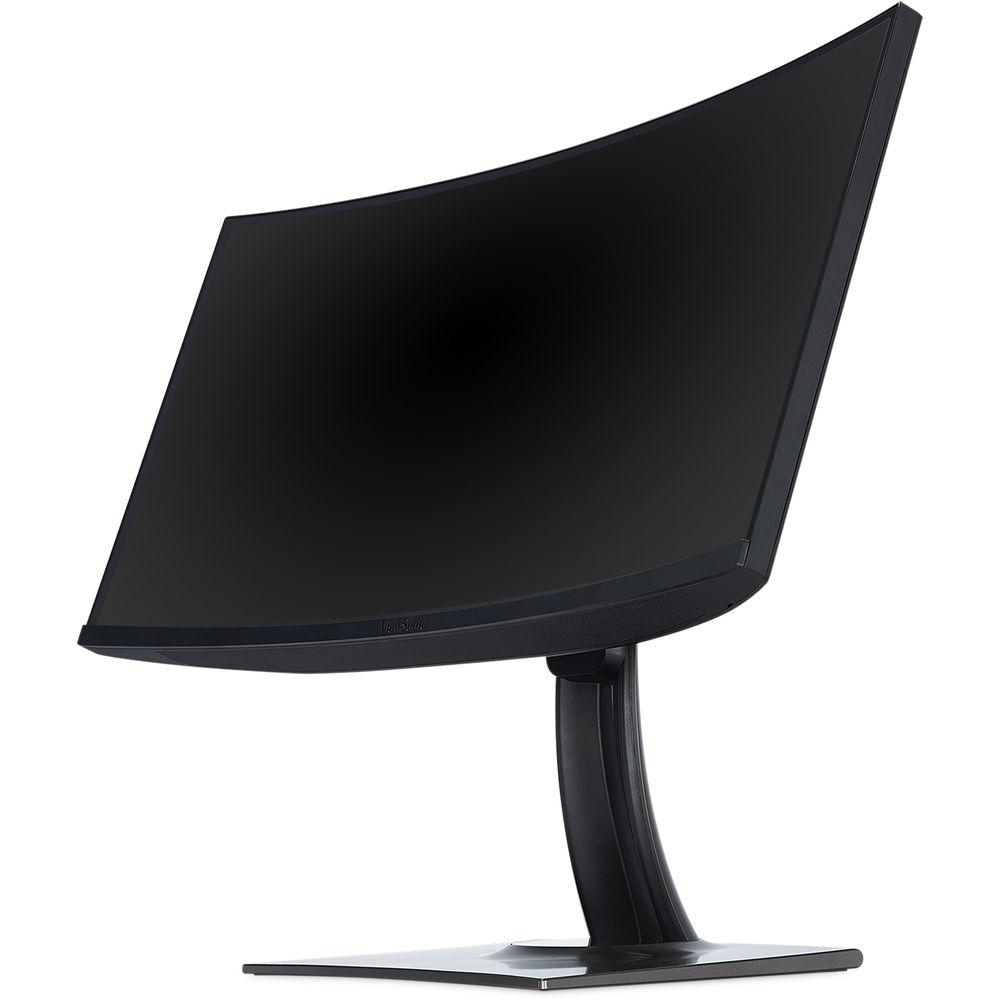

User Manual for ViewSonic VP3881 38" 21:9 WQHD 4K Curved IPS Monitor Click to enlarge the picture
Contents of the user manual for the ViewSonic VP3881 38" 21:9 WQHD 4K
- Product category: Computer Monitors ViewSonic
- Brand: ViewSonic
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for ViewSonic Computer Monitors
 |
User manual for the ViewSonic VP3881 38" 21:9 WQHD 4K contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any ViewSonic product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official ViewSonic user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a ViewSonic product will considerably shorten its lifespan!
|

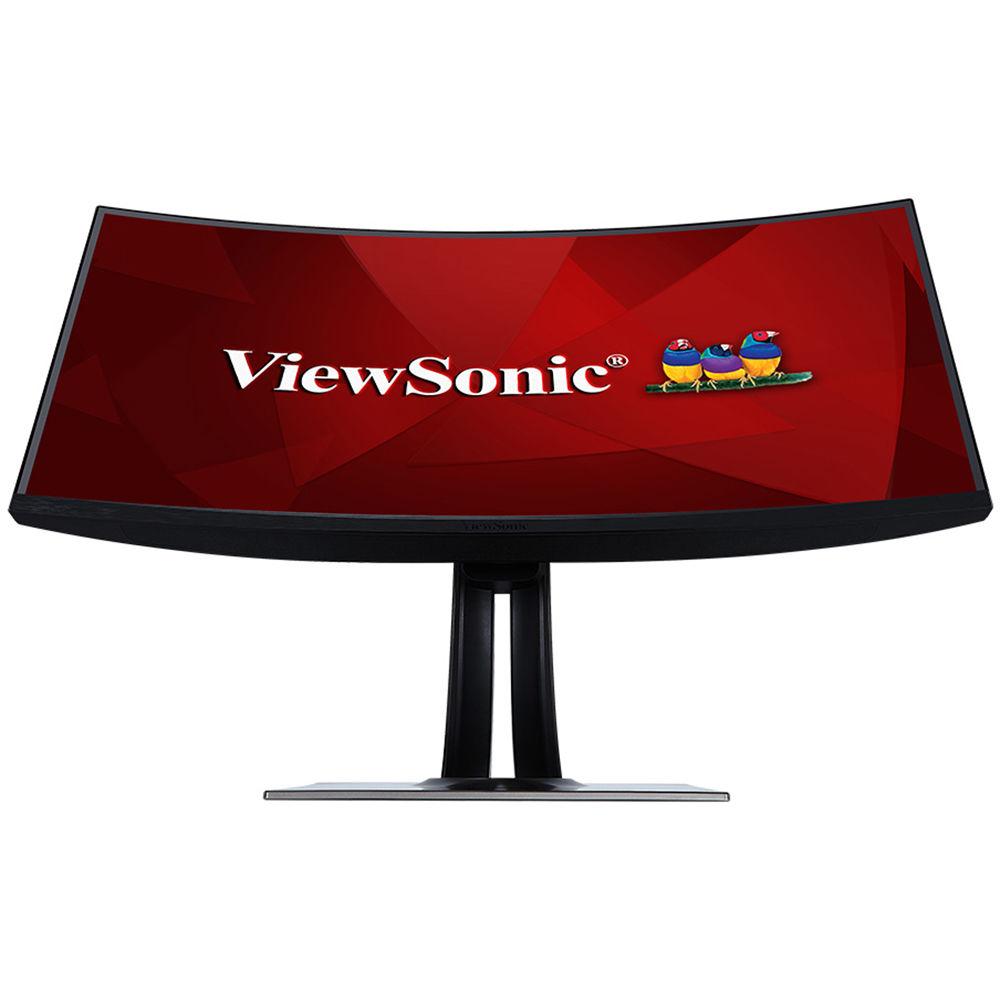

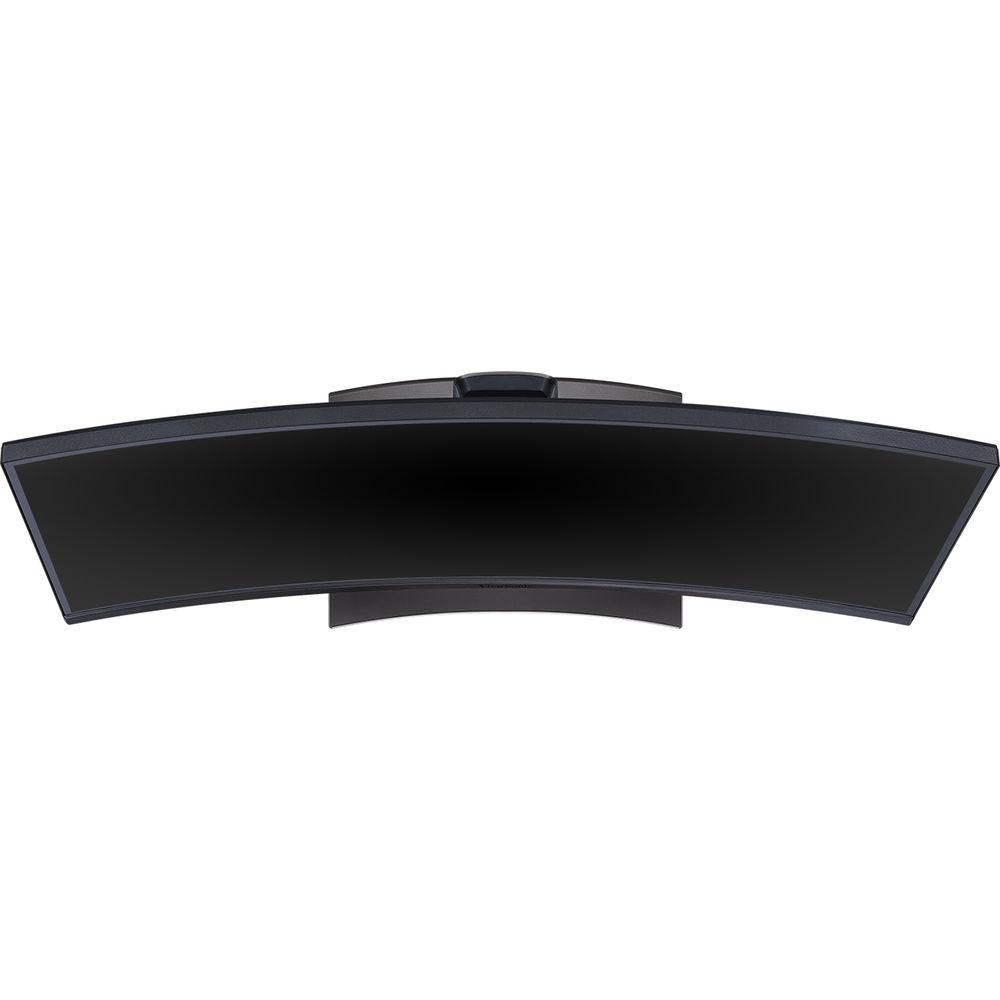

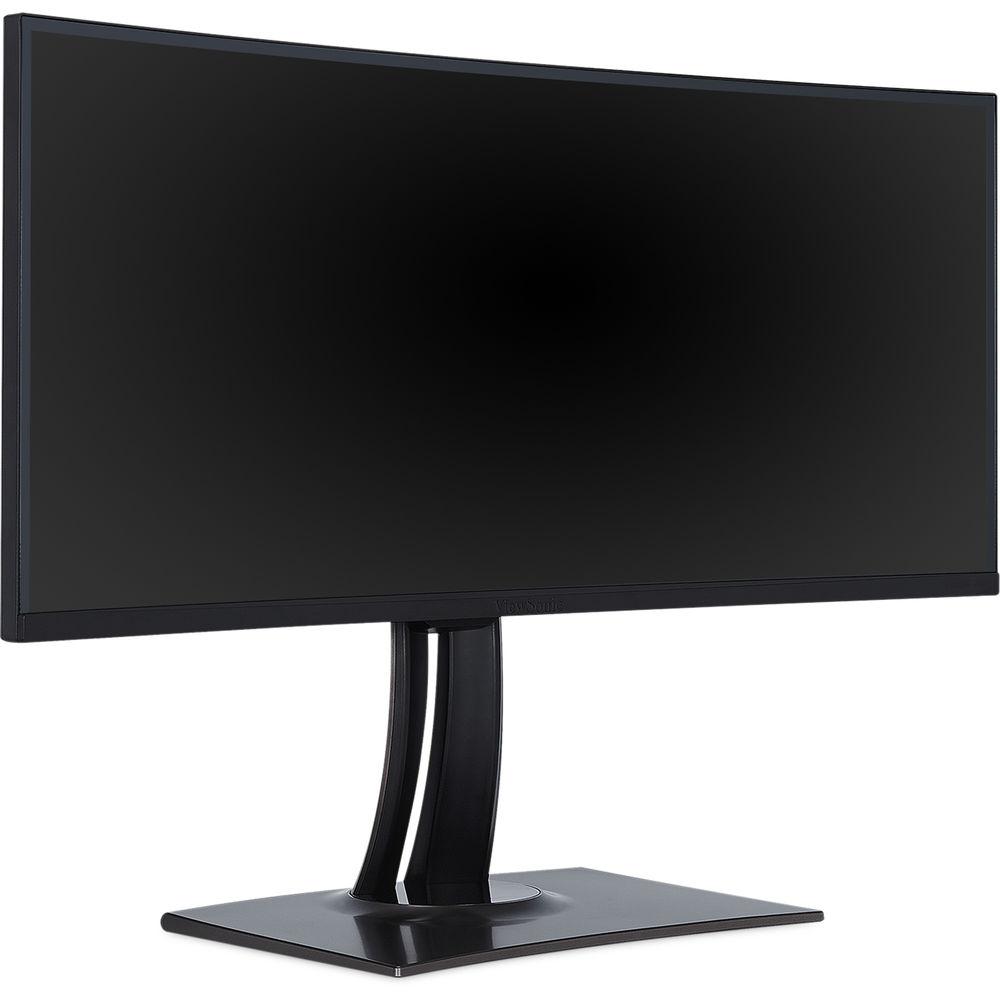

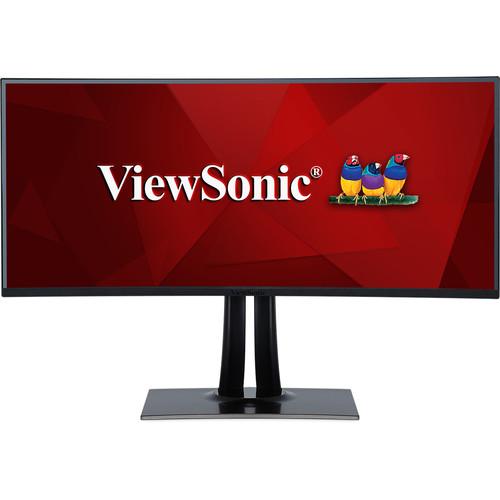

Product description 10 Factors to Consider When Selecting A Monitor for Video Editing Read More This ultra-wide, curved VP3881 38" 21:9 WQHD+ 4K IPS Monitor from ViewSonic offers an enhanced panoramic viewing experience complete with support for HDR10. With HDR10 (High Dynamic Range), viewers get enhanced color representation with brighter and more vivid image reproduction. In addition to HDR10, viewers also benefit from enhanced color accuracy as this monitor comes factory calibrated Delta E<2, along with a calibration report for sRGB, EBU, SMPTE-C, Rec. 709, and DICOM-SIM color spaces. You can also customize your color profile with 6-axis color enhancement while the 14-bit and 3D LUT (Look-Up Tables) support a palette of up to 4.39 trillion colors.
Setup of this ViewSonic monitor is simple as it comes equipped with both HDMI and DisplayPort inputs. In addition to video inputs, this display also comes equipped with a built-in USB hub and 3.5mm audio-in and out jacks. Installation has also been simplified as the VP3881 can be attached to the included stand or mounted using a VESA compatible wall mount to take full advantage of the 178° horizontal and vertical viewing angles. Once installed, viewers can take advantage of the 3840 x 1600 resolution along with 1000:1 contrast ratio, a 300 cd/m² brightness rating, a 7 ms response time, and support for up to 1.07 billion colors. - HDR10 Content Support
- With the ability to decode HDR10 video signals, this monitor delivers detailed video playback. Colors are brighter and more vivid, and contrast is richer and more detailed. With the enhanced image reproduction, this monitor displays videos as they were intended to be seen - giving you a fuller, more immersive viewing experience.
The video source must also have HDR10 content support - See Without Boundaries
- The VP3881 offers a seamless viewing experience in multi-monitor setups without the distraction of boundaries thanks to thin bezels.
- Versatile Connectivity Supports Daisy Chain

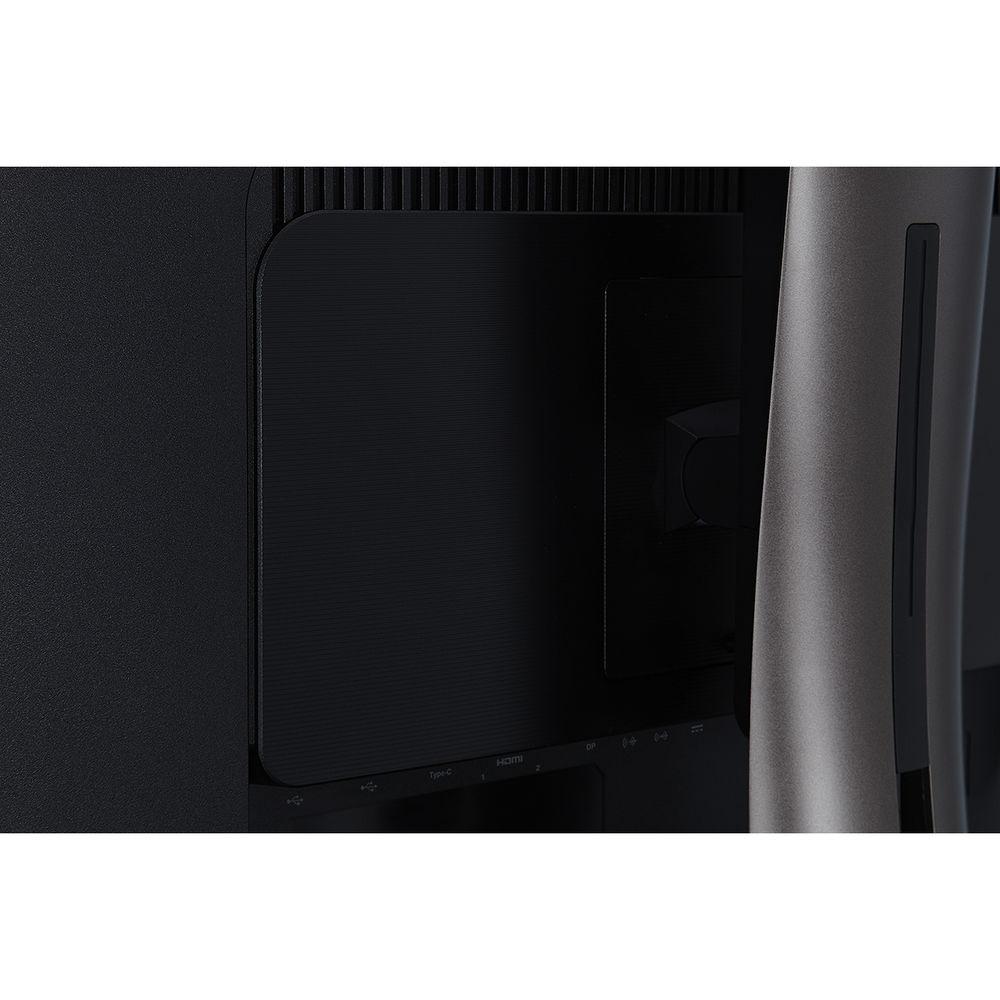

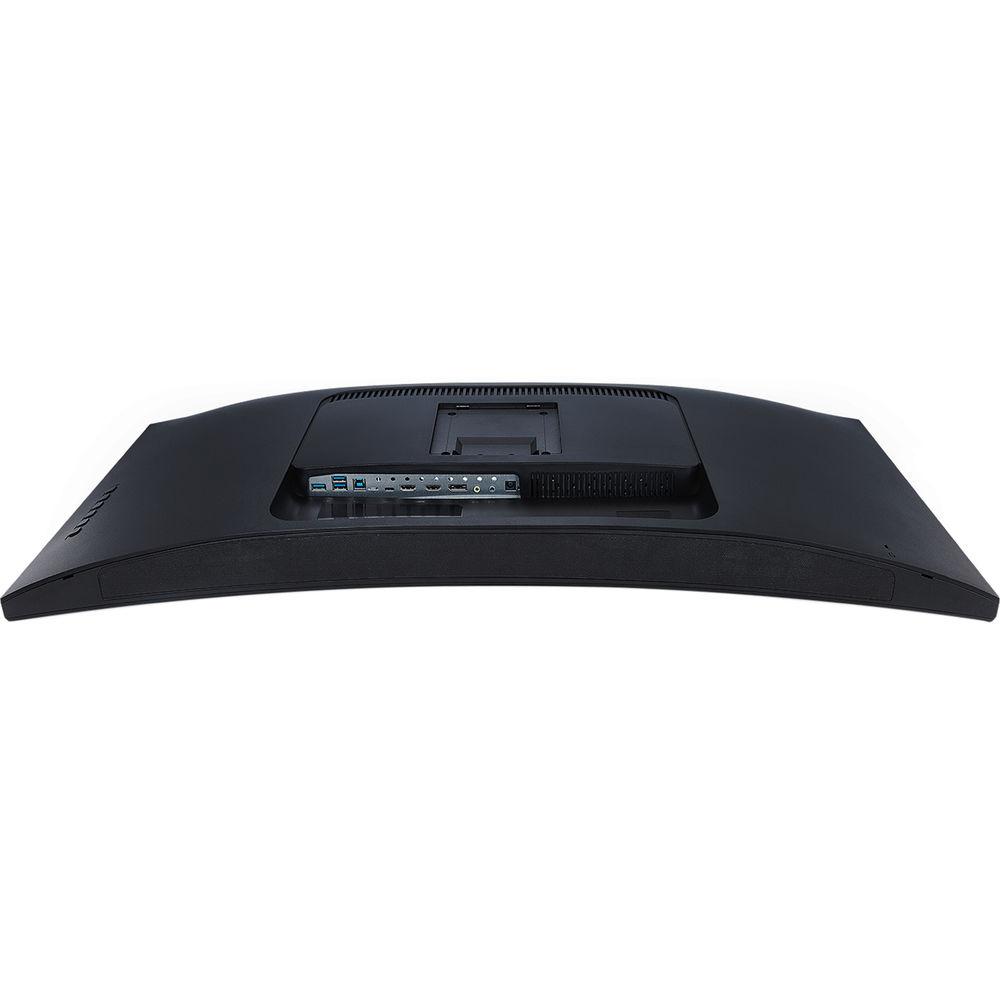

- The VP3881 is equipped with USB 3.1 Type-C, HDMI, USB 3.0, DisplayPort, and Mini DisplayPort inputs for flexible connections with MacBooks, Ultrabooks, and other devices. Daisy chaining connections offers better cable management for a tidy work environment.
- Ultimate Color Accuracy
- Each monitor is factory calibrated to deliver a Delta E<2 value and includes a detailed calibration report for srgb, ebu, smpte-c, rec. 709, dicom-sim color spaces. whether you're photographer shooting in or video editor need of rec 709>
- Professional Color Processing Capability
- The 14-bit LUT and 3D LUT (Look-Up Tables) generate a smooth palette of 4.39 trillion colors for amazingly accurate image reproduction crucial in professional applications.
- Screen Uniformity
- Uniformity of color across the screen is critical to achieving the most accurate viewing and editing of images - without it, any work performed on a less-than-accurate monitor will cause incorrect color adjustments. An integrated color uniformity function ensures consistent color and luminance across the screen - meaning you get screen-wide true color from edge to edge, corner to corner, every time.
Color uniformity function works within the following color spaces: sRGB, EBU, SMPTE-C, Rec. 709 - Versatile Color Adjustability
- 6-Axis Color Enhancement lets you individually adjust six primary colors: red, yellow, green, cyan, blue, and magenta. This monitor also features hue and saturation fine tuning. With a completely customizable color profile, you can be sure your creative work gets the color treatment it deserves.
- Hardware Calibration Ready
- With the optional ViewSonic Colorbration Kit (sold separately), you can quickly and easily calibrate this monitor to maintain its color accuracy. You'll be able to focus on your work with complete confidence that the color displayed perfectly matches your original image or digital file.
- ViewSonic ViewSplit
- ViewSonic's exclusive ViewSplit software allows you to create an ideal and customized working environment on your ViewSonic screen. Just choose from a selection of pre-defined templates, or create your own customized layout, and ViewSplit will divide your screen into multiple viewing windows. By allowing you to simultaneously view and work on multiple applications, ViewSplit boosts productivity and multitasking.
- Ergonomic Design with Auto Pivot

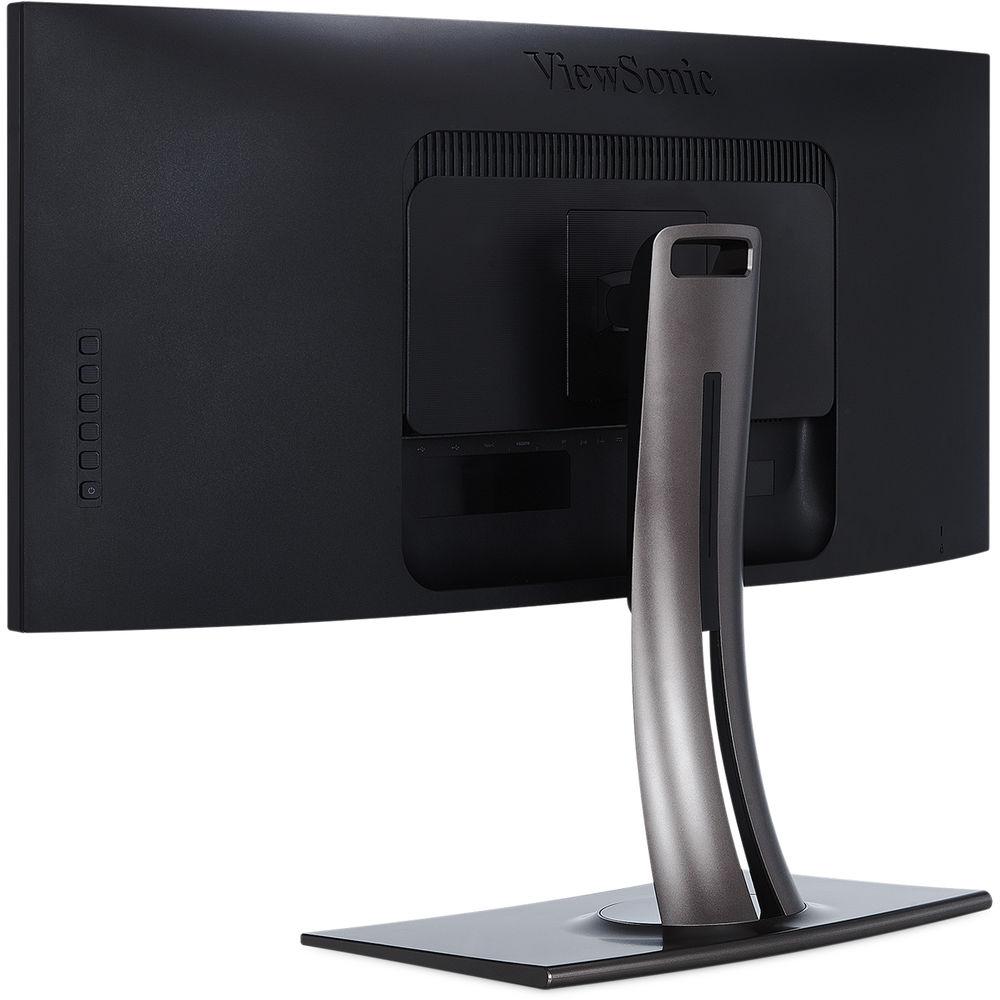

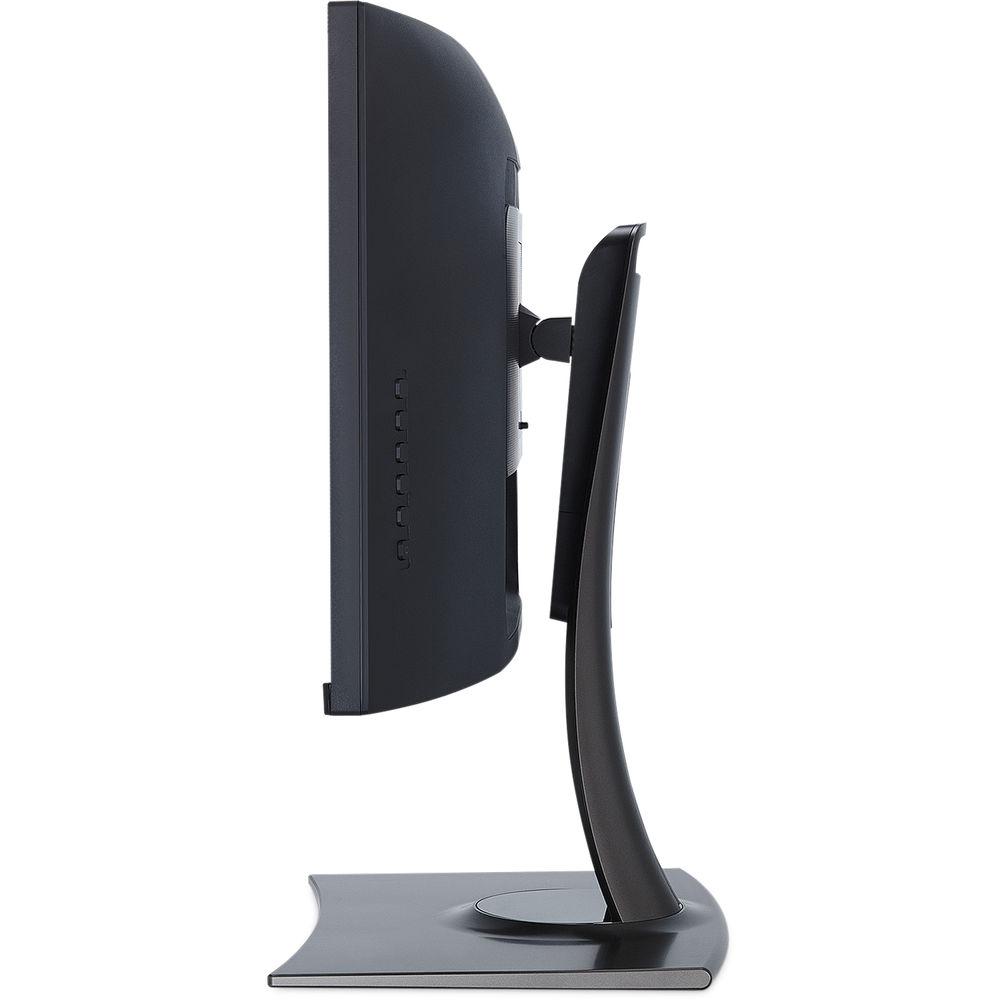

- The VP3881 is designed to provide a full range of adjustments for increased productivity and comfort via swivel, tilt, and height adjustment options.
UPC: 766907916317 In the Box ViewSonic VP3881 38" 21:9 WQHD+ 4K Curved IPS Monitor AC/DC Adapter Power Cable DisplayPort to DisplayPort Cable HDMI 2.0 Cable USB 3.0 Type-C Cable USB 3.0 Upstream Cable Audio Cable Limited 3-Year Warranty User Manual PDF 3.6mb More from Manufacturer Table of Contents
|
Upload User Manual
Have you got an user manual for the ViewSonic VP3881 38" 21:9 WQHD 4K Curved IPS Monitor in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersViewSonic VP3881 Specs | Display Size | 38" / 96.52 cm | | Viewable Area | 37.25" / 94.62 cm | | Panel Type | IPS (In-Plane Switching) | | Resolution | 3840 x 1600 | | Contrast Ratio | Static: 1000:1
Dynamic: 20,000,000:1 | | Light Source | WLED | | Brightness | 300 cd/m² | | Colors | Colors Supported
1.07 billion
Color Space Support
10-bit (8-bit+A-FRC) | | Aspect Ratio | 21:9 | | Response Time | Typical (GtG)
14 ms
GtG (w/OD)
7 ms | | Viewing Angles (H/V) | 178°/178° | | Backlight Life | 30,000 hours | | Panel Surface | Anti-glare, hard coating (3H) | | Connectors | 3 x USB 3.0 Type-A
1 x USB 3.0 Type-B
1 x USB 3.1 Type-C
1 x 3.5 mm audio-in
1 x 3.5 mm audio-out
2 x HDMI 2.0
1 x DisplayPort | | Audio | 2 x 5 W internal speakers
Class D amplifier | | Power | Voltage
100-240 VAC (universal), 50/60 Hz
Power Consumption
Eco Mode (Conserve): 132 W
Eco Mode (Optimized): 143 W
Typical: 155 W
Maximum: 170 W
Standby: 0.3 W | | Controls | Physical Controls
1, 2, 3, 4, 5, Power [6]
On Screen Display
Main menu (refer to OSD table), short cut key (refer to short cuts function) | | Temperature & Humidity | Operating Temperature
32 to 104°F / 0 to 40°C
Operating Humidity
20 to 90% (non-condensing) | | VESA Mount Standard | 100 x 100 mm | | Video Signal | Horizontal Frequency
15~135 kHz
Vertical Frequency
24~75 Hz | | Video Input | Digital Sync
Mini-Packet (DisplayPort 1.4, USB Type-C), TMDS for HDMI 2.0 | | Ergonomics | Height Adjustment
5.12" / 130 mm
Swivel
120°
Tilt (Forward / Back)
-1 to 21° | | Regulations | cTUVus, FCC-B, Mexico CoC, EPEAT GOLD, ENERGY STAR, Mexico Energy, CB, CE, WEEE, RoHS, ErP, REACH | | Dimensions | With Stand
35.28 x 24.77 x 11.76" / 89.6 x 62.92 x 29.88 cm
Without Stand
35.28 x 15.67 x 4.06" / 89.6 x 39.8 x 10.31 cm | | Weight | With Stand
27.98 lb / 12.69 kg
Without Stand
17.57 lb / 7.97 kg | | | | Package Weight | 42.5 lb | | Box Dimensions (LxWxH) | 40.0 x 23.0 x 14.0" |
