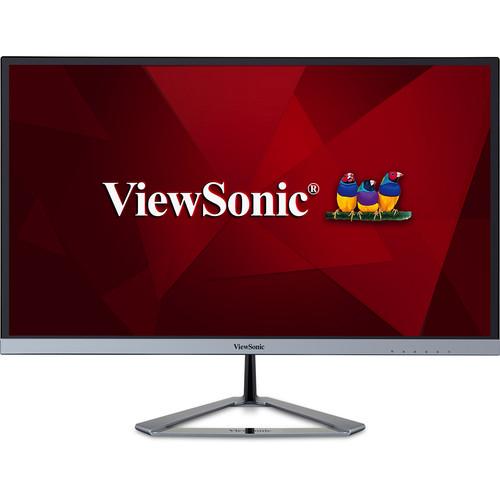

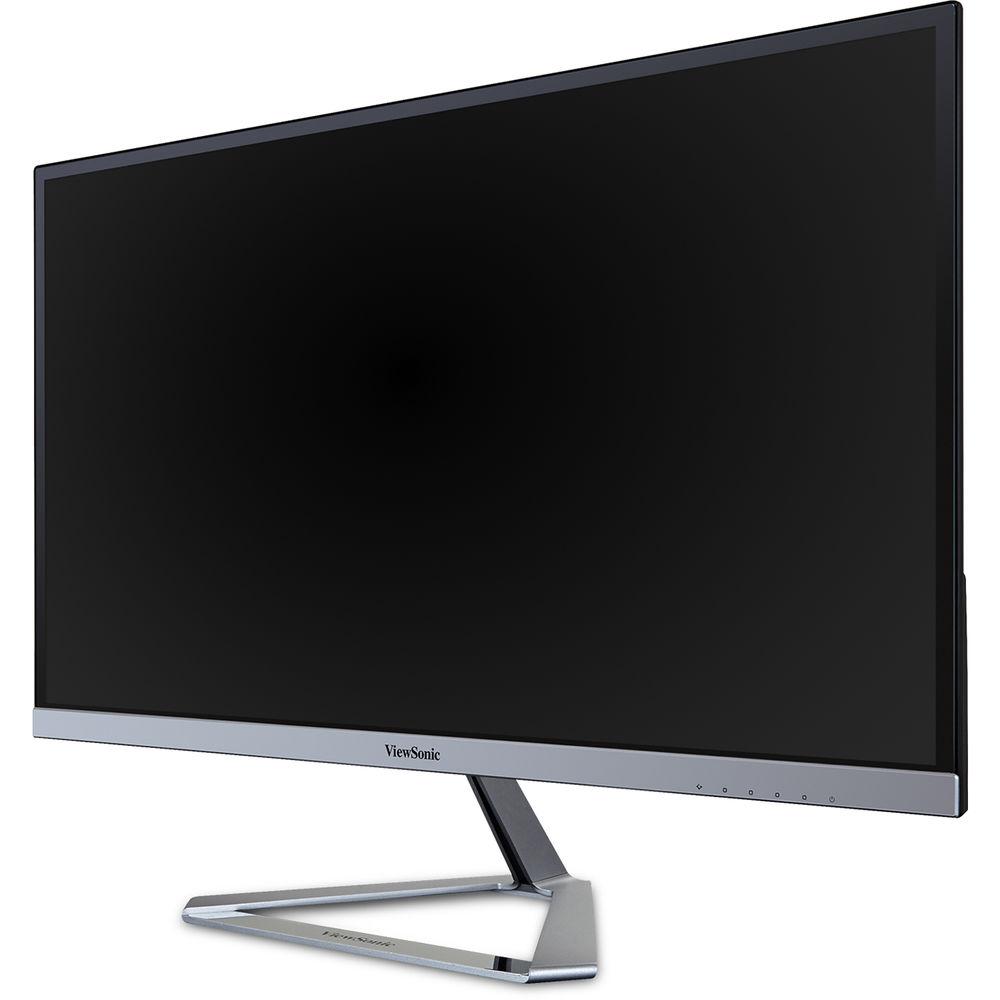

User Manual for ViewSonic VX2276SMHD 21.5" 16:9 IPS Monitor Click to enlarge the picture
Contents of the user manual for the ViewSonic VX2276SMHD 21.5" 16:9 IPS Monitor
- Product category: Computer Monitors ViewSonic
- Brand: ViewSonic
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for ViewSonic Computer Monitors
 |
User manual for the ViewSonic VX2276SMHD 21.5" 16:9 IPS Monitor contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any ViewSonic product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official ViewSonic user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a ViewSonic product will considerably shorten its lifespan!
|

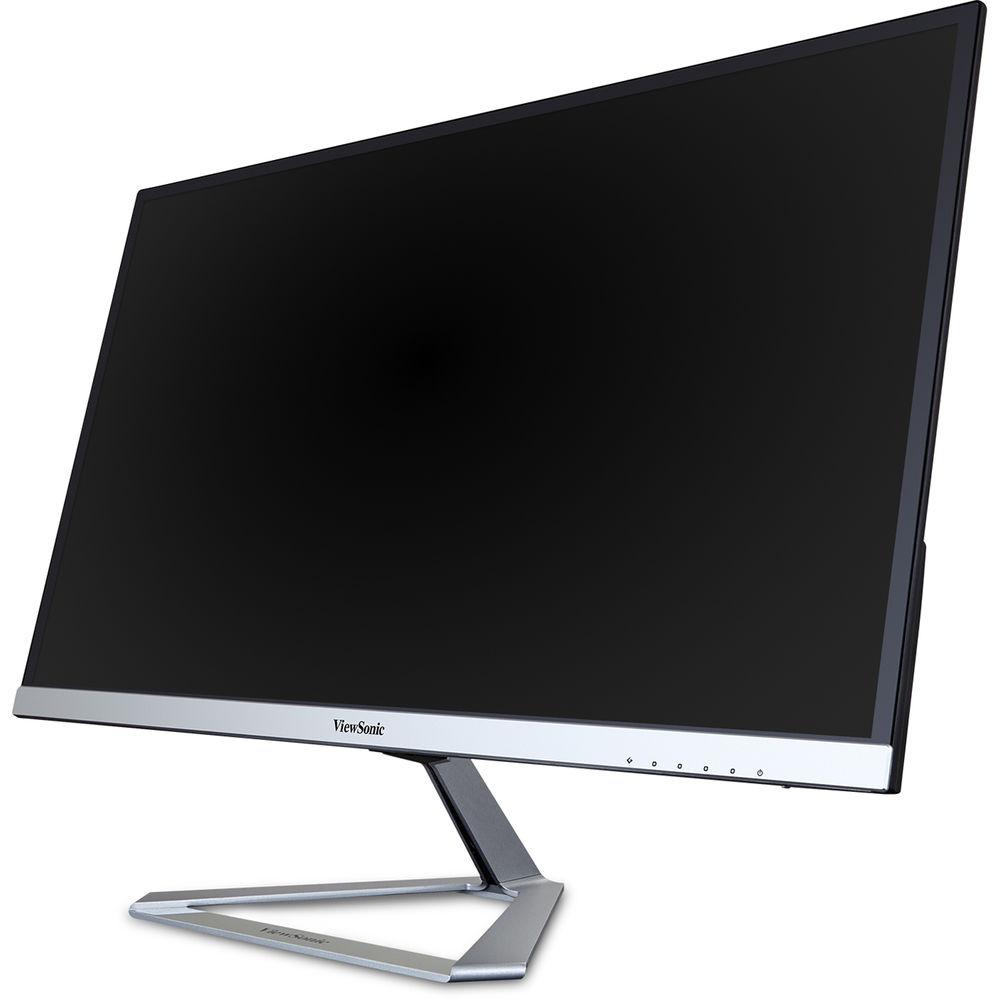

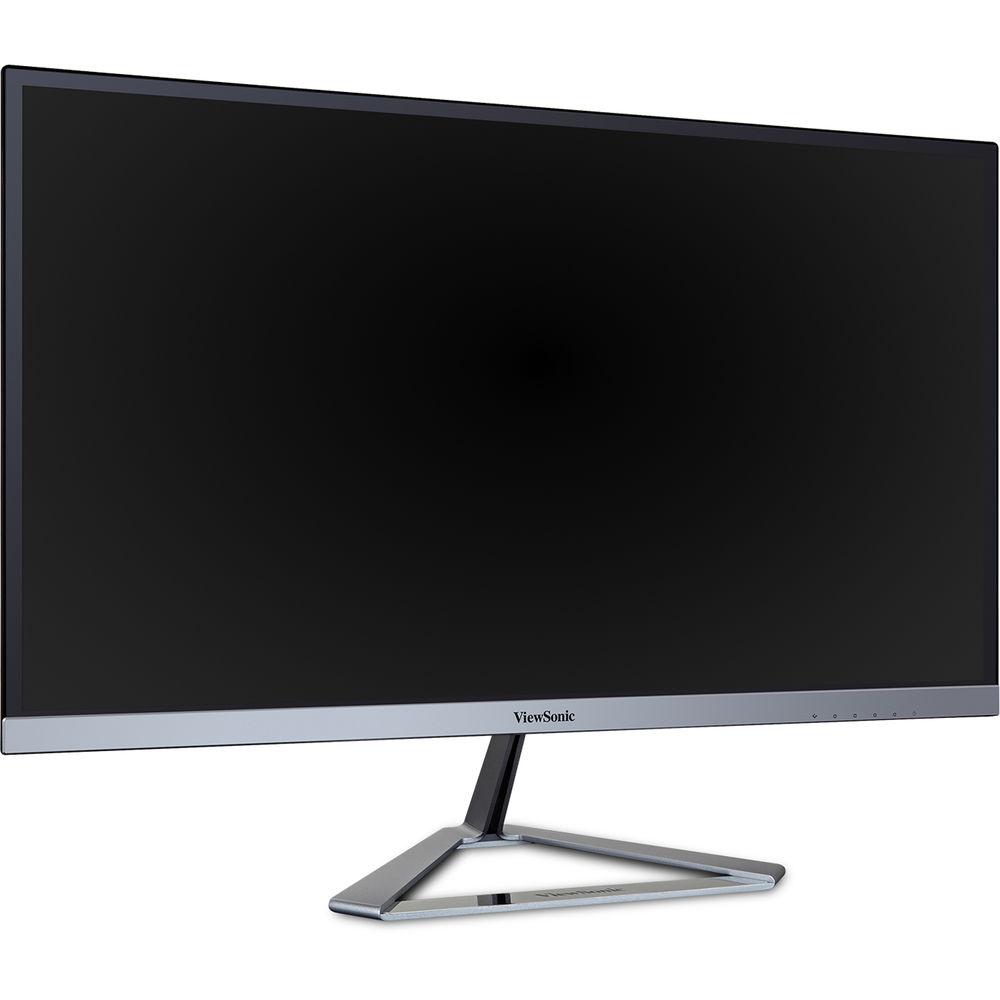

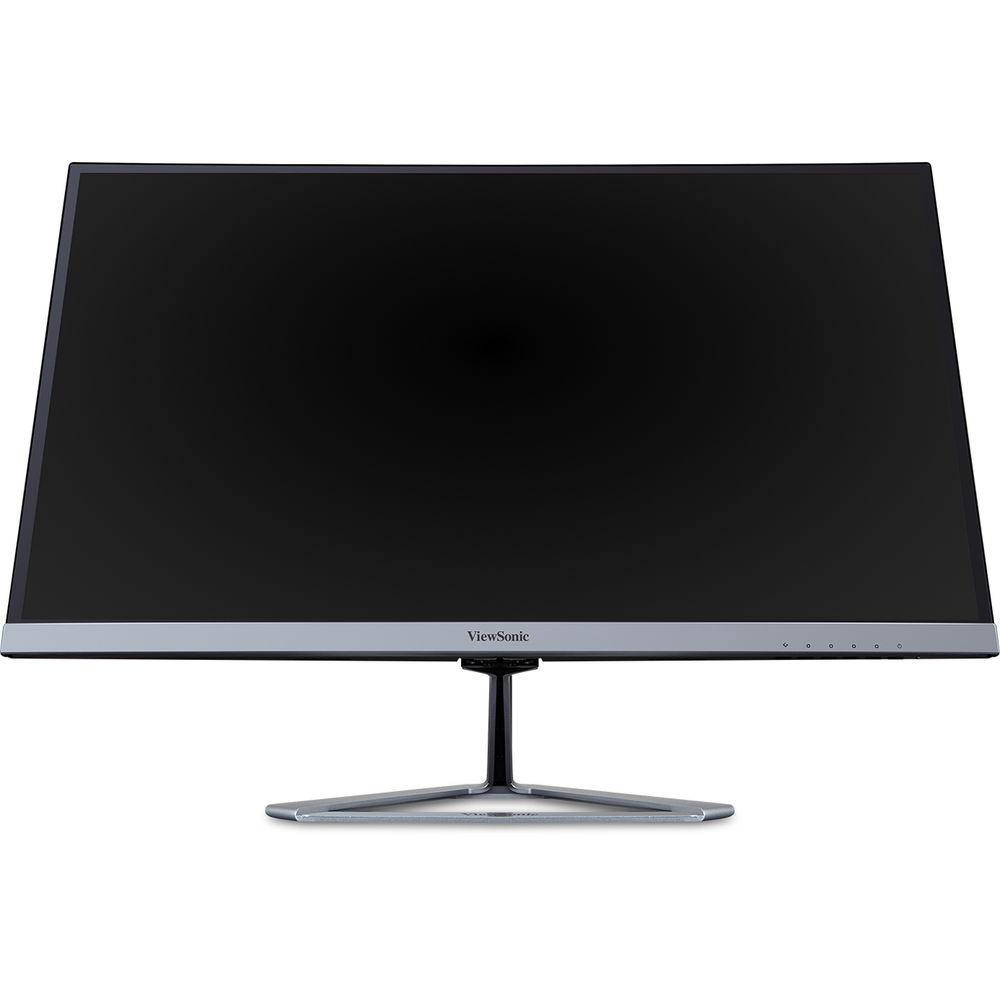

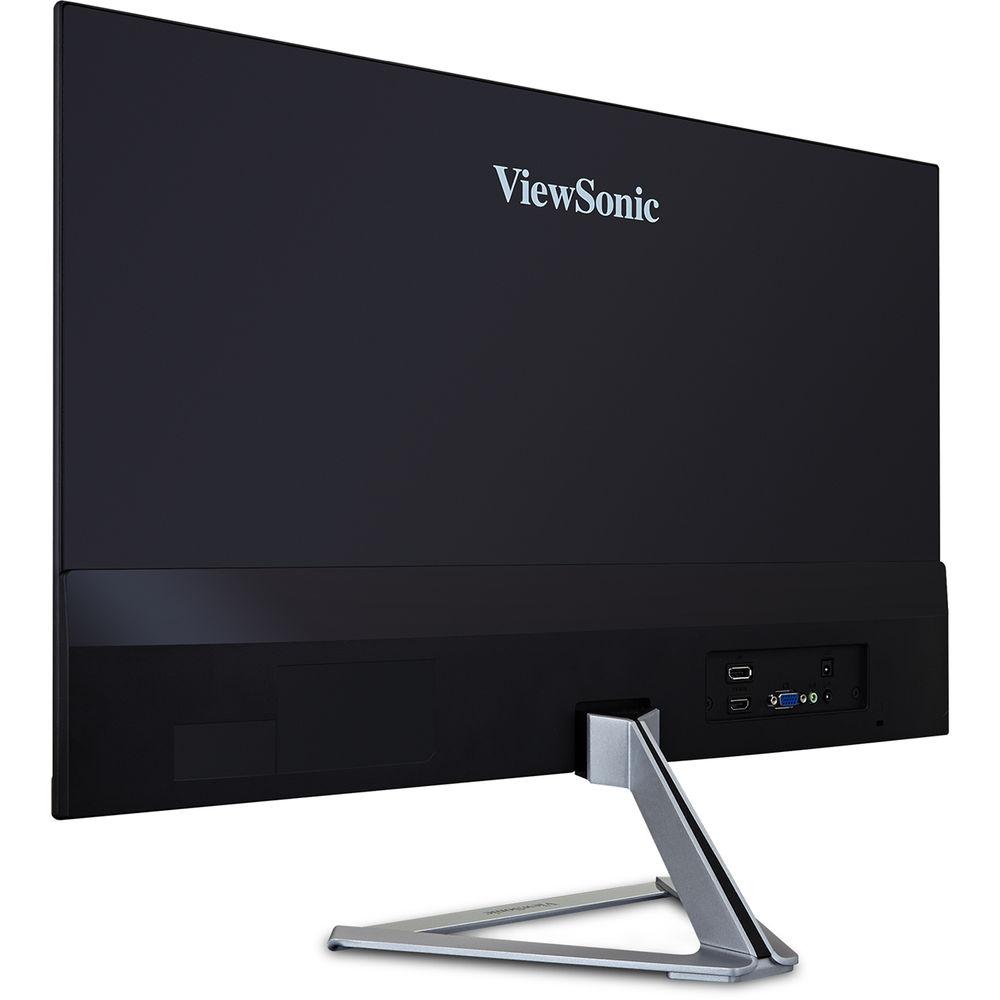

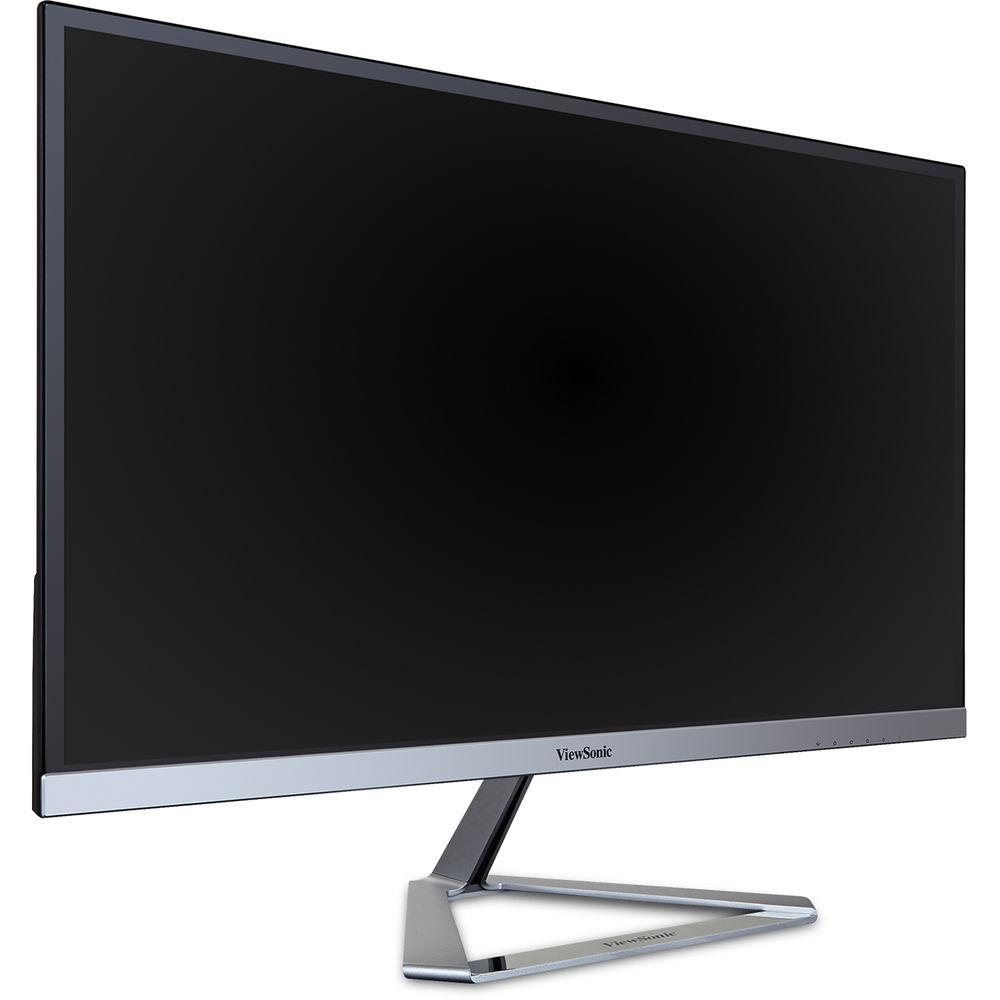

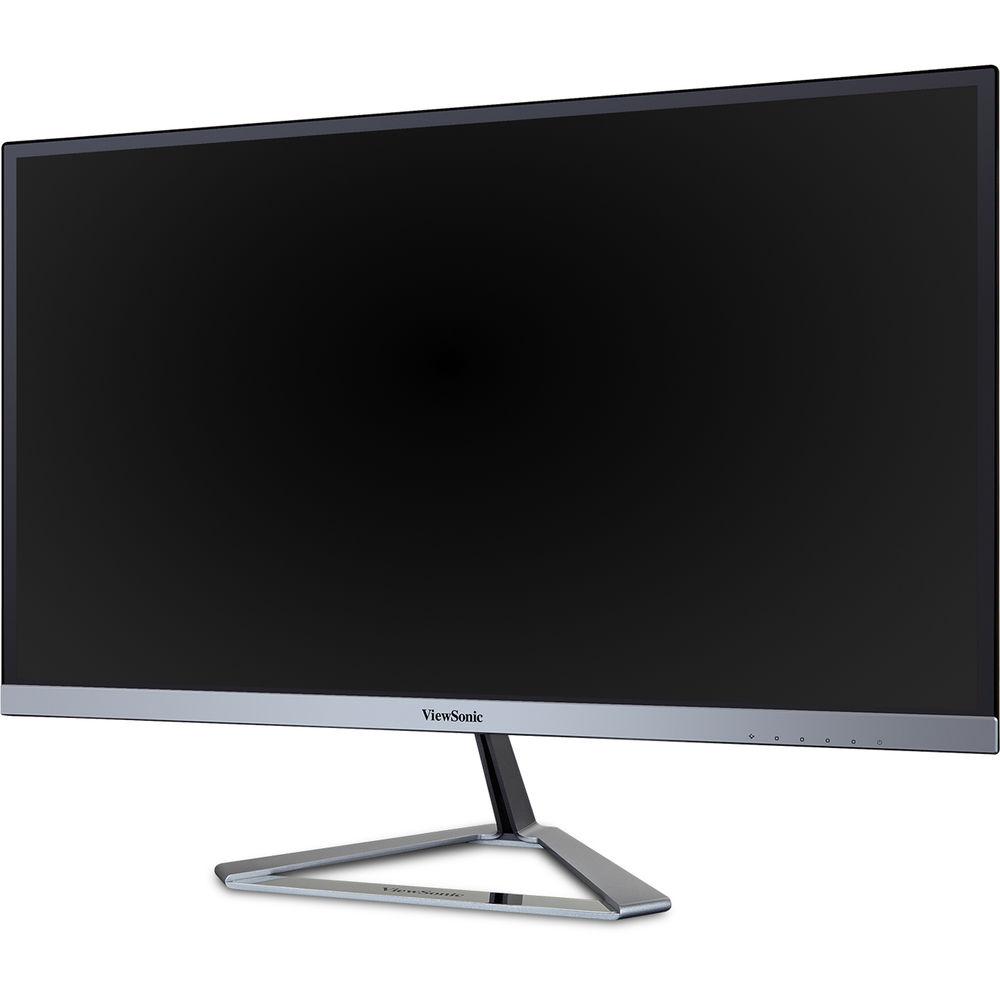

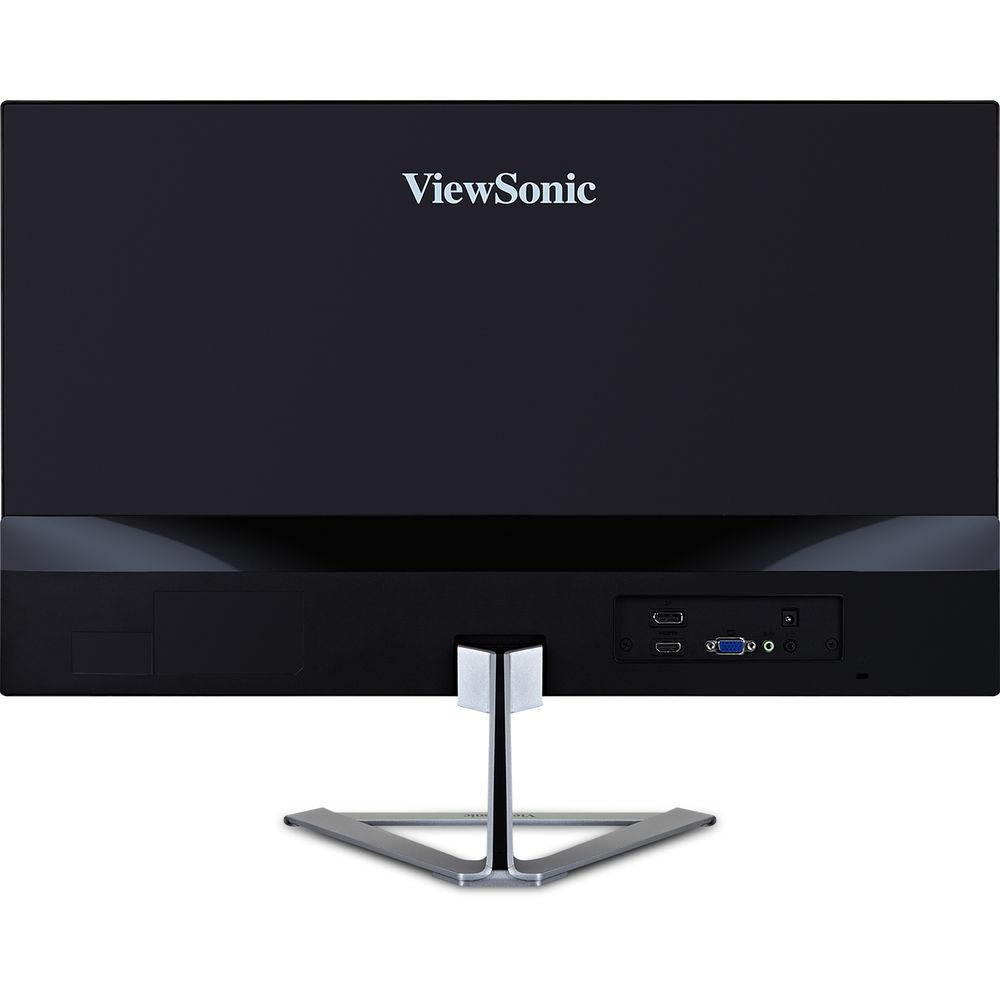

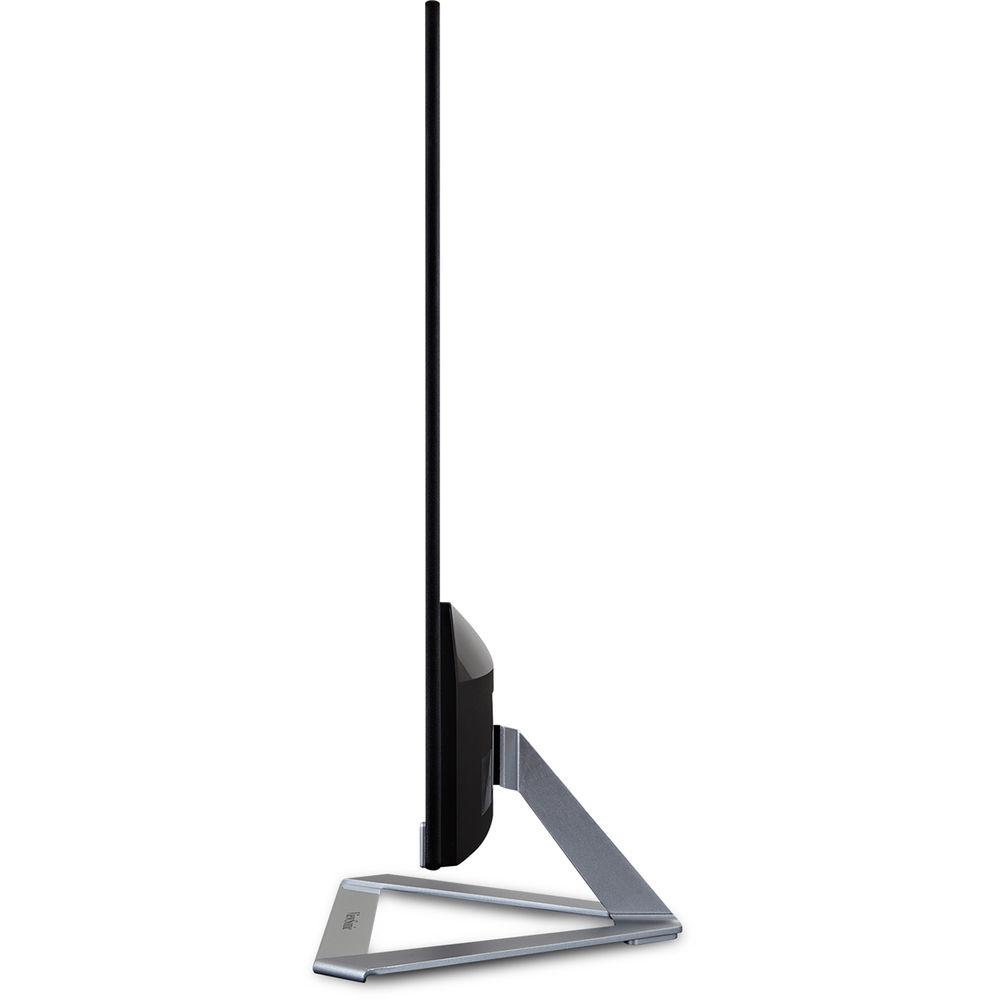

Product description 10 Factors to Consider When Selecting A Monitor for Video Editing Read More The VX2276SMHD 21.5" 16:9 IPS Monitor from ViewSonic features a frameless design with a slim 6.6mm panel and thin 2mm bezels for an immersive viewing experience. With such slim bezels, it can be used for a seamless side-by-side multi-monitor setup. Its IPS (In-Plane Switching) panel provides you with vivid colors and wide viewing angles, and has a 1920 x 1080 resolution for crisp and clear Full HD content. Other specs include a 1000:1 static contrast ratio, a 250 cd/m² brightness rating, and support for 16.7 million colors that delivers brighter bright colors and darker detailed blacks. Connect this monitor to your system via VGA, HDMI, or DisplayPort, and tilt it to your viewing preference. There are also built-in speakers and audio-in and -out jacks so you can enjoy music, movies, and more. - Enhanced Viewing Comfort
- This display features Flicker-Free technology and Blue Light Filter to help reduce flickering and blue light emissions for a more comfortable viewing experience over extended use.
- Viewing Modes
- Swap through multiple viewing modes such as Game, Movie, Web, Text, and Mono for optimized display settings that's ideal for specific applications.
- Low EMI
- The VX2276-SMHD is a Low EMI product that's environmentally safe, health-conscious, and prevents interference from nearby electronic devices.
UPC: 766907834321 In the Box ViewSonic VX2276SMHD 21.5" 16:9 IPS Monitor Stand Limited 3-Year Warranty User Manual PDF 690.3kb More from Manufacturer Table of Contents
|
Upload User Manual
Have you got an user manual for the ViewSonic VX2276SMHD 21.5" 16:9 IPS Monitor in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersViewSonic VX2276 Specs | | | Size | 21.5" | | Screen Area | 18.7 x 10.5" / 47.6 x 26.8 cm | | Panel Type | IPS-Type LCD | | Touchscreen | No | | Resolution | 1920 x 1080 | | Finish | Matte | | Hardness Rating | 3H | | Maximum Brightness | 250 cd/m2 | | Contrast Ratio | 1000:1 | | Dynamic Contrast Ratio | 80,000,000:1 | | Adaptive Sync Technology | None | | Horizontal Frequency | 24 to 82 kHz | | Vertical Frequency | 50 to 75 Hz | | Bit Depth / Color Support | 6-Bit+FRC (16.7 Million Colors) | | Color Gamut | 72% CIE1931 | | Response Time | 14 ms (GtG) | | Viewing Angle | Horizontal: 178°
Vertical: 178° | | Backlight Lifespan | 30,000 Hours | | | | Connectivity | 1 x 3.5 mm Input
1 x DisplayPort 1.2 Input
1 x HDMI 1.4
1 x VGA | | Built-In Speakers | Yes, 2 x 3 W | | | | Power Consumption | 20 W (Typical)
17 W (Eco)
15 W (Standby) | | AC Input Power | 100 to 240 VAC, 50 / 60 Hz | | | | Operating Temperature | 32 to 104°F / 0 to 40°C | | Operating Humidity | 20 to 90% | | | | Tilt Adjustment | -5 to 17° | | Dimensions (W x H x D) | 19.6 x 15.5 x 8.2" / 49.8 x 39.3 x 20.9 mm (With Stand)
19.6 x 11.9 x 1.3" / 49.8 x 30.2 x 3.3 mm (Without Stand) | | Weight | 5.3 lb / 2.4 kg
4.4 lb / 2 kg (Without Stand) | | | | Package Weight | 8.6 lb | | Box Dimensions (LxWxH) | 22.3 x 14.9 x 4.5" |
