User Manual for ViewSonic VX2457-MHD 24" 16:9 FreeSync LCD Monitor Click to enlarge the picture
Contents of the user manual for the ViewSonic VX2457-MHD 24" 16:9 FreeSync LCD
- Product category: Computer Monitors ViewSonic
- Brand: ViewSonic
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for ViewSonic Computer Monitors
 |
User manual for the ViewSonic VX2457-MHD 24" 16:9 FreeSync LCD contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any ViewSonic product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official ViewSonic user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a ViewSonic product will considerably shorten its lifespan!
|
Product description 10 Factors to Consider When Selecting A Monitor for Video Editing Read More With an ultra-fast response time and AMD FreeSync technology built-in, the VX2457-MHD 24" 16:9 FreeSync LCD Monitor from ViewSonic is designed for a variety of multimedia applications including gaming. ViewSonic has even included a dedicated Game Mode hotkey making it easy to change the display settings with just the push of a button. When taking a break from gaming, this monitor features a Full HD 1920 x 1080 resolution and an enhanced contrast ratio for clear picture quality. Setup and configuration of the display is simple as it comes equipped with DisplayPort, VGA, and HDMI inputs. You can even take advantage of the built-in 2W stereo speakers to round out the multimedia experience. Once configured, this ViewSonic monitor can be tilted into place or mounted on the wall for maximum viewing comfort. - Ultra Fast Response Time
- ViewSonic's ClearMotiv II imaging technology delivers ultra-fast 1.5 ms response times, creating smooth images without streaking, blurring, or ghosting. This fast response time is good for graphic-intense gaming, and provides enhanced visual quality while watching sports or action movies. Experience digital broadcast-quality, full-motion video with sharp images and reduced blur.
- AMD FreeSync
- With DisplayPort Adaptive-Sync embedded into the monitor, this technology allows for communication between the GPU and monitor, synchronizing frame rate output. Utilizing a dynamic refresh rate, AMD FreeSync effectively eliminates tearing, stuttering, and jerkiness for smooth gameplay.
- Pre-Calibrated Viewing Modes
- Integrating a gaming-oriented OSD design including pre-calibrated FPS, RTS, and MOBA gaming settings, each mode is functionally customized with in-game testing and adjustments made for the best blend of color and technology. Providing even more support, three customizable gamer settings are available to help match individual preferences and adapt to a variety of games on the market.
- Black Stabilization
- ViewSonic's Black stabilization provides heightened visibility and detail by brightening dark scenes. Dominate the competition with enhanced visibility, delivering improved color performance for an improved gaming experience.
- Low Input Lag
- ViewSonic offers low input lag, utilizing a monitor process reducer, which decreases signal latency. It delivers the fastest display signal from the graphics card to the display, giving users an edge against the competition.
- Full HD Resolution
- This monitor features Full HD 1920 x 1080 resolution for enhanced pixel-by-pixel image performance.
- Versatile Connectivity

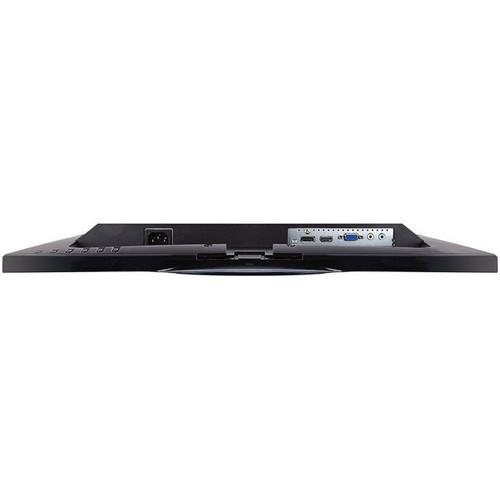

- DisplayPort, HDMI, and VGA inputs enable users to connect to game consoles, Blu-ray players, digital cameras, laptops, satellite boxes, and other high-definition devices.
- Dual Integrated Stereo Speakers
- Designed with dual integrated speakers, this monitor combines improved screen performance with stereo sound for an immersive multimedia experience.
- Enhanced Viewing Comfort
- Flicker-Free technology and a Blue Light Filter help to eliminate eye strain that can result from extended use.
- VESA-Mountable Design

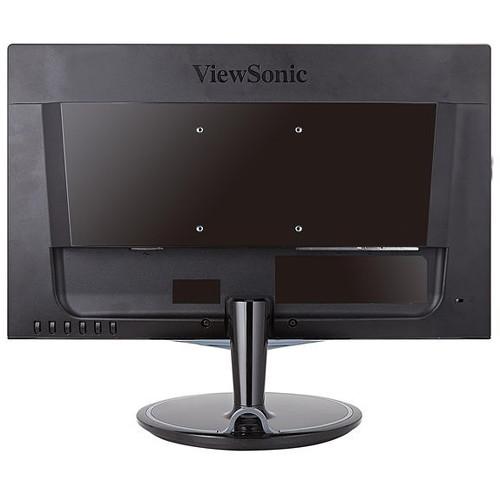

- This ViewSonic monitor features a 100 x 100mm VESA-mountable design that allows you to mount the display on a monitor stand or on a wall, depending on your specific needs. With an easily detachable base, it's easy to mount the display on its new stand or attach it to a wall mount.
UPC: 766907817911 In the Box ViewSonic VX2457-MHD 24" 16:9 FreeSync LCD Monitor Audio Cable VGA Cable HDMI Cable Power Cable Limited 3-Year Warranty Brochure PDF 1.7mb More from Manufacturer Table of Contents
|
Upload User Manual
Have you got an user manual for the ViewSonic VX2457-MHD 24" 16:9 FreeSync LCD Monitor in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersViewSonic VX2457-MHD Specs | | | Size | 23.6" | | Screen Area | 20.5 x 11.5" / 52.1 x 29.2 cm | | Panel Type | TN LCD | | Touchscreen | No | | Resolution | 1920 x 1080 | | Aspect Ratio | 16:9 | | Pixels Per Inch (ppi) | 91 ppi | | Finish | Matte | | Hardness Rating | 3H | | Maximum Brightness | 300 cd/m2 | | Contrast Ratio | 1000:1 | | Dynamic Contrast Ratio | 80,000,000:1 | | Adaptive Sync Technology | FreeSync | | Horizontal Frequency | 15 to 83 kHz | | Vertical Frequency | 47 to 75 Hz | | Bit Depth / Color Support | 6-Bit+FRC (16.7 Million Colors) | | HDR Compatibility | None | | Color Gamut | 72% NTSC | | Response Time | 1.5 ms (GtG)
1.4 ms (Overdrive) | | Viewing Angle | Horizontal: 170°
Vertical: 160° | | Backlight Lifespan | 40,000 Hours | | | | Connectivity | 1 x 3.5 mm Input/Output
1 x 3.5 mm Output
1 x DisplayPort Input
1 x HDMI
1 x VGA | | Built-In Speakers | Yes, 2 x 2 W | | | | Power Consumption | 14 W (Eco)
24 W (Typical) | | AC Input Power | 100 to 240 VAC, 50 / 60 Hz | | | | Operating Temperature | 32 to 104°F / 0 to 40°C | | Operating Humidity | 20 to 90% | | | | Tilt Adjustment | -5 to 21° | | Mounting-Hole Pattern | 100 x 100 mm | | Lock Slot | Yes, Kensington | | Dimensions (W x H x D) | 22.0 x 16.6 x 9.0" / 55.9 x 42.2 x 23.0 mm (With Stand)
22.0 x 13.9 x 1.8" / 55.9 x 35.3 x 4.6 mm (Without Stand) | | Weight | 9 lb / 4.1 kg (With Stand)
8 lb / 3.6 kg (Without Stand) | | | | Package Weight | 12.0 lb | | Box Dimensions (LxWxH) | 24.0 x 19.0 x 5.0" |
Rating90% users recommend this product to others. And what about you?
This product has already been rated by 23 owners. Add your rating and experience with the product.
