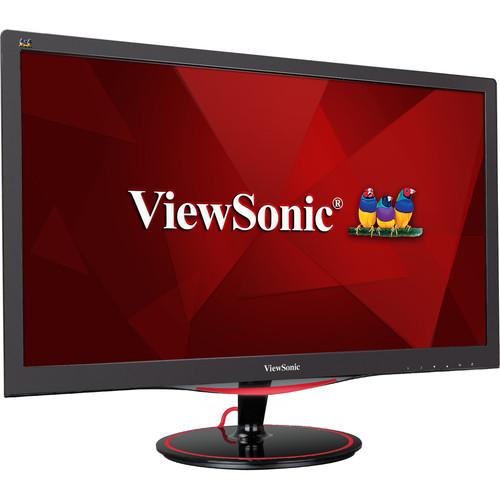

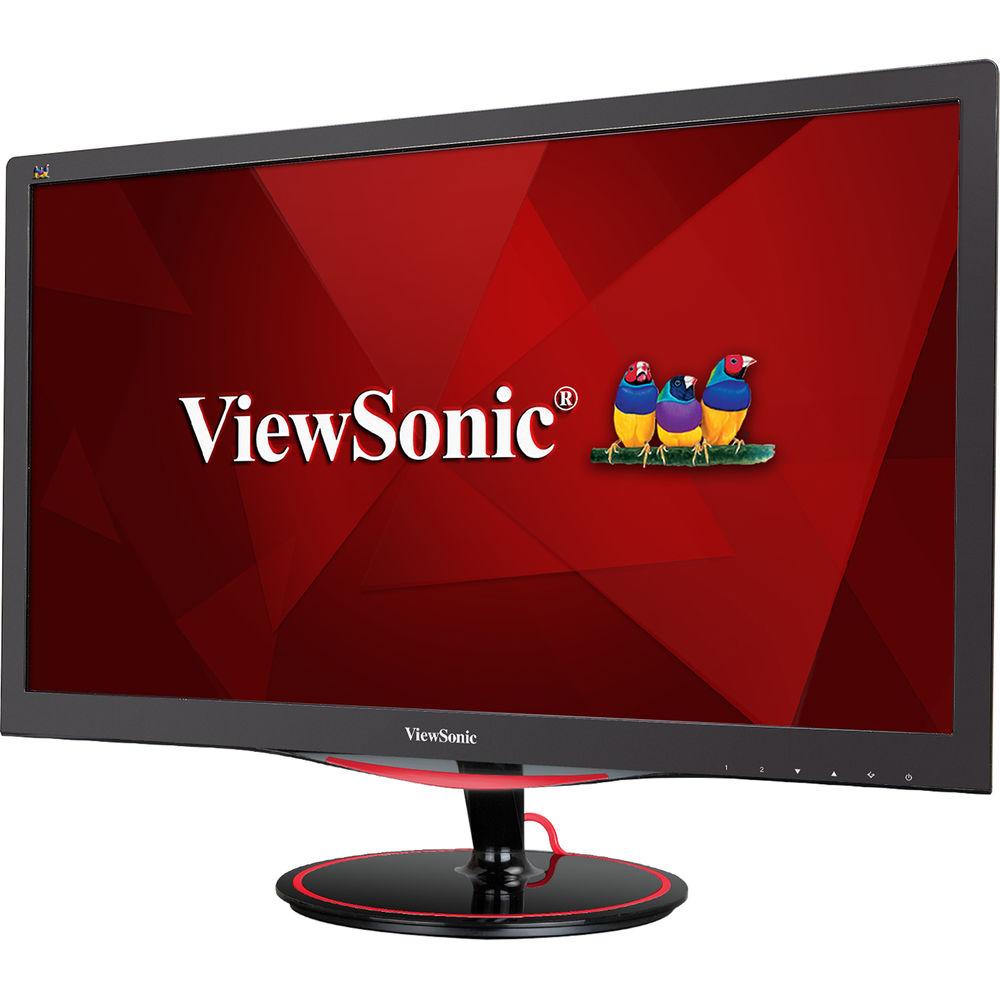

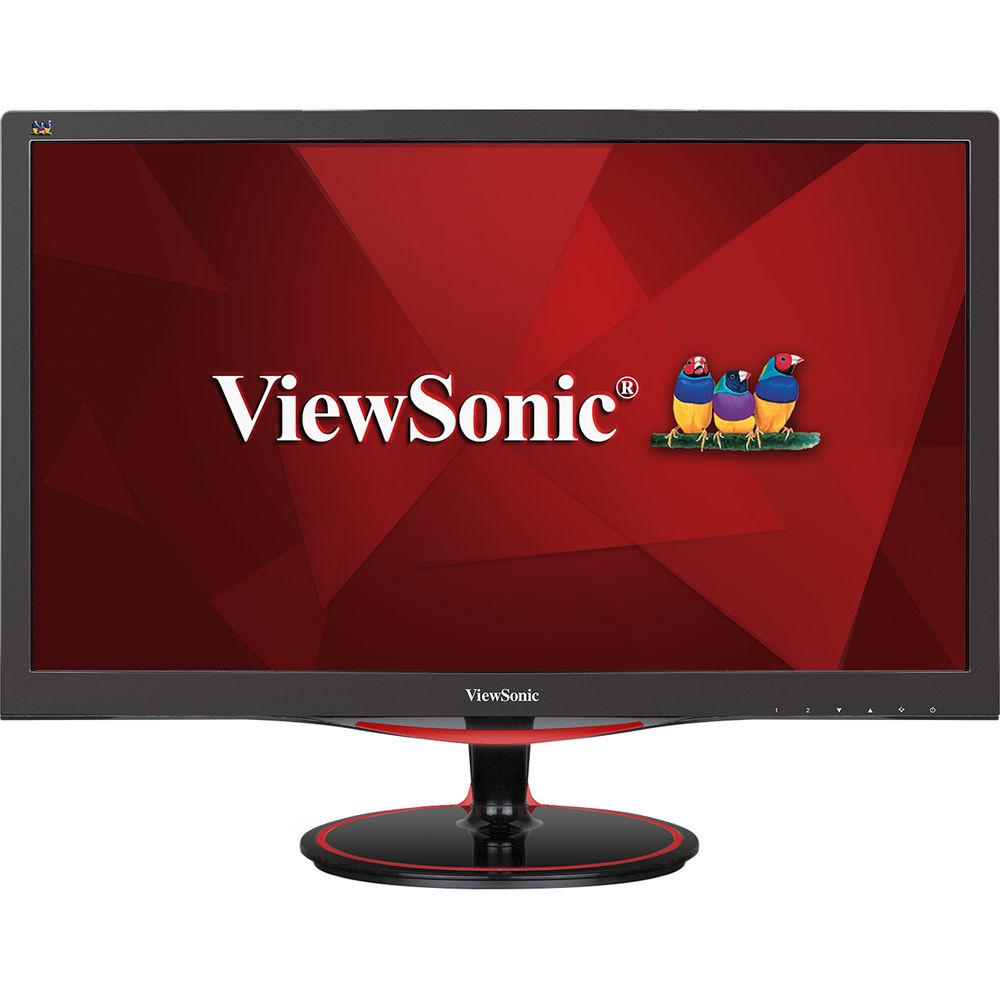

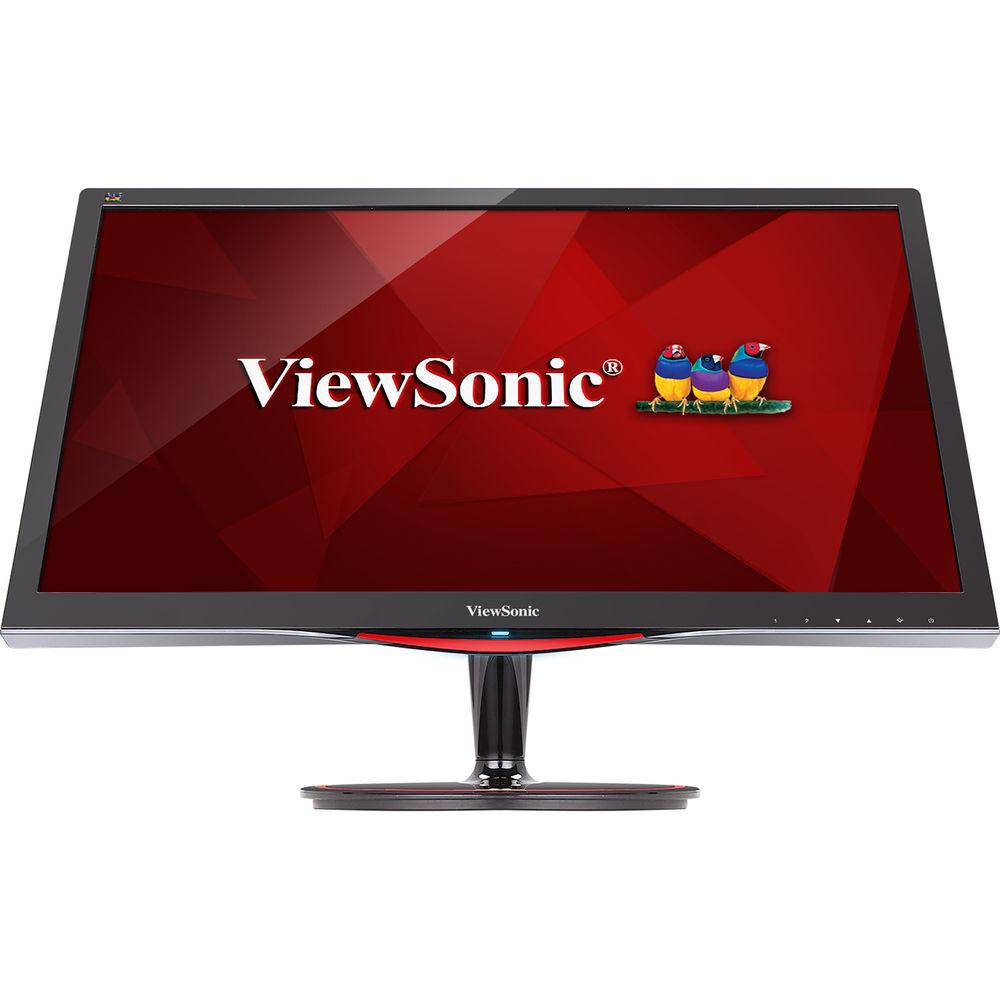

User Manual for ViewSonic VX2458-mhd 23.6" 16:9 144 Hz FreeSync LCD Monitor Click to enlarge the picture
Contents of the user manual for the ViewSonic VX2458-mhd 23.6" 16:9 144 Hz
- Product category: Computer Monitors ViewSonic
- Brand: ViewSonic
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for ViewSonic Computer Monitors
 |
User manual for the ViewSonic VX2458-mhd 23.6" 16:9 144 Hz contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any ViewSonic product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official ViewSonic user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a ViewSonic product will considerably shorten its lifespan!
|

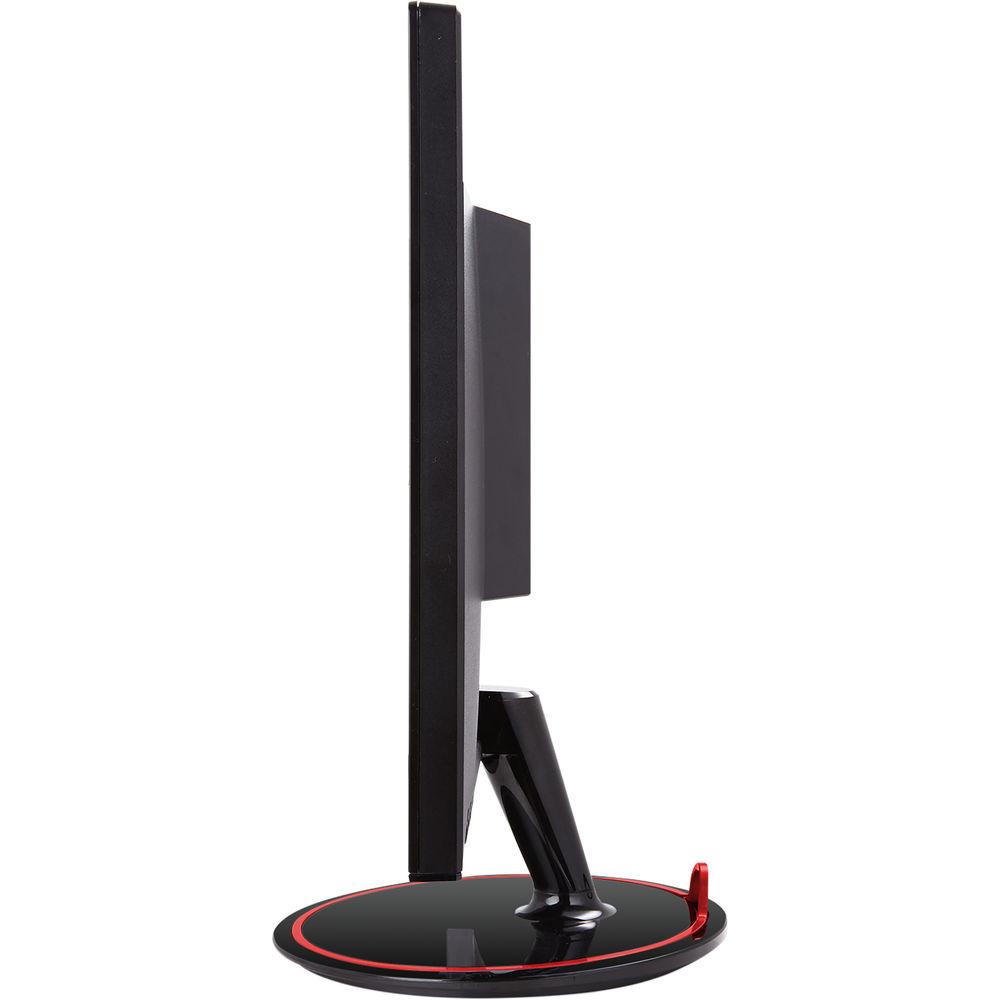

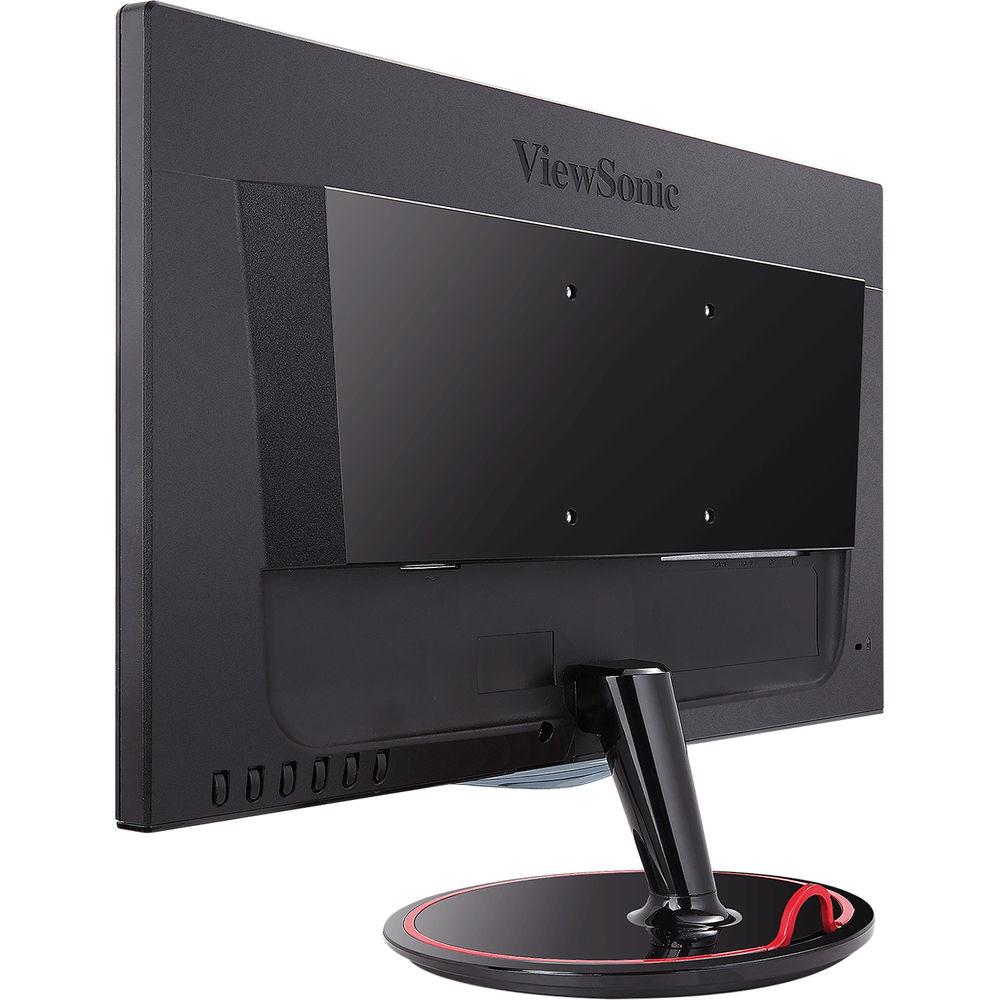

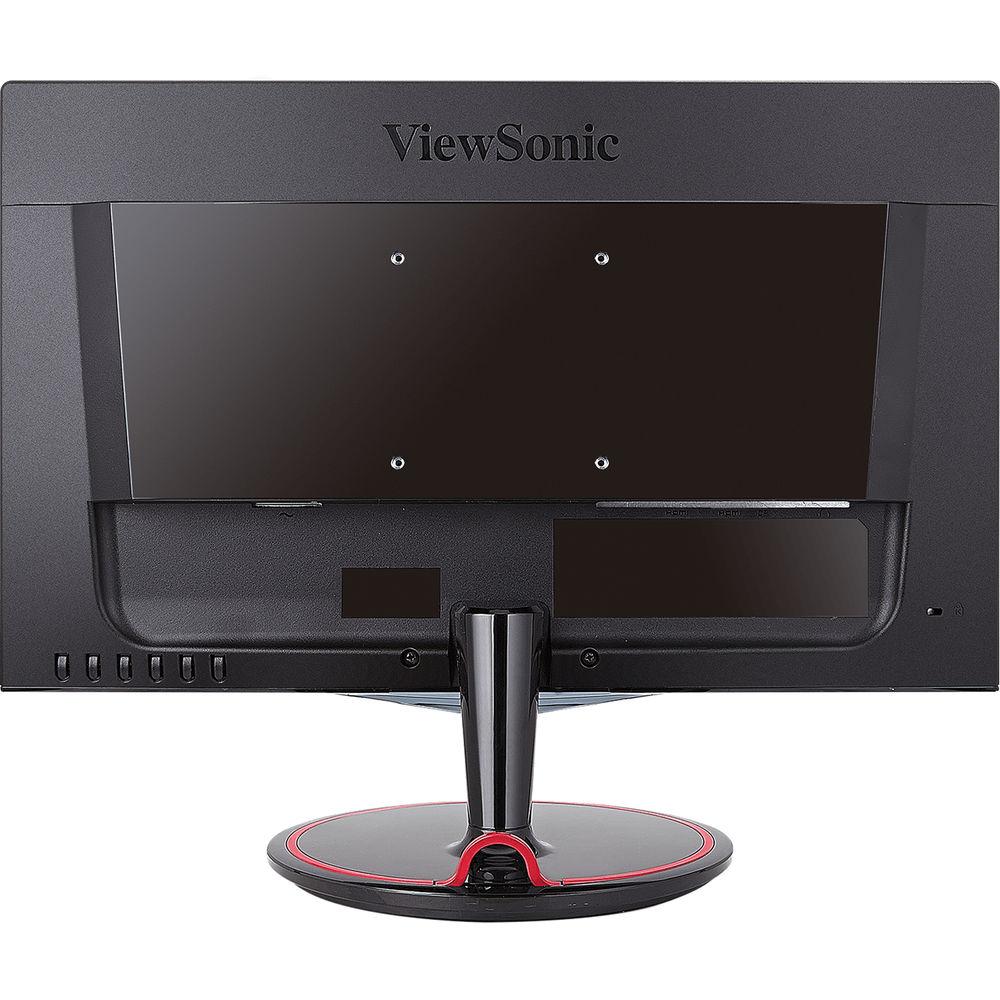

Product description 10 Factors to Consider When Selecting A Monitor for Video Editing Read More The VX2458-mhd 23.6" 16:9 144 Hz FreeSync LCD Monitor from ViewSonic is built with many features designed for gamers to help them on the battlefield. These include a fast 144 Hz refresh rate, a 1 ms response time with Overdrive, and AMD FreeSync support. Built with a Twisted Nematic panel, it has a 1920 x 1080 Full HD resolution, a 1000:1 static contrast ratio, a 300 cd/m² brightness rating, and support for up to 16.7 million colors. Connectivity-wise, it's equipped with both HDMI and DisplayPort inputs, which is compatible with most modern systems. While the stand itself may not be adjustable, you can install an optional VESA mount, stand, or arm if needed. - AMD FreeSync
- AMD FreeSync technology syncs the display's refresh rate with your graphics card's frame rate output to reduce screen tearing, stuttering, and ghosting for more responsive gaming.
- 144 Hz Refresh Rate
- A fast, 144 Hz refresh rate provides you with smoother frame loading for a more fluid gaming experience.
- Rapid Response Time
- This monitor has a standard 5 ms (GtG) response time, or up to 1 ms with Overdrive enabled. A faster response time can help reduce streaking, blurring, and ghosting when gaming at high refresh rates.
- Black Stabilization
- Black Stabilization enhances dark scenes for better visibility, so you can spot enemies that may be setting up an ambush.
- Low Input Lag
- A lower input lag offers more responsive mouse-to-screen movements, so actions feel more punctual.
- Game Mode
- Game Mode provides you with pre-calibrated profiles for FPS, RTS, and MOBA games. You can also customize your own profiles and switch between them as needed.
UPC: 766907985016 In the Box ViewSonic VX2458-mhd 23.6" 16:9 144 Hz FreeSync LCD Monitor Power Cable HDMI Cable Limited 3-Year Warranty User Manual PDF 3.6mb Table of Contents
|
Upload User Manual
Have you got an user manual for the ViewSonic VX2458-mhd 23.6" 16:9 144 Hz FreeSync LCD Monitor in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersViewSonic VX2458-MHD Specs | | | Size | 23.6" | | Panel Type | TN LCD | | Touchscreen | No | | Resolution | 1920 x 1080 | | Aspect Ratio | 16:9 | | Pixels Per Inch (ppi) | 93 ppi | | Finish | Matte | | Hardness Rating | 3H | | Maximum Brightness | 300 cd/m2 | | Contrast Ratio | 1000:1 | | Dynamic Contrast Ratio | 80,000,000:1 | | Refresh Rate | 144 Hz | | Adaptive Sync Technology | FreeSync | | Horizontal Frequency | 15 to 180 kHz | | Vertical Frequency | 23 to 144 Hz | | Bit Depth / Color Support | 6-Bit+FRC (16.7 Million Colors) | | HDR Compatibility | None | | Response Time | 5 ms (GtG)
1 ms (Overdrive) | | Viewing Angle | Horizontal: 170°

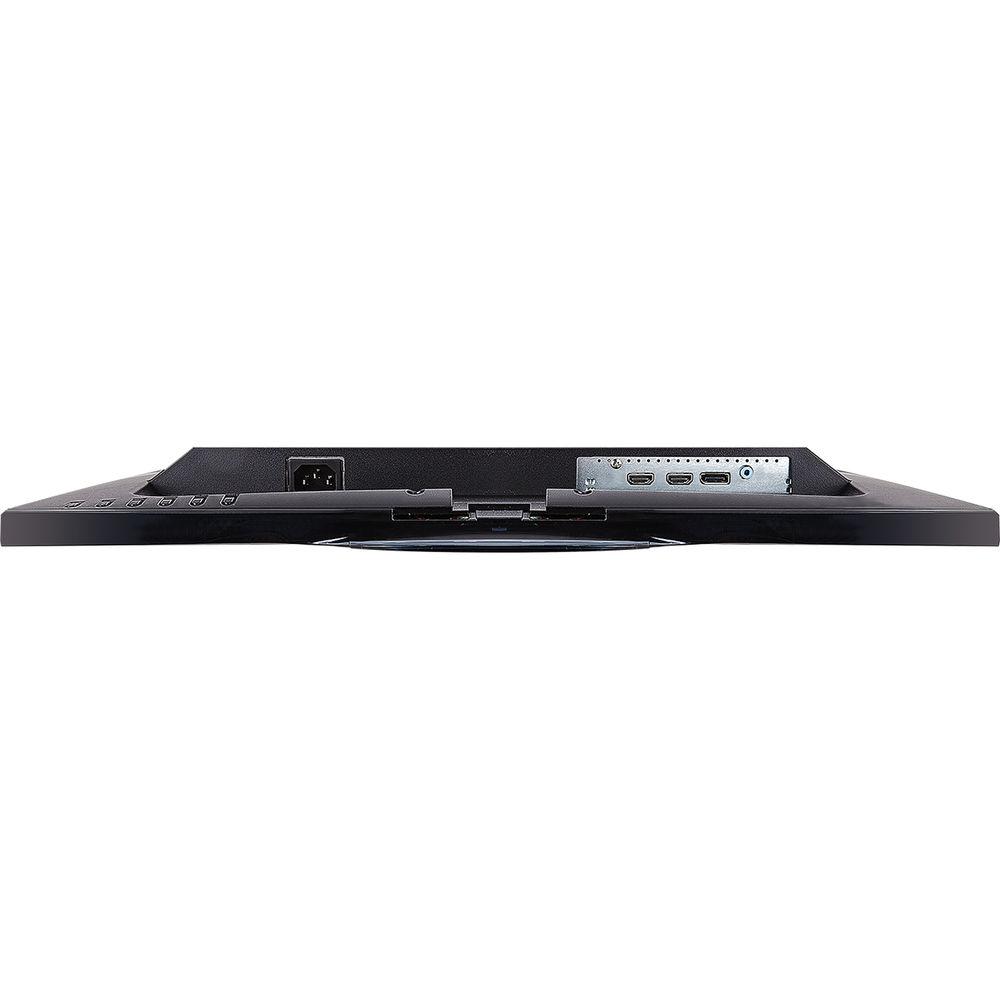

Vertical: 160° | | Backlight Lifespan | 30,000 Hours | | | | Connectivity | 2 x HDMI 1.4
1 x DisplayPort
1 x 3.5 mm Output | | Built-In Speakers | Yes, 2 x 2 W | | | | Power Consumption | 40 W (Typical)
45 W (Maximum)
22 W (Eco)
28 W (Eco)
0.5 W (Standby) | | AC Input Power | 100 to 240 VAC, 50 / 60 Hz | | Power Adapter Type | Internal | | | | Operating Temperature | 32 to 104°F / 0 to 40°C | | Operating Humidity | 20 to 90% | | | | Height Adjustment | None | | Rotation Adjustment | None | | Swivel Adjustment | None | | Tilt Adjustment | None | | Mounting-Hole Pattern | 100 x 100 mm | | Lock Slot | Yes, Kensington | | Dimensions (W x H x D) | 22.0 x 16.6 x 9.0" / 558.7 x 422.4 x 229.7 mm (With Stand)
22.0 x 13.9 x 1.8" / 558.7 x 352.6 x 45.5 mm (Without Stand) | | Weight | 9.04 lb / 4.1 kg (With Stand)
7.94 lb / 3.6 kg (Without Stand) | | | | Package Weight | 11.775 lb | | Box Dimensions (LxWxH) | 24.4 x 19.0 x 4.9" |
