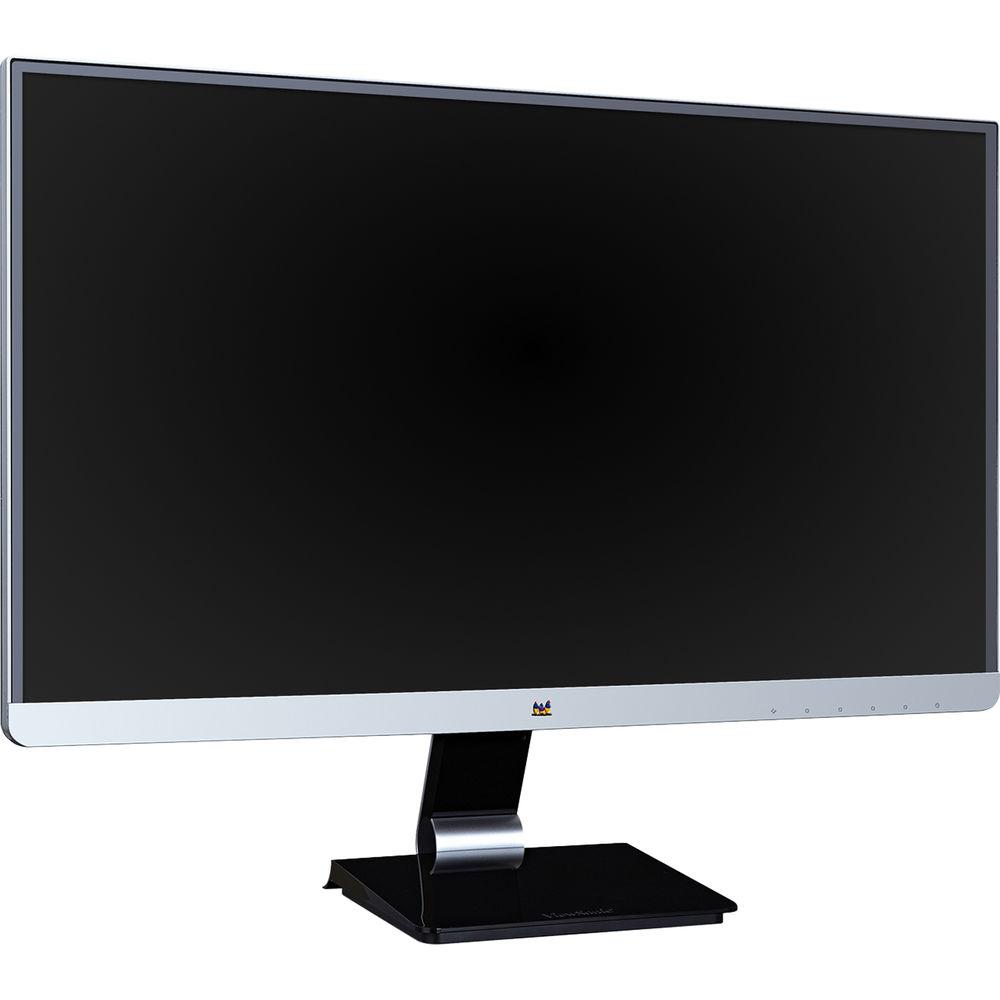

User Manual for ViewSonic VX2478-SMHD 24" 16:9 IPS Monitor Click to enlarge the picture
Contents of the user manual for the ViewSonic VX2478-SMHD 24" 16:9 IPS Monitor
- Product category: Computer Monitors ViewSonic
- Brand: ViewSonic
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for ViewSonic Computer Monitors
 |
User manual for the ViewSonic VX2478-SMHD 24" 16:9 IPS Monitor contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any ViewSonic product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official ViewSonic user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a ViewSonic product will considerably shorten its lifespan!
|

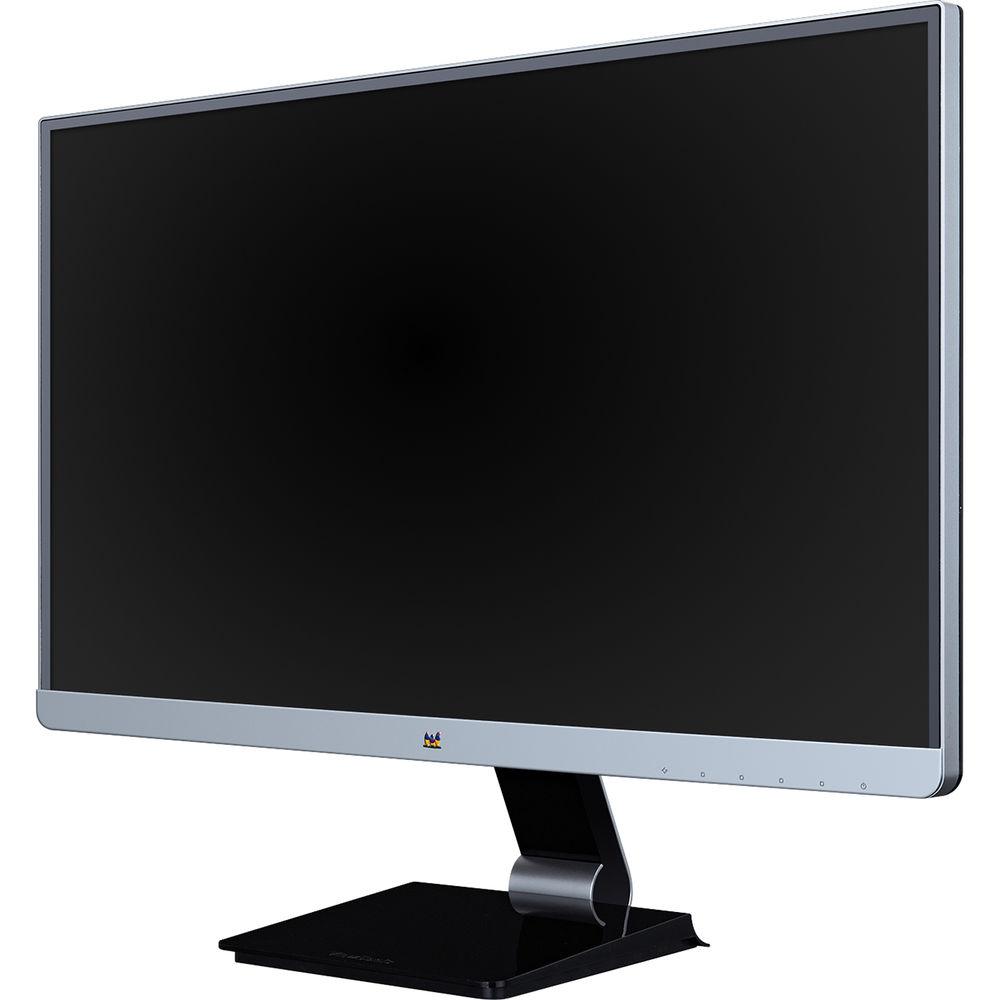

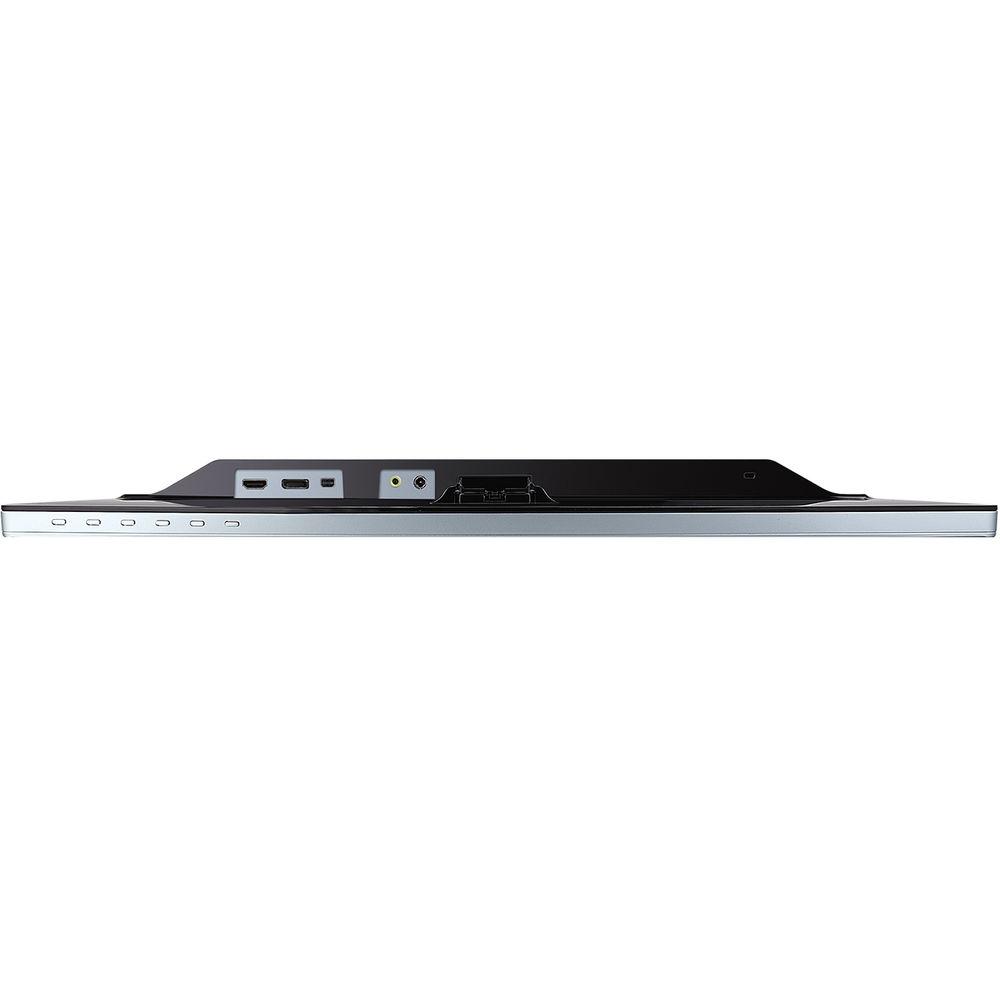

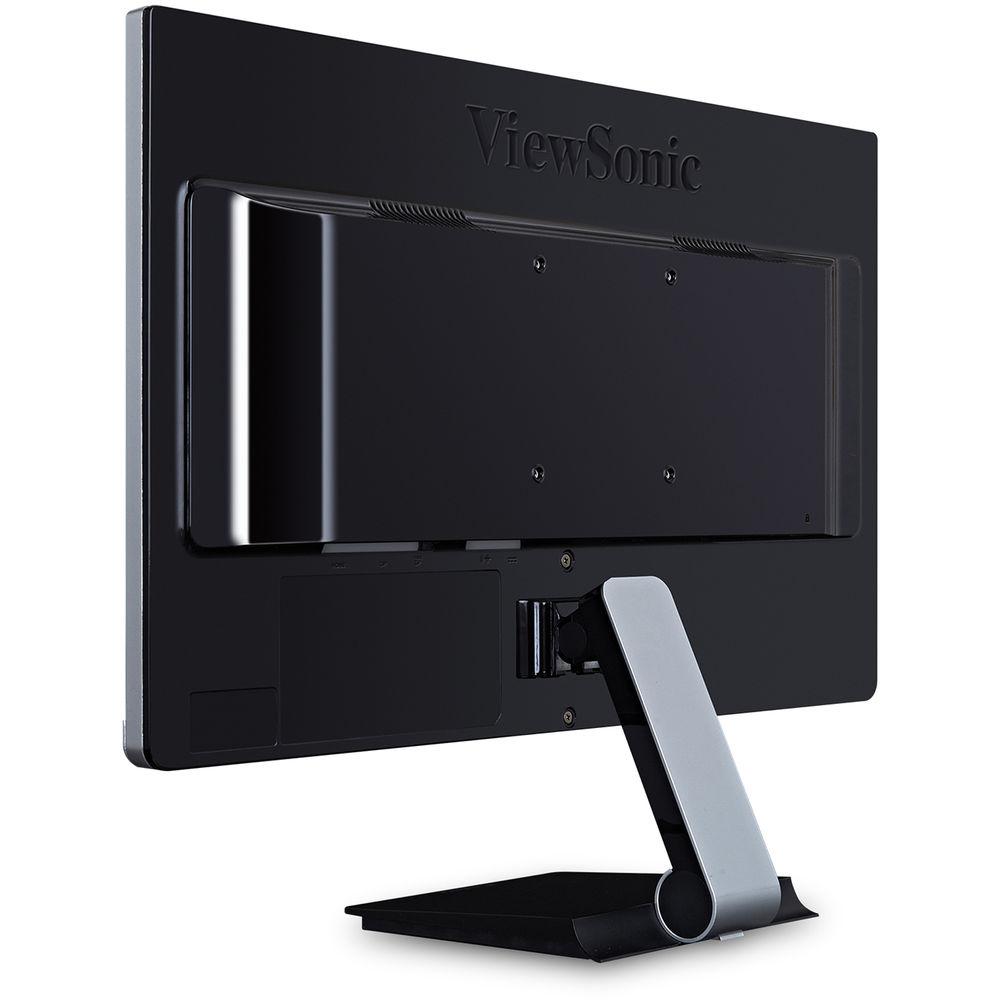

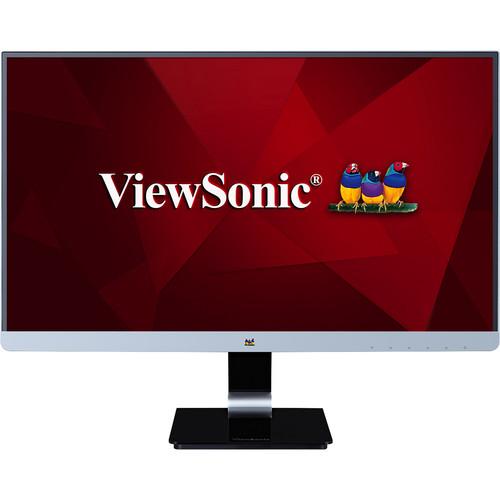

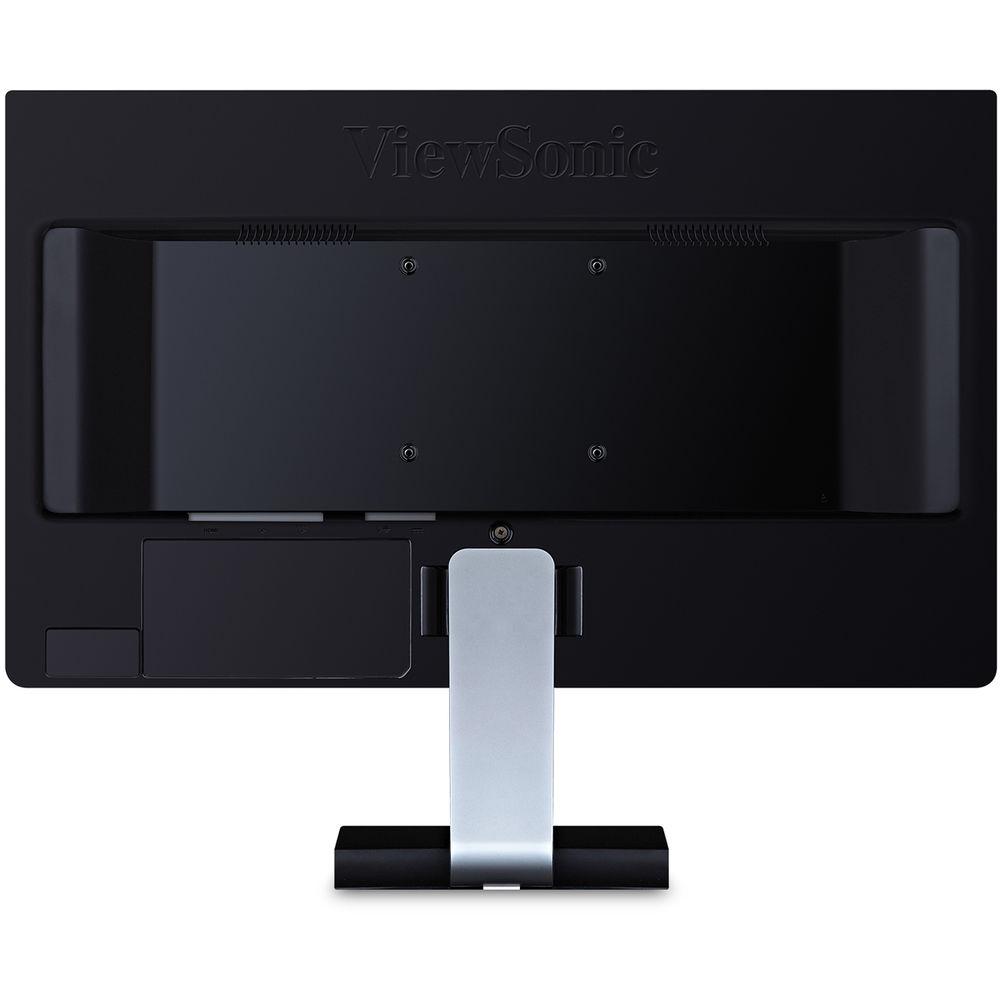

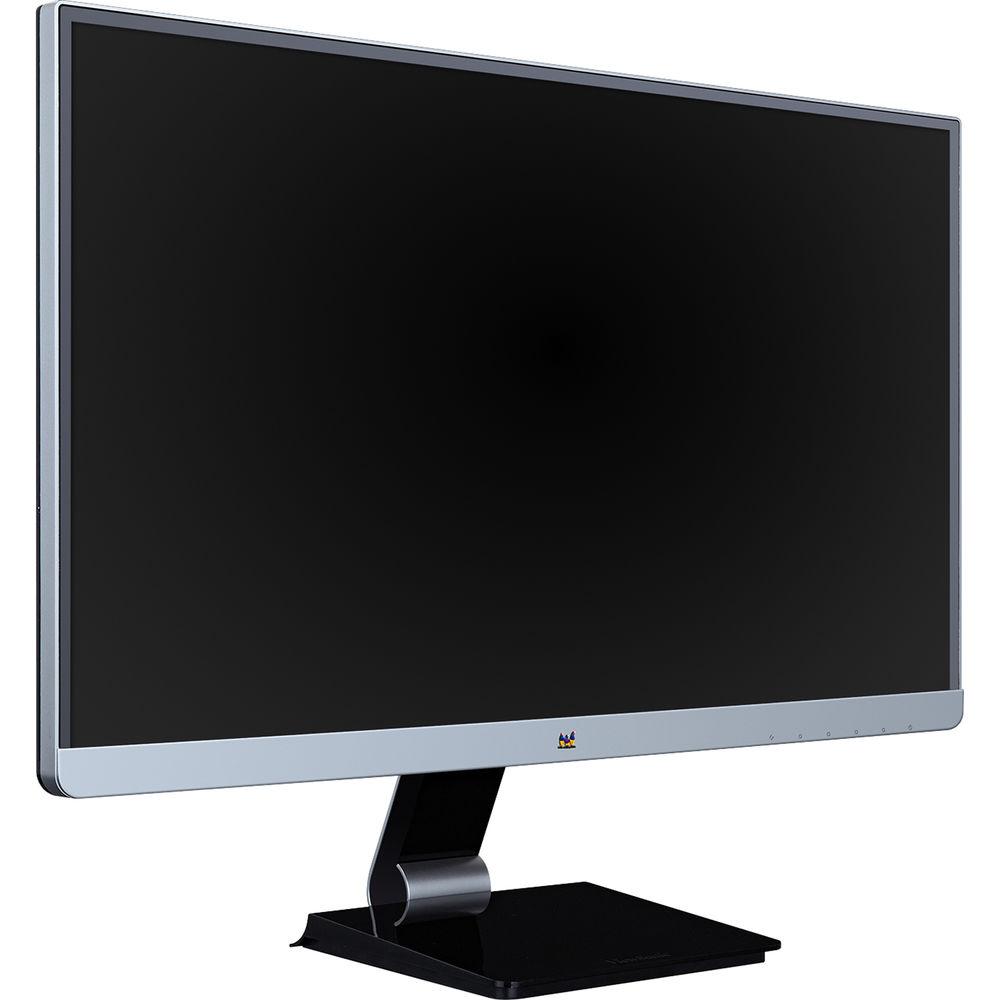

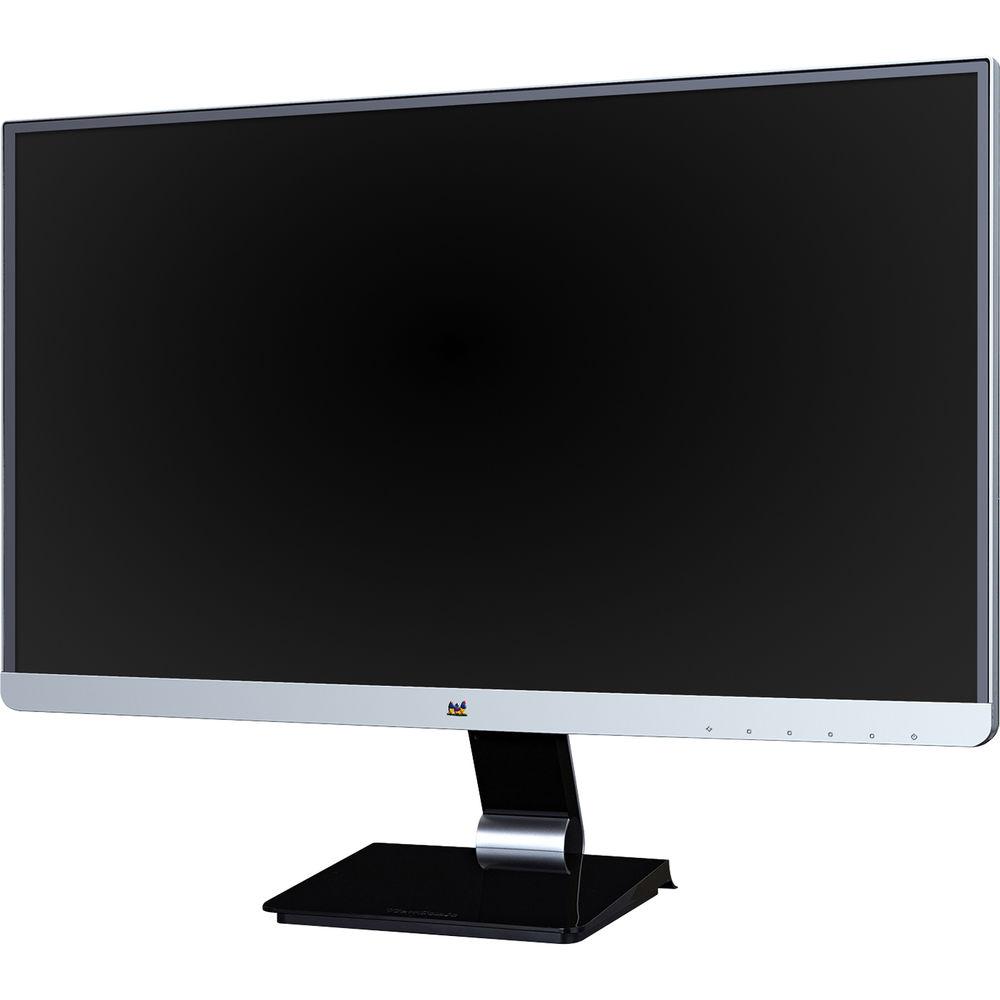

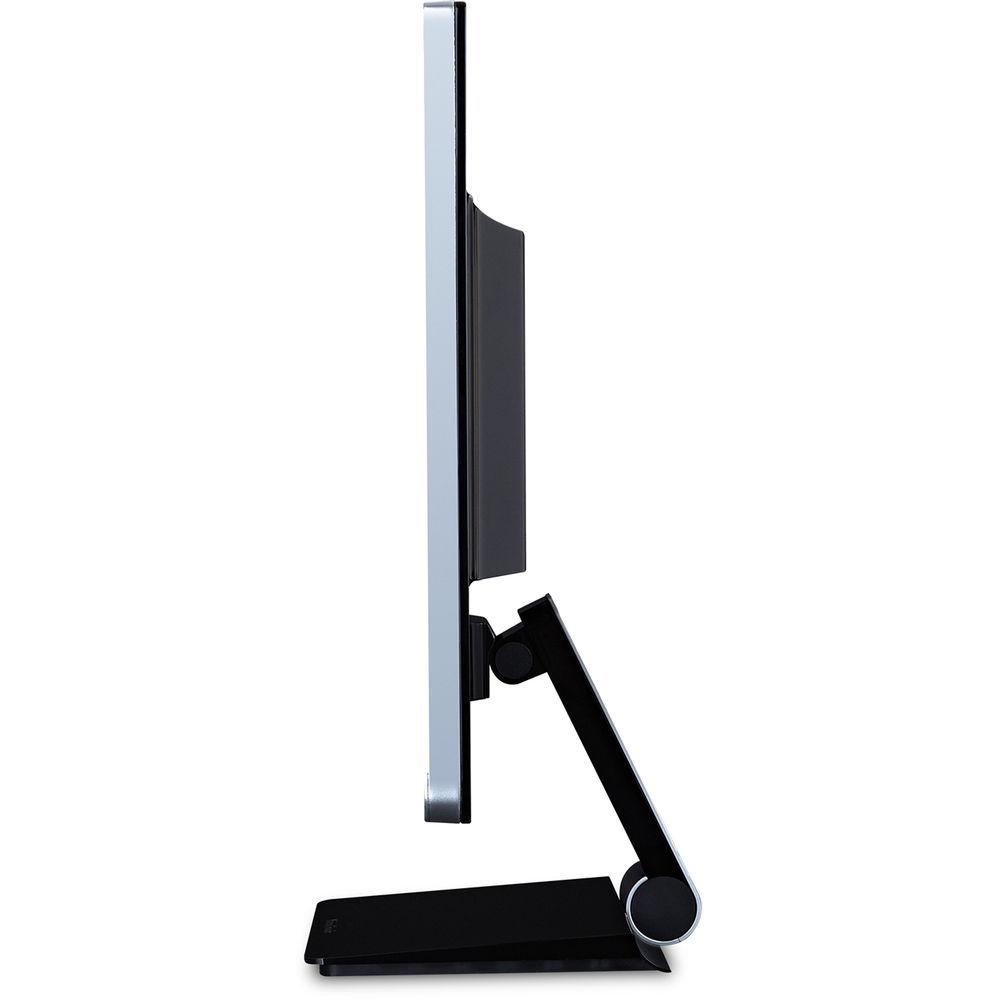

Product description 10 Factors to Consider When Selecting A Monitor for Video Editing Read More The VX2478-SMHD 24" 16:9 IPS Monitor from ViewSonic features a frame-less design, which equals ultra-slim bezels for a clean and bold look. It's built with an In-Plane Switching (IPS) panel that provides you with wide 178° viewing angles and vivid colors. With support for 16.7 million colors and a 2560 x 1440 QHD resolution, the VX2478-SMHD offers crisp and clear content reproduction, suitable for office use, graphic, design, and home entertainment. Combined with a 1000:1 static contrast ratio and a 300 cd/m² brightness rating, this display will deliver darker blacks and brighter bright colors for an immersive viewing experience. Connect it to your system via HDMI, DisplayPort, or Mini-DisplayPort and then tilt the screen to your viewing preferences. Alternatively, you can attach a separately sold stand or mount using the 100 x 100mm VESA mounting holes on the back. - GameMode
- GameMode lets you flip through optimized presets depending on the type of application you're viewing. The options include: Game, Movie, Web, Text, and Mono. These presets enhance gamma curve, color, temperature, contrast, and brightness for a more enjoyable viewing experience.
- Enhanced Viewing Comfort
- This monitor features an anti-glare, anti-reflective surface to enhance viewing comfort and help reduce eye strain so you can continue to work or play for longer periods.
- Dual Integrated Speakers
- Start watching movies or playing games right out of the box with built-in speakers.
UPC: 766907851212 In the Box ViewSonic VX2478-SMHD 24" 16:9 IPS Monitor Power Cable Mini-DP to DisplayPort Cable Limited 3-Year Warranty User Manual PDF 717.8kb More from Manufacturer Table of Contents
|
Upload User Manual
Have you got an user manual for the ViewSonic VX2478-SMHD 24" 16:9 IPS Monitor in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersViewSonic VX2478-SMHD Specs | | | Size | 23.8" | | Panel Type | IPS-Type LCD | | Touchscreen | No | | Resolution | 2560 x 1440 | | Aspect Ratio | 16:9 | | Finish | Matte | | Hardness Rating | 3H | | Maximum Brightness | 300 cd/m2 | | Contrast Ratio | 1000:1 | | Dynamic Contrast Ratio | 80,000,000:1 | | Refresh Rate | 60 Hz | | Adaptive Sync Technology | None | | Bit Depth / Color Support | 8-Bit (16.7 Million Colors) | | Response Time | 4 ms | | Viewing Angle | Horizontal: 178°
Vertical: 178° | | Backlight Lifespan | 30,000 Hours | | | | Connectivity | 1 x 3.5 mm Output
1 x DisplayPort Input
1 x Mini DisplayPort Input
1 x HDMI 1.4 | | Built-In Speakers | Yes, 2 x 2 W | | | | Power Consumption | 20 W (Eco)
35 W (Maximum)
0.5 W (Standby)
29 W (Typical) | | AC Input Power | 100 to 240 VAC, 50 / 60 Hz | | | | Operating Temperature | 32 to 104°F / 0 to 40°C | | Operating Humidity | 20 to 90% | | Certifications | ENERGY STAR, EPEAT Silver, as per Manufacturer | | | | Tilt Adjustment | -6 to 15° | | Mounting-Hole Pattern | 100 x 100 mm | | Lock Slot | Yes | | Dimensions (W x H x D) | 21.3 x 16.6 x 7.5" / 54.1 x 42.1 x 19.0 mm (With Stand)
21.3 x 12.9 x 1.6" / 54.1 x 32.6 x 4.1 mm (Without Stand) | | Weight | 6.1 lb / 2.8 kg (Without Stand)
7.7 lb / 3.5 kg (With Stand) | | | | Package Weight | 11.0 lb | | Box Dimensions (LxWxH) | 24.0 x 16.2 x 5.0" |
