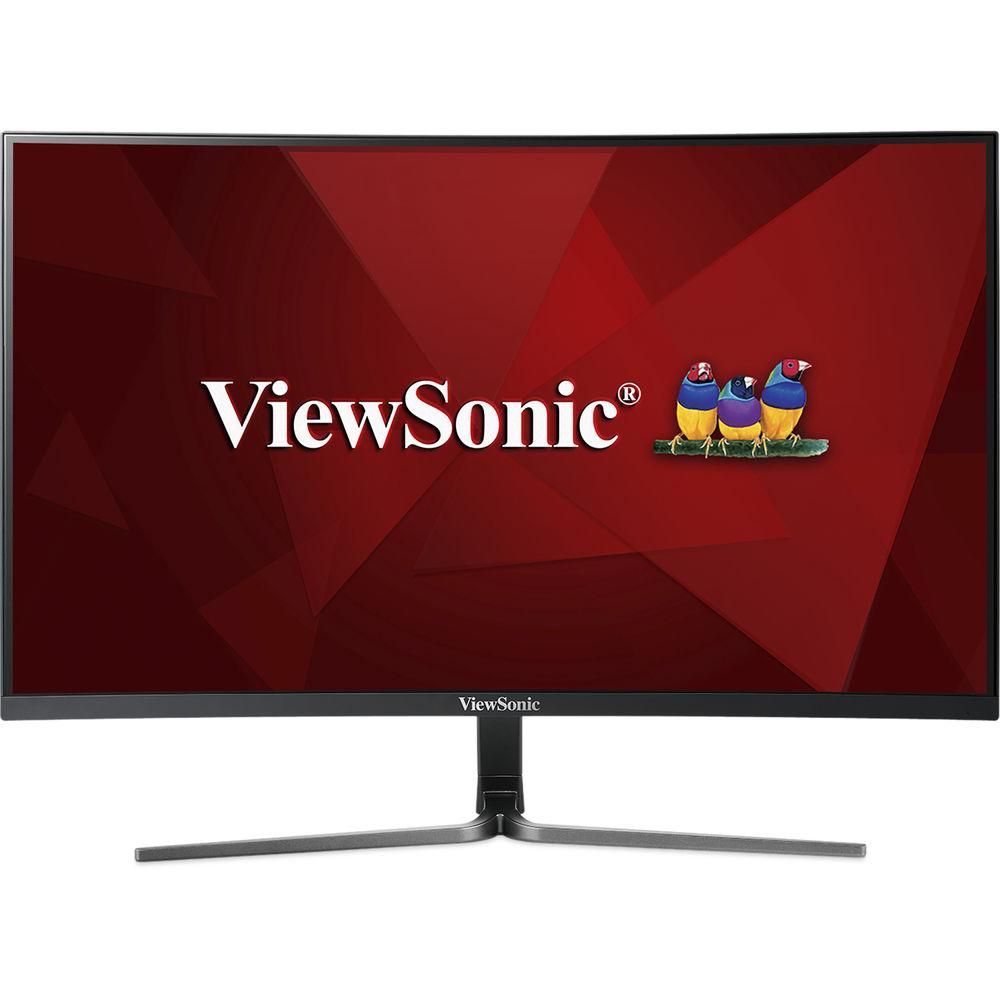

User Manual for ViewSonic VX2758-C-MH 27" 16:9 Curved LCD Monitor Click to enlarge the picture
Contents of the user manual for the ViewSonic VX2758-C-MH 27" 16:9 Curved LCD
- Product category: Computer Monitors ViewSonic
- Brand: ViewSonic
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for ViewSonic Computer Monitors
 |
User manual for the ViewSonic VX2758-C-MH 27" 16:9 Curved LCD contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any ViewSonic product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official ViewSonic user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a ViewSonic product will considerably shorten its lifespan!
|

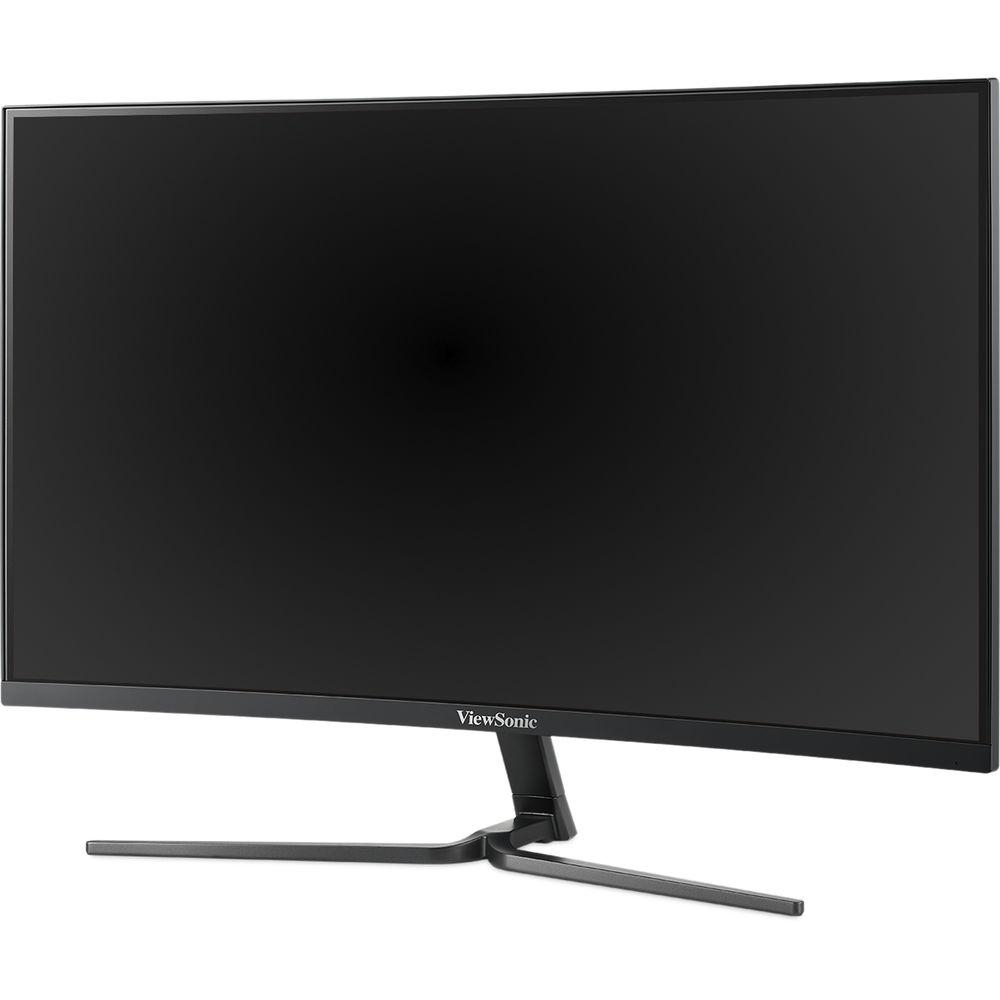

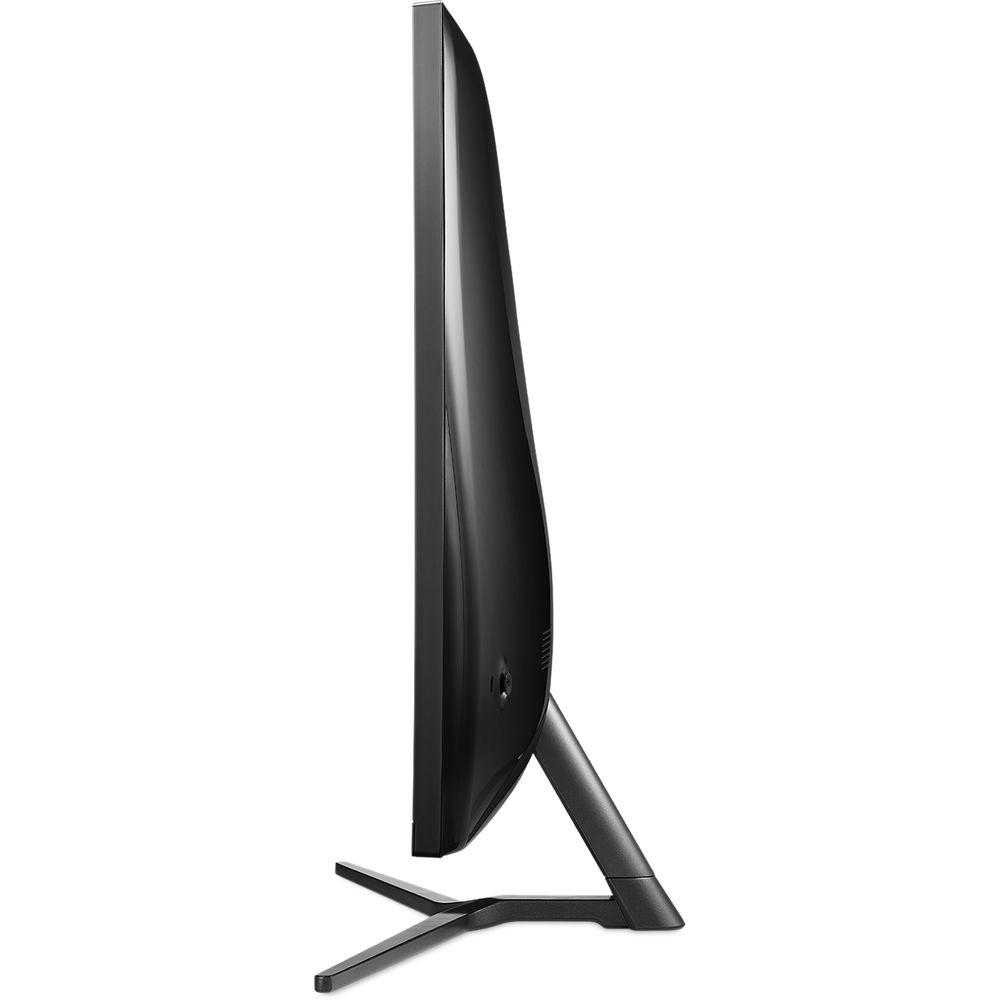

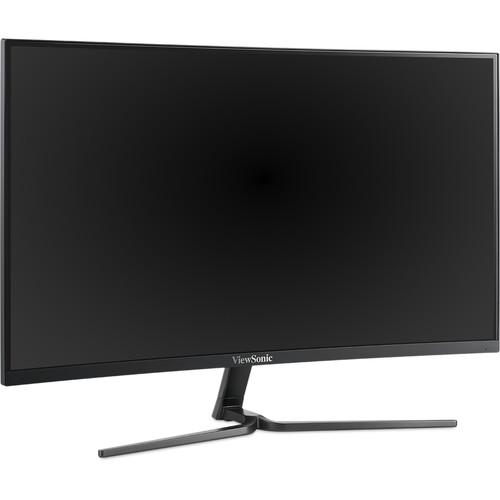

Product description 10 Factors to Consider When Selecting A Monitor for Video Editing Read More Immerse yourself in a variety of multimedia content from videos to games and much more with the VX2758-C-MH 27" 16:9 Curved LCD Monitor from ViewSonic. This monitor features an 1800R curved screen with FreeSync technology to enhance your gaming experience by reducing lag and virtually eliminating screen tearing. The VX2758 monitor also supports a 144 Hz refresh rate, which delivers fluid graphics to further enhance gameplay.

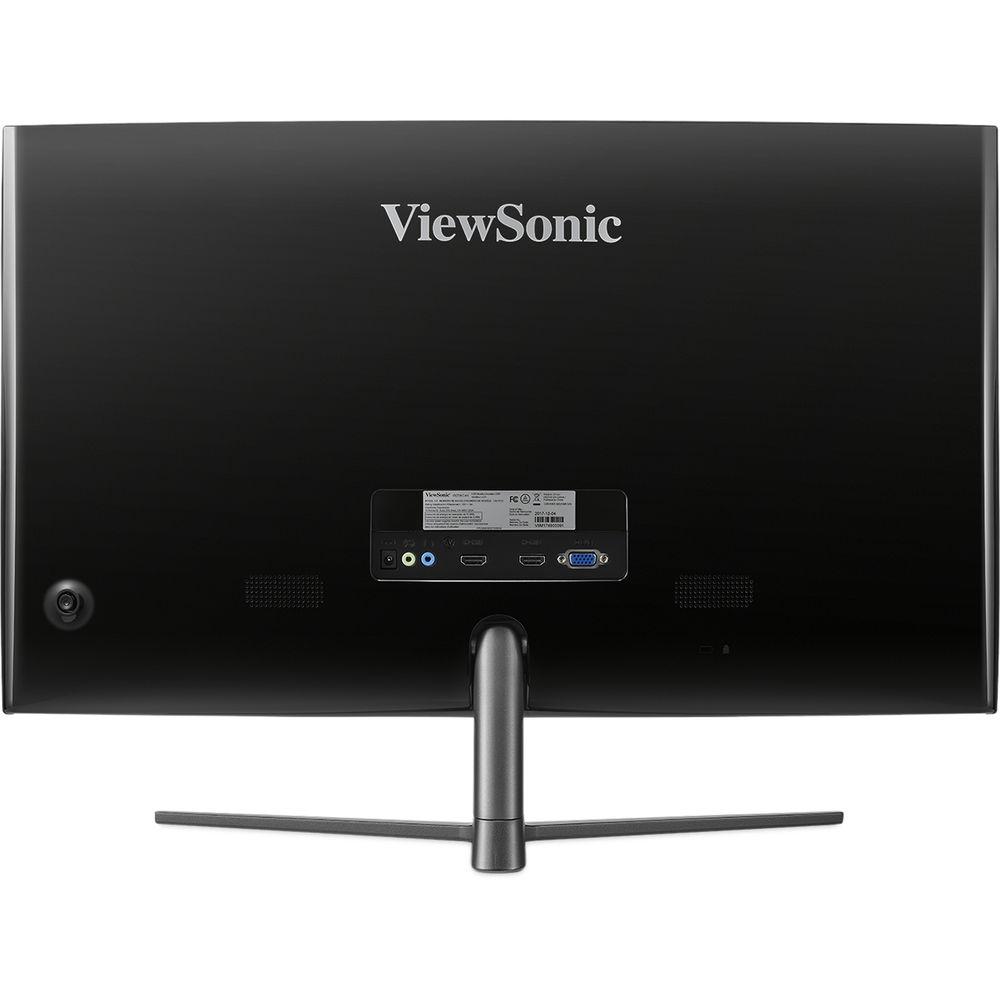

The VX2758 monitor features a Full HD 1920 x 1080 resolution, a 3000:1 contrast ratio, a 280 cd/m² brightness rating, a 5 ms response time with overdrive, and support for up to 16.7 million colors to provide a clear picture with reduced ghosting. Setup is simple as this ViewSonic monitor comes equipped with both HDMI and VGA inputs as well as a single 3.5mm audio input and a single 3.5mm audio output. Once configured, viewers can take advantage of the dual 2W speakers to complete the multimedia experience. The monitor can also be tilted up to 20 degrees for maximum viewing comfort. - Immersive Curved Screen Design
- A sleek, concave screen with ultra-thin bezels delivers an immersive viewing experience with panoramic images, vivid color, and enhanced detail.
- Refresh Rate
- With a 144 Hz refresh rate, this monitor delivers great visual fluidity and improved graphics no matter how quickly the in-game action unfolds. Say goodbye to annoying tracers and motion blur.
- Full HD Resolution
- This monitor features Full HD 1920 x 1080 resolution for enhanced pixel-by-pixel image performance. You'll experience clarity and detail whether it be while working, gaming, or enjoying the latest in multimedia entertainment.
- AMD FreeSync Technology

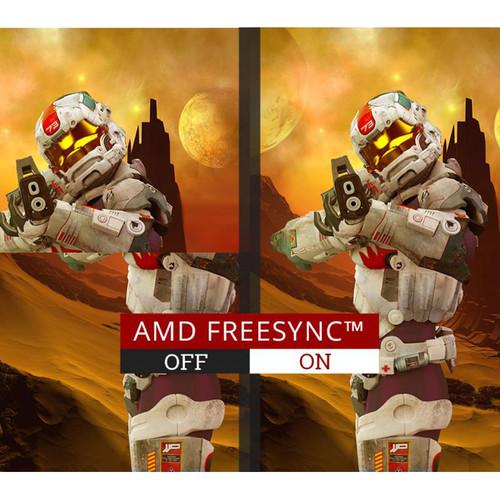

- Leveraging AMD FreeSync Adaptive-Sync connectivity, this monitor is equipped with AMD FreeSync technology that seamlessly synchronizes the frame rate output between your graphics card and monitor. This dynamic refresh rate effectively eliminates image tearing, stuttering, and jerkiness for smooth gameplay.
- Dual HDMI Connectivity
- Dual HDMI inputs allow you to connect to a variety of HD devices including gaming consoles, Blu-ray players, laptops, digital cameras, and many others for a true high-definition experience.
- Optimized View Settings
- ViewSonic's unique ViewMode feature offers "Game," "Movie," "Web," "Text," and "Mono" presets. These presets enhance gamma curve, color temperature, contrast, and brightness to deliver an optimized viewing experience for different screen applications.
- Dual Integrated Speakers
- Designed with dual integrated speakers, this monitor combines screen performance with stereo sound for an immersive multimedia experience.
- Enhanced Viewing Comfort
- Flicker-Free technology and a Blue Light Filter help to eliminate eye strain from extended viewing periods.

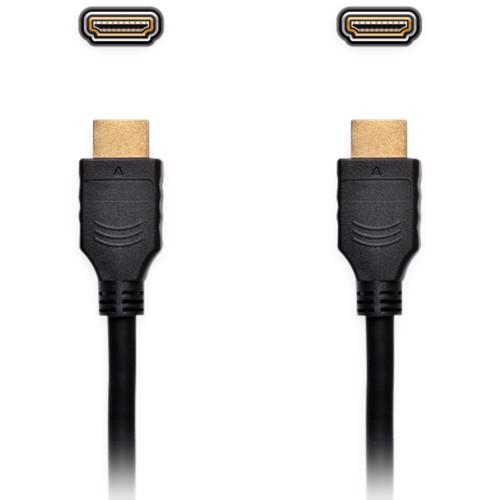

UPC: 766907952711 In the Box ViewSonic VX2758-C-MH 27" 16:9 Curved LCD Monitor Power Adapter Power Cable HDMI Cable Limited 3-Year Warranty More from Manufacturer Table of Contents
|
Upload User Manual
Have you got an user manual for the ViewSonic VX2758-C-MH 27" 16:9 Curved LCD Monitor in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersViewSonic VX2758-C-MH Specs | | | Size | 27" | | Panel Type | VA LCD | | Touchscreen | No | | Resolution | 1920 x 1080 | | Aspect Ratio | 16:9 | | Pixels Per Inch (ppi) | 82 ppi | | Hardness Rating | 3H | | Maximum Brightness | 280 cd/m2 | | Contrast Ratio | 3000:1 | | Dynamic Contrast Ratio | 80,000,000:1 | | Refresh Rate | 144 Hz | | Adaptive Sync Technology | FreeSync | | Horizontal Frequency | 15 to 160 Hz | | Vertical Frequency | 48 to 144 Hz | | Bit Depth / Color Support | 6-Bit+FRC (16.7 Million Colors) | | Response Time | 5 ms (Overdrive)
21 ms (GtG) | | Viewing Angle | Horizontal: 178°
Vertical: 178° | | Backlight Lifespan | 30,000 Hours | | | | Connectivity | 1 x VGA
1 x HDMI 1.4
1 x HDMI 2.0
1 x 3.5 mm Input
1 x 3.5 mm Output | | Built-In Speakers | Yes, 2 x 2 W | | | | Power Consumption | 18 W (Eco)
21 W (Eco)
24.5 W (Typical)
26 W (Maximum)

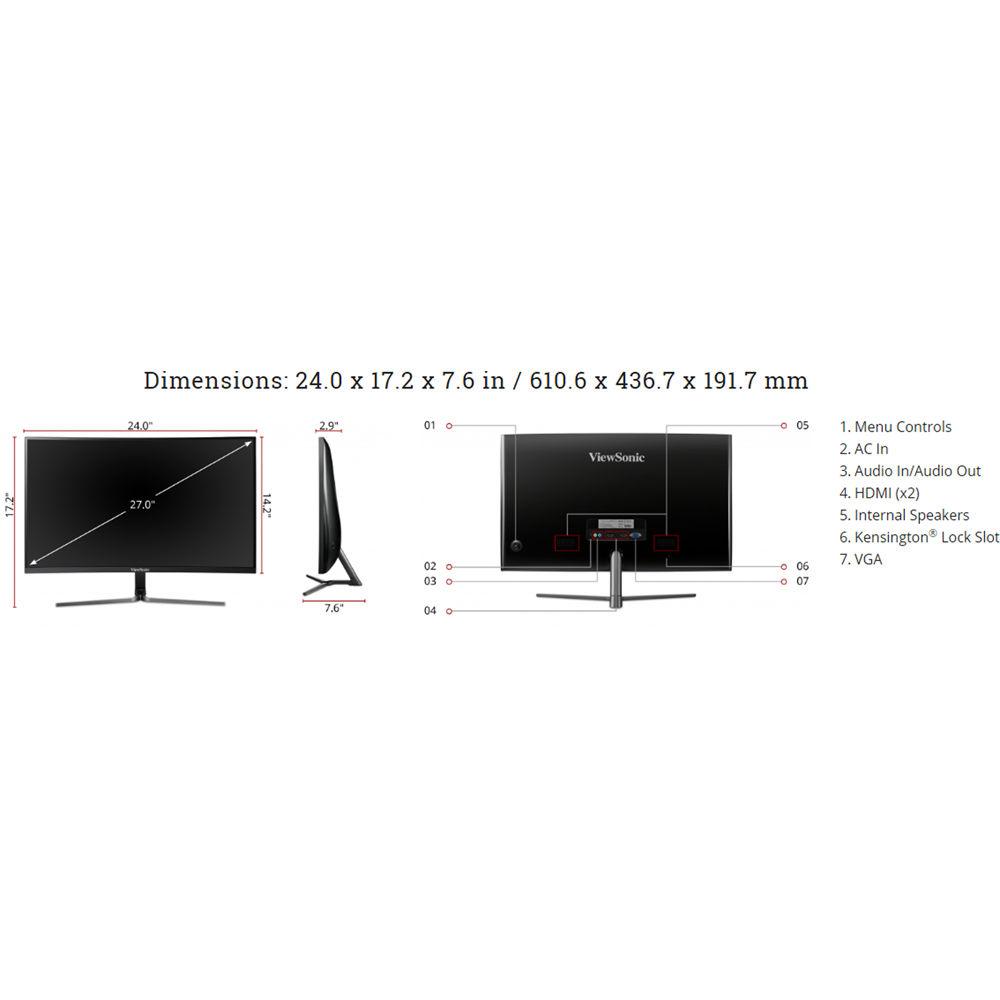

0.5 W (Standby) | | AC Input Power | 100 to 240 VAC, 50 / 60 Hz | | Power Adapter Type | External | | Power Supply | 60 W | | | | Operating Temperature | 32 to 104°F / 0 to 40°C | | Operating Humidity | 20 to 90% | | Certifications | ENERGY STAR, EPEAT Silver, FCC, NRCAN, as per Manufacturer | | | | Height Adjustment | None | | Rotation Adjustment | None | | Swivel Adjustment | None | | Tilt Adjustment | -5 to 20° | | Lock Slot | Yes | | Dimensions (W x H x D) | 24.0 x 17.2 x 7.6" / 61.0 x 43.7 x 19.3 cm (With Stand)
24.0 x 14.2 x 2.9" / 61.0 x 36.1 x 7.4 cm (Without Stand) | | Weight | 9.4 lb / 4.26 kg (With Stand)
8.8 lb / 3.99 kg (Without Stand) | | | | Package Weight | 13.55 lb | | Box Dimensions (LxWxH) | 26.9 x 20.0 x 5.8" |
