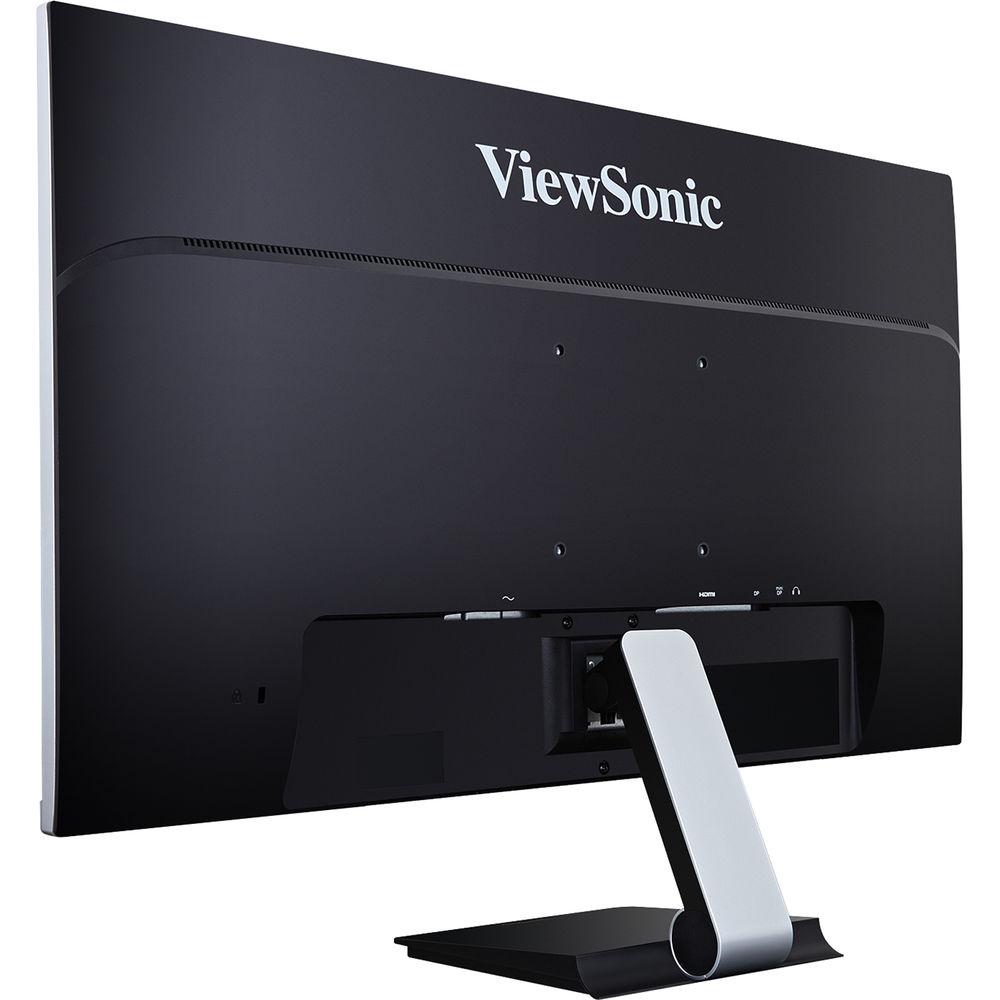

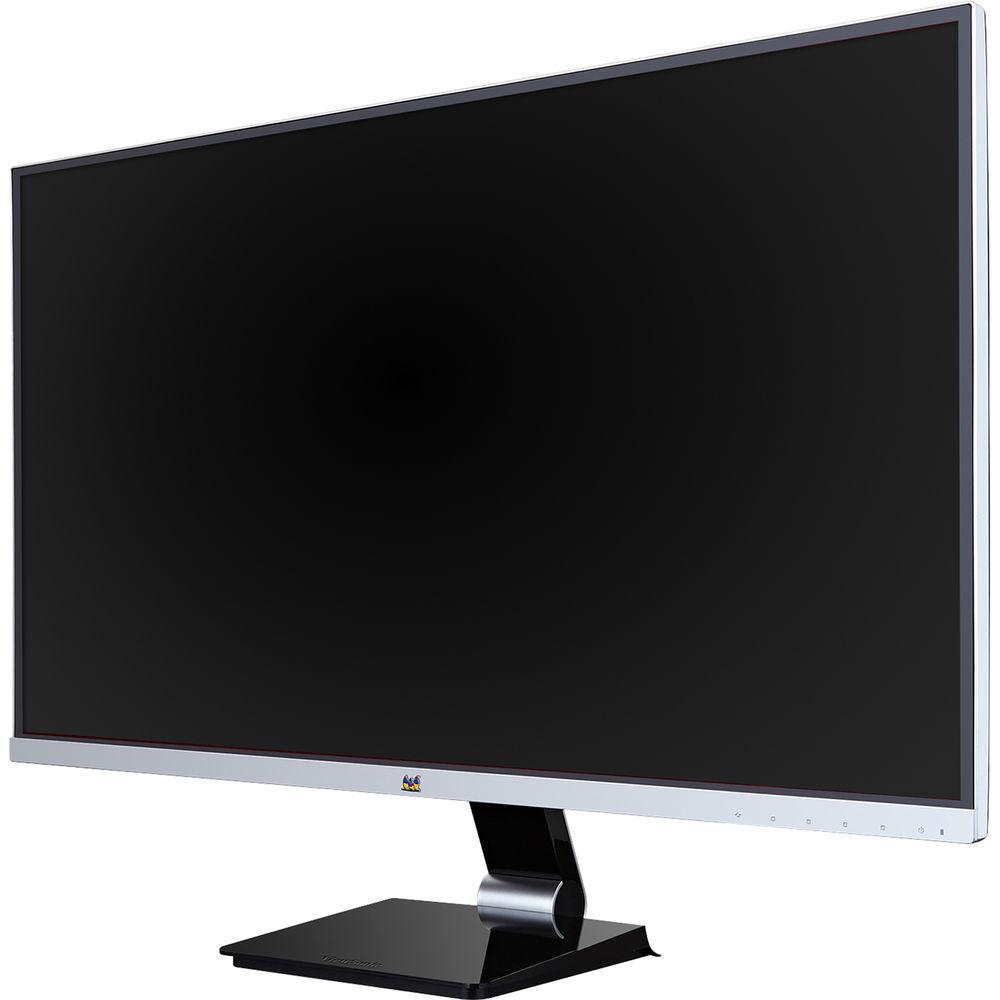

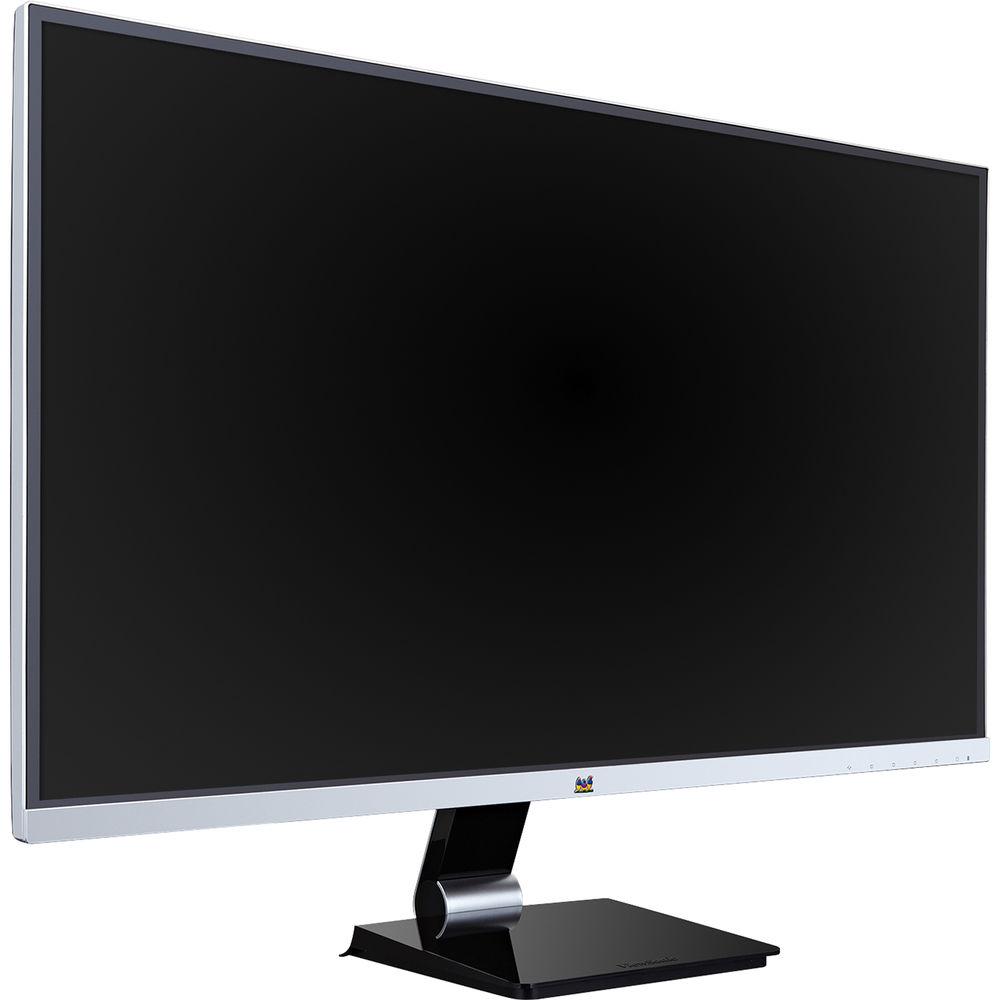

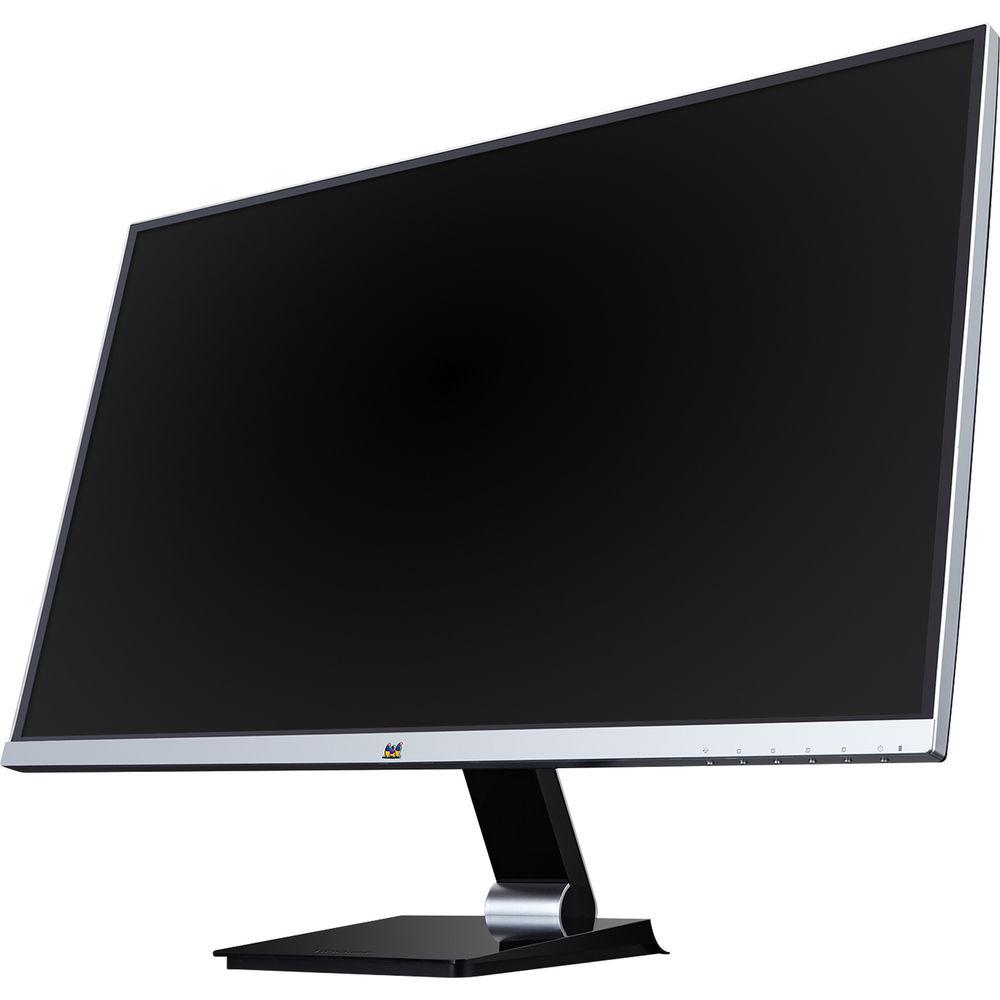

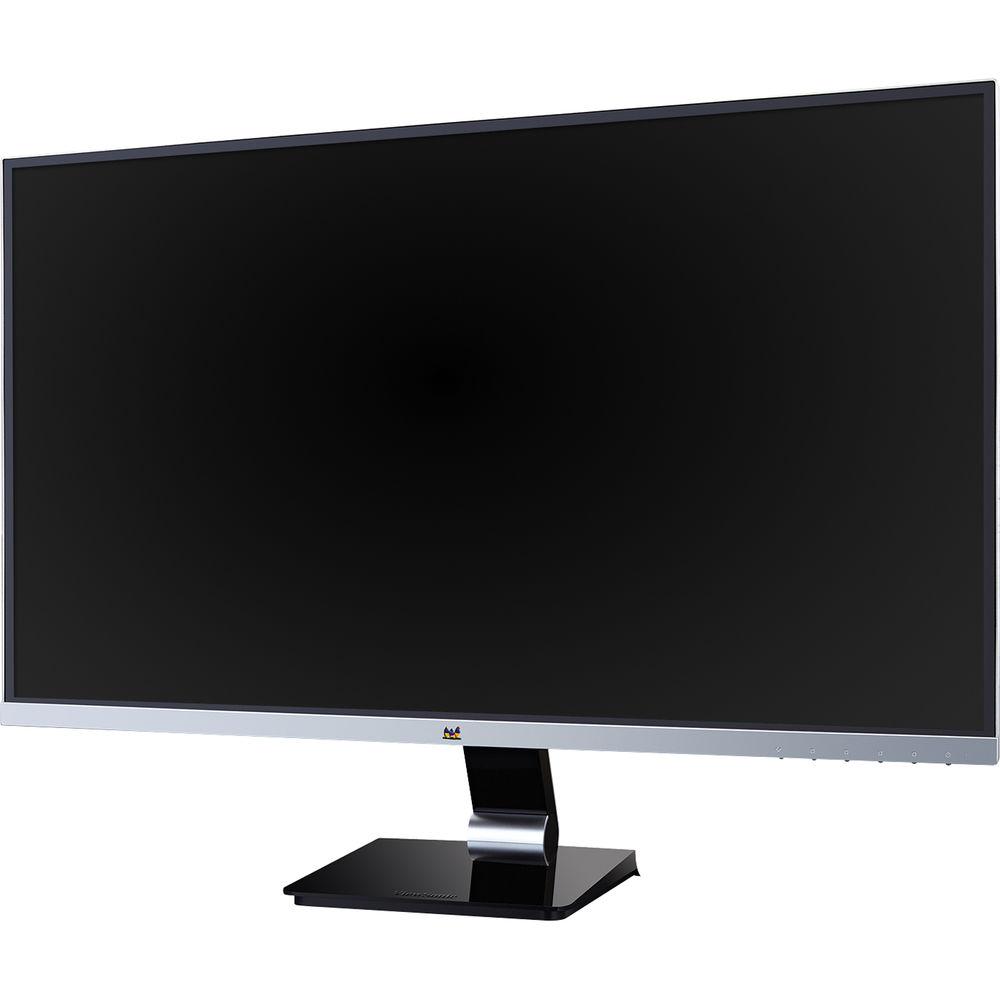

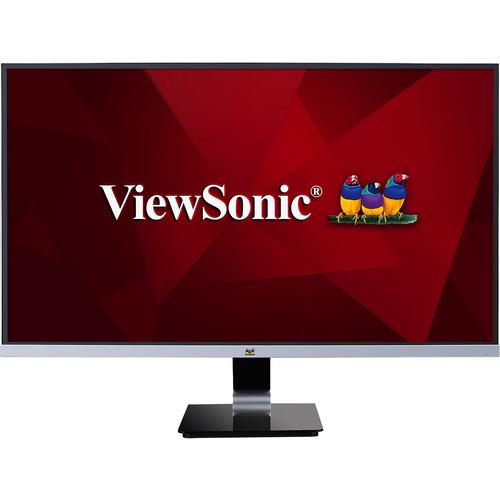

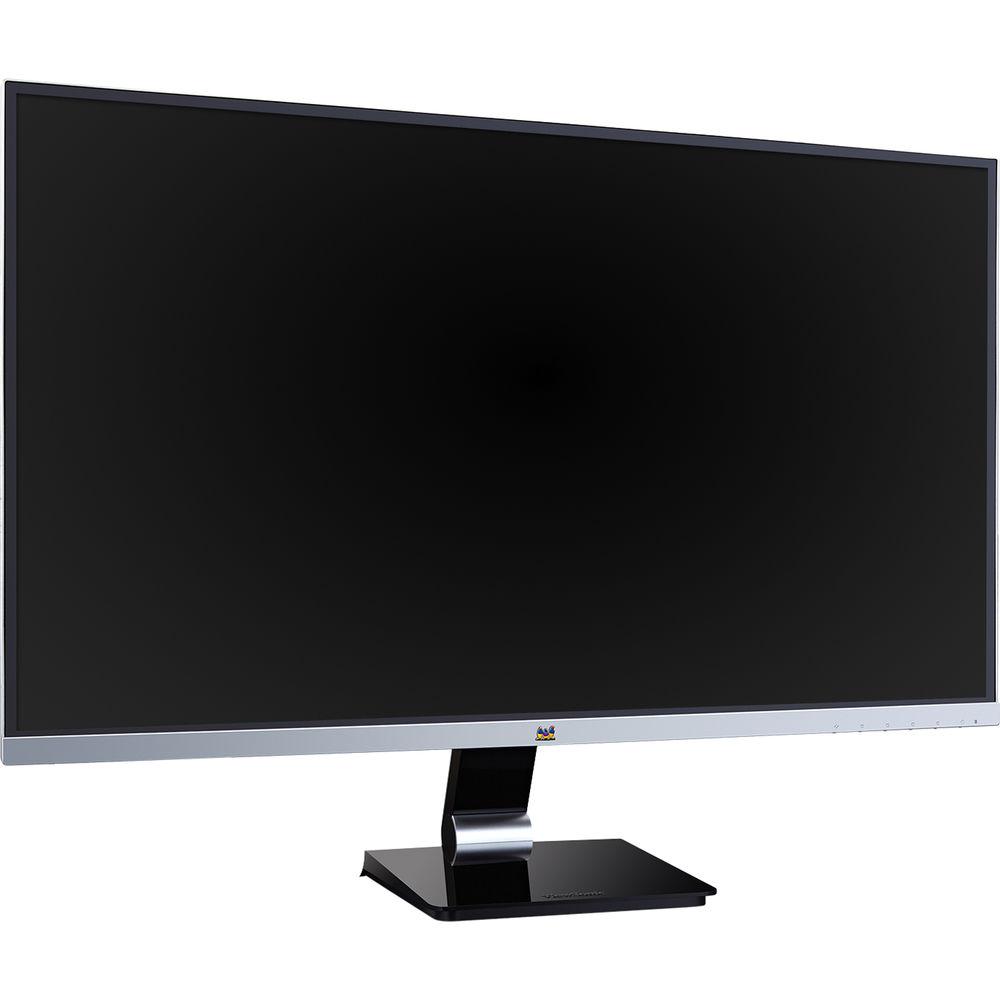

User Manual for ViewSonic VX2778-SMHD 27" 16:9 LCD Monitor Click to enlarge the picture
Contents of the user manual for the ViewSonic VX2778-SMHD 27" 16:9 LCD Monitor
- Product category: Computer Monitors ViewSonic
- Brand: ViewSonic
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for ViewSonic Computer Monitors
 |
User manual for the ViewSonic VX2778-SMHD 27" 16:9 LCD Monitor contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any ViewSonic product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official ViewSonic user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a ViewSonic product will considerably shorten its lifespan!
|
Product description 10 Factors to Consider When Selecting A Monitor for Video Editing Read More The VX2778-SMHD 27" 16:9 LCD Monitor from ViewSonic is built with a Plane-to-Line Switching (PLS) panel that provides you with wide 178 degree horizontal and vertical viewing angles as well as vivid color reproduction, similar to that of an In-Plane Switching (IPS) display. Combined with an 80,000,000:1 dynamic contrast ratio, support for 16.7 million colors, and 100% sRGB coverage, you'll be able to enjoy rich colors with darker blacks and brighter bright colors. Its 2560 x 1440 resolution offers roughly 70% more screen space compared to a standard 1080p display, to deliver crisp and clear HD content. A 5 ms response time ensures smooth images without streaking, blurring, or ghosting for a more optimal experience in fast-paced action sequences. Furthermore, it has extremely thin bezels measuring less than 0.1" wide for a more immersive experience, especially in a multi-monitor setup. Connect this display to your system via Mini-DP, DisplayPort, or HDMI and tilt it to your viewing preference. Alternatively, you can install a third-party mount or stand using the 100 x 100mm VESA mounting holes on the back. - Game Mode
- Using the Game Mode hotkey, you can switch between four different settings for an optimal blend of color and technology for specific gaming scenarios. You can also set individual preferences for select games. Game Modes include: FPS1, FPS2, RTS, and MOBA.
- ViewMode
- Aside from gaming, this monitor can also toggle between movie, web, text, and mono presets to enhance gamma curve, color temperature, contrast, and brightness for a more optimal viewing experience depending on what you're doing.
- Low Input Lag
- A built-in processor reduces input lag from your keyboard, mouse, or controller so commands are recognized quickly allowing you to react in real-time against your enemies.
- Eye Care
- This display features flicker-free and blue light filtering technology to help reduce eye strain caused by extended viewing periods.
UPC: 766907840018 In the Box ViewSonic VX2778-SMHD 27" 16:9 LCD Monitor Power Cable Mini-DP to DisplayPort Cable Limited 3-Year Warranty More from Manufacturer Table of Contents
|
Upload User Manual
Have you got an user manual for the ViewSonic VX2778-SMHD 27" 16:9 LCD Monitor in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersViewSonic VX2778-SMHD Specs | | | Size | 27" | | Screen Area | 23.5 x 13.2" / 59.7 x 33.6 cm | | Panel Type | IPS-Type LCD | | Touchscreen | No | | Resolution | 2560 x 1440 | | Finish | Matte | | Hardness Rating | 3H | | Maximum Brightness | 350 cd/m2 | | Dynamic Contrast Ratio | 80,000,000:1 | | Adaptive Sync Technology | None | | Horizontal Frequency | 68 to 100 kHz | | Vertical Frequency | 46 to 65 Hz | | Bit Depth / Color Support | 8-Bit (16.7 Million Colors) | | Color Gamut | 100% sRGB | | Response Time | 5.1 ms
3 ms (Overdrive) | | Viewing Angle | Horizontal: 178°

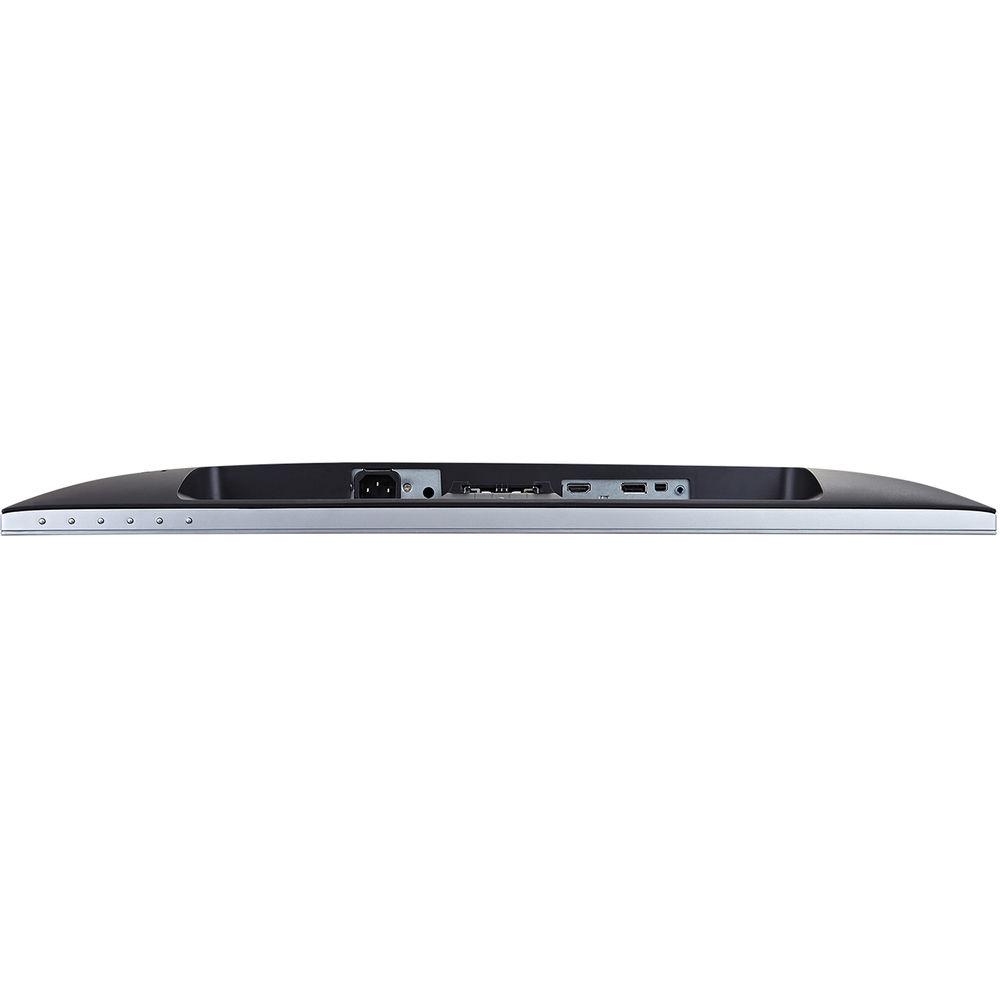

Vertical: 178° | | Backlight Lifespan | 40,000 Hours | | | | Connectivity | 1 x 3.5 mm Input/Output
1 x 3.5 mm Output
1 x HDMI 1.4
1 x DisplayPort 1.2 Input
1 x Mini DisplayPort | | Built-In Speakers | Yes, 2 x 2 W | | | | Power Consumption | 23 W (Eco)

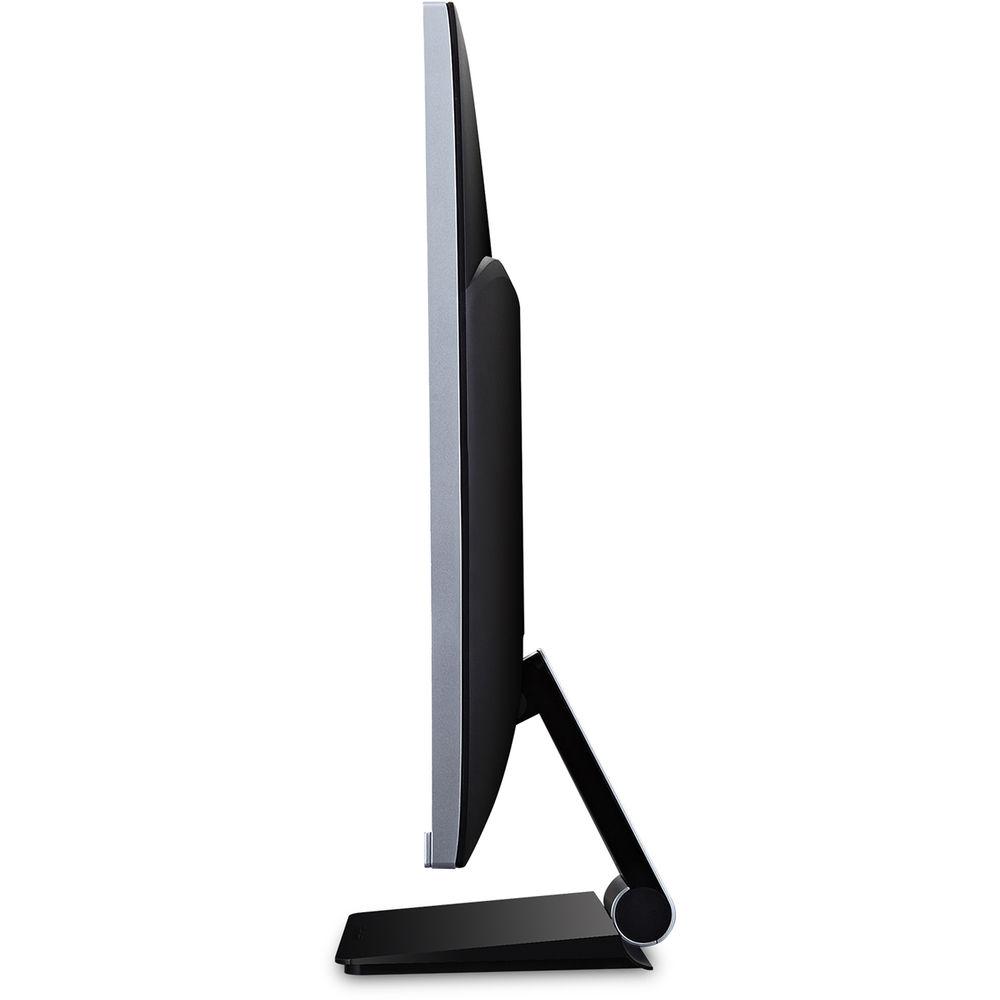

34 W (Typical) | | AC Input Power | 100 to 240 VAC, 50 / 60 Hz | | | | Operating Temperature | 32 to 104°F / 0 to 40°C | | Operating Humidity | 20 to 90% | | | | Tilt Adjustment | -5 to 22° | | Mounting-Hole Pattern | 100 x 100 mm | | Dimensions (W x H x D) | 27.2 x 18.0 x 5.8" / 69.1 x 45.7 x 14.8 cm | | Weight | 10.7 lb / 4.8 kg (With Stand)
9.1 lb / 4.1 kg (Without Stand) | | | | Package Weight | 13.5 lb | | Box Dimensions (LxWxH) | 26.5 x 17.5 x 6.0" |
Rating90% users recommend this product to others. And what about you?
This product has already been rated by 94 owners. Add your rating and experience with the product.
