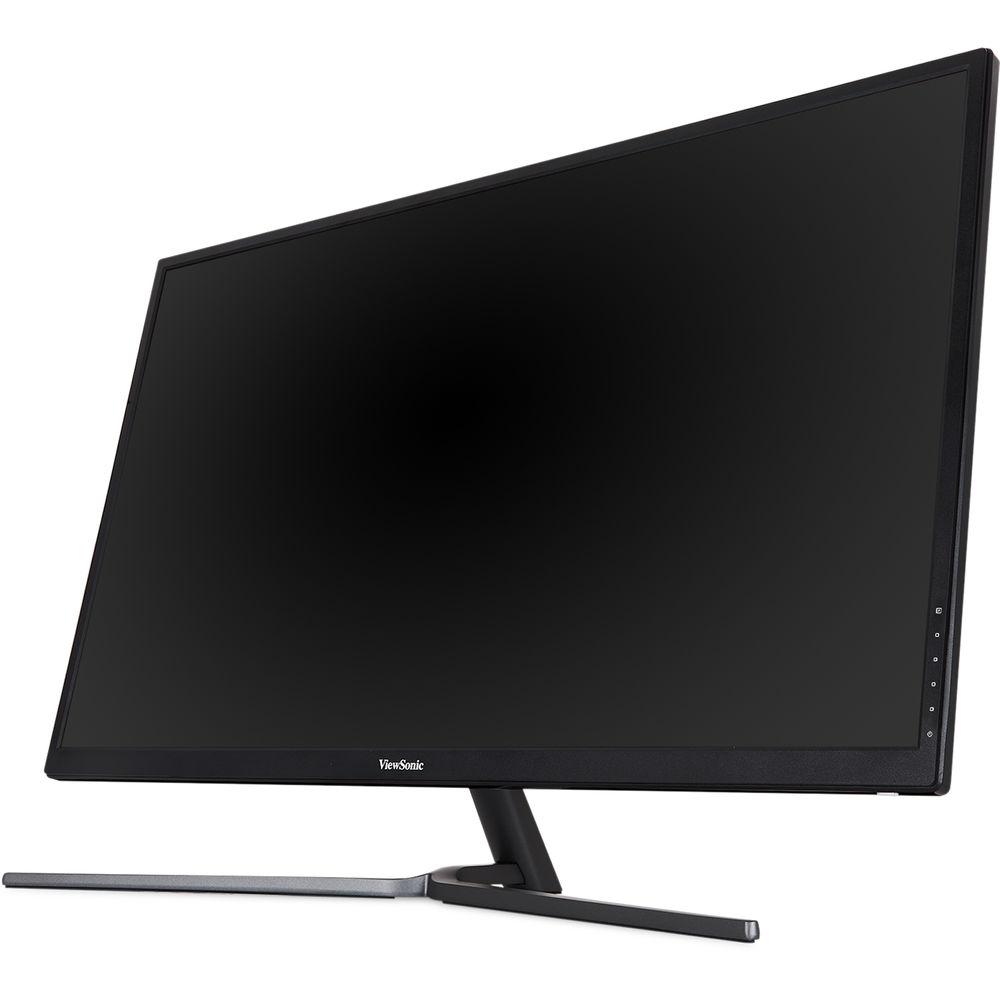

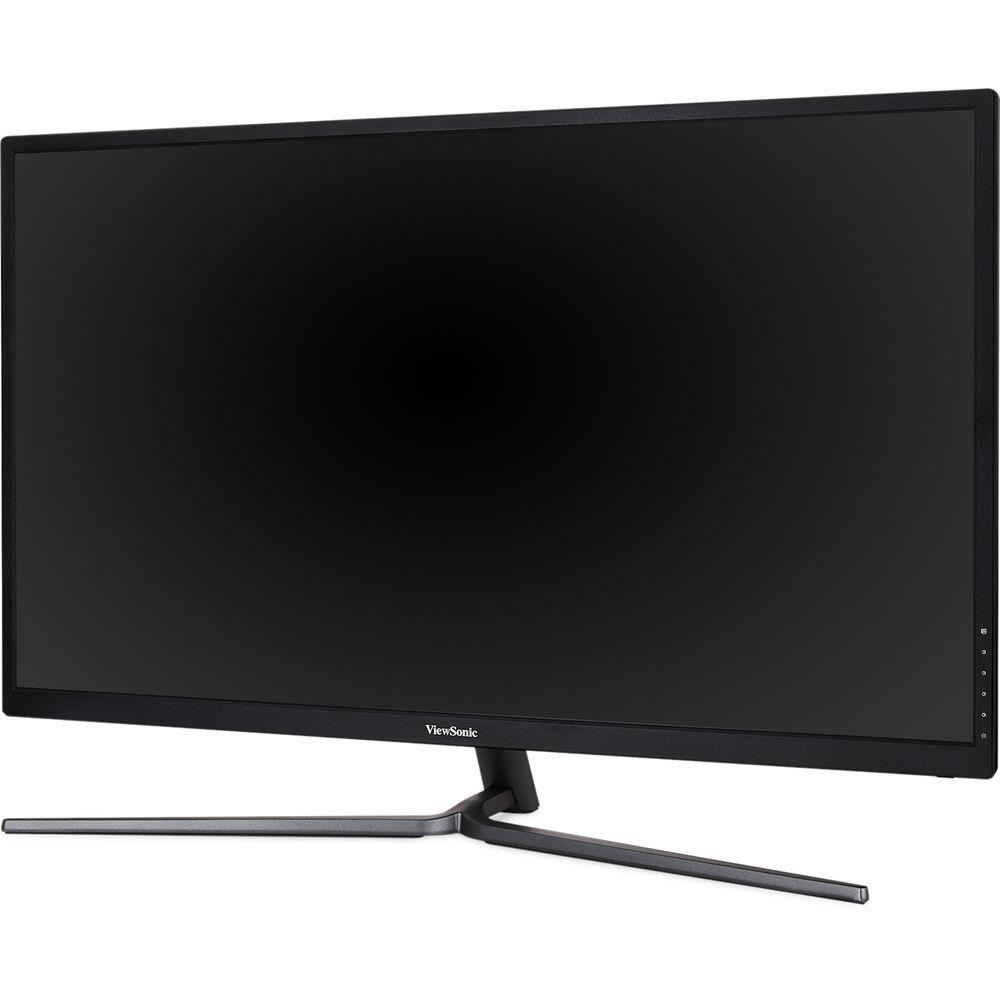

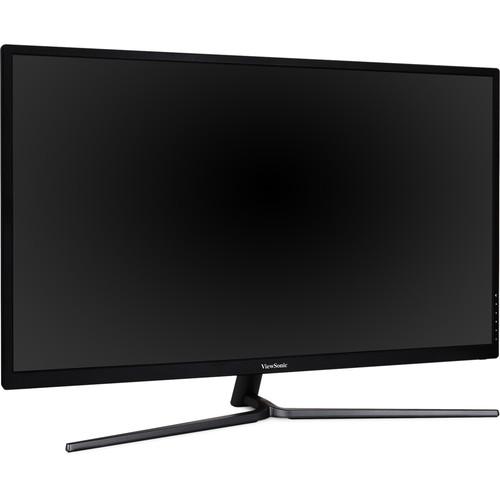

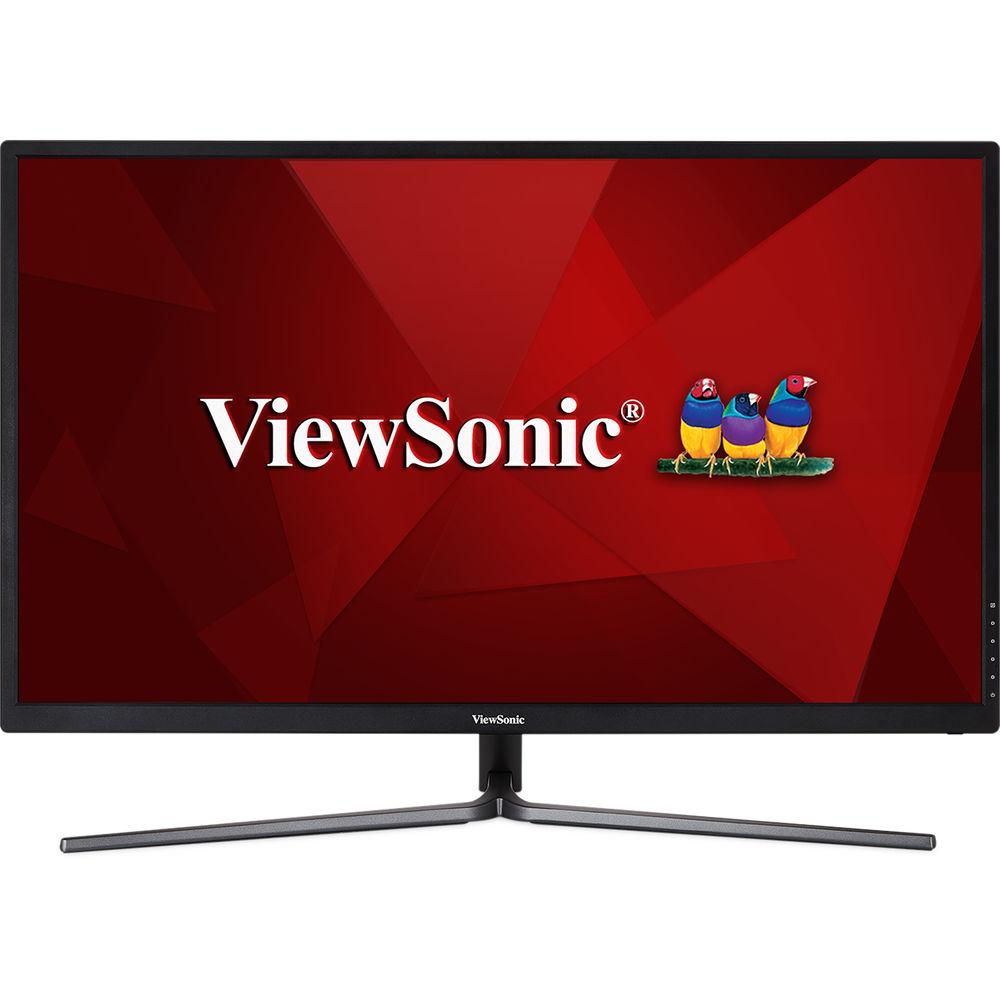

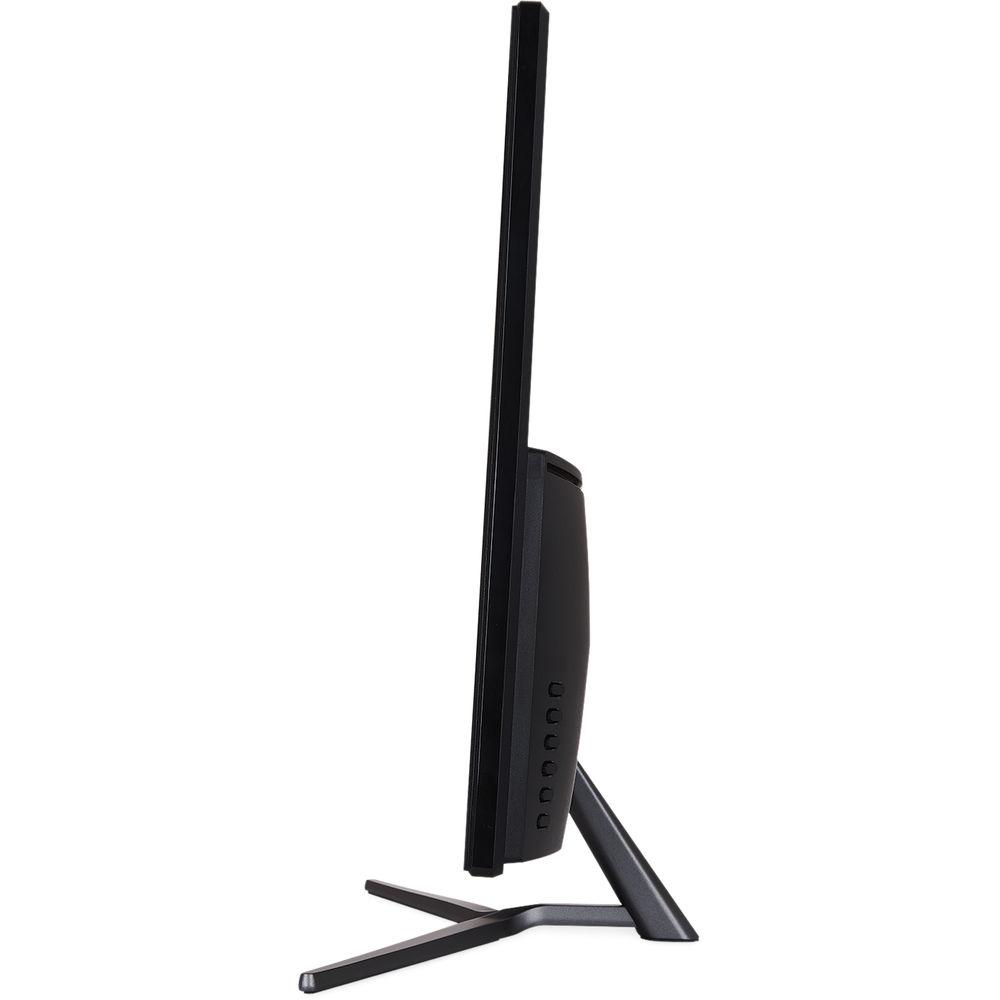

Product description 10 Factors to Consider When Selecting A Monitor for Video Editing Read More With up to four times the clarity of a standard 720p monitor, the VX3211-2K-MHD 32" 16:9 SuperClear IPS Monitor from ViewSonic features a WQHD 2560 x 1440 resolution accompanied by a 1200:1 contrast ratio, a 250 cd/m² brightness rating, an 8 ms response time, and support for up to 1.07 billion colors.

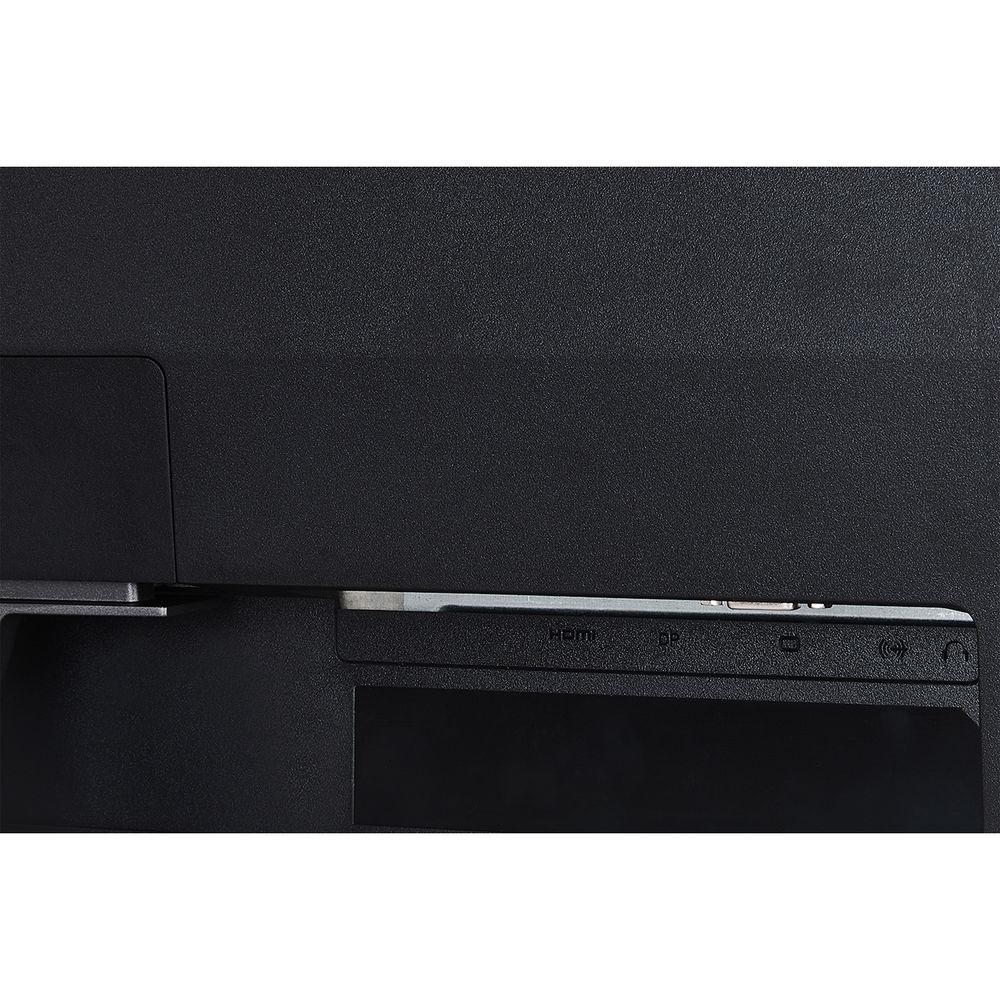

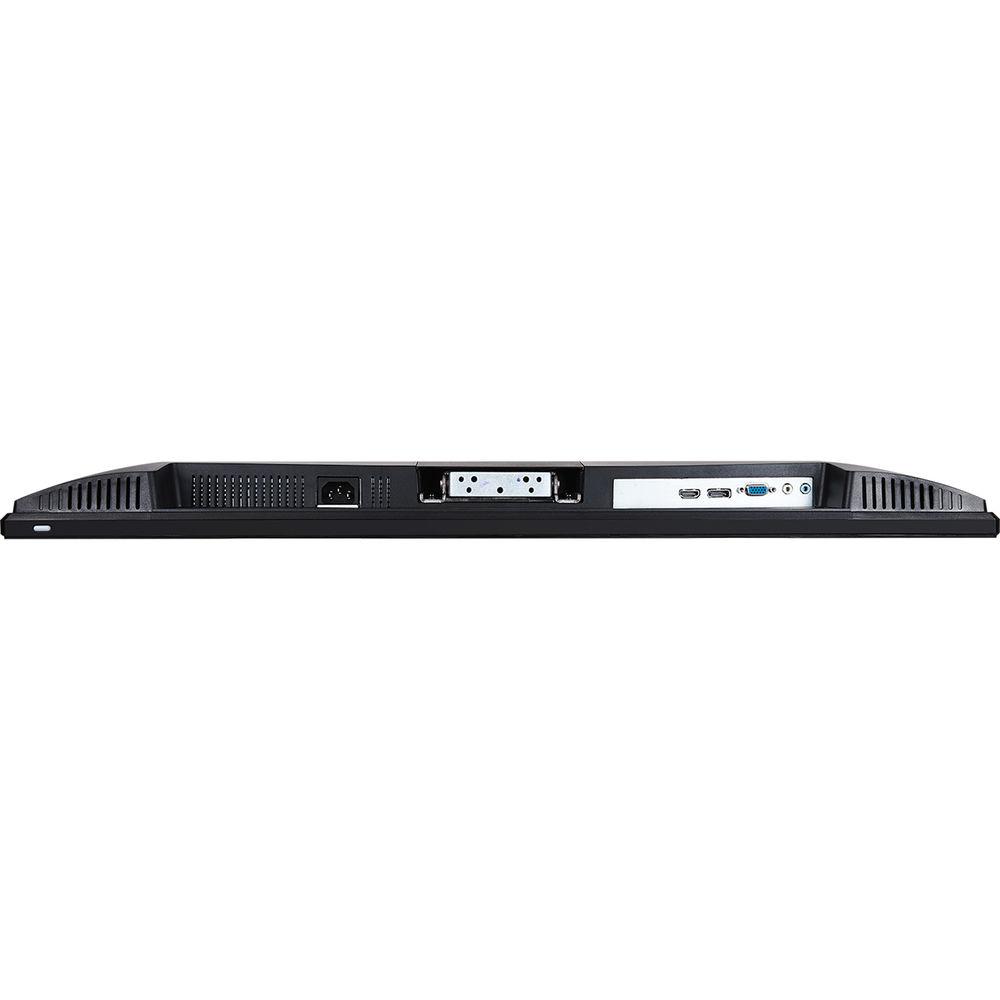

Installation of this ViewSonic monitor is simple as it comes equipped with HDMI, DisplayPort, and VGA inputs. Once installed, the VX3211 offers an enhanced overall viewing experience thanks to the SuperClear IPS (In-Plane Switching) panel supporting 178° horizontal and vertical viewing angles, making it easy to see the display from virtually any perspective. Additionally, the slim bezel design allows for increased screen surface with reduced distractions while the built-in 2.5W speakers provide enhanced audio playback, which is great for viewing movies or gaming. - Wide Quad HD Resolution
- At four times the resolution of a traditional 720p panel, and almost double that of a traditional 1080p display, WQHD results in a much sharper image, with no distortion or stretching, all while maintaining the same 16:9 aspect ratio.
- SuperClear IPS-Type Panel Technology
- Enjoy accurate and vivid colors with consistent levels of brightness no matter the vantage point. With SuperClear IPS-type panel technology, this monitor delivers the same image quality whether you are looking at the screen from above, below, the front, or the sides
- The Power of HDMI
- HDMI is a future-proof video standard that delivers true digital picture and audio clarity. The HDMI interface on this monitor allows you to connect to a variety of HD devices including gaming consoles, Blu-ray players, laptop computers, digital cameras, and many others for the ultimate true high-definition experience.
- Slim Bezel Design
- The slim bezel delivers an increased screen surface area that lets you see more without taking up valuable desktop real estate. In addition, the slim bezel enables easy configuration of multi-screen setups with a sleek look that stands out in any setting.
- Optimized View Settings
- ViewSonic's unique ViewMode feature offers "Game," "Movie," "Web," "Text," and "Mono" presets. These presets enhance gamma curve, color temperature, contrast, and brightness to deliver an optimized viewing experience for different screen applications.
- Dual Integrated Speakers
- Designed with dual integrated speakers, this monitor combines enhanced screen performance with stereo sound for an immersive multimedia experience.
- Enhanced Viewing Comfort
- Flicker-Free technology and a Blue Light Filter help to eliminate eye strain from extended viewing periods.

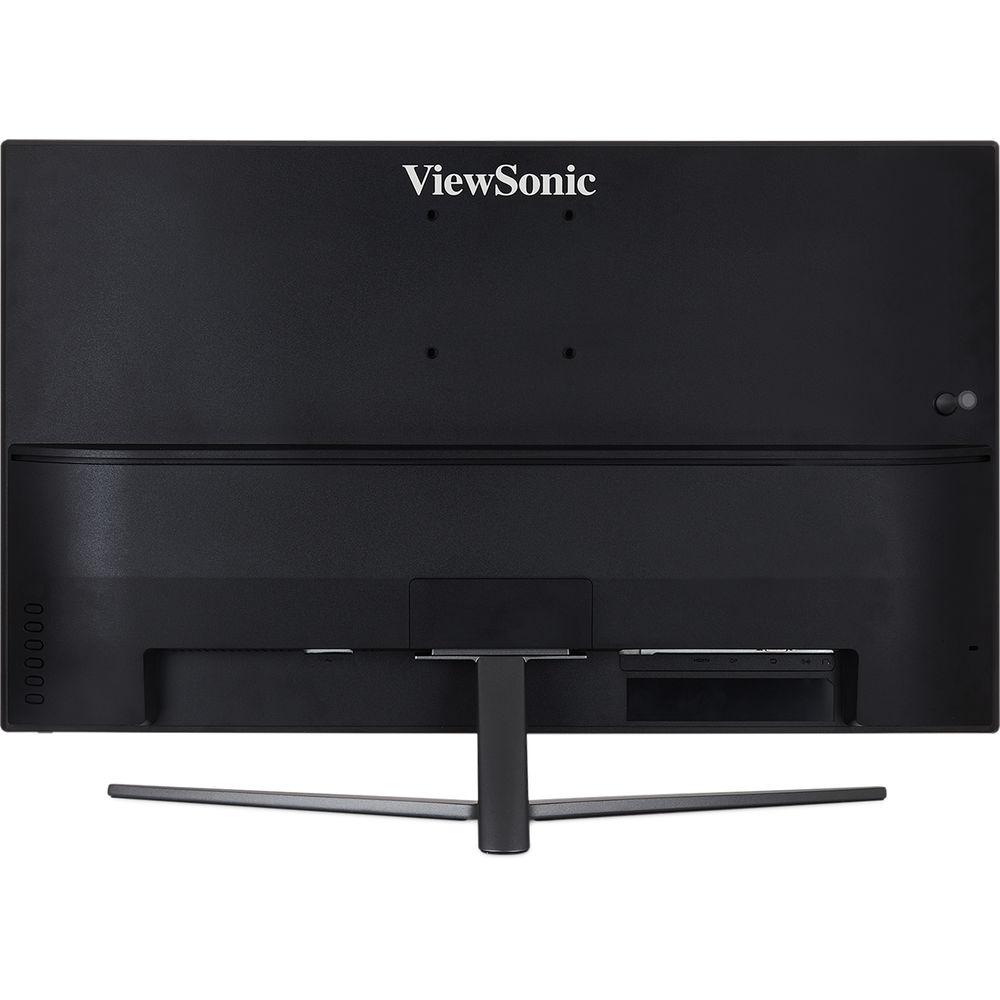

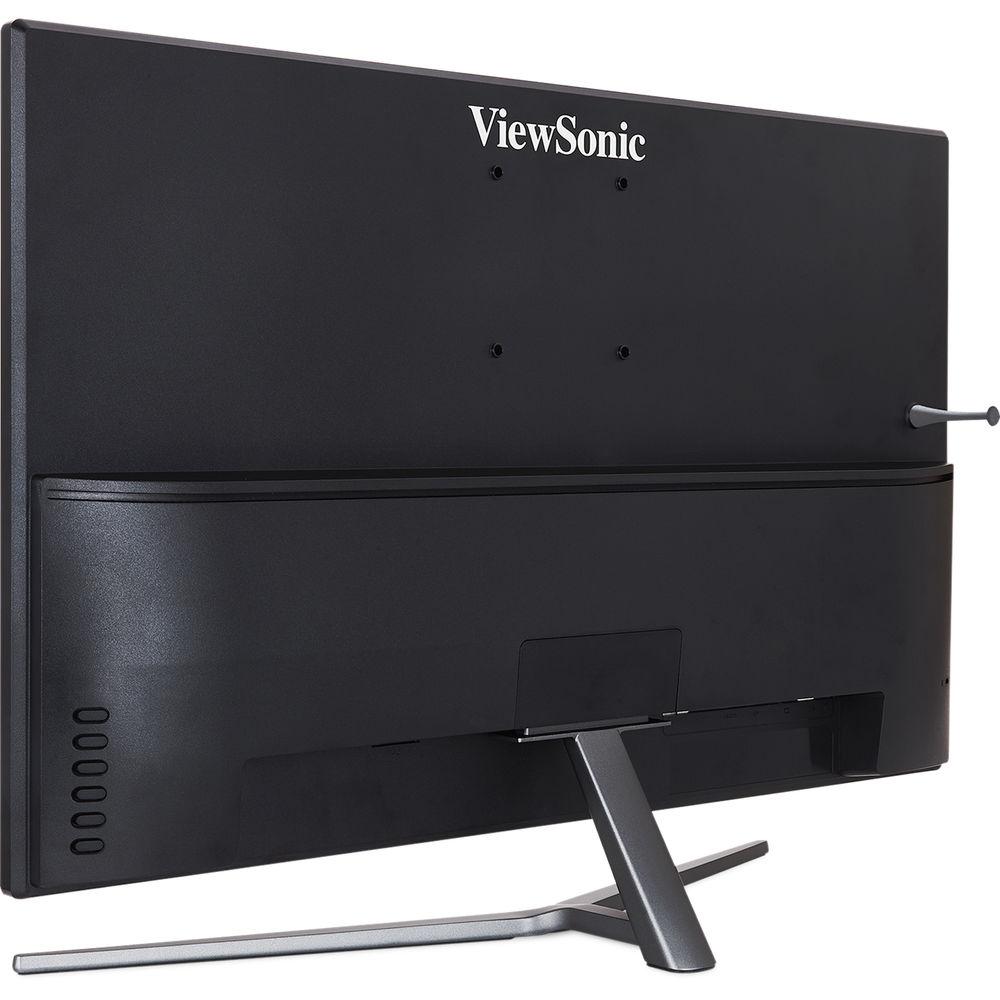

- VESA Mount Compatible
- Mount the monitor as you see fit using its convenient VESA-compatible mount design.
UPC: 766907918410 In the Box ViewSonic VX3211-2K-MHD 32" 16:9 SuperClear IPS Monitor Power Cable HDMI Cable Audio Cable Limited 3-Year Warranty User Manual PDF 1.7mb More from Manufacturer Table of Contents
|
Upload User Manual
Have you got an user manual for the ViewSonic VX3211-2K-MHD 32" 16:9 SuperClear IPS Monitor in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersViewSonic VX3211-2K-MHD Specs | Display Size | 32" / 81.28 cm | | Viewable Area | 31.5" / 80.01 cm | | Panel Type | IPS (In-Plane Switching) | | Resolution | 2560 x 1440 | | Contrast Ratio | Static: 1200:1
Dynamic: 80,000,000:1 | | Light Source | WLED | | Brightness | 250 cd/m² | | Colors | Colors Supported
1.07 billion
Color Space Support
10-bit | | Aspect Ratio | 16:9 | | Response Time | Typical (GtG)
8 ms
GtG (w/OD)
3 ms | | Viewing Angles (H/V) | 178°/178° | | Backlight Life | 30,000 hours | | Panel Surface | Anti-glare, hard coating (3H) | | Connectors | 1 x 3.5 mm audio-in
1 x 3.5 mm audio-out
1 x VGA
2 x HDMI 1.4
1 x DisplayPort | | Audio | 2 x 2.5 W internal speakers | | Power | Voltage
100-240 VAC (universal), 50/60 Hz
Power Consumption
Eco Mode (Conserve): 35 W
Eco Mode (Optimized): 42 W
Typical: 55 W
Maximum: 65 W
Standby: 0.3 W | | Kensington Lock Support | Yes | | Controls | Physical Controls
1, 2, 3, 4, 5, Power
On Screen Display
Auto Image Adjust, Contrast/Brightness, Input Select, Audio Adjust, Color Adjust, Information, Manual Image Adjust, Advanced Image Adjust, Setup Menu, Memory Recall (See user guide for complete OSD functionality) | | Temperature & Humidity | Operating Temperature
32 to 104°F / 0 to 40°C
Operating Humidity
5 to 90% (non-condensing) | | VESA Mount Standard | 100 x 100 mm | | Video Signal | Horizontal Frequency
24~99 kHz
Vertical Frequency
24~75 Hz | | Video Input | Analog Sync
Separate Sync / Composite Sync / Sync on Green Digital Sync
TMDS, PCI-E | | Ergonomics | Tilt (Forward / Back)
5 to 13° | | Regulations | cULus, FCC-B, ICES003, ENERGY STAR, EPEAT Silver, UL-MX-CoC, Mexico Energy | | Dimensions | With Stand
28.73 x 19.51 x 9.06" / 72.97 x 49.55 x 23 cm
Without Stand
28.73 x 17.04 x 2.3" / 72.97 x 43.28 x 5.83 cm | | Weight | With Stand
15.5 lb / 7.03 kg
Without Stand
13.62 lb / 6.18 kg | | | | Package Weight | 22.0 lb | | Box Dimensions (LxWxH) | 33.0 x 24.2 x 10.8" |
