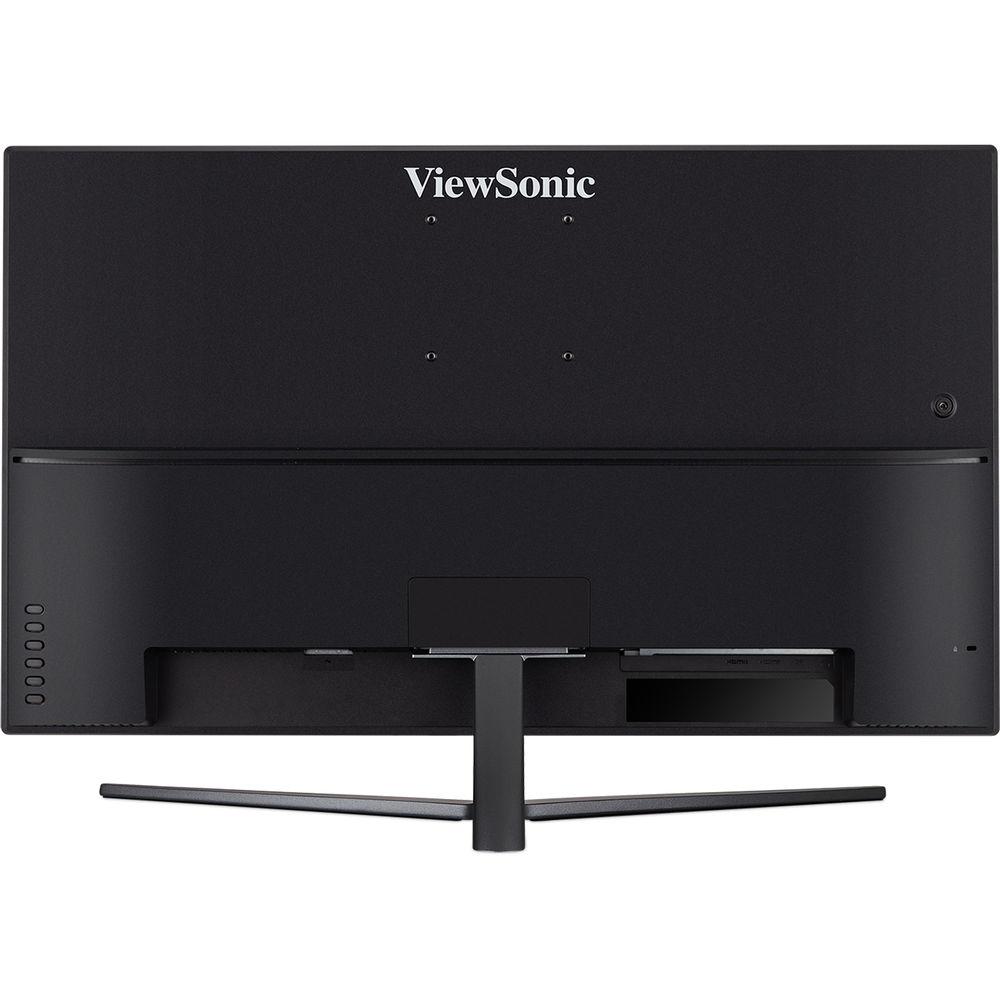

User Manual for ViewSonic VX3211-4K-MHD 32" 16:9 4K UHD HDR FreeSync LCD Monitor Click to enlarge the picture
Contents of the user manual for the ViewSonic VX3211-4K-MHD 32" 16:9 4K UHD
- Product category: Computer Monitors ViewSonic
- Brand: ViewSonic
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for ViewSonic Computer Monitors
 |
User manual for the ViewSonic VX3211-4K-MHD 32" 16:9 4K UHD contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any ViewSonic product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official ViewSonic user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a ViewSonic product will considerably shorten its lifespan!
|

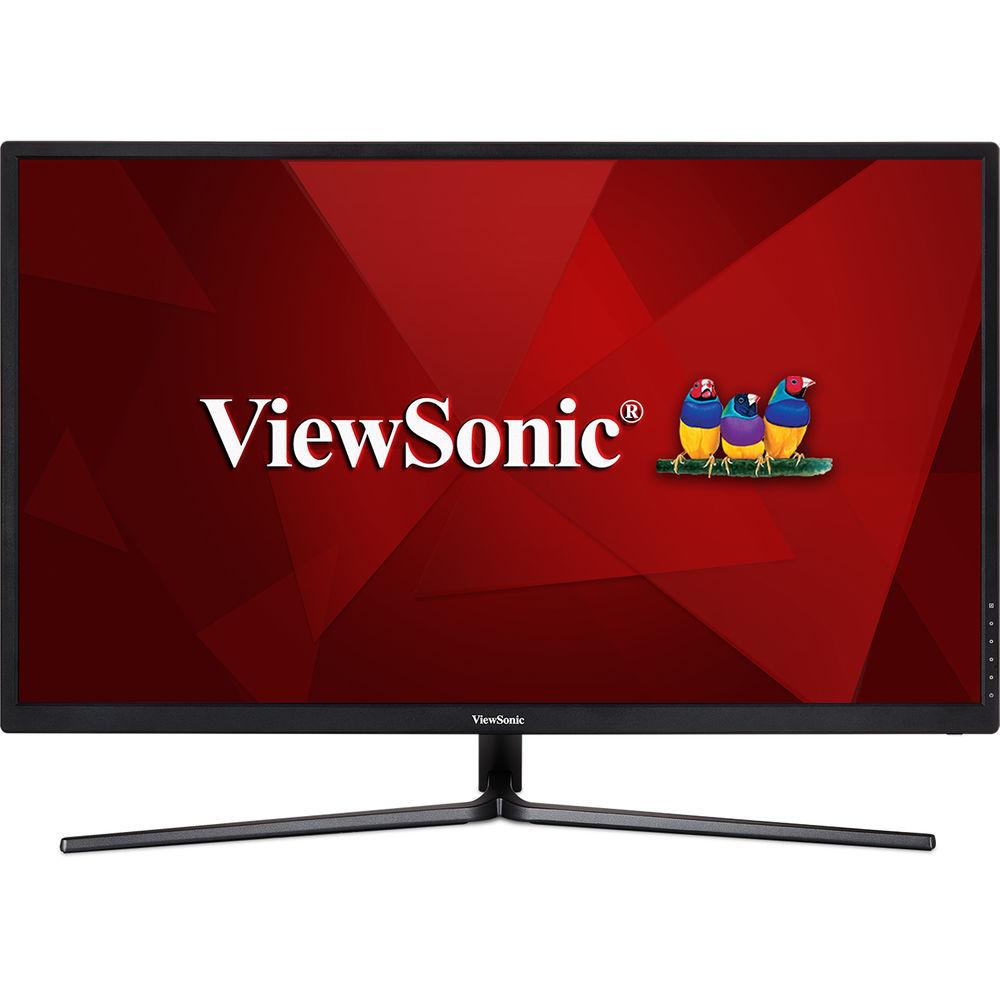

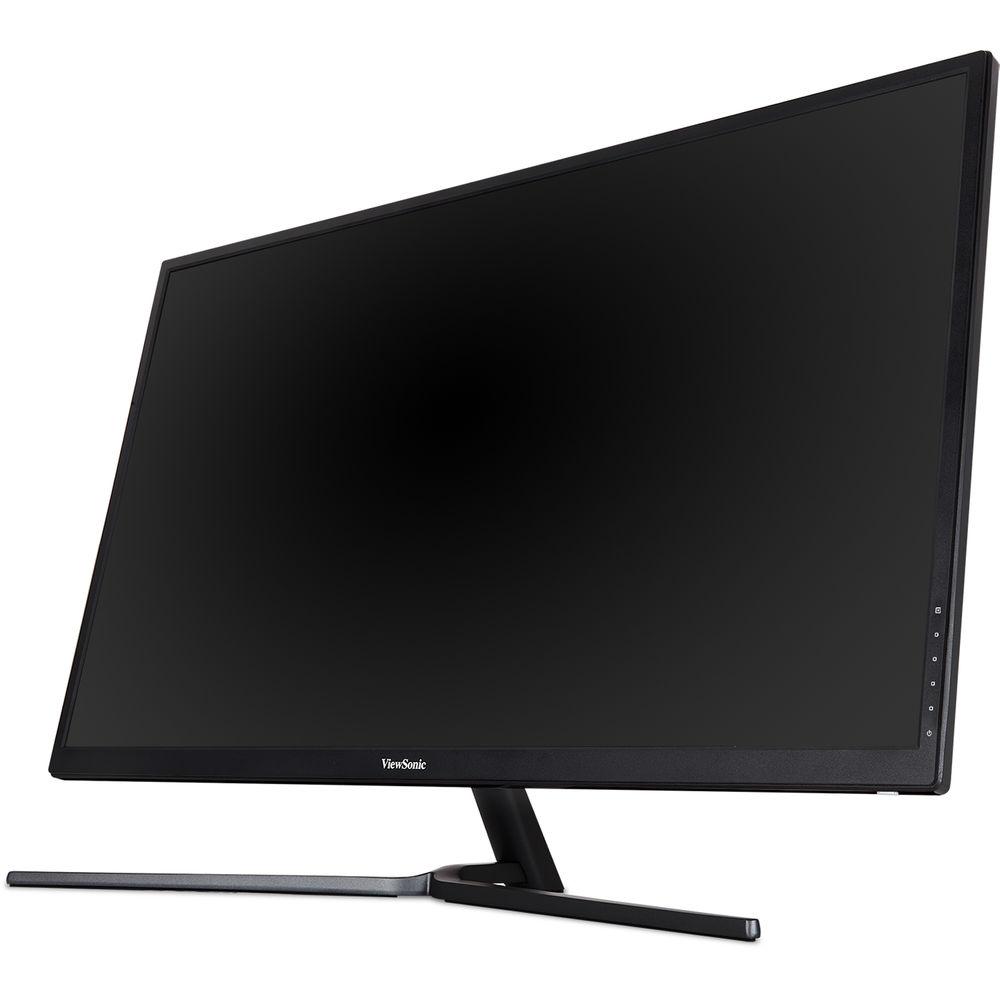

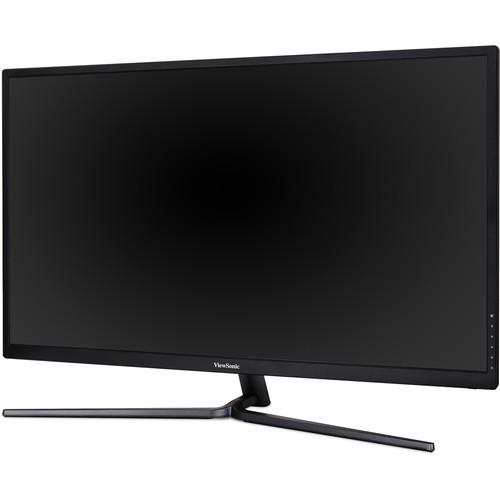

Product description 10 Factors to Consider When Selecting A Monitor for Video Editing Read More If professional color is what you want, then the VX3211-4K-MHD 32" 16:9 4K UHD HDR FreeSync LCD Monitor from ViewSonic delivers as this display comes at you with more than 8 million pixels, a 3840 x 2160 resolution, and support for AMD FreeSync technology to sync the monitor with compatible graphics cards. This UHD display features a 300 cd/m² brightness rating, a 3000:1 contrast ratio, a 9.5 ms response time that can be shortened to 3 ms with OD, and two built-in 2.5W speakers. Furthermore, this monitor supports 178° horizontal and vertical viewing angles aided by SuperClear MVA Panel Technology which ensure brightness levels are consistent throughout the screen.

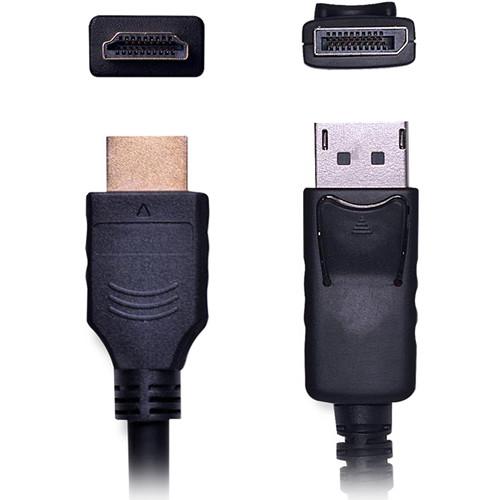

Setting up the ViewSonic VX3211 monitor is a breeze as it comes equipped with both DisplayPort and HDMI inputs to connect to nearly any computer configuration. Once configured, viewers will appreciate the nearly frameless design of the display along with support for the HDR10 video standard, which provides brighter colors with a richer contrast so your content truly pops off the screen. - 4K UHD Resolution
- Displaying more than 8 million pixels with a high-pixel density, this Ultra HD 3840 x 2160 monitor delivers the ultimate in image detail and clarity for lifelike images. In addition, with 4x more pixels than Full HD resolution, this Ultra HD monitor displays more content to maximize productivity.
- SuperClear MVA Panel Technology
- Enjoy accurate and vivid colors with consistent levels of brightness no matter the vantage point. With SuperClear MVA panel technology, this monitor delivers the same image quality whether you are looking at the screen from above, below, the front, or the side.
- AMD FreeSync Technology
- Leveraging VESA Adaptive-Sync connectivity, this monitor is equipped with AMD FreeSync technology that seamlessly synchronizes the frame rate output between your graphics card and monitor. This dynamic refresh rate effectively eliminates image tearing, stuttering, and jerkiness for smooth gameplay.
- HDR10 Content Support
- With the ability to decode HDR10 video signals, this monitor delivers detailed video playback. Colors are brighter and more vivid, and contrast is richer and more detailed. With such amazing image reproduction, this monitor displays videos as they were intended to be seen - giving you a fuller, more immersive viewing experience.
Please note, the video source must also have HDR10 content support - Enhanced Connectivity
- Future-proof HDMI 2.0 and DisplayPort 1.2a video standards support 3840 x 2160 resolution at a quick 60 Hz frame rate-guaranteeing jitter-free multimedia, smooth screen performance, and true Ultra HD picture clarity. What's more, HDCP 2.2 content protection is standard across all ports to provide secure 4K content playback, streaming, and gaming.

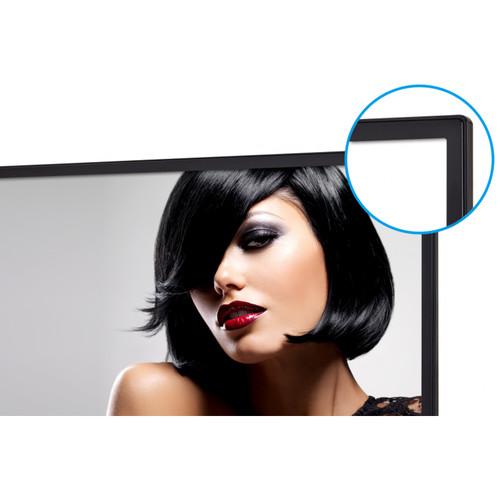

- Slim Bezel Design
- The slim bezel delivers an increased screen surface area that lets you see more without taking up valuable desktop real estate. In addition, the slim bezel enables easy configuration of multi-screen setups with a sleek, fashionable look that stands out in any setting.
- Optimized View Settings
- ViewSonic's unique ViewMode feature offers "Game," "Movie," "Web," "Text," and "Mono" presets. These presets enhance gamma curve, color temperature, contrast, and brightness to deliver an optimized viewing experience for different screen applications.
- Dual Integrated Speakers
- Designed with dual integrated speakers, this monitor combines enhanced screen performance with stereo sound for an immersive multimedia experience.
- Enhanced Viewing Comfort
- Flicker-Free technology and a Blue Light Filter help to eliminate eye strain from extended viewing periods.

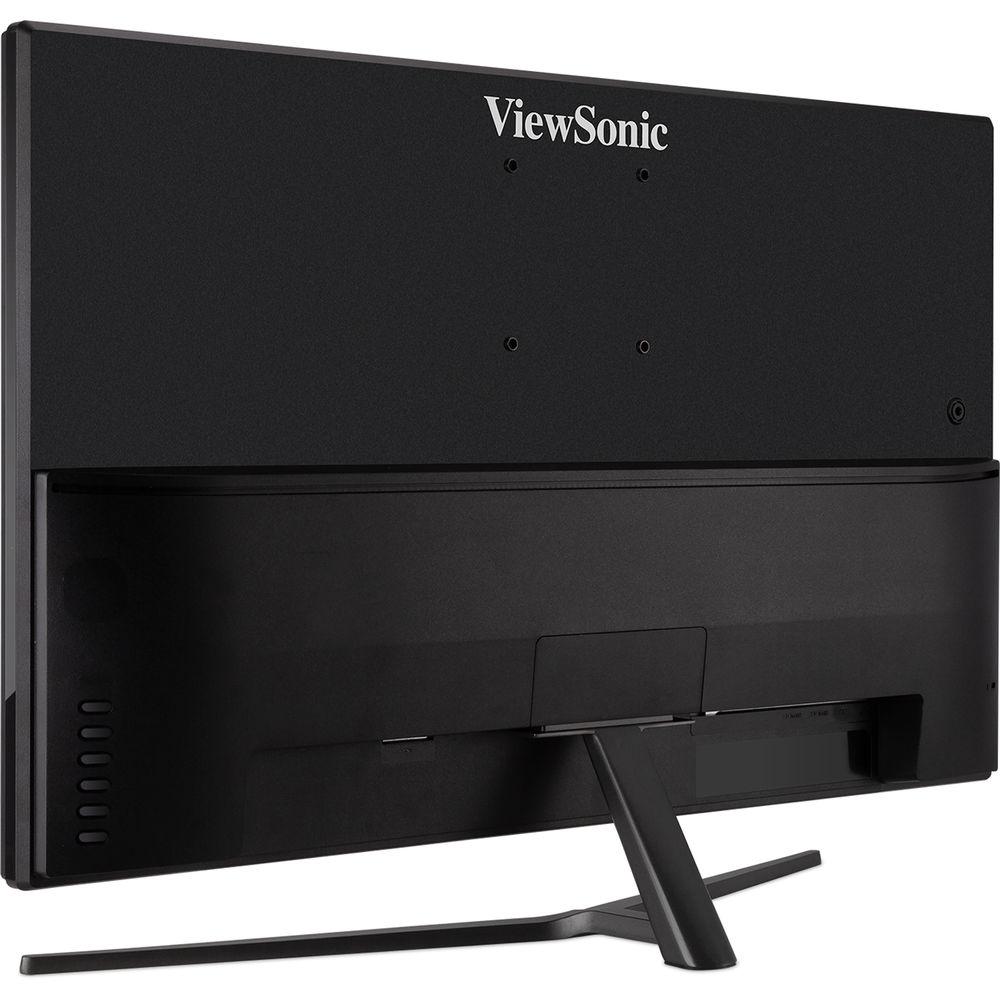

- VESA-Compatible Wall Mount
- Mount the monitor as you see fit using its convenient VESA-compatible mount design.
UPC: 766907977912 In the Box ViewSonic VX3211-4K-MHD 32" 16:9 4K UHD HDR FreeSync LCD Monitor Power Cable HDMI Cable Limited 3-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the ViewSonic VX3211-4K-MHD 32" 16:9 4K UHD HDR FreeSync LCD Monitor in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersViewSonic VX3211-4K-MHD Specs | | | Size | 31.5" | | Panel Type | VA LCD | | Touchscreen | No | | Resolution | 3840 x 2160 | | Aspect Ratio | 16:9 | | Pixels Per Inch (ppi) | 140 ppi | | Finish | Matte | | Hardness Rating | 3H | | Maximum Brightness | 300 cd/m2 | | Contrast Ratio | 3000:1 | | Dynamic Contrast Ratio | 80,000,000:1 | | Refresh Rate | 60 Hz | | Adaptive Sync Technology | FreeSync | | Horizontal Frequency | 15 to 204 kHz (HDMI) | | Vertical Frequency | 40 to 60 kHz (HDMI)
40 to 60 Hz (DisplayPort) | | Bit Depth / Color Support | 8-Bit+FRC (1.07 Billion Colors) | | HDR Compatibility | HDR10 | | Response Time | 10 ms (GtG) | | Viewing Angle | Horizontal: 178°

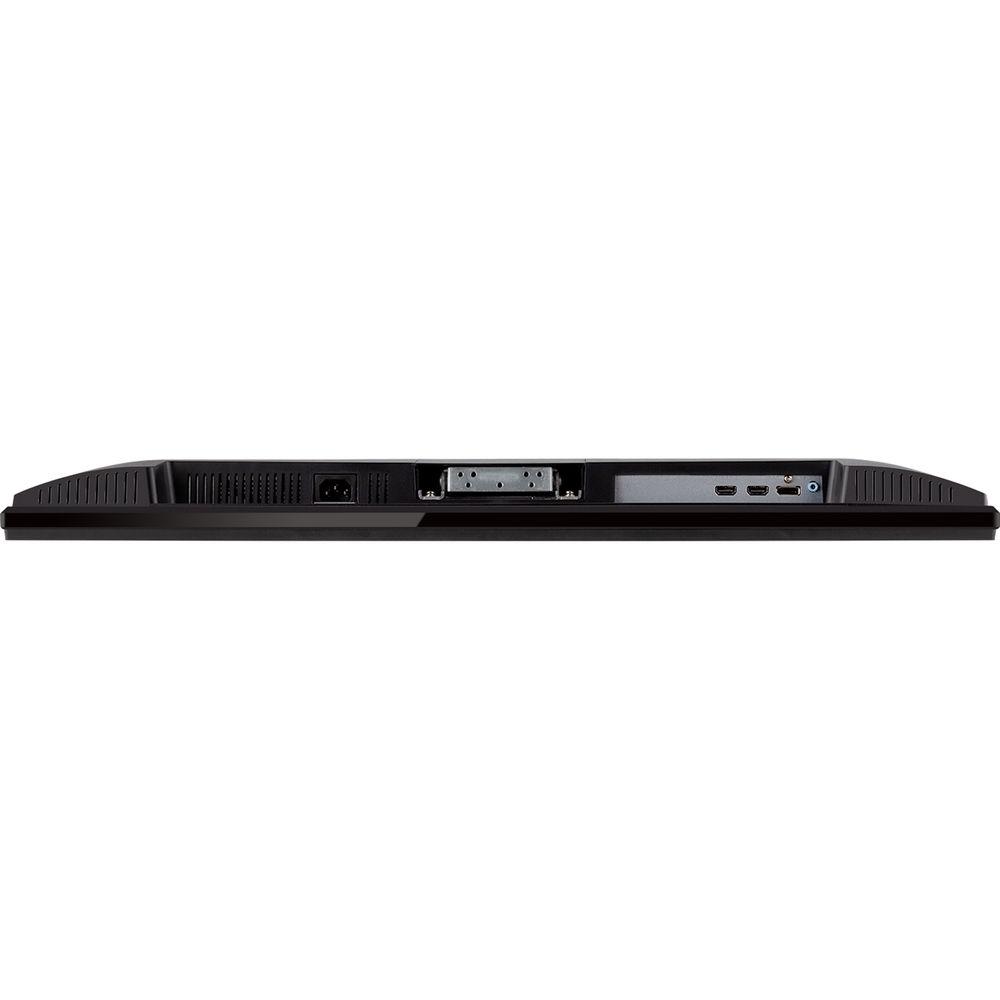

Vertical: 178° | | Backlight Lifespan | 30,000 Hours | | | | Connectivity | 1 x 3.5 mm Output
2 x HDMI 2.0 Input
1 x DisplayPort Input | | HDCP Support | Yes, Version 2.2 | | Built-In Speakers | Yes, 2 x 2.5 W | | | | Power Consumption | 42 W (Eco)
50 W (Typical)
65 W (Maximum)

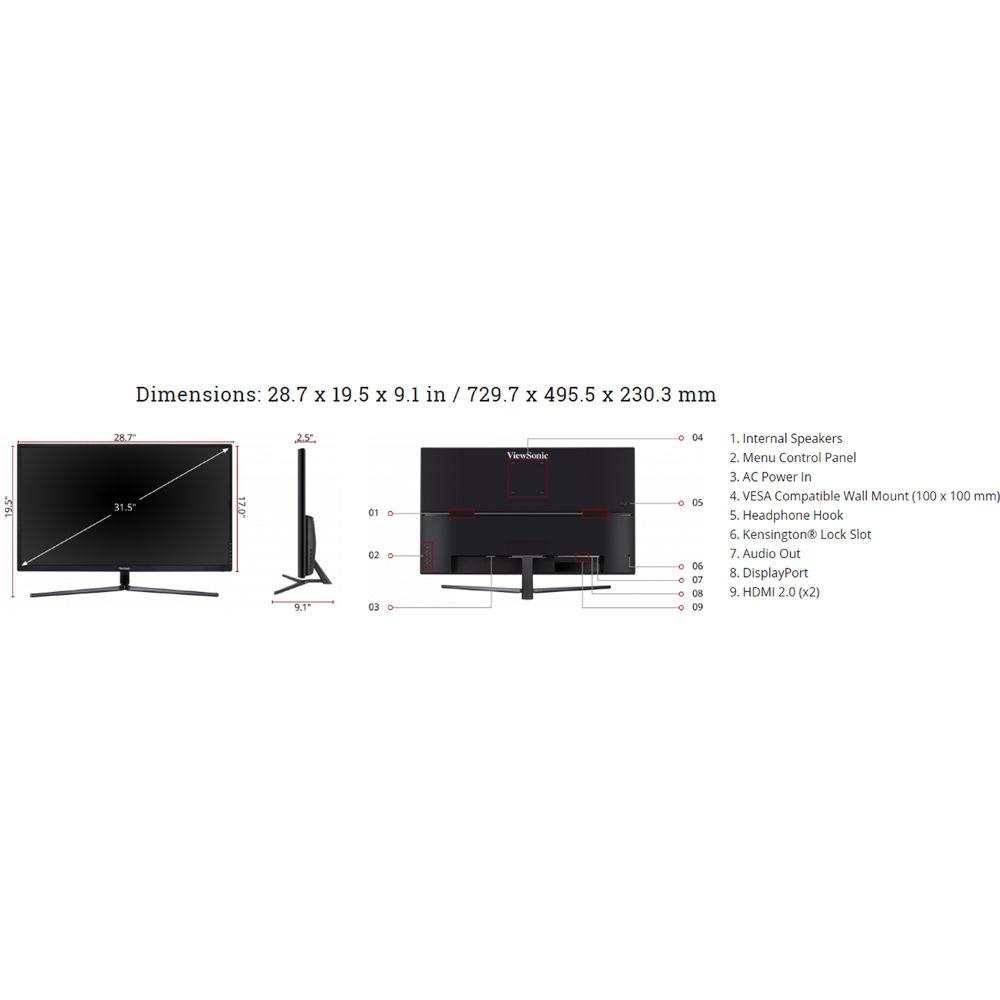

0.5 W (Standby) | | AC Input Power | 100 to 240 VAC, 50 / 60 Hz | | | | Operating Temperature | 32 to 104°F / 0 to 40°C | | Operating Humidity | 20 to 90% | | Certifications | ENERGY STAR, EPEAT Silver, FCC, as per Manufacturer | | | | Height Adjustment | None | | Rotation Adjustment | None | | Swivel Adjustment | None | | Tilt Adjustment | -5 to 13° | | Mounting-Hole Pattern | 100 x 100 mm | | Lock Slot | Yes, Kensington | | Dimensions (W x H x D) | 28.7 x 19.5 x 9.1" / 72.9 x 49.5 x 23.1 cm (With Stand)
28.7 x 17.0 x 2.5" / 72.9 x 43.2 x 6.3 cm (Without Stand) | | Weight | 14.6 lb / 6.62 kg (With Stand)
12.7 lb / 5.76 kg (Without Stand) | | | | Package Weight | 22.0 lb | | Box Dimensions (LxWxH) | 33.0 x 24.0 x 11.0" |
Rating70% users recommend this product to others. And what about you?
This product has already been rated by 14 owners. Add your rating and experience with the product.
