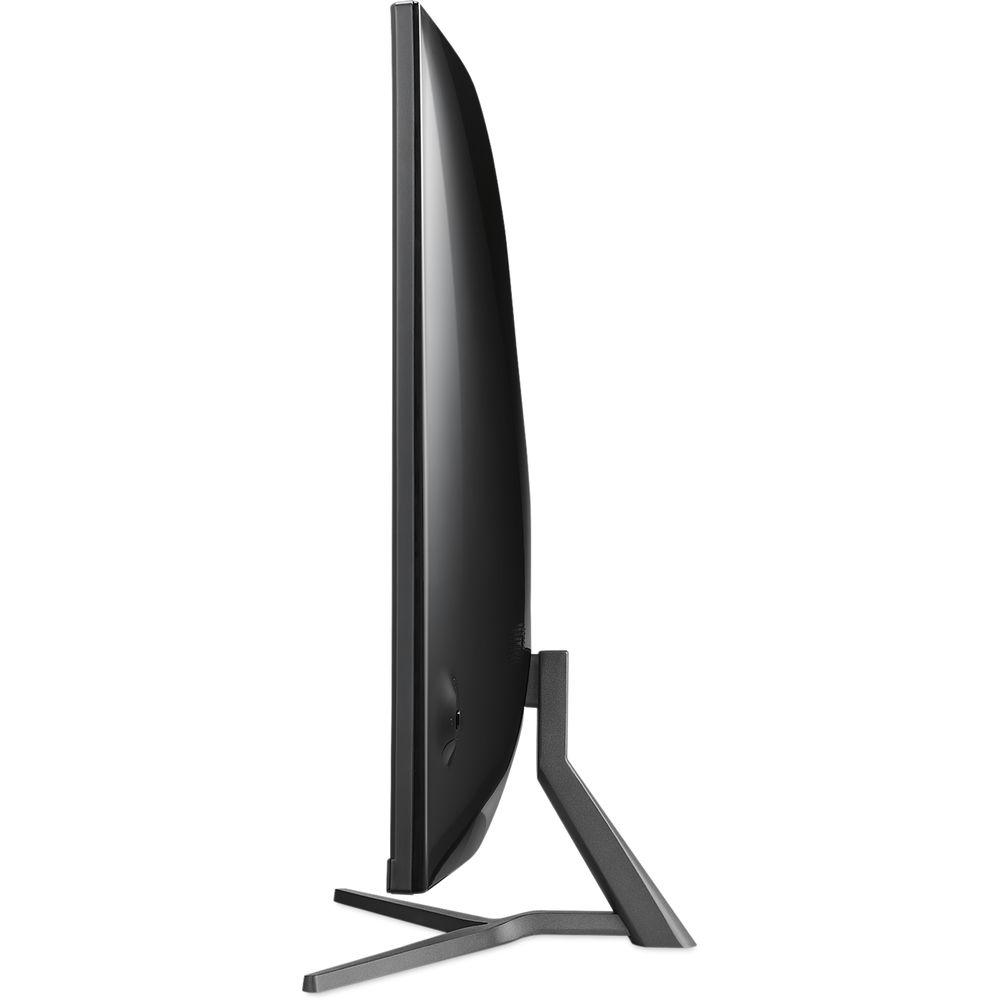

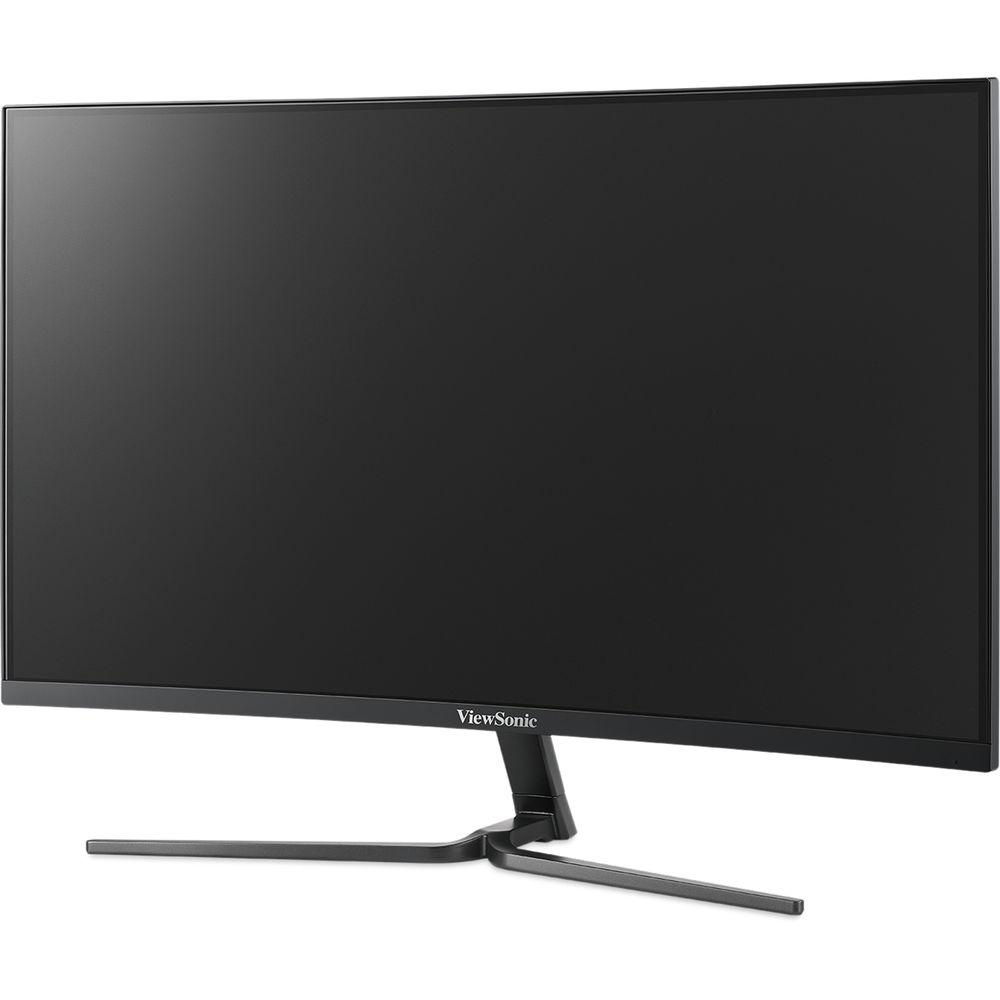

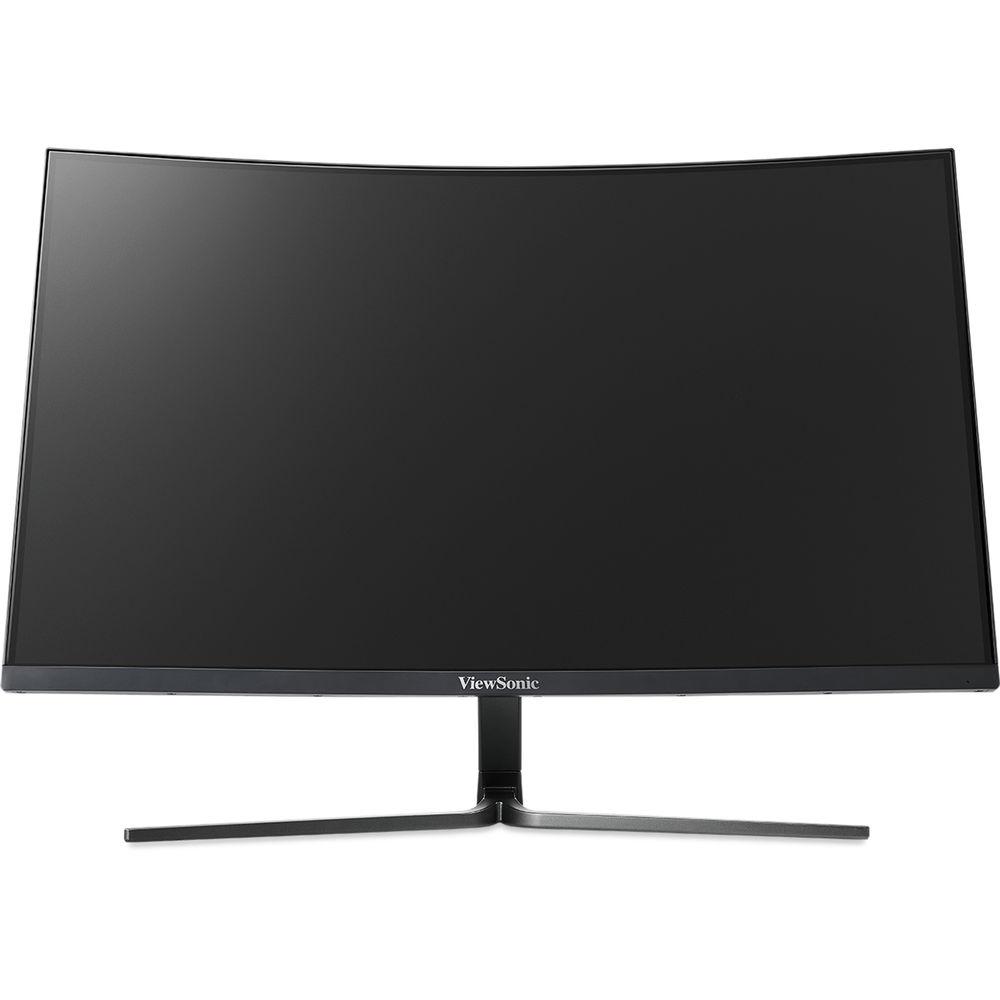

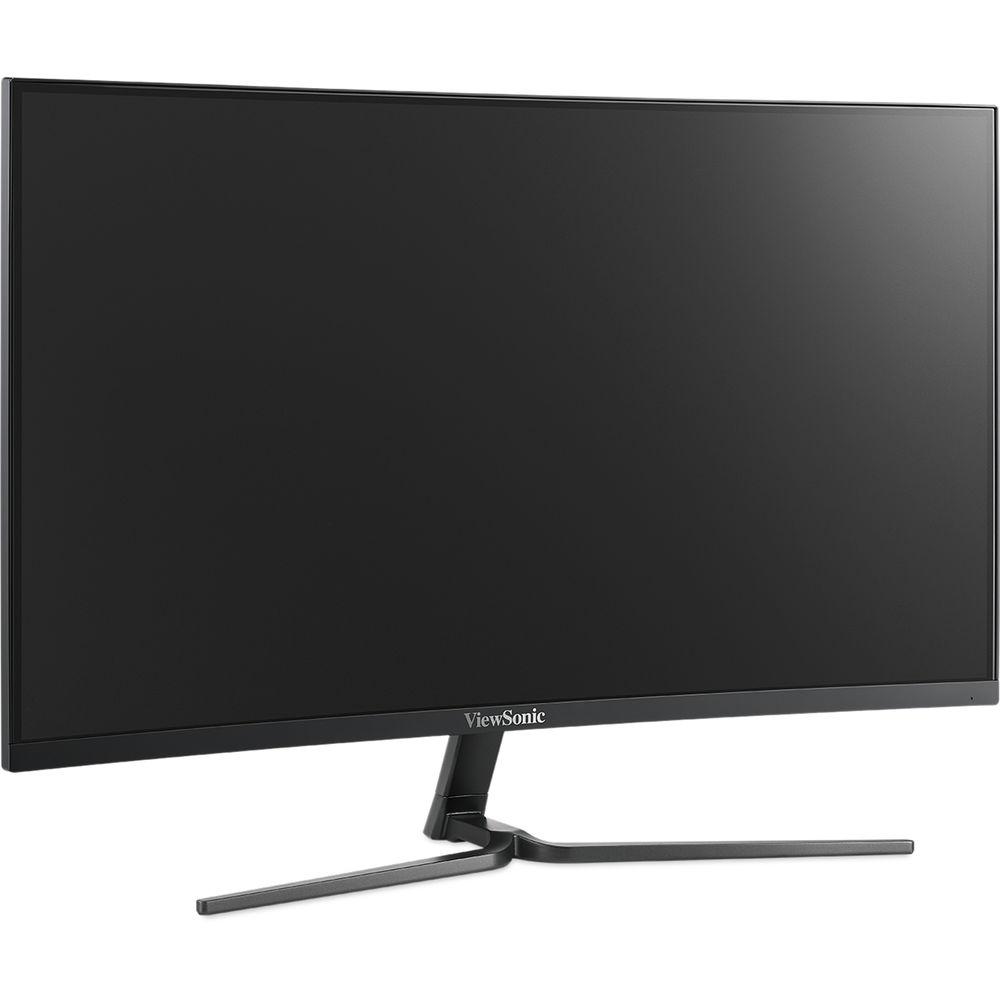

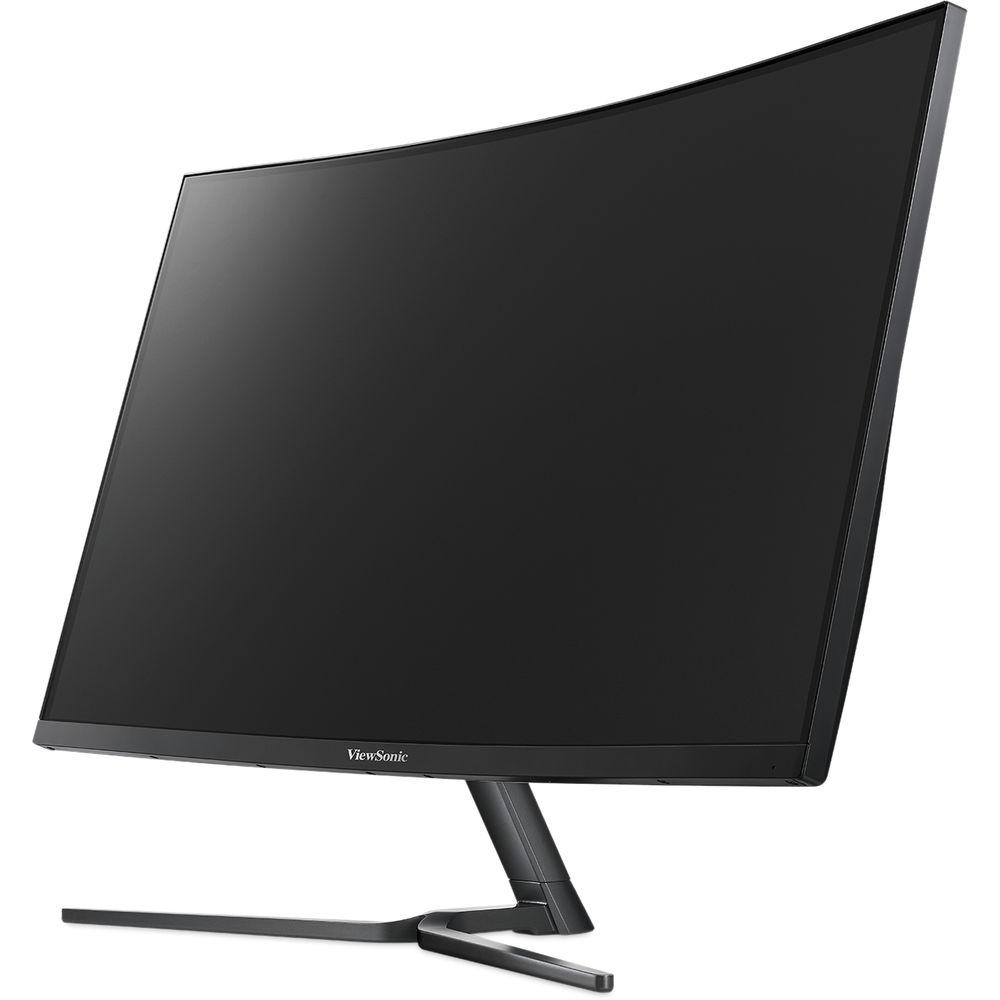

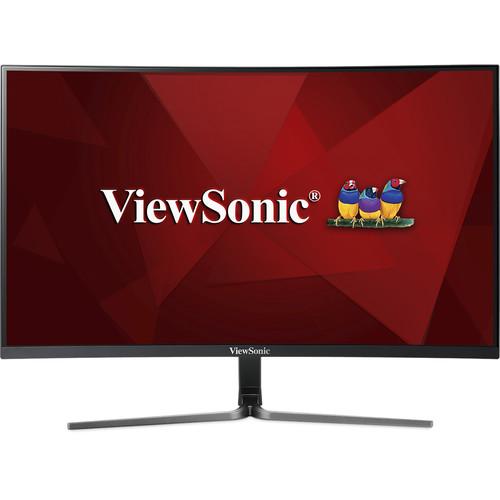

Product description 10 Factors to Consider When Selecting A Monitor for Video Editing Read More Are you looking for an immersive viewing experience? Well look no further as the VX3258-2KC-MHD 32" 16:9 Curved LCD Monitor from ViewSonic features an 1800R curved display, which mimics the curve of the human eye, so you can see the entire screen without having to move your head.
In addition to the curvature of the screen, viewers also benefit from a WQHD 2560 x 1440 resolution, which is up to four times that of a standard display, a 3000:1 contrast ratio, a 250 cd/m² brightness rating, and support for up to 16.7 million colors. Setup has been greatly simplified as this monitor comes equipped with both HDMI and DisplayPort inputs as well as a dedicated 3.5mm audio out jack and dual built-in 2.5W speakers.
The VX3258 monitor has something for everyone. Gamers can delight in the 144 Hz refresh rate and AMD FreeSync technology, which virtually eliminates lag when synced with compatible graphics cards. For those working long hours in front of this monitor, ViewSonic includes flicker-free technology and a low blue light filter designed to help reduce the strain placed on eyes. - Immersive Curved Design
- A concave screen with ultra-thin bezels delivers an immersive viewing experience with panoramic images, vivid color, and improved detail.
- 144 Hz Refresh Rate
- With a swift 144 Hz refresh rate, this monitor delivers great visual fluidity and improved graphics no matter how quickly the in-game action unfolds. Say goodbye to annoying tracers and motion blur, and up your A-game with the smoothest visuals possible.
- Wide Quad HD Resolution
- At four times the resolution of a traditional 720p panel, and almost double that of a traditional 1080p display, WQHD results in a much sharper image, with no distortion or stretching, all while maintaining the same 16:9 aspect ratio.
- AMD FreeSync Technology
- Leveraging VESA Adaptive-Sync connectivity, this monitor is equipped with AMD FreeSync technology, which seamlessly synchronizes the frame rate output between your graphics card and monitor. This dynamic refresh rate effectively eliminates image tearing, stuttering, and jerkiness for smooth gameplay.
- Versatile Connectivity

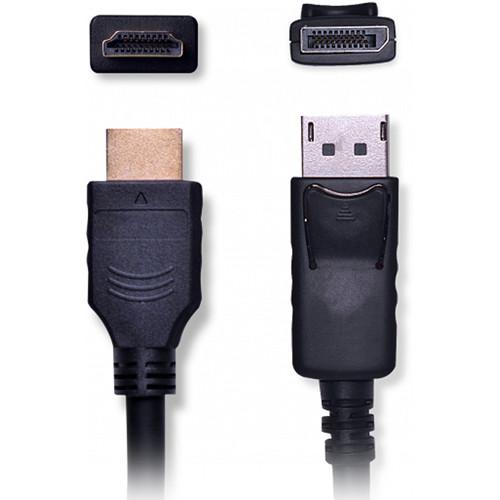

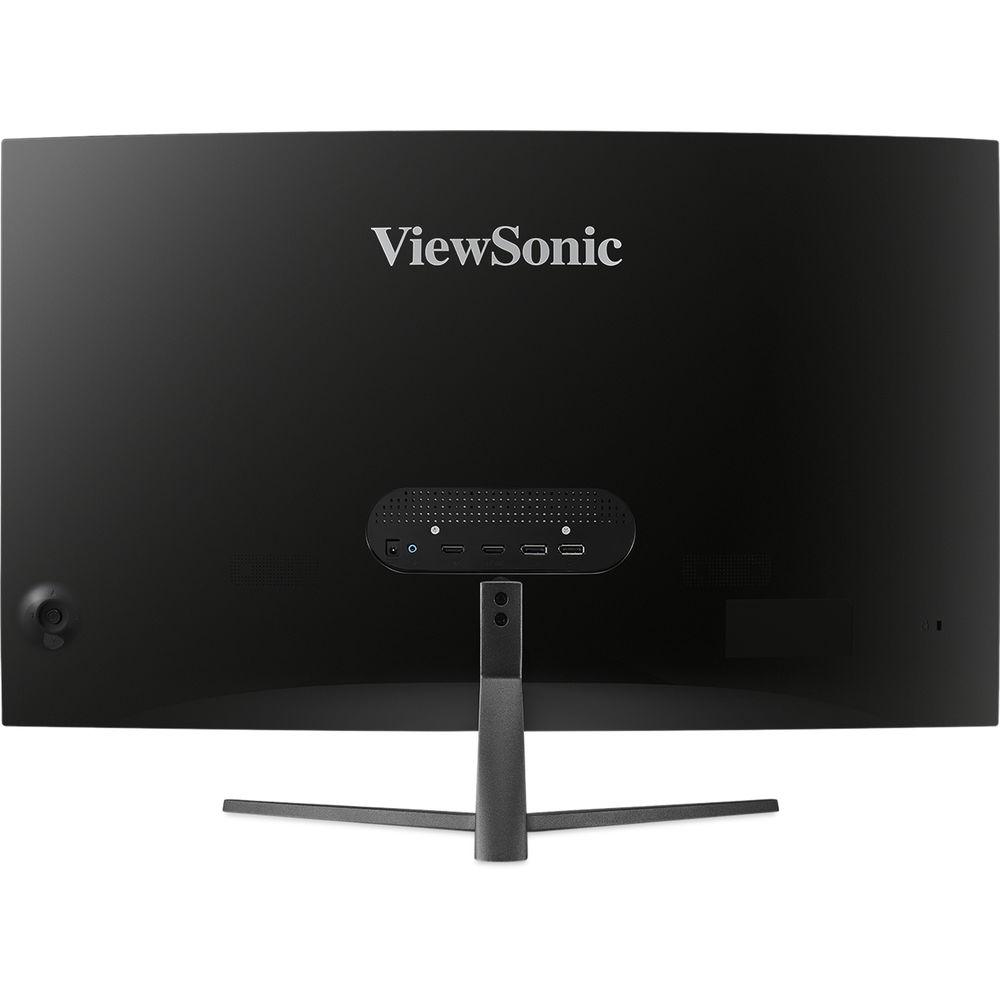

- HDMI and DisplayPort inputs give you the freedom to connect your display to a variety of high-definition devices.
- Optimized View Settings
- ViewSonic's unique ViewMode feature offers "Game," "Movie," "Web," "Text," and "Mono" presets. These presets enhance gamma curve, color temperature, contrast, and brightness to deliver an optimized viewing experience for different screen applications.
- Dual Integrated Speakers
- Designed with dual integrated speakers, this monitor combines incredible screen performance with stereo sound for an immersive multimedia experience.
- Enhanced Viewing Comfort
- With Flicker-Free technology and a Blue Light Filter, this monitor helps to eliminate eyestrain that comes with extended viewing periods.
UPC: 766907952810 In the Box ViewSonic VX3258-2KC-MHD 32" 16:9 Curved LCD Monitor Power Adapter Power Cable HDMI Cable Limited 3-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the ViewSonic VX3258-2KC-MHD 32" 16:9 Curved LCD Monitor in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersViewSonic VX3258-2KC-MHD Specs | | | Size | 31.5" | | Panel Type | VA LCD | | Curvature | 1800R | | Touchscreen | No | | Resolution | 2560 x 1440 | | Aspect Ratio | 16:9 | | Pixels Per Inch (ppi) | 93 ppi | | Finish | Matte | | Hardness Rating | 3H | | Maximum Brightness | 250 cd/m2 | | Contrast Ratio | 3000:1 | | Dynamic Contrast Ratio | 80,000,000:1 | | Refresh Rate | 144 Hz | | Adaptive Sync Technology | FreeSync | | Horizontal Frequency | 15 to 214 kHz | | Vertical Frequency | 48 to 144 Hz | | Bit Depth / Color Support | 6-Bit+FRC (16.7 Million Colors) | | HDR Compatibility | None | | Color Gamut | 85% NTSC | | Response Time | 5 ms (Overdrive)
22 ms (GtG) | | Viewing Angle | Horizontal: 178°
Vertical: 178° | | Backlight Lifespan | 30,000 Hours | | | | Connectivity | 2 x HDMI 2.0 Input
2 x DisplayPort Input
1 x 3.5 mm Output | | Built-In Speakers | Yes, 2 x 2.5 W | | | | Power Consumption | 36 W (Eco)
53 W (Typical)
54 W (Maximum)

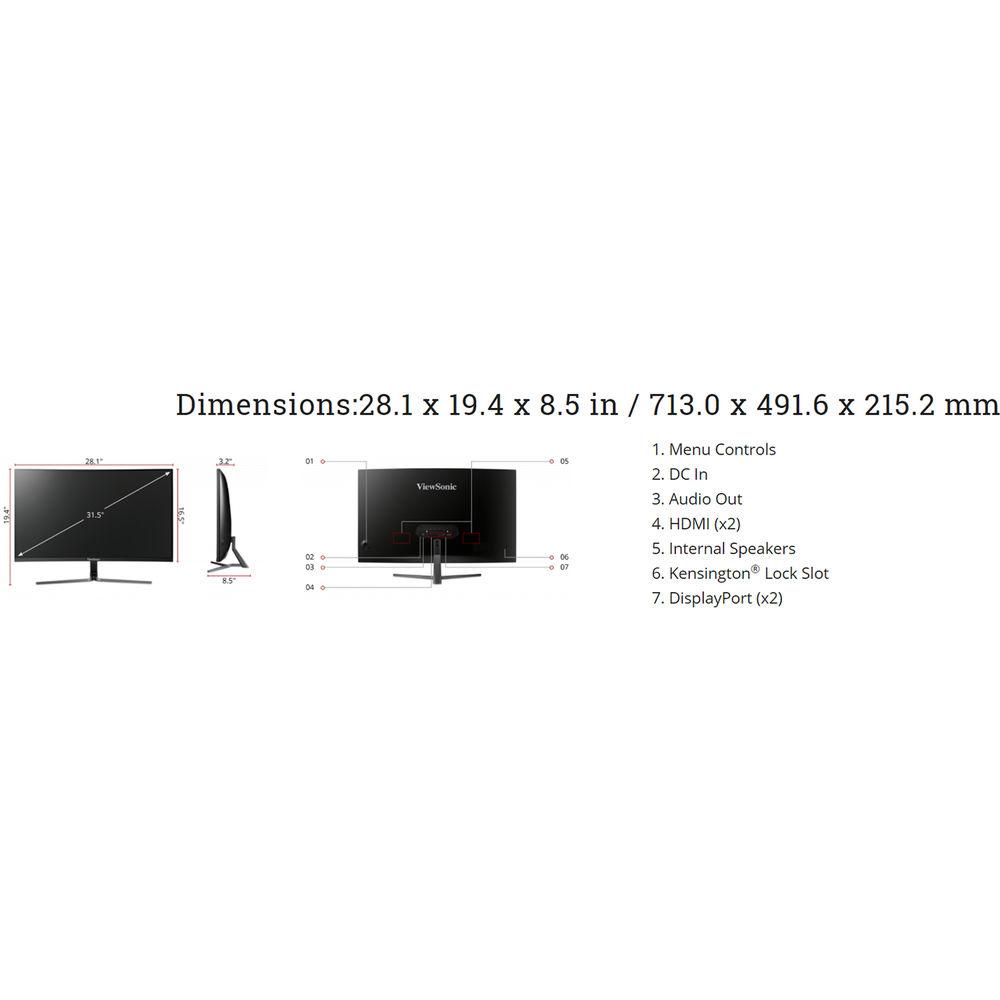

0.5 W (Standby) | | AC Input Power | 100 to 240 VAC, 50 / 60 Hz | | Power Adapter Type | External | | | | Operating Temperature | 32 to 104°F / 0 to 40°C | | Operating Humidity | 5 to 90% | | Certifications | ENERGY STAR, EPEAT Silver, FCC, NRCAN, as per Manufacturer | | | | Tilt Adjustment | -5 to 10° | | Lock Slot | Yes | | Dimensions (W x H x D) | 28.1 x 19.4 x 8.5" / 71.4 x 49.3 x 21.6 cm (With Stand)
28.1 x 16.5 x 3.2" / 71.4 x 41.9 x 8.1 cm (Without Stand) | | Weight | 12.8 lb / 5.81 kg (With Stand)
11.4 lb / 5.17 kg (Without Stand) | | | | Package Weight | 17.5 lb | | Box Dimensions (LxWxH) | 31.2 x 19.7 x 6.8" |
