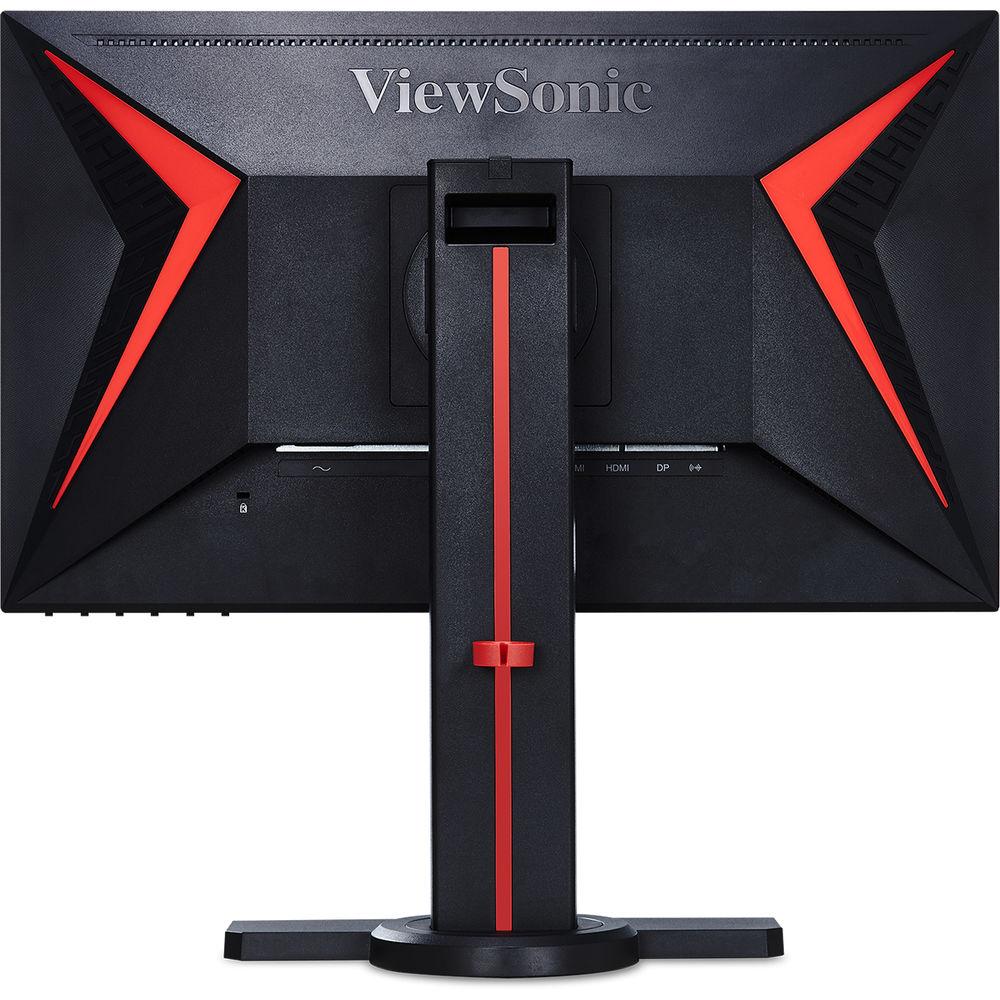

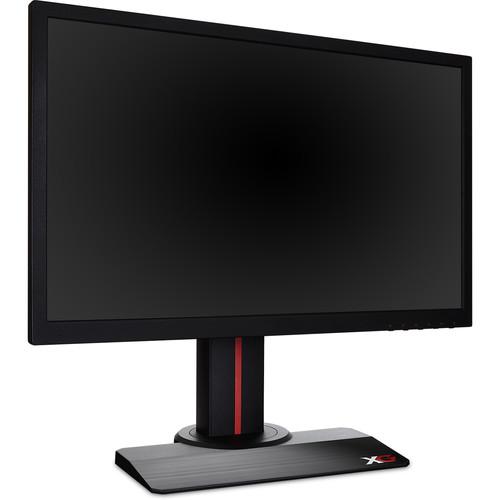

User Manual for ViewSonic XG2402 24" 16:9 144 Hz FreeSync LCD Monitor Click to enlarge the picture
Contents of the user manual for the ViewSonic XG2402 24" 16:9 144 Hz
- Product category: Computer Monitors ViewSonic
- Brand: ViewSonic
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for ViewSonic Computer Monitors
 |
User manual for the ViewSonic XG2402 24" 16:9 144 Hz contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any ViewSonic product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official ViewSonic user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a ViewSonic product will considerably shorten its lifespan!
|

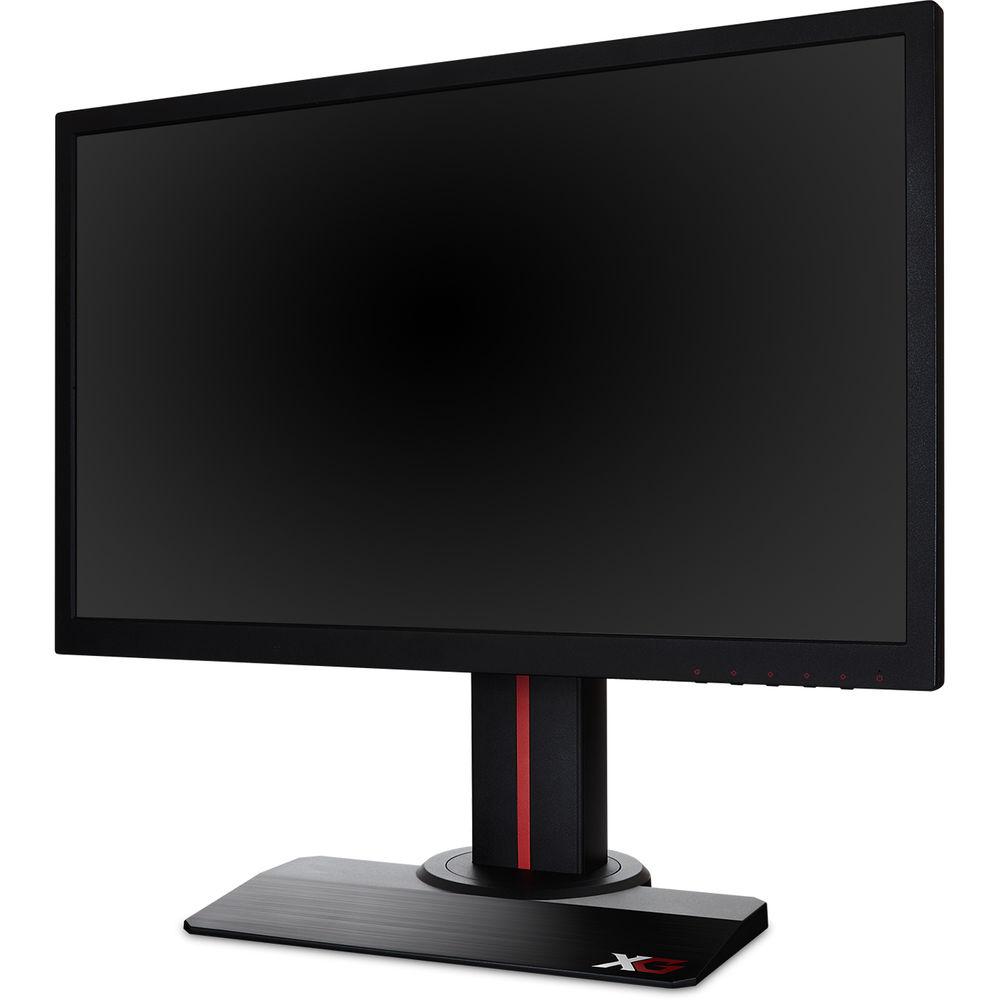

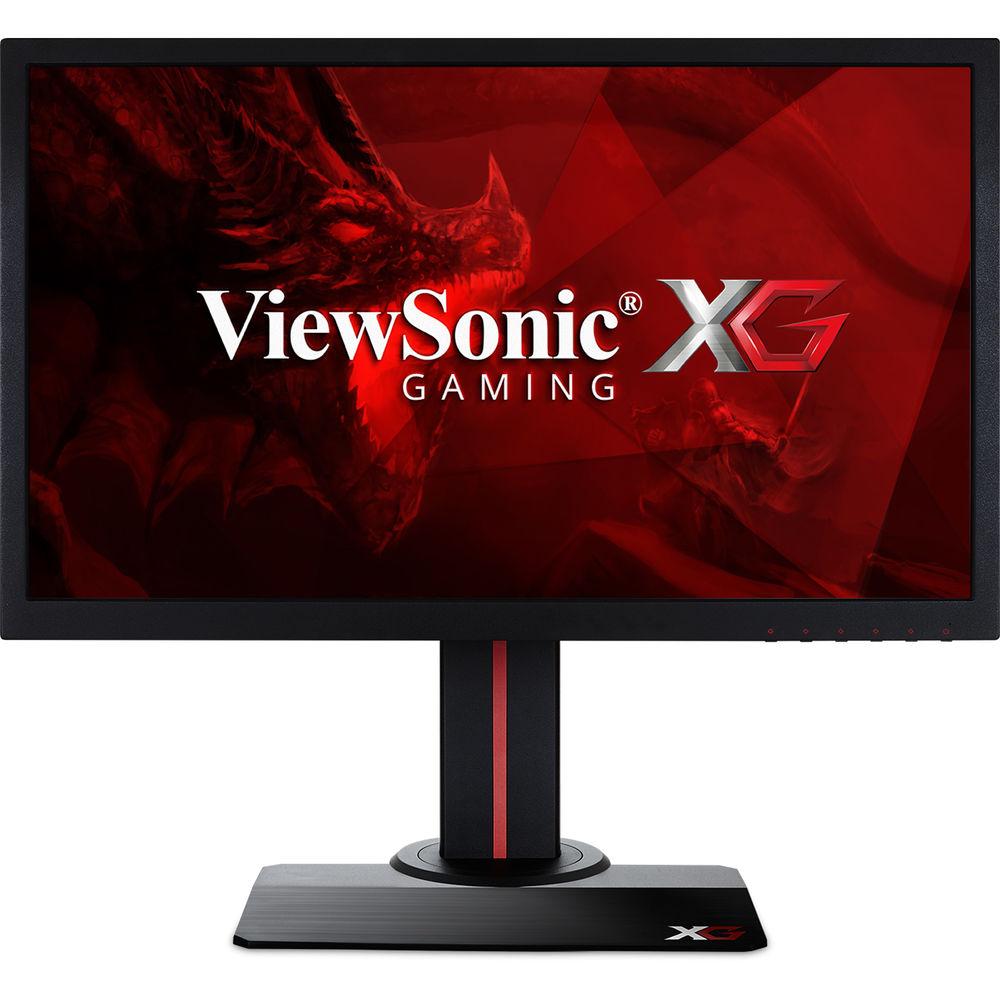

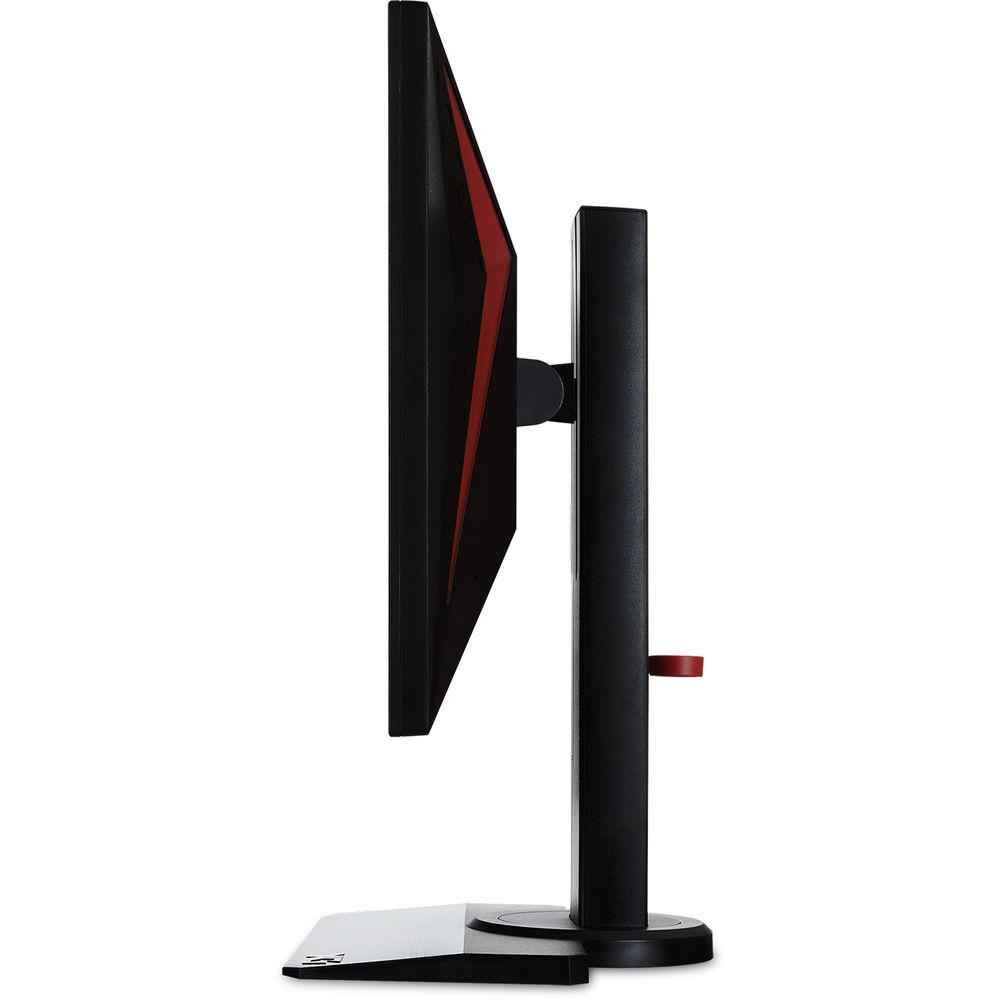

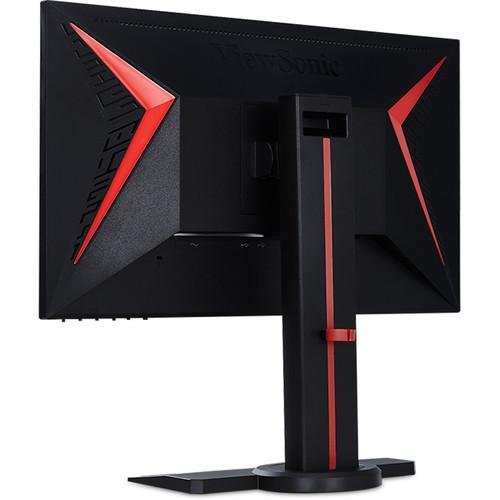

Product description 10 Factors to Consider When Selecting A Monitor for Video Editing Read More The XG2402 24" 16:9 144 Hz FreeSync LCD Monitor from ViewSonic is a gaming-focused monitor designed with helpful features to give you an upper-hand on the battlefield. Specs-wise, it has a 1920 x 1080 Full HD resolution, a 350 cd/m² brightness rating, and a 1000:1 static contrast ratio. More importantly, it supports AMD FreeSync technology, which syncs the display's 144 Hz refresh rate with your graphics card's frame rate output to reduce tearing and stuttering. It also has a 1 ms (GtG) response time, low input lag, black stabilization, and Game Mode hotkeys. Connect this display to your system via HDMI or DisplayPort, and tilt, pivot, swivel, and adjust its height to fit your viewing preference. For your convenience, it has a built-in USB 3.0 hub, which you can use to quickly and easily connect peripherals - 144 Hz Refresh Rate
- A higher refresh rate makes images and content playback much smoother, ideal for all applications such as watching movies and playing games.
- Rapid Response Time
- With a quick 1 ms (GtG) response time, this display reduces motion blur when gaming at high refresh rates. Moreover, there are five levels you can choose from.
- Black Stabilization
- The 22-level, customizable black stabilization feature brightens dark scenes for enhanced visibility.
- Game Mode Hotkey
- Game Mode Hotkey provides you with custom and pre-calibrated settings for a wide variety of applications and games such as RTS, FPS, MOBA, and more.
- AMD FreeSync Technology
- AMD FreeSync Technology syncs the display's refresh rate with your graphics card's frame rate output to reduce tearing, stuttering, and jerkiness for smoother gameplay.
- Low Input Lag
- Low input lag decreases the delay between your mouse, keyboard, and commands for a more responsive experience.
UPC: 766907927412 In the Box ViewSonic XG2402 24" 16:9 144 Hz FreeSync LCD Monitor Power Cable DisplayPort Cable USB Cable Limited 3-Year Warranty User Manual PDF 2.8mb More from Manufacturer Table of Contents
|
Upload User Manual
Have you got an user manual for the ViewSonic XG2402 24" 16:9 144 Hz FreeSync LCD Monitor in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersViewSonic XG2402 Specs | Display Size | 24" (61 cm) | | Panel Type | TN (Twisted Nematic) | | Resolution | 1920 x 1080 | | Static Contrast Ratio | 1000:1 | | Dynamic Contrast Ratio | 120,000,000:1 | | Backlighting | LED | | Brightness | 350 cd/m² | | Colors | 16.7 million | | Color Space | 6-bit + A-FRC | | Aspect Ratio | 16:9 | | Response Time (GtG) | 1 ms | | Viewing Angles (H/V) | 170°/160° | | Backlight Life Expectancy | 30,000 hours | | Panel Surface | Anti-glare, hard coating (3H) | | Horizontal Frequency | 15-160 kHz (HDMI)
30-160 kHz (DisplayPort) | | Vertical Frequency | 24-144 Hz (HDMI)
48-146 Hz (DisplayPort) | | Audio | 2 x 2 W speakers | | Connectivity | 2 x USB 3.0 Type-A (downstream)
1 x USB 3.0 Type-B (upstream)
1 x 3.5 mm audio-out
2 x HDMI 1.4
1 x DisplayPort | | | | VESA Compatibility | 100 x 100 mm | | Height Adjustment | 4.7" (12 cm) | | Swivel | 90° | | Pivot | 90° | | Tilt | 5-20° | | | | Operating Power Consumption (Eco Mode) | Conserve: 25.5 W
Optimized: 26.9 W | | Power Consumption (typical) | 27.6 W | | Power Consumption (max) | 28.3 W | | Voltage | 100-240 VAC, 50-60 Hz | | Power Consumption (Standby) | 0.5 W | | | | Operating Temperature | 32-104°F (0-40°C) | | Operating Humidity | 20-90% non-condensing | | | | Controls | On-Screen Display:

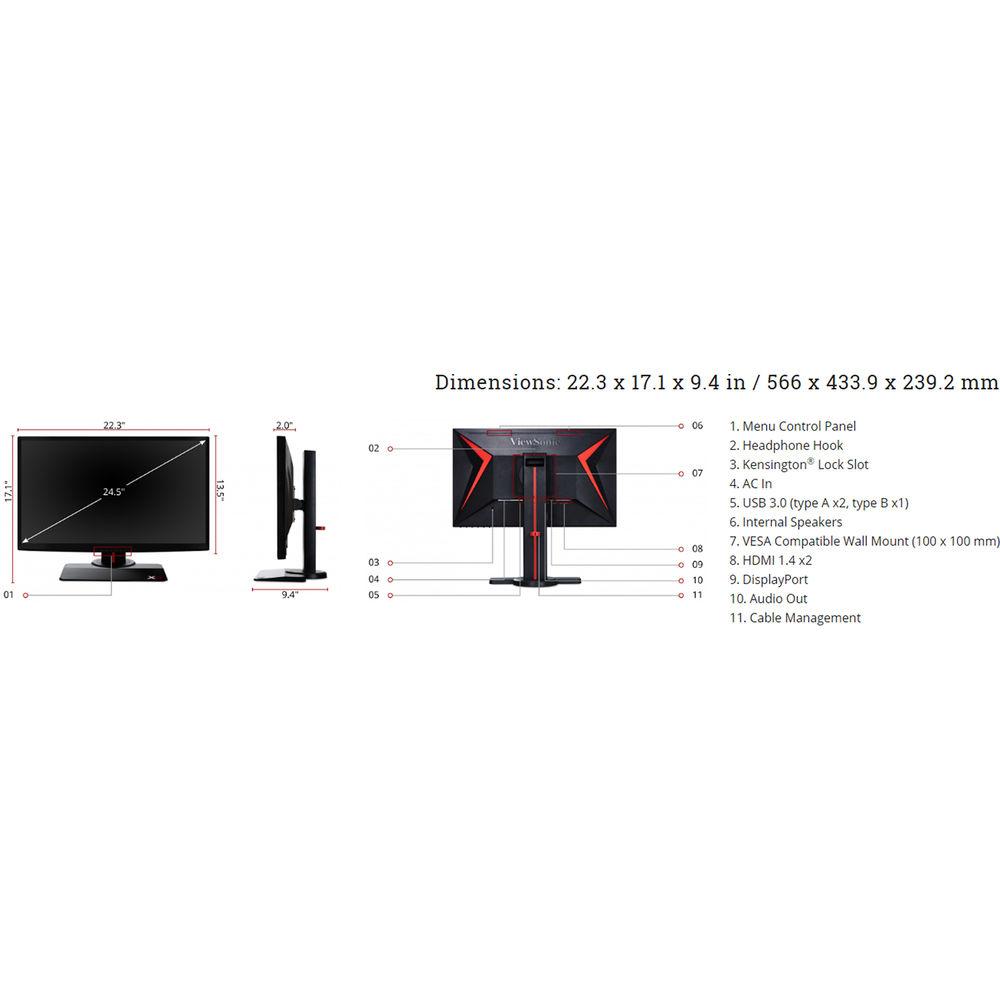

Auto Image Adjust, Contrast/Brightness, Input Select, Audio Adjust, Color Adjust, Information, Manual Image Adjust, Advanced Image Adjust, Setup Menu, Memory Recall | | Security | Kensington Lock Slot | | Dimensions (W x H x D) | With Stand: 22.3 x 17.1 x 9.4" (56.6 x 43.4 x 23.9 cm)
Without Stand: 22.3 x 13.4 x 2.4" (56.6 x 34.1 x 6 cm) | | Weight | With Stand: 14.8 lb (6.7 kg)
Without Stand: 7.5 lb (3.4 kg) | | | | Package Weight | 19.15 lb | | Box Dimensions (LxWxH) | 25.0 x 16.0 x 8.0" |
