User Manual for ViewSonic XG240R 24" 16:9 144 Hz FreeSync Gaming LCD Monitor Click to enlarge the picture
Contents of the user manual for the ViewSonic XG240R 24" 16:9 144 Hz
- Product category: Computer Monitors ViewSonic
- Brand: ViewSonic
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for ViewSonic Computer Monitors
 |
User manual for the ViewSonic XG240R 24" 16:9 144 Hz contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any ViewSonic product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official ViewSonic user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a ViewSonic product will considerably shorten its lifespan!
|

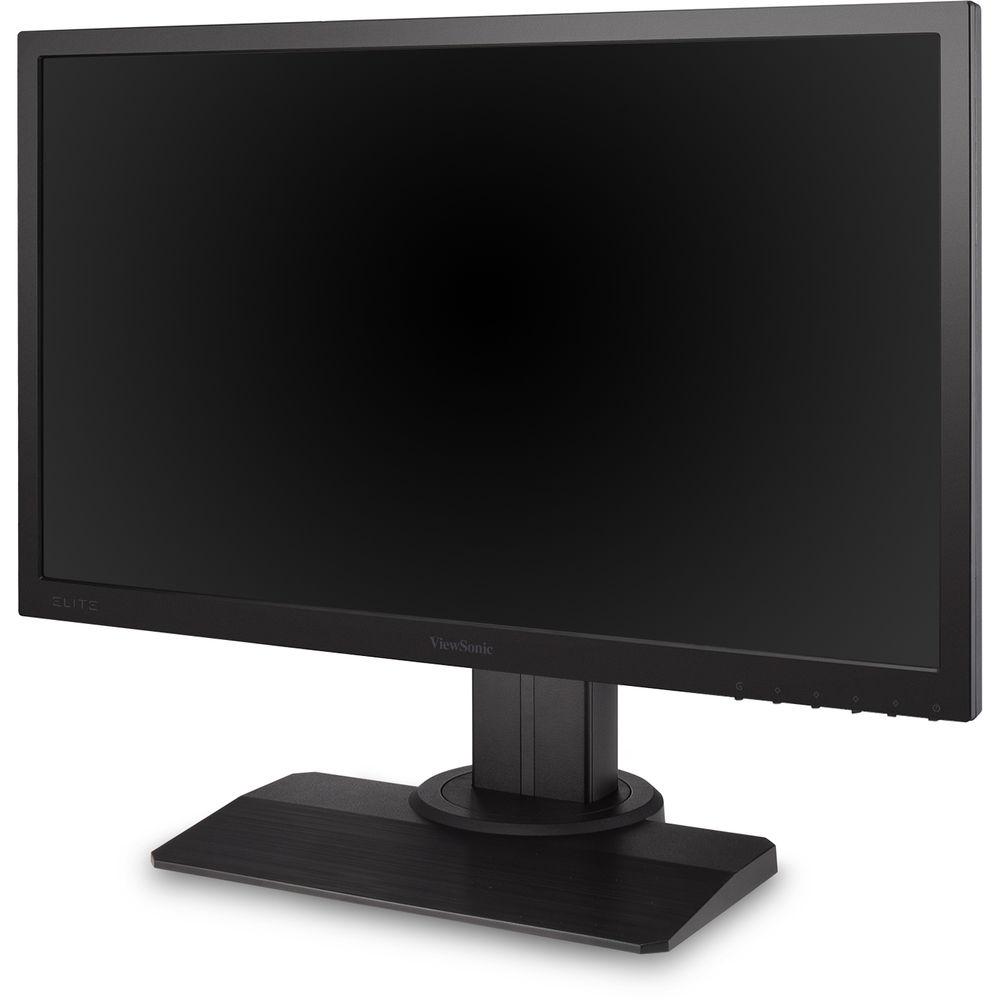

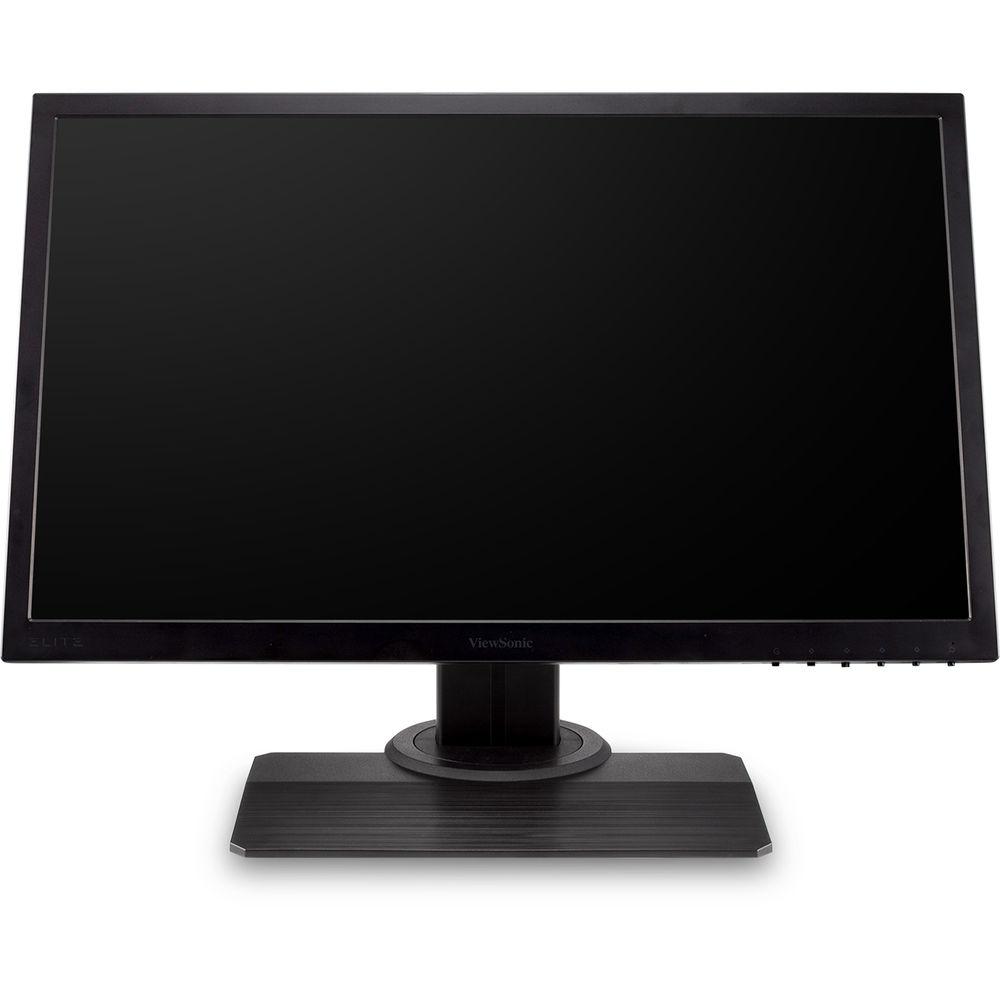

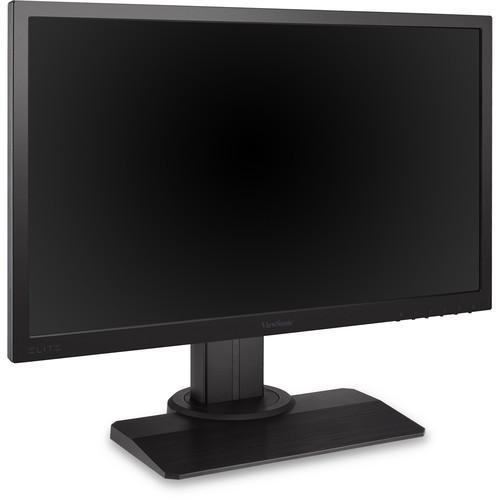

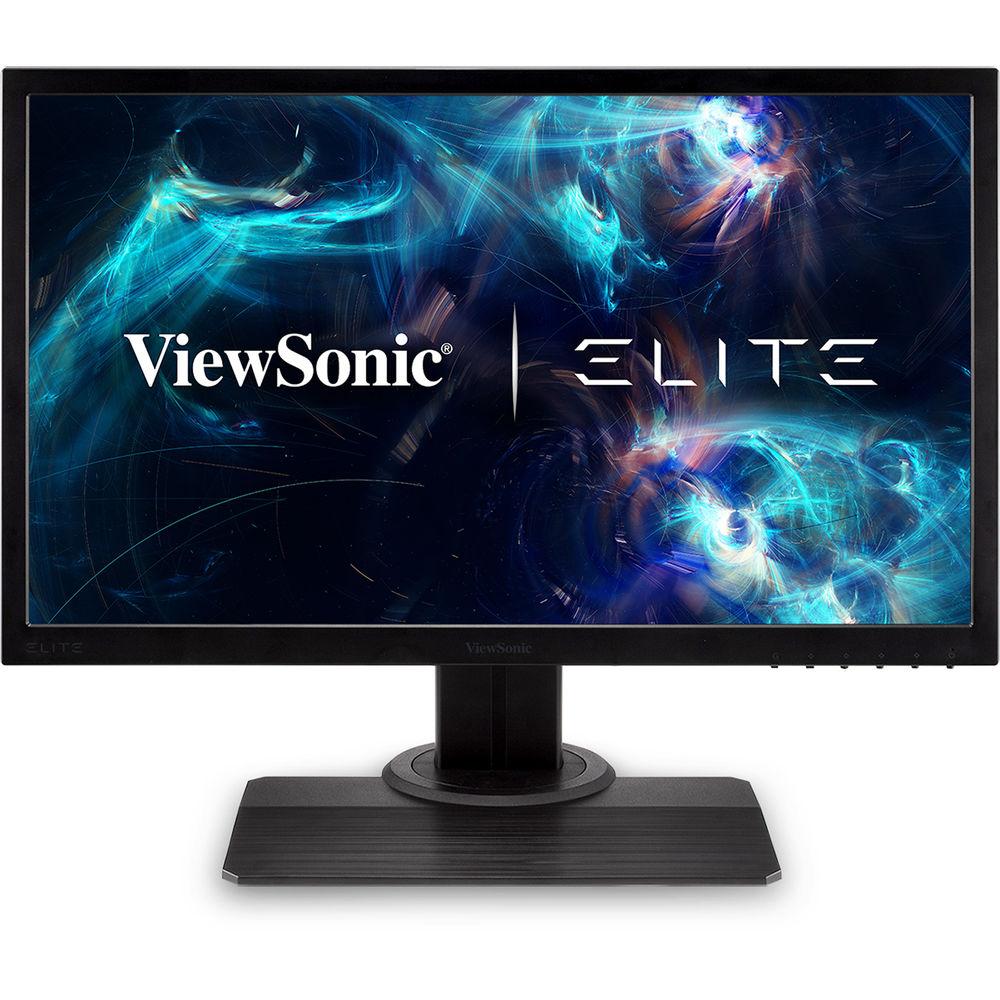

Product description 10 Factors to Consider When Selecting A Monitor for Video Editing Read More The XG240R 24" 16:9 144 Hz FreeSync Gaming LCD Monitor from ViewSonic is built with many gaming-friendly features such as RGB LED lighting, a 144 Hz refresh rate, and AMD FreeSync technology. Specs-wise, it features a Twisted Nematic panel with a 1920 x 1080 Full HD resolution, a 1000:1 static contrast ratio, a 350 cd/m² brightness rating, and support for up to 16.7 million colors. Once it's connected to your system via HDMI or DisplayPort, you can adjust its versatile stand to best fit your viewing preference. For your convenience, it also has built-in cable management channels, a headphone holder, and a USB 3.0 hub. - ELITE RGB Lighting

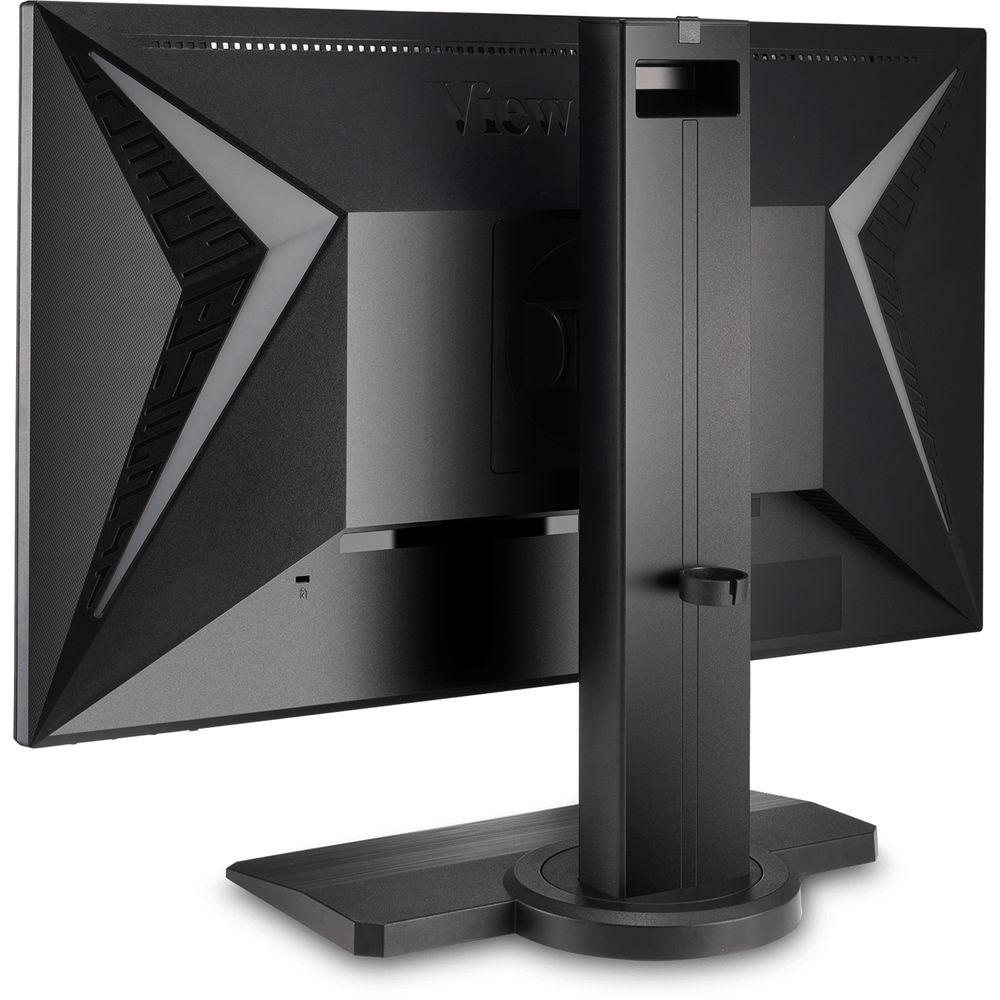

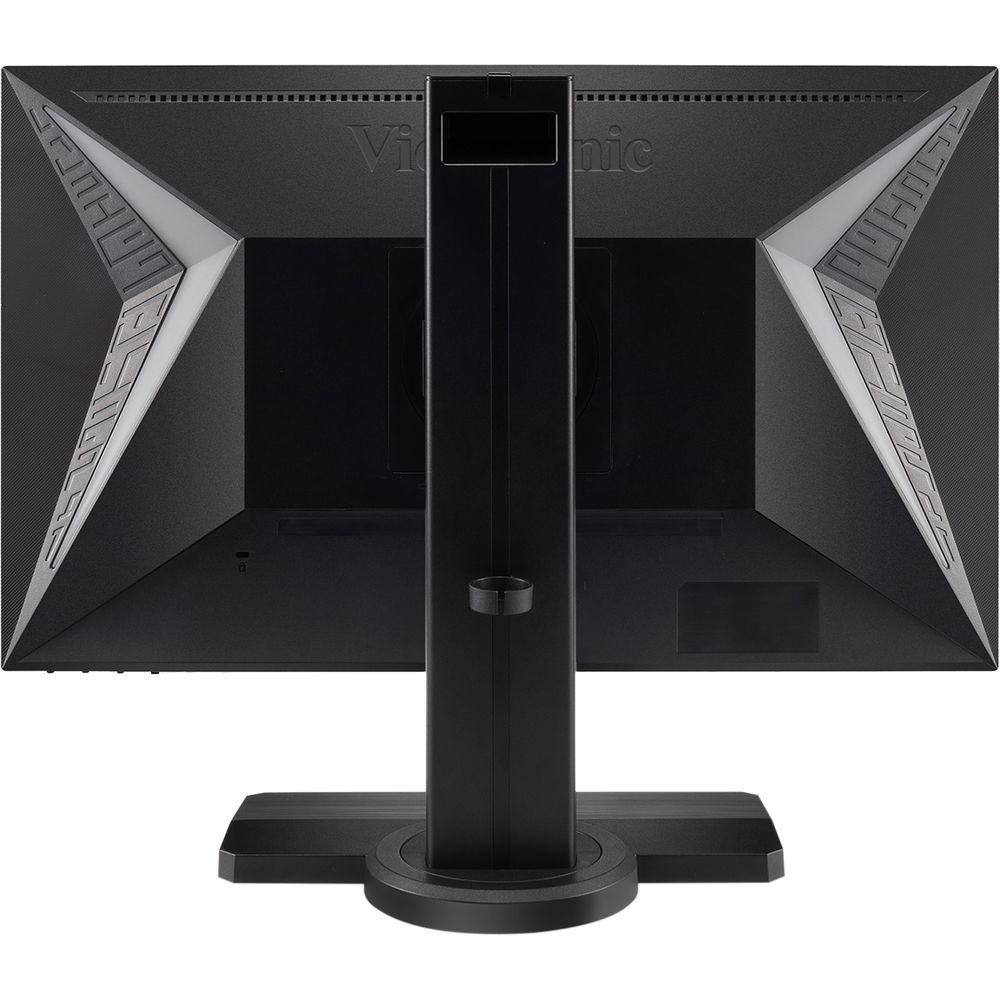

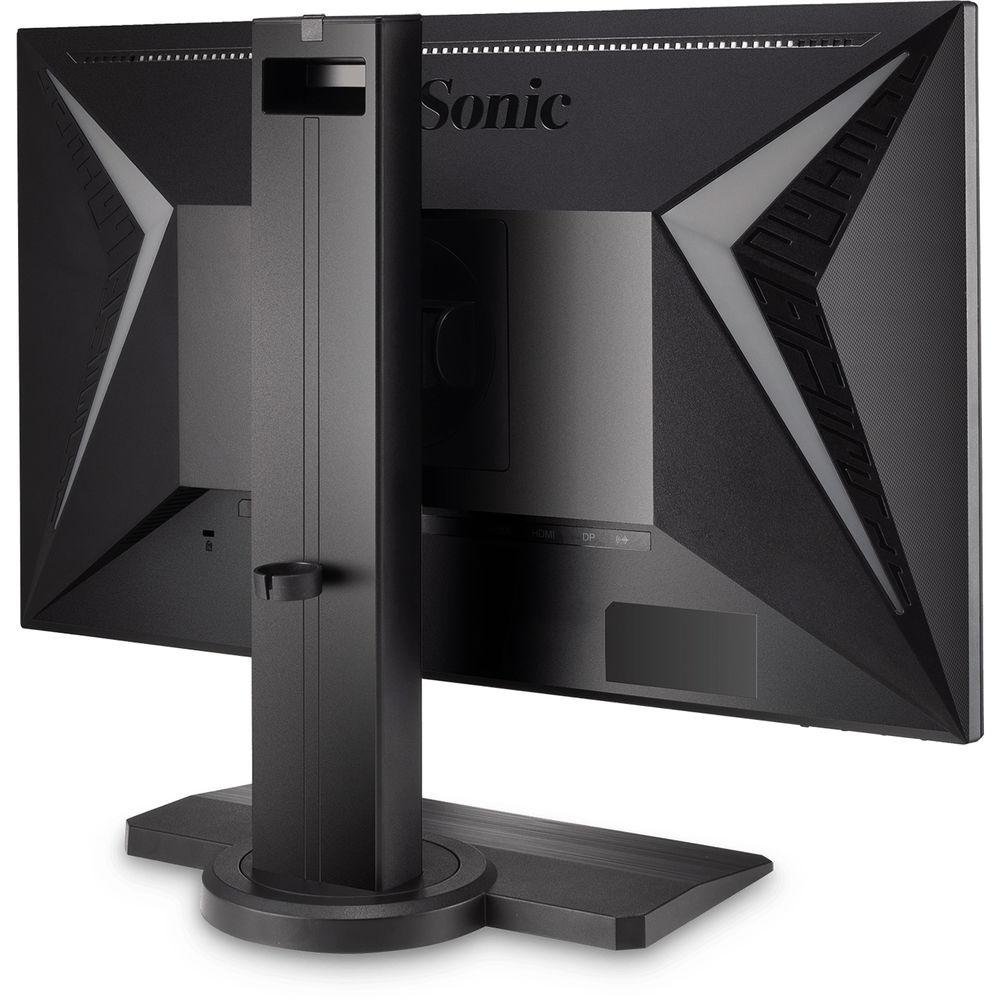

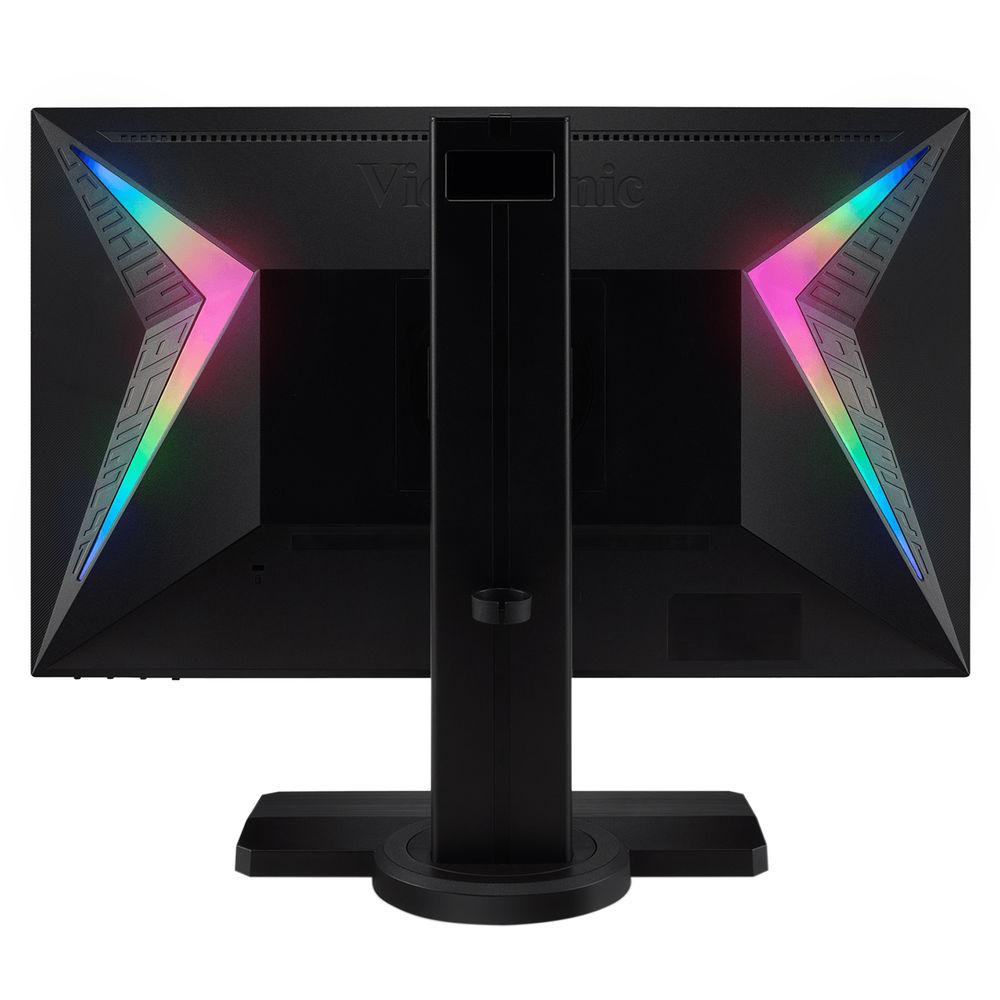

- At the back of this monitor are two RGB LED lighting zones. They can be adjusted and even synced with other RGB peripherals to complete your setup's aesthetics.
- AMD FreeSync
- AMD FreeSync technology syncs the display's refresh rate with your graphics card's frame rate output to reduce screen tearing, stuttering, and ghosting for a more fluid gaming experience.
- 144 Hz Refresh Rate
- A fast 144 Hz refresh provides you with a smoother experience, ideal for fast-paced action scenes in racing games, FPS, and more.
- Rapid Response Time
- This monitor has five levels of response rates ranging from 5 ms (GtG) to 1 ms with Overdrive enabled. A faster response rate offers smooth images without streaking, blurring, and ghosting.
- Black Stabilization
- Black Stabilization improve visibility in dark scenes, so you can see enemies that may be hiding in wait for you.
- Low Input Lag
- A lower input lag provides you with more responsive commands.
- Game Mode
- The Game Mode function provides you with optimized viewing profiles for different types of games such as FPS, RTS, and MOBA.
- Integrated Headphone Holder
- For your convenience, this monitor features an integrated headphone holder and cable management channels.
UPC: 766907993127 In the Box ViewSonic XG240R 24" 16:9 144 Hz FreeSync Gaming LCD Monitor Power Cable DisplayPort Cable USB 3.0 Cable Limited 3-Year Warranty User Manual PDF 3.2mb Table of Contents
|
Upload User Manual
Have you got an user manual for the ViewSonic XG240R 24" 16:9 144 Hz FreeSync Gaming LCD Monitor in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersViewSonic XG240R Specs | | | Size | 24" | | Panel Type | TN LCD | | Touchscreen | No | | Resolution | 1920 x 1080 | | Aspect Ratio | 16:9 | | Pixels Per Inch (ppi) | 91 ppi | | Finish | Matte | | Hardness Rating | 3H | | Maximum Brightness | 350 cd/m2 | | Contrast Ratio | 1000:1 | | Dynamic Contrast Ratio | 120,000,000:1 | | Refresh Rate | 144 Hz | | Adaptive Sync Technology | FreeSync | | Horizontal Frequency | 15 to 160 kHz (HDMI)
30 to 160 kHz (DisplayPort) | | Vertical Frequency | 24 to 144 Hz (HDMI)
48 to 146 Hz (DisplayPort) | | Bit Depth / Color Support | 6-Bit+FRC (16.7 Million Colors) | | HDR Compatibility | None | | Response Time | 5 ms (GtG)
1 ms (Overdrive) | | Viewing Angle | Horizontal: 170°
Vertical: 160° | | | | Connectivity | 2 x HDMI 1.4
1 x DisplayPort
1 x 3.5 mm Output
2 x USB Type-A (USB 3.1 Gen 1) Input
1 x USB Type-B (USB 3.1 Gen 1) Output | | Built-In Speakers | Yes, 2 x 2 W | | | | Power Consumption | 32 W (Maximum)
30 W (Typical)
24 W (Eco)
18 W (Eco)

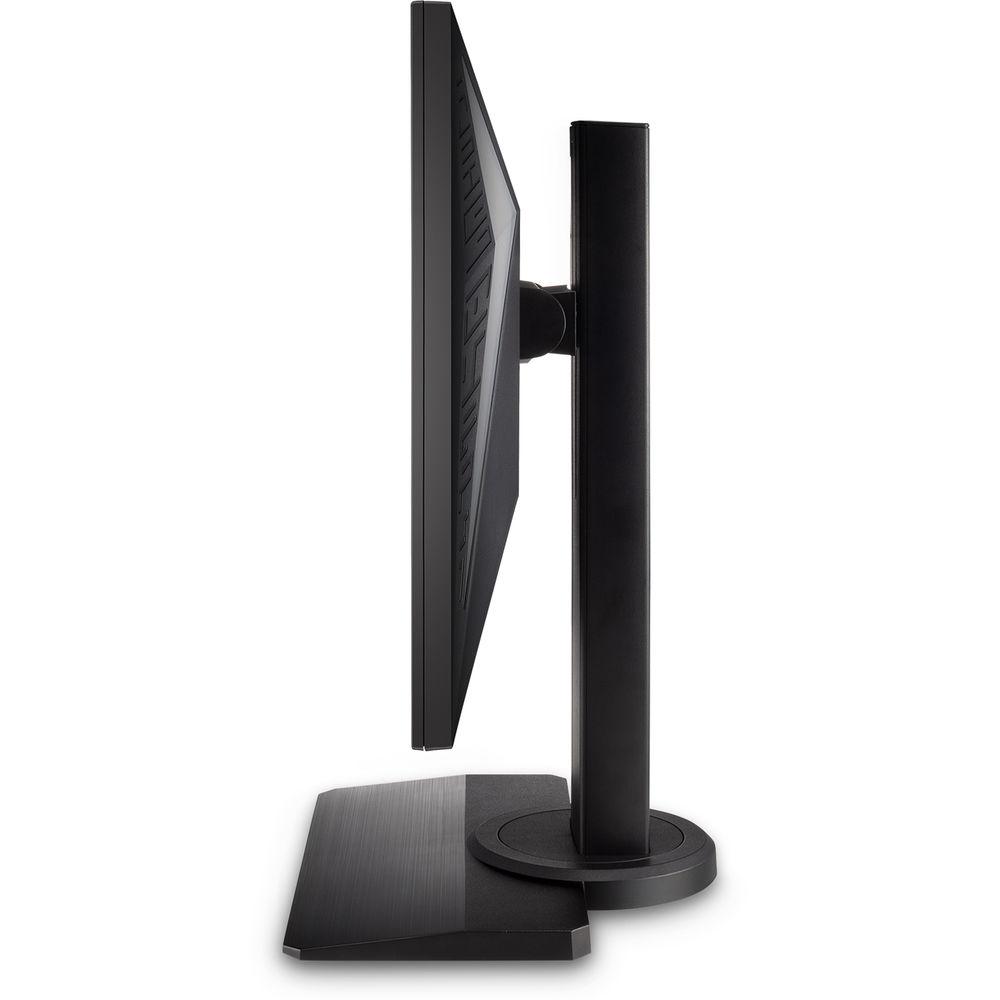

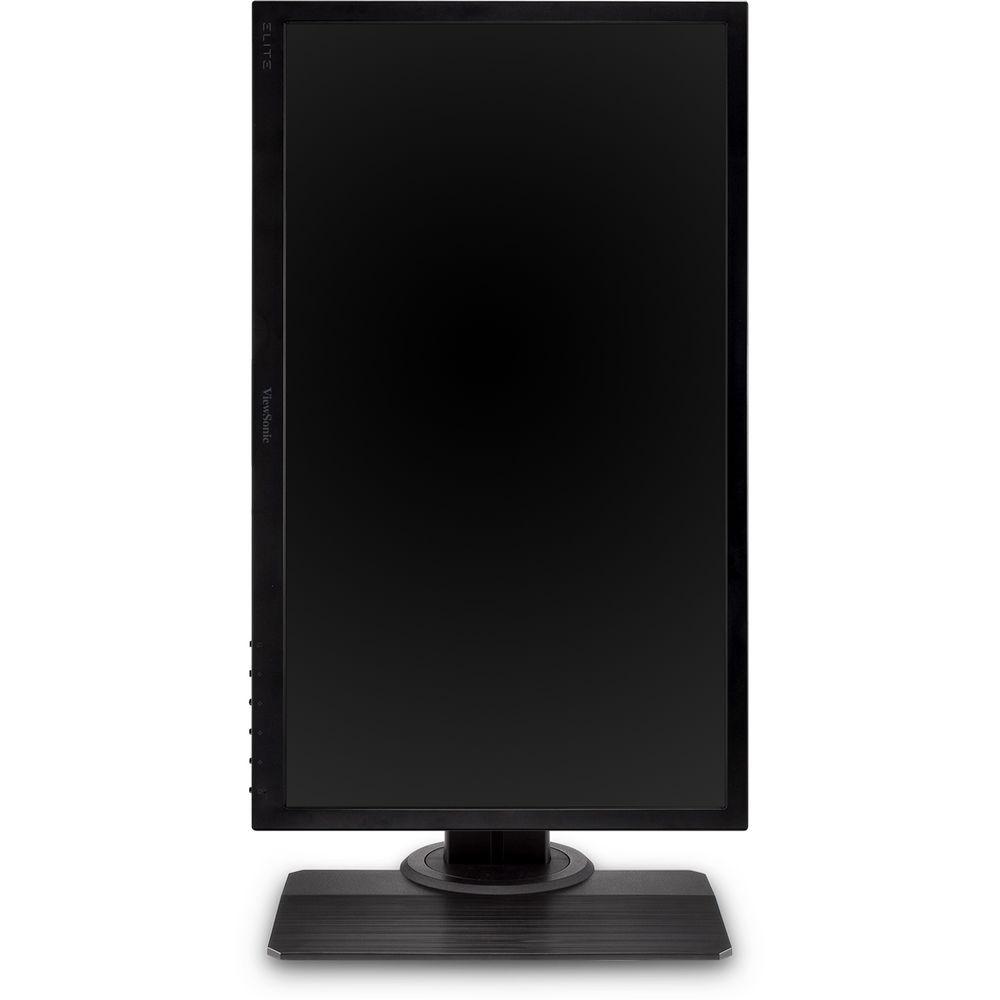

0.5 W (Standby) | | AC Input Power | 100 to 240 VAC, 50 / 60 Hz | | Power Adapter Type | Internal | | | | Operating Temperature | 32 to 104°F / 0 to 40°C | | Operating Humidity | 20 to 90% | | Certifications | BSMI, CB, CE, REACH, RoHS, WEEE, as per Manufacturer | | | | Height Adjustment | 4.72" / 120 mm | | Rotation Adjustment | 90° | | Swivel Adjustment | 90° (-45 to 45°) | | Tilt Adjustment | -5 to 20° | | Mounting-Hole Pattern | 100 x 100 mm | | Lock Slot | Yes, Kensington | | Dimensions (W x H x D) | 22.3 x 17.1 x 9.4" / 566.4 x 434.3 x 238.8 mm (With Stand)
22.3 x 13.4 x 2.4" / 566.4 x 340.4 x 61.0 mm (Without Stand) | | Weight | 14.8 lb / 6.71 kg (With Stand)
7.5 lb / 3.40 kg (Without Stand) | | | | Package Weight | 18.5 lb | | Box Dimensions (LxWxH) | 25.0 x 16.0 x 8.4" |
