User Manual for ViewSonic XG2530 25" 16:9 LCD Gaming Monitor Click to enlarge the picture
Contents of the user manual for the ViewSonic XG2530 25" 16:9 LCD Gaming
- Product category: Computer Monitors ViewSonic
- Brand: ViewSonic
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for ViewSonic Computer Monitors
 |
User manual for the ViewSonic XG2530 25" 16:9 LCD Gaming contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any ViewSonic product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official ViewSonic user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a ViewSonic product will considerably shorten its lifespan!
|
Product description 10 Factors to Consider When Selecting A Monitor for Video Editing Read More With a 240 Hz refresh rate, the XG2530 25" 16:9 LCD Gaming Monitor from ViewSonic offers more fluid gameplay with reduced stuttering and ghosting. In addition to the ultra-fast refresh rate, this monitor also comes equipped with AMD FreeSync Technology designed to sync the display to the output of your AMD FreeSync compatible graphics card, further reducing stuttering and tearing. To complete the performance enhancements offered by the XG2530 Gaming Monitor, ViewSonic has built in to this display a 1 ms response time, which provides an overall reduction in blurring and ghosting during fast paced action sequences.
Whether gaming or viewing multimedia content, this display offers a Full HD 1920 x 1080 resolution along with a 1,000:1 static contrast ratio for a crisp clear picture with deep dark and bright light colors. Setup is simple thanks to a single HDMI 1.4 port, a single HDMI 2.0 port, and a single DisplayPort to offer a variety of connections for a variety of computer configurations. Along with multimedia inputs, this ViewSonic monitor features dual USB 3.0 Type-A ports and a single USB 2.0 Type-B port to connect USB compatible peripherals directly to the monitor. To complete the multimedia viewing experience, users can choose to plug a pair of headphones in to the 3.5mm headphone jack or take advantage of the dual 2-watt stereo speakers for immersive audio playback. - 240 Hz Refresh Rate
- With a swift 240 Hz refresh rate, this monitor delivers greater visual fluidity and improved graphics no matter how quickly the in-game action unfolds. Say goodbye to annoying tracers and motion blur, and up your game with smooth visuals.
- Game Mode Hotkey
- A Game Mode hotkey opens pre-calibrated settings that deliver the best blend of color and technology for specific gaming scenarios. A "ColorX" option delivers the optimal refresh rate, response time, and color ideal for first person shooting games. In addition, two customizable "GAMER" settings provide individual user preferences for specific games.
- AMD FreeSync Technology
- Leveraging VESA Adaptive-Sync connectivity, this monitor is equipped with AMD FreeSync technology that synchronizes the frame rate output between your graphics card and monitor. This dynamic refresh rate effectively eliminates image tearing, stuttering, and jerkiness for smooth gameplay.
- Ultra-Fast Response Time
- With an ultra-fast 1 ms response time, this monitor delivers smooth images without streaking, blurring or ghosting. For any and all fast-paced action sequences, you'll be glad your monitor reacts as quickly as you do.
- Low Input Lag
- When the action on the battlefield gets intense, you need a monitor that can process every command from the keyboard, mouse, or controller as soon as they occur. With a built-in process reducer, this monitor does just that - decreasing the delay between all inputs, and allowing you to react in real time against any competitor.
- Black Stabilization for Enhanced Visibility
- ViewSonic's Black Stabilization feature provides heightened visibility and detail by brightening dark scenes. Dominate the competition with enhanced visibility, even in the darkest scenes of a video game.
- Ergonomically Designed for Gamers

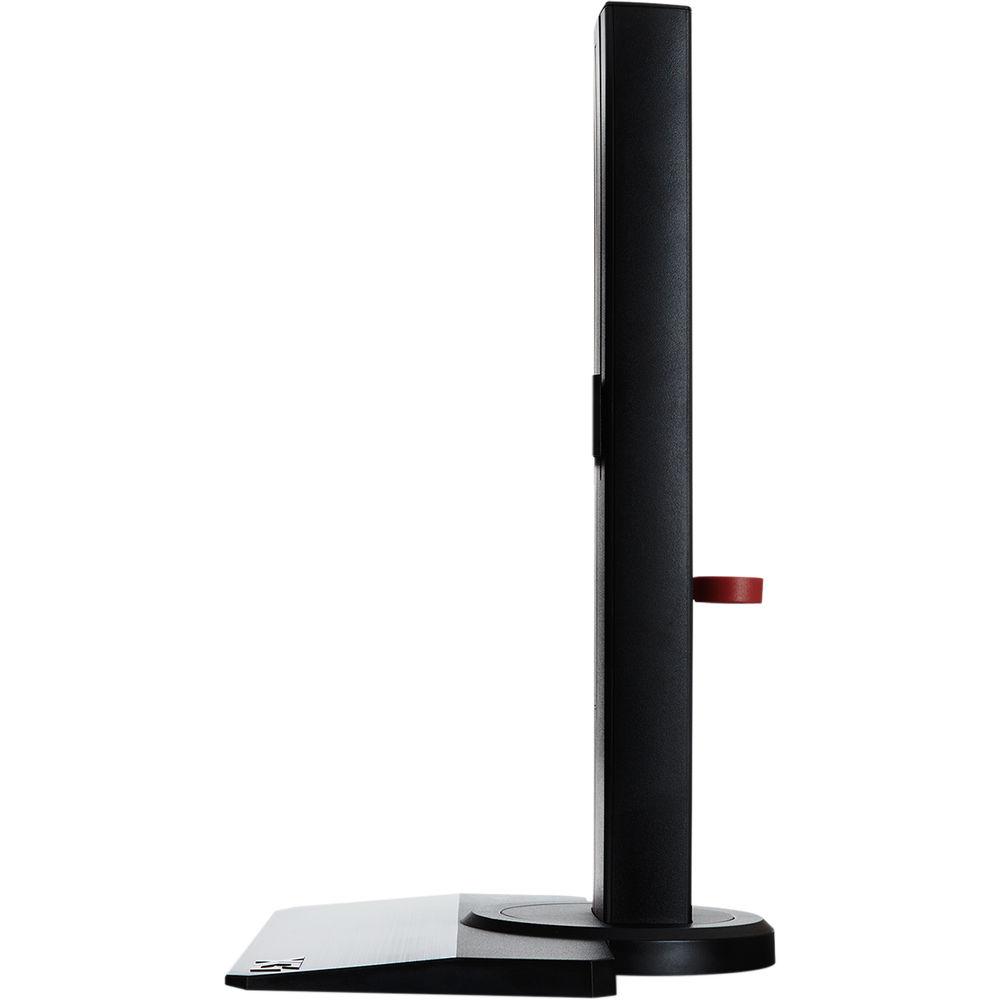

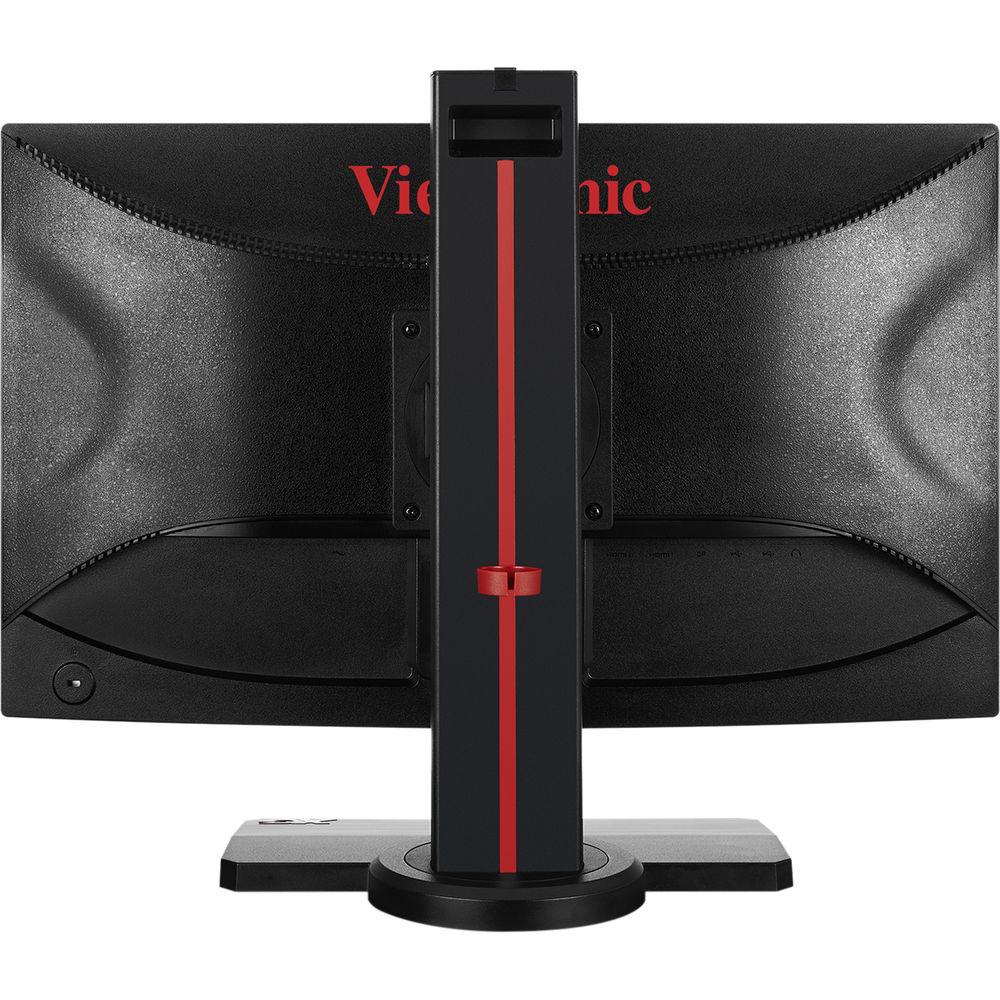

- To lock in that perfect angle necessary for drawn out epic gaming sessions, this monitor features a fully adjustable ergonomic stand capable of considerable swivel, pivot, tilt, and height adjustment. An integrated headphone hook keeps your headphones within arm's reach, while a cable management design reduces clutter around your gaming space.
- Versatile Connectivity
- DisplayPort and HDMI inputs give you the freedom and flexibility to connect to your dedicated graphics card and gaming console.
UPC: 766907906219 In the Box ViewSonic XG2530 25" 16:9 LCD Gaming Monitor Power Cable DisplayPort Cable USB 3.0 Cable Limited 3-Year Warranty User Manual PDF 1.9mb More from Manufacturer Table of Contents
|
Upload User Manual
Have you got an user manual for the ViewSonic XG2530 25" 16:9 LCD Gaming Monitor in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersViewSonic XG2530 Specs | Display Size | Display Size
25" / 63.5 cm
Viewable Area
24.5" / 62.2 cm | | Display Type | TN | | Resolution | 1920 x 1080 | | Contrast Ratio | Static
1,000:1
Dynamic

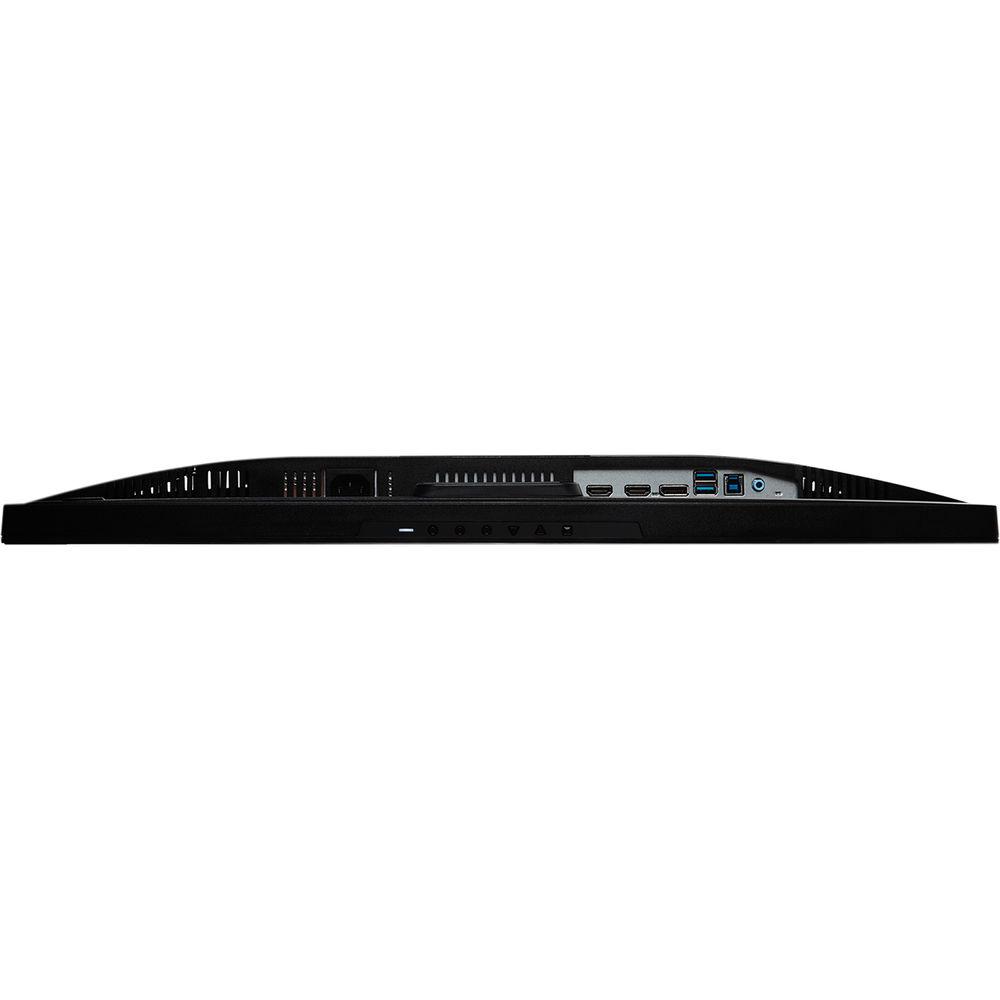

120,000,000:1 | | Light Source | WLED | | Brightness | 400 cd/m² | | Colors Supported | 16.7 million | | Color Space | 6-bit+Hi-FRC | | Aspect Ratio | 16:9 | | Response Time | 1 ms | | Viewing Angles (H/V) | 170°/160° | | Backlight Life | 30,000 hours | | Panel Surface | Anti-glare, hard coating (3H) | | Connectors | 1 x HDMI 1.4
1 x HDMI 2.0
1 x DisplayPort
1 x 3.5 mm audio-out
2 x USB 3.0 Type-A
1 x USB 3.0 Type-B | | Audio | 2 x 2 W internal speakers | | Power | Voltage
100-240 VAC (universal), 50/60 Hz
Power Consumption
Eco Mode (conserve): 22 W
Eco Mode (optimize): 26 W
Consumption (typical): 30 W
Consumption (Max): 54 W
Stand-by: 0.5 W | | Kensington Lock Support | 1 | | Controls | Physical Controls
Game Mode, Up, Down, Select, Back, Power
On Screen Display
Auto Image Adjust, Contrast/Brightness, Input Select, Audio Adjust, Color Adjust, Information, Manual Image Adjust, Advanced Image Adjust, Setup Menu, Memory Recall (see user guide for complete OSD functionality) | | Temperature & Humidity | Temperature
32 to 104°F / 0 to 40°C
Humidity (non-condensing)
20 to 90% | | Mount | VESA Compatible
100 x 100 mm | | Video Signal | Horizontal Frequency
HDMI (v1.4): 15 ~ 180 kHz
HDMI (v2.0) & DisplayPort (v1.2): 15 ~ 255 kHz
Vertical Frequency
HDMI (v1.4): 24 ~ 144 Hz
HDMI (v2.0) & DisplayPort (v1.2): 24 ~ 240 Hz | | Video Input | Digital Sync
TMDS (HDMI), PCI-E (Display Port) | | Ergonomics | Height Adjust
4.72" / 120 mm
Swivel
45°
Pivot
90°
Tilt
-5 to 15° | | Regulations | cULucULus, FCC-B, ICES003, ENERGY STAR 7.0, EPEAT Silver, Mexico-CoC, Mexico Energy, RCM, MEPS, KC, e-Standby | | Dimensions | With Stand

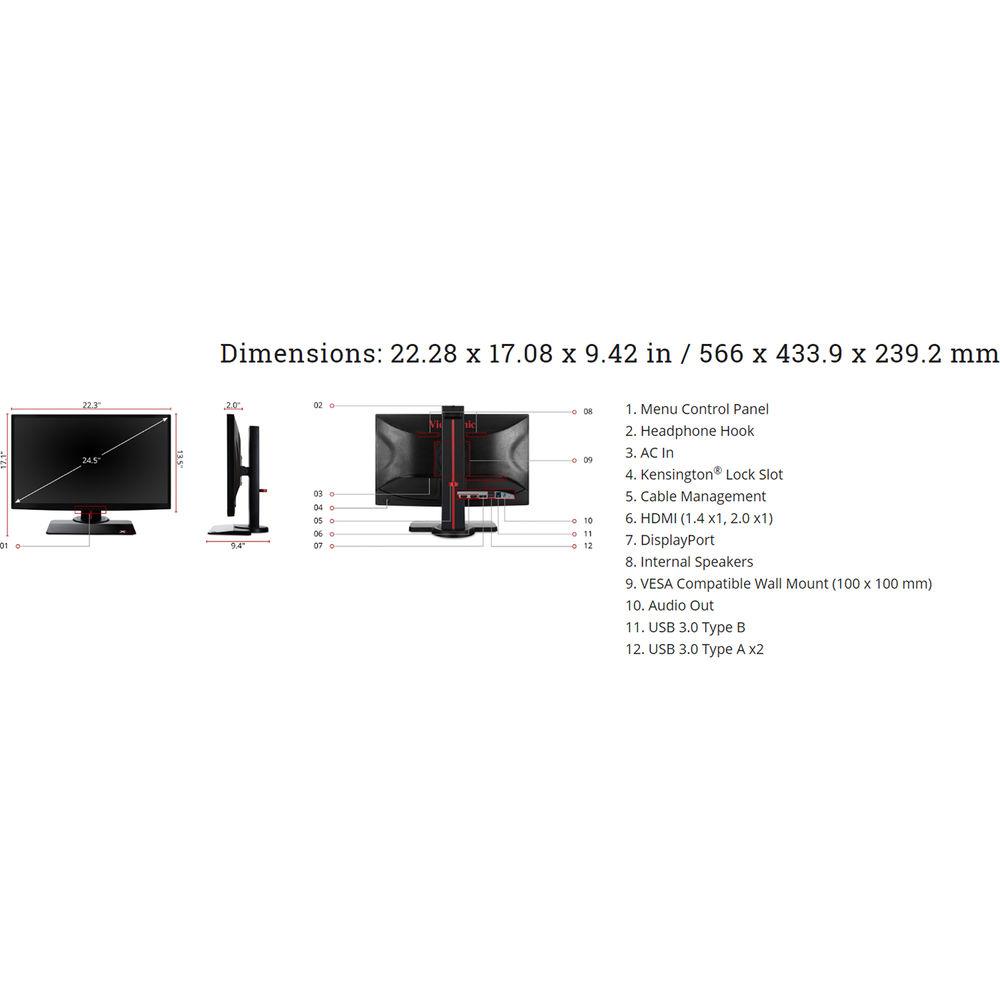

22.28 x 17.08 x 9.42" / 566 x 433.9 x 239.2 mm
Without Stand
22.28 x 13.51 x 2.01" / 566 x 343.2 x 51.1 mm | | Weight | With Stand
14.94 lb / 6.78 kg
Without Stand
7.89 lb / 3.58 kg | | | | Package Weight | 20.0 lb | | Box Dimensions (LxWxH) | 28.0 x 16.5 x 8.0" |
