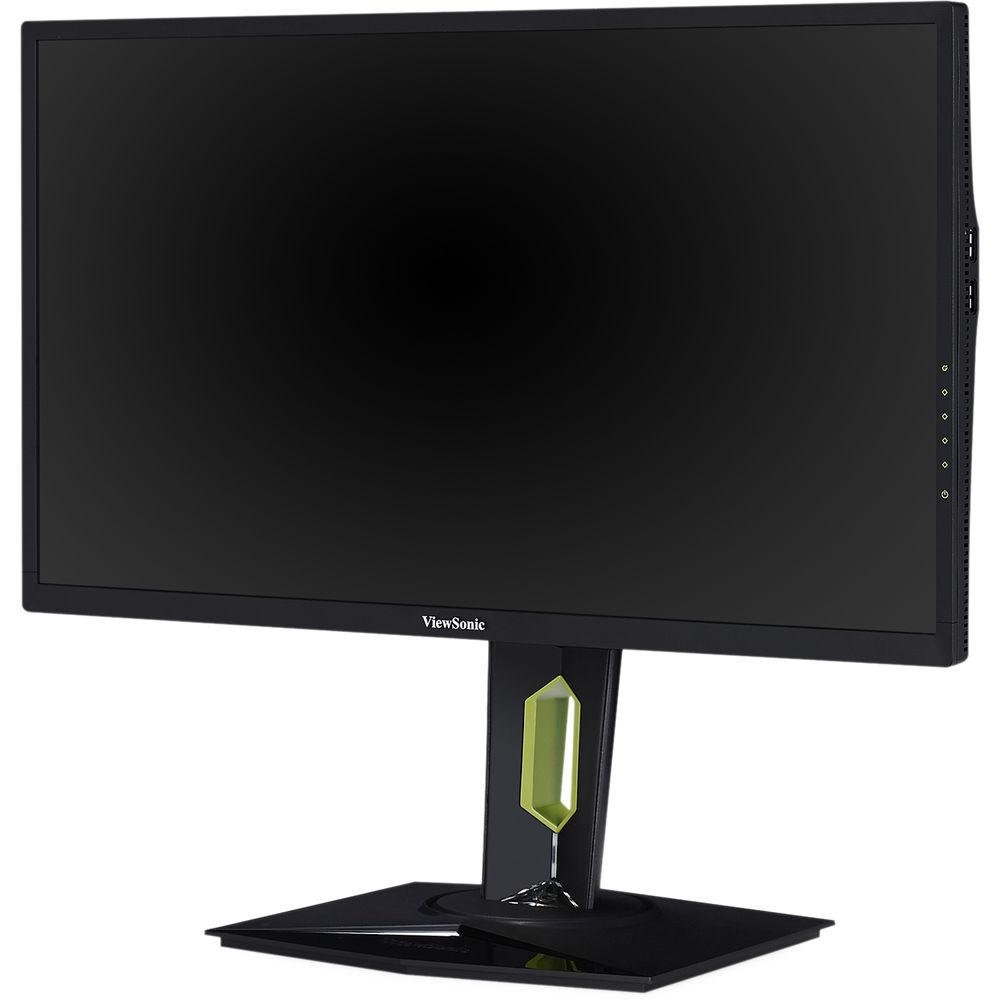

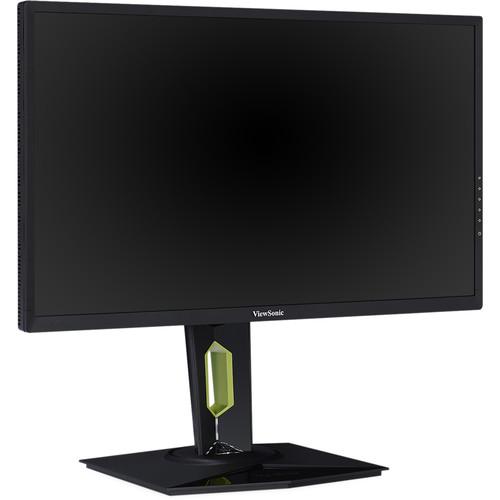

User Manual for ViewSonic XG2560 25" 16:9 LCD Gaming Monitor Click to enlarge the picture
Contents of the user manual for the ViewSonic XG2560 25" 16:9 LCD Gaming
- Product category: Computer Monitors ViewSonic
- Brand: ViewSonic
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for ViewSonic Computer Monitors
 |
User manual for the ViewSonic XG2560 25" 16:9 LCD Gaming contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any ViewSonic product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official ViewSonic user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a ViewSonic product will considerably shorten its lifespan!
|
Product description 10 Factors to Consider When Selecting A Monitor for Video Editing Read More With a 240 Hz refresh rate and NVIDIA G-Sync technology, the XG2560 25" 16:9 LCD Gaming Monitor from ViewSonic is designed with the gamer in mind. NVIDIA G-Sync technology allows you to connect this monitor to compatible graphics cards to virtually eliminate screen tearing while minimizing stutter and lag.
In addition to gamer-centric features, this monitor features a Full HD 1920 x 1080 resolution, a 1000:1 contrast ratio, a 400 cd/m² brightness rating, and a super-fast 1 ms response time to provide a clear picture with reduced ghosting and blur. Along with the enhanced picture quality, viewers can also swivel, pivot, and tilt the display into place, as well as adjust the height of the monitor for maximum viewing comfort. Setup has been greatly simplified as the XG2560 comes equipped with both HDMI and DisplayPort inputs as well as dedicated USB ports to connect USB compatible peripherals directly to the monitor. - 240 Hz Refresh Rate
- With a swift 240 Hz refresh rate, this monitor delivers visual fluidity and awesome graphics no matter how quickly the in-game action unfolds.
- NVIDIA G-Sync Technology
- NVIDIA G-SYNC technology synchronizes the frame rate output between your graphics card and monitor. This eliminates screen tearing, and minimizes stutter and input lag.
- Rapid Response Time
- With a quick 1 ms response time, this monitor delivers smooth images without streaking, blurring, or ghosting. This monitor also features 5 levels of rapid response rate (Standard, Fast, Faster, Ultra-fast, Fastest) that helps to correct "overshoot" and motion blur when gaming at high refresh rates.
- Black Stabilization for Ultimate Visibility
- ViewSonic's Black Stabilization feature provides heightened visibility and detail by brightening dark scenes. Dominate the competition with enhanced visibility, even in the darkest scenes of a video game.
- Game Mode Hotkey
- A Game Mode hotkey opens pre-calibrated settings that deliver a blend of color and technology for specific gaming scenarios. A "ColorX" option delivers the optimal refresh rate, response time, and color ideal for first person shooting games. In addition, three customizable "GAMER" settings provide individual user preferences for specific games.
- Low Input Lag
- When the action on the battlefield gets intense, you need a monitor that can process every command from the keyboard, mouse, or controller as soon as they occur. With a built-in process reducer, this monitor does just that - decreasing the delay between all inputs, and allowing you to react in real time against any competitor.
- Monitor Hz Cap
- Select the desired refresh rate to cap the Hz output of your monitor. This decreases power and loading from your gaming card, and helps to create an ideal gaming experience depending on your specific gaming scenario.

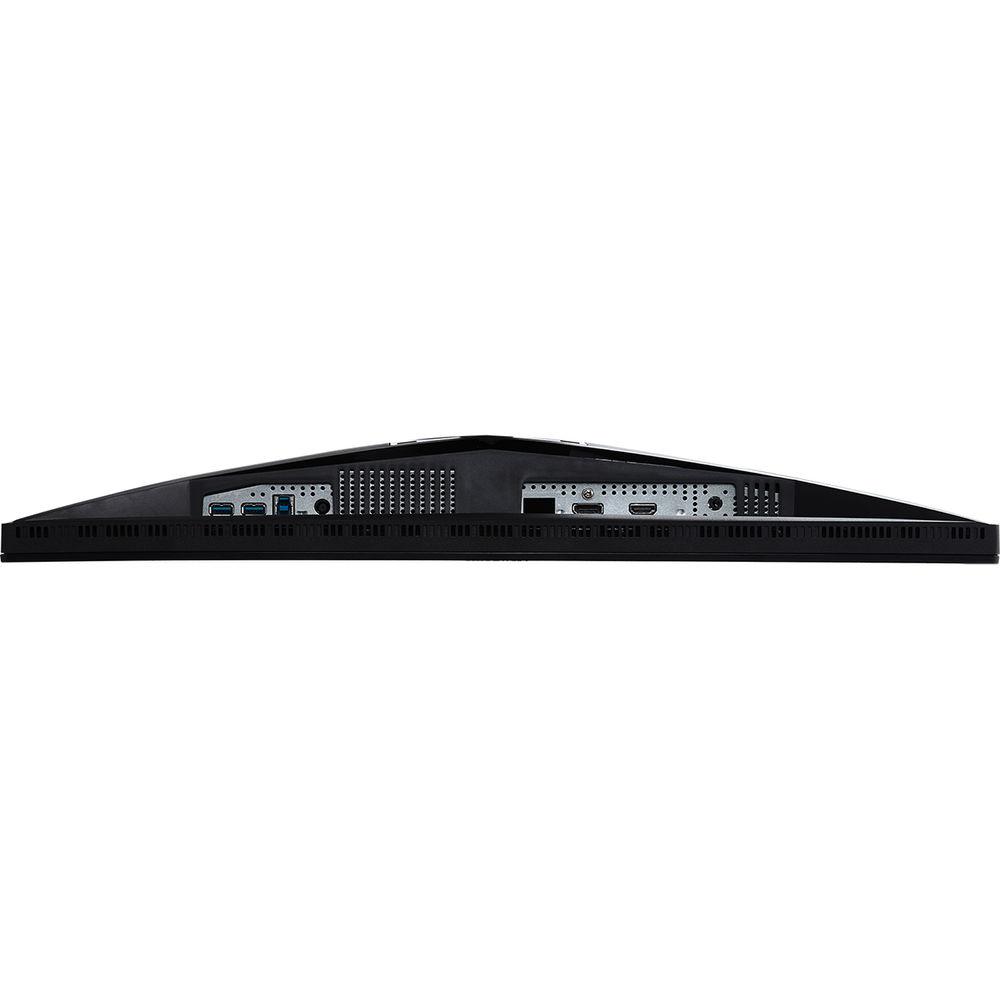

- Versatile Connectivity
- DisplayPort and HDMI inputs give you the freedom and flexibility to connect to your dedicated graphics card and gaming console.
- Ergonomically Designed for Gamers

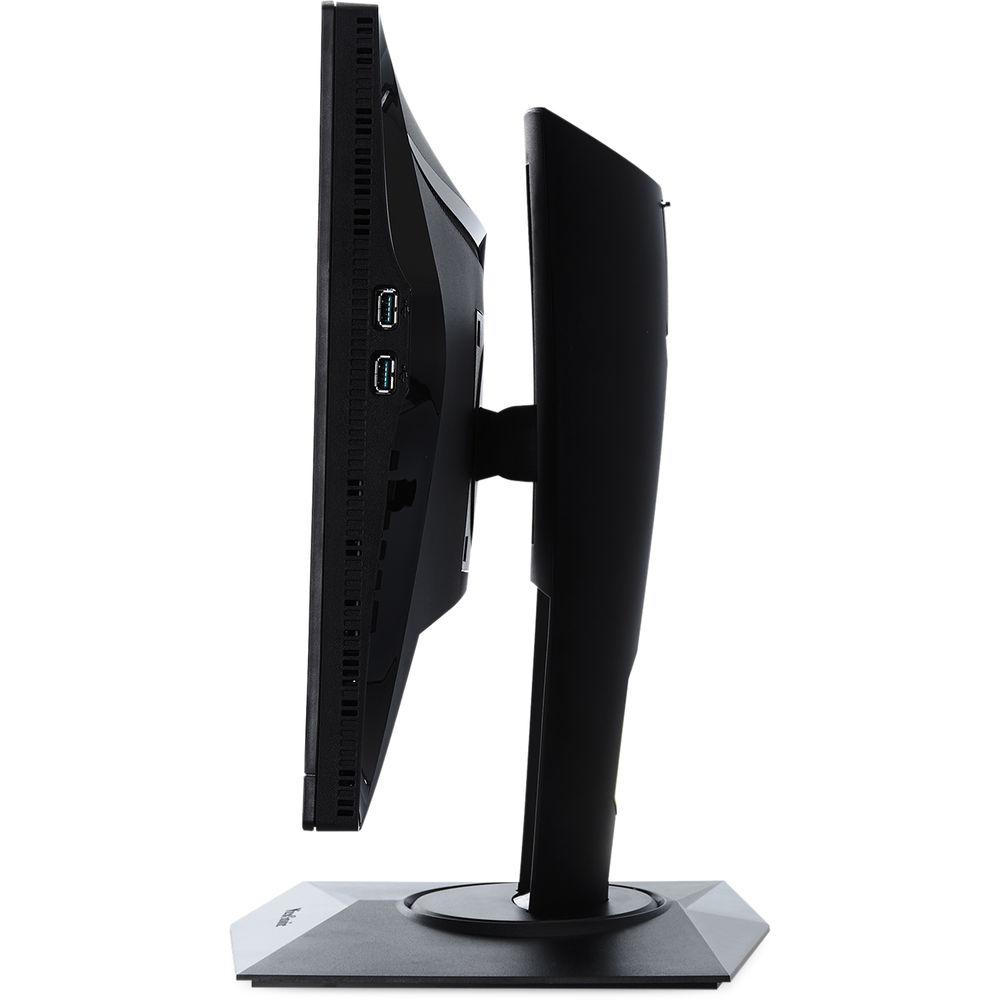

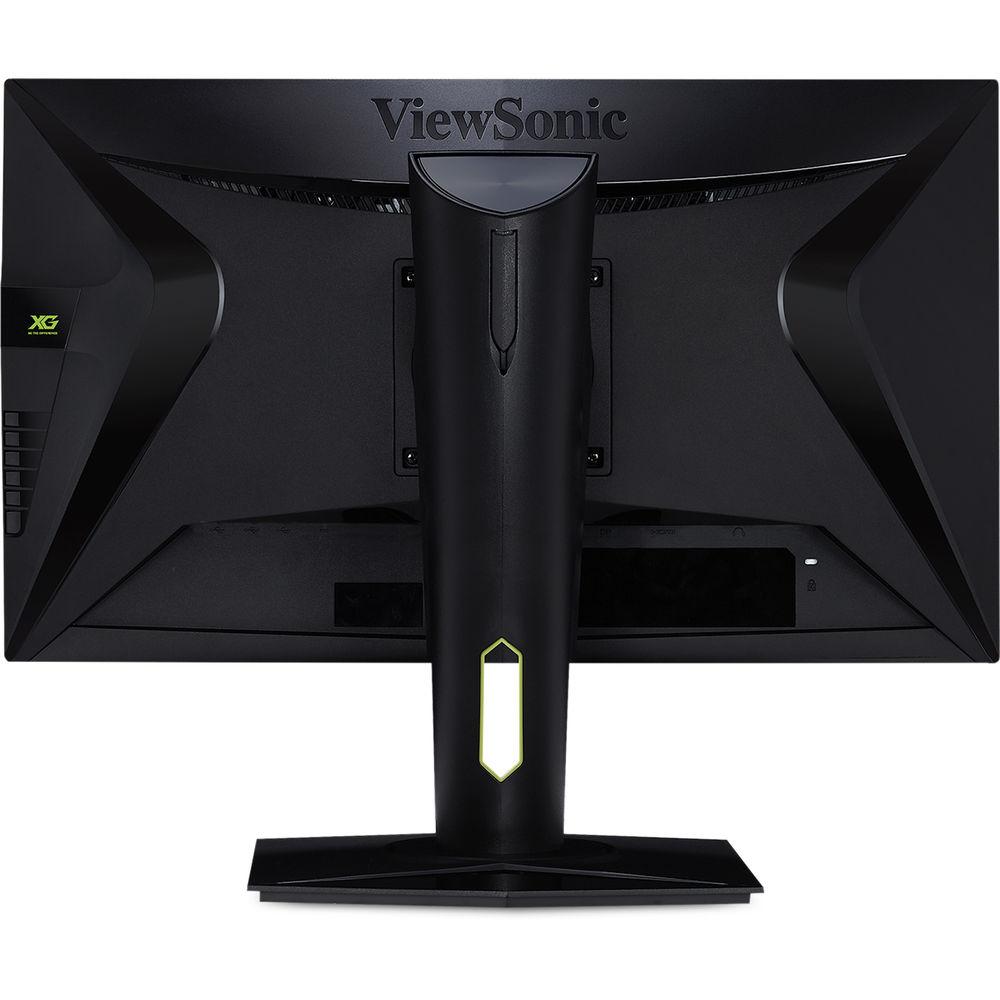

- To lock in that perfect angle necessary for drawn out epic gaming sessions, this monitor features a fully adjustable ergonomic stand capable of considerable swivel, pivot, tilt, and height adjustment. An integrated headphone hook keeps your headphones within arm's reach, while a cable management design reduces clutter around your gaming space.
UPC: 766907937312 In the Box ViewSonic XG2560 25" 16:9 LCD Gaming Monitor Power Adapter Power Cable DisplayPort Cable USB 3.0 Cable Limited 3-Year Warranty User Guide PDF 3.8mb More from Manufacturer Table of Contents
|
Upload User Manual
Have you got an user manual for the ViewSonic XG2560 25" 16:9 LCD Gaming Monitor in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersViewSonic XG2560 Specs | | | Size | 25" | | Panel Type | TN LCD | | Resolution | 1920 x 1080 | | Aspect Ratio | 16:9 | | Pixels Per Inch (ppi) | 88 ppi | | Hardness Rating | 3H | | Maximum Brightness | 400 cd/m2 | | Contrast Ratio | 1000:1 | | Dynamic Contrast Ratio | 120,000,000:1 | | Refresh Rate | 240 Hz | | Adaptive Sync Technology | G-Sync | | Horizontal Frequency | 30 to 90 Hz (HDMI)
15 to 255 Hz (DisplayPort) | | Vertical Frequency | 24 to 60 Hz (HDMI)
24 to 240 Hz (DisplayPort) | | Bit Depth / Color Support | 8-Bit (16.7 Million Colors) | | Response Time | 1 ms (GtG) | | Viewing Angle | Horizontal: 170°
Vertical: 160° | | Backlight Lifespan | 30,000 Hours | | | | Connectivity | 1 x HDMI 1.4
1 x DisplayPort
1 x 3.5 mm Output
4 x USB Type-A (USB 3.1 Gen 1)
1 x USB Type-B (USB 3.1 Gen 1) | | Built-In Speakers | Yes, 2 x 3 W | | | | Power Consumption | 22 W (Eco)
26 W (Eco)
30 W (Typical)
45 W (Maximum)
0.5 W (Standby) | | AC Input Power | 100 to 240 VAC, 50 / 60 Hz | | Power Adapter Type | External | | Power Supply | 65 W | | | | Operating Temperature | 32 to 104°F / 0 to 40°C | | Operating Humidity | 5 to 90% | | | | Height Adjustment | 3.94" / 100 mm | | Rotation Adjustment | 90° | | Swivel Adjustment | 45° | | Tilt Adjustment | -5 to 15° | | Mounting-Hole Pattern | 100 x 100 mm | | Lock Slot | Yes | | Dimensions (W x H x D) | 22.3 x 16.1 x 10.2" / 56.6 x 40.9 x 25.9 cm (With Stand)
22.3 x 13.1 x 3.0" / 56.6 x 33.3 x 7.6 cm (Without Stand) | | Weight | 16.1 lb / 7.30 kg (With Stand)
8.8 lb / 3.99 kg (Without Stand) | | | | Package Weight | 20.4 lb | | Box Dimensions (LxWxH) | 27.0 x 16.0 x 9.0" |
Rating100% users recommend this product to others. And what about you?
This product has already been rated by 94 owners. Add your rating and experience with the product.
