User Manual for ViewSonic XG2702 27" 16:9 LCD Gaming Monitor Click to enlarge the picture
Contents of the user manual for the ViewSonic XG2702 27" 16:9 LCD Gaming
- Product category: Computer Monitors ViewSonic
- Brand: ViewSonic
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for ViewSonic Computer Monitors
 |
User manual for the ViewSonic XG2702 27" 16:9 LCD Gaming contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any ViewSonic product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official ViewSonic user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a ViewSonic product will considerably shorten its lifespan!
|

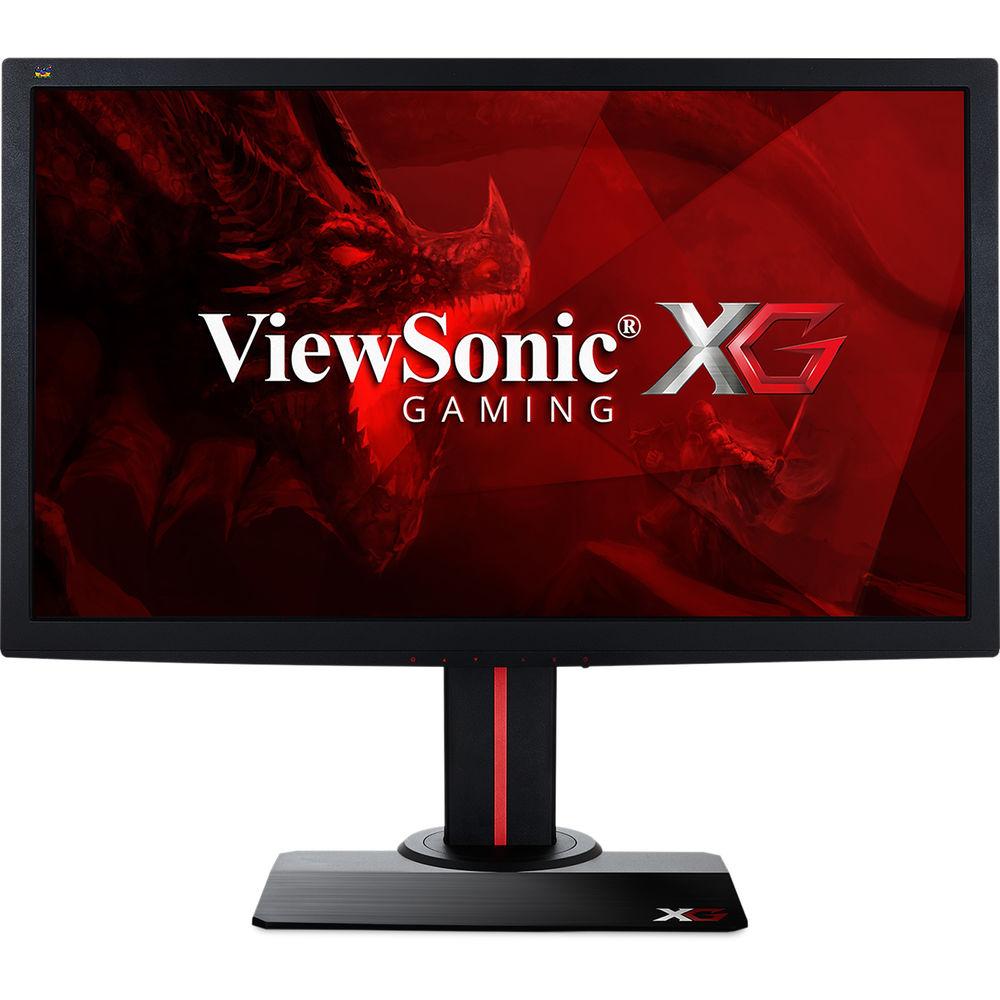

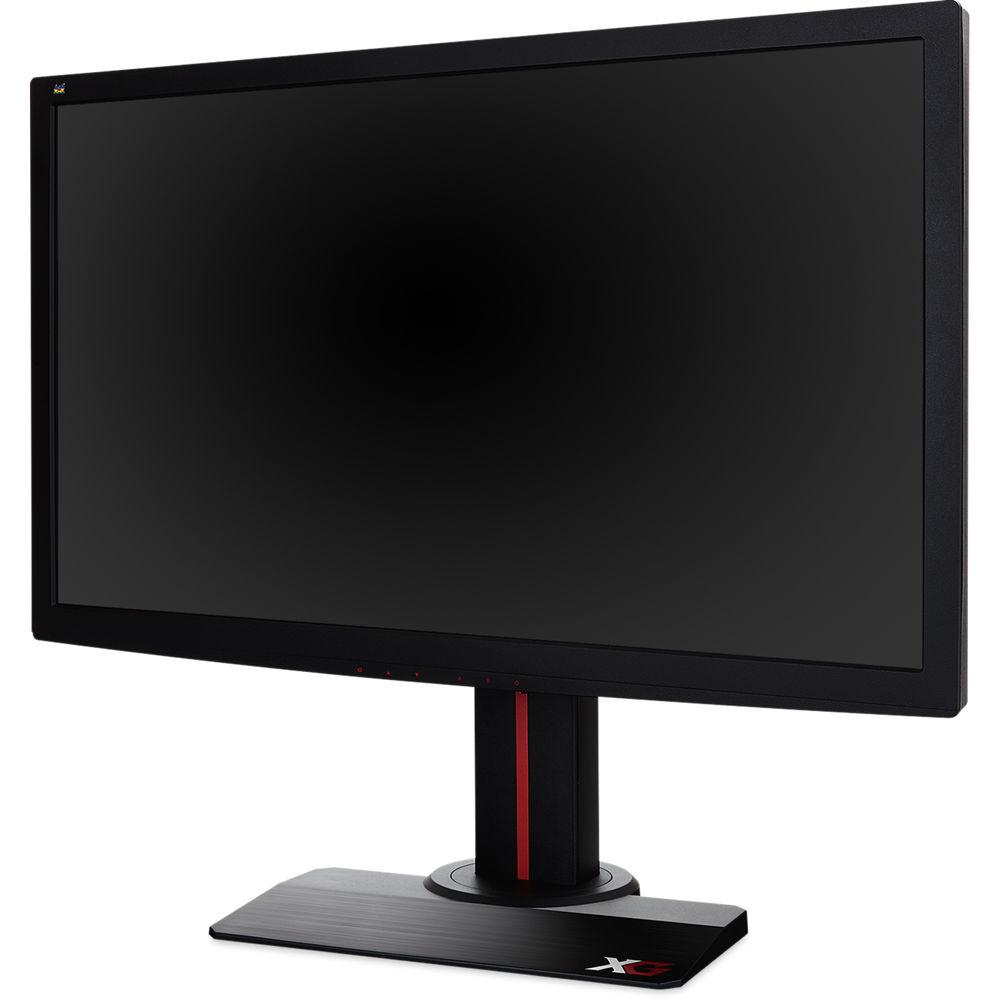

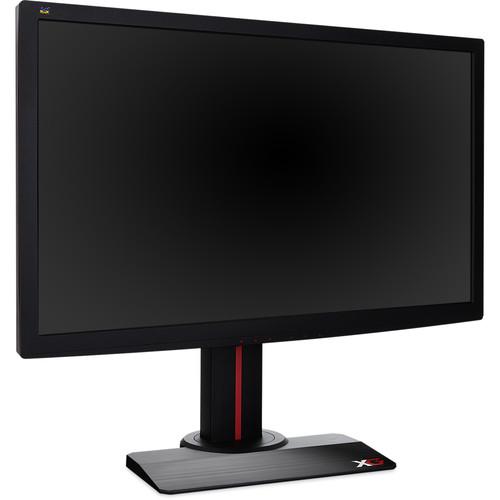

Product description 10 Factors to Consider When Selecting A Monitor for Video Editing Read More Take your games to the next level with the XG2702 27" 16:9 LCD Gaming Monitor from ViewSonic. This gaming monitor features a 1 ms response time, a 144 Hz refresh rate, 22-levels of black stabilization, AMD FreeSync technology, and a dedicated game mode hotkey, all of which are designed to amplify your gaming experience.

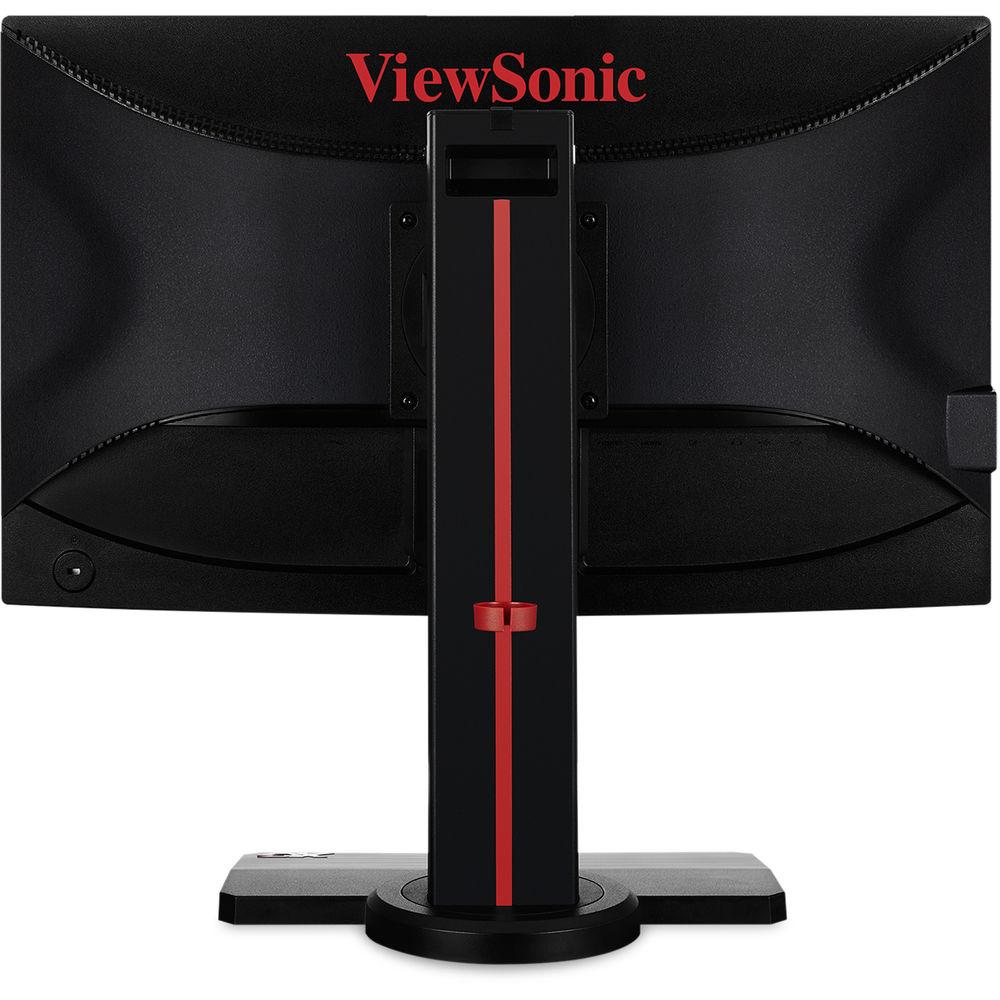

In addition to the enhanced gaming features, this display features a Full HD 1920 x 1080 resolution screen, a 1000:1 contrast ratio, a 400 cd/m² brightness rating, and support for up to 16.7 million colors. Setup is simple thanks to dual HDMI and a single DisplayPort input flanked by a dedicated USB hub. Once configured, viewers can take in all the intense gaming action from virtually any angle as the TN (Twisted Nematic) panel supports 170° horizontal and 160° vertical viewing angles. Furthermore, the display can be tilted, swiveled, pivoted, and the height adjusted for maximum viewing comfort. - 144 Hz Refresh Rate
- With a swift 144 Hz refresh rate, this monitor delivers great visual fluidity and awesome graphics no matter how quickly the in-game action unfolds. Say goodbye to annoying tracers and motion blur, and up your A-game with the smoothest visuals possible.
- Rapid Response Time
- With a quick 1 ms response time, this monitor delivers smooth images without streaking, blurring, or ghosting. This monitor also features 5 levels of rapid response rate (Standard, Fast, Faster, Ultra-fast, Fastest) that helps to correct "overshoot" and motion blur when gaming at high refresh rates.
- 22-Level Black Stabilization
- The ViewSonic Black Stabilization feature provides heightened visibility and detail by brightening dark scenes. With 22 customizable levels of black stabilization controls, you will have enhanced visibility, even in the darkest scenes of a video game.
- Game Mode HotKey
- A Game Mode hotkey opens pre-calibrated settings that deliver a great blend of color and technology for specific gaming scenarios. A "ColorX" option delivers the optimal refresh rate, response time, and color ideal for first-person shooting games. In addition, three customizable "GAMER" settings provide individual user preferences for specific games.
- AMD FreeSync Technology
- Leveraging VESA Adaptive-Sync connectivity, this monitor is equipped with AMD FreeSync™ technology* that seamlessly synchronizes the frame rate output between your graphics card and monitor. This dynamic refresh rate effectively eliminates image tearing, stuttering, and jerkiness for smooth gameplay.
- Low Input Lag
- When the action on the battlefield gets intense, you need a monitor that can process every command from the keyboard, mouse, or controller as soon as they occur. With a built-in process reducer, this monitor does just that - decreasing the delay between all inputs, and allowing you to react in real time against any competitor.
UPC: 766907925111 In the Box ViewSonic XG2702 27" 16:9 LCD Gaming Monitor Power Cable DisplayPort Cable USB 3.0 Cable Limited 3-Year Warranty User Manual PDF 2.7mb Table of Contents
|
Upload User Manual
Have you got an user manual for the ViewSonic XG2702 27" 16:9 LCD Gaming Monitor in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersViewSonic XG2702 Specs | | | Size | 27" | | Panel Type | TN LCD | | Touchscreen | No | | Resolution | 1920 x 1080 | | Aspect Ratio | 16:9 | | Pixels Per Inch (ppi) | 82 ppi | | Finish | Matte | | Hardness Rating | 3H | | Maximum Brightness | 400 cd/m2 | | Contrast Ratio | 1000:1 | | Dynamic Contrast Ratio | 120,000,000:1 | | Refresh Rate | 144 Hz | | Adaptive Sync Technology | None | | Horizontal Frequency | 15 to 180 kHz | | Vertical Frequency | 24 to 144 Hz | | Bit Depth / Color Support | 6-Bit+FRC (16.7 Million Colors) | | HDR Compatibility | None | | Response Time | 1 ms | | Viewing Angle | Horizontal: 170°
Vertical: 160° | | Backlight Lifespan | 30,000 Hours | | | | Connectivity | 4 x USB Type-A (USB 3.1 Gen 1)
1 x USB Type-B (USB 3.1 Gen 1)
1 x 3.5 mm Output
1 x HDMI 1.4 Input
1 x HDMI 2.0 Input
1 x DisplayPort Input | | Built-In Speakers | Yes, 2 x 3 W | | | | Power Consumption | 68 W (Maximum)
37 W (Typical)
26 W (Eco)

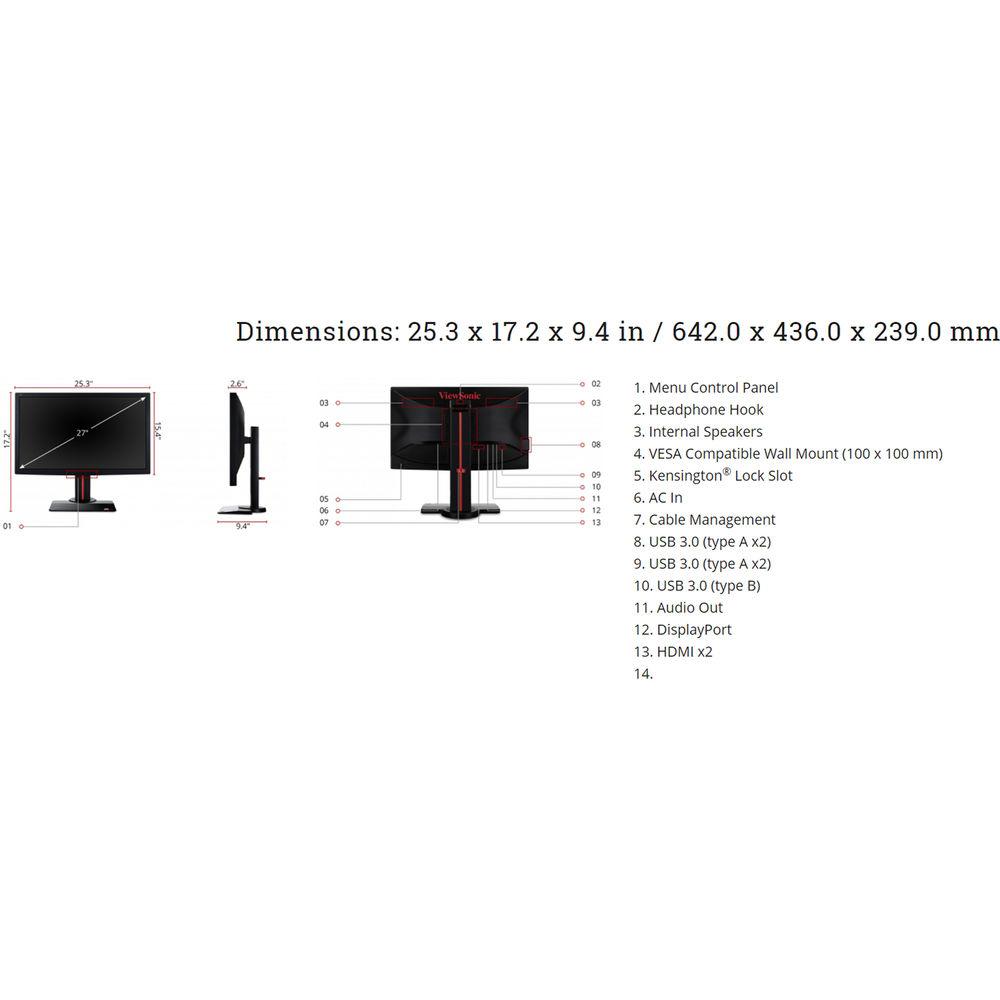

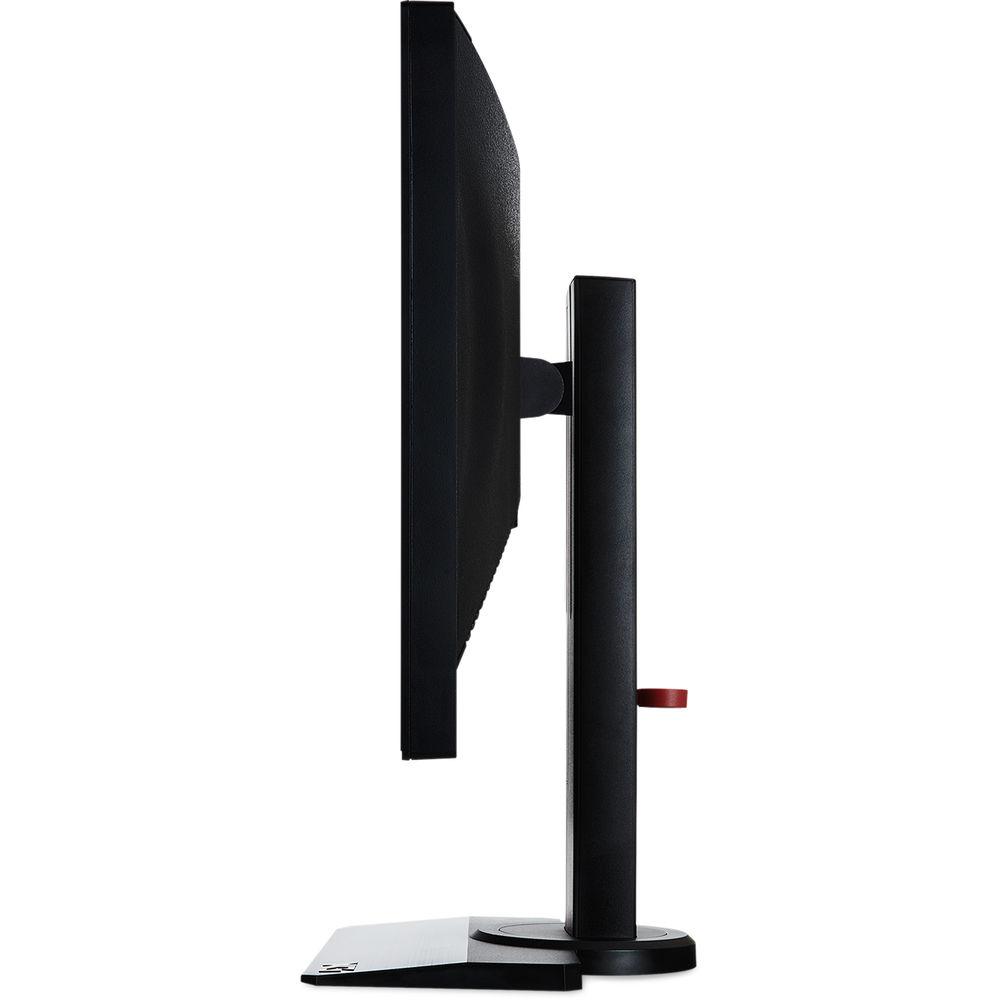

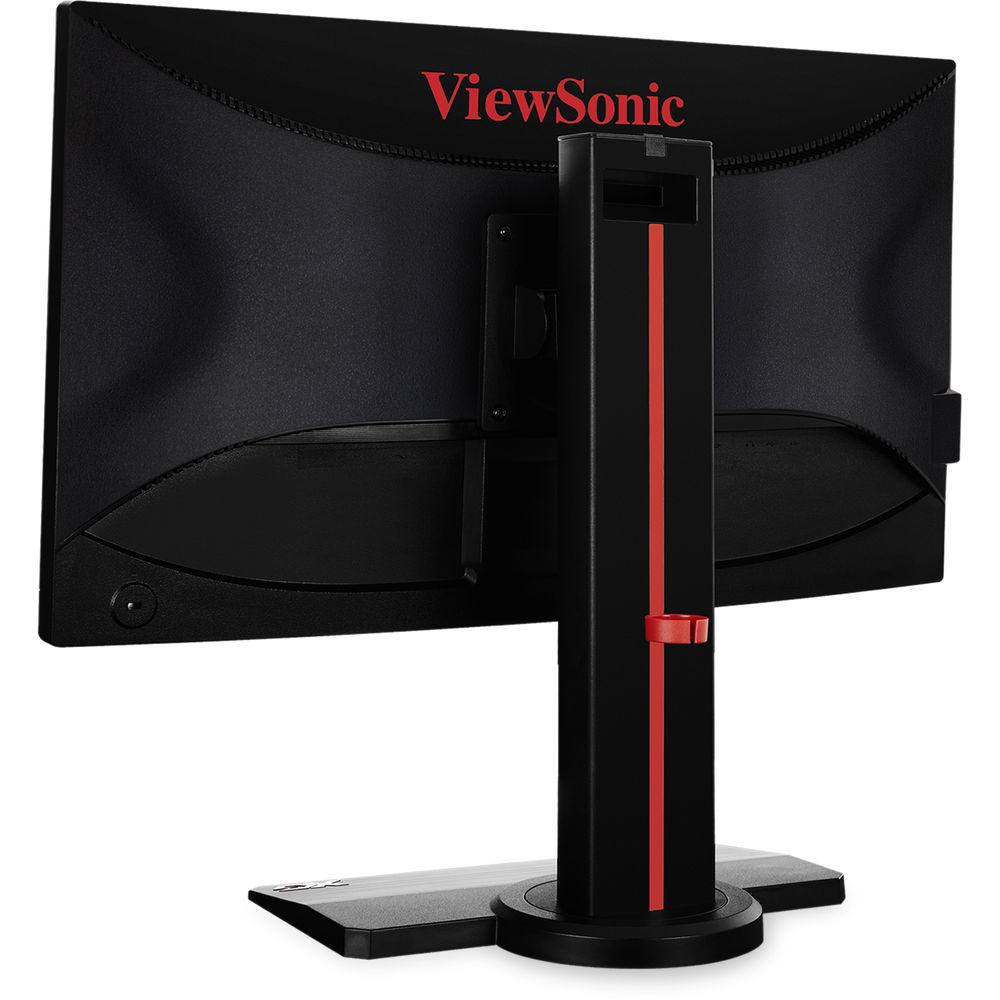

0.5 W (Standby) | | AC Input Power | 100 to 240 VAC, 50 / 60 Hz | | Power Adapter Type | Internal | | | | Operating Temperature | 32 to 104°F / 0 to 40°C | | Operating Humidity | 20 to 90% | | Certifications | ENERGY STAR, FCC, cUL, as per Manufacturer | | | | Height Adjustment | 4.72" / 120 mm | | Rotation Adjustment | 90° | | Swivel Adjustment | 45° | | Tilt Adjustment | -5 to 15° | | Mounting-Hole Pattern | 100 x 100 mm | | Lock Slot | Yes, Kensington | | Dimensions (W x H x D) | 25.3 x 17.2 x 9.4" / 64.3 x 43.7 x 23.9 cm (With Stand)
25.3 x 15.4 x 2.6" / 64.3 x 39.1 x 6.6 cm (Without Stand) | | Weight | 19.84 lb / 9 kg (With Stand)
12.57 lb / 5.7 kg (Without Stand) | | | | Package Weight | 24.2 lb | | Box Dimensions (LxWxH) | 29.8 x 18.5 x 8.4" |
