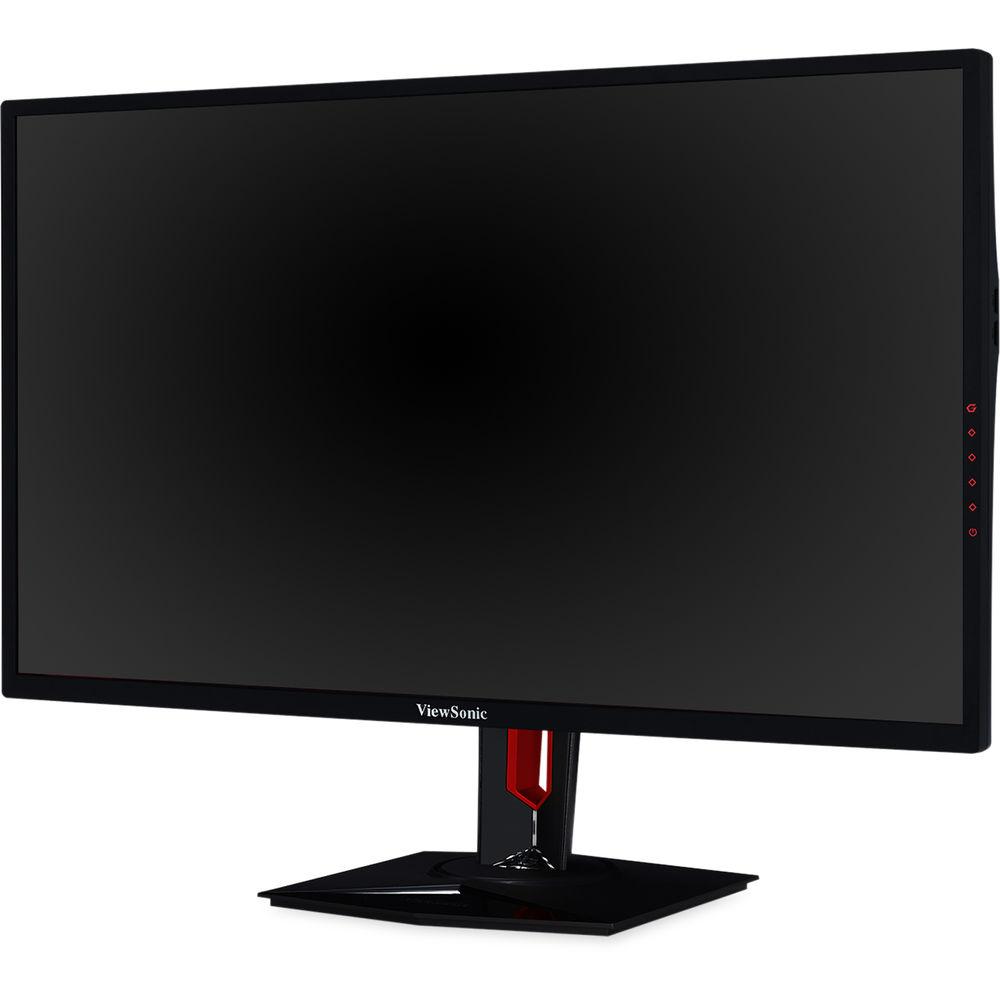

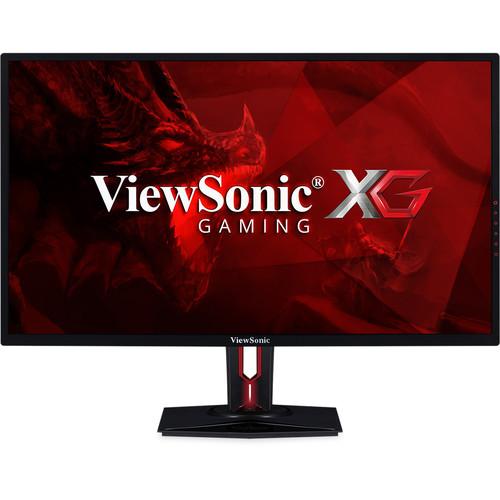

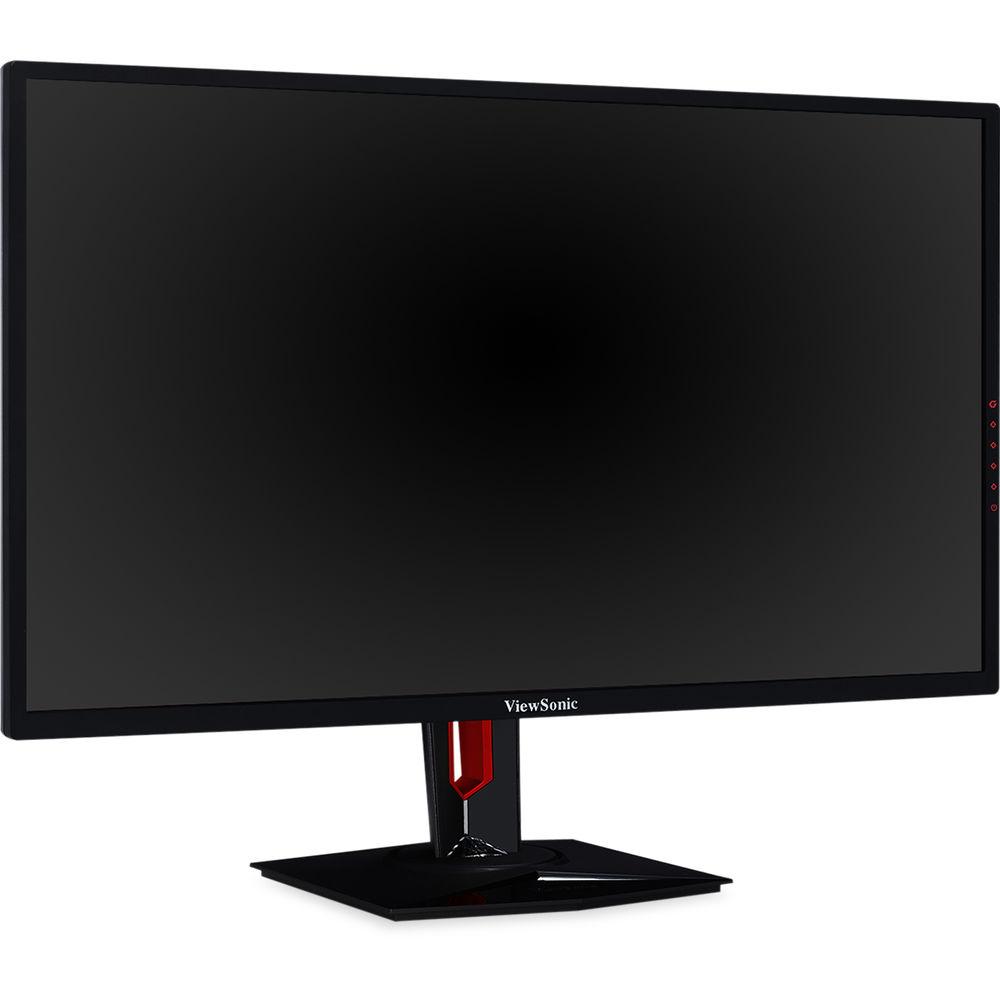

Product description 10 Factors to Consider When Selecting A Monitor for Video Editing Read More With the Ultra HD 4K resolution offered by the XG3220 32" 16:9 Ultra HD 4K LCD Gaming Monitor from ViewSonic, you can see your games, movies, documents, photos, and more with enhanced clarity.
With over 8 million pixels and a 3840 x 2160 resolution, images are crisp, clear, and full of detail. Additionally, this monitor features a 3000:1 contrast ratio, a 300 cd/m² brightness rating, and support for up to 1.07 billion colors. Installation is simple thanks to dual HDMI 2.0 inputs and a single DisplayPort input. Alongside the video inputs, you will find a dedicated USB hub to connect USB 3.0 compatible peripherals directly to the display.
Once configured, this ViewSonic gaming monitor comes equipped with multiple features to amplify your gaming experience. AMD FreeSync technology virtually eliminates lag and blur when the monitor is connected to compatible graphics cards. Additionally, the reduced input lag and enhanced 5 ms response time assist in the reduction of ghosting during fast moving games while the 22-level black stabilization feature offers enhanced visibility suited for nearly any in-game environment. - Stunning 4K Ultra HD Resolution
- Displaying more than 8 million pixels with a high pixel density, this 3840 x 2160 monitor delivers the ultimate in image detail and clarity for highly immersive gameplay.
- AMD FreeSync Technology
- Leveraging VESA Adaptive-Sync connectivity, this monitor is equipped with AMD FreeSync technology that seamlessly synchronizes the frame rate output between your graphics card and monitor. This dynamic refresh rate effectively eliminates image tearing, stuttering, and jerkiness for smooth gameplay.
- Low Input Lag
- When the action on the battlefield gets intense, you need a monitor that can process every command from the keyboard, mouse, or controller as soon as they occur. With a built-in process reducer, this monitor does just that - decreasing the delay between all inputs, and allowing you to react in real time against any competitor.
- 22-Level Black Stabilization
- The ViewSonic Black Stabilization feature provides heightened visibility and detail by brightening dark scenes. 22 customizable levels of black stabilization controls provides enhanced visibility, even in the darkest scenes of a video game.
- Next Generation Connectivity

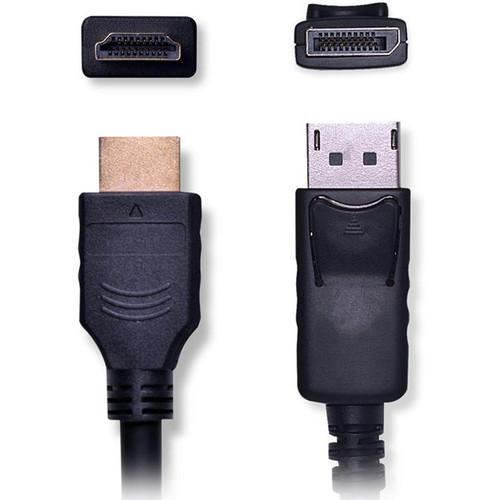

- Future-proof HDMI 2.0 and DisplayPort 1.2a video standards support 3840 x 2160 resolution at a quick 60 Hz frame rate-guaranteeing jitter-free multimedia, smooth screen performance, and true Ultra HD picture clarity. What's more, HDCP 2.2 content protection is standard across all ports to provide secure 4K content playback, streaming, and gaming.
- Dual Integrated Speakers
- Designed with dual integrated speakers, this monitor combines screen performance with stereo sound for an immersive multimedia experience.

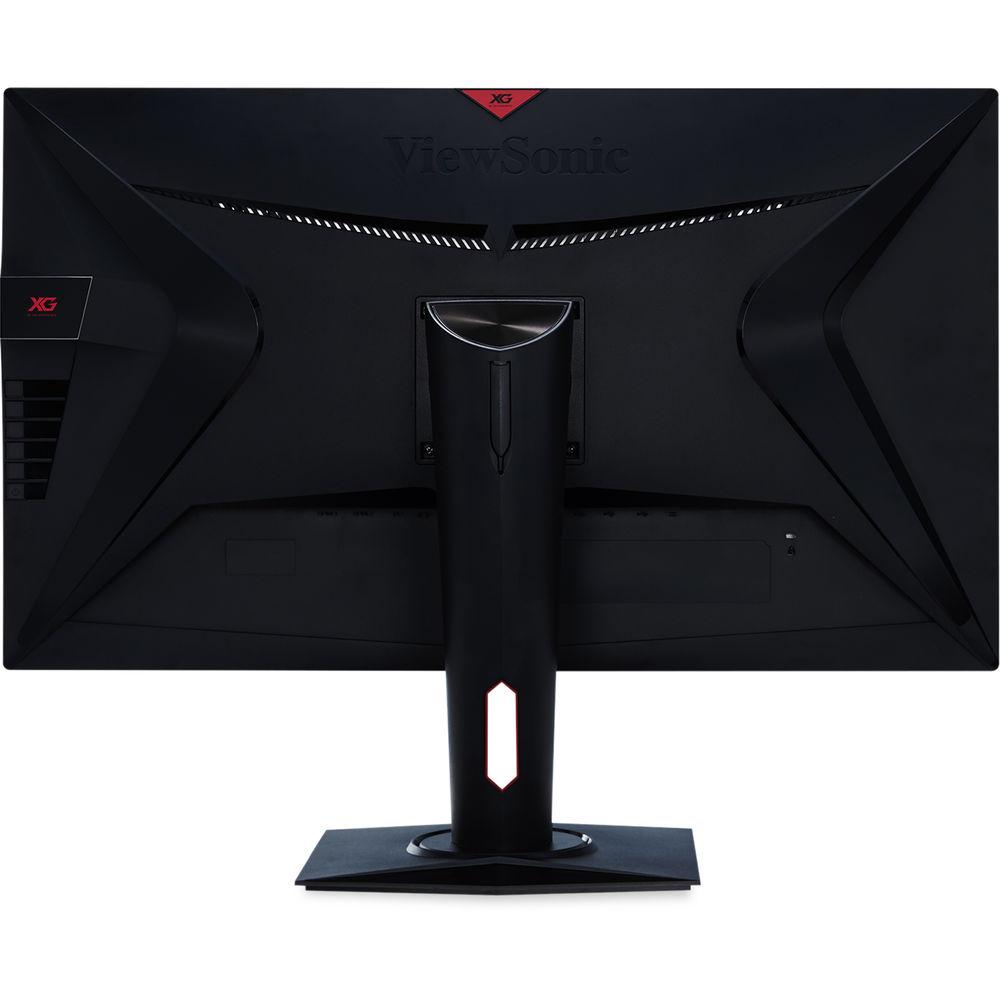

- VESA-Compatible Mount
- Mount the monitor as you see fit using its convenient VESA-compatible mount design.
UPC: 766907927610 In the Box ViewSonic XG3220 32" 16:9 Ultra HD 4K LCD Gaming Monitor AC/DC Adapter Power Cable DisplayPort Cable USB 3.0 Cable Limited 3-Year Warranty User Manual PDF 3.8mbfqvvcvzeceadawztrxwdctestq Table of Contents
|
Upload User Manual
Have you got an user manual for the ViewSonic XG3220 32" 16:9 Ultra HD 4K LCD Gaming Monitor in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersViewSonic XG3220 Specs | | | Size | 31.5" | | Panel Type | VA LCD | | Touchscreen | No | | Resolution | 3840 x 2160 | | Aspect Ratio | 16:9 | | Pixels Per Inch (ppi) | 140 ppi | | Finish | Matte | | Maximum Brightness | 300 cd/m2 | | Contrast Ratio | 3000:1 | | Dynamic Contrast Ratio | 120,000,000:1 | | Refresh Rate | 60 Hz | | Adaptive Sync Technology | FreeSync | | Horizontal Frequency | 15 to 204 kHz (HDMI)
15 to 135 kHz (DisplayPort) | | Vertical Frequency | 40 to 60 Hz (HDMI)
40 to 60 Hz (DisplayPort) | | Bit Depth / Color Support | 8-Bit+FRC (1.07 Billion Colors) | | HDR Compatibility | HDR10 | | Response Time | 5 ms (Overdrive)
9 ms (GtG) | | Viewing Angle | Horizontal: 178°

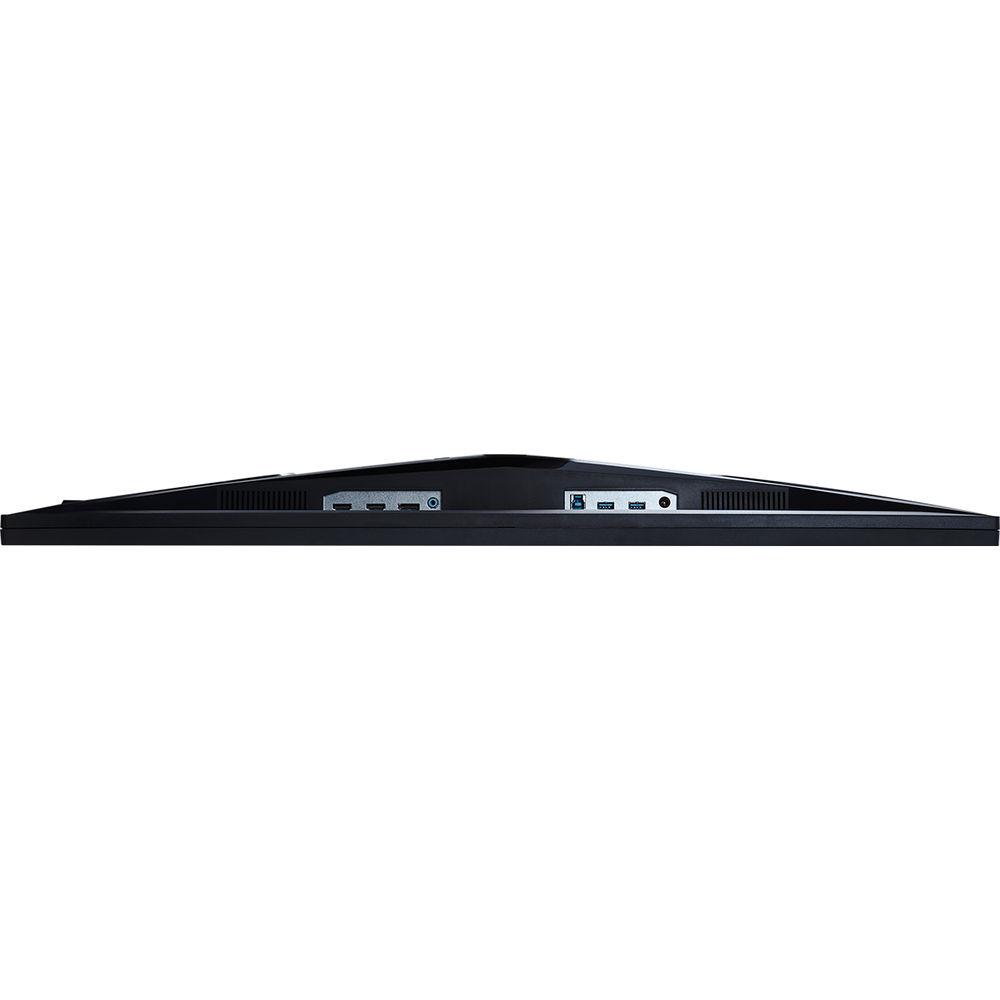

Vertical: 178° | | Backlight Lifespan | 30,000 Hours | | | | Connectivity | 2 x HDMI 2.0 Input
1 x DisplayPort 1.2 Input
1 x 3.5 mm Output
4 x USB Type-A (USB 3.1 Gen 1)
1 x USB Type-B (USB 3.1 Gen 1) | | HDCP Support | Yes, Version 2.2 | | Built-In Speakers | Yes, 2 x 5 W | | | | Power Consumption | 33 W (Eco)
50 W (Typical)
92 W (Maximum)

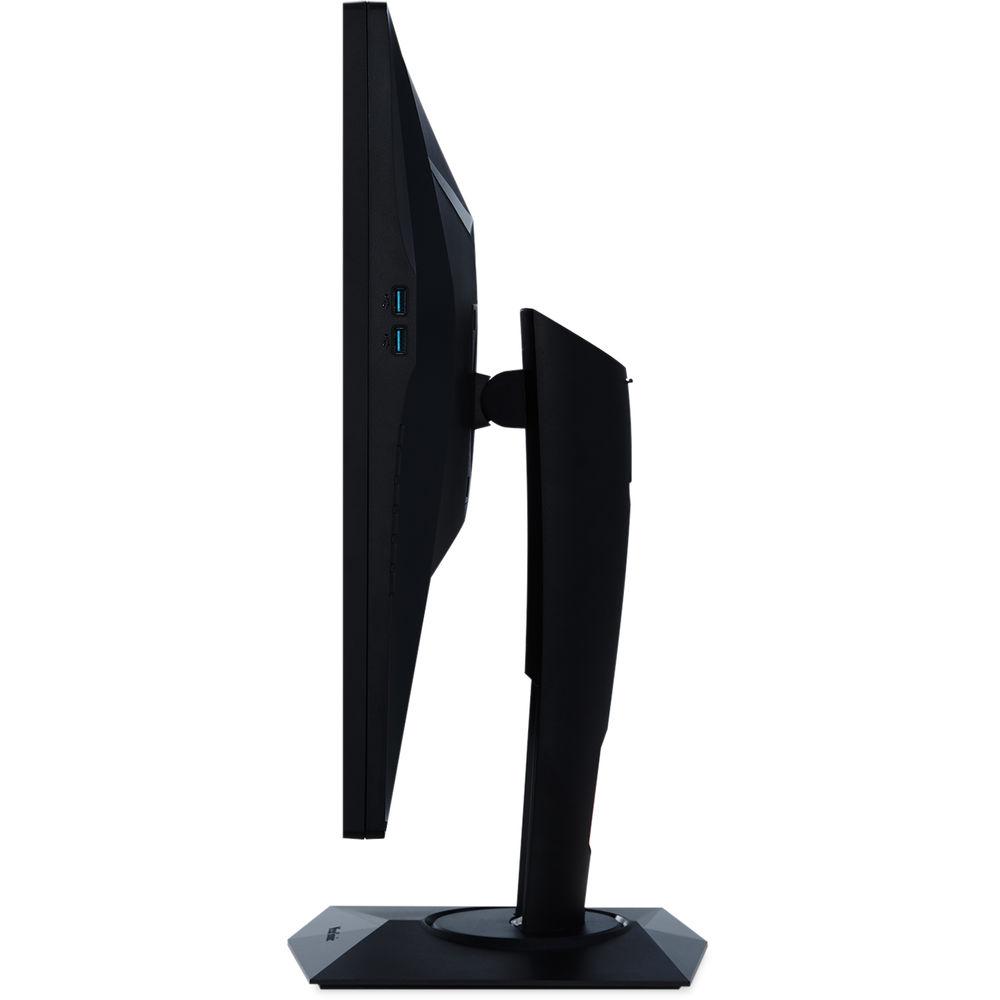

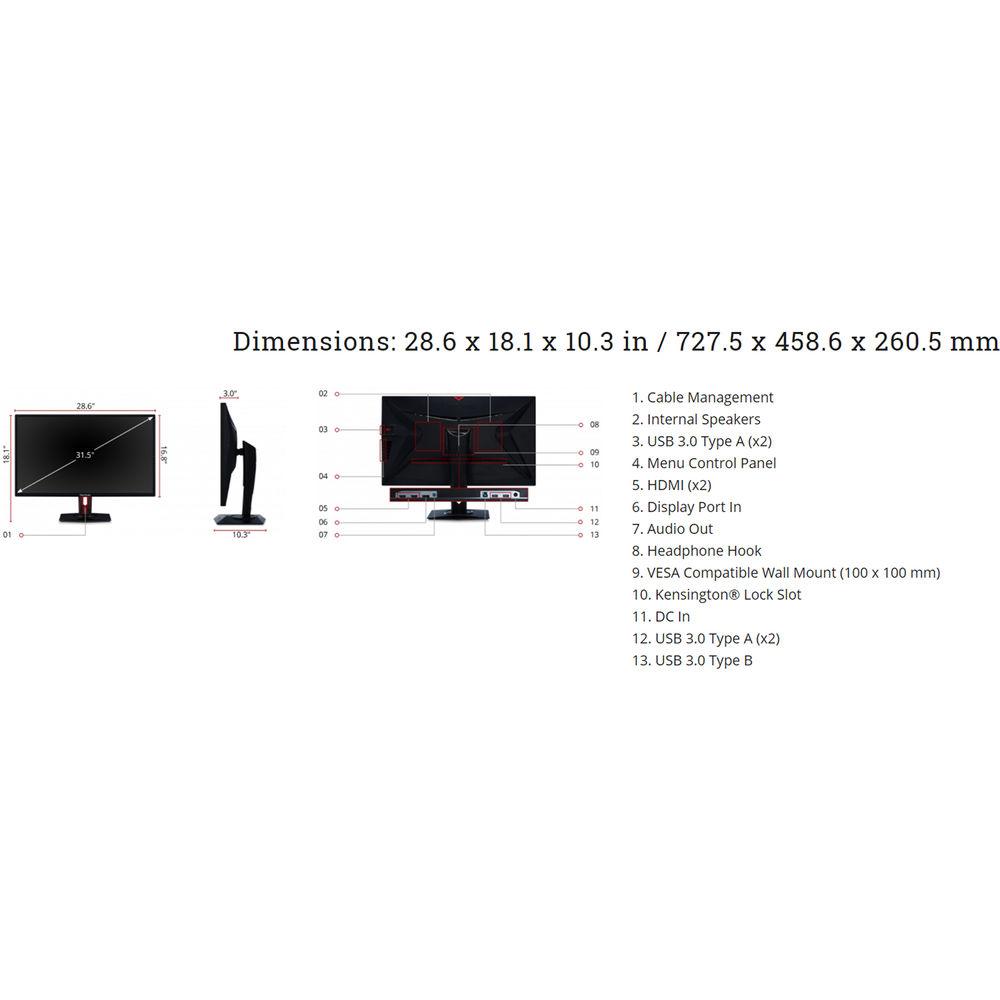

0.5 W (Standby) | | AC Input Power | 100 to 240 VAC, 50 / 60 Hz | | Power Adapter Type | External | | | | Operating Temperature | 32 to 104°F / 0 to 40°C | | Operating Humidity | 5 to 90% | | Certifications | ENERGY STAR, FCC, NRCAN, as per Manufacturer | | | | Height Adjustment | 3.94" / 100 mm | | Rotation Adjustment | 90° | | Swivel Adjustment | 90° (-45 to 45°) | | Tilt Adjustment | -5 to 15° | | Mounting-Hole Pattern | 100 x 100 mm | | Dimensions (W x H x D) | 28.6 x 18.1 x 10.3" / 72.6 x 46.0 x 26.2 cm (With Stand)
28.6 x 16.8 x 3.0" / 72.6 x 42.7 x 7.6 cm (Without Stand) | | Weight | 18.2 lb / 8.26 kg (With Stand)
11.0 lb / 4.99 kg (Without Stand) | | | | Package Weight | 24.55 lb | | Box Dimensions (LxWxH) | 37.4 x 19.9 x 9.1" |
