User Manual for ViewSonic XG350R-C 35" 21:9 Curved FreeSync Gaming LCD Monitor Click to enlarge the picture
Contents of the user manual for the ViewSonic XG350R-C 35" 21:9 Curved FreeSync
- Product category: Computer Monitors ViewSonic
- Brand: ViewSonic
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for ViewSonic Computer Monitors
 |
User manual for the ViewSonic XG350R-C 35" 21:9 Curved FreeSync contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any ViewSonic product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official ViewSonic user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a ViewSonic product will considerably shorten its lifespan!
|

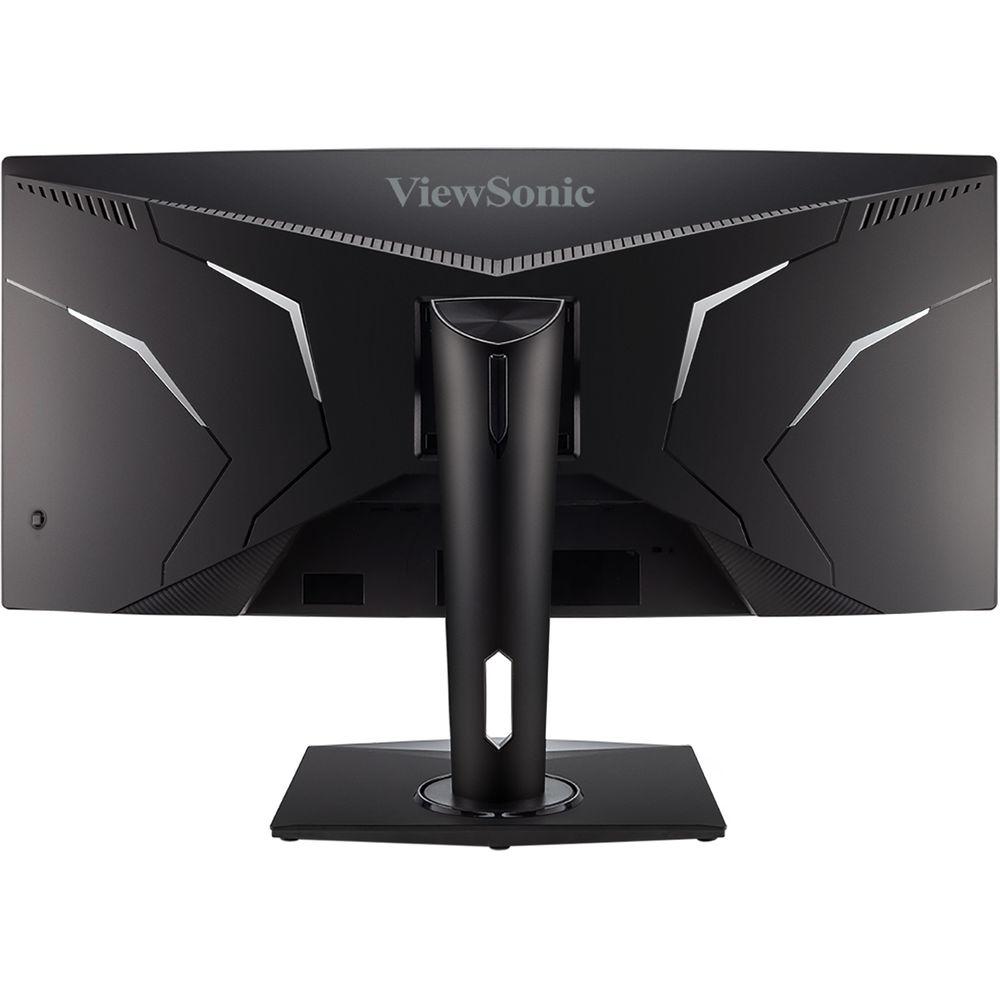

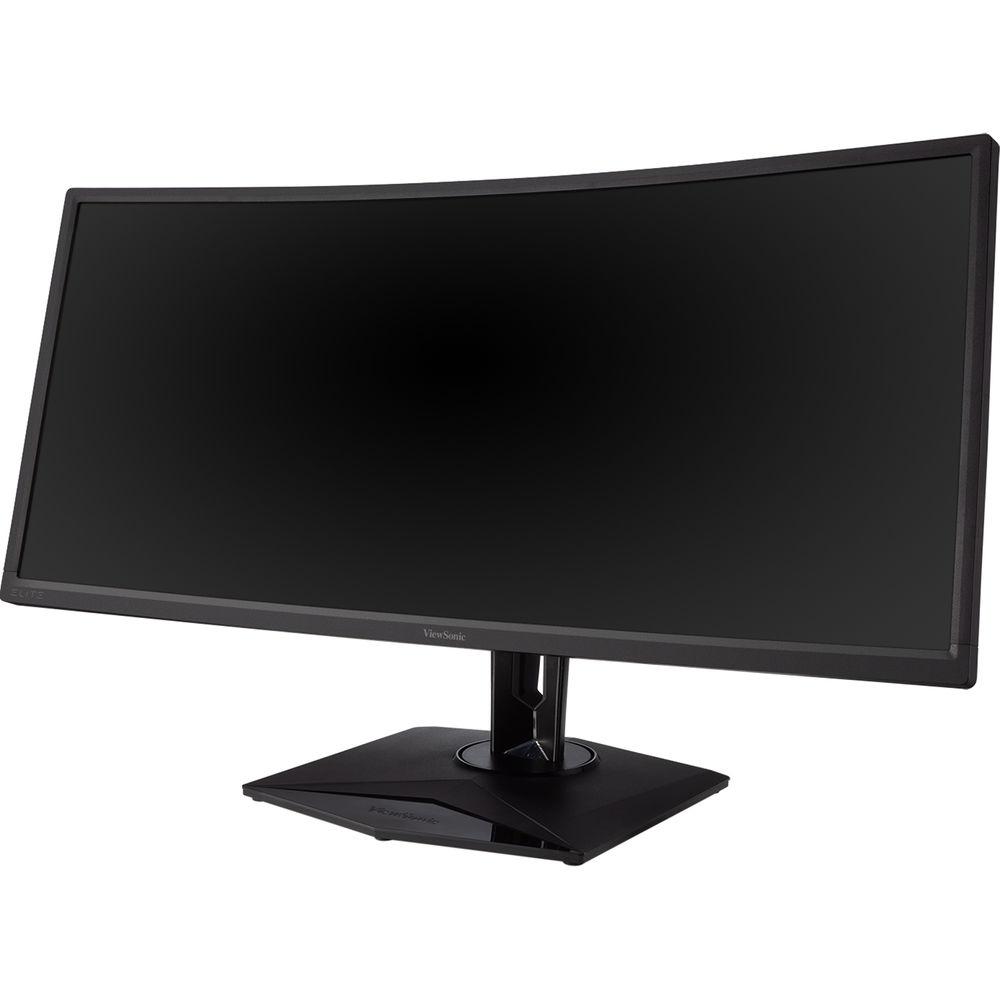

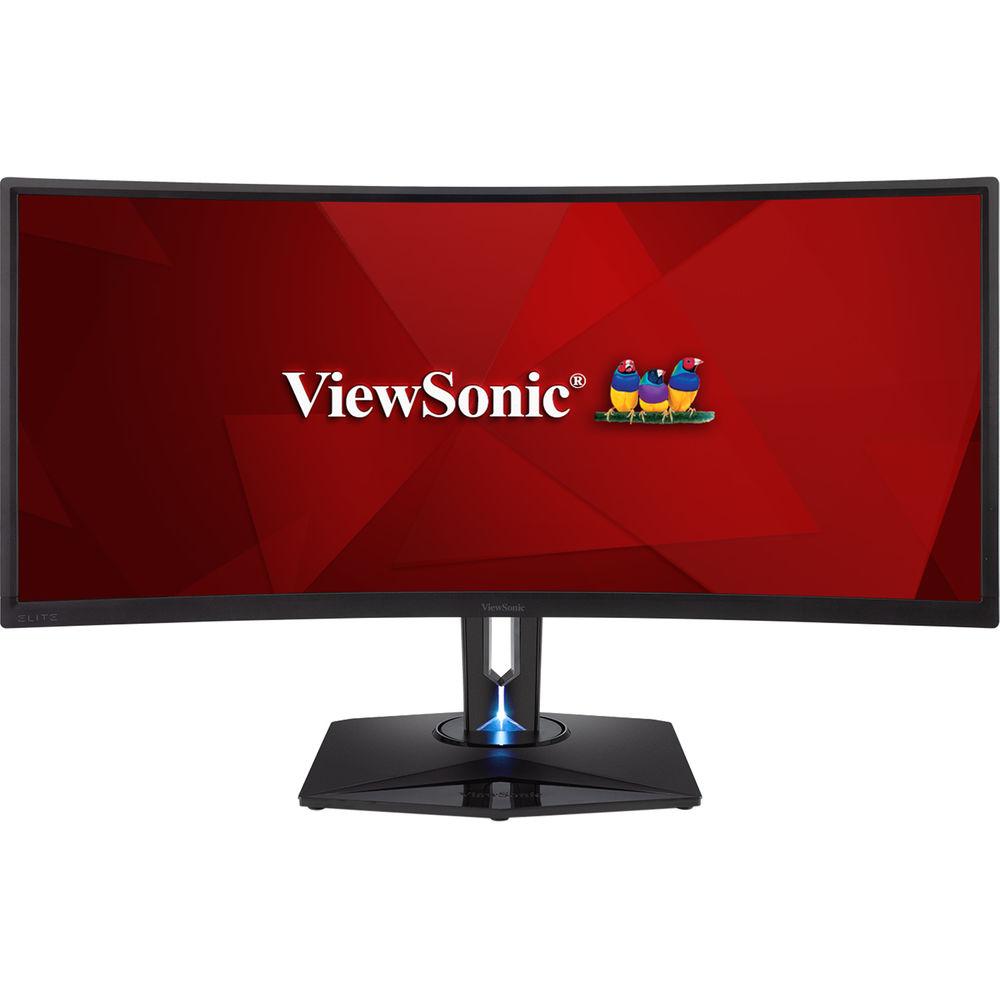

Product description 10 Factors to Consider When Selecting A Monitor for Video Editing Read More The XG350R-C 35" 21:9 Curved FreeSync Gaming LCD Monitor from ViewSonic is built with a curved panel that places you in the middle of the action for a more immersive viewing experience. Its multi-domain vertical alignment (MVA) panel features a 3440 x 1440 resolution with a 21:9 aspect ratio, a 2500:1 static contrast ratio, a 300 cd/m² brightness rating, a 3 ms response time, and support for 16.7 million colors. With these combined, this display provides you with crisp, clear details and vivid colors. Moreover, with AMD FreeSync technology, this display helps to reduce screen tearing and stuttering for a more fluid gaming experience. Once it's connected to your system via HDMI or DisplayPort, you can adjust its versatile stand to best fit your viewing preference. Otherwise, you can install an optional stand, mount, or arm using the VESA mounting holes on the back. - AMD FreeSync
- AMD FreeSync technology syncs the display's refresh rate with your graphics card's frame rate output to help reduce screen tearing, ghosting, and stuttering for a smoother gaming experience.
- Elite RGB Lighting

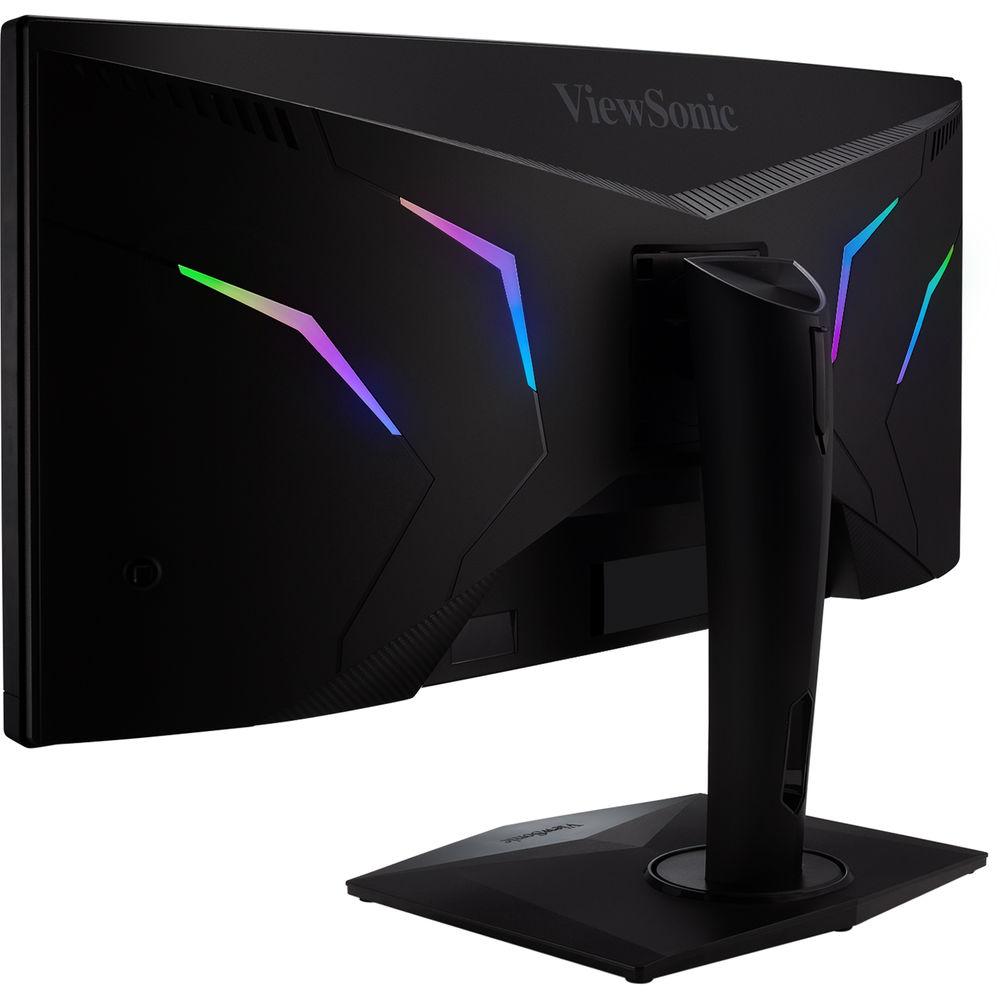

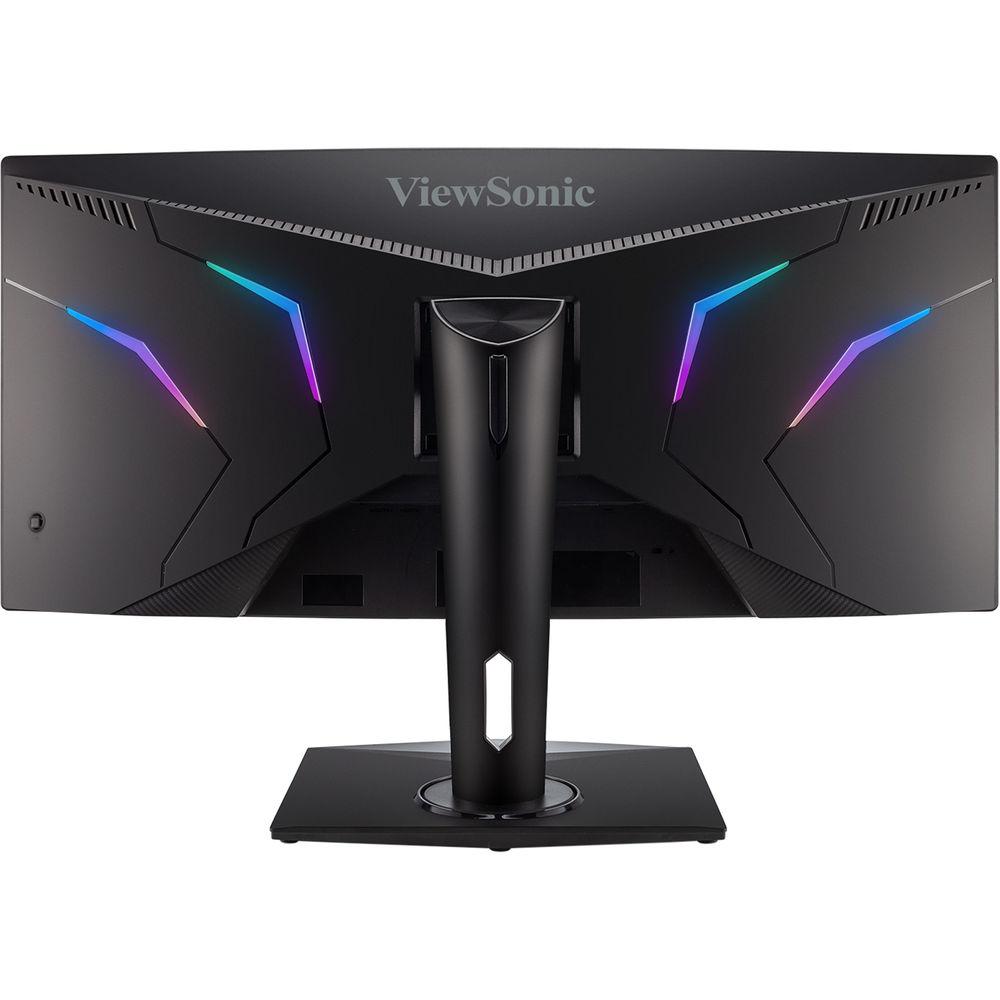

- The back of this monitor is equipped with customizable RGB backlighting. You can choose the colors you want, or even sync it with your other RGB-equipped peripherals.
- 100 Hz Refresh Rate
- A 100 Hz refresh rate is ideal for fast-paced action scenes found in racing games, FPS, and more.
- HDR10 Content Support
- Capable of decoding HDR10 video signals, this monitor provides you with detailed video playback. Colors are brighter and more vivid for richer and more detailed viewing experience.
- ClearMotion Technology
- ClearMotion technology uses backlight strobing to reduce image blur in fast-moving scenarios, which can help improve your response time.
- Black Stabilization
- With 22-customizable levels to choose from, Black Stabilization provides you with better visibility and details in dark scenes, so you can better spot enemies or items hidden in dimly lit areas.
UPC: 766907992113 In the Box ViewSonic XG350R-C 35" 21:9 Curved FreeSync Gaming LCD Monitor Power Cable and AC Adapter HDMI Cable DisplayPort Cable USB 3.0 Cable Limited 3-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the ViewSonic XG350R-C 35" 21:9 Curved FreeSync Gaming LCD Monitor in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersViewSonic XG350R-C Specs | | | Size | 35" | | Panel Type | VA LCD | | Curvature | 1800R | | Touchscreen | No | | Resolution | 3440 x 1440 | | Aspect Ratio | 21:9 | | Pixels Per Inch (ppi) | 106 ppi | | Finish | Matte | | Hardness Rating | 3H | | Maximum Brightness | 300 cd/m2 | | Contrast Ratio | 2500:1 | | Dynamic Contrast Ratio | 120,000,000:1 | | Refresh Rate | 100 Hz | | Adaptive Sync Technology | FreeSync | | Horizontal Frequency | 15 to 160 kHz | | Vertical Frequency | 48 to 100 Hz | | Bit Depth / Color Support | 8-Bit (16.7 Million Colors) | | HDR Compatibility | HDR10 | | Response Time | 3 ms (GtG) | | Viewing Angle | Horizontal: 178°

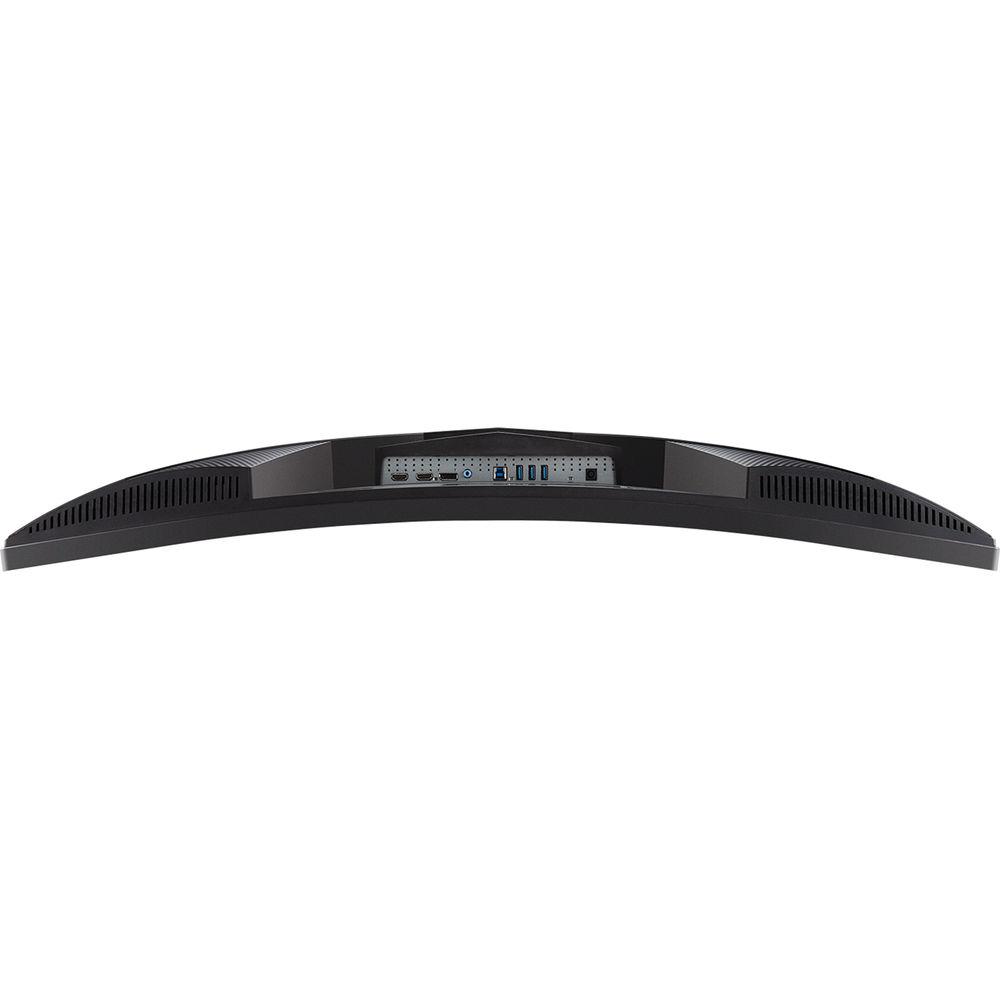

Vertical: 178° | | Backlight Lifespan | 30,000 Hours | | | | Connectivity | 3 x USB Type-A (USB 3.1 Gen 1) Output
1 x USB Type-B (USB 3.1 Gen 1) Input
1 x 3.5 mm Output
2 x HDMI 2.0
1 x DisplayPort | | Built-In Speakers | Yes, 2 x 5 W | | | | Power Consumption | 50 W (Eco)
60 W (Eco)
70 W (Typical)
100 W (Maximum)
0.5 W (Standby) | | AC Input Power | 100 to 240 VAC, 50 / 60 Hz | | Power Adapter Type | External | | | | Operating Temperature | 32 to 104°F / 0 to 40°C | | Operating Humidity | 20 to 90% | | Certifications | FCC, TUV, as per Manufacturer | | | | Height Adjustment | 3.94" / 100 mm | | Swivel Adjustment | 45° | | Tilt Adjustment | -5 to 15° | | Mounting-Hole Pattern | 100 x 100 mm | | Lock Slot | Yes, Kensington | | Dimensions (W x H x D) | 33.4 x 17.1 x 12.0" / 848.4 x 434.3 x 304.8 mm (With Stand)
33.4 x 15.2 x 5.0" / 848.4 x 386.1 x 127.0 mm (Without Stand) | | Weight | 29.76 lb / 13.5 kg (With Stand)
20.94 lb / 9.5 kg (Without Stand) | | | | Package Weight | 38.5 lb | | Box Dimensions (LxWxH) | 38.5 x 19.5 x 11.0" |
