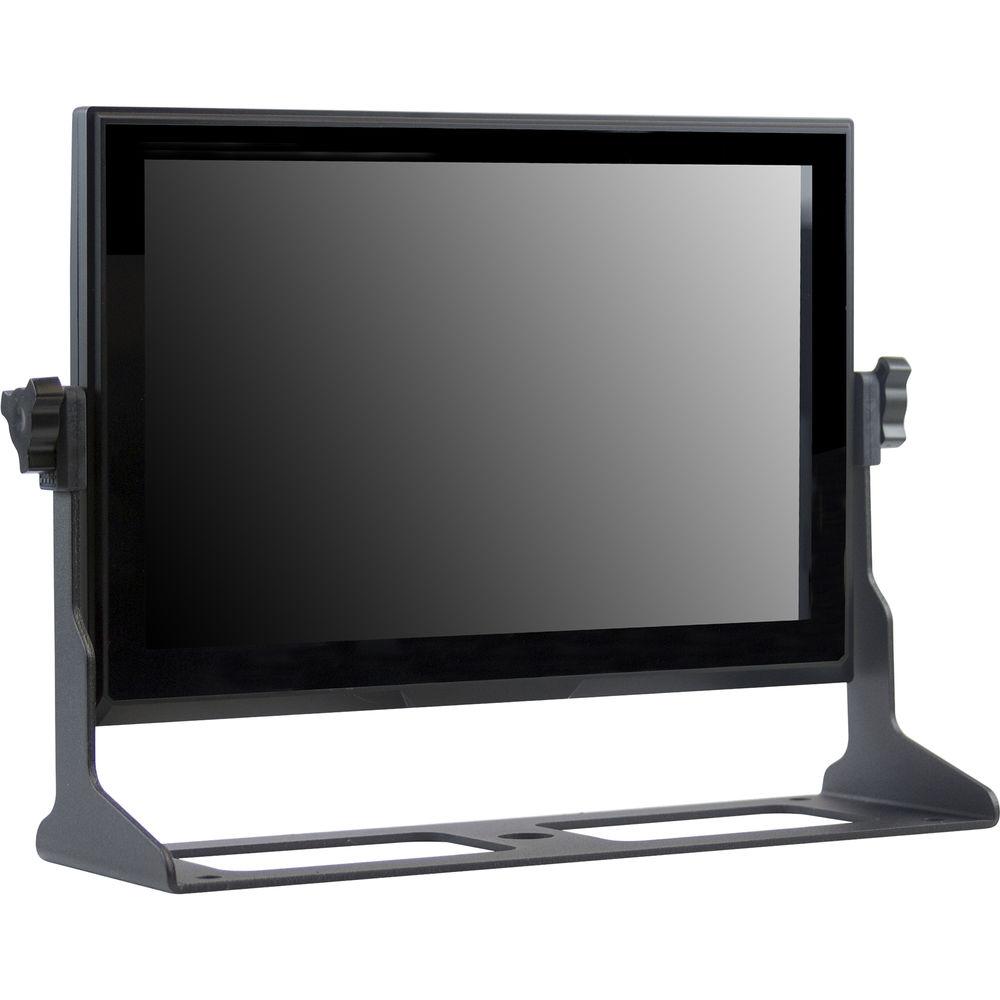

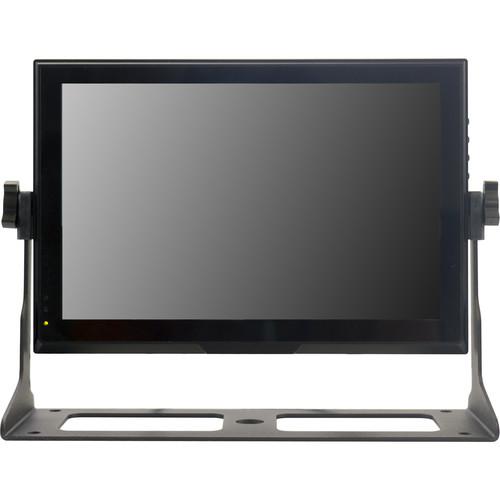

Product description The 10.1" HDMI/3G-SDI Broadcast Field Monitor from ViewZ features 3G-SDI, HDMI, composite, and VGA inputs, making it a versatile choice for 1080p60 filmmaking and photography. With a 16:10 aspect ratio and 800:1 contrast ratio, the IPS LCD panel displays Full HD images. The 3G-SDI and HDMI loop-through function allows you to output via 3G-SDI or HDMI to any other compatible device.

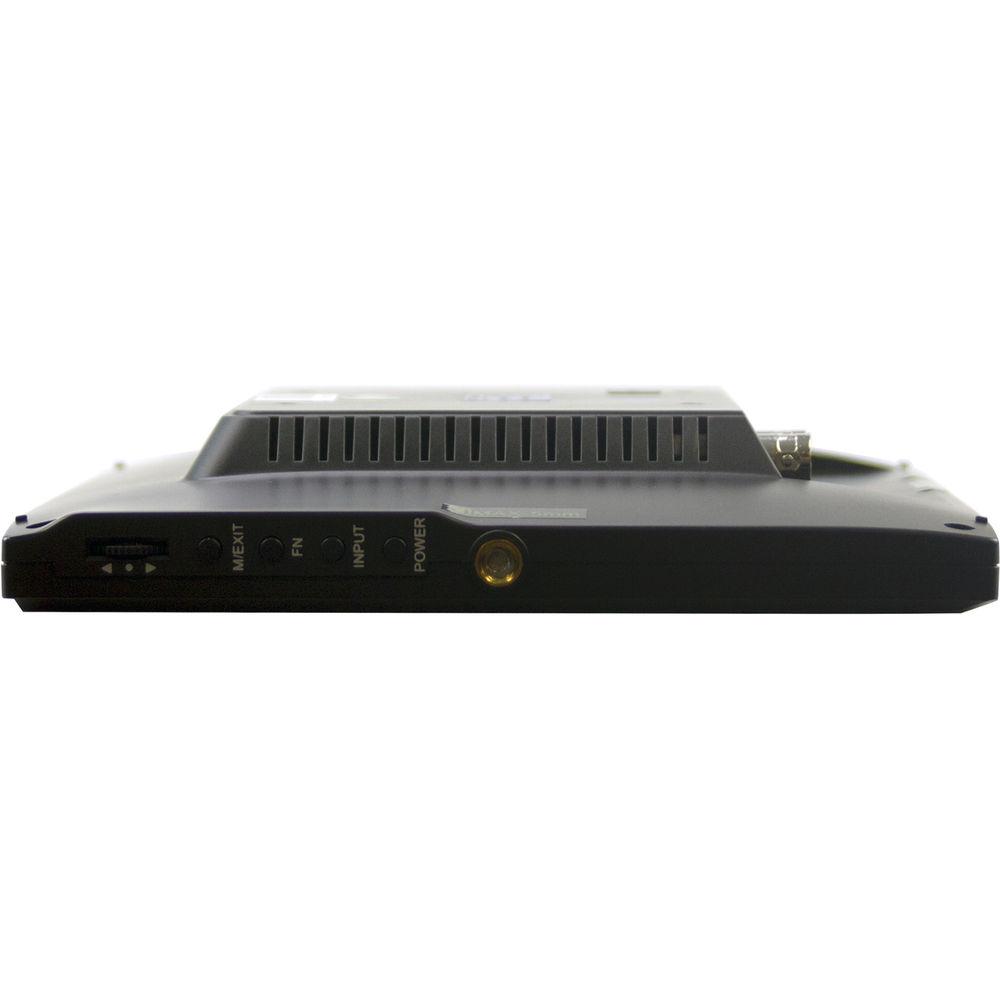

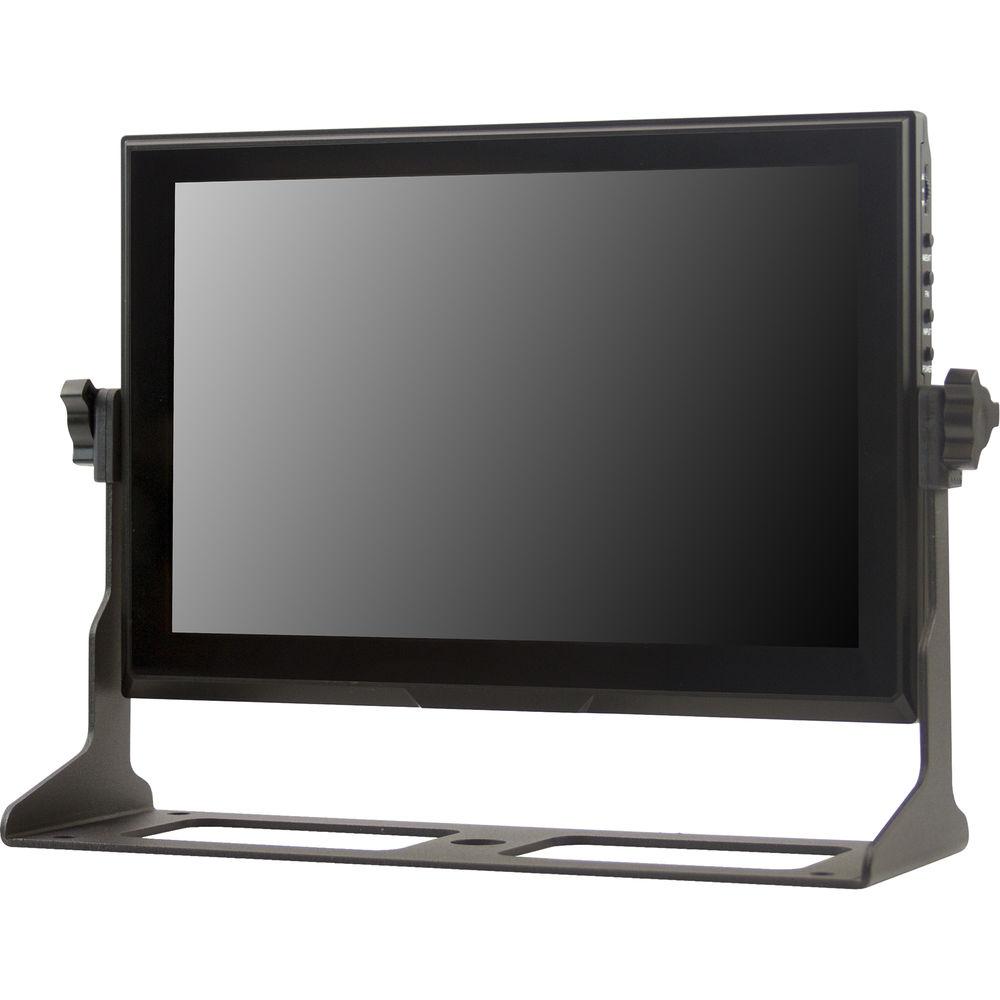

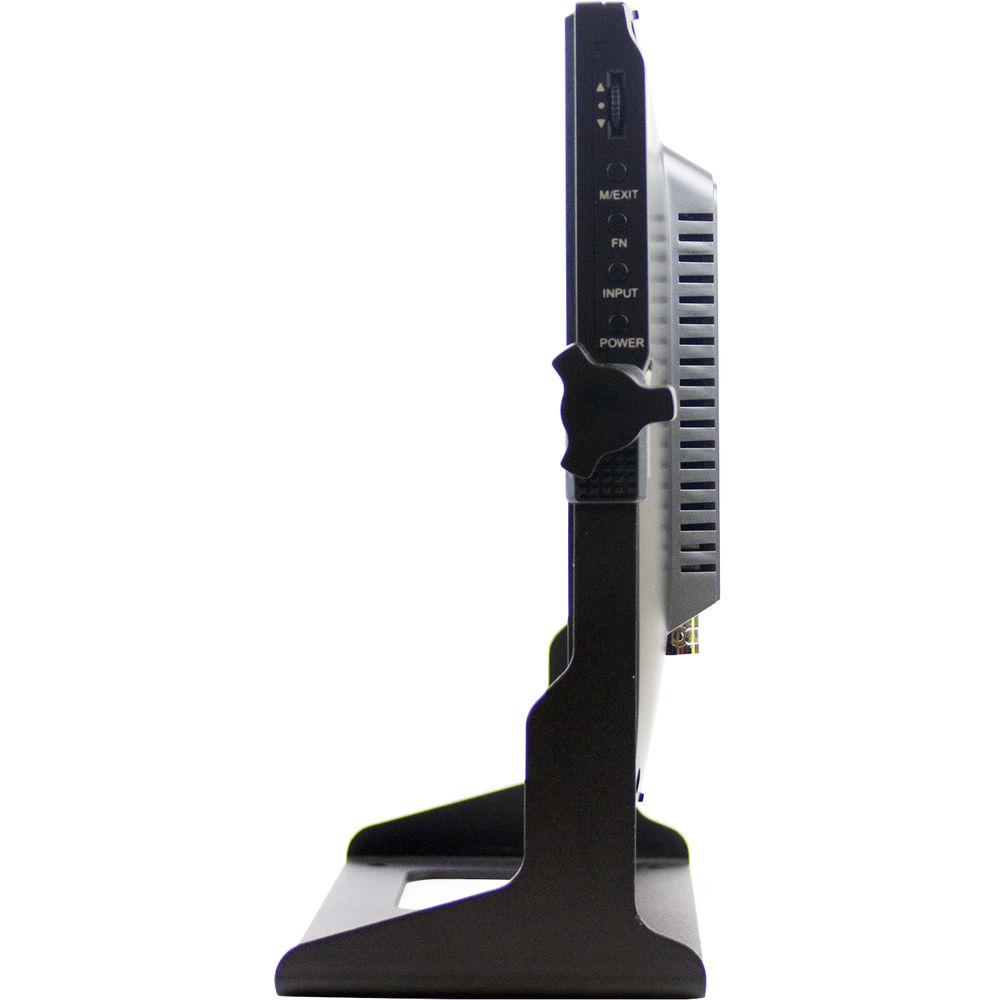

The monitor can be mounted onto the included adjustable table stand, or onto your camera by attaching the included shoe mount adapter to the thread at the bottom. You can also use the included VESA mount to attach the monitor to other mounts. The monitor also comes with a dual-purpose L-Series/LP-E6 battery plate, a video out cable, a 4-pin XLR cable, a composite cable, a 12 VDC power adapter, and a remote control. - 10.1" IPS LCD 1920 x 800 display with 170°/170° viewing angle, 800:1 contrast ratio, and 350 cd/m² brightness
- 3G-SDI, HDMI, and Composite inputs up to 1080p60 with loop outputs plus VGA input
- Tally support over 4-pin XLR input; red, green, and yellow indicators
- Analyze the incoming video signal with built-in video monitoring tools to achieve correct exposure, focus, and color balance. Built-in functions include:
- Timecode display
- Pixel zoom
- Pixel-to-pixel
- Waveform
- Color Temperature
- H/V delay
- Check field
- Focus peaking
- Markers
- Underscan
- Histogram
- Tally
- Vectorscope
- Image flip
In the Box ViewZ 10.1" HDMI/3G-SDI Broadcast Field Monitor Monitor Stand 12 VDC Power Adapter Shoe Mount Video Out Cable Composite Cable Remote Control 4-Pin XLR / Tally Cable Mounting Plate L-Series/LP-E6 Battery Plate VESA Battery Plate Limited 2-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the ViewZ 10.1" HDMI 3G-SDI Broadcast Field Monitor in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.

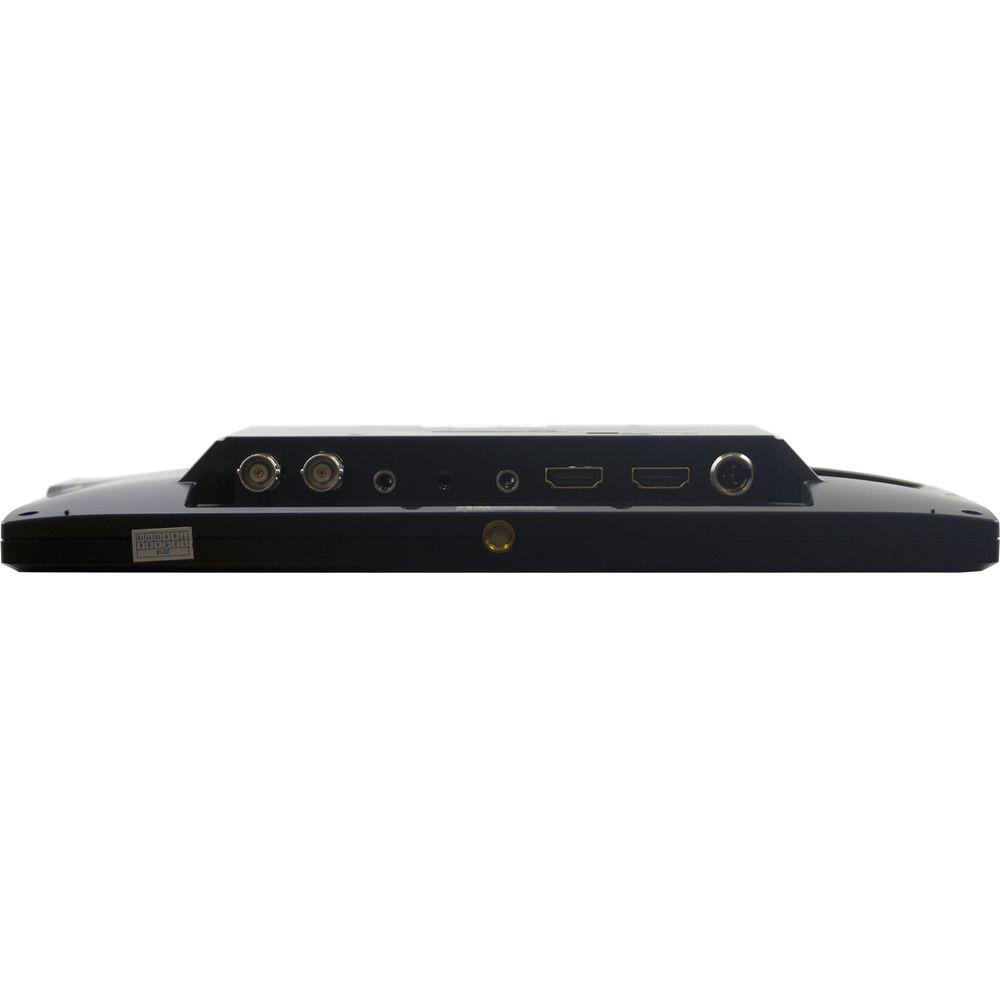

Technical parametersViewZ VZ-101FM-E Specs | | | Panel Type | IPS-Type LCD | | Display Size | 10.1" / 25.7 cm | | Active Area | 8.54 x 5.34" / 216.96 x 135.6 mm | | Screen Resolution | 1280 x 800 | | Aspect Ratio | 16:10 | | Viewing Angle | Horizontal: 170°
Vertical: 170° | | Touchscreen | No | | Maximum Brightness | 350 cd/m2 | | Contrast Ratio | 800:1 | | Dot Pitch | 0.1695 x 0.1695 mm | | Bit Depth / Color Support | 8-Bit (16.7 Million Colors) | | Real-Time LUT Monitoring | No | | Image Controls | H/V Delay, Image Flip, Pixel-to-Pixel Zoom, R/G/B/Chroma Only, Screen Markers, Underscan, Waveform, Vectorscope | | | | Video | 1 x BNC (3G-SDI) Input
1 x BNC (3G-SDI) Output
1 x HDMI Type A (HDMI 1.4) Input
1 x HDMI Type A (HDMI 1.4) Output
1 x RCA (Composite) Input
1 x RCA (Composite) Output

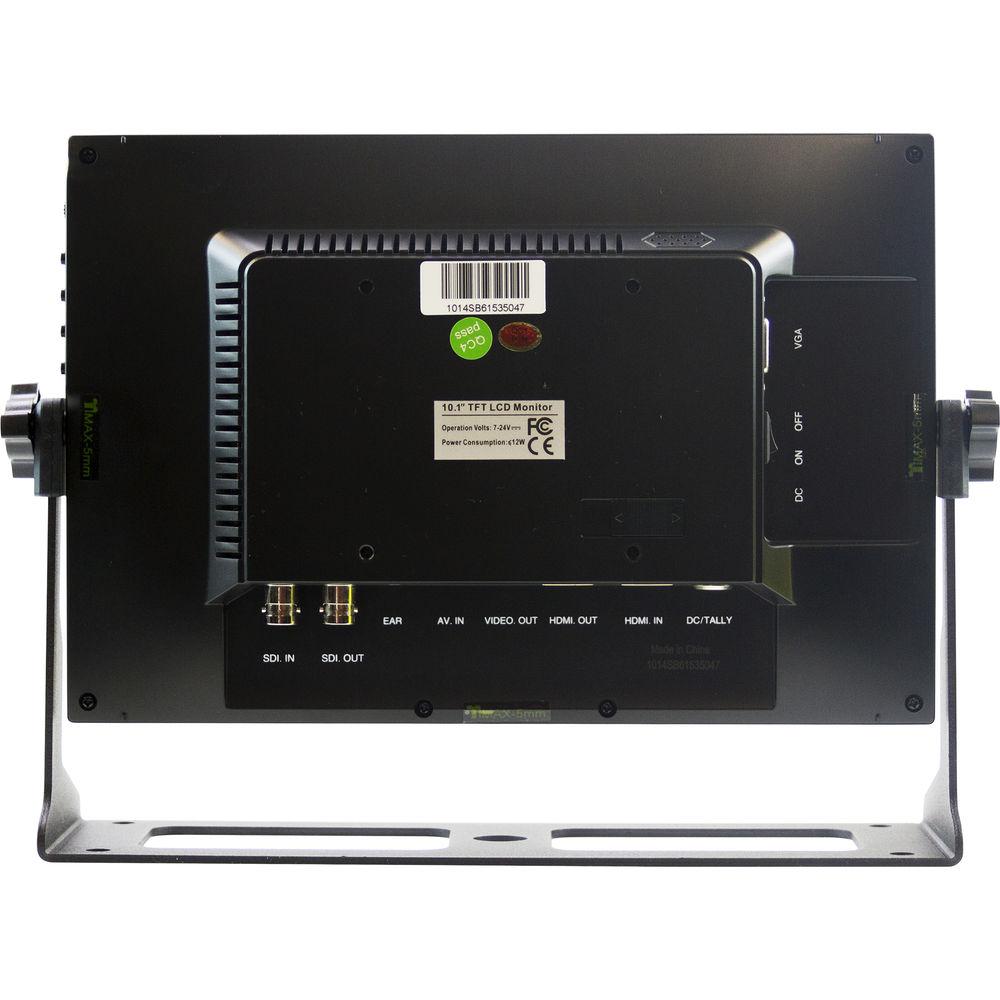

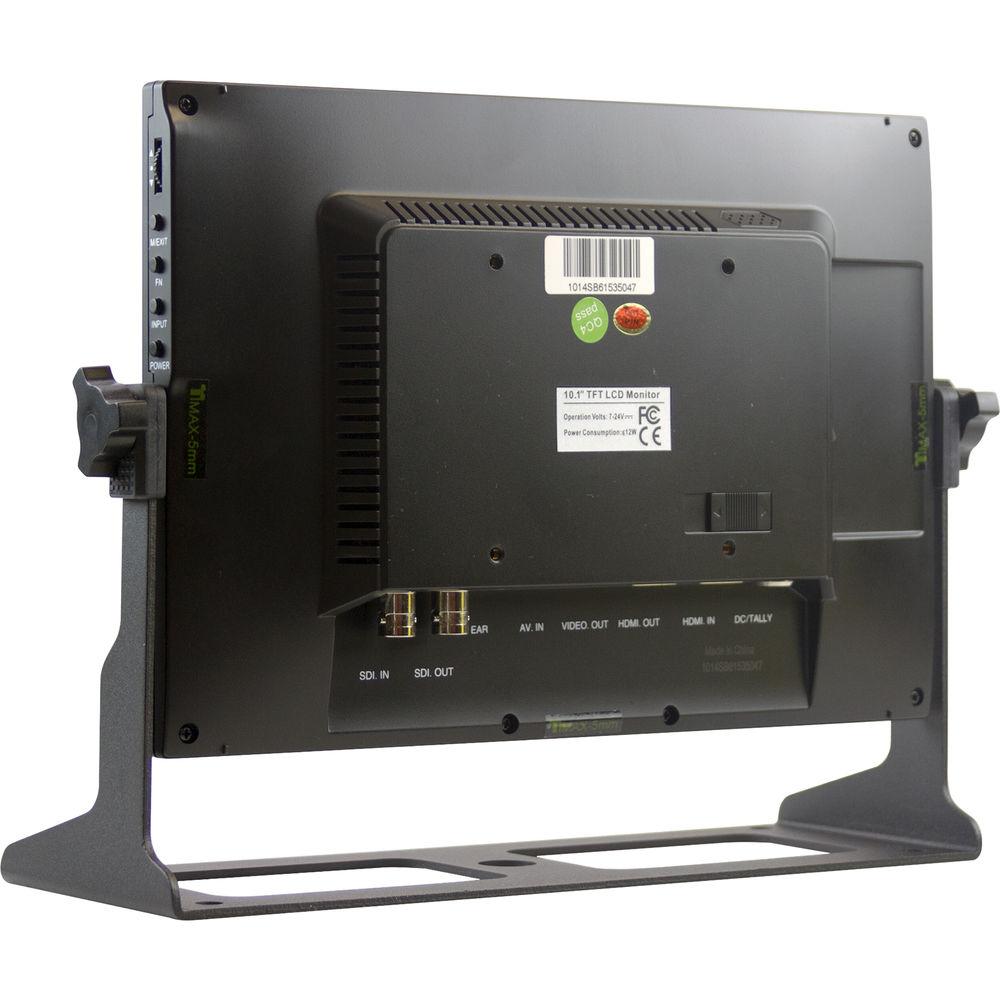

1 x DE-15/DB-15 (VGA) Input | | HDCP Support | No | | Audio | 1 x 3.5 mm Headphone Output | | Built-In Speaker | 1 x 1 W | | Power | 1 x 4-Pin XLR (800 mA) Input
1 x Barrel (800 mA) Input | | Other I/O | 1 x Tally (Proprietary) DC/Tally Input | | Card Slot | None | | | | Video Format | SDI (8-BitRGB)
1080p: 60/59.94/50/30/29.97/25/24/23.98
1080PsF: 30/29.97/25/24/23.98
1080i: 60/59.94/50
720p: 60/59.94/50/30/29.97/25
PAL: 50
NTSC: 60/59.94 | | | | DC Input Power | 7 to 24 VDC at 800 mA | | Battery Type | 1 x LP-E6, L-Series | | Power Consumption | 12 W | | | | Mounting-Hole Pattern | 75 x 75 mm | | Mounting | 1 x 1/4"-20 Female | | | | Operating Humidity | 90% | | Operating Temperature | -4 to 140°F / -20 to 60°C | | Storage Humidity | 90% | | Storage Temperature | 32 to 122°F / 0 to 50°C | | | | Dimensions (W x H x D) | 9.84 x 6.69 x 1.27" / 24.99 x 16.99 x 3.23 cm | | Weight | 1.45 lb / 658 g |
